USER MANUAL Max Power RY36SHX40 RYOBI

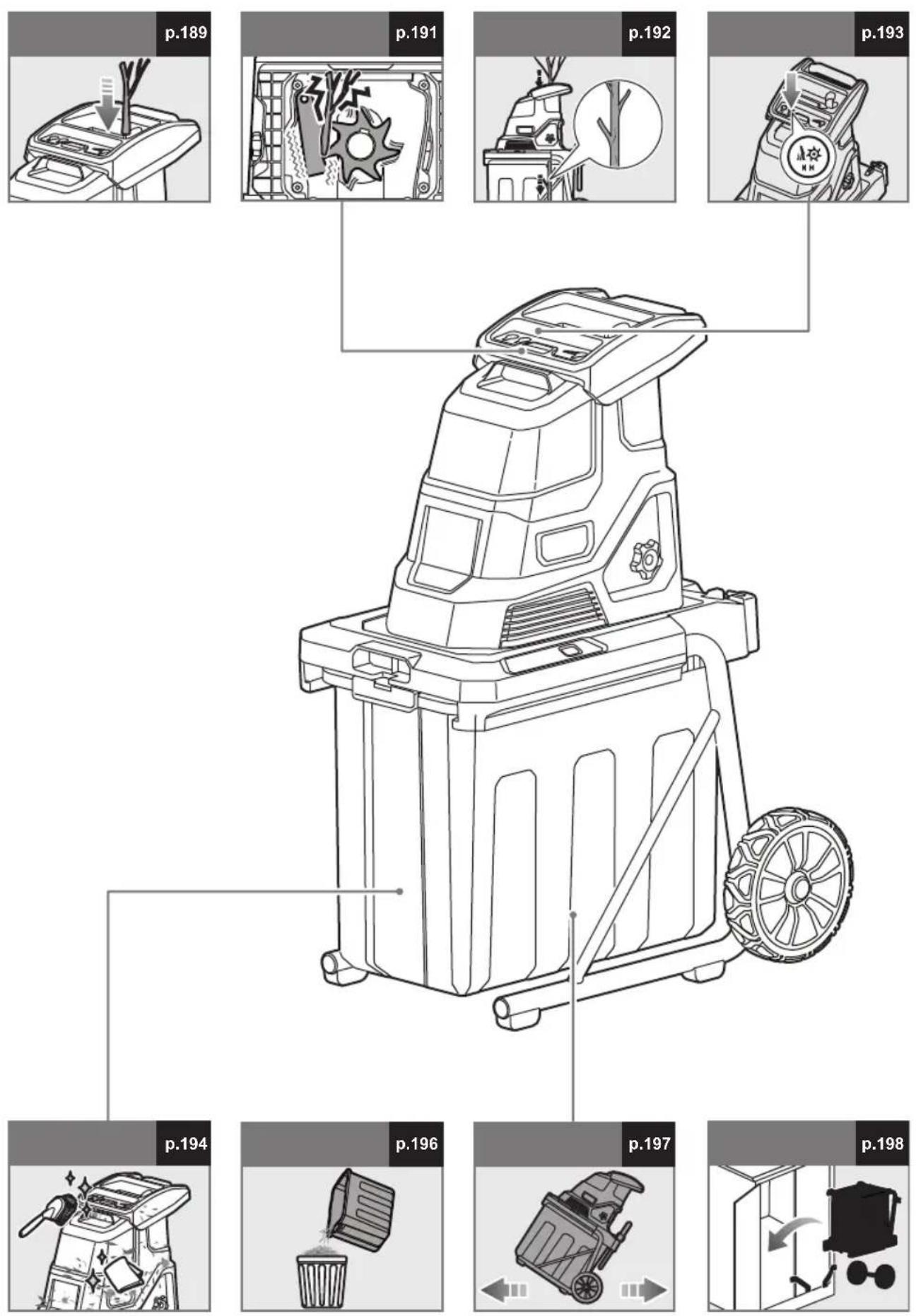

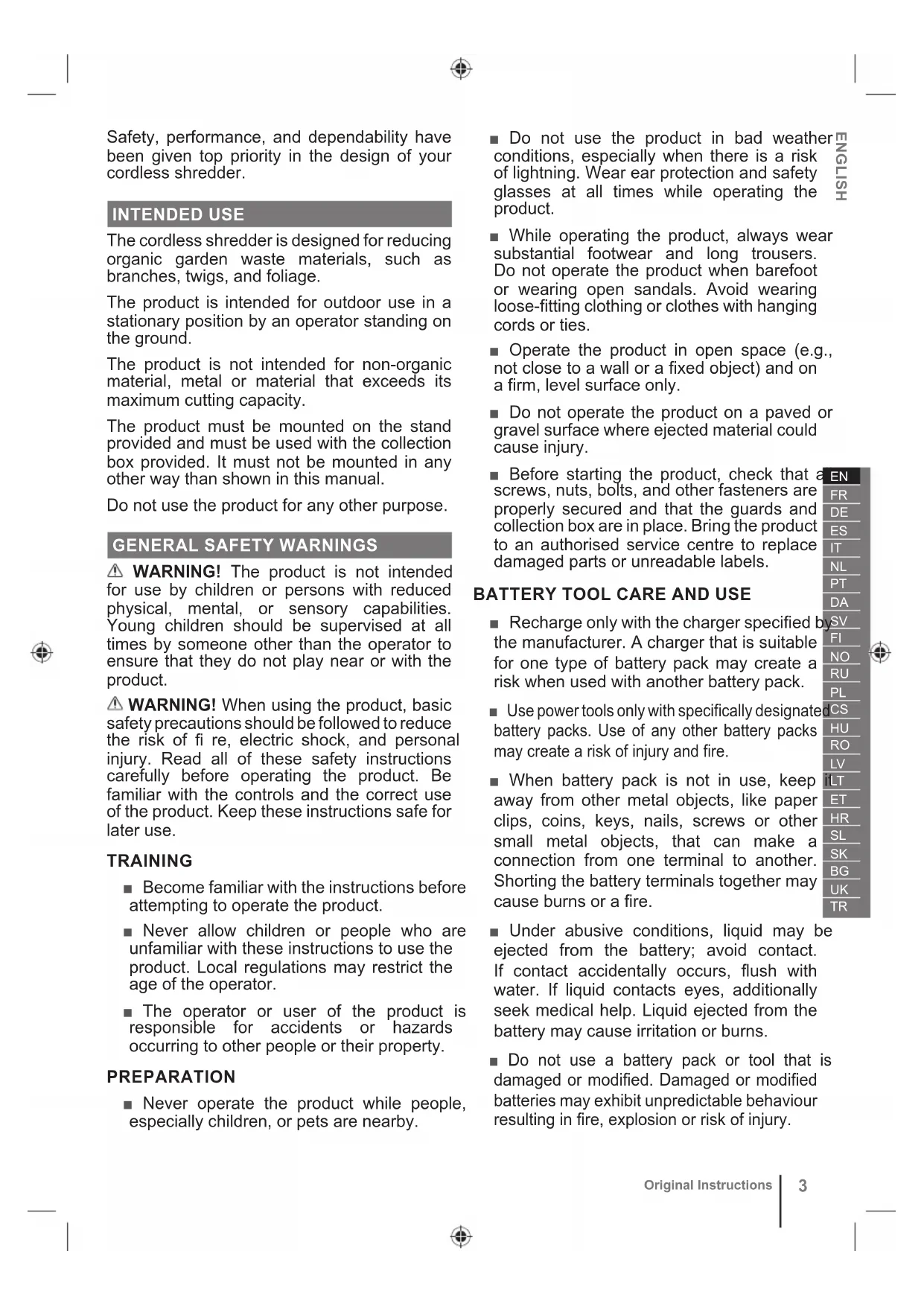

WARNING! The product is not intended for use by children or persons with reduced physical, mental, or sensory capabilities. Young children should be supervised at all times by someone other than the operator to ensure that they do not play near or with the product. WARNING! When using the product, basic safety precautions should be followed to reduce the risk of fi re, electric shock, and personal injury. Read all of these safety instructions carefully before operating the product. Be familiar with the controls and the correct use of the product. Keep these instructions safe for later use. TRAINING ■ Become familiar with the instructions before attempting to operate the product. ■ Never allow children or people who are unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator. ■ The operator or user of the product is responsible for accidents or hazards occurring to other people or their property. PREPARATION ■ Never operate the product while people, especially children, or pets are nearby. ■ Do not use the product in bad weather conditions, especially when there is a risk of lightning. Wear ear protection and safety glasses at all times while operating the product. ■ While operating the product, always wear substantial footwear and long trousers. Do not operate the product when barefoot or wearing open sandals. Avoid wearing loose-fitting clothing or clothes with hanging cords or ties. ■ Operate the product in open space (e.g., not close to a wall or a fixed object) and on a firm, level surface only. ■ Do not operate the product on a paved or gravel surface where ejected material could cause injury. ■ Before starting the product, check that all screws, nuts, bolts, and other fasteners are properly secured and that the guards and collection box are in place. Bring the product to an authorised service centre to replace damaged parts or unreadable labels.

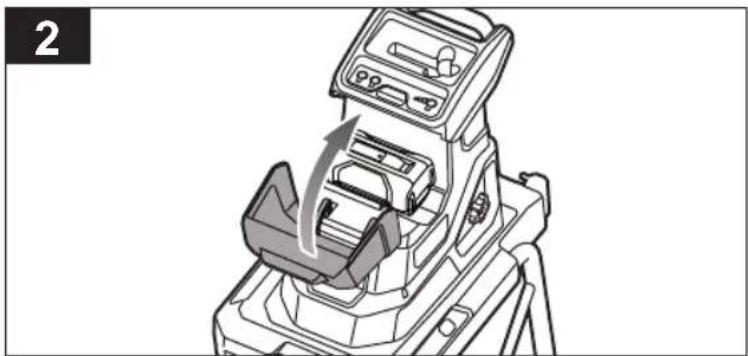

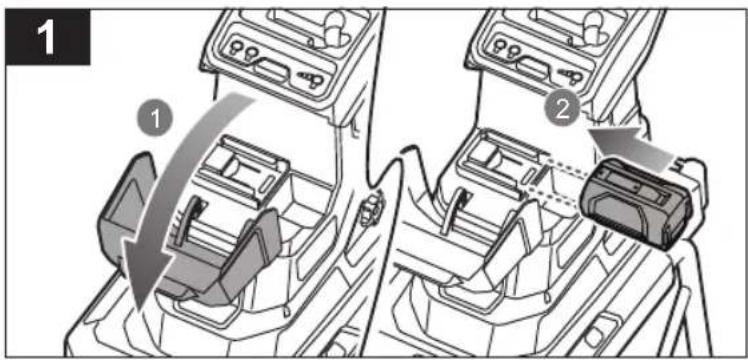

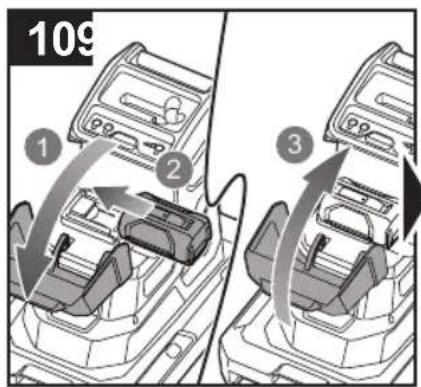

BATTERY TOOL CARE AND USE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk when used with another battery pack. ■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. ■ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. ■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. ■ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. ENGLISH

Original Instructions■ Do not use a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion. ■ Follow all charging instructions and do not change the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. SERVICE ■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. ■ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

CORDLESS SHREDDER SAFETY

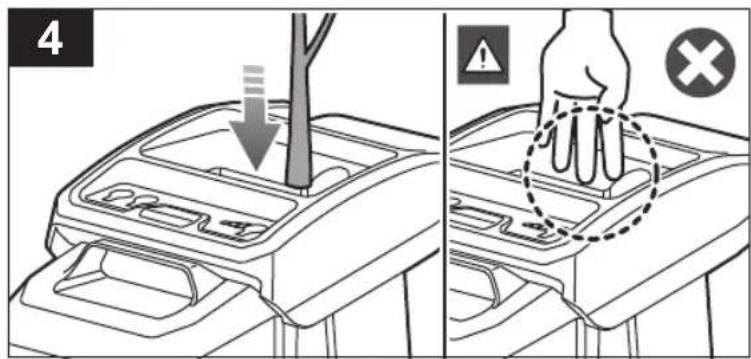

WARNINGS ■ While setting up the product for use, make sure that the product is secured so that it does not tip over. If the product is turned off too quickly, remaining pieces of material may clog the blade assembly and stall the motor when the product is turned back on. ■ Before starting the product, look into the feeding chamber to make sure that it is empty. ■ Keep your face and body away from the feed intake opening. ■ Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part. ■ Always be sure of your footing. Keep firm footing and balance at all times. Do not overreach. Never stand at a higher level than the base of the product when feeding material into it. Walk, never run. ■ Always stand clear of the discharge zone when operating the product. ■ When feeding material into the product, be extremely careful that pieces of metal, rocks, bottles, cans, or other foreign objects are not included. ■ If the cutting mechanism strikes any foreign objects or if the product should start making any unusual noise or vibration, turn off the product and allow the cutters to completely stop. Remove the battery pack. Perform the following steps: ● Inspect the product for damage. ● Check and tighten any loose parts of the product. ● Replace or repair any damaged parts. ■ Do not allow processed material to build up in the discharge chute as this may prevent proper discharge or blockage and can result in kickback of material through the feed intake opening. ■ If the product becomes clogged, turn off the product and allow the cutters to completely stop. Remove the battery pack before clearing debris. ■ Never operate the product if the guards, covers, collection box, or other safety devices are defective, not in place, and not in good working order. ■ Do not move or transport the product while the product is running. ■ Turn off the product and remove the battery pack. Make sure that all moving parts have come to a complete stop: ● before leaving the product unattended ● before clearing a blockage ● before checking, cleaning, or working on the product ■ Do not tilt the product while it is running. ■ Injuries may be caused, or aggravated, by prolonged use of the product. When using the product for prolonged periods, ensure to take regular breaks. ■ Do not modify the product in any way or use parts and accessories that are not recommended by the manufacturer. This may increase the risk of serious injury to yourself or others. ■ Always ensure that the ventilation openings are kept clear of debris. The motor may overheat resulting in possible damage to the product or increase the risk of fire. ■ Turn off the product before attaching or removing the collection box. ■ Immediately turn off the product and remove the battery pack in the event of accident or breakdown. Do not operate the product again until it has been fully checked by an authorised service centre.

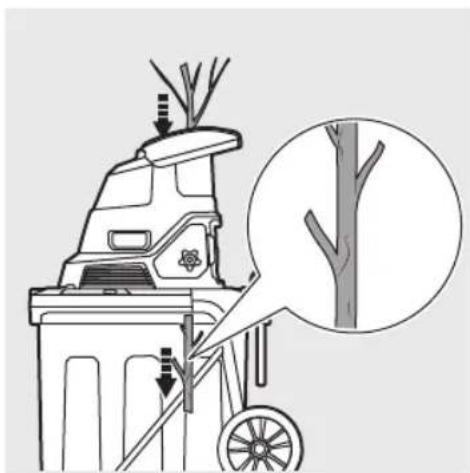

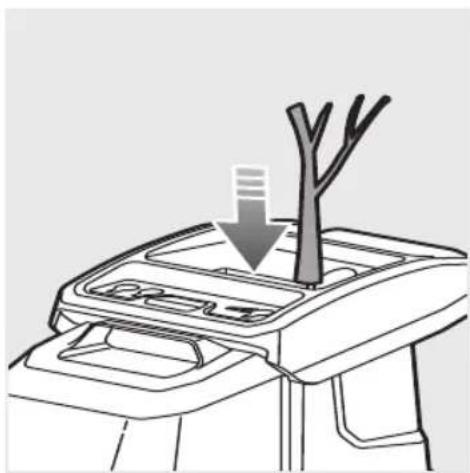

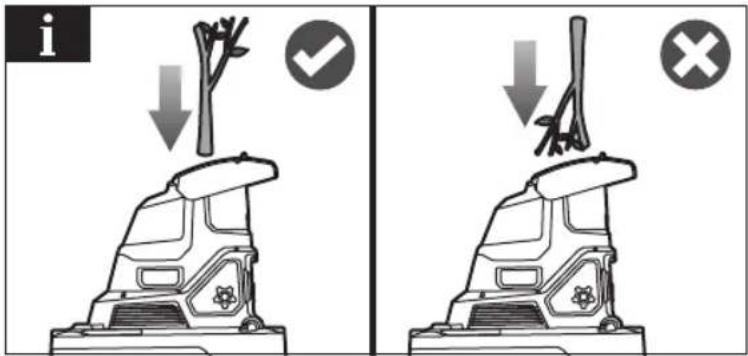

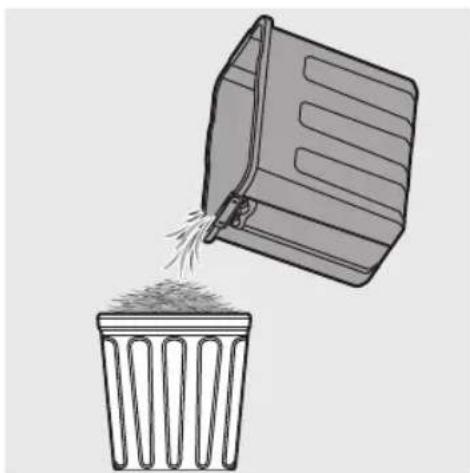

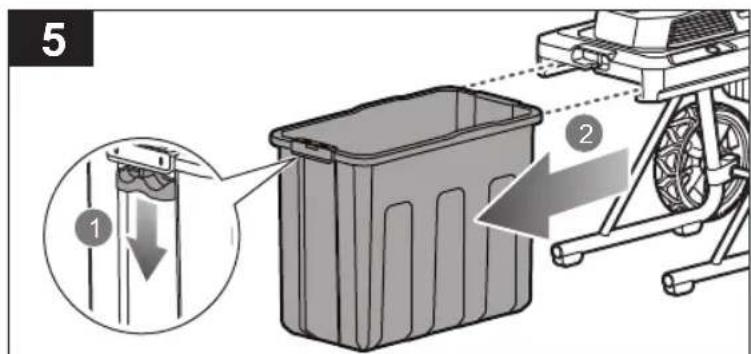

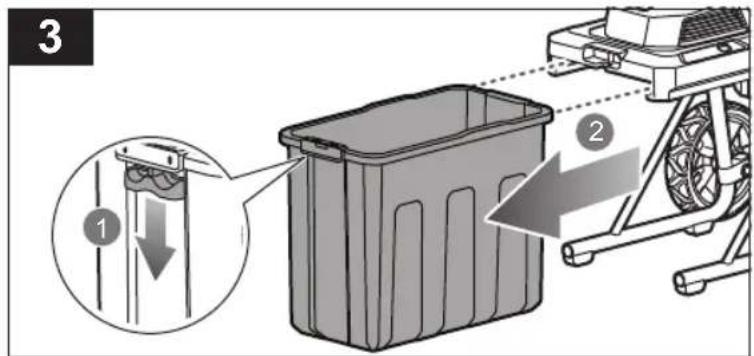

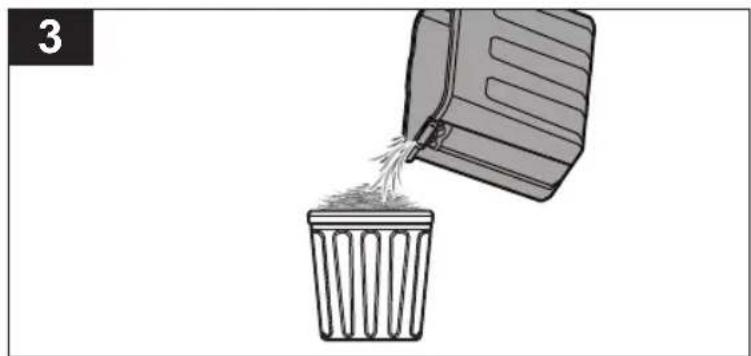

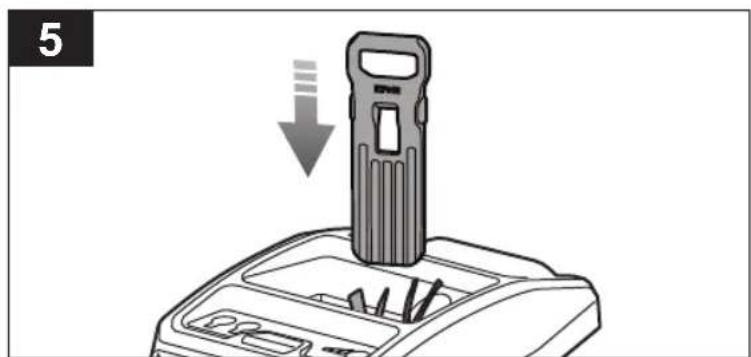

Original InstructionsSHREDDING GUIDE For best results when shredding, follow the guidelines shown in the table below. MATERIAL SHREDDING METHOD Branches up to 40 mm in diameter. Clip off all side growth with secateurs before feeding into the feeding hopper. Bedding plants, weeds, and shrubby growth. Knock soil and stones off the roots to avoid damage to the blades. Freshly cut foliage, hedge, and kitchen waste (i.e., cabbage leaves, vegetable peelings, etc.) With any material having a high moisture content, it is advised to feed in some drier sticks at regular intervals to help push the material through the cutting assembly and prevent it from clogging. Dry sticks and twigs By inserting these at the end of your shredding task, this will help to clean the moisture and plant sap from the inside of the product and the cutting assembly. ■ Do not allow garden waste to accumulate before shredding as it will begin to compost, become too damp, and clog the cutting assembly. Dry material will help most material to clear the ejection chute. Save some dry sticks until last to help clean the blade area. ■ Frequently monitor the build-up of shredded material. ■ When the collection box is full, turn off the product before emptying. ■ When feeding long woody branches or stems into the product, be careful of whip and vibrations as they get caught by the cutter. The operator must wear eye protection whenever using the product. ■ The cutting device has a tendency to pull branches or stems into the product. Do not try to impede the entry of the material being cut once feeding has started. Always wear gloves to prevent skin lacerations when feeding material into the product. ■ In normal use, do not turn off the product until all of the shredded material has cleared the cutter assembly. If the product is turned off too quickly, remaining pieces of material may clog the blade assembly and stall the motor when the product is turned back on.

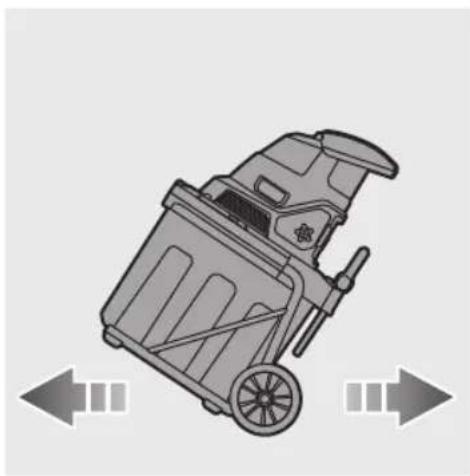

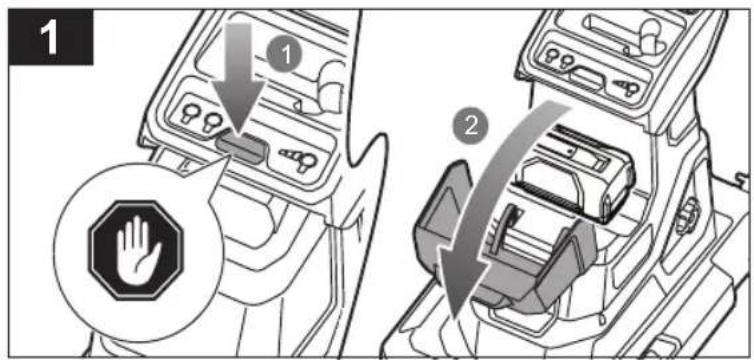

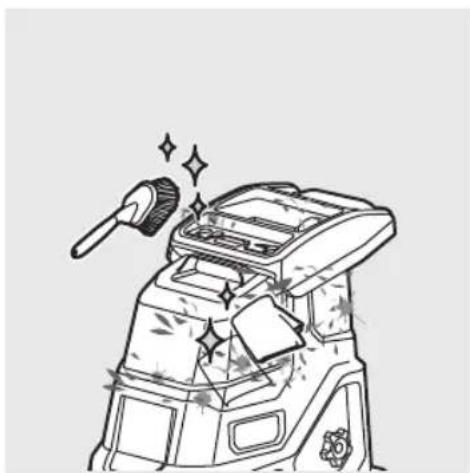

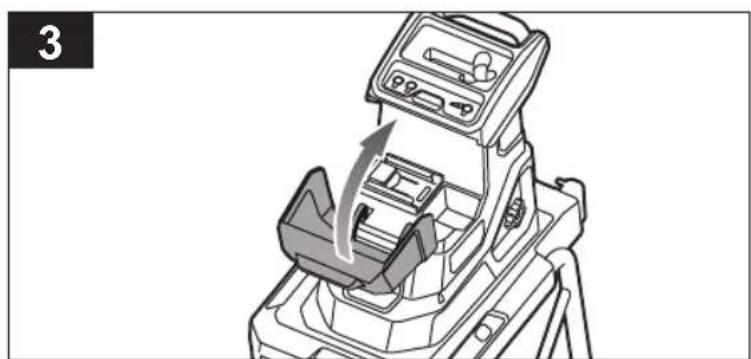

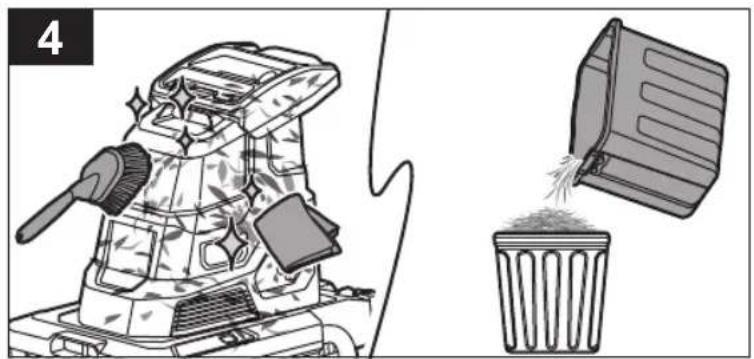

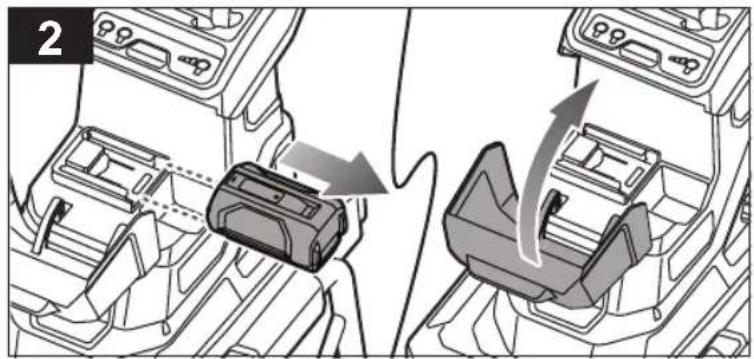

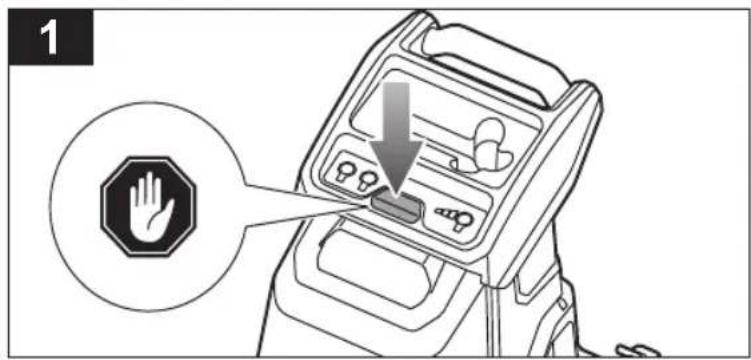

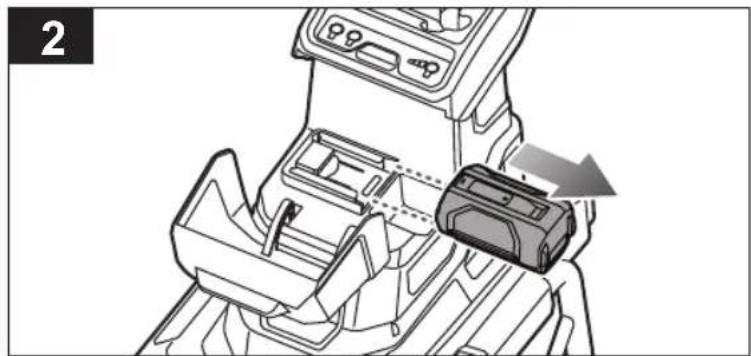

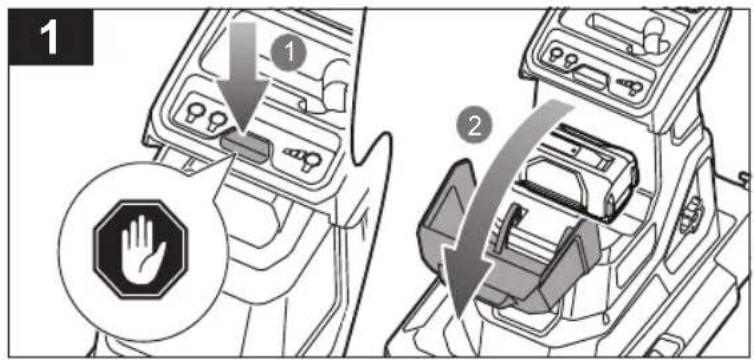

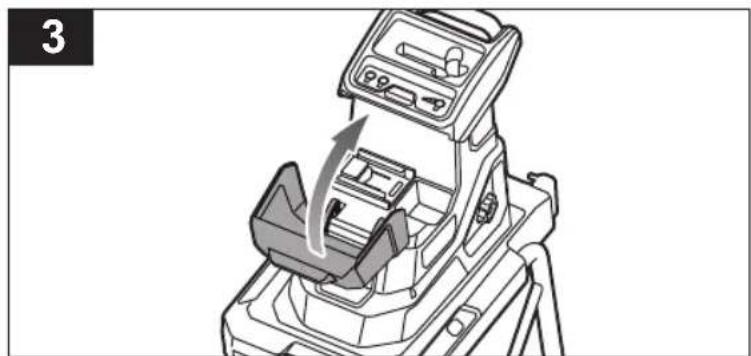

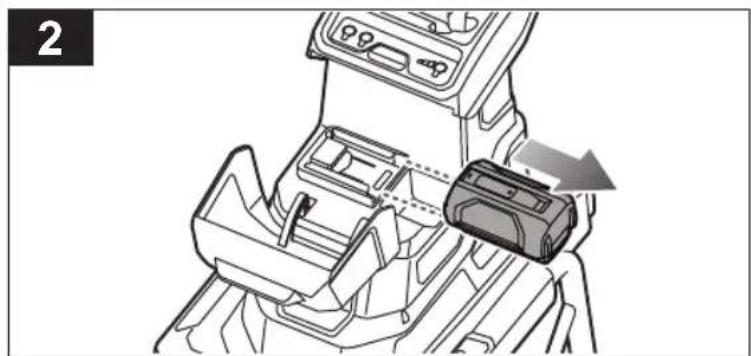

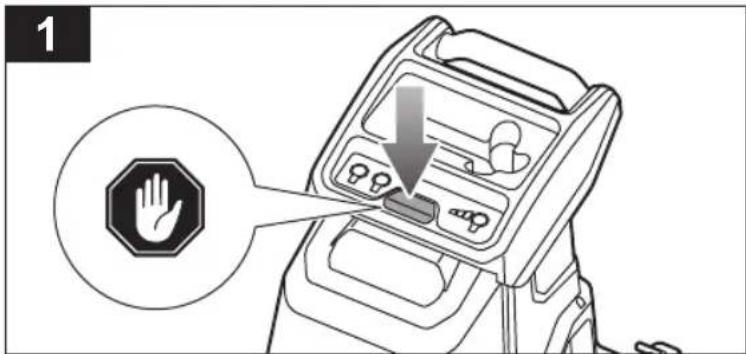

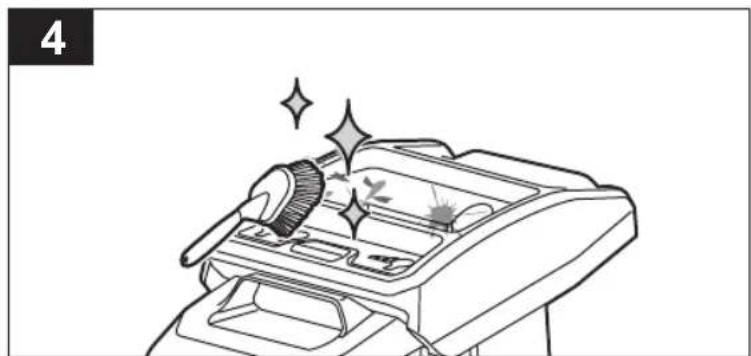

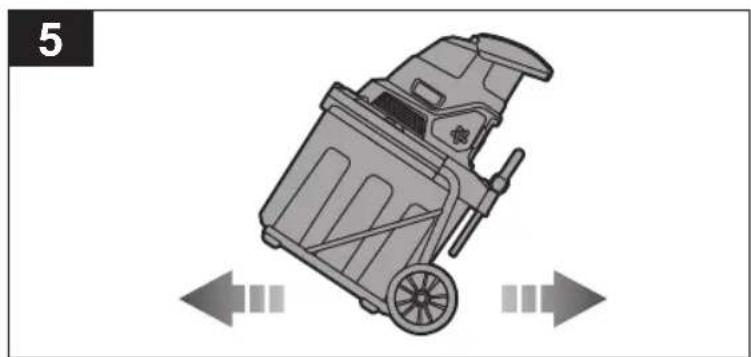

Turn off the product, remove the battery pack, and allow both to cool before storing or transporting. ■ Make sure that the product has been thoroughly cleaned before storing it in a clean, dry place and secured out of the reach of children. ■ When transporting the product in a vehicle, secure it against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations. Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, nonconductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

ADDITIONAL BATTERY SAFETY

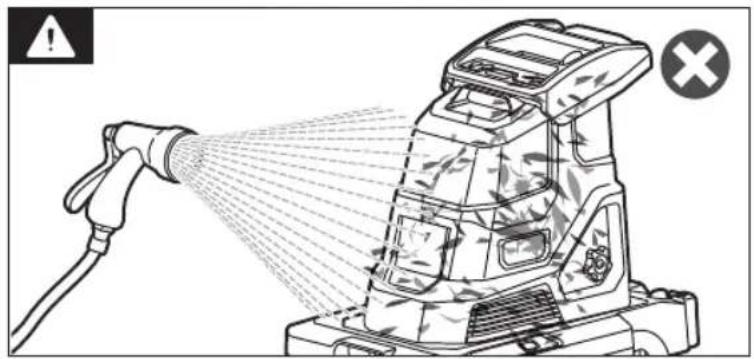

WARNINGS ■ To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse the product, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, ENGLISH

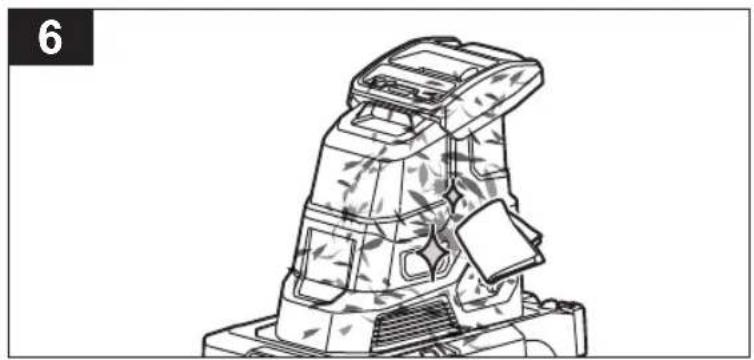

Original Instructionsand bleach or bleach-containing products, etc., can cause a short circuit. ■ Charge the battery pack in a location where the ambient temperature is between 10°C and 38°C. ■ Store the battery pack in a location where the ambient temperature is between 0°C and 20°C. ■ Use the battery pack in a location where the ambient temperature is between 0°C and 40°C. MAINTENANCE ■ Use only original manufacturer’s replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty. ■ Before cleaning, inspecting, or servicing the product, turn it off, allow the cutters to completely stop, and remove the battery pack. After some time of shredding, the cutting mechanism will become hot. Allow it to cool down before cleaning, inspecting, or adjusting. ■ The cutter blades are extremely sharp. To avoid injury, exercise extreme caution and care when cleaning or working near the blades or inside the opened enclosure when the collection box is removed. Always wear heavy-duty protective gloves. ■ Be aware that the cutting means can still be moved even when the power is off or if the interlock switch is engaged. ■ To ensure the best performance of the product, it must be kept clean. ■ Always clean the product immediately after use. Wherever possible, use a stiff brush inside the feed and discharge chutes and a dry cloth on the outside of the product. ■ Do not allow material to become dry and hard on any of the product surfaces, but particularly on the blades. This directly affects the shredding performance. ■ Make sure that the feed hopper and the ejection chute are kept clean and clear of all waste material. ■ Make sure that all nuts, bolts, and screws (except the adjusting screw) are tight and secure. ■ Always have any damaged or worn parts repaired or replaced by qualified personnel at an authorised service centre. ■ Never attempt to bypass the interlock switches on the collection box or the front cover of the cutter assembly. ■ Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Never use brake fluids, gasoline, petroleum- based products, or any solvents to clean the product. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. ■ You may perform maintenance tasks described in this manual. For other repairs, have the product serviced by an authorised service centre.

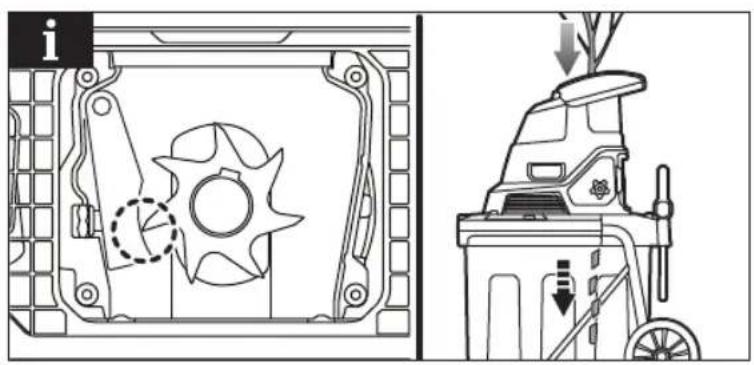

ADJUSTING THE CRUSHING PLATE

■ If the product fails to shred material, the crushing plate may need adjustment or the blades may need to be sharpened. ■ Over time the crushing plate on the product needs to be adjusted. This can be completed by adjusting the crushing plate so it will come into light contact with the blades. Ensure that the product is turned on and working in normal forward direction. ■ Adjusting the crushing plate while the motor is turned off could lead to serious damage to the product. NOTE: Adjusting the crushing plate should only be attempted when deemed totally necessary. Adjusting the crushing plate too often or too far could cause the product to stop working.

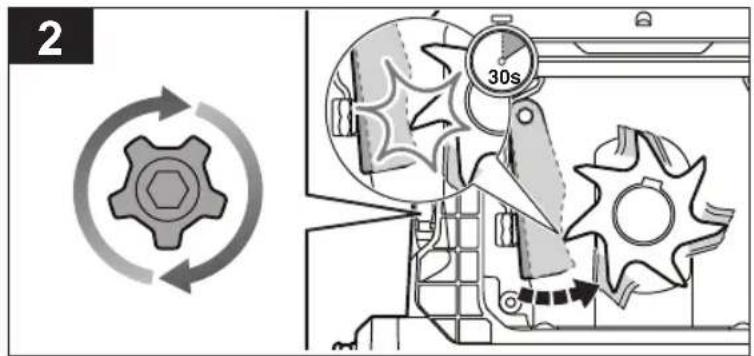

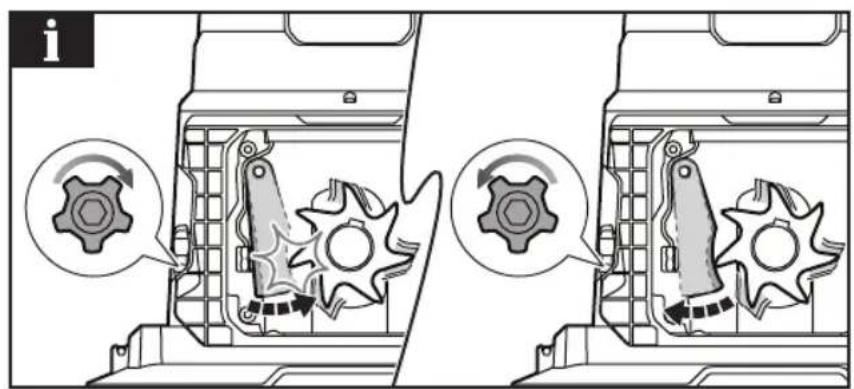

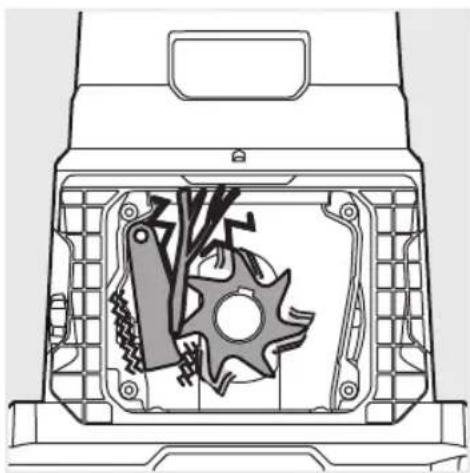

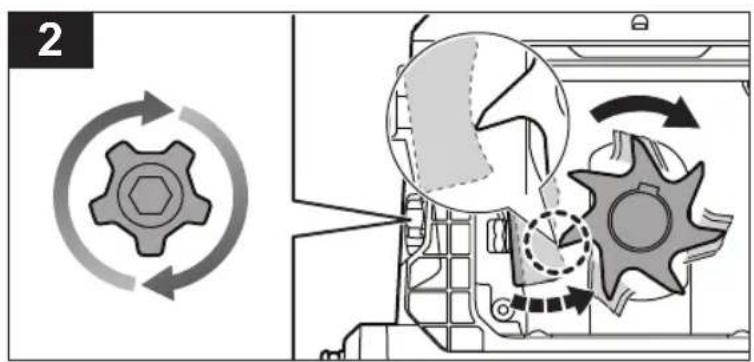

1. While the product is running, turn the

adjusting knob clockwise.

2. When you hear metal on metal contact

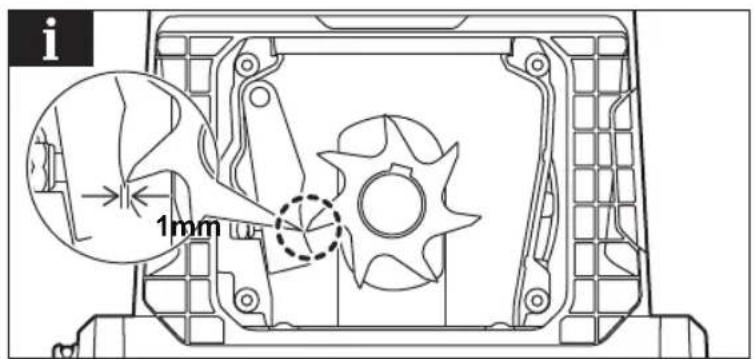

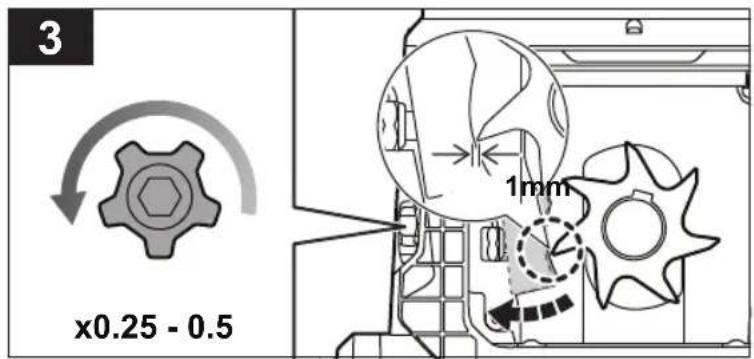

or you see fine aluminum shavings in the bottom of the collection container, stop the adjustment and allow the product to run for 30 seconds. Then turn the adjustment knob counterclockwise 0.25 – 0.5 turn until it is no longer in contact with the crushing plate, leaving a 1 mm gap.

Original InstructionsNOTE: Complete any adjustment slowly to avoid damaging the product. Over adjusting the plate can cause serious damage to the product.

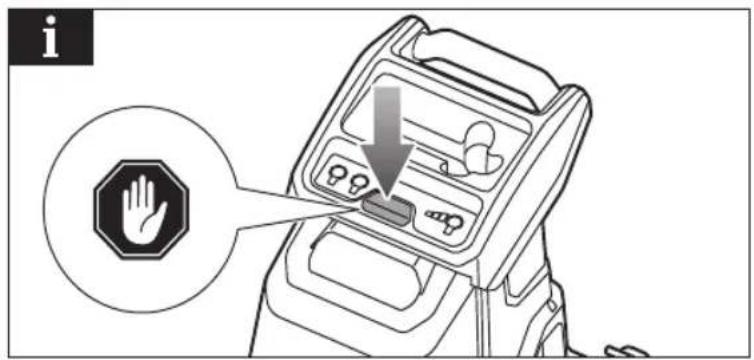

NOTE: Make sure that the product is in the off state.

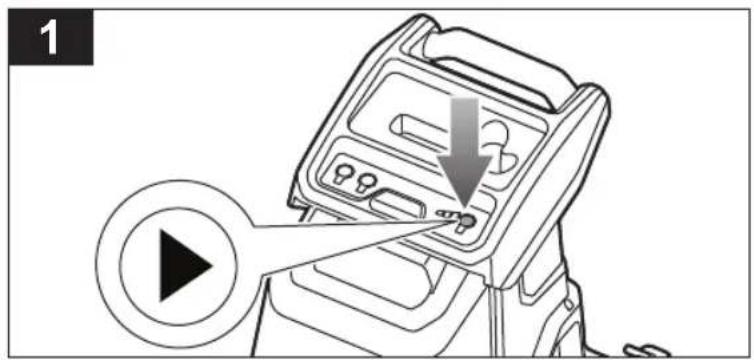

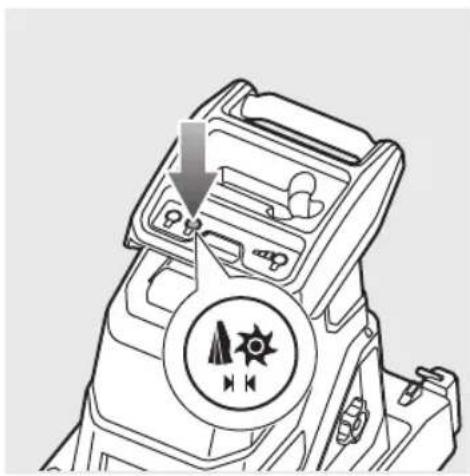

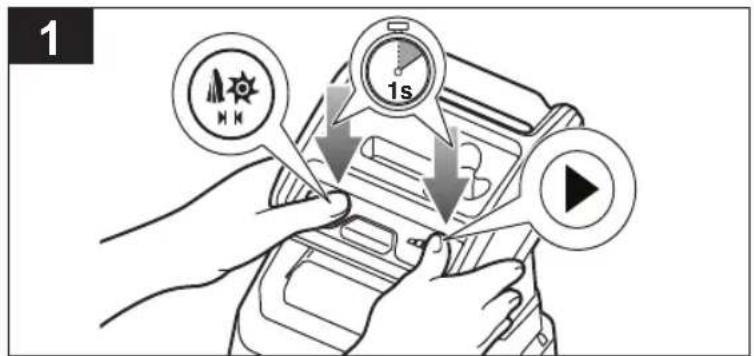

1. When the product is off, hold the

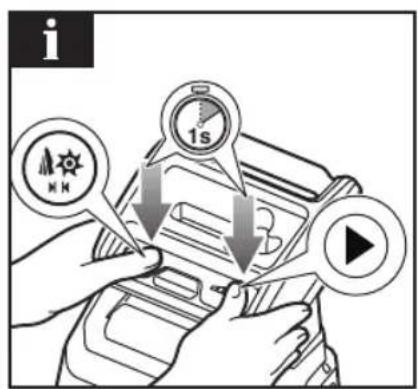

calibration mode button and then press the start button. The blade will start to begin calibration.

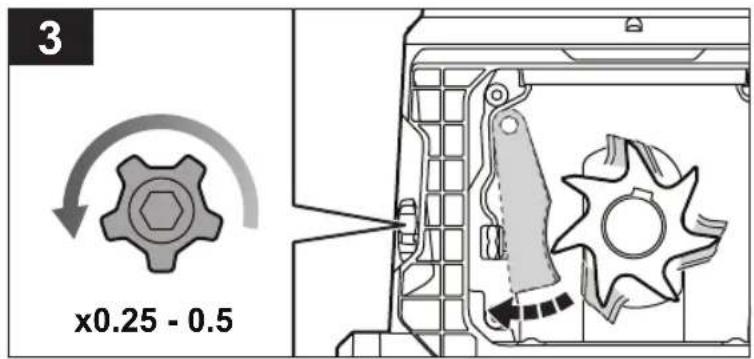

2. Turn the crushing plate adjustment knob

clockwise until the product turns off. NOTE: Turn the knob counterclockwise at

0.25 – 0.5 turn until the crushing plate and the

blades are no longer in contact.

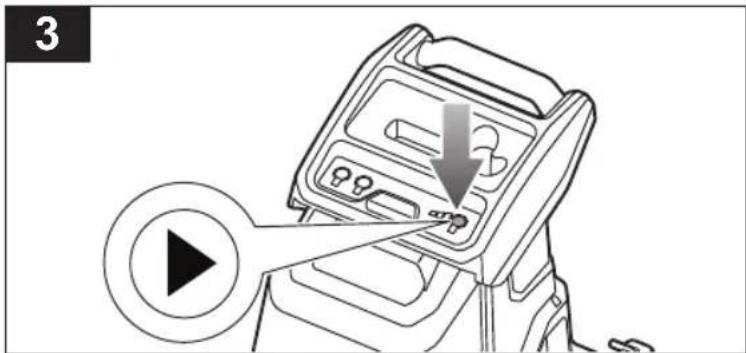

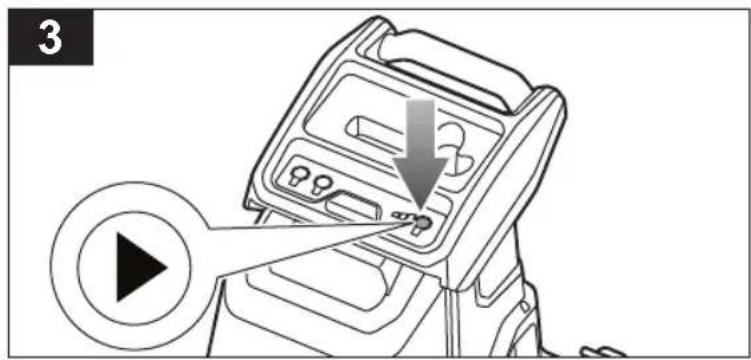

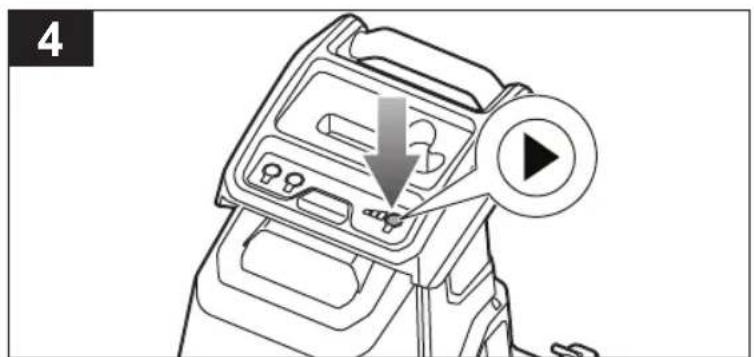

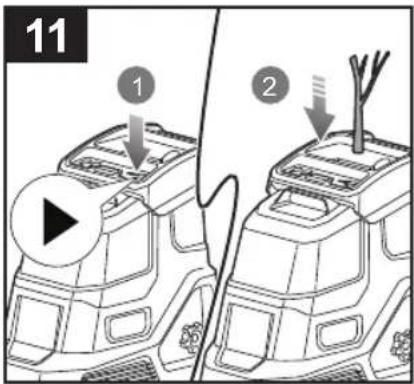

3. Press the start button to refeed material

8. Crushing plate adjustment knob

SYMBOLS ON THE PRODUCT

Read and understand all instructions before operating the product. Follow all warnings and safety instructions. Beware of thrown or fl ying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area Warning! Disconnect the battery pack before maintenance, adjusting, and cleaning. Danger! Rotating blades. Keep hands and feet out of openings while the product is running. Wear eye and ear protection. Do not use as a step. Wait until all product components have completely stopped before touching them.

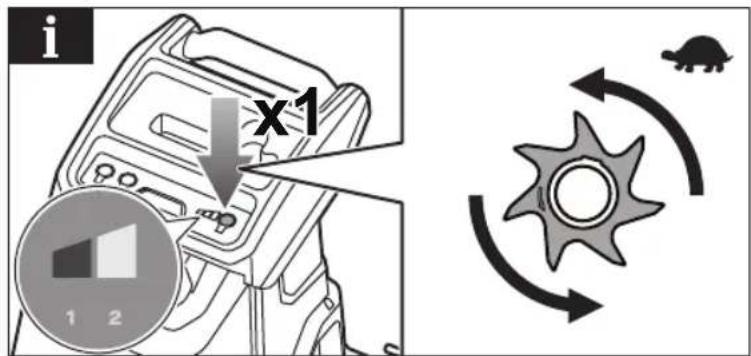

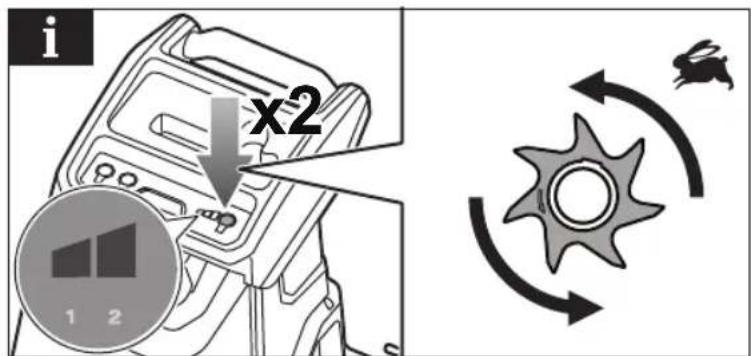

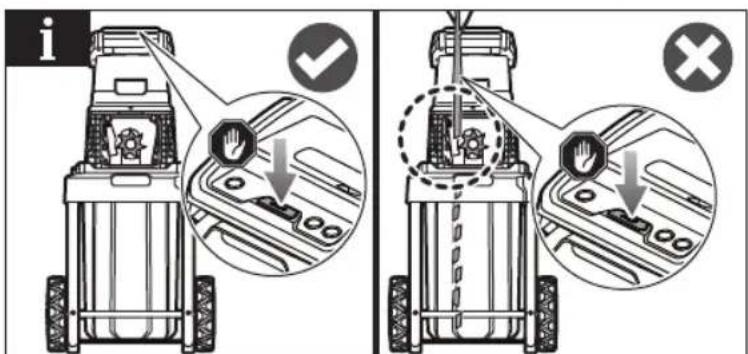

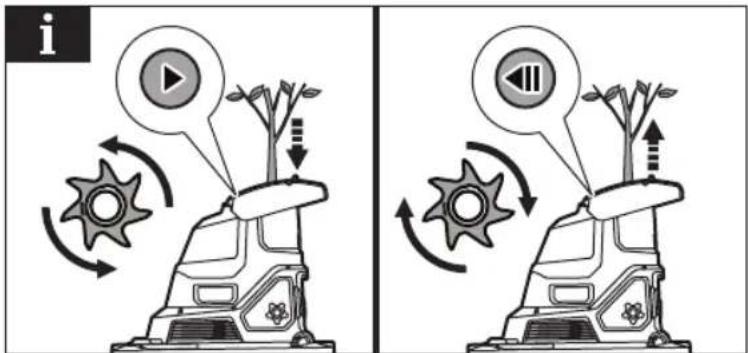

Guaranteed sound power level Wear non-slip, heavy-duty, protective gloves when handling. When the product is off and the chute is clear, press the calibration and start button together to begin blade calibration. Press to turn on and press again to toggle speeds. Hold down the button to run in reverse mode. ENGLISH

Original InstructionsEuropean Conformity Mark British Conformity Mark EurAsian Conformity Mark Ukraine Conformity Mark Calibration mode Overloaded The collection bin is not inserted or the gear box cover is not assembled.

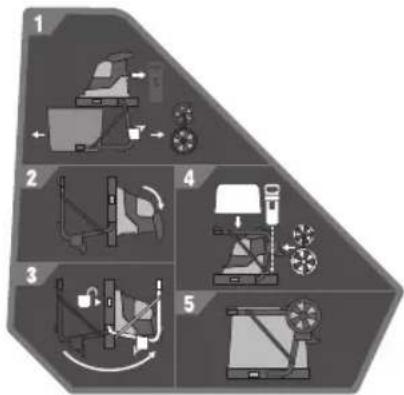

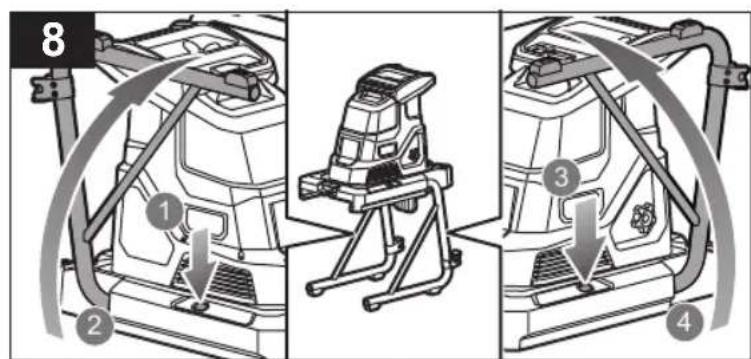

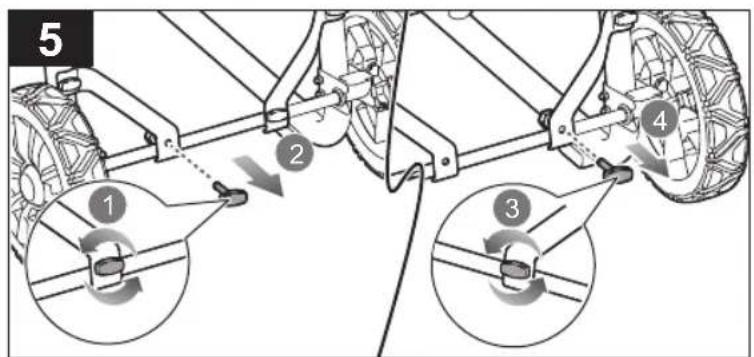

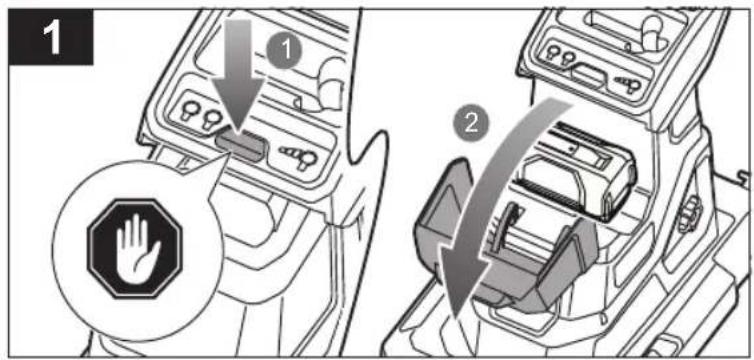

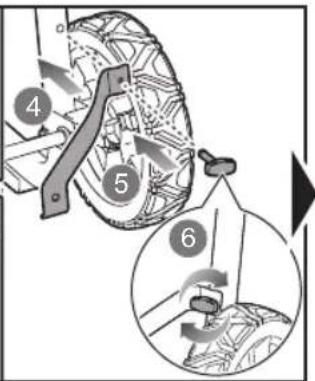

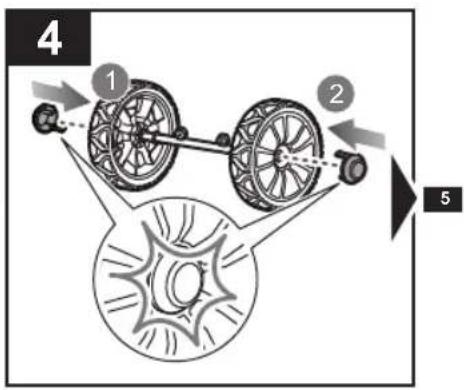

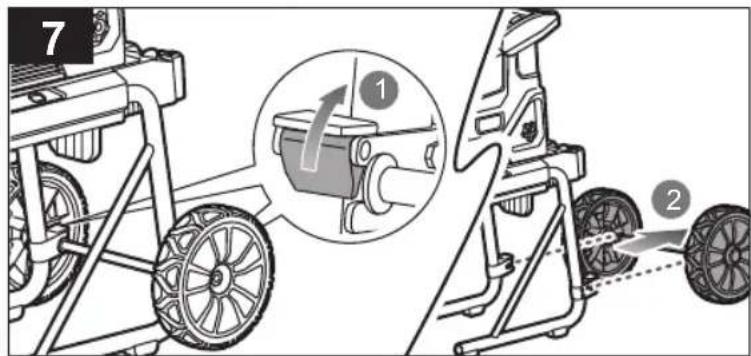

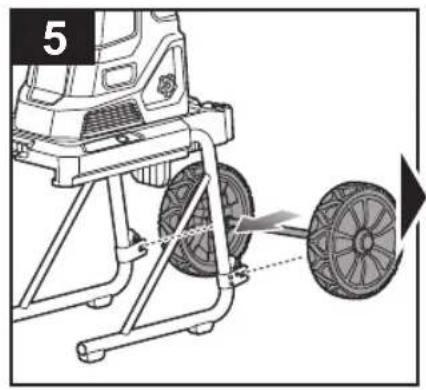

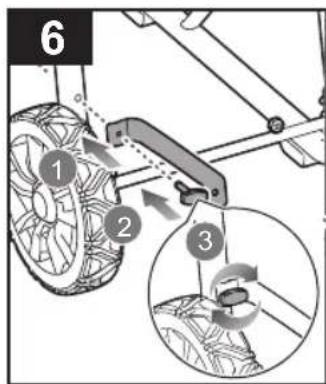

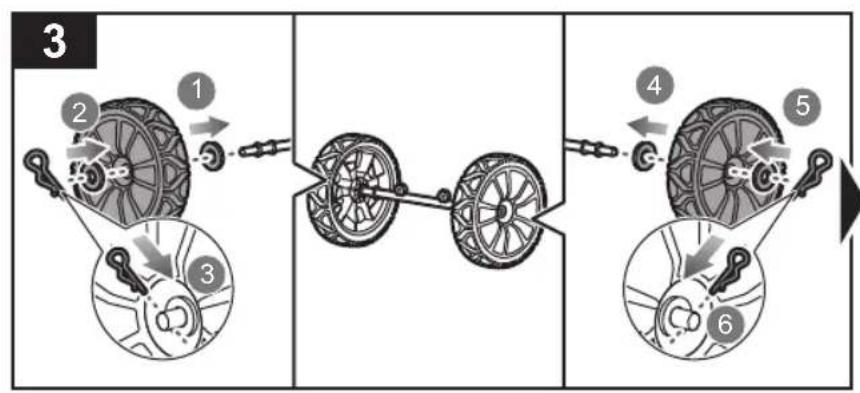

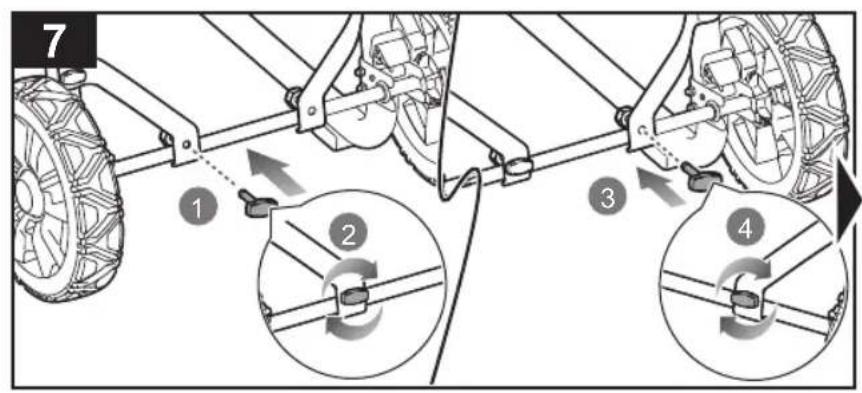

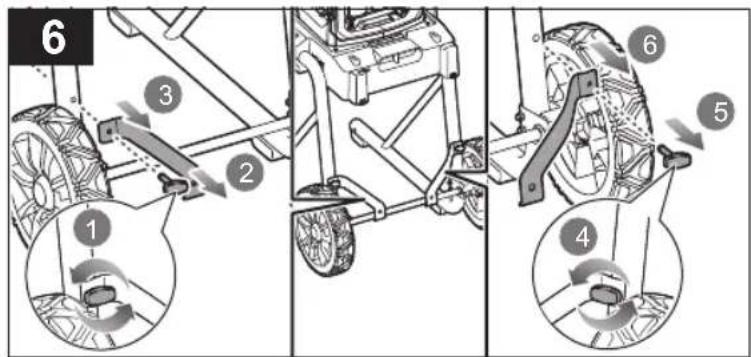

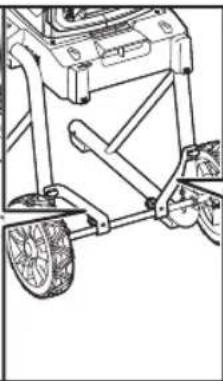

1. Remove the knobs, brackets, wheel axle,

2. Lay the product on the ground with the

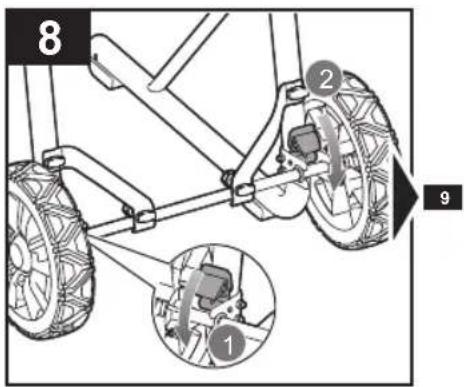

3. Press the metal frame release button and

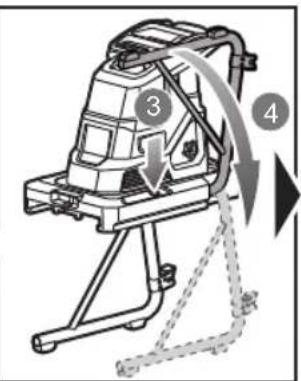

fold up the legs until they lock into place.

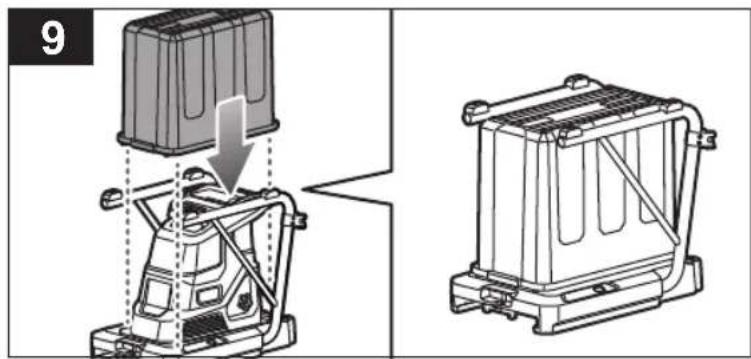

4. Place the wheel axle, bin, and plunger

into their storage locations.

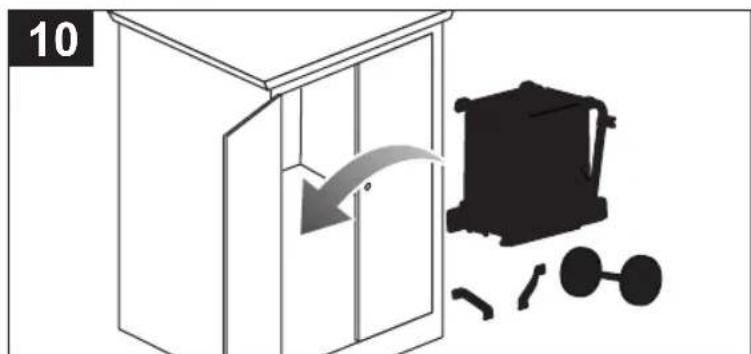

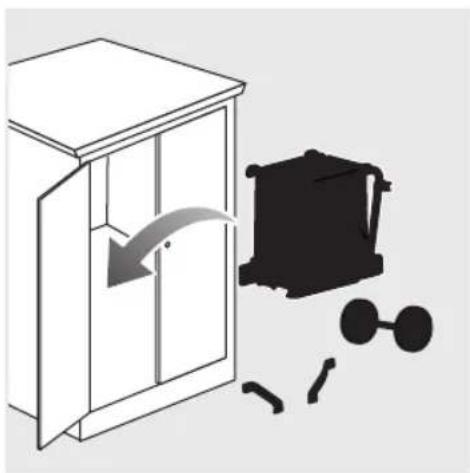

5. Store the product in a cool, dry, and

well-ventilated area. Do not dispose of waste batteries, waste electrical and electronic equipment as unsorted municipal waste. Waste batteries and waste electrical and electronic equipment must be collected separately. Waste batteries, waste accumulators, and light sources have to be removed from the equipment. Check with your local authority or retailer for recycling advice and collection point. According to local regulations, retailers may have an obligation to take back waste batteries and waste electrical and electronic equipment free of charge. Your contribution to the reuse and recycling of waste batteries and waste electrical and electronic equipment helps to reduce the demand of raw materials. Waste batteries, in particular containing lithium, and waste electrical and electronic equipment contain valuable and recyclable materials, which can adversely impact the environment and the human health if not disposed of in an environmentally compatible manner. Delete personal data from waste equipment, if any.

SYMBOLS IN THIS MANUAL

Parts or accessories sold separately Note Warning Lock Unlock Stop the product

Original InstructionsTROUBLESHOOTING If these solutions do not solve the problem, contact an authorised service centre.

PROBLEM CAUSE ACTION

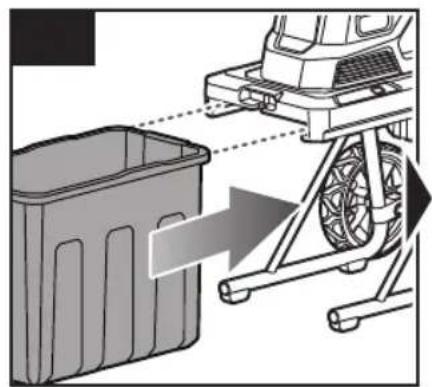

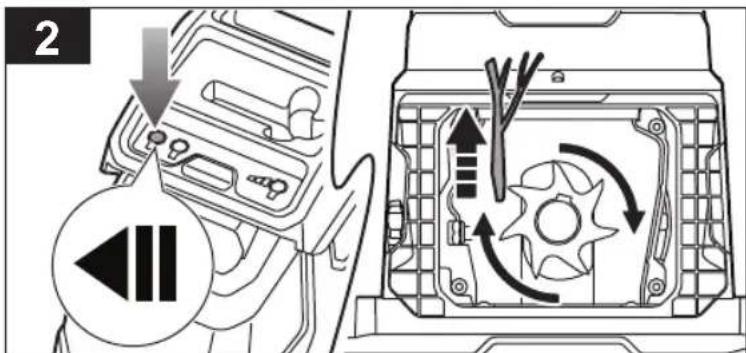

The product does not start. Temperature overload Allow the product to cool down for 15 minutes. This can occur when the ambient temperature is high, and the product has been used consistently without a break. Battery pack Check if the battery pack is fully charged, has no signs of water ingress, and is not damaged. Test the battery in a diff erent tool to ensure it is working correctly. Collection bin Insert the collection bin based on the labels on the side of bin and ensure that it is fully inserted with the front lock engaged. Blade cover plate Ensure that all of the 4 bolts that secure the blade cover plate are fully tightened. The product stops working. Product overloaded (e.g. material jammed, branch too hard) Clear the blockage (if needed by using the reverse mode). Re-start the product. Battery protection activated (e.g. material jammed, branch too hard) Clear the blockage. Remove the battery pack, and reinstall it into the product. Re- start the product ENGLISH
