| Product type | Electric hedge trimmer |
| Brand | AL-KO |
| Model | HT 550 Safety Cut |
| Current consumption | 550 W |
| Blade length | 520 mm |
| Cutting capacity | 18 mm |
| Total weight | 3.6 kg |
| Mains voltage | 230 V - 240 V / 50 Hz |
| No-load stroke rate | 3200 min⁻¹ |
| Sound pressure level (LPA) | 86 dB(A) (K = 1.5 dB(A)) |
| Vibration at the handle | 2.9 m/s² (K = 1.5 m/s²) |
| Insulation class | II (double insulation) |
| Safety devices | Two-hand control, hand guard, safety cable (1.5 m), lock hole (5 mm) |
| Maintenance and cleaning | Clean the blade with a brush or cloth (no water or harsh detergents), lightly oil the blade bar |
| Storage | Store in a dry place, out of reach of children, with blade guard on |
| Included accessories | Hand guard, blade guard, instruction manual |
| Intended use | Non-professional trimming of hedges, bushes, and shrubs |
Frequently Asked Questions - HT 550 AL-KO
User questions about HT 550 AL-KO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hedge Trimmers in PDF format for free! Find your manual HT 550 - AL-KO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HT 550 by AL-KO.
USER MANUAL HT 550 AL-KO
ELECTRIC HEDGE TRIMMER
HT 440 BASIC CUT
HT 550 SAFETY CUT
DE: Gebrauchsanleitung 5 EN: Instructions for Use 13 NL: Instructies voor gebruik 21 FR: Mode d'emploi 29 ES: Instrucciones de uso 37 PT: Instruções para o uso 45 IT: Libretto di istruzioni 53 SL: Navodilo za uporabo 61 HR: Upute za uporabu 69 PL: Instrukcja obsługi 77 CS: Návod k použití 85 SK: Návod na použitie 93 HU: Használati útmutató 101
DA: Brugsanvisning 109 SV: Bruksanvisning 117 NO: Bruksanvisning 125 FI: Käyttöohjeet 133 ET: Kasutusjuhend 141 LV: Instrukcijas 149 LT: Instrukcijų vadovas 157 RU: Руководство по эксплуатации 165 UK: Посібник з експлуатації 173 BG: Ръководство за ползване 181 RO: Instrucțiuni 189 EL: Οδηγίες χρήσης 197 TR: Kullanım kılavuzu 205 ETK: HT 440, HT 550 213

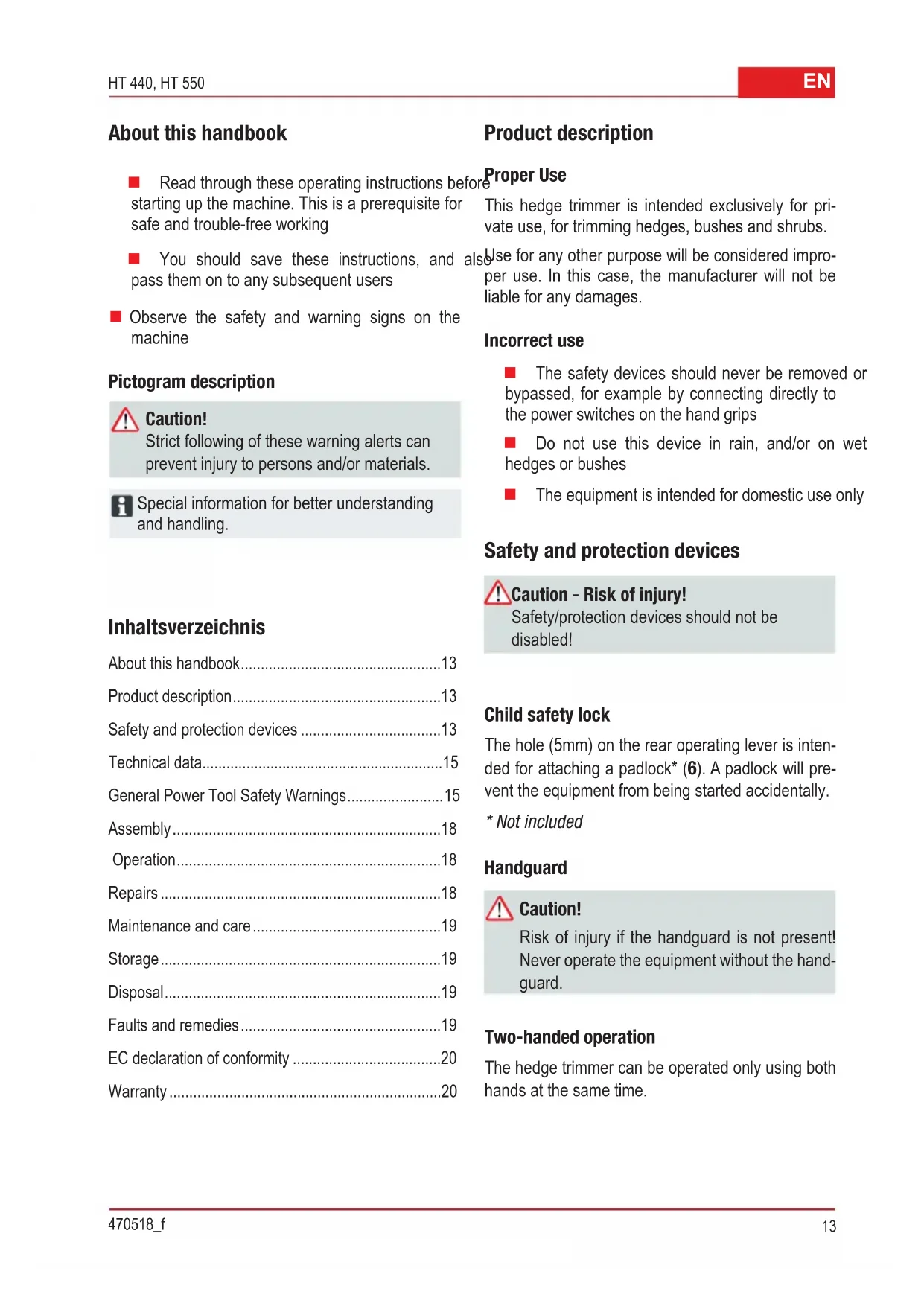

About this manual
Wolfgang Hergeth, Managing Director
Warranty
Read through these operating instructions before starting up the machine. This is a prerequisite for safe and trouble-free working. You should save these instructions, and pass them on to any subsequent users.
Observe the safety and warning signs on the machine.
Pictogram description
Caution!
Strict following of these warning alerts can prevent injury to persons and/or materials.
Special information for better understanding and handling.
Table of contents
About this handbook. 13
Product description. 13
Safety and protection devices 13
Technical data. 15
General Power Tool Safety Warnings. 15
Assembly. 18
Operation. 18
Repairs 18
Maintenance and care 19
Storage 19
Disposal. 19
Faults and remedies. 19
EC declaration of conformity 20
Warranty 20
Product description
Proper Use
This hedge trimmer is intended exclusively for private use, for trimming hedges, bushes and shrubs.
Use for any other purpose will be considered improper use. In this case, the manufacturer will not be liable for any damages.
Incorrect use
The safety devices should never be removed or bypassed, for example by connecting directly to the power switches on the hand grips. Do not use this device in rain, and/or on wet hedges or bushes. The equipment is intended for domestic use only.
Safety and protection devices
Caution - Risk of injury!
Safety/protection devices should not be disabled!

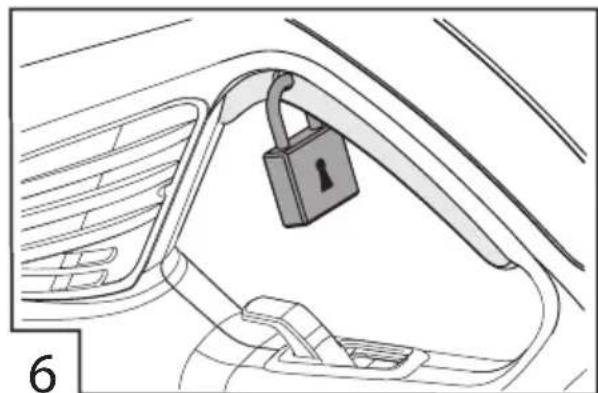

Child safety lock
The hole (5mm) on the rear operating lever is intended for attaching a padlock* (6). A padlock will prevent the equipment from being started accidentally.
- Not included
Handguard
Caution!
Risk of injury if the handguard is not present! Never operate the equipment without the handguard.
Two-handed operation
The hedge trimmer can be operated only using both hands at the same time.
Overview of product
| 1 Cutting blades 6 Safety cable* | ||
| 2 Handguard 7 Strain relief clamp | ||
| 3 Front hand grip with power switch 8 Handguard mounting screws | ||
| 4 Spirit level 9 Cutting blade safety cover | ||
| 5 Rear hand grip with power switch 10 Instructions for use |
- 1.5 m safety cable for HT 550 Safety Cut only
Meanings of symbols on the equipment
Wear safety goggles.
Caution! Be particularly careful when handling.
Read the operating instructions before using.
If the cable has been cut or is damaged, disconnect the plug from the mains supply immediately.
Do not expose the machine to rain.
Technical data
| Technical data HT 440 Basic Cut HT 550 Safety Cut | |
| Power consumption 440 W 550 W | |
| Cutter length 440 mm 520 mm | |
| Cutting thickness 16 mm 18 mm | |
| Total weight 3,2 kg 3,6 kg | |
| Vibrations measured at handle* 2,2 m/s² (K = 1,5 m/s²) 2,9 m/s² (K = 1,5 m/s²) | |
| Mains voltage 230V-240V / 50Hz 230V-240V / 50Hz | |
| Insulation class | ☐/ II / II ☑ |
| No-load stroke rate | 3200 m-13200 m-1 |
| Sound pressure level LPA | 86 dB (A) (K = 1,5 dB (A)) 86 dB(A) (K = 1,5 dB (A)) |
- The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another.
General Power Tool Safety Warnings
Caution!
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
Caution!
Use the equipment only if it is in correct operating condition! Before using, check the machine, cable and plug for damage; any damaged parts must be repaired or replaced at a specialised repair centre.
Caution - Danger of electrocution!
If the cable has been cut or is damaged, disconnect the plug from the mains supply immediately.
Caution - Risk of injury!
Safety/protection devices should not be disabled!
Warning!
The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used.
Caution!
Only hold the electrical equipment on the insulated grip areas as the cutting blade may come into contact with concealed power lines or with the mains cable itself.
The cutting blade coming into contact with a live cable may make parts of the equipment live and result in an electric shock.
Work area safety
- Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
- Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts.
Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
Personal safety
- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
- Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
- Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
Power tool use and care
- Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
- Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
Disconnect the tool from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a hazardous situation.
Service
Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Safety Instructions for operation
Always operate the machine with both hands. Observe local regulations regarding minimum age requirements for operating the machine. Children and persons who are not familiar with these operating instructions are not permitted to use the mower. This tool is not intended to be used by people (including children) who have restricted physical, sensory or mental capabilities; neither is it intended to be used by people lacking experience and/or knowledge unless they are supervised by someone who is responsible for safety, or receive instructions from this supervisory person in how to operate the tool. Children should be supervised in order to make sure that they do not play with the tool. - Keep body and clothing away from cutting parts.
- Do not remove cut material while the motor is running.
- When leaving unattended / transporting the machine:
Switch the machine off. Pull out the mains plug. Push on the safety cover.
Never hold the machine by the blade. Only carry the machine by the hand grip. The domestic mains voltage must match the mains voltage specifications in the technical data. Always use the special cable strain relief for the extension lead. Always keep the cable out of the cutting area and routed away from the machine.
Assembly

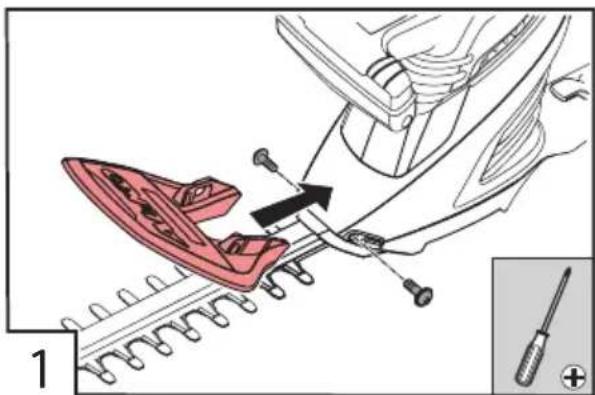

- Fasten the handguard to the housing using the screws supplied (1).

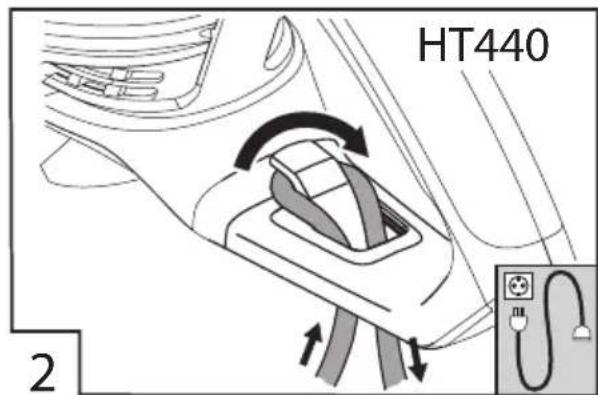

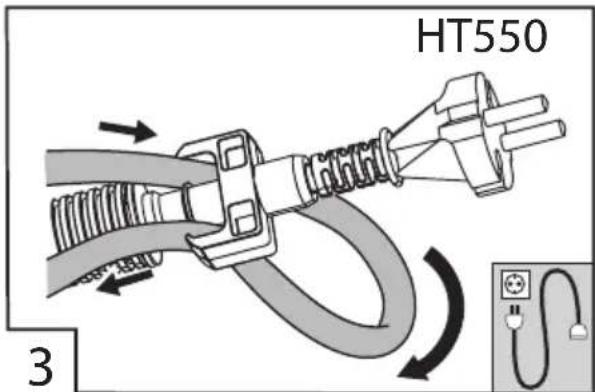

- Feed the extension cable through the strain relief clamp (2 / 3).
Operation
Caution - Risk of injury!
Use the equipment only after it has been completely assembled.
Follow the safety instructions when working.
- Connect the power cable to the mains supply.
- Grasp the front hand grip first, then the rear hand grip.

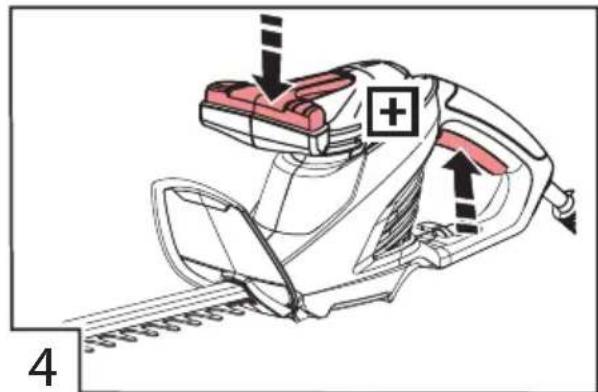

- Press the power switches on both hand grips (4) - the machine will start.
- Keep both switches pressed while working.
- If one of the switches is released, the hedge trimmer stops.

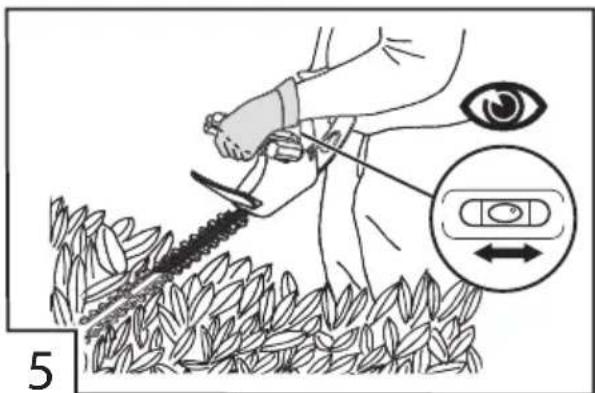

Instructions when working
Always cut both sides of the hedge first, then the top. This will prevent cut leaves and twigs from falling into an area not yet trimmed. You can use the built-in spirit level to cut along a straight line (5). Hedges should always be cut in a trapezoid shape. This prevents the lower twigs from becoming bare (8).
Repairs
Repairs should be carried out only by a specialised repairer, or at one of our AL-KO service centres.
Maintenance and care
Caution - Danger of electrocution!
Always disconnect the mains plug when carrying out maintenance or repair work!
Caution - Risk of injury!
Always wear working gloves when carrying out maintenance or repair work.
- After each use, clean the cutting blades and the housing with a brush or cloth. Do not use water and/or aggressive cleaning agents - risk of corrosion.
- Lightly oil the cutting bar with a suitable protective lubricant.
- Check that all screws are firmly seated.
- Regularly check the cutting blades for damage. If the cutting blades show damage or excessive wear, please contact the nearest AL-KO service centre.
Storage
The protective cover can be wall-mounted and used as a bracket for holding the hedge trimmer.
Make sure it is firmly attached! (7)
Always disconnect the mains plug when storing the machine. Always store the machine with the protective cover attached. Store the equipment in an area which is kept dry, and which cannot be accessed by children or unauthorised persons. Secure the trimmer with a padlock* (6)
- Not included
Disposal
Do not dispose of old equipment, batteries or accumulators as household waste!
The trimmer, packaging, and accessories were made with recyclable materials, and should be disposed of accordingly.
Faults and remedies
| Fault Possible cause Solution | ||
| Machine does not work Power supply absent Check the domestic fuse / extension cable | ||
| Power cable faulty Contact an AL-KO service centre | ||
| Machine works intermittently | Extension cable damaged Check the extension cable | |
| On/Off switch faulty Contact an AL-KO service centre | ||
| Internal fault Contact an AL-KO service centre | ||
| Motor runs but blades do not move | Internal fault Contact an AL-KO service centre | |
| The blades become hot Insufficient lubrication Lightly oil the blades | ||
| Blades are blunt Contact an AL-KO service centre | ||
| Notching on the blades Contact an AL-KO service centre | ||
For faults not listed in this table, or which you cannot resolve by yourself, please contact our customer service.
EC declaration of conformity
We hereby declare that this product, in the form in which it is marketed, meets the requirements of the harmonised EU guidelines, EU safety standards, and the product-specific standards.
Product
Electric hedge trimmer
Serial number
G 2402405
Model
HT 440 Basic Cut
HT 550 Safety Cut
Manufacturer
Harmonised standards
EN 60745-1
EN 60745-2-15
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
Sound power level
EN ISO 3744
measured / guaranteed
HT 440
99/100 dB(A)
HT 550
97/ 98 dB(A)
Conformity evaluation
2000/14/EG, Appendix V
Kotz, 15.07.2016
Woyog
Wolfgang Hergeth, Managing Director
Warranty
If any material or manufacturing defects are found during the statutory customer protection period, we will either repair or replace the equipment, whichever we consider the more appropriate. This statutory period may vary according to the legislation in force in the country where the equipment was purchased.
Our warranty is valid only if: The warranty is no longer valid if:
The equipment has been used properly The operating instructions have been followed Genuine replacement parts have been used
The equipment has been tampered with Technical modifications have been made The trimmer was not used for its intended purpose (for example, used for commercial or communal applications)
The following are not covered by warranty:
Paint damage due to normal wear Wear parts identified by a border xxx (x) on the spare parts list
Combustion motors - these are covered by a separate warranty from the manufacturer concerned
To make a claim under warranty, please take this statement of warranty and proof of purchase to the nearest authorised customer service centre. This warranty does not affect the usual statutory rights of the customer relative to the seller.
Wolfgang Hergeth, Managing
Director
Warranty
Wolfgang Hergeth, Managing Director
Warranty
Wolfgang Hergeth, Managing Director
Warranty
Wolfgang Hergeth, Managing Director
Warranty
Wolfgang Hergeth, Managing
Director
Warranty
2000/14/EC, Annex V
Kotz, 15.07.2016
Wolfgang Hergeth, Managing Director
With this manual
Wolfgang Hergeth, Managing Director
Warranty
Wolfgang Hergeth, Managing
Director
Warranty
Wolfgang Hergeth, Managing Director
Warranty
Wolfgang Hergeth, Managing Director
Warranty
Wolfgang Hergeth, Managing Director
Warranty
Wolfgang Hergeth, Managing
Director
Warranty
2000/14/EC, Annex V
Kotz, 15.07.2016
Wolfgang Hergeth, Managing Director
Warranty
Wolfgang Hergeth, Managing Director
Guarantee
Technical data. 117
Safety instructions. 117
Installation 118
Operation 118
Repair 118
Maintenance 118
Storage. 118
Disposal 118
In case of malfunctions. 119
Warranty 119

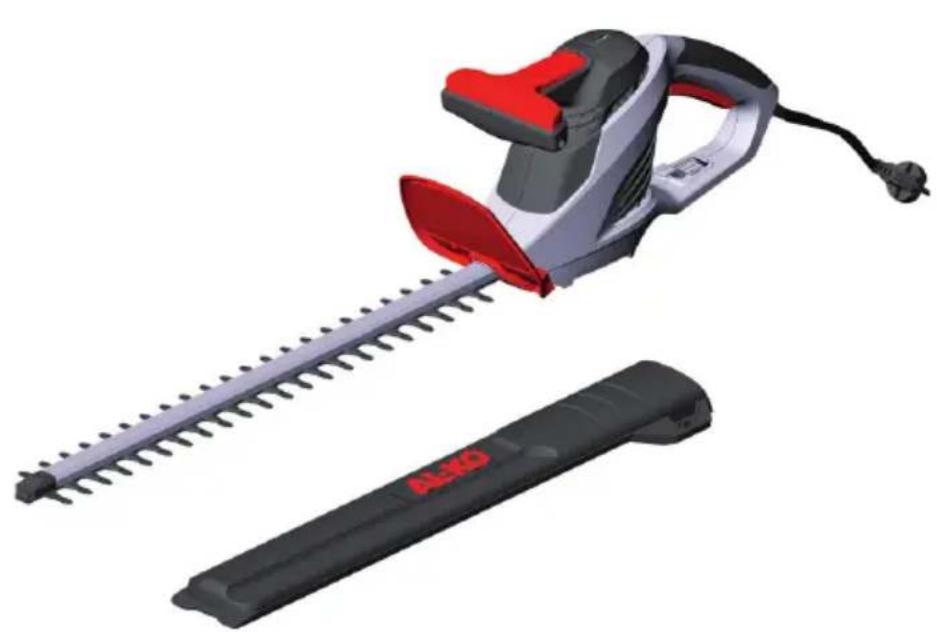

Product description
Wolfgang Hergeth, Managing Director
Warranty
Wolfgang Hergeth, Managing Director
Warranty
Wolfgang Hergeth, Managing Director
Warranty
Possible variants of improper use
It is forbidden to dismantle or bypass protective devices, for example, by tying the switch-on button to the handles. It is forbidden to use the tool for purposes other than cutting wet hedge. It is forbidden to use the tool in industrial environments.
Protective and safety devices
Attention! Danger of injury!
Do not disconnect protective and safety devices!
Device for protection against accidental start
The hole (5 mm) in the rear handle is intended for installing a padlock* (6). The padlock prevents unintentional starting of the tool.
Device for hand protection
Attention!
If the hand protection device is not installed, there is a risk of injury! Never start the tool without the hand protection device.
Control handle.
The electric hedge trimmer may only be operated with both hands.
Product description
Attention! Exercise special caution when operating the tool.
Read these operating instructions and follow them accordingly.
If the power cord is damaged or cut, immediately pull the plug from the wall.
Do not leave the tool under rain.
Technical specifications
* The specified value is expressed in measurements according to the standard test method and may be used for comparison of electric power tools.
Safety instructions
Attention!
Read all safety instructions. Failure to follow the safety instructions may result in electric shock, fire, and/or serious injury. Keep all safety instructions for future use.
Attention!
Use the tool only in technically flawless condition! Before use, check the tool, cable, and plug for damage. Damaged parts must be repaired by a qualified workshop or replaced.
Attention! Risk of injury!
Do not disconnect protective and safety devices!
Attention! Risk of electric shock!
If the power cord is damaged or cut, immediately pull the plug out of the socket!
Attention!
During operation of the power tool, the actual speed may differ from the specified value depending on the application.
Attention!
Hold the power tool only by the insulated gripping surfaces, as the cutting blade may contact hidden wiring or its own power cord.
Contact of the cutting blade with a live wire may energize metal parts of the tool, which could result in an electric shock.
Workplace safety
Keep your work area clean and ensure good lighting. Clutter or poor lighting of the work area can cause accidents. Do not work with the power tool in explosive atmospheres where flammable liquids, gases, or dust are present. Power tools produce sparks that may ignite dust or vapors. Do not allow children or bystanders in the work area of the power tool. When changing direction, you may lose control of the tool.
Electrical safety
The plug must match the outlet. Never modify the plug. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal Safety
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Local regulations regarding dust levels and minimum age of operating personnel may apply. Follow the instructions in the operating manual. It is forbidden to use the device. Do not overload the device. This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety. Children must be supervised to ensure they do not play with the device. Ensure the adjusting tool or key is removed before turning on the power tool. A tool or key left attached to a rotating part of the power tool may result in personal injury. Avoid awkward body positions. Maintain proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Wear suitable clothing. Do not wear loose clothing or jewelry. Keep hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. If devices for dust extraction and collection are available, make sure they are connected and properly used. Use of dust extraction devices reduces risks arising from dust.
Do not overload the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
Remove
adjusting key or switch before turning on the power tool.
Before changing accessories or storing the tool, disconnect the plug from the power source.
This preventive measure reduces the risk of accidental starting of the power tool.
Store idle power tools out of the reach of children. Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.
If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
Before using the tool, repair any damaged
parts. Many accidents are caused by poorly maintained power tools.
Regulations
Instrument
#
Always keep it sharp and clean.
Power tools with sharp cutting edges are less likely to jam and are easier to control.
Apply
power tools,
accessories, bits, etc., in accordance with these instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a hazardous situation.
Service
Repair
of the power tool
must be performed only by qualified personnel
using only original spare parts. This will ensure that the safety of the power tool is maintained.
Ensure safety
of the power tool
The supply voltage must correspond to the parameters specified in the technical characteristics. Do not use any other supply voltage. Use extension cables designed for outdoor use. Always use a special device to relieve the tension of the extension cable. Keep the cable away from the cutting area, always direct it away from the machine. Do not allow moisture to enter the tool. Safety instructions for operating the tool. Persons unfamiliar with this operating manual, as well as children and other persons, are prohibited from working with this tool. It is forbidden to work with the tool while under the influence of alcohol, drugs, or medication. Do not use the tool if the cutting mechanism is damaged or worn. After appropriate maintenance:
Long trousers with protection against cuts. Sturdy shoes, gloves, protective glasses.
When working, watch your footing. Always control the tool with both hands. Keep the cutting mechanism at a distance from your feet. Do not allow third parties into the danger zone. Do not remove cuttings while the motor is running. If you need to leave the tool or transport it to another place:
Switch off the tool, remove the plug from the socket, and put on the protective cover.
Do not touch the blades of the tool. Hold the tool only by the handle. Do not leave the tool unattended.
Assembly
- Attach the device for the protective guard to the housing using screws (1).
- Guide the extension cable through the opening to position it (2/3).
Operation
Warning! Risk of injury!
The tool may only be used after complete assembly.
Follow the safety instructions.
Safety during operation of the tool!
1. Connect the power cable to the electrical outlet. 2. Grasp the front handle with one hand and the rear handle with the other. 3. Press both switches located on the handles (4) - the tool starts. 4. During operation, keep both switches pressed. 5. As soon as one of the switches is released, the tool switches off.
Operating instructions for the tool
Before cutting, trim the hedge on both side surfaces from the top, and then its upper part. This way, the cuttings will not fall onto unprocessed areas. Thanks to the built-in level, you can easily check the cut (5). The cutting blade should always be kept in the shape of a trapezoid. As a result, the leaf cover of the lower branches will not be damaged (8).
Repair
Repair work may only be carried out in competent, specialized workshops for serious cuts.
Maintenance and care
Warning! Danger of electric shock!
Before carrying out maintenance, always unplug the device from the power supply.
Warning! Danger of injury!
When carrying out maintenance, always wear protective gloves.
- After each use, clean the blades and housing with a brush or cloth. Do not use water or other aggressive detergents for this, as there is a risk of corrosion!
- Lubricate the blade with a small amount of suitable anti-corrosion oil. 3. Make sure all screws are tightened.
- Regularly check the blades for damage. If the blades are damaged or excessively worn, contact the nearest service center of the company AL-KO.
Storage
The hedge trimmer can be hung on the wall; in this case, the protective cover of the blades can serve as a mounting. Make sure that the tool is securely fastened! (7)
Store the tool only with the plug disconnected. Store the tool only with the protective cover installed. Store the tool in a dry place, inaccessible to children or unauthorized persons.
Secure the tool with the help of the hanging lock* (6)
Disposal of the device, batteries, and accumulators together with household waste is prohibited!
The device, its packaging, and accessories are made of materials that can be recycled, so they should be disposed of accordingly.
Troubleshooting
Measured / guaranteed
HT 440
99/100 dB(A)
HT 550
97/98 dB(A)
Manufacturer
AL-KO Geräte GmbH
Ichenhauser Str. 14
D-89359 Kotz
Directives
2006/42/EG
2014/30/EU
2000/14/EG
2011/65/EG
Declaration of Conformity
Wolfgang Hergeth, Managing Director
Warranty
We are ready to eliminate some errors of material or manufacturing within the legally established period of limitation for warranty claims (by repair or replacement - at our discretion).
The limitation period is determined by the legislation of the country where the instrument was purchased or used.
Our warranty obligations are valid only in the following cases:
In case of improper handling of the instrument; In case of attempt to repair the instrument; In case of violation of the operating instructions; In case of changes in the design of the instrument; In case of use of non-original spare parts; In case of improper use of the instrument (for example, in industrial or municipal purposes).
The warranty does not cover:
Damage to the paint coating that occurred during normal wear; Wear parts marked with XXX (X) on the spare parts card; Internal combustion engines - they are covered by separate warranty obligations of the corresponding manufacturer.
In case of a warranty claim, please contact your dealer or an authorized service center with this warranty certificate and proof of purchase.
These warranty obligations do not affect the statutory rights of the buyer to make claims against the seller.
Read this manual carefully before starting work with the tool. This will ensure its safe and uninterrupted operation. Follow the safety instructions and warnings given throughout this document and on the device. Keep this manual for operation and pass it on to the next users.
Symbols
Warning!
Strict compliance with the warnings will help avoid dangerous injuries and material damage.
Special instructions for better understanding and use.
Contents
Preface to the manual 139 Product description 139 Safety devices and guards 139 Technical data 141 Safety instructions 141 Installation 142 Operation 142 Repair 142 Maintenance 142 Inspection 142 Storage 142 Cleaning 142 Troubleshooting 143 Warranty 143
Product description
Intended use
The electric sprayer is intended exclusively for spraying plant protection products and fertilizers on private household plots.
Using the tool for other purposes is considered use not in accordance with the intended purpose. The manufacturer is not liable for damage resulting from such use.
Possible variants of improper use
It is forbidden to dismantle or bypass safety devices, for example, to remove the trigger lock. It is forbidden to use the tool for spraying or for spraying water-based paints. It is forbidden to use the tool in industrial environments.
Safety devices and guards
Warning! Risk of injury!
Do not disable safety devices!
Trigger lock
The trigger (5 mm) in the rear handle is designed for installing a suspended lock* (6). The lock prevents unintentional starting of the tool.
- Not included in delivery
Hand guard
Warning!
If the hand guard is not installed, there is a risk of injury!
Never start the tool without the hand guard.
Guide handle
The electric tool may only be started with both hands.
Product description
| 1 Hoxi 6 Kaobel i3 3axnctom* | ||
| 2 Пусстрий дlya 3axnctу рук 7 Пусстрий дlya ocnaбления нату Kaobelю | ||
| 3 Рередна руковая i3 Кногкою увімкеня 8 Ги ntп дlya Bстовая рус STахисту рук | ||
| 4 Ревь 9 3axusche пokрптгя HOxiv | ||
| 5 3адна руковая i3 Кногкою увімкеня 10 Пociбник 3 ekсплугатуцii |
* Cable with protection, length 1.5 m, available only on model HT 550 Safety Cut
Meaning of symbols on the tool
Wear protective goggles.
Warning! To prevent injury during work with the tool.
Read the instruction manual before use and follow it accordingly.
If the electric cord is damaged or cut, immediately unplug it from the power supply.
Do not immerse the tool in water.
Technical specifications
Turn off the tool, unplug it from the power supply, and apply protective coating.
Do not touch the tool's blades. Hold the tool by the handle. Do not leave the device without supervision.
Assembly
- Cover the protective device with hands to the body using screws (1). 2. Route the extension cable through the strain relief (2/3).
Operation
Warning! Danger of electric shock!
The tool may only be operated after complete assembly!
Follow the safety instructions during operation of the tool!
1. Connect the cable to the power outlet. 2. Hold the tool with both hands on the handles. 3. Press the on/off buttons located on the handles.
In case of malfunctions not listed in the table, or if you cannot fix them yourself, please contact our service center.
Wolfgang Hergeth, Managing Director
The warranty period established by law for claims regarding the quality of the device does not apply to certain material defects or manufacturing defects subject to repair or replacement (at our discretion).
The warranty period is determined by the legal norms of the locality where the device was purchased.
Our warranty obligations do not apply in the following cases:
The warranty does not apply in the following cases:
Improper operation of the device, failure to follow the operating instructions, use of non-original spare parts.
In case of attempts to repair the instrument, technical modifications to the device, or improper use of the instrument (for example, in industrial or municipal settings).
The warranty does not extend to the following cases:
Damage to the painted surface, wear parts that have been subjected to natural wear (marked with XXX XXXX on the spare parts card), internal combustion engines, or their components are not covered by separate warranty terms according to the manufacturer's specifications.
In the event that warranty service is required, contact us with the warranty certificate and the document confirming the purchase, either through your dealer or the nearest authorized service center.
These warranty obligations do not affect the legal rights of the customer against the seller regarding the quality of the offered device.
This manual
Please read this manual carefully before using the device. It provides important information for safe and correct operation and for avoiding damage during use. Follow the safety instructions and warnings in this document, as well as those on the device. Keep the manual for future reference and pass it on to any subsequent owner.
Following the instructions can prevent personal injury and material damage.
Special instructions for proper use and correct handling.
Contents
This manual. 145 Product description 145 Safety equipment 145 Technical data 147 Safety instructions 147 Installation 148 Operation 148 Repair 148 Risks and hazards. 148 Disposal 148 Adjustments. 148 Troubleshooting 149 Warranty 149
Product description
Intended use
This hedge trimmer is intended exclusively for cutting hedges and shrubs.
Use for other purposes is considered improper use. The manufacturer is not liable for damage resulting from improper use.
Possible misuse
The safety equipment must not be dismantled or bypassed, for example by bridging the switches to lock the handle. The device must not be used in wet conditions and/or on wet hedges and shrubs. The device must not be used for industrial purposes.
Safety equipment
Do not dispose of worn-out batteries or accumulators with household waste!
Please dispose of waste, packaging, equipment, and accessories separately. They are made of materials that can be recycled.
Help with damage
| Пов徕ь Възможна | Прочина Рецене | |
| Урedingъ не павOTи Лигва | Зхранвае Дa ce повергет праздуз龟тейte / удьж龟тейнite кабел | Да спс龟тейte / удьж龟тейнite кабел |
| Дeф ekten Кабел Потьрсete серВи3 на AL-KO | СерВи3 на AL-KO | |
| Приборъ павOTи с пекьсваня | Пов徕ь с удьж龟тейен Кабел Дa | СерВи3 удьж龟тейня Кабел |
| Пов徕ь с лioч за ручанe/ спиранe | Потьрсete серВи3 на AL-KO | |
| Вътешна гөшka Потьрсete серВи3 на AL-KO | СерВи3 на AL-KO | |
| Ды ratелгл павOTи, Н ожовete са Нелдвижни | Вътешна гөшka Потьрсete серВи3 на AL-KO | СерВи3 на AL-KO |
| Ножовete загравat Лигьсa | На смаизда се смжат лeко поховete | |
| Затлени Согьрсete серВи3 на AL-KO | ||
| Нацьрбеньости по поха Потьрсete серВи3 на AL-KO |
For any eventuality not described in this table or that cannot be inferred from the device itself, please contact the customer service agent.
EC Declaration of Conformity
With this declaration, we confirm that this product in its design and construction complies with the requirements of the harmonized European Directives, EC standards, and the specific standards.
Product
Electric hedge trimmer
Serial number
G 2402405
Type
HT 440 Basic Cut
HT 550 Safety Cut
Manufacturer
AL-KO Geräte GmbH
Ichenhauser Str. 14
D-89359 Kotz
European Directives
2006/42/EG
2014/30/EU
2000/14/EG
2011/65/EG
Representative
Andreas Hedrich
Ichenhauser Str. 14
D-89359 Kotz
Harmonized standards
EN 60745-1
EN 60745-2-15
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-32
EN ISO 3744
Changed / guaranteed
HT440
99/100 dB(A)
HT 550
97/98 dB(A)
Evaluation
corresponds to
2000/14/EG, Annex V
Kotz, 15.07.2016
Wolfgang Hergeth, Managing Director
Warranty
Any material or manufacturing defects are repaired by us at our discretion through repair or replacement with new parts, within the legally prescribed warranty period for claims regarding quality.
The warranty period is determined by the legislation of the country in which the device was purchased.
We hereby guarantee the safe operation of the device, provided that:
Conditions:
The requirements for use are strictly followed.
Repairs are performed by authorized service centers.
Intended use
There are no unauthorized technical modifications to the device.
The operating instructions have been followed.
The device is used only for its intended purpose.
Only original spare parts are used.
(e.g., for industrial or municipal use)
The warranty does not cover:
Damage resulting from normal wear and tear.
Consumable parts, as well as spare parts with form XXXXXX(X), are excluded from the warranty. Engines with internal combustion are subject to separate warranty conditions determined by the respective engine manufacturer.
In the event of a warranty claim, please contact your dealer or the nearest authorized service center with this warranty and the purchase receipt.
This warranty does not affect your statutory rights regarding product quality against the seller.
About this manual
Safety instructions
Safety at the workplace
Keep the workplace clean and well lit. Cluttered or dark areas can lead to accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks, which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool.
Warranty
Warranty
- ELECTRIC HEDGE TRIMMER
- ABOUT THIS MANUAL
- WARRANTY
- PICTOGRAM DESCRIPTION
- CAUTION
- TABLE OF CONTENTS
- PRODUCT DESCRIPTION
- PROPER USE
- INCORRECT USE
- SAFETY AND PROTECTION DEVICES
- CAUTION - RISK OF INJURY
- CHILD SAFETY LOCK
- HANDGUARD
- TWO-HANDED OPERATION
- OVERVIEW OF PRODUCT
- MEANINGS OF SYMBOLS ON THE EQUIPMENT
- TECHNICAL DATA
- GENERAL POWER TOOL SAFETY WARNINGS
- CAUTION - DANGER OF ELECTROCUTION
- WARNING
- WORK AREA SAFETY
- PERSONAL SAFETY
- POWER TOOL USE AND CARE
- SERVICE
- SAFETY INSTRUCTIONS FOR OPERATION
- ASSEMBLY
- OPERATION
- INSTRUCTIONS WHEN WORKING
- REPAIRS
- MAINTENANCE AND CARE
- STORAGE
- DISPOSAL
- DO NOT DISPOSE OF OLD EQUIPMENT, BATTERIES OR ACCUMULATORS AS HOUSEHOLD WASTE
- FAULTS AND REMEDIES
- EC DECLARATION OF CONFORMITY
- PRODUCT
- SERIAL NUMBER
- MODEL
- MANUFACTURER
- HARMONISED STANDARDS
- SOUND POWER LEVEL
- CONFORMITY EVALUATION
- WITH THIS MANUAL
- GUARANTEE
- POSSIBLE VARIANTS OF IMPROPER USE
- PROTECTIVE AND SAFETY DEVICES
- ATTENTION! DANGER OF INJURY
- DEVICE FOR PROTECTION AGAINST ACCIDENTAL START
- DEVICE FOR HAND PROTECTION
- ATTENTION
- CONTROL HANDLE
- TECHNICAL SPECIFICATIONS
- SAFETY INSTRUCTIONS
- ATTENTION! RISK OF INJURY
- ATTENTION! RISK OF ELECTRIC SHOCK
- WORKPLACE SAFETY
- ELECTRICAL SAFETY
- REMOVE
- ADJUSTING KEY OR SWITCH BEFORE TURNING ON THE POWER TOOL
- REGULATIONS
- INSTRUMENT
- APPLY
- POWER TOOLS
- REPAIR
- OF THE POWER TOOL
- WARNING! RISK OF INJURY
- OPERATING INSTRUCTIONS FOR THE TOOL
- WARNING! DANGER OF ELECTRIC SHOCK
- WARNING! DANGER OF INJURY
- TROUBLESHOOTING
- DIRECTIVES
- DECLARATION OF CONFORMITY
- SYMBOLS
- CONTENTS
- INTENDED USE
- SAFETY DEVICES AND GUARDS
- TRIGGER LOCK
- HAND GUARD
- GUIDE HANDLE
- MEANING OF SYMBOLS ON THE TOOL
- THIS MANUAL
- POSSIBLE MISUSE
- SAFETY EQUIPMENT
- DO NOT DISPOSE OF WORN-OUT BATTERIES OR ACCUMULATORS WITH HOUSEHOLD WASTE
- HELP WITH DAMAGE
- TYPE
- EUROPEAN DIRECTIVES
- REPRESENTATIVE
- HARMONIZED STANDARDS
- EVALUATION
- CORRESPONDS TO
- SAFETY AT THE WORKPLACE
Brand : AL-KO
Model : HT 550
Category : Hedge Trimmers
