Product type	Flight simulator joystick
Brand	Thrustmaster
Model	TCA Sidestick Airbus Edition
Approximate dimensions	20 × 20 × 25 cm
Weight	1.5 kg
Power supply	USB (bus-powered) or optional power adapter
Main features	Replica Airbus A320 side stick, integrated rotating rudder, 17 programmable buttons, mode switch, HEART technology for magnetic buttons
Connection	Removable USB-C
Materials	ABS plastic with matte finish
Compatible software	Thrustmaster T.A.R.G.E.T., advanced configuration software
Operating systems	Windows 10/11, PlayStation 4, PlayStation 5
Included accessories	USB cable, documentation, safety strap
Care and cleaning	Clean with a soft, dry cloth; avoid liquids and abrasive products
Safety	Locking function for transport
Spare parts and repairability	Available through Thrustmaster customer service
General information	Official replica authorized by Airbus; compatible with major flight simulators

Frequently Asked Questions - TCA Sidestick Airbus Edition THRUSTMASTER

Is this joystick compatible with PlayStation 5?

Yes, the TCA Sidestick Airbus Edition is officially compatible with PlayStation 5 as well as PlayStation 4 and Windows PC.

How to connect the joystick to a PC?

Connect the provided USB-C cable to the joystick and plug the other end into a USB port on your PC. The system will recognize it automatically. For advanced configuration, install Thrustmaster's T.A.R.G.E.T. software.

Does the joystick work without additional software?

Yes, the joystick is natively recognized as a standard gaming device. However, to take advantage of all features and program buttons, we recommend using the T.A.R.G.E.T. software.

How to calibrate the joystick in games?

Under Windows, go to 'Game Controllers' (joy.cpl) and select the TCA Sidestick to calibrate. In games, use the control configuration options to assign axes and buttons. T.A.R.G.E.T. software also offers calibration profiles.

Is the integrated rudder rotating or sliding?

The integrated rudder is rotating: it pivots around a central axis, simulating the rudder pedals of an Airbus. This allows controlling the aircraft's yaw.

Can I use this joystick for games other than Microsoft Flight Simulator?

Absolutely. The TCA Sidestick Airbus Edition is compatible with most flight simulators (X-Plane, Prepar3D, DCS World, etc.) and also works as a generic joystick for other types of games.

How to clean the joystick?

Use a soft, dry cloth to wipe the surface. Never use liquids, solvents, or abrasive products. For hard-to-reach areas, light dusting with compressed air is possible.

What are the programmable buttons and how many are there?

The joystick has 17 programmable buttons distributed on the grip, base, and pedestal, including triggers, push buttons, and a hat switch. All can be configured via T.A.R.G.E.T. software.

Is there a warranty on this product?

Thrustmaster offers a 2-year warranty on this product (1 year in the US). Keep your proof of purchase for any claims.

Where can I download the Thrustmaster T.A.R.G.E.T. software?

T.A.R.G.E.T. software is available for free download on the official Thrustmaster website, in the support section for your product. It allows creating profiles, adjusting axis curves, and mapping buttons.

USER MANUAL TCA Sidestick Airbus Edition THRUSTMASTER

5

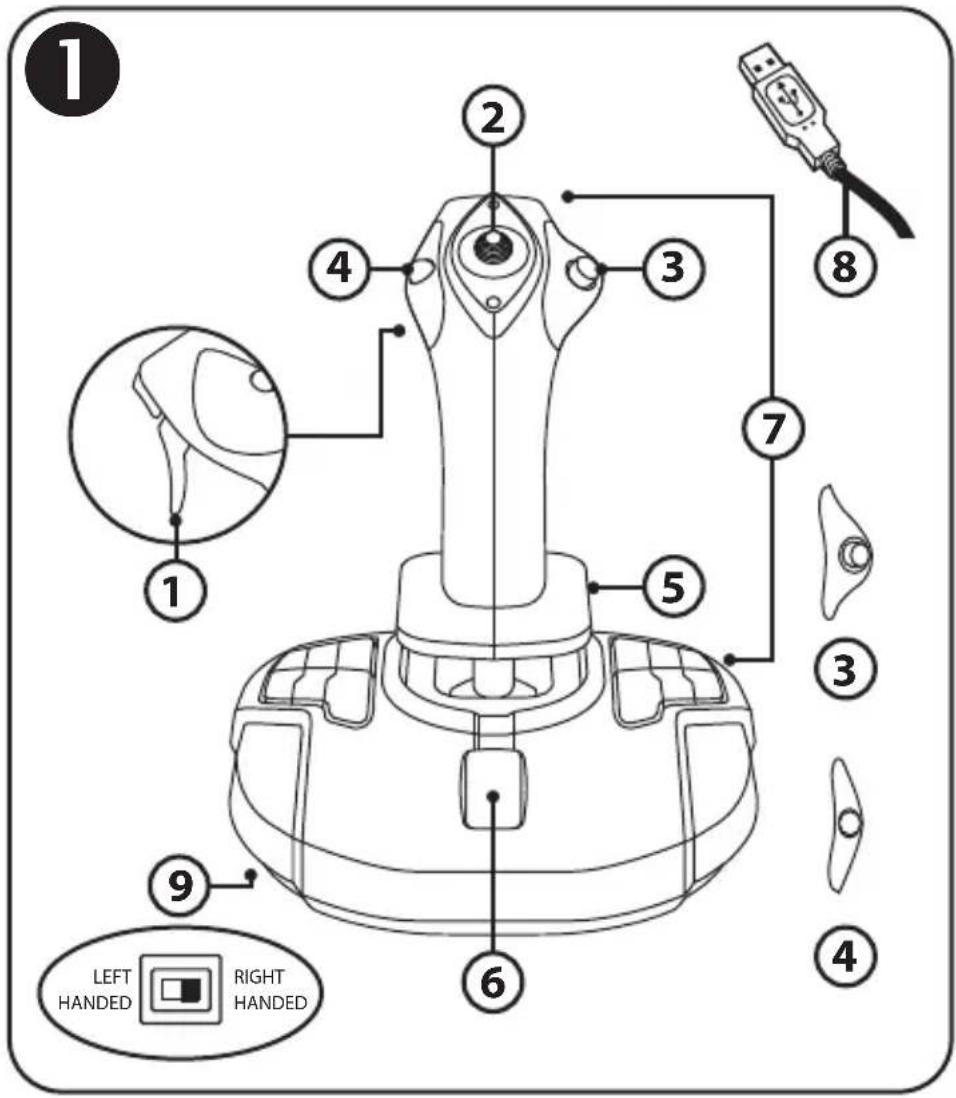

TECHNICAL FEATURES 1

1. Digital trigger
2. Multidirectional "Point of View" hat switch
3. Right button module
4. Left button module

5. Rudder control via rotating handle with hand rest + locking system

6. Throttle (with 1 virtual button)

7. 15 action buttons
8. PC USB connector
9. Right-handed or left-handed buttons selector switch

GETTING TO KNOW YOUR JOYSTICK

EXCLUSIVE PRECISION TECHNOLOGY:

H.E.A.R.T: HallEffect AccuRate Technology

Your TCA Sidestick Airbus Edition joystick features technology providing it with a level of precision currently unequaled in the world of gaming joysticks, including:

- 3D (Hall Effect) magnetic sensors on the stick, with a resolution of more than 268 million values over the X and Y axes (16,384 x 16,384 values), whereas current competing systems (even high-end systems) provide resolutions in the neighborhood of only 1 million values (1,024 x 1,024 values).

• A magnet: no friction, for unlimited precision and incredible responsiveness that will last.
• A coil spring on the stick (2.8 mm): for firm, linear and ultra-fluid tension.

THROTTLE

Your joystick features a throttle (6), which you can use to easily control your aircraft's engine thrust.

A virtual button (number 17, diagram 3) is enabled on the first 20 percent of the throttle's travel, in order to activate the thrust reversers, for example.

RUDDER FUNCTION

Your joystick features a rudder function (5): in an airplane, the pilot manipulates the rudder to pivot the plane around its vertical axis (making the plane turn to the left or to the right).

This rudder function is available on your joystick by rotating (i.e. twisting) the stick to the left or right.

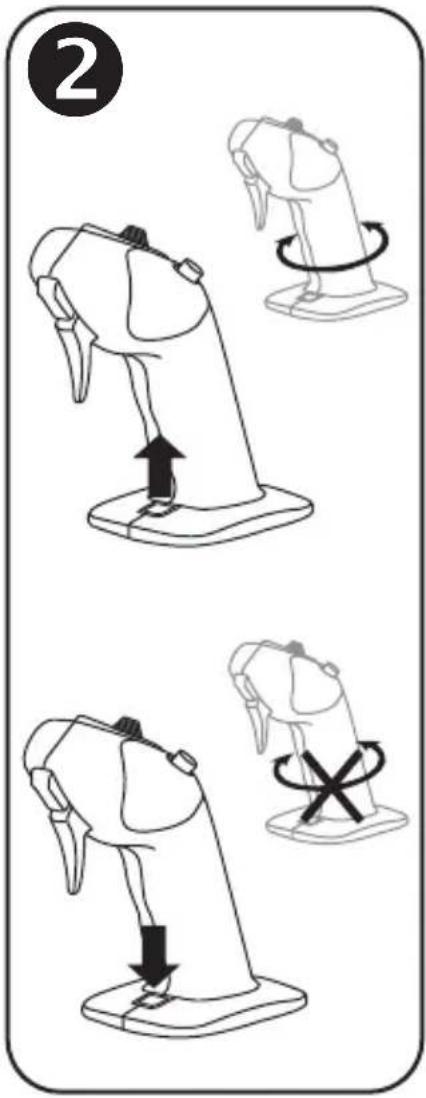

LOCKING/UNLOCKING THE RUDDER FUNCTION ②

The rudder function can be disabled using the lock button on the back of the joystick handle. Press this button down in order to lock the rudder's axis.

Bring this button back into the upper (i.e. default) position in order to unlock the rudder's axis.

MULTIDIRECTIONAL "POINT OF VIEW" HAT SWITCH

Your joystick features a “Point of View” hat switch (2) which, as its name indicates, allows you to instantly view everything that is going on around your aircraft (in games where this feature is enabled). To use this feature, simply go into your game’s setup menu, and program the different views (rear view, view to the left, view to the right, and also external views) onto the directions of the “Point of View” hat switch.

If you wish, you can also reserve the "Point of View" hat switch for other uses instead (firing, etc.).

AMBIDEXTROUS SYSTEM

Your TCA Sidestick Airbus Edition joystick has the advantage of being fully ambidextrous, allowing it to perfectly adapt to all players, whether they are right-handed or left-handed.

To do so, three elements can be adjusted: the configuration of the buttons on the base, the right button module, and the left button module.

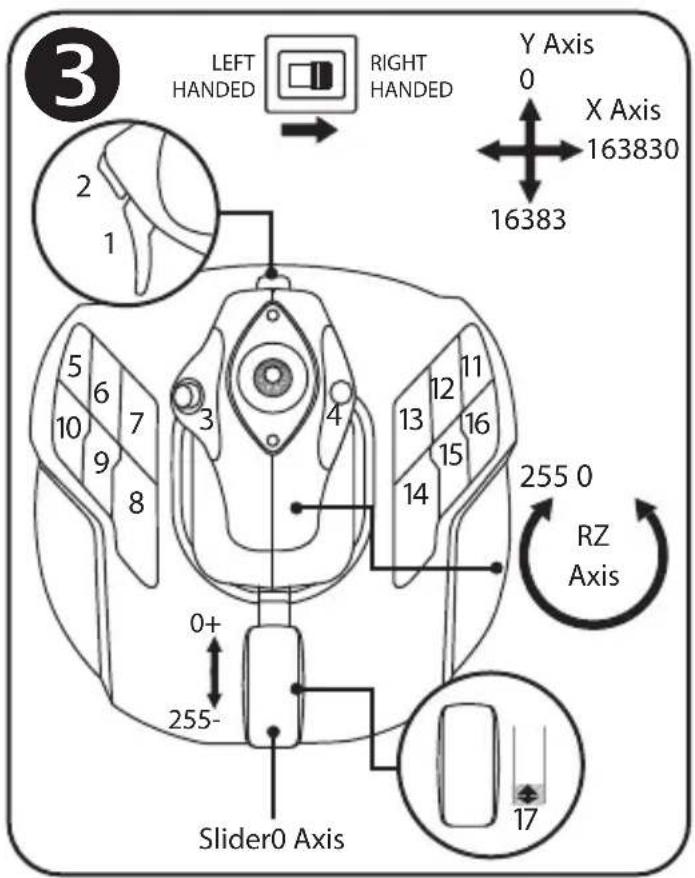

CONFIGURATION OF BUTTONS IN RIGHT-HANDED MODE ③

To set the positions of the 12 buttons located on the base to RIGHT-HANDED (or co-pilot/first officer) mode, set the selector switch (9) located under the joystick's base to RIGHT HANDED before connecting the joystick. Your product will then be recognized as a T.A320 Copilot.

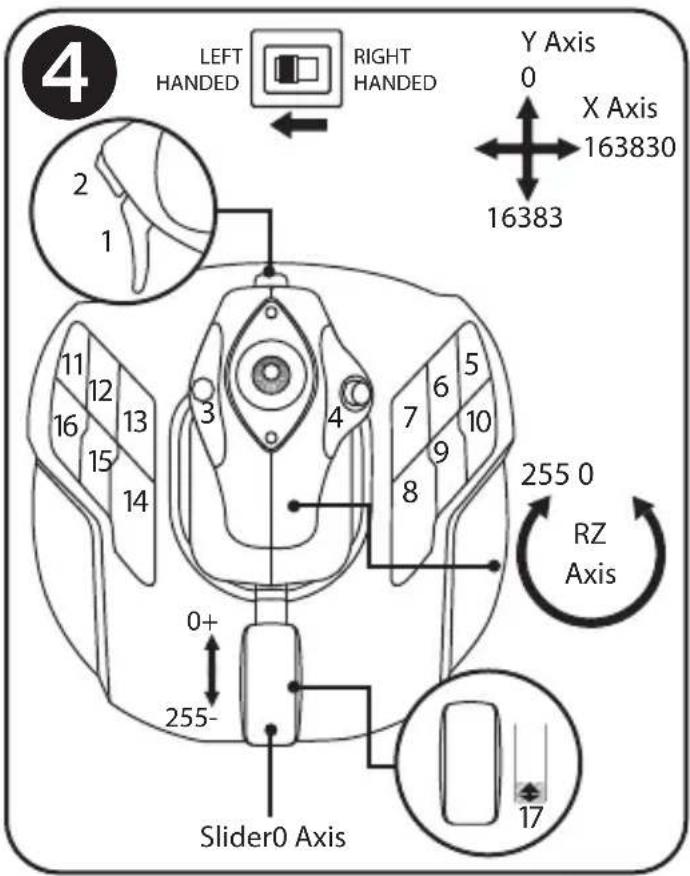

CONFIGURATION OF BUTTONS IN LEFT-HANDED MODE 4

To set the positions of the 12 buttons located on the base to LEFT-HANDED (or pilot) mode, set the selector switch (9) located under the joystick's base to LEFT HANDED before connecting the joystick. Your product will then be recognized as a T.A320 Pilot.

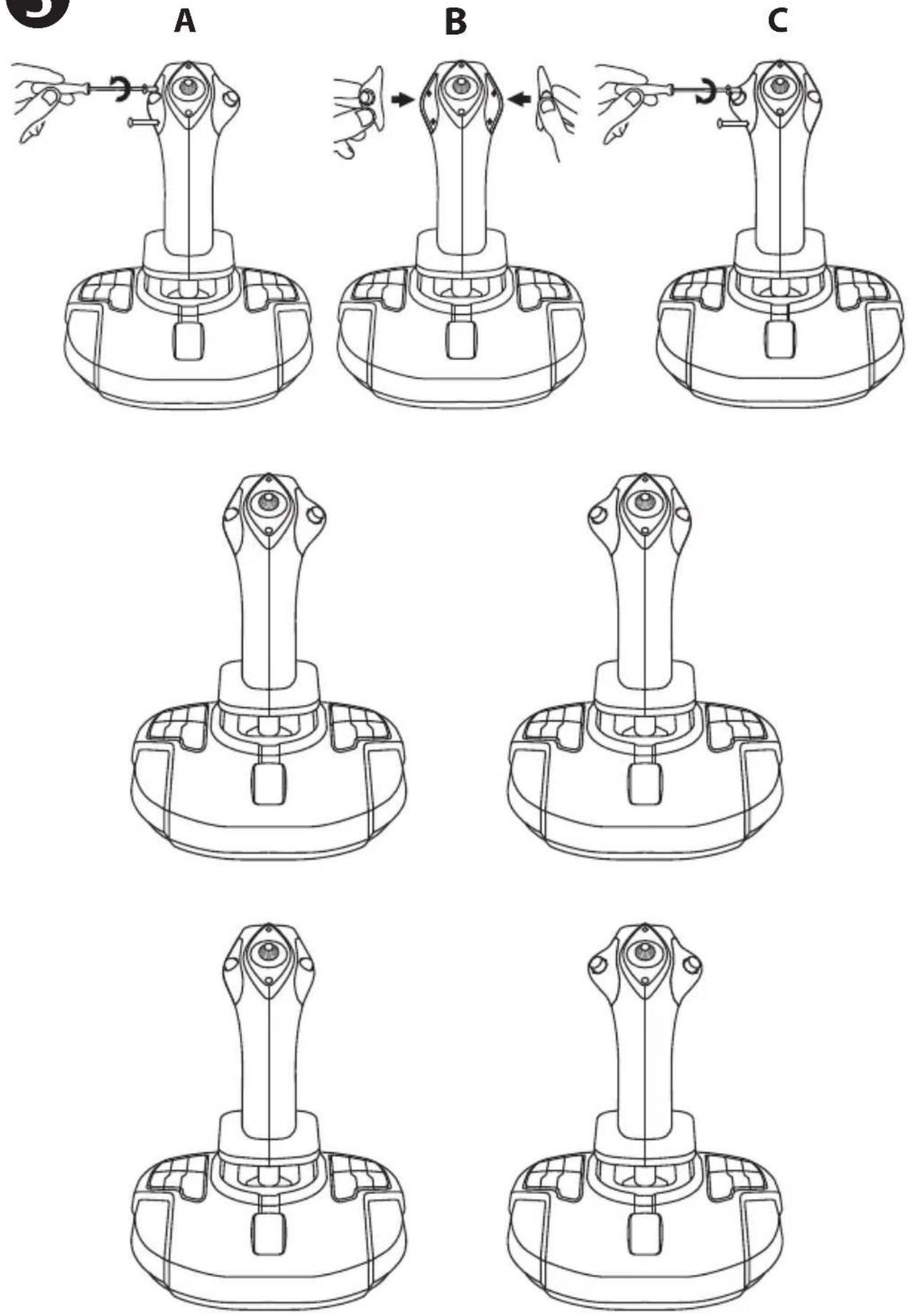

CHANGING THE MODULES 5

By default, the joystick is configured in pilot mode.

To change the configuration between the four different options available:

A. Using a small screwdriver, carefully unscrew the two screws in the button module on the left-hand side of the joystick's head.
B. Change the modules according to your preferred configuration.
C. Put the screws back in and completely retighten them.

PC

INSTALLATION ON PC

1. Connect the USB connector (8) to one of your computer's USB ports.

Windows 8 or 10 will automatically detect the new device.

1. The drivers are installed automatically.

Follow the on-screen instructions to complete the installation.

1. Click Start/Settings/Control Panel and double-click Game Controllers.

The Game Controllers dialog box displays the joystick's name with OK status.

1. In the Control Panel, click Properties to test and view all of your joystick's functions.

You are now ready to play!

IMPORTANT NOTE

When connecting your joystick, always set the stick and the rudder to their central positions, and avoid moving them (to avoid any calibration problems).

TROUBLESHOOTING AND WARNING

- My joystick isn't functioning properly or seems to be improperly calibrated:

- Power off your computer and disconnect your joystick; then, turn your computer back on, reconnect your joystick and restart your game.

- When connecting your joystick: always set the stick and the rudder to their central positions, and avoid moving them (to avoid any calibration problems).

• I can't configure my joystick:

- In your game's Options / Controller / Gamepad or Joystick menu: select the appropriate configuration, or completely reconfigure the controller options.

- Please refer to your game's user manual or online help utility for more information.

- My joystick is too sensitive or not sensitive enough:

- Your joystick self-calibrates independently once you have made some movements along the different axes.

- In your game's Options / Controller / Gamepad or Joystick menu: adjust the sensitivity and dead zones for your joystick (if these options are available).

This peripheral is meant for entertainment gaming purposes only, and its use is strictly forbidden for any kind of professional training activities.

CONSUMER WARRANTY INFORMATION

Worldwide, Guillemot Corporation S.A., whose registered office is located at Place du Granier, B.P. 97143, 35571 Chantepie, France (hereinafter “Guillemot”) warrants to the consumer that this Thrustmaster product shall be free from defects in materials and workmanship, for a warranty period which corresponds to the time limit to bring an action for conformity with respect to this product. In the countries of the European Union, this corresponds to a period of two (2) years from delivery of the Thrustmaster product. In other countries, the warranty period corresponds to the time limit to bring an action for conformity with respect to the Thrustmaster product according to applicable laws of the country in which the consumer was domiciled on the date of purchase of the Thrustmaster product (if no such action exists in the corresponding country, then the warranty period shall be one (1) year from the original date of purchase of the Thrustmaster product).

Notwithstanding the above, rechargeable batteries are covered by a warranty period of six (6) months from the date of original purchase.

Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support).

Within the context of this warranty, the consumer's defective product shall, at Technical Support's option, be either replaced or returned to working order. If, during the warranty period, the Thrustmaster product is subject to such reconditioning, any period of at least seven (7) days during which the product is out of use shall be added to the remaining warranty period (this period runs from the date of the consumer's request for intervention or from the date on which the product in question is made available for reconditioning, if the date on which the product is made available for reconditioning is subsequent to the date of the request for intervention). If permitted under applicable law, the full liability of Guillemot and its subsidiaries (including for consequential damages) is limited to the return to working order or the replacement of the Thrustmaster product. If permitted under applicable law, Guillemot disclaims all warranties of merchantability or fitness for a particular purpose.

This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause unrelated to a material or manufacturing defect (including, but not limited to, combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product); (2) if the product has been used for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example); (3) in the event of failure to comply with the instructions provided by Technical Support; (4) to software, said software being subject to a specific warranty; (5) to consumables (elements to be replaced over the product's lifespan: disposable batteries, audio headset or headphone ear pads, for example); (6) to accessories (cables, cases, pouches, bags, wrist-straps, for example); (7) if the product was sold at public auction.

This warranty is nontransferable.

The consumer's legal rights with respect to laws applicable to the sale of consumer goods in his or her country are not affected by this warranty.

Additional warranty provisions

During the warranty period, Guillemot shall not provide, in principle, any spare parts, as Technical Support is the only party authorized to open and/or recondition any Thrustmaster product (with the exception of any reconditioning procedures which Technical Support may request that the consumer carry out, by way of written instructions – for example, due to the simplicity and the lack of confidentiality of the reconditioning process – and by providing the consumer with the required spare part(s), where applicable).

Given its innovation cycles and in order to protect its know-how and trade secrets, Guillemot shall not provide, in principle, any reconditioning notification or spare parts for any Thrustmaster product whose warranty period has expired.

In the United States of America and in Canada, this warranty is limited to the product's internal mechanism and external housing. In no event shall Guillemot or its affiliates be held liable to any third party for any consequential or incidental damages resulting from the breach of any express or implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or exclusion or limitation of liability for consequential or incidental damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State or Province to Province.

Liability

If permitted under applicable law, Guillemot Corporation S.A. (hereinafter "Guillemot") and its subsidiaries disclaim all liability for any damages caused by one or more of the following: (1) the product has been modified, opened or altered; (2) failure to comply with assembly instructions; (3) inappropriate or abusive use, negligence, an accident (an impact, for example); (4) normal wear; (5) the use of the product for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example). If permitted under applicable law, Guillemot and its subsidiaries disclaim all liability for any damages unrelated to a material or manufacturing defect with respect to the product (including, but not limited to, any damages caused directly or indirectly by any software, or by combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product).

DECLARATION OF CONFORMITY

CANADIAN COMPLIANCE NOTICE: this Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

USA COMPLIANCE NOTICE: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

COPYRIGHT

© 2022 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. Windows® is a registered trademark of Microsoft Corporation in the United States and/or other countries.

AIRBUS, its logo and product and service marks are registered trademarks of Airbus. All rights reserved.

© Airbus 2022. All rights reserved. Officially licensed by Airbus.

All other trademarks and brand names are hereby acknowledged and are property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another. Made in China.

WARNING: this product can expose you to chemicals including Bisphenol A (BPA),

which is known to the State of California to cause birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov

ENVIRONMENTAL PROTECTION RECOMMENDATION

* In the European Union: At the end of its working life, this product should not be disposed of with standard household waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling. This is confirmed by the symbol found on the product, user manual or packaging. Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment, you can make a significant contribution towards helping to protect the environment.

Please contact your local authorities for information on the collection point nearest you.

For all other countries: Please adhere to local recycling laws for electrical and electronic equipment.

Retain this information. Colors and decorations may vary.

Plastic fasteners and adhesives should be removed from the product before it is used.

www.thrustmaster.com

*Applicable to EU, UK and Turkey only

THRUSTMASTER®

TECHNICAL SUPPORT

https://support.thrustmaster.com
