USER MANUAL LAVE VITRES WV50 PLUS KARCHER

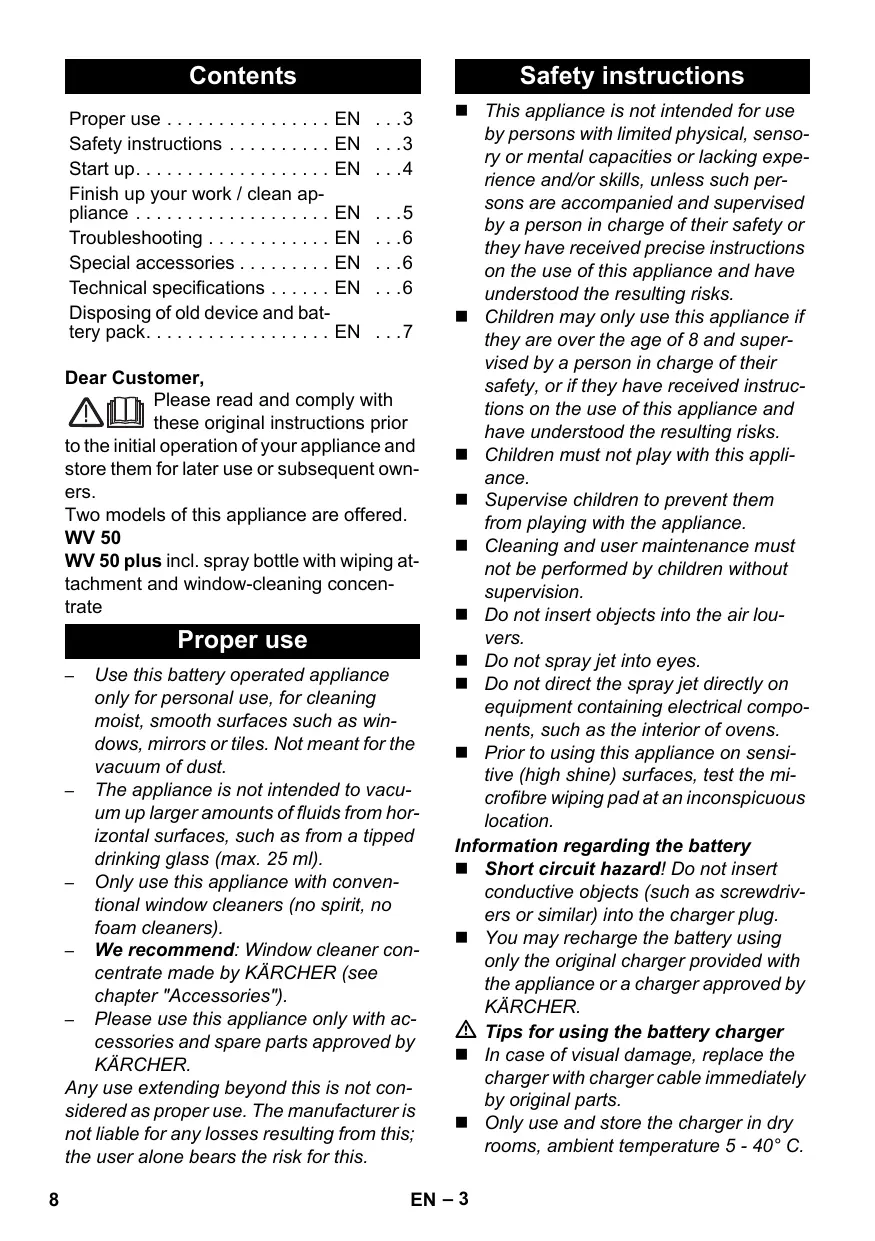

Safety instructions EN 3

Start up. EN 4

Finish up your work / clean appliance EN 5

Troubleshooting EN .6

Special accessories EN .6

Technical specifications . EN .6

Disposing of old device and battery pack. EN 7

Dear Customer,

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

Two models of this appliance are offered.

WV 50

WV 50 plus incl. spray bottle with wiping attachment and window-cleaning concentrate

Proper use

• Use this battery operated appliance only for personal use, for cleaning moist, smooth surfaces such as windows, mirrors or tiles. Not meant for the vacuum of dust.
  The appliance is not intended to vacuum up larger amounts of fluids from horizontal surfaces, such as from a tipped drinking glass (max. 25 ml).
• Only use this appliance with conventional window cleaners (no spirit, no foam cleaners).
  We recommend: Window cleaner concentrate made by KÄRCHER (see chapter "Accessories").
• Please use this appliance only with accessories and spare parts approved by KÄRCHER.

Any use extending beyond this is not considered as proper use. The manufacturer is not liable for any losses resulting from this; the user alone bears the risk for this.

Safety instructions

This appliance is not intended for use by persons with limited physical, sensory or mental capacities or lacking experience and/or skills, unless such persons are accompanied and supervised by a person in charge of their safety or they have received precise instructions on the use of this appliance and have understood the resulting risks.
Children may only use this appliance if they are over the age of 8 and supervised by a person in charge of their safety, or if they have received instructions on the use of this appliance and have understood the resulting risks.
Children must not play with this appliance.
Supervise children to prevent them from playing with the appliance.
- Cleaning and user maintenance must not be performed by children without supervision.
Do not insert objects into the air louvers.
Do not spray jet into eyes.
- Do not direct the spray jet directly on equipment containing electrical components, such as the interior of ovens.
Prior to using this appliance on sensitive (high shine) surfaces, test the microfibre wiping pad at an inconspicuous location.

Information regarding the battery

Short circuit hazard! Do not insert conductive objects (such as screwdrivers or similar) into the charger plug.
You may recharge the battery using only the original charger provided with the appliance or a charger approved by KÄRCHER.

Tips for using the battery charger

In case of visual damage, replace the charger with charger cable immediately by original parts.
Only use and store the charger in dry rooms, ambient temperature 5 - 40^

• Never touch the mains plug with wet hands.
  Information regarding the transport
  The battery has been tested as per the relevant directives for international transport and can be transported/ shipped.

Environmental protection

The packaging material can be recycled. Please do not place the package to the ordinary refuse for disposal, but go for the proper recycling.

Old appliance contain valuable recyclable materials and substances that must not be released into the environ

ment. Thus, the appliance and the accumulator contained must not be disposed of via the domestic waste. The disposal can take place via locally available return and collection systems free of charge.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Symbols in the operating instructions

Danger

Immediate danger that can cause severe injury or even death.

Warning

Possible hazardous situation that could lead to severe injury or even death.

Caution

Possible hazardous situation that could lead to mild injury to persons or damage to property.

Start up

Description of the Appliance

When unpacking the product, make sure that no accessories are missing and that none of the package contents have been damaged. If you detect any transport damages please contact your dealer.

Illustrations on Page 2

Illustration 1

WV 50

1 Charger with charging cable
2 Basic appliance
3 Charging box
4 Charge/operations display
5 Support leg
6 Handle
7 ON/OFF switch for appliance
8 Dirt water reservoir, removable
9 Lock, dirt water reservoir
10 Separator
11 Unlocking device, separator
12 Attachment with removable lips
13 Unlocking device, suction nozzle

WV 50 plus *

14 Spray bottle
15 Spray lever
16 Wiping attachment
17 Fastening ring for the wiper attachment
18 Micro-fibre wiping pad
19 Window cleaner concentrate
* depending on model

Assemble the appliance

Illustration 2

Attach the suction nozzle to the separator until it snaps in place audibly

Attach the spray bottle and wiper attachment and fill it with detergent*

• depending on model

Note: Please note that after first activation of the spray head transport lock will loosen.

Attach the wiping attachment

Illustration 3

Remove the spray head from the spray bottle.
Attach the wiper attachment to the spray head.
Secure the wiper attachment and the spray head with the fixating ring.

Illustration 4

Attach the wiper pad to the wiper attachment and secure with Velcro.

Fill the spray bottle

Illustration 5

Fill the included concentrate (1× 20ml) into the spray bottle and fill the bottle slowly with clear water (makes 250~ml of detergent solution).
Close the bottle.

Charge the battery

Illustration 6

Insert the charger delivered with the appliance into a proper socket.
Insert the charging cable plug to the back of the appliance.

Note: During the charging process, the charge/operating display blinks. Once the battery is fully charged, it will be permanently illuminated.

Start working

Cleaning with spray bottle and wiper attachment*

• depending on model Illustration 7
  Press the spray lever on the bottle to apply the detergent and spray the surface evenly; after that, loosen the dirt using the wiping pad.

Note: Rinse pad under running water if needed!

Illustration 8

Switch the appliance on, the charge/operations display will illuminate.
Important: Prior to use, ensure that the squeegees are free of soiling.
Pull the appliance from the top to the bottom to vacuum up the detergent.

Note: Hard to reach areas can be vacuumed vertically or horizontally (limited areas).

Notes:

If the battery is low, the charging / power indicator starts flashing slowly and the appliance switches off after a certain time. If this is the case, charge the battery.

The appliance can be switched off while the spray bottle is in use. This significantly in-

creases the operating time per battery charge.

Cleaning without the spray bottle

Apply the detergent as usual according to manufacturer's instructions and loosen the dirt.
Further procedure same as the "Cleaning with spray bottle and wiper attachment", see illustration 8.

Interrupting the work

Illustration 9

Switch off the appliance and set it down on the pedestal (parking position).

Emptying the reservoir during operation

Once the max. fill level (mark) of the dirt water reservoir is reached, please empty the tank.

Illustration 9

Turn off the appliance.

Illustration 10

Pull off the lock of the dirt water reservoir and empty the tank.
Close the closure of the wastewater tank.

Finish up your work / clean appliance

Illustration 9

Turn off the appliance.

Illustration 11

Unlock the suction nozzle first and remove it from the separator, then unlock the separator and remove it, too.
Clean the separator and the suction nozzle under running water (not dishwasher safe).

Illustration 12

Caution: The basic appliance contains electrical components. Do not clean this under running water!

Remove the dirt water reservoir, rotate the lock and pull out.
Empty the reservoir and rinse with clear water. Close the reservoir again.

Remove the wiping cover from the spray bottle and rinse it under running water. The wiping cover can also be washed in the washing machine at a temperature of up to 60^ (without the use of fabric softeners).
Let the cleaned appliance dry prior to assembly.
Charge the battery.

Storing the Appliance

Store the appliance upright in a dry room.

Troubleshooting

Spray bottle does not spray

Refill detergent.
Pump mechanism in spray botte defective, contact dealer.

Machine does not start

Check the charge/operations display:

No signal or slowly blinking signal: Charge the battery.
With a rapidly blinking signal: Inform your dealer.

Streaks while cleaning

Clean the pull-off lip.
Reverse the used pull-off lip:

Pull the silicone squeezee to the side. Wet the squeezegee in the area of the curve with water or detergent. Slide the silicone squeezegee back in the holder in reverse order.

Replace the pull-off lip if necessary: If both edges are worn after turning the silicone squeezee around, a new silicone squeezee is required. Replace silicone squeezee as described above.
Adjust the dosing of cleaning solution.

Water is leaking from the air louvers

Empty the dirt water reservoir (max. 100 ml content).

Special accessories

Window cleaner concentrate (4× 20ml)

Order No. 6.295-302.0

Micro-fibre wiping pad (2 piece)

Order No. 2.633-100.0

Removable lips, wide (2 ea.)

Order No.: 2.633-005.0

Waist bag

Order No.: 2.633-006.0

Technical specifications

Type of protection	IP X4
Volume of dirt water reservoir	100	ml
Operating time with full charge	20	min
Nominal battery voltage	3,6	V
Rated power of appliance	12	W
Charging current for em-py battery	2	h
Output voltage, charger	5,5	V
Output current, charger	600	mA
Sound pressure level (EN 60704-2-1)	54	dB(A)
Weight	0,7	kg
Battery type	Li-Ion

Subject to technical modifications!

Disposing of old device and battery pack

This appliance includes a built-in battery pack; please remove this battery pack before disposing of the old appliance.

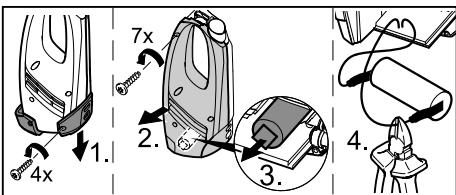

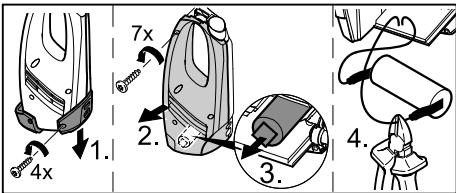

Remove battery pack and dispose of

Risk of a short circuit
Do not touch contacts or wires.
Risk of explosion
Do not expose the accumulator to direct sunlight, heat or fire.
Risk of injury due to short circuit, chemical burn or escaping irritant vapours
Do not open the accumulator.

The appliance may only be opened in order to dispose of the battery pack.
Remove the battery pack and dispose of properly (at a collection site or the dealer).
