USER MANUAL HT6510E EGO

Line drawing of a portable electronic device with control panel and ventilation slots (no text or symbols)

B

Diagram of a mechanical component with internal gear and shaft, showing motion direction arrows (no text or symbols)

C1

Line drawing of a 360 timer and its internal components, showing a mechanical assembly with an arrow indicating rotation (no text or symbols present)

C2 EGO 1 2 SEV

D1 0° EGO

D2 +45° EGO

D3 +90° EGO

D4 -45° EGO

D5 -90° EGO

E SPEED

Illustration of a person using a power shaver to cut through a field with arrows indicating direction (no text or symbols)

Illustration of hands using a tool to spread soil or vegetation in a field, with no visible text or symbols.

Technical illustration of a mechanical tool or bracket with serrated edge and mounting holes (no text or symbols)

Mechanical gear profile diagram showing toothed edge and linear teeth (no text or symbols)

Technical illustration of a mechanical component with a tool inserted, showing gear teeth and mounting holes (no text or symbols)

K EGO K-1

EGO Europe GmbH

The Anchorage, 34 Bridge Street Reading, RG1 2LU, United Kingdom

READ ALL INSTRUCTIONS!

EN

READ OPERATOR'S MANUAL

⚠ WARNING: To ensure safety and reliability, all repairs and replacements should be performed by a qualified service technician.
WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

SAFETY SYMBOLS

WARNING: The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.

Safety Alert

This product is in accordance with applicable EC directives.

Waste electrical products should not be disposed of with household waste. Take to an authorized recycler.

Keep hands and feet away from the cutting tool.

Direct Current

To reduce the risk of injury, user must read the operator's manual.

Guaranteed sound power level. Noise emission to the environment according to the European community's Directive.

This product is in accordance with applicable UK legislation.

Wear Ear Protection

Wear Eye Protection

mm Millimeter V Voltage

n_0 No Load Speed SPM Strokes per Minute

cm Centimeter IPX4 Protection From Splashing Water

EN SPECIFICATIONS

Rated Voltage		56 V ---
Recommended Operating Temperature		0°C-40°C
Recommended Storage Temperature		-20°C-70°C
Model HT5110E HT6510E
No-Load Speed Max. 3600SPM Max. 3600SPM
Blade Length 51cm 65cm
Cutting Capacity 33mm		33mm
Weight (without battery pack, blade guard)		3.42kg 3.6kg
Measured sound power level L_WA		84 dB(A)K=1.8 dB(A)	85 dB(A)K=1.9 dB(A)
Sound pressure level at working position L_PA		76 dB(A)K=3 dB(A)	78 dB(A)K=3 dB(A)
Guaranteed sound power level L_WA (according to 2000/14/EC)		86 dB(A) 87 dB(A)
Vibration a_h	Front handle	3.1 m/s ^2 K=1.5 m/s ^2	3.03 m/s ^2 K=1.5 m/s ^2
	Rear handle	2.43 m/s ^2 K=1.5 m/s ^2	2.78 m/s ^2 K=1.5 m/s ^2

■ The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;
■ The declared vibration total value may also be used in a preliminary assessment of exposure.

NOTICE: The vibration emission during actual use of the power tool can differ from the declared value in which the tool is used; In order to protect the operator, user should wear gloves and ear protectors in the actual conditions of use.

PACKING LIST (FIG. A1)

DESCRIPTION

KNOW YOUR HEDGE TRIMMER (Fig. A1)

1. Tip Protector
2. Blade
3. Blade Guard

4. Hand Guard

5. Front Handle

6. Front Trigger
7. Speed Indicator
8. Speed Mode Button
9. Rear Trigger
10. Lock-off Trigger
11. Rear Handle
12. Battery-release Button
13. Handle-release Lever
14. Blade Sheath

WARNING: This product has been shipped completely assembled. The hand guard shall never be removed during use. Once damaged, replace it immediately by a qualified service technician.

WARNING: The safe use of this product requires an understanding of the information on the tool and in this operator's manual, as well as knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

OPERATION

WARNING: Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.
WARNING: Always wear eye protection with side shields, along with hearing protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.
WARNING: To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the tool when assembling parts, making adjustments, cleaning, or when not in use.
⚠ WARNING: Do not use any attachments or accessories not recommended by EGO™. The use of attachments or accessories not recommended can result in serious personal injury.

Before each use, inspect the entire product for damaged, missing, or loose parts, such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced.

APPLICATION

You may use this product for trimming the hedges, shrubs and bushes with a branch diameter of less than 33 mm.

NOTICE: The tool is to be used only for its prescribed purpose. Any other use is deemed a misuse.

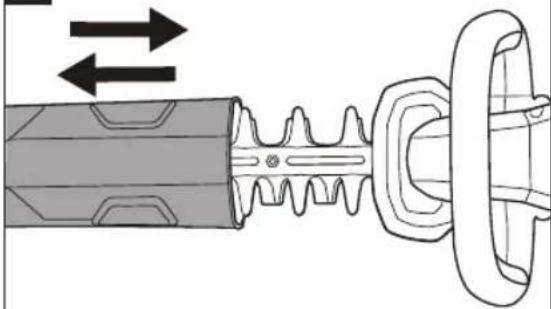

BLADE SHEATH (FIG. B)

Remove/install the blade sheath from/to the cutting device.

INSTALLING/REMOVING THE BATTERY PACK

Use only with battery packs and chargers listed in fig.A2.

Charge before first use.

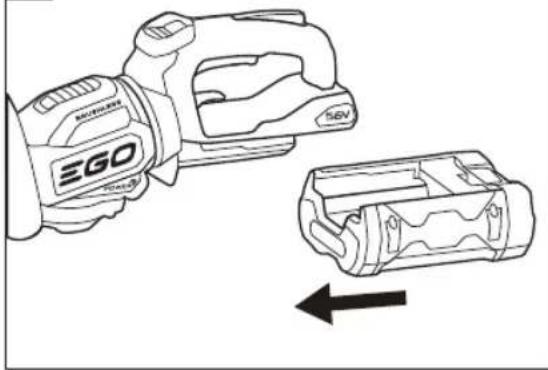

To Install (Fig. C1)

Align the battery ribs with the mounting slots in the machine's battery port and slide the battery pack until it snaps into position.

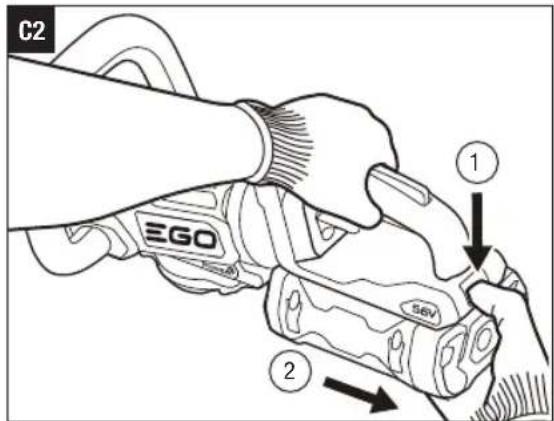

To Remove (Fig. C2)

Depress the battery-release button and pull the battery pack out.

WARNING: Always be aware for the location of your feet, children, or pets when pressing the battery-release button. Serious injury could result if the battery pack falls. NEVER remove the battery pack at a high location.

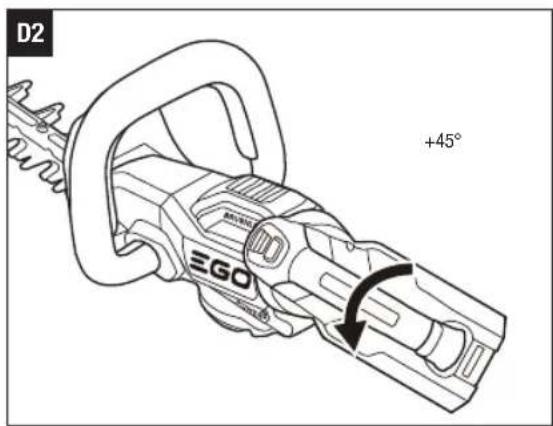

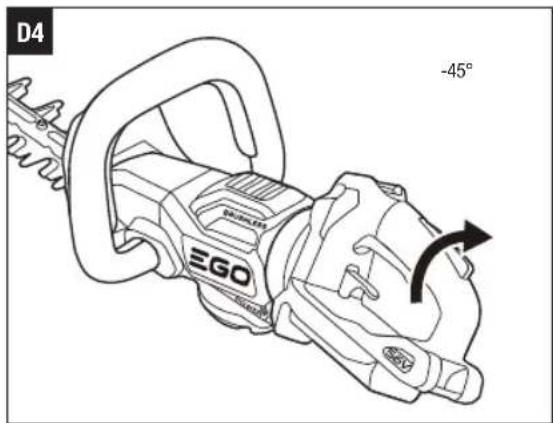

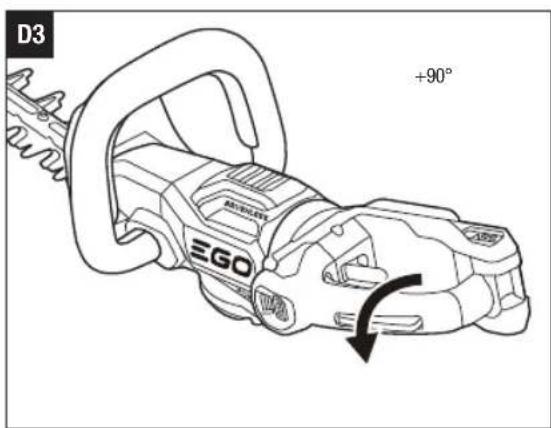

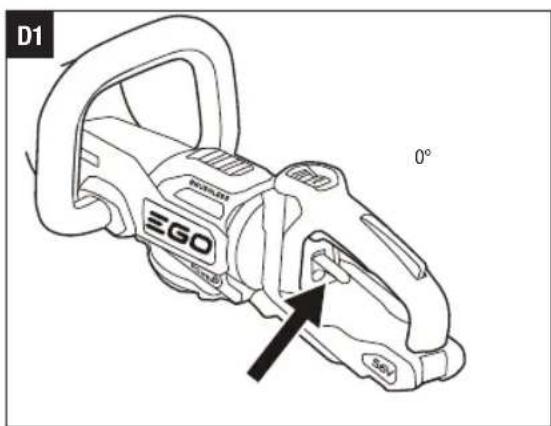

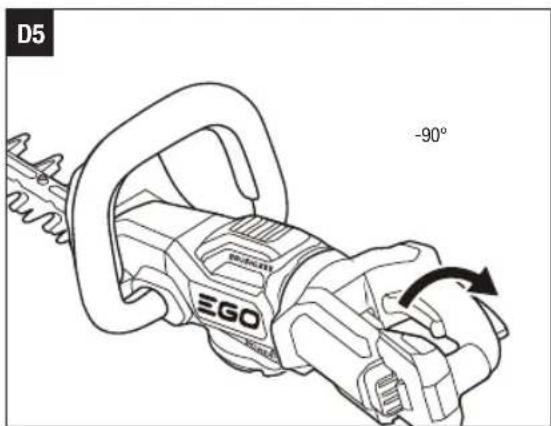

HOLDING THE HEDGE TRIMMER (Fig. D1-D5)

The unit has both a front and rear handle. With the blade directed away from you, hold the unit by both handles.

The rear handle can be set in five positions (0°/±45°/±90°) by raising up the handle-release lever (Fig. D1 to Fig.D5), giving you many choices for a comfortable grip when performing cutting operations.

WARNING: Do not adjust the handle while the machine is running. Stop the machine and remove the battery first.

STARTING/STOPPING THE HEDGE TRIMMER

Before operating, remove the blade guard and hold the trimmer with both hands, one hand on the rear handle and the other on the front handle. Then check for stable footing, upright standing and a proper cutting distance. Make sure that the cutting blade is not touching the ground or any other objects.

WARNING: Check the hedges and bushes for foreign objects, such as wire fences and hidden wiring, before operating the machine.

WARNING: Do not use on a ladder, rooftop, tree, or other unstable support. Stable footing on a solid surface enables better control of the hedge trimmer in unexpected situations.

To Start

1. Install the battery pack.
2. Squeeze and hold the front trigger with one hand.
3. Depress the lock-off trigger with the palm of your other hand and then squeeze the rear trigger. With the rear trigger depressed, continue pressing the front trigger for continued operation.

To Stop

Move the hedge trimmer away from the cutting area and release either of the trigger to stop the hedge trimmer.

WARNING: Always remove the battery pack from the hedge trimmer during work breaks and after finishing work.

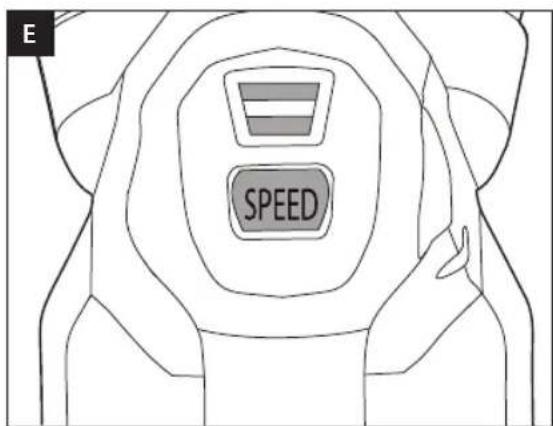

CHANGING SPEED MODE (FIG. E)

This machine features two speed modes. The speed mode will change with every press of the speed mode button.

The speed indicator will display the active speed status: one light for low speed, two lights for high speed. The low speed mode provides better control of the machine and longer operating time per charge.

NOTICE: The speed mode can be set before the machine is turned on OR during operation. When the machine is re-started after a break, the speed mode will return to the previous speed.

USING THE HEDGE TRIMMER

DANGER: If the blade jams on any electrical cord or line, DO NOT TOUCH THE BLADE! IT CAN BECOME ELECTRICALLY LIVE AND VERY DANGEROUS. Continue to hold the hedge trimmer by the insulated rear handle or lay it down and away from you in a safe manner. Disconnect the electrical service to the damaged line or cord before attempting to free the blade from the line or cord. Failure to heed this warning will result in serious personal injury or possible death.

WARNING: Avoid trimming too much at one time or through the heavy shrubbery. This can cause the blades to bind and slow, reducing the cutting efficiency.

NOTICE: The trimmer shall be used to cut stems less than 33 mm thick.

NOTICE: For new growth, a wide sweeping is suitable for the stems fed directly into the cutting blade. For older growth, a sawing movement is good for trimming the thicker stems. A non-powered hand saw or pruning saw is suggested for trimming the large stems first.

EN

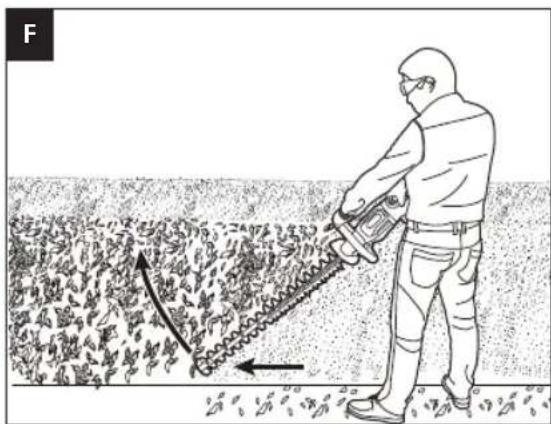

Side Cutting

When trimming the sides of the hedge, begin at the bottom and cut upwards as Fig. F shown. Trim the side of a hedge so that it will be slightly narrower at the top. This shape will expose more of the hedge to sunlight, resulting in a more uniform growth.

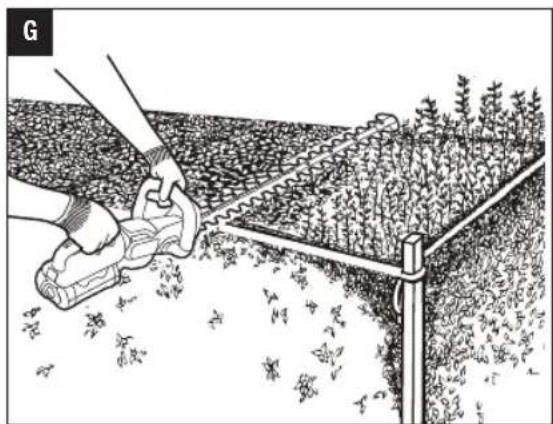

Top Cutting

Use a wide sweeping motion. A slight downward tilt of the cutting blades in the direction of motion gives the best cutting results. For better cutting effect, you might as well use the string to guide the hedge level as Fig. G shown.

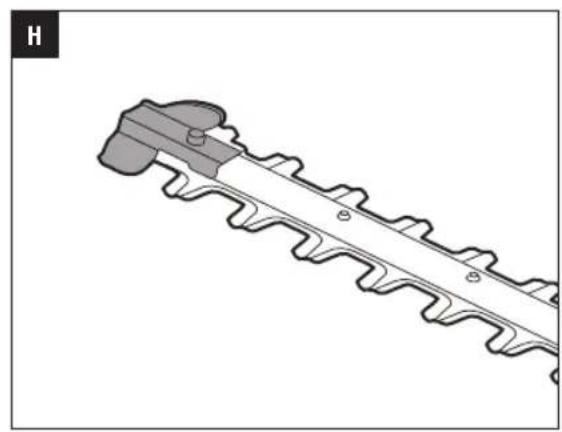

Tip Protector (Fig. H)

The tip protector is used to protect the outer end of the blade.

Blade Guard (Fig. I)

The outer part of the blades is shaped as blade guards.

WARNING: Always check that the blade guard is not damaged or distorted. Replace it if it is bent or damaged.

MAINTENANCE

WARNING: When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. To ensure safety and reliability, all repairs should be performed by a qualified service technician.

WARNING: To avoid serious personal injury, always remove the battery pack from the product when cleaning or performing any maintenance.

CLEANING

■ Use a soft brush to remove debris from all air intakes and cutting blade.
■ To remove pitch and other sticky residue, spray the blades with resin solvent. Run the motor briefly so that the solvent is evenly distributed, then wipe the surface with a dry cloth.

WARNING: Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents. Use clean clothes to remove dirt, dust, oil, grease, etc.

SHARPENING THE BLADES

When cutting performance and behavior begin to deteriorate, re-sharpen the blades. It is recommended to have the blades re-sharpened by a qualified service technician.

NOTICE: Do not operate your hedge trimmer with dull or damaged cutting blades. This may cause overload and will give unsatisfactory cutting results.

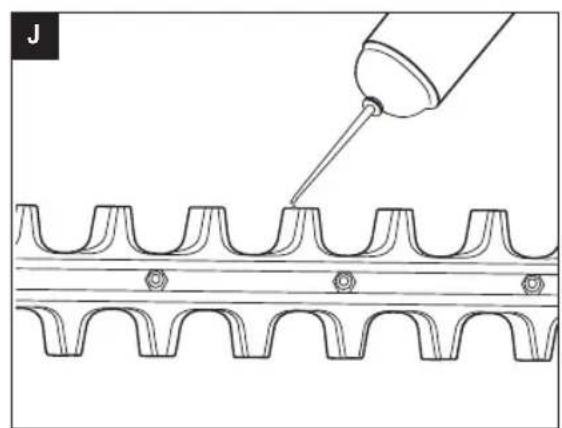

LUBRICATING THE BLADE (Fig. J)

For best operation and longer blade life, lubricate the hedge trimmer blade with light weight machine oil before and after each use.

Remove the battery pack and lay the trimmer onto a flat surface. Apply the oil along the edge of the top blade.

NOTICE: For extended using period, it is advisable to take a break, remove the battery and oil the blades.

⚠ WARNING: Do not oil while the hedge trimmer is running.

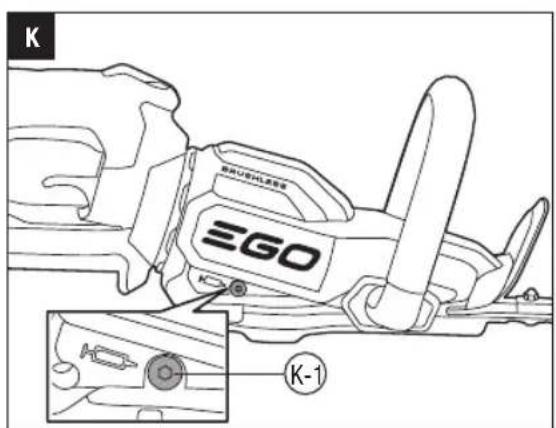

TRANSMISSION GEARS LUBRICATION (Fig. K)

The transmission gears in the motor housing need to be lubricated periodically with gear grease. Check the gear case grease level approximately every 50 hours of operation by removing the sealing bolt.

K-1 Sealing Bolt

If no grease can be seen on the flanks of the gear, follow the steps below to fill with about 5g gear grease. Do not completely fill the transmission gear case.

1. Use a 4mm hex key (not included) to loosen and remove the sealing bolt.

2. Use a grease gun (not included) to inject some grease into the bolt hole; do not exceed 5g gear grease.

3. Tighten the sealing bolt after injection.

The grease should meet the following requirements:

• NLGI Grade Penetration: NLGI-2;
• Thickener Type: Polyurea;
• Recommended Operating Temperature Range: -40°C to 180°C;
• Other than above, the grease should also be shear stable with exceptional pressure characteristics and excellent anti-wear property, and perfect oxidation stability.

TRANSPORTING AND STORING

■ Always place the blade guard on the blade before storing or transporting the hedge trimmer. Use caution to avoid the sharp teeth of the blade.
■ Clean the hedge trimmer thoroughly before storing.
■ Store the hedge trimmer indoors, in a dry place that is inaccessible to children.
- Keep away from corrosive agents such as garden chemicals and deicing salts.

WARNING: Blades are sharp. When handling the blade assembly, wear non-slip, heavy-duty protective gloves. Do not place your hand or fingers between blades or in any position where they could get pinched or cut. NEVER touch blades or service the unit with battery pack installed.

Protecting the environment

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

EN TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
Hedge trimmer doesn’t work.	The battery pack is not attached to the hedge trimmer.No electrical contact between the trimmer and batteryThe battery pack is depleted.The battery pack is too hot.The hedge trimmer is too hot.The front and rear triggers are not depressed simultaneously.The blade is jammed.	Attach the battery pack to the hedge trimmer.Remove battery, check contacts and reinstall the battery pack.Charge the battery pack.Remove the battery pack from the tool and allow it to cool until the temperature drops below 67°C.Release both triggers; allow the trimmer to cool until the temperature drops to normal temperature.Press and hold the front trigger first, press the lock-off trigger with your palm, and then the rear trigger.Remove the battery pack from the tool, remove the obstruction carefully, then reinsert the battery and restart the tool.
Excessive vibration or noise.	Dry or corroded blades.Blades or blade support is bent.Bent or damaged teeth.Loose blade bolts.	Lubricate the blades, following the section “LUBRICATING THE BLADE” in this manual.Replace with a new blade or support. Contact EGO customer service for blade or support replacement service.Replace with a new blade. Contact EGO customer service for blade replacement service.Tighten the blade bolts. Using a wrench, turn the bolt clockwise to tighten.

WARRANTY

EGO WARRANTY POLICY

Please visit the website egopowerplus.eu for full terms and conditions of the EGO Warranty policy.
