USER MANUAL AD 7079 ADLER

White and silver robotic vacuum cleaner with blue stripe and black handle (no text or symbols visible)

AD 7079
EN	User Manual	7	PL	Instrukcja obsługi	104
DE	Bedienungsanleitung	12	IT	Manuale d'uso	110
FR	Mode d'emploi	19	SV	Bruksanvisning	116
ES	Manual de usuario	25	BG	Ръководство за употреба	122
PT	Manual de Instruções	31	DA	Brugsanvisning	129
LT	Naudojimo instrukcija	37	SK	Používatel'ská príručka	134
LV	Lietošanas instrukcija	43	BS	Korisnički priručnik	140
ET	Kasutusjuhend	49	MK	Упатство за употреба	146
HU	Használati útmutató	55	HR	Korisnički priručnik	152
RO	Manual de utilizare	61	UK	Керівництво користувача	158
CS	Návod k použití	67	SR	Упутство за употребу	164
RU	Руководство пользователя	73	AR	دليل المستخدم	170
EL	Еүхειρίδιο χρήσης	79	AZ	İstifadəçi təlimatı	174
NL	Gebruikershandleiding	86	SQ	Manuali i përdorimit	179
SL	Navodila za uporabo	92	KA	Общебيرجود	185
FI	Käyttöohje	98

1 2 3 4 5 6 7 8 9 10

Line drawing of a mechanical component with a base and protruding shaft (no text or symbols)

Simple line drawing of a cylindrical object with a central rod, labeled '11' below (no text or symbols on the object itself)

Simple line drawing of a cylindrical mechanical component with no text or symbols

Line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a medical or laboratory device with a bulb and tubing, labeled '16' below (no text or symbols on the diagram itself)

Simple line drawing of a smiling face with two side protrusions, labeled '17' below (no text or symbols on the figure itself)

A

188 4 2 U 5 3 - + 6

Status of indicator lamps	Display content	Treatment
RED	●Roller is blocked.	● Remove foreign objects from the rotating plush.
RED	●Ventilation pathways are blocked.	● Remove debris from the connection between the floor head and the pipe, inside the pipe and at the connection between the pipe and the dust cup.

B

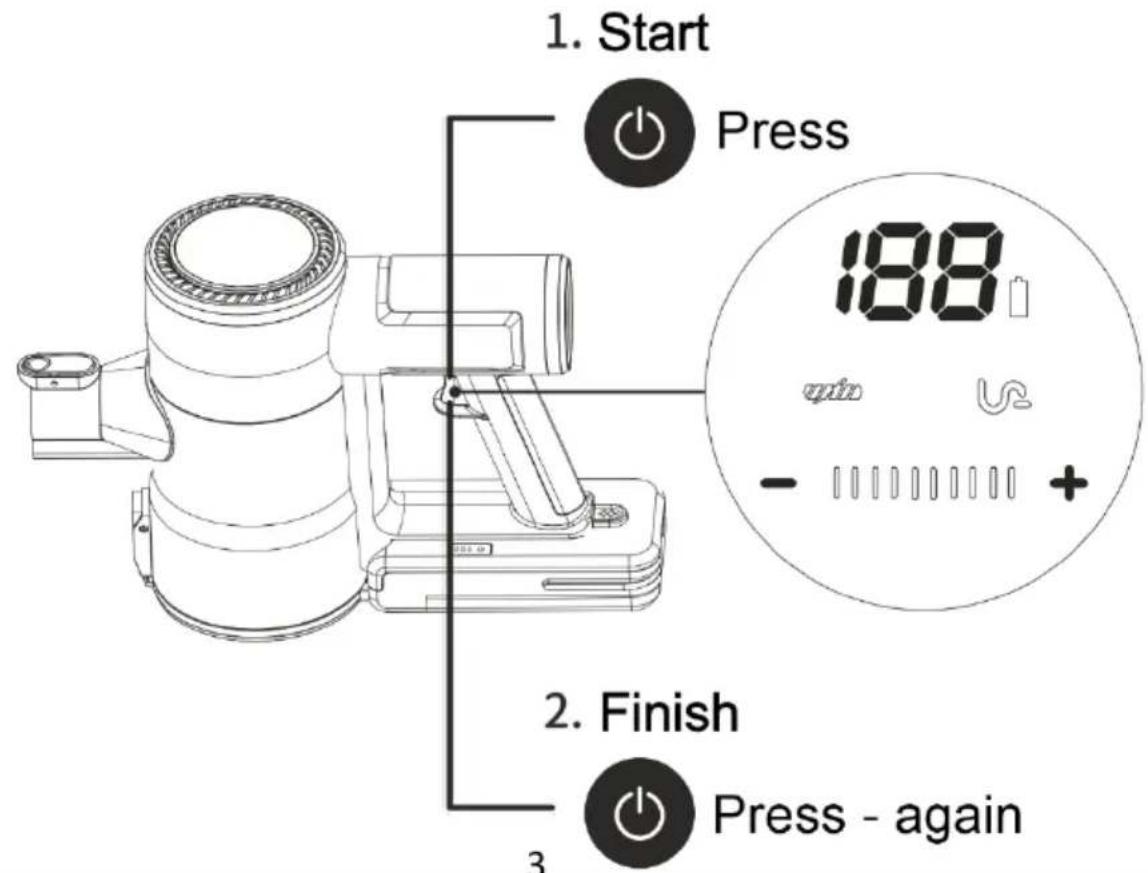

1. Start Press 188 win + - 2. Finish Press - again 3

Technical line drawing of a mechanical device with no visible text or symbols

D Click Click

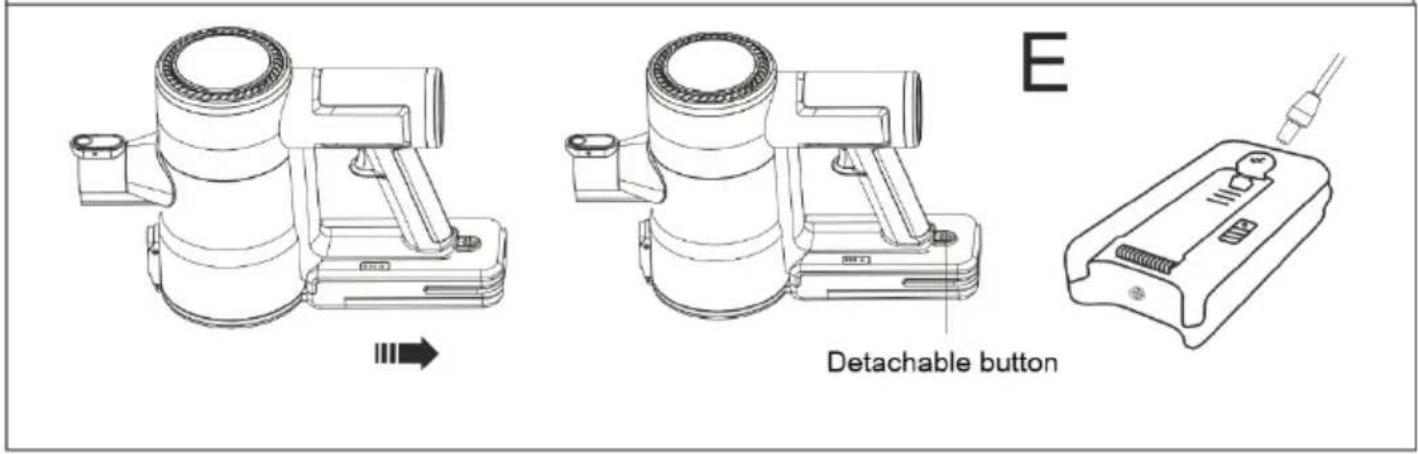

Detachable button E

Line drawing of a smiling robot head with four surrounding tools (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing a circular component (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

H HEPA filters Netfilter

Technical diagram showing assembly of a mechanical device before and after transformation, with labeled components and directional arrow.

User Manual (EN)

GENERAL SAFETY CONDITIONS IMPORTANT SAFETY INSTRUCTIONS. PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the device, read the instruction manual and follow the instructions contained therein. The manufacturer is not responsible for damage caused by using the device contrary to its intended use or improper operation.
2. The device is for domestic use only. Do not use for other purposes incompatible with its intended use.
3. Connect the device only to a 220-240 V \~ 50-60 Hz outlet. In order to increase the safety of use, multiple electrical appliances should not be plugged into a single circuit at the same time.
4. Take special care when using the device when children are around. Do not allow children to play with the appliance do not allow children or persons unfamiliar with the appliance to use it.
5. WARNING: This equipment may be used by children over 8 years of age and persons with limited physical, sensory or mental ability, or persons without experience or familiarity with the equipment, if this is done under the supervision of a person responsible for their safety or they have been given instructions on the safe use of the equipment and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the equipment should not be performed by children unless they are over 8 years of age and these activities are performed under supervision.
6. WARNING: use only the original supplied power adapter with model: CZH015310050EUWP
7. WARNING: the device uses a rechargeable Lithium-ion battery, 25.9V, 2200mAh (56.98) Wh. Use off the original battery.
8. WARNING: charge the battery pack only with the charger

supplied with the product.

1. WARNING: keep the battery pack out of the reach of children. The battery pack should not be heated, opened, punctured, destroyed or thrown into a fire.

2. Old depleted or used batteries should be removed from the device and disposed of or recycled in accordance with national waste disposal regulations.

3. WARNING - CAUTION: The appliance hose and connecting tubes contain electrical connections in their construction:

- - do not use the vacuum cleaner to suck up water

- do not immerse in water for washing and cleaning

- the hose and connecting pipes should be checked regularly and must not be used if they are damaged

1. Always remove the plug from the power outlet after use by holding the outlet with your hand. DO NOT pull on the power cord.

2. Do not immerse the cord, plug and the entire device in water or other liquid. Do not expose the device to weather conditions (rain, sun, etc.) or use in high humidity conditions (bathrooms, humid camping houses).

3. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialized repair facility to avoid danger.

4. Do not use the device with a damaged power cord or if it has been dropped or damaged in any other way or is not working properly. Do not repair the device yourself, as there is a risk of electric shock. Take the damaged device to a competent service center for inspection or repair. All repairs may be carried out only by authorized service centers. Improper repair may cause serious danger to the user.

5. Do not use the device near flammable materials.

6. The power cord must not touch hot surfaces.

7. Do not leave the device or the power supply to the outlet unattended.

8. To provide additional protection, it is advisable to install in the electrical circuit, a residual current device (RCD) with a rated residual current

not exceeding 30 mA. In this regard, please consult an electrical specialist.

1. Do not allow the motor part of the device to get wet.

2. Do not use the device outside the house, use only indoors.

3. Do not use the vacuum cleaner to collect flammable substances (such as fuel, solvents).

4. Do not vacuum sharp-edged objects (such as glass shards).

5. Do not point the vacuum cleaner's suction tube toward other people or animals.

6. Vacuum only dry surfaces.

7. Use only accessories designed for this device.

8. Be especially careful when vacuuming stairs, take care of your safety.

9. Do not block any ventilation holes.

10. Do not run the vacuum cleaner without the filter in place.

11. Do not pull the vacuum cleaner by the hose or tube.

12. Be careful that the power cord is not clipped by the door or jammed. Pay attention to the length of the power cord when moving the vacuum cleaner. Rapidly pulling the vacuum cleaner with the cable stretched taut may cause damage.

13. Do not vacuum dust and construction debris, the residue of such debris will immediately void the warranty.

14. Do not leave the device or power supply unattended during operation.

15. Always disconnect the unit from the power supply if left unattended, and before folding, unfolding or cleaning.

16. Always turn off the device with the button before unplugging it from the outlet.

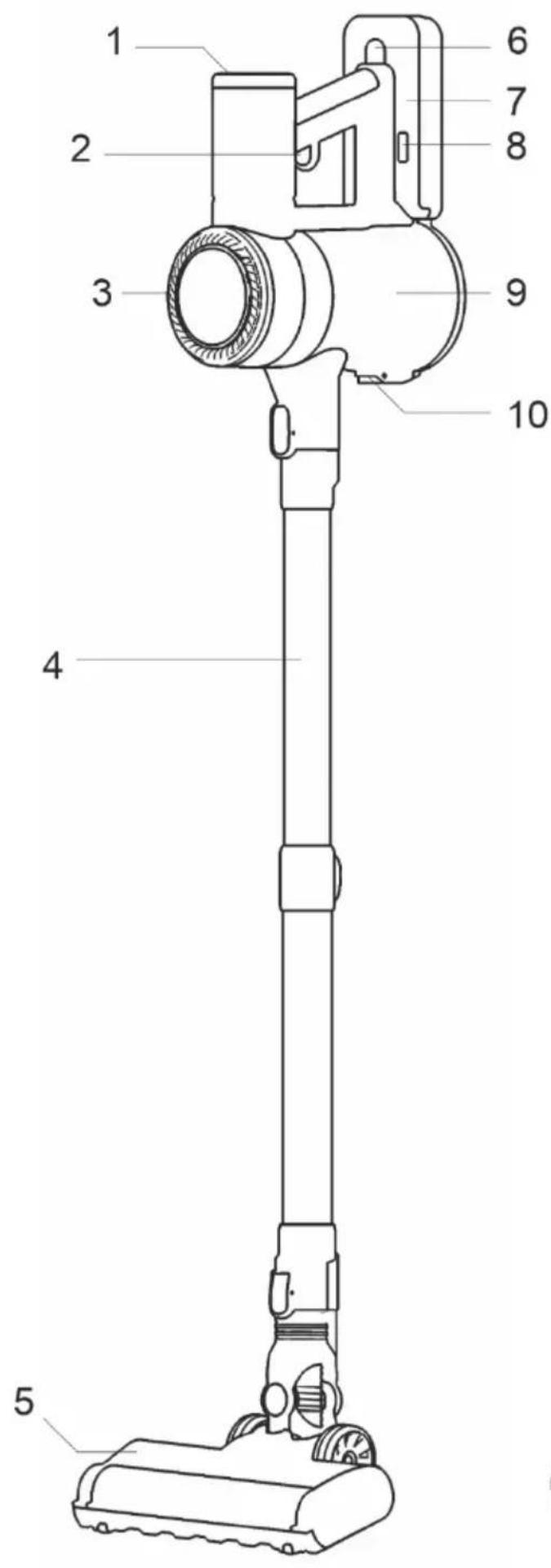

1. LED display	2. Switch	3. Air filler housing
4. Telescopic tube	5. Floor brush	6. Battery release button
7. Battery	8. Battery indicator light	9. Dust container cover
10. Button to open the dust container	11. HEPA filter	12. Air filter
13. Crevice brush	14. 2-in-1 brush	15. Shaft
16. Power supply	17. Wall bracket	18. Set of screws and mounting pins

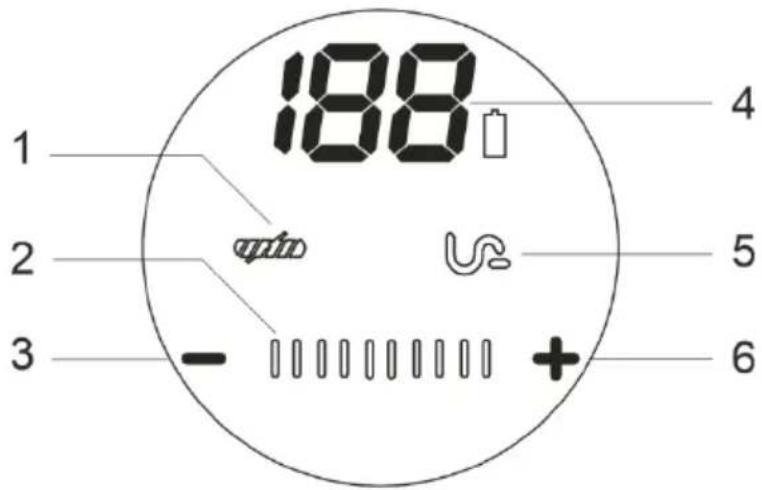

Display Description Page 3 illustration A:

1. Blocked brush shaft icon
2. Speed reduction button
3. Battery charge indicator
4. Clogged vacuum cleaner tube icon
5. Speed increase button

Before first use:

1. Remove any packing materials from the machine.
2. Using a damp cloth, wipe all surfaces of the unit.
3. Wait until all parts are dry.

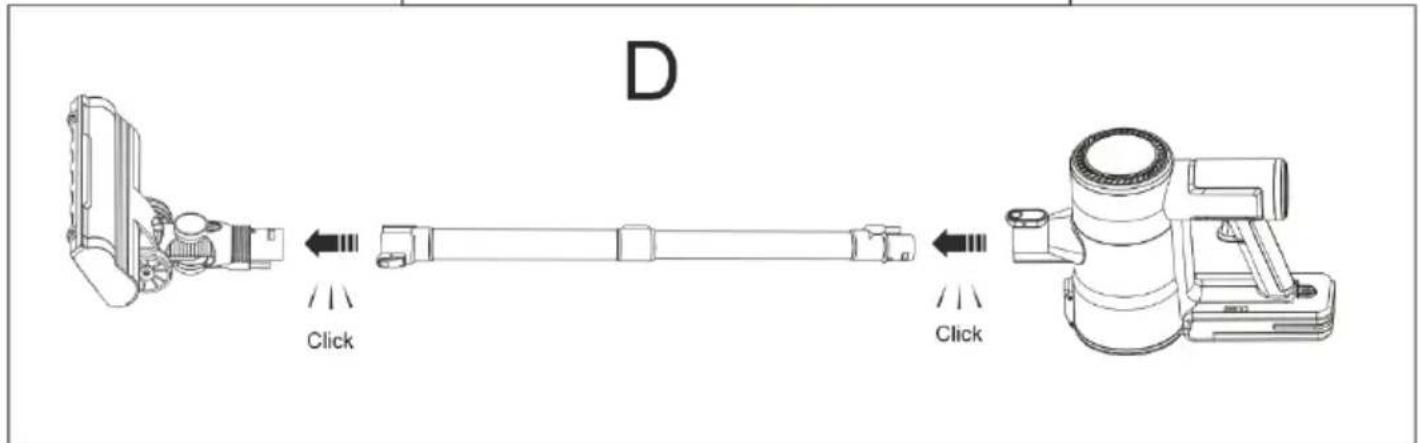

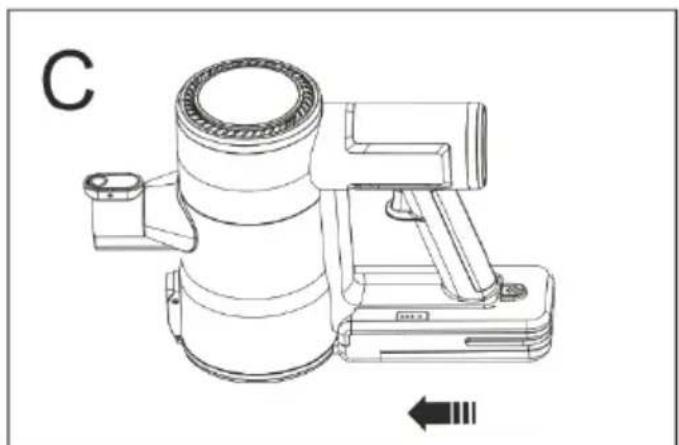

Assembling the device:

1. Connect the battery to the device after by sliding it into the trough at the handle. See illustration C page 4.
2. Connect the appliance, the tube and the floor brush together. A correct connection will be indicated by a click. See illustration D page 4.
3. You can also connect the crevice brush directly to the device as well as the 2-in-1 brush.

Charging the device:

1. To charge the device, connect the charger to the battery. The charging port located on the back of the battery.
2. The battery can be charged connected to the device or separately.
3. If the battery is charged connected to the device. The display will show the battery charge status. After reaching 100% and displaying this status for 10 minutes, the display will turn off to save the battery.
4. If the battery will be charged separately, it should be disconnected from the device. To do this, press the battery release button and slide the battery out of the device. See illustration E page 4.
5. There is an information panel on the side of the battery. As the battery fully charges all the lights on the battery will glow green.

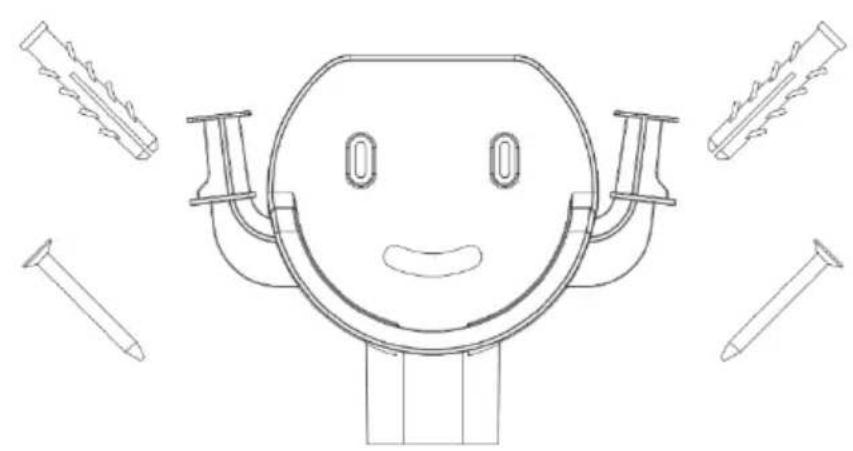

Installing the wall hook:

1. Apply the hanger to the wall and use a level (not included) to level the hanger.
2. Using a pencil, mark on the wall where the pin holes will be made.
3. The hanger has 2 oval mounting holes located at the top of the front of the hanger.
4. Using a drill, make holes in the wall of the appropriate size and insert the included mounting pins.
5. Apply the hanger and then using a screwdriver and the included screws, install the hanger.
   NOTE: The hanger is only for storing and hanging the vacuum cleaner and the included accessories.

Use of the device:

1. Charge the battery.

2. If the battery is not connected to the device, connect the battery to the device. See illustration C page 4.

3. Assemble the device in the desired configuration.
4. Press the switch to start operation.
5. To control the suction power, use the buttons on the control panel marked + and - .
6. To turn the device off, press the switch again.

POSSIBLE PROBLEMS:

If the Blocked Brush Roller A1 icon lights up red, clean the roller of debris. Check the CLEANING THE ROLLER section of the instructions.

If the clogged vacuum cleaner pipe icon A5 lights up red, check the vacuum cleaner pipe for blockage and remove the blockage.

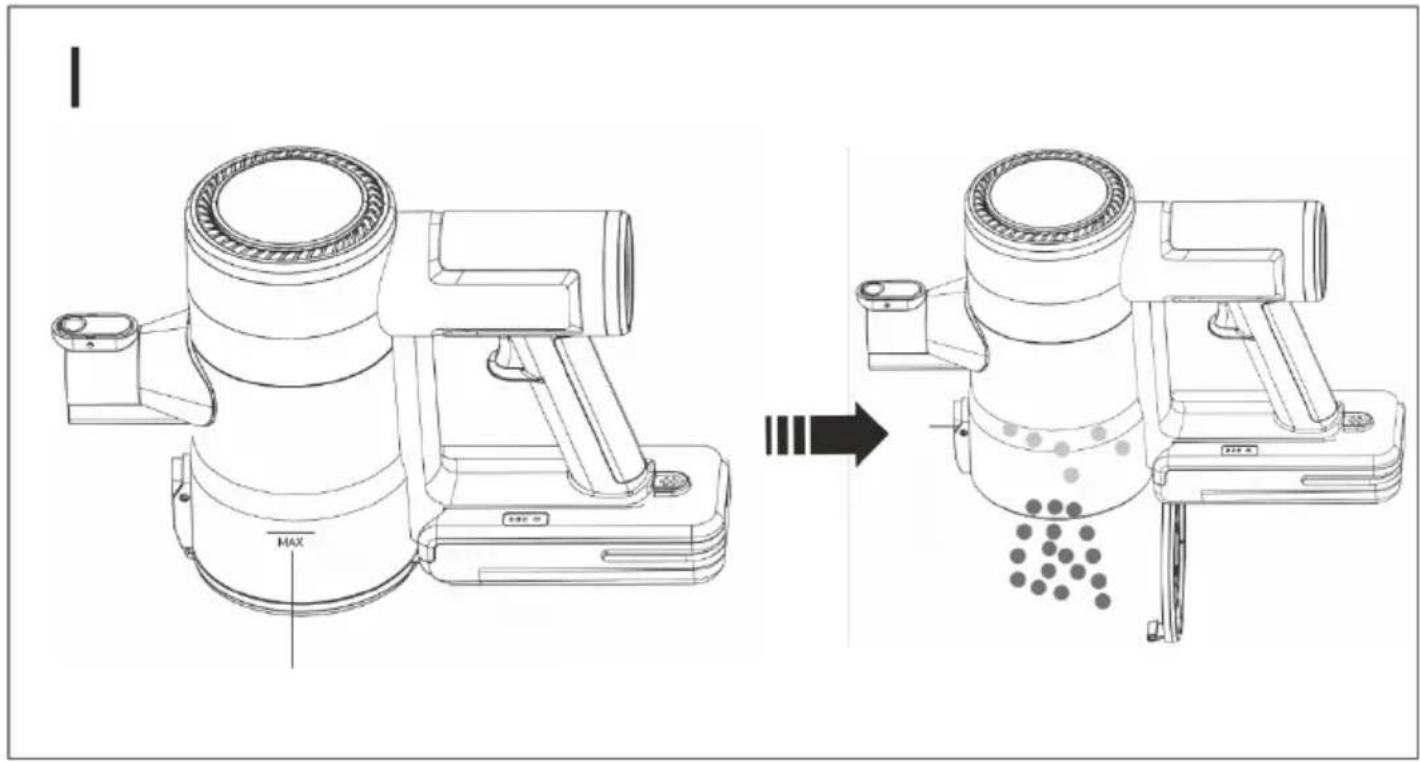

Emptying the dust container See illustration I page 6:

If the amount of dirt exceeds the marking on the side of the dust container, empty it.

1. Press the dust container opening button.
2. Empty the dust container.
3. Using a dry and clean cloth, wipe the inside of the dust container.
4. Close the dust container.

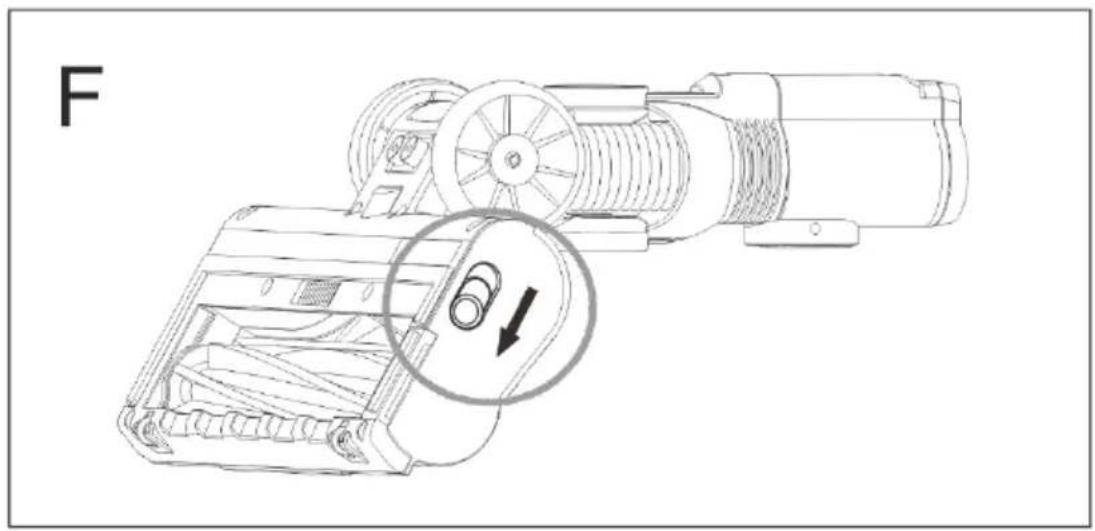

Cleaning the roller:

1. Disconnect the floor brush from the machine and the tube.
2. There is a safety latch on the right side of the brush housing. Slide it forward to release the roller. See illustration F page 5.
3. Remove the roller from the brush.
4. Clean the roller of hair and debris. (You can also clean the roller with a damp cloth and then dry it before putting it back in.)
5. Check if there is any debris in the brush outlet and remove it.
6. Put the roller back in and slide the safety latch to the closed position.

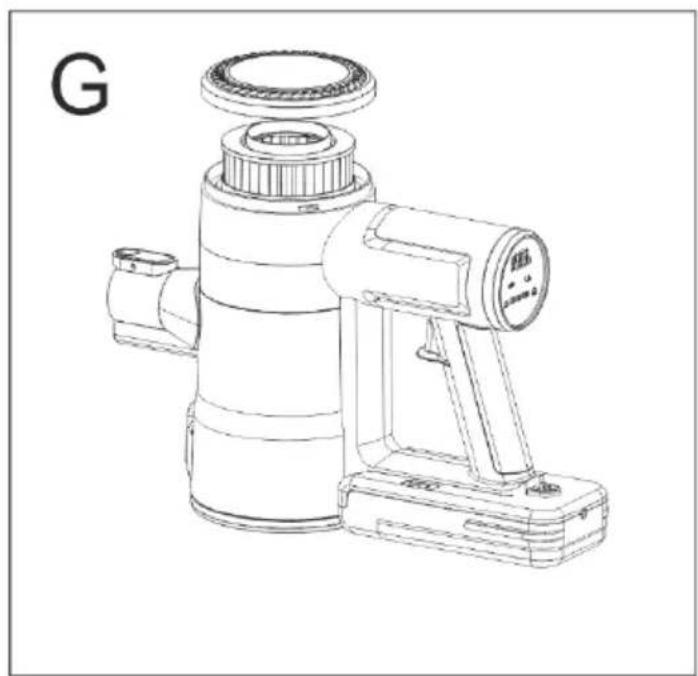

Filter replacement and cleaning See illustration G page 5:

NOTE: NEVER USE THE UNIT WITHOUT ALL FILTERS INSTALLED. DOING SO WILL DAMAGE THE UNIT AND VOID THE WARRANTY.

Exhaust filter:

1. Unscrew the air inlet housing located on top of the unit. See illustration G page 5.
2. Remove the filter and gently sharpen it either outside or over the waste basket to get rid of excess dust.
3. You can also rinse the filter under running water. After rinsing, dry the filter in a well-ventilated, dry room.
   NOTE: NEVER USE THE UNIT WITH A FILTER THAT IS NOT FULLY DRY. THIS WILL CAUSE DAMAGE TO THE DEVICE.

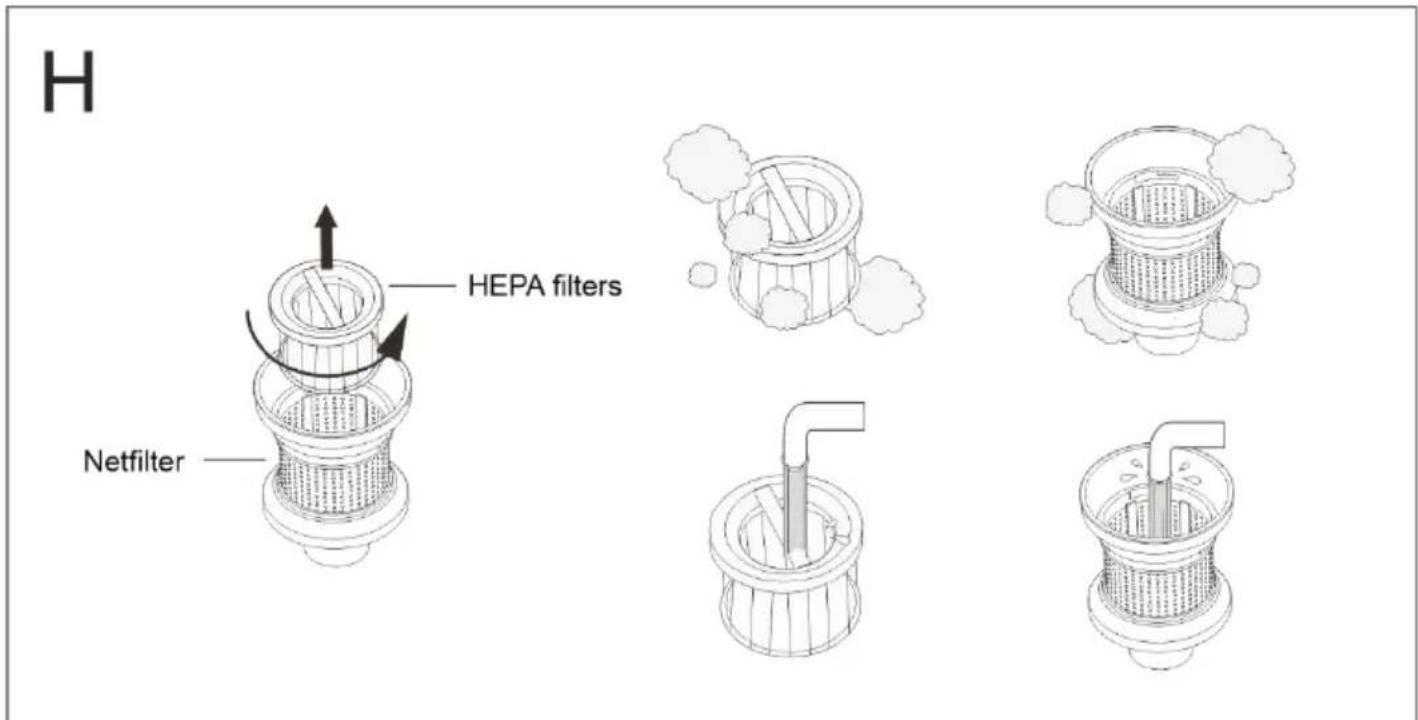

Inlet filter See illustrations H page 5. :

1. Press the dust container opening button and dump out the dirt inside.
2. Insert your hand into the dust container and unscrew the mesh filter from the unit.
3. Inside the mesh filter is a HEPA filter.
4. Unscrew the HEPA filter from the mesh filter.
5. Gently shake the HEPA filter and mesh filter of excess dust and debris
6. The filters can be washed with running water. After cleaning, set the filters aside in a well-ventilated and dry place and dry fully.

NOTE: NEVER USE THE DEVICE WITH A FILTER THAT IS NOT FULLY DRY. THIS WILL CAUSE DAMAGE TO THE DEVICE.

Most common problems and solutions:

Problem: The device does not work.

Most common cause:

1. Discharged battery.
2. Blocked tube or shaft.

Solution:

1. Charge the battery.
2. Unclog the tube, clean the shaft.

Problem: The battery does not charge.

Most common cause:

1. The charger is not properly connected.
2. The charging temperature is too low or too high.

Solution:

1. Connect the charger to the outlet and to the battery.
2. Move the charger and battery to a room with room temperature.

Problem: Low suction power.

Most common cause:

1. The dust container is full.
2. The filter is clogged/dirty.
3. Clogged tube.

Solution:

1. Empty the dust container.
2. Clean the filters.
3. Unclog the tube.

Technical data:

Power supply input voltage: 220-240V\~50-60Hz 0.5A
Power supply output voltage: 31.0V DC 0.5A 15.5W
Power supply model: CZH015310050EUWP
Battery type: Li-Ion
Battery output voltage: 25.9V
Battery capacity: 2200 mAh

For the sake of the environment. Cardboard packaging and polyethylene (PE) bags should be disposed of in the appropriate containers for separate collection of municipal waste according to their description. If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment. The marking on the product indicates that the device should not be disposed of in the container with municipal waste. Waste electrical equipment, is waste that contains substances harmful to humans, animals and the environment. These substances can lead to contamination of the soil, water or air, and through this they can get into the human body and lead to numerous health ailments, such as: vision, hearing, speech disorders, they can also lead to kidney, liver and heart damage, and cause skin diseases. Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the complained of soils, and products made from them may risk the above-mentioned health effects. Do not dispose of the device in the municipal waste container!!!

Service If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt.

Abstract geometric symbol with a star-like shape inside a circle (no text or symbols)

ت Connectivity Assistance:

36m8m9d5: 3m7y0m0m0m5s6 3g3sm0b.

36m80gds: 85s6gds sm o86gds.

1:Model identifier
2:Input voltage
3:Input AC frequency
4:Output voltage
5:Output current
6:Output power
7:Average active efficiency
8:Efficiency at low load (10 %)
9:No-load power consumption

ES

4: 358m6s3s6mn ds63s

5: 3019820

6: 308m3s35mn bn8d7ms36g

Exterior view of a modern silver kettle with blue liquid, no visible text or symbols

Electric Kettle AD 1282

Close-up of a black and white grimmer with powder spilling out (no text or symbols visible)

Burr Coffee Grinder AD 4450

Milk Frother AD 4491

Black rectangular electronic device with a handle and ventilation slots (no visible text or symbols)

Sandwich Maker AD 3055

Silver standard 200 square toaster with two handles and front panel (no visible text or symbols)

TOASTER 2 SLICE AD 3222

Exterior view of a modern sandwich grater with black and silver casing (no visible text or symbols)

ELECTRIC GRILL AD 3052

White ADLER brand juice shaver with clear liquid and a wooden squee stick (no text or symbols visible)

CITRUS JUICER AD 4009

Product photo of a modern blender with three side dishes and fruit slices (no visible text or labels)

PERSONAL BLENDER AD 4081

Assorted kitchen utensils including a blender, spatula, and cleaning tools (no text or labels visible)

FOOD PROCESSOR AD 4224

Electric hand mixer with two coiled wires attached (no text or symbols visible)

MIXER AD 4225

Black air fryer with control knob and side handle (no visible text or symbols)

AIR FRYER AD 6310

Exterior view of a modern stainless steel coffee maker with black lid and control buttons (no visible text or symbols)

PASTEURIZATION POT AD 4496

White portable air conditioner unit with control panel and wheels (no visible text or symbols)

AIR CONDITIONER AD 7916

Black and white cylindrical device with a lid, showing no visible text or symbols on its body.

AIR HUMIDIFIER AD 7966

White portable heating fan with ventilation grille and three heat sinks (no visible text or symbols)

FAN HEATER AD 7725

Top-down view of a stainless steel kitchen pan with digital display (no visible text or symbols)

KITCHEN SCALE AD 3166

ADLER

EUROPE

COFFEE GRINDER AD 4446

Exterior view of a modern stainless steel toaster with a digital display (no visible text or symbols)

TOASTER 2 SLICE AD 3214

HAND BLENDER Ad4625

Modern stainless steel kitchen appliance with control knob (no visible text or symbols)

MIXER WITH BOWL AD 4222

Exterior view of a modern kitchen appliance with a digital display (no visible text or symbols)

AIR FRYER OVEN AD 6309

Front view of a white microwave oven with control knobs and a black screen (no visible text or symbols)

MICROWAVE OVEN AD 6205

Black rectangular electronic device with ports and lid (no visible text or symbols)

WAFFLE MAKER AD 3049

White digital kitchen scale with LCD display (no visible text or symbols)

KITCHEN SCALE AD 3170

Glass water heater with blue splashing effect, no visible text or symbols

ELECTRIC KETTLE AD 1286

Black rectangular electronic device with a handle and control panel (no visible text or symbols)

SANDWICH MAKER AD 3043

Exterior view of a silver and black industrial device (no visible text or symbols)

PORTABLE FRIDGE AD 8077

Black four-tiered toaster oven with two top ovens and control knobs (no visible text or labels)

Electric Oven With HOB AD 6020

White ADLOR electric heater with visible cooling fan and control buttons (no text or symbols on body)

FAN HEATER AD 7728

Black rectangular electronic device with a blue mesh screen and antenna (no visible text or symbols)

MOSQUITO LAMP AD 7938

Black textured fabric with a white USB cable attached (no text or symbols visible)

HEATED PAD AD 7433

ORAL IRRIGATOR AD 2176

ADLER

EUROPE

Exterior view of a white industrial air purifier unit with control panel (no visible text or symbols)

AIR COOLER AD 7913

Close-up of a white spherical device with blue internal components and a central control knob (no visible text or symbols)

FOOT SPA AD 2177

HAIR CLIPPER AD 2831

Green handheld hair dryer with black handle and logo (no visible text or symbols on body)

HAIR DRYER AD 2265

Close-up of a white medical thermometer placed on a textured gray cushion next to a white textured object (no text or symbols visible)

HEATED PAD AD 7412

CERAMIC FAN HEATER AD 7731

White industrial water heater with cooling fan and wheels (no visible text or symbols)

OIL-FILLER RADIATOR AD 7811

ABSER 328

KITCHEN SCALE AD 3171

White appliance with black and white casing, no visible text or symbols on body

CHOCOLATE FOUNTAIN AD 4487

HAND BLENDER AD 4617

Close-up of a white handheld phone with a circular grille and handle (no visible text or symbols)

LINT REMOVER AD 9616

Close-up of a handheld vacuum cleaner with black and red body (no visible text or symbols)

VACUUM CLEANER AD 7044

Black and white photo of a kitchen feedstock (no visible text or symbols)

MEAT MINCER AD 4811

Blender AD 4078

Exterior view of a modern kitchen grater with visible grating and a lid (no text or symbols)

ELECTRIC GRILL AD 6610

Glass water-filled kettle with digital water splash, no visible text or symbols

ELECTRIC KETTLE AD 1293

AFTER SALE SERVICE NOTICE

GB	If you want to buy spare parts or make any complaints, please contact the seller who issued the receipt directly.
DE	Wenn Sie Ersatzteile kaufen oder reklamieren möchten, wenden Sie sich bitte direkt an den Verkäufer, der die Quittung ausgestellt hat.
FR	Si vous souhaitez acheter des pièces de rechange ou faire des réclamations, veuillez contacter directement le vendeur qui a émis le reçu.
ES	Si desea comprar repuestos o presentar alguna queja, comuníquese directamente con el vendedor que emitió el recibo.
PT	Se você quiser comprar peças de reposição ou fazer alguma reclamação, entre em contato diretamente com o vendedor que emitiu o recibo.
LT	Jei norite jsigyti atsarginių dalių ar pateikti nusiskundimų, susisiekite tiesiogiai su kvitą išdavusiu pardavėju.
LV	Ja vēlaties iegādāties rezerves daļas vai izteikt pretenzijas, lūdzu, sazinieties tieši ar pārdevēju, kurš izsniedza čeku.
EST	Kui soovite osta varuosi või esitada pretensioone, võtke otse ühendust kvitungi väljastanud müūjaga.
HU	Ha pótalkatrészeket szeretne vásárolni, vagy panaszt szeretne tenni, forduljon közvetlenül a bizonylatot kiàllitó eladóhoz.
BS	Ako želite kupiti rezervne dijelove ili napraviti reklamaciju, obratite se direktno prodavaču koji je izdao račun.
RO	Если вы хотите купить запчасти или предъявить какие-либо претензии, пожалуйста, свяжитесь напрямую с продавцом, выдавшим чек.
CZ	Chcete-li zakoupit náhradní díly nebo uplatnit jakoukoli reklamaci, kontaktujte přimo prodejce, který účtenku vystavil.
RU	Dacă dorīti să cumpărati piese de schimb sau să faceți vreo reclamație, vă rugăm să contactați direct vânzătorul care a emis chitanța.
GR	Eáv θέλετε να αγοράσετε ανταλλακτικά ή να κάνετε οποιαδήποτε παράπονα, επικοινωνήστε απευθείας με τον πωλητή που εξέδωσε την απόδειξη.
MK	Ако сакате да купите резервни делови или да поднесете какви било поплаки, контактирајте директно со продавачот кој ja издал сметката.
NL	Als u reserveonderdelen wilt kopen of een klacht wilt indienen, neem dan rechtstreeks contact op met de verkoper die de bon heeft afgegeven.
SL	Če želite kupiti nadomestne dele ali vložiti reklamacije, se obrnite neposredno na prodajalca, ki je izdal račun.
FI	Jos haluat ostaa varaosia tai tehdä valituksia, ota yhteyttä suoraan kuitin antaneeseen myyjään.
PL	W przypadku chęci zakupu części zamiennych lub zgłoszenia ewentualnych reklamacji należy kontaktować się bezpośrednio ze sprzedawcą, który wystawił paragon.
IT	Se desideri acquistare pezzi di ricambio o presentare reclami, contatta direttamente il venditore che ha emesso la ricevuta.
HR	Se desideri acquistare pezzi di ricambio o presentare reclami, contatta direttamente il venditore che ha emesso la ricevuta.
SV	Om du vill köpa reservdelar eller göra nágra reklamationer, vänligen kontakta säljaren som utfärdat kvittot direkt.
DK	Hvis du ønsker at købe reservedele eller reklamere, bedes du kontakte sælgeren, som har udstedt kvitteringen, direkte.
UA	Якщо ви хочете придбати запчастини або подати будь-які претензії, зверніться безпосередньо до продавца, який видав чек.
SR	Ако желите да купите резервне делове или да уложите рекламацију, обратите се директно продавцу који је издао рачун.
SK	Ak si chcete küpit' náhradné diely alebo uplatnit' akúkolvek reklamáciu, kontaktujte priamo predajcu, ktorý účtenku vystavil.
AR	إذا كنت ترغب في شراء قطع غيار أو نقديم أي شكوى، فيرجي الاتصال بال Genetic的に أصدر الإيصال مبشرة.
BG	Ако искате да закупите резервни части или да направите оплаквания, моля, свържете се директно с продавача, който е издал касовата бележка.
AZ	Ehtiyat hisseleri almaq ve ya her hansı šikayet etmek istøyirsinizse, qebzi veren satici ile birbaşa əlaqe saxlayın.
ALB	Nëse dëshironi të blini pjesë këmbimi ose të bëní ndonjë ankesë, ju lutemi kontaktoni drejtpërdrejt shitësin që ka lëshuar faturën.
KA	στη βυγβοια λυσσμασιασατ δυβομασιας δυβομασιας δυβομασιας δυβομασιας δυβομασιας δυβομασιας δυβομασιας δυβομασιας δυβομασιας δυβομασιας δυβομασια
