USER MANUAL AD 7083 ADLER

ADLER EUROPE

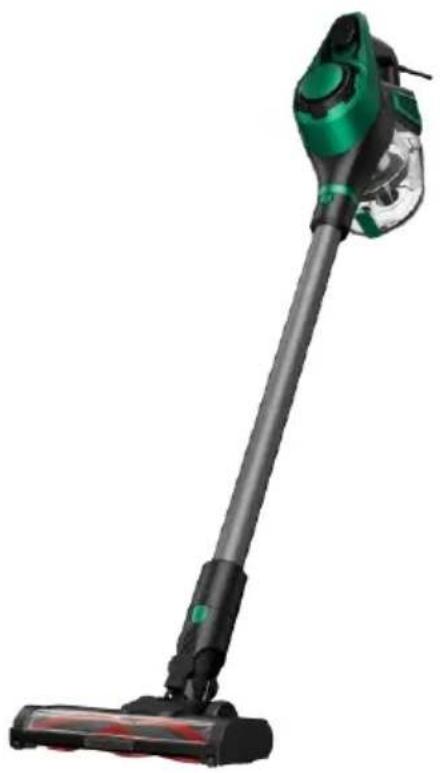

Green and black vacuum cleaner with red base, isolated on white background (no text or symbols)

AD 7083
EN	User Manual	5	PL	Instrukcja obsługi	100
DE	Bedienungsanleitung	10	IT	Manuale d'uso	106
FR	Mode d'emploi	17	SV	Bruksanvisning	113
ES	Manual de usuario	23	BG	Ръководство за употреба	118
PT	Manual de Instruções	29	DA	Brugsanvisning	125
LT	Naudojimo instrukcija	35	SK	Používatel'ská príručka	130
LV	Lietošanas instrukcija	41	BS	Korisnički priručnik	136
ET	Kasutusjuhend	46	MK	Упатство за употреба	142
HU	Használati útmutató	52	HR	Korisnički priručnik	148
RO	Manual de utilizare	58	UK	Керівництво користувача	154
CS	Návod k použití	64	SR	Упутство за употребу	160
RU	Руководство пользователя	69	AR	دليل المستخدم	166
EL	Еүхеірідю хрήσης	76	AZ	İstifadəçi tõlimatı	169
NL	Gebruikershandleiding	83	SQ	Manuali i përdorimit	175
SL	Navodila za uporabo	89	KA	Общитеغillus	181
FI	Käyttöohje	95

A

1 2 3 4 5 6 7 8 9 10

B

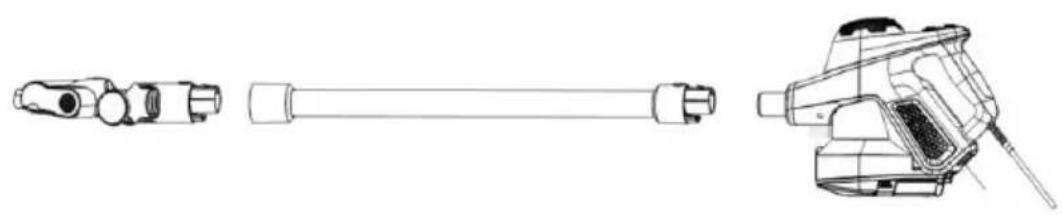

Technical line drawings of mechanical components, including a cylindrical shaft and a multi-junction assembly (no text or symbols)

C

Technical line drawing of a handheld electric shock absorber with plug and socket (no text or symbols)

D E F

User Manual (EN)

GENERAL SAFETY CONDITIONS IMPORTANT SAFETY INSTRUCTIONS FOR USE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the device, read the instruction manual and follow the instructions contained therein. The manufacturer is not responsible for damages caused by using the device contrary to its intended use or improper operation.
2. The device is for domestic use only. Do not use for other purposes incompatible with its intended use.
3. Connect the device only to a grounded outlet 220-240 V \~ 50/60 Hz.

In order to increase the safety of use, do not connect multiple electrical appliances to a single circuit at the same time.

1. Be especially careful when using the device when children are around. Do not allow children to play with the appliance do not allow children or persons unfamiliar with the appliance to use it.

2. WARNING: This equipment may be used by children over 8 years of age and persons with limited physical, sensory or mental ability, or persons without experience or familiarity with the equipment, if this is done under the supervision of a person responsible for their safety or they have been given instructions on the safe use of the equipment and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the equipment should not be performed by children unless they are over 8 years of age and these activities are performed under supervision.

3. Always remove the plug from the power outlet after use by holding the outlet with your hand. DO NOT pull on the power cord.

4. Do not immerse the cord, plug and entire device in water or other liquid. Do not expose the device to weather conditions (rain, sun,

etc.) or use in high humidity conditions (bathrooms, humid camping houses).

1. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialized repair facility to avoid danger.

2. Do not use the device with a damaged power cord or if it has been dropped or damaged in any other way or is not working properly. Do not repair the device yourself, as there is a risk of electric shock. Take the damaged device to a competent service center for inspection or repair. All repairs may be carried out only by authorized service centers. Improper repair may cause serious danger to the user.

3. Do not use the device near flammable materials.

4. The power cord must not touch hot surfaces.

5. Do not leave the device or the power supply to the outlet unattended.

6. To provide additional protection, it is advisable to install in the electrical circuit, a residual current device (RCD) with a rated residual current

not exceeding 30 mA. In this regard, please consult an electrical specialist.

1. Do not allow the motor part of the device to get wet.

2. Do not use the device outside the house, use only indoors.

3. Do not use the vacuum cleaner to collect flammable substances (such as fuel, solvents).

4. Do not vacuum sharp-edged objects (such as glass shards).

5. Do not point the vacuum cleaner's suction tube toward other people or animals.

6. Vacuum only dry surfaces.

7. Use only accessories designed for this device.

8. Be especially careful when vacuuming stairs, take care of your safety.

9. Do not block any ventilation holes.

10. Do not run the vacuum cleaner without the filter in place.

11. WARNING - CAUTION: The appliance hose and connecting tubes contain electrical connections in their construction:

- do not use the vacuum cleaner to suck up water

- do not immerse in water for washing and cleaning

- the hose and connecting pipes should be checked regularly and must not be used if they are damaged

1. Be careful that the power cord is not cut by the door, or stuck. Pay attention to the length of the power cord when moving the vacuum cleaner. Rapidly pulling the vacuum cleaner with the cab stretched taut may damage it.

2. Do not vacuum dust and construction debris, the residue of such debris will immediately void the warranty.

3. Do not leave the device unattended during operation.

4. Always disconnect the unit from the power supply if left unattended, and before folding, unfolding or cleaning.

5. Always turn the device off with the button before unplugging.

6. Do not pull the vacuum cleaner by the hose or tube.

7. Be careful that the power cord is not clipped by the door or jammed. Pay attention to the length of the power cord when moving the vacuum cleaner. Rapidly pulling the vacuum cleaner with the cable stretched taut may cause damage.

8. Do not vacuum dust and construction debris, the residue of such debris will immediately void the warranty.

9. Always unplug the unit if left unattended, and before folding, unfolding or cleaning.

10. Always turn the device off with the button before unplugging.

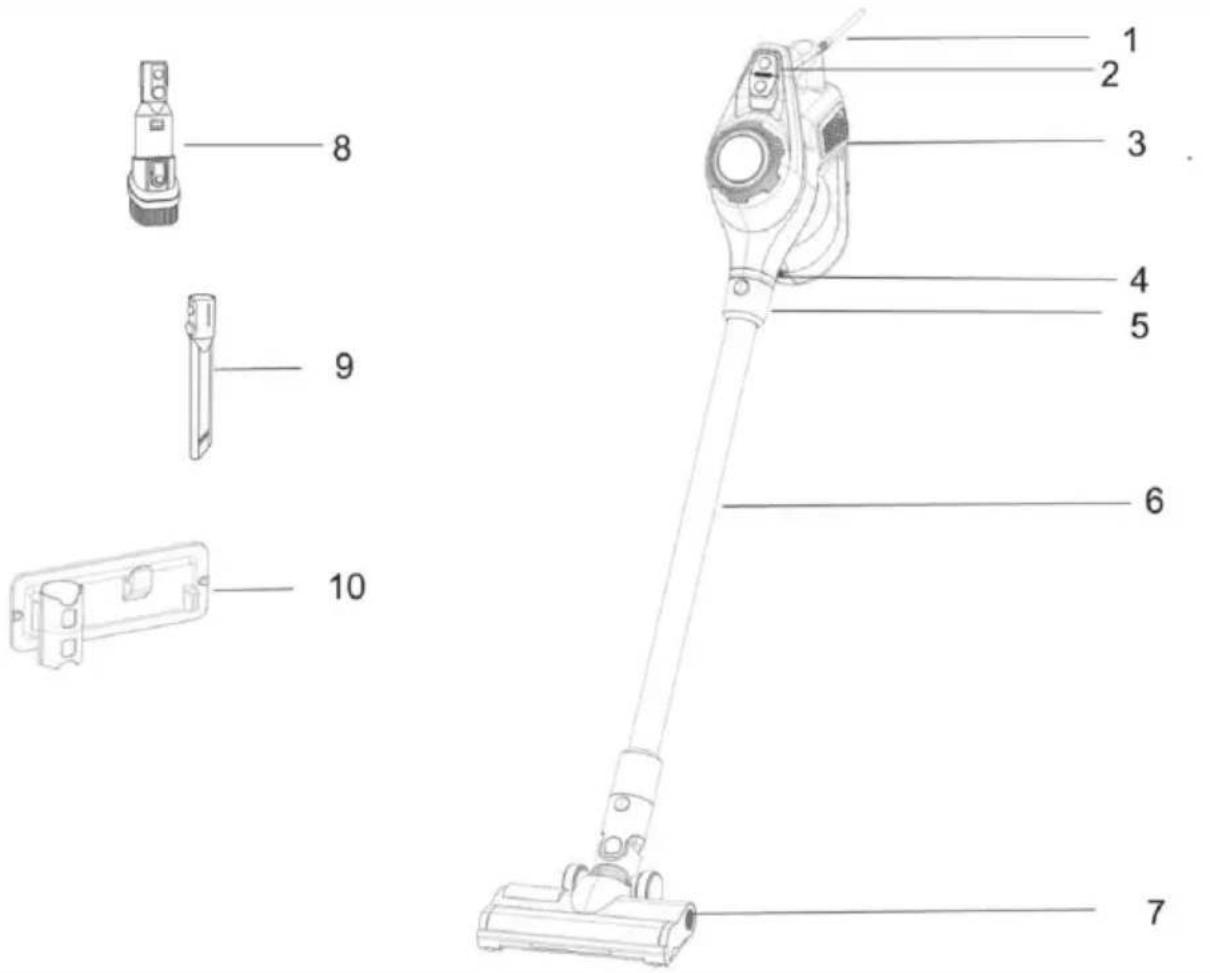

Description of the vacuum cleaner:

1. Power cord	2. Switch	3. Dust container release button	4. Release button for the lower part of the dust container
5. Suction part	6. Pipe	7. Floor brush	8. 2-in-1 small crevice nozzle

1. Long crevice 10. Wall

nozzle hanger

Preparing the device for use:

Before turning on and assembling the device, remove all marketing materials, foils and cardboard protection and check the condition of the power cord and whether any part appears damaged. If any part appears damaged do not turn on the device and contact your dealer.

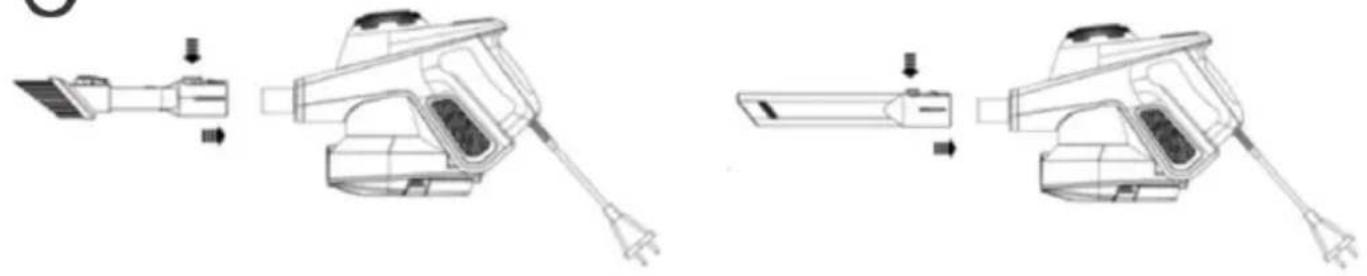

Connecting the crevice nozzle and floor brush to the main body

Insert the crevice tip or floor brush into the suction opening. See illustration B page 2 of the operating instructions.

Here are recommendations for using accessories See illustration C page 2:

the 2-in-1 small crevice tip and long crevice tip are suitable for radiators, crevices, corners, baseboards and spaces between cushions. Use the soft roller for floors and the bristle roller for carpets.

Vacuum cleaner use:

WARNING: The power brush contains moving parts! To avoid personal injury, do not touch the rotating brush while the vacuum cleaner is running, for example, touching the rotating rotating brush may cause cuts, scratches or other injuries; to keep the vacuum cleaner in good condition, first turn off the unit and be careful if you use it near children

Note: The suction opening must be open and free of obstructions at all times. Otherwise, the motor will overheat and may be damaged.

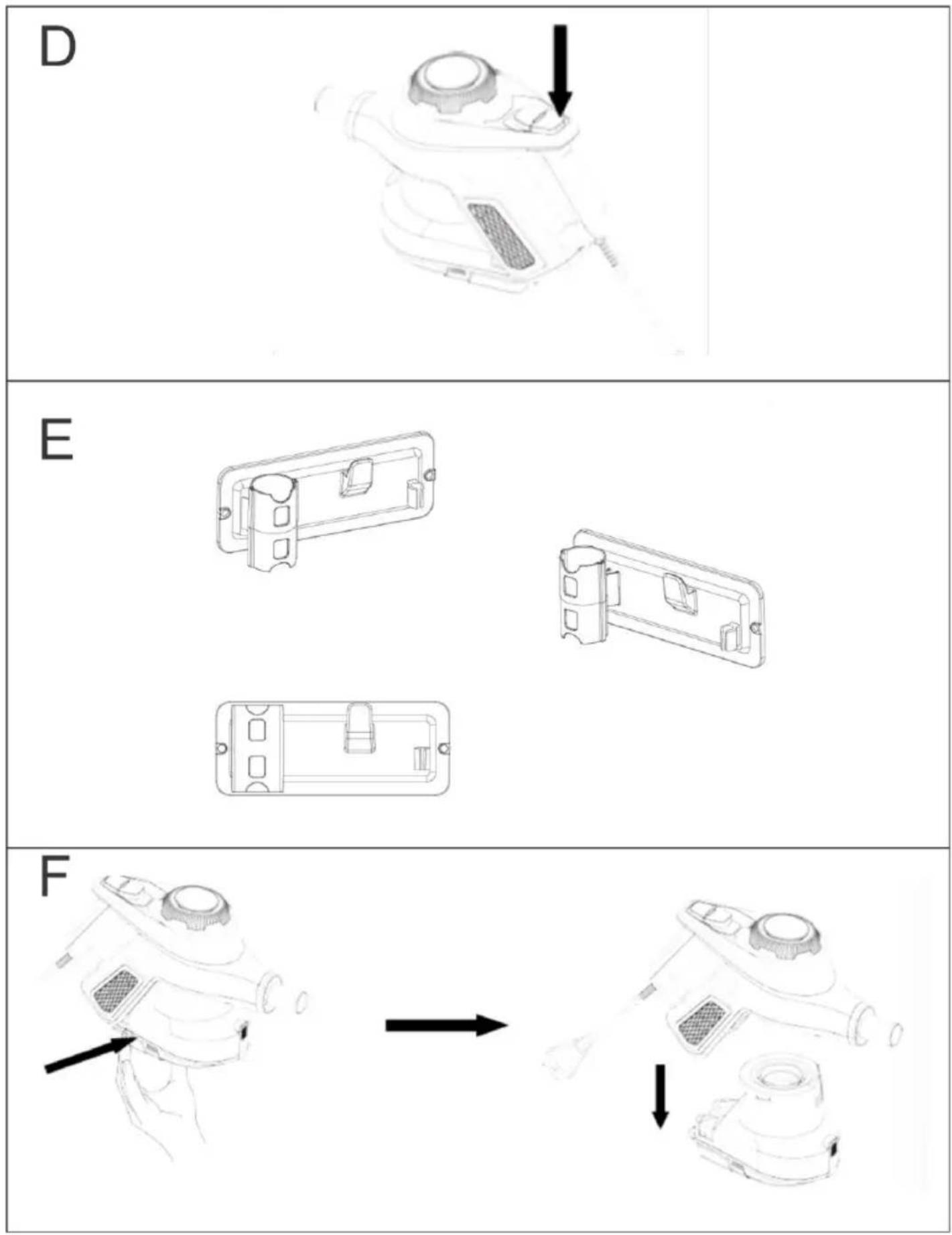

Power switch Illustration D page 3:

- The power switch is in the same position. Press the switch to turn on the vacuum cleaner. Press the switch to turn off the vacuum cleaner.

Using the device in the upright position:

- Insert the extension tube (6) into the suction opening (5) of the handheld vacuum cleaner.

- Select the appropriate accessory (crevice nozzle (9) or floor brush (7)) and attach it to the suction opening (5) on the handheld vacuum cleaner.

Note: you may not connect the crevice nozzle or floor brush when you are working as an upright vacuum cleaner

- Press the switch position on the On/Off power switch (2). to turn on the device. When you have finished using the device, also press the same position on the On/Off (2) power switch to turn off the device.

Using the device as a handheld vacuum cleaner

- Disconnect the extension tube from the handheld vacuum cleaner, and then connect the brush.

- Press the switch position on the On/Off power switch(2) to turn the unit on or off.

STORAGE

Store the unit in a dry place and protect it from excessive heat or direct sunlight.

Wall Mounting Illustration E page 3

Use 3M tape or screws.

When using screws, make sure there are no cables in the wall before drilling.

A. Attach the wall bracket to the wall using the screws provided.

B. Make sure everything is properly aligned: the cutouts in the large bracket must face upward.

Cleaning and replacing the dust container filter

1. To remove the dust container, press the dust container release button and separate the dust container from the main unit. See illustration F page 3.

2. Turn and pull out the dust container filter.

To ensure the best performance of the unit, it is important to regularly clean the filters, the container and check for blockages.

We recommend washing the filters at least once a month and replacing them once a year (you can buy them from our authorized dealers just ask for AD 7083.1 filters). Filters may need to be cleaned and replaced more often, depending

on how often the unit is used.

To clean the filters, follow the steps below:

• Shake the filters to remove dust.
• Wash the filters with cold water only.
• Repeat washing the filters until clean water starts to flow through the filter.
• Let the filters dry completely in a dry place with good air circulation for at least 24 hours.

• Make sure the filters are completely dry before installing.

• Empty the dust container of dust.

• Rinse the dust bin filter with cold water, then let it air dry for 24 hours before placing it back in the dust bin. IMPORTANT: Do NOT use a washing machine to clean the dust bin filter. Do not use a hair dryer for drying.

FILTERS CAN ONLY BE DRIED NATURALLY WITH AIR AT ROOM TEMPERATURE.

1. Carefully place the dust bin filter in the dust bin compartment. NEVER use the vacuum cleaner without the dust bin filter.
2. Attach the dust container to the body of the unit.

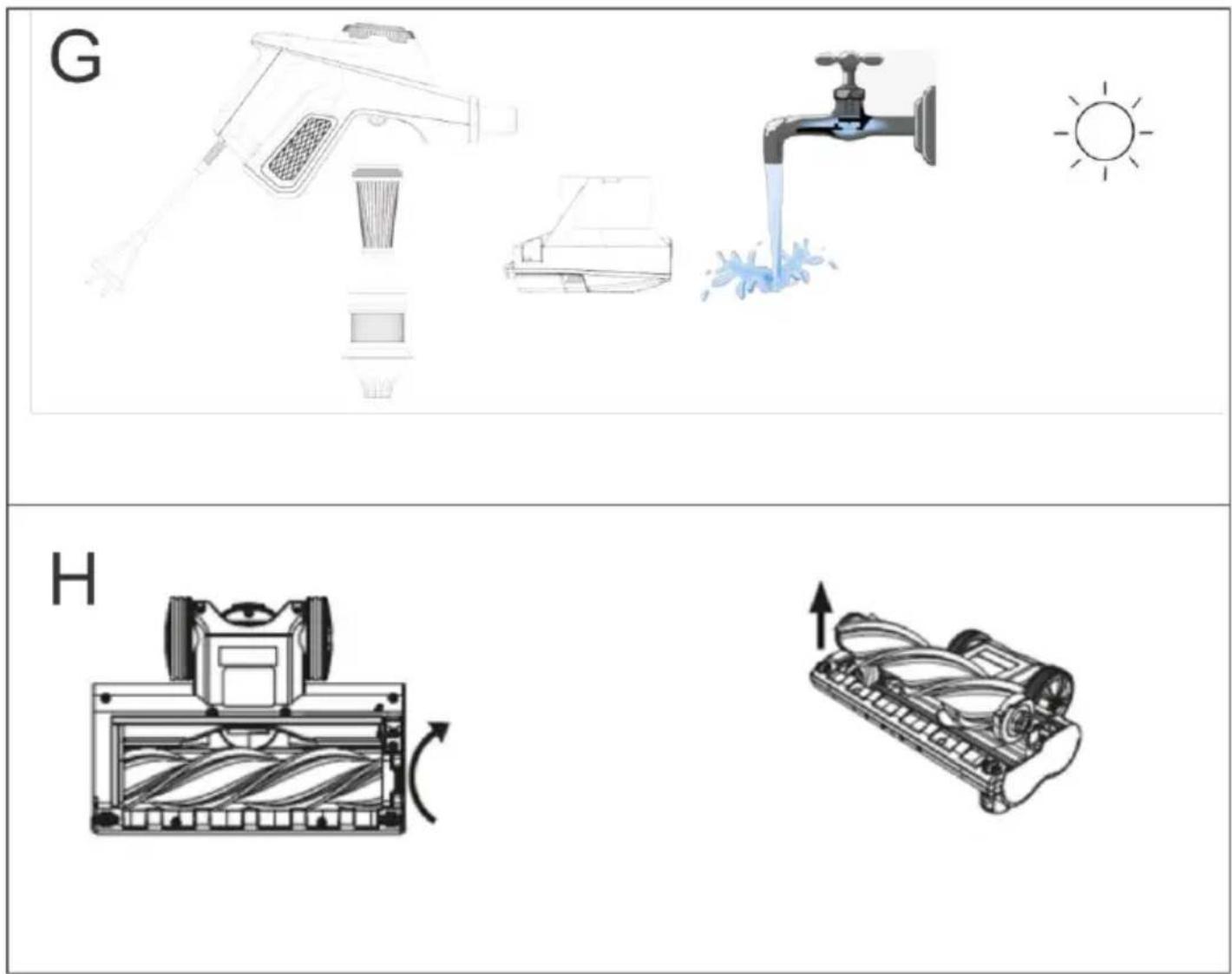

Cleaning the motorized electric brush Illustration H page 4.

Tips: After a certain period of use, the rotary brush may be entangled with debris such as thread ends, hair, fibers, etc., which will directly affect the cleaning effect and should be cleaned in time.

1. Wipe the housing with a damp cloth.
2. To remove the brush roller, release the lock and remove the side cover.
3. Remove the brush roller from the side.
4. If necessary, wipe the brush roller or clean it under running water. Remove hair and other dirt.
5. Allow the brush roller to dry completely.
6. Replace the brush roller and put the side cover back on.

Problems and solutions:

Remember to always make sure the unit is not turned on and unplugged before attempting to solve problems:

Trouble Points	Possible causes	Solutions
Vacuum cleaner does not work	1. The plug is not inserted in place or the outlet has no power.2. The appliance switch is not turned on.	1. Reinsert the plug and make sure the outlet has power.2. Turn on the device and start switch
The sound of the device is abnormal	The dust container is full of debris or the air duct is blocked;	Remove the dust container and remove the debris or blockages
The suction power is weakened	1. The dust container is full2. The filter is dirty3. A new filter needs to be replaced4. Combination of aluminum tube, flat suction nozzle, other accessories and handheld vacuum cleaner is not installed in place5. The suction nozzle is blocked and the tube is blocked	1. Clean the dust container2. Clean the filter according to the instructions in the manual3. Contact customer service to purchase a replacement filter4. Follow the instructions to reinstall5. Clean the nozzle and tube as instructed
Shrinkage escapes during use	1. HEPA filter not installed2. HEPA filter installation position is incorrect3. HEPA filter is damaged and needs to be replaced	1. Check whether the HEPA filter has been installed correctly according to the instructions2. Install the HEPA filter correctly according to the instructions3. Contact customer service to purchase a replacement HEPA filter

Specifications:

Power supply:220-240V\~ 50/60Hz

Motor power: 500W

For the sake of the environment. Information about waste electrical and electronic equipment In accordance with Article 13(1) and (2) of the Law of September 11, 2015 on waste electrical and electronic equipment, we inform you about the proper handling of waste electrical and electronic equipment:

1. It is forbidden to place waste electrical and electronic equipment together with other waste - this is confirmed by marking in the form of a "crossed out basket", ordering selective collection of this type of waste.

2. Electrical and electronic equipment may contain hazardous substances, mixtures and components that, when released into the environment, can cause serious danger to the health and life of humans and living organisms. They can lead to numerous health ailments, such as vision, hearing and speech disorders, and can also damage the kidneys, liver and heart, and cause skin diseases. Harmful substances, can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on contaminated soils, and products made from them, can risk the aforementioned health effects.

3. Waste electrical and electronic equipment should be handed over only to authorized collection points, a list of which should be included on each Municipality's website.

4. The household plays an important role, in contributing to the reuse and recovery, including recycling, of waste equipment. It also plays a key role in the waste electrical and electronic equipment management system due to the possibility of direct delivery to authorized collection points and the elimination of undesirable social habits resulting in leaving waste equipment in places not intended for it.

In addition, Donate waste electrical and electronic equipment at the point of delivery. A distributor, when supplying equipment intended for households to a purchaser, is obliged to take back used household equipment free of charge at the place of delivery of such equipment, provided the used equipment is of the same type and performed the same functions as the supplied equipment.

Cardboard packaging and polyethylene (PE) bags should be placed in the appropriate containers for separate collection of municipal waste according to their description. If there are batteries in the equipment, remove them and separately dispose of them at a collection and storage facility.

Do not dispose of the device in the municipal waste container!!!

Service If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt.
