USER MANUAL GH-BD-60000GQ MSW

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical data

Parameter description	meter value
Product name LPG heater
Model	MSW-GH-BD-20000GQ	MSW-GH-BD-40000GQ	MSW-GH-BD-60000GQ
Appliance category	I3B/P
Fuel consumption [g/h]	G30: 1090; G31: 1071	G30: 2181; G31: 2142	G30: 3636; G31: 3570
Gas supply pressure [mbar] 700	700 500
Voltage [V~] / Frequency [Hz] 230 / 50
Protection Class	I
Electrical power [W] 40 80 80
Rated power [kW] 20 40 60
Air flow [m³/h] 320 600 872

IMPORTANT! The pressure regulator supplied with this product is only suitable for Germany. Users in

other countries and regions should purchase a pressure regulator with a local standard connection. The applicable pressure for the pressure regulator is listed in the table above under . Please ensure that the pressure of the purchased pressure regulator matches ours to ensure the proper use of the product.

Purpose

The LPG (Liquefied Petroleum Gas) heater is used to provide efficient, portable, and powerful heating by burning LPG fuel (such as propane or butane).

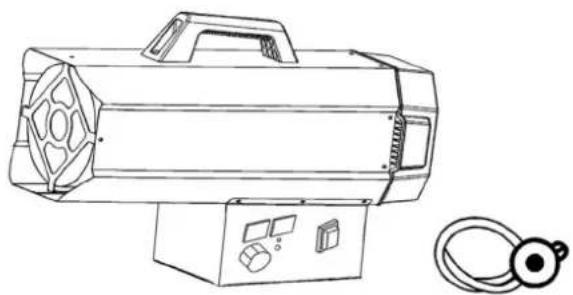

Overview

Installation

1. Connect the heater to a suitable electric socket (230V 50Hz)

2. Ensure that the machine is properly earthed.

3. Connect the gas supply hose to the pressure regulator, and then attach the regulator to a suitable LPG cylinder.
4. Open the cylinder tap and check the supply hose and fittings for gas leaks. It is recommended to use an approved leak detector for this process.
5. NEVER USE NAKED FLAMES to check for leaks.
6. For automatic models, connect the room thermostat to the socket on the appliance and set it to the required temperature.

Usage

NOTE

Use only in well-ventilated areas and keep the appliance away from combustible materials.
After use, turn off the gas supply at the cylinder valve.
- Ensure that the fan is operating correctly before lighting the burners.
- This appliance can be used by children aged 8 years and above, as well as by persons with reduced physical, sensory, or mental capabilities, or those lacking experience and knowledge, if they are supervised or properly instructed in using the appliance safely and understand the hazards involved.
- Cleaning and user maintenance must not be performed by children without supervision.

WARNING

To prevent overheating, do not cover the heater.
Some parts of this product can become very hot and may cause burns. Special care should be taken when children and vulnerable people are present.

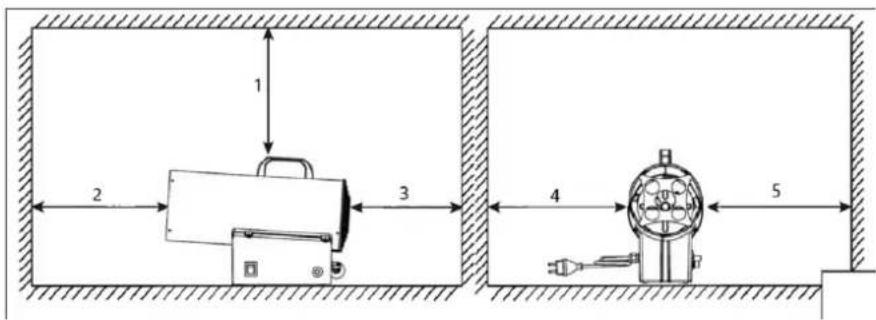

Safety Clearance

Figure.1

1-Min.2m
2-Min.3.5m
3-Min.2.5m
4-Min.2m
5-Min.2m

General instructions

The heaters must only be operated outdoors or in well-ventilated areas.

• For every kilowatt (KW) of heater power, there must be a permanent ventilation area of 25cm^3 . This ventilation should be evenly split between floor and ceiling levels, with a minimum total outlet of 250cm^3 to ensure safe operation and avoid gas accumulation.
• Never point the heater's hot air flow towards the gas cylinder.
• Only use the pressure regulator that comes with the heater.
• The heater must always have its cover in place while in use.
• The heater should not be used in spaces where the heat exceeds 100W per cubic meter of room volume. The room must have a minimum volume of at least 100m^3 .
  The air inlet and outlet sections of the heater should never be blocked or obstructed.
• If the heater runs at maximum capacity for extended periods, ice may form on the gas cylinder due to excessive vapor withdrawal. However, the cylinder should never be heated to address this issue. To avoid or reduce this effect, a larger cylinder or two linked cylinders should be used (see Figure 2).

Figure. 2

• The heater should not be used in cellars, basements, or any room below ground level.
• If the heater malfunctions, you should immediately contact a qualified technical assistance service.
  After using the heater, always turn off the gas cylinder tap.
• When replacing the gas bottle, always follow safety rules and perform the replacement away from any possible sources of ignition to avoid accidents.
  The gas hose must remain straight and untwisted.
• The heater must be positioned where there is no risk of fire. Specifically, the hot air outlet must be at least 3 meters away from any flammable walls or ceilings. Additionally, the hot air should never be directed toward the gas bottle to avoid overheating.
• Only use the original manufacturer's gas hose and spare parts.
• If you detect or suspect a gas leak, immediately close the gas cylinder and turn off the heater. Do not use the heater again until it has been inspected by a qualified service center. If the heater is indoors, ensure proper ventilation by fully opening doors and windows. Avoid creating sparks or using open flames in the area until the issue is resolved.

Preparing for operation

• Inspect the heater for any possible shipping damage before use.

• Connect the hose and regulator assembly to the LPG cylinder by rotating the nut counterclockwise into the cylinder's valve outlet and tightening it securely.

• Open the cylinder's gas valve and check all gas connections using a soap and water solution to detect any leaks.

• Connect the power cord to a well-grounded 220V^ , 50Hz power source.

Ignition

Ignition/automatic ignition

1. Turn the power switch to position "I". The motor will start, and the digital display will show the room temperature (see Figure 3).

Figure. 3

1. Open the gas valve and turn the power switch to position "II". The left display window shows the set temperature, and the right window shows the room temperature. The heater will automatically ignite when the set temperature is higher than the room temperature (see Figure 4).

Figure. 4

1. Regulate the gas flow pressure according to the desired thermal power by turning the wheel on the pressure reducer. Turn it anticlockwise to increase pressure or clockwise to decrease pressure.
2. If the flame ignites but the heater locks after a few seconds, the RESET control lamp will light up. Wait for one minute, then unlock the heater by pressing the RESET button and repeat the starting process.
3. If the problem persists, contact your supplier for further assistance.

CAUTION

If ignition is difficult or irregular before repeating the ignition operations make sure that the fan is not locked, and the air inlet and outlet are unobstructed.

Switch Off

To stop the heater, follow these steps:

1. Shut off the gas cylinder tap.

2. Allow the fan to continue running until the flame shuts off completely.

3. Once the flame is out, turn the fan switch to position "O".

Air Conditioning

The heater can also be used as a ventilator. To use this function, disconnect the gas supply hose and connect the heater's plug to a suitable electrical supply. Set the fan switch to position "I" to activate the ventilation mode.

Odor Fade Warning LPG may lose its odor over time, making leaks harder to detect. Do not rely on smell alone to identify gas leaks. Use a gas detector or other approved methods for leak detection. NEVER USE NAKED FLAMES to check for leaks. Failure to detect leaks can lead to fire, explosion, or serious injury.

Asphyxiation Hazard

• Do not use the heater for heating human living spaces.
• Do not operate in unventilated areas.
• Ensure the flow of combustion and ventilation air is not obstructed.
• Proper ventilation must be provided to meet the combustion air requirements of the heater.
  Insufficient ventilation can result in improper combustion.
• Improper combustion can lead to carbon monoxide poisoning, which may cause serious injury or death. Symptoms of carbon monoxide poisoning include headaches, dizziness, and difficulty breathing.

Fuel Gas Odor

Both LP (Propane) gas and natural gas have man-made odorants added to help detect fuel gas leaks. If a gas leak occurs, you should be able to smell the gas. Since Propane (LP) is heavier than air, be sure to check for the gas odor close to the floor. Any gas odor should prompt you to take immediate action.

LP Gas and Natural Gas Odor Warning

• Avoid any actions that could ignite the gas.
• Do not operate any electrical switches.
• Do not unplug power cords or use extension cords.
• Avoid lighting matches or any other flame sources.
  Do not use your telephone.
  Get everyone out of the building and away from the area.
• Close all propane (LP) gas tank or cylinder valves, or the main fuel supply valve located at the meter if you use natural gas.
• Since propane (LP) gas is heavier than air, it can settle in low areas. Avoid entering low areas if you suspect a propane leak.
• Use a neighbor's phone to contact your fuel gas supplier and the fire department. Do not reenter the building.
• Remain outside and away from the area until the firefighters and your fuel gas supplier declare it safe.
• Allow the fuel gas service person and firefighters to check for gas leaks, ventilate the area, and repair any issues. Only trained professionals should relight the appliance after ensuring safety.

Maintenance

1. Repairs and maintenance should only be carried out by qualified personnel.
2. The unit must be inspected by a qualified technician at least once annually.
3. Regularly inspect the condition of the gas hose and gas regulator. If replacement is necessary, use only the original spare parts.
4. Before performing any maintenance on the heater, disconnect it from both the gas supply and electrical supply.
5. If the unit has not been used for an extended period, it is recommended that a technician performs a general check-up before use. This should include the following:

Periodically inspect the condition of the gas supply hose, and if it needs replacement, use only original spare parts.

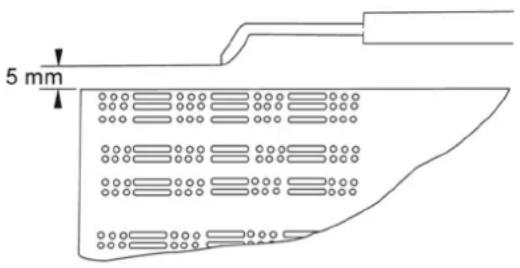

- Verify the position of the starting electrode (see Figure 5).

Figure.5

• Check the connections of the safety thermostat and the thermocouple regularly to ensure they are always clean. If needed, clean the fan blade and the interior of the heater using compressed air.

Troubleshooting

Automatic ignition models

PROBLEM	CAUSES	SOLUTIONS
The motor does not work	No electricity supply Check the terminal board with a tester
	The room thermostat is set too low Set the thermostat to a higher temperature
	The safety thermostat is activated	Wait about one minute, then press the RESET button
The motor works, but the burner does not light up and after a few seconds the heater stops	The cylinder gas tap is closed Open the gas tap
	The cylinder is empty Replace with a new cylinder.
	The nozzle is obstructed Remove and clean the nozzle
	The solenoid gas valve is not open	Check if the solenoid valve is functioning
	There is no spark Check the position of the electrode
The burner lights up but after a few seconds the heater stops	No connection with the earthing system	Verify and connect properly
	Defective connection between sensor and safety device	Check and connect properly
	Defective safety device Replace the safety	device
The heater stops during the operation	Excessive gas supply	Check the pressure reducer and replace it if necessary
	Insufficient air flow Check that the motor is working properly
	Insufficient gas supply due to ice formation on the cylinder	Check the cylinder and use a larger one, or connect two cylinders together.

Disposing of Used Devices

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.
