USER MANUAL RC-RT-01 Royal Catering

Abstract white line drawing of a stylized mythical creature on a dark blue background (no text or symbols)

DE Produktname Rotisserie
EN Product name Rotisserie
PL Nazwa produktu Rozno
CZ Název výrobku	Rotisserie
FR Nom du produit	Rôtissoire
IT Nome del prodotto	Girarrosto
ES Nombre del producto	Asador
HU Termék neve	Rotisserie
DA Produktnavn	Rotisserie
FI Tuotteen nimi	Varras
NL Productnaam	Rotisserie
NO Produktnavn	Rotisseri
SE Produktnamn	Rotisserie
PT Nome do produto	Churrasqueira
SK Názov produktu	Rotisserie
BG Име на продукта	Ротисерия
EL Овоја проїо́вто́с	Ψησταριά
HR Naziv proizvoda	Rotisserie
LT Produkto pavadinimas	Rotisserie
RO Numele produsului	Rotisor
SL Imé izdelka	Rotisserie
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtěло проїо́вто́с | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka	RC-RT-01
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Катаσκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec	expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

Technical diagram of an industrial machine with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

! VORSICHT

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name Rotisserie
Model	RC-RT-01
Rated voltage [V~] / frequency [Hz] 400 / 50
Rated power [W] 8000
Weight [kg] 106.72

Description

This machine is used for roasting whole chickens, beef, porchetta, etc., each with space for 4 to 6 chickens.

The user is liable for any damage resulting from unintended use of the device.

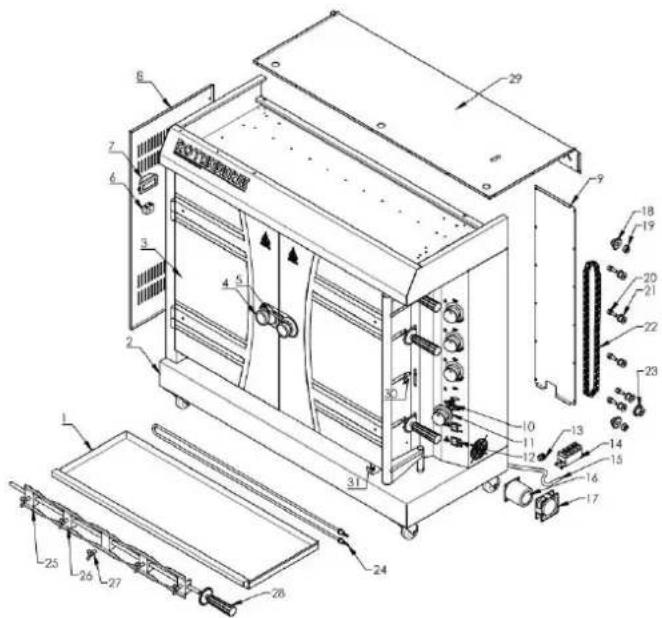

Parts diagram

Technical diagram of an industrial oven with numbered components and labeled parts

Attention: The sealed parts shall not be operated by the user.

Part number	Description Number of pieces
1 Water /	Oil Tray 1
2	Body
3	Glass	Door
4	Door	Handle
5	Handle	Lock
6	Light
7 Magnetic terminal 1 1
8 Left Side Plate 1
9 Back Cover Plate of Electrical Control Box 1
10	Temperature	Controller
11 Temp. Knob Component 4
12	On-Off	Switch
13 Head of Power Cord 1
14	Magnetic	terminal
15	Power Cable
16	Motor
17	Fan
18	Driven Sprocket
19	Sprocket Spacer
20 Center	Shaft Sleeve of Transition Wheel 5
21	Transition Wheel
22	Chain
23	Drive Sprocket
24	Heating Element
25	Fork 1
26	Fork 2	12
27	Wing Screw	20
28	Rotating Rod
29	Top Cover
30	Fork Buckle Plate	4
31	Water / Oil Tray Fixed Plate	1

Assembling tips

1. Before use, make sure the power supply corresponds to what is shown on the rating plate or within this manual.
2. Find a large and clean area in which to assemble your machine.
3. Please refer to the parts diagram as necessary.
4. Put down the machine to a well-ventilated location to avoid a fire hazard.
5. Keep the back of the machine away from wall 50cm or above.
6. The machine must be stable enough after installation to avoid shaking when using.
7. The machine should be installed alone or with other product according to prescribed scope.
8. Check that all the parts are not loose, and that the unit is in working order before operating.
9. Do not place the flammability goods on the machine such as washcloth. Failure to do this will cause fire accident.

Operation

Operating Instruction:

Place the machine in flat platform, power wire should be connected to the Leakage Circuit Switches. Before use, please check whether the voltage of power supply is in conformity with that in the data plate, and whether user's power switch and fuse are in conformity with the request of the machine's power. The body must be earthed properly. It is forbidden to put the tinder and explosive object near the machine. And keep it in the environment with the superior ventilation system. The temperature around should be less than 50. Moreover, it is forbidden to make heating tube dry-burning in order to prolong machine's service lifetime.

Operating steps:

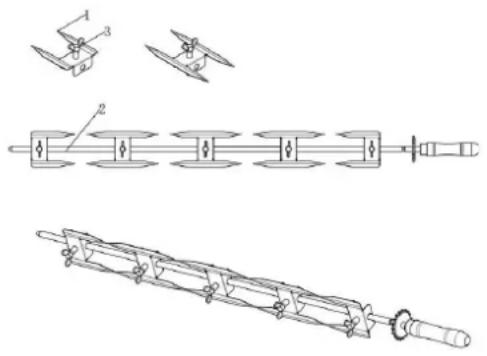

1. Turning the screws counterclockwise to loosen the grilled chicken forks, then putting the chickens onto the forks. Move the forks to suitable position, and turning the screws clockwise to fix the fork. Then put the rods back into the machine. Adjust the position and lock them well after they have been OK. It is recommended that the max load is 6-8kg per rod to prevent any damage.

Technical diagram of a mechanical assembly with labeled components and exploded views

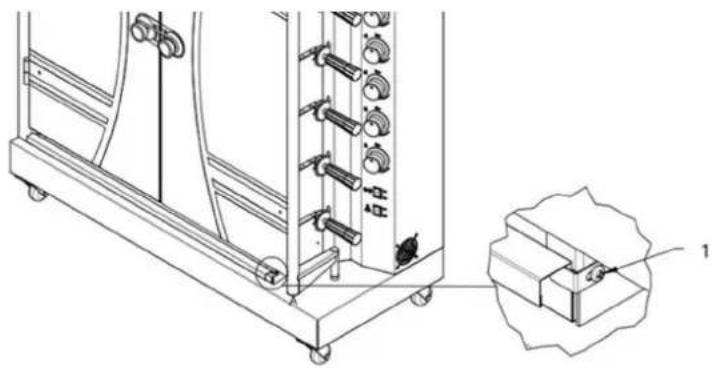

CAUTION

• Please note that the forks are sharp. Wear protective gloves if necessary.

• The rod will be heavy after putting full chickens on it. Please take it out or put it in with both hands.

• Connecting the power on (The voltage of power should be the same as nameplate of the machine and you should install power switch, fuse and breaker for the machine). Lighting the machine as above steps. The burners begin to burn and the temperature of the machine begins to increase. Turn on the motor on-off switch, fan on-off switch, and light on-off switch. Then the rods start to rotate, and the chickens start to roast.

ON OFF

Motor On-off Switch

ON OFF

Fan On-off Switch

ON OFF

Light On-off Switch

1. The rotating rod is for the roasted chickens. It can be put up for clean or fixing the chickens. The chicken should put in the middle of the fork. During the rods rotating, the roasted chickens also rotate.

2. Fill water into the oil tray, and always keep certain amount of water (The recommended amount of water is more than half of the water tray), to prevent dry. Remark:

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

1 - Please loosen the screw of water try fixed plate first, then you can take out the water tray.

Attention: When you use this machine, do not touch the electrical heating area to avoid scalding.

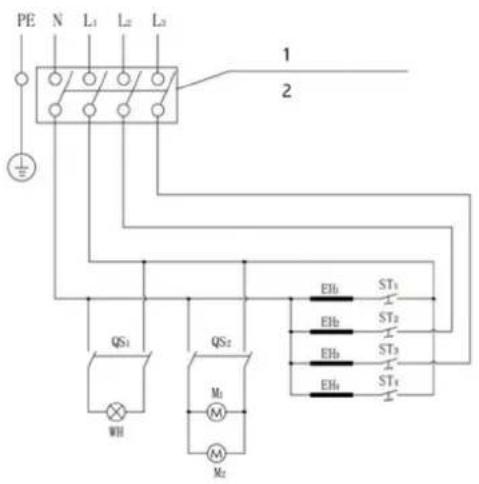

Electrical Schematics

Check the circuit. The installer should be responsible for the installation of this appliance. Cut the power off and let the appliance cool down completely before dismantling this appliance.

PE N L1 L2 L3 QS1 QS2 M0 M1 M2 EHb ST3 EHb ST2 EHb ST3 EHb ST4

1 - 400V, 50Hz; user should test power supply with leakage protection.

2 - We suggest to use 60A, 4 m ^2 power cord.

WH: Light ST1-ST4: Thermostat EH1-EH4: Heating Element

QS1: On-Off Switch 1 QS2: On-Off Switch 2 M1: Motor M2: Fan

Cleaning and maintenance

1. All the service and maintenance operation must be carried out after the power supply is cut off.
2. If there is some trouble in machine, do not dismount the machine, just send it to us for repair.
3. Unplug the mains plug or cut off power switch if the machine will not be used for a longer period.
4. Annual checking and tightening of metal fittings are recommended.
5. Regularly clean your machine between uses, especially after extended periods of storage.
6. Use soft fabric, or use neutral cleaning agent (if necessary) for cleaning.
7. Avoid using sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the machine.
8. Cool down the machine and its components before cleaning.
9. Never handle hot parts with unprotected hands.
10. The oil leftovers in the oil tray should be cleaned out often.
11. Dry storage is recommended. If it is necessary to put the machine in open-air, it should have waterproof facilities.
12. Do not put the machine upside-down.

Disposing of used devices

Do not dispose of this machine in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. Above 90% of the machine is all made of metal (e.g. stainless steel, iron, aluminium, electroplating metal plate), which can be reused after processing in specified treatment plant. By choosing to recycle you are making a significant contribution to the protection of our environment. Contact local authorities for information on your local recycling facility.

Technical diagram of an industrial machine with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

OSTROŻNOŚĆ

ON WYLACZONY

Wyłącznik silnika

ON WYŁA

Technical line drawing of a mechanical device with attached components and a close-up inset showing a small component labeled '1' (no text or symbols present)

Technical diagram of an industrial machine with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

POZOR

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial oven with numbered components and labeled parts

Technical line drawings of mechanical components and assemblies (no text or symbols)

PRUDENCE

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial oven with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

ATTENZIONE

SU SPENTO

SU SPENTO

SU SPENT

Interruttore di

Interruttore di

Interruttore di

Technical line drawing of a mechanical device with multiple components and a close-up inset showing a small component labeled '1' (no text or symbols present)

Technical diagram of an industrial machine with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

PRECAUCIÓN

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial machine with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

VIGYÁZAT

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial oven with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

FORSIGTIG

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial oven with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

VAROITUS

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial oven with numbered components and labeled parts

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial oven with numbered components and labeled parts

Artikkelnummer	Beskrivelse
1	Vann/oljebrett
2	Kanne

Antall

3	Glassdør
4	Dørhåndtak
5	Håndtakslås
6	Lys
7 Magnetisk terminal 1 1
8	Venstre	sideplate
9 Bakdekselplate på elektrisk kontrollboks 1
10	Temperaturkontroller
11	Temp.	Knottkomponent
12	På-av-bryter
13 Leder for strømledning 1
14	Magnetisk	terminal
15	Strømkabel
16	Motor
17	Vifte
18	Drevet	tannhjul
19	Sprocket	Spacer
20 Senterakselhylse på overgangshjul 5
21	Overgangshjul
22	Kjetting
23	Driv tannhjul
24	Varmeelement
25	Gaffel 1
26	Gaffel 2
27	Vingeskrue
28	Roterende stang
29	Toppdeksel
30	Gaffelspenneplate
31	Vann / oljebrett Fast plate	1

Technical diagram of a mechanical assembly with labeled components and exploded views

FORSIKTIGHET

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial oven with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

FÖRSIKTIGHET

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial oven with numbered components and labeled parts

Technical diagram of a mechanical device with labeled components and exploded views

CUIDADO

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial machine with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

POZOR

ON VYPNUTÉ

Vypínač motora

ON VYPNUTÉ

Vypínač ventilátora

ON VYPNU

Vypínač svetla

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial machine with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

ВНИМАНИЕ!

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial oven with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

⚠️ ПРОΣΟΧΗ

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial oven with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

OPREZ

NA ISKLIU

Prekidač za uključ

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial oven with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

ATSARGIAI

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial oven with numbered components and labeled parts

Technical diagram of a mechanical device with labeled components and exploded views

ATENTIE

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

Technical diagram of an industrial machine with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and exploded views

POZOR

Technical line drawing of a mechanical device with mounting brackets and a close-up inset showing a component labeled '1' (no text or symbols present)

For the disposal of the device please consider and act according to the national and local rules and regulations.
