| Product type | Multifunction steam cleaner (rotating steam mop and portable steam cleaner) |
| Brand | Adler |
| Model | AD 7052 |
| Voltage | 220-240 V ~ 50/60 Hz |
| Rated power | 1300 W |
| Water tank capacity | 550 ml |
| Adjustable steam output | 16-28 g/min (3 levels: Low, Medium, High) |
| Mop rotation speed | 110-130 RPM |
| Included accessories | Telescopic rod, steam iron handle, main nozzle, curved nozzle, large round brush, flat nozzle, window scraper, flat scraper, small round brush, 1 mop pad, scraper towel, measuring cup |
| Compatible floor types | Hard and sealed floors (tile, varnished parquet, etc.) – test on a hidden area |
| Recommended water | Pure tap water, without additives (perfume, detergent, oil) |
| Maintenance | Wash mop pads after use; descale if necessary with pure water |
| Safety | Do not direct steam at people, animals, electrical appliances; use on grounded outlet; do not leave unattended |
| Repairability | Repairs only by an authorized service center; do not open yourself |
| Environmental compliance | Do not dispose of with household waste; deposit at collection point |
Frequently Asked Questions - AD 7052 ADLER
User questions about AD 7052 ADLER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Steam cleaner in PDF format for free! Find your manual AD 7052 - ADLER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AD 7052 by ADLER.
USER MANUAL AD 7052 ADLER
AD 7052
(GB) user manual - 4 (DE) bedienungsanweisung - 7 (FR) mode d'emploi - 10 (ES) manual de uso - 14 (PT) manual de serviço - 17 (LT) naudojimo instrukcija - 20 (LV) lietošanas instrukcija - 27 (EST) kasutusjuhend - 23 (HU) felhasználói kézikönyv - 48 (BS) upute za rad - 45 (RO) Instructiunea de deservire - 36 (CZ) návod k obsluze - 30 (RU) инструкция обслуживания - 77 (GR) однгієс хрήσεως - 39 (MK) упатство за корисникот - 42 (NL) handleiding - 51 (SL) navodila za uporabo - 33 (FI) manwal ng pagtuturo - 74 (PL) instrukcja obsługi - 103 (IT) istruzioni operative - 83 (HR) upute za uporabu - 80 (SV) instruktionsbok - 54 (DK) brugsanvisning - 66 (UA) інструкція з експлуатації - 70 (SR) Корисничко упутство - 62 (SK) Používatel'ská príručka - 58 (AR) دليل التعليمات - 86 (BG) Инструкция за употребا - 88 (AZ) İstifadəyə dair göstərişlər - 94 (ALB) Udhëzime për përdorim - 98





SAFETY CONDITIONS
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
- Before using the product, please read carefully and always follow the instructions below. The manufacturer is not responsible for any damage caused by improper use.
- The product is intended for indoor use only. Do not use the product for purposes incompatible with its intended use.
- The device should only be connected to a grounded socket 220-240 V ~ 50/60 Hz. For safety reasons, do not plug multiple devices into one electrical outlet.
- Be careful when using around children. Do not let children play with the product. Do not allow children or people who are unfamiliar with the device to use it unsupervised.
- WARNING: The appliance may be used by children over 8 years of age and by persons with reduced physical, sensory or mental capabilities, or by persons who lack experience or knowledge of the appliance, only under the supervision of a person responsible for their safety or if they have been instructed in the safe use of the appliance and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be performed by children unless they are over 8 years of age and these activities are performed under supervision.
- WARNING: Do not leave the appliance plugged into the socket unattended.
- WARNING: The temperature of accessible surfaces of an operating device may be high when the equipment is operating.
- WARNING: Keep the device out of the reach of children.
- WARNING: Always remove the plug from the power socket after use by holding the socket with your hand. DO NOT pull on the power cord.
- WARNING: Do not use the device near flammable materials.
- WARNING: When the appliance is used in the bathroom, disconnect the plug from the socket after use, as the proximity of water poses a risk even when the appliance is turned off.
- WARNING: Liquid or steam emerging from the steam cleaner must not be directed into appliances containing electrical components, such as the inside of ovens.
- WARNING: The filler opening must not be opened while the appliance is in use.
- WARNING: Before cleaning the appliance, unplug the power cord from the socket and allow the appliance to cool down. Please wait long enough as the heated device cools down very slowly.
- WARNING: Before filling the device with water, disconnect it from the power supply.
- Use only clean water to fill the device, do not add any substances such as descaling agents, aromatic oils or cleaning agents.
- The power cord should not touch hot parts of the device and should not be located near other heat sources.
- After turning off the appliance, before cleaning or storing it, unplug the power cord from the socket and allow the equipment to cool down. Please wait long enough because the heated device cools down slowly.
- Do not cover the device or cover its openings as this may cause heat to accumulate inside the device, which may result in damage or fire.
- Never leave the product connected to a power source unattended. Even if use is interrupted for a short time, turn it off and disconnect the power supply.
- Never put the power cord, plug or the entire appliance into water. Never expose the product to atmospheric conditions such as direct sunlight or rain, etc.
- Periodically check the condition of the power cord. If the power cord is damaged, the product should be returned to a professional service center for replacement to avoid dangerous situations.
- Never use the product with a damaged power cord, or if it has been dropped or otherwise damaged, or if it is not working properly. Do not attempt to repair a damaged product yourself as this may result in electric shock. Always return your damaged device to a professional service center for repair. All repairs may only be performed by authorized service specialists. Improperly performed repairs may result in dangerous situations for the user.
- Never use the product near flammable materials.
- Never point the steam cleaner at yourself, other people, animals or electrical appliances.
- The device may only be used with original accessories.
- Make sure the water tank cover is screwed firmly onto the device.
- Warning. Hot steam.
- Warning. Hot steam, may cause burns.
- Do not touch the hot surfaces of the device.

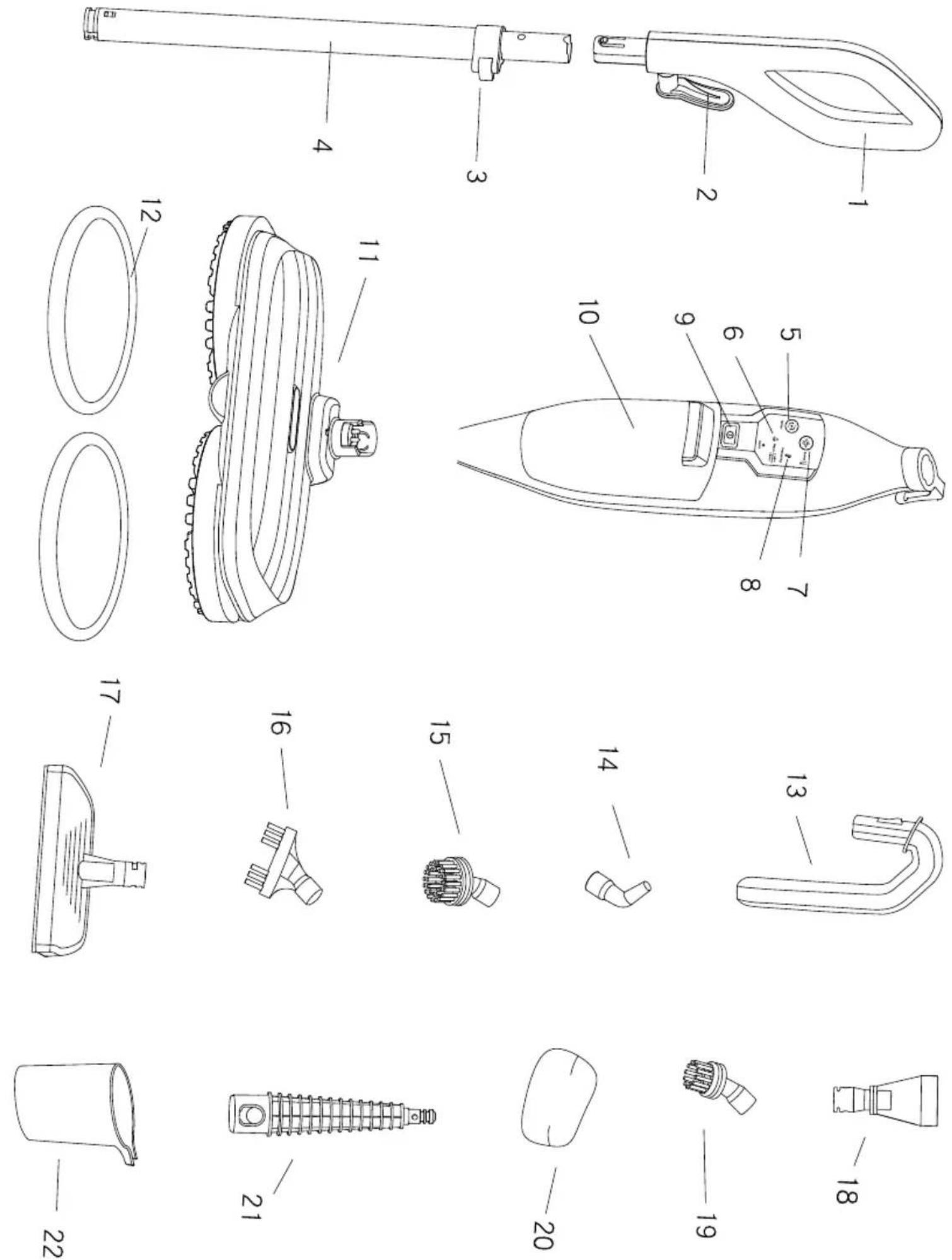

Device description:
- Handle 2. Upper winding hook 3. Telescopic rod adjustment switch
- Telescopic rod 5. Mop motor switch 6. Steam indicator
- Steam switch 8. Motor light 9. On/Off button
- Water tank 11. Rotating mop head 12. Mop pad
- Steamer handle 14. Curved nozzle 15. Big round nozzle
- Crevice nozzle 17. Window scraper 18. Flat scraper
- Small round nozzle 20. Towel for window scraper
- Main nozzle 22. Measuring cup
Before first use:
- Remove all packing materials
- Wipe down all parts with a damp cloth with water.
- Check if any parts are missing by consulting with page 2 of the manual.
Using the Rotating mop attachment:

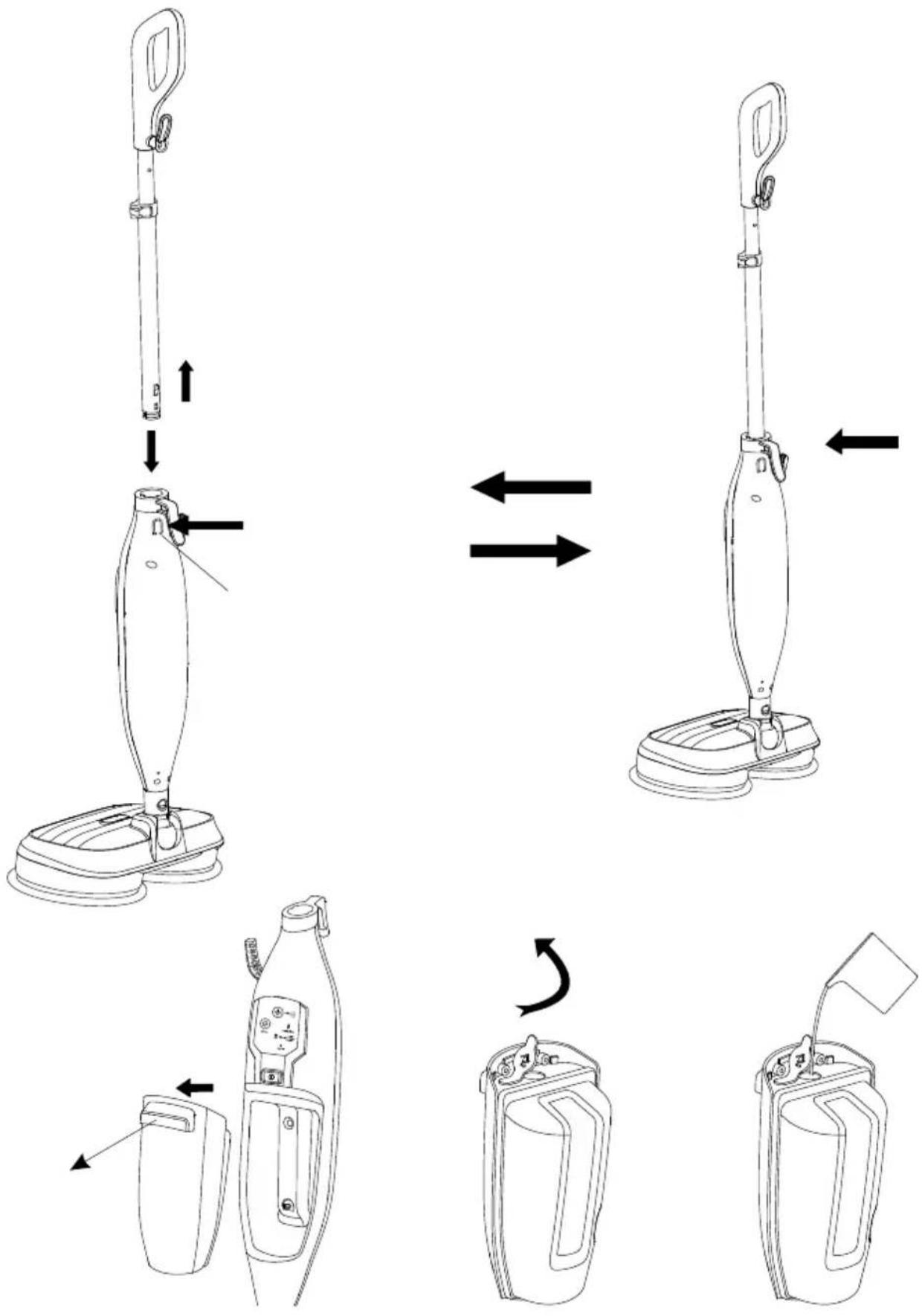

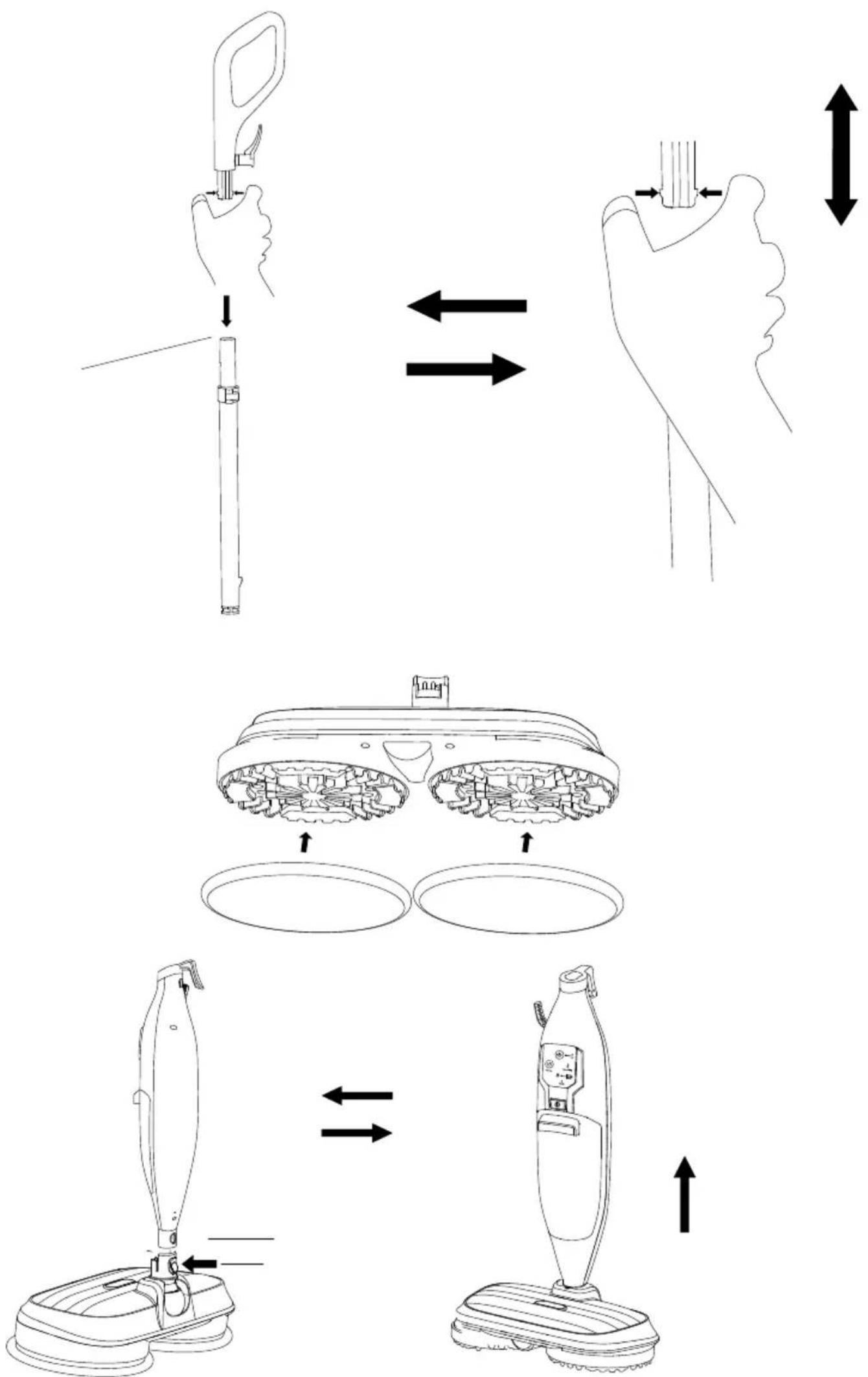

- Install the handle (1) by pressing the buttons on the bottom part of the handle inwards and firmly pushing it into the upper part of the telescopic rod. As shown on page 4. To dismantle also make sure to press the buttons and pulling firmly upwards to pull out the handle.
- Stick the Mop Pads (12) onto the rotating mop head (11). Make sure the pads are firmly attached and in the middle of the circles. If you do not install them correctly you risk scratching your floor or damaging the device.
- Press the main device firmly down onto the rotating mop head, making sure to press the button on the head so it clicks into place on the main device, as shown on page 4.
- To uninstall the rotating mop head, make sure the device is cool and turned off. Press the button and pull firmly upwards to release the device.
- Pull firmly on the handle of the water tank (10) to pull out the water tank.
- Pull on the silicon flap on the water tank to open the water inlet, as shown on page 5.
- Use tap water without any added scents or detergents. Only clean tap water is allowed.
- Make sure not to fill the water tank beyond the MAX line.
- Close the silicon flap by firmly pushing it back into place, and reinstall the tank into its place.
- Plug in the device into the wall socket or extension cord.
- Press the On / Off button (9) to turn on the device

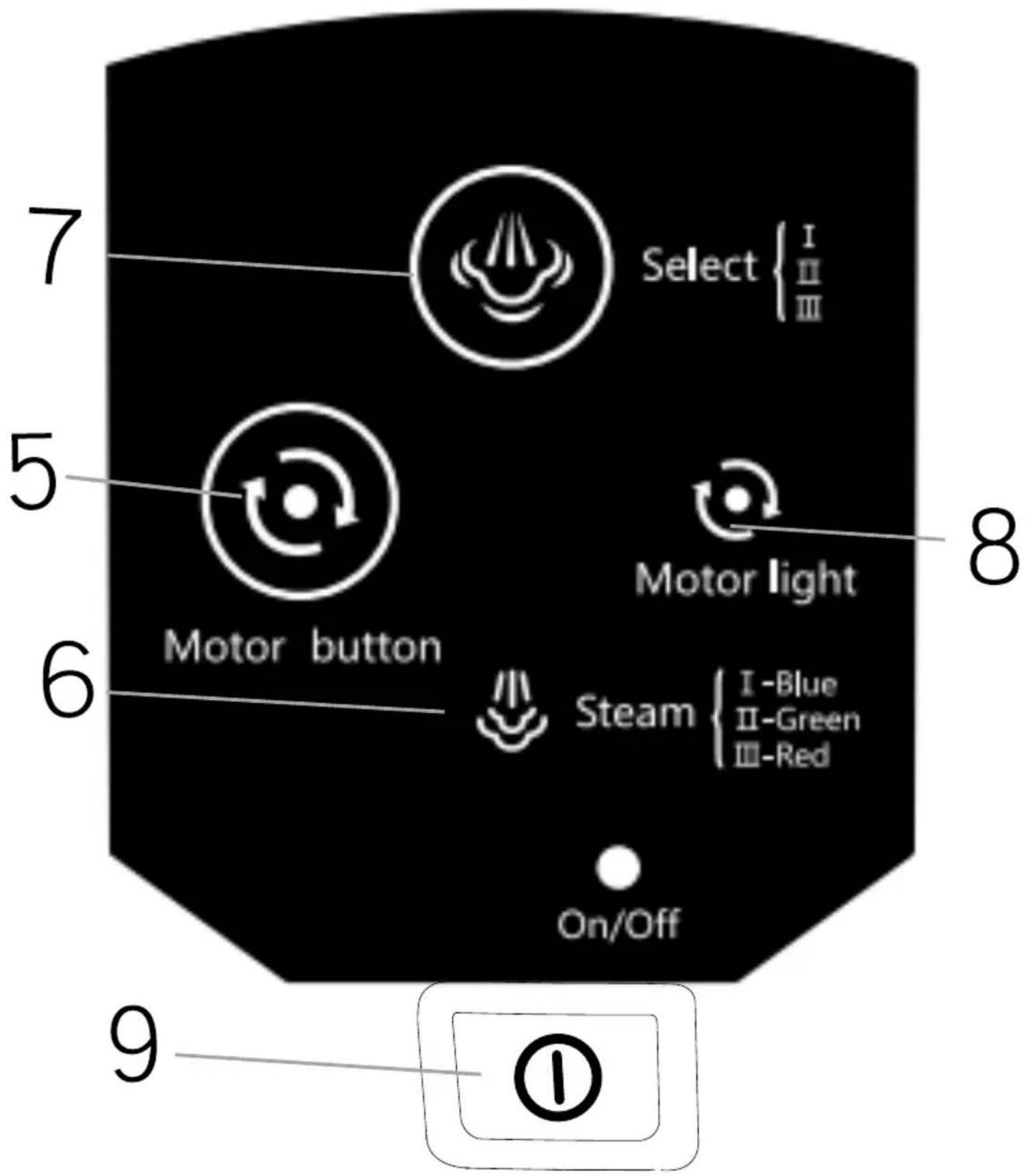

- Press the steam select button (7) to choose the intensity of the steam. The Steam indicator icon will change color.
a. No light – Steam generation turned off
b. Blue light – Low steam generation
c. Green light – Medium steam generation
d. Red light – High steam generation
- After selecting the desired amount of steam generation grab the handle firmly and press the mop motor switch (5)
- The device will now begin rotating the head making cleaning easier.
CAUTION: The device is now emitting steam. DO not point at people, children, animals or other heat sensitive materials.
- Once you are finished using the device, turn off the steam generation and the motor, and unplug the device. You can turn off the Mop and Steam generation function at the same time by pressing and holding the steam select (7) button for 3 seconds.
CAUTION: MAKE SURE THE DEVICE HAS COOLED DOWN BEFORE REMOVING THE MOP PADS.
- Remove the mop pads and wash them.
CAUTION: DO NOT USE FLOOR WASHER WITHOUT PADS. IT WILL DAMAGE THE DEVICE AND FLOOR.
Steam cleaner function:
You can use the device without the rotating mop attachment and use it as a steam cleaner in a much easier to handle form. To do that, please follow the below instructions:

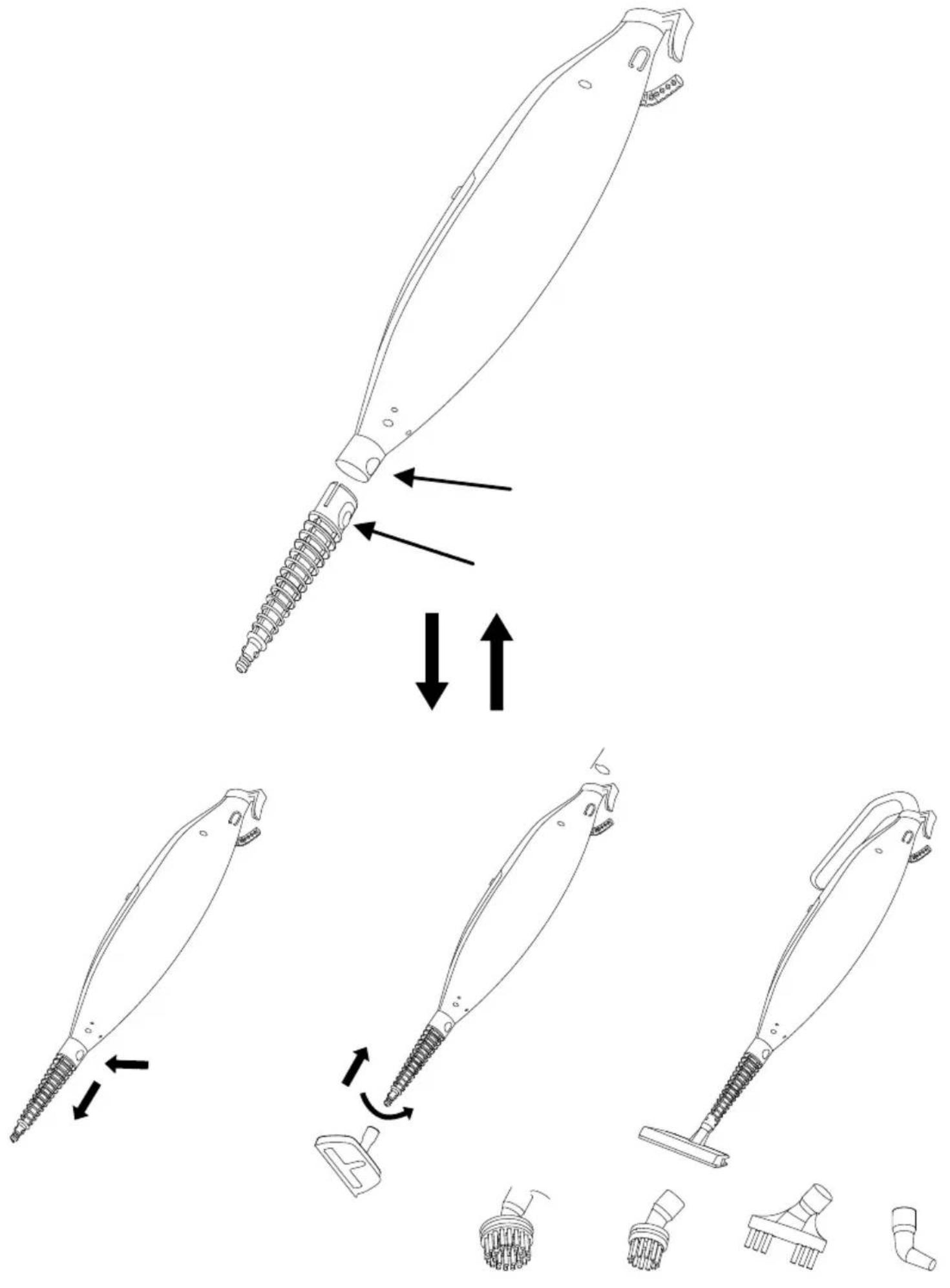

- Remove the telescopic handle from the main body by pressing the button at the back of the device and pressing the release button as shown on page 5.
- Remove the rotating mop attachment by pressing the button near the main device steam outlet as shown at the bottom of page 4.
- Attach the steamer handle (13) in the place where the telescopic rod was placed.
- Attach the main nozzle (21) by pressing the button at the base of the attachment and pushing it in place as shown on page 7.
- You can also add any of the other attachments on top of the main nozzle or use the main nozzle as is.
- To add the other attachments, please choose the needed attachment and inside you will find a groove; it will correspond with the peg on the main nozzle.
- Insert the attachment onto the nozzle and twist for the peg to fall in place and so the attachment does not move during use.
- You can now use the Steam select button (7) to choose the intensity of steam generation.
CAUTION: DO NOT TOUCH THE MAIN STEAM NOZZLE OR THE ATTACHMENT DURING USE. TURN OFF THE DEVICE AND LET THE ATTACHMENT COOL DOWN BEFORE REMOVING.
- To remove the attachments, wait for them to cool down and turn them in the other direction and pull them off.
Attachment descriptions and suggested use:
a. Main nozzle (21) – Used for hard-to-reach places such as between cupboards or corners.
b. Curved nozzle (14) – To reach behind something or under something like behind kitchen faucet.
c. Round Big brush (15) – To clean bigger surfaces, for example, kitchen counter.
d. Crevice brush (16) – Best used to clean between tiles.
e. Window scraper (17) – Used for windows or big tiles. Can also be used with the towel on to collect the water or on more sensitive areas.
f. Scraper attachment (18) – Used for iron pans or removing old dirt and grease.
g. Round small nozzle (19) – Used for smaller areas.
For which floors is the device suitable for:
The device can be used on sealed hard floor surfaces. It is recommended that you first test the device on a piece of flooring that is not visible and consult the maintenance instructions of the floor manufacturer.
The device should NOT BE USED on: Leather, waxed furniture, synthetic fiber, velvet or fine materials sensitive to steam.
CAUTION: DO NOT USE ANY CLEANING SOLUTION, PERFUME, OIL OR OTHER CHEMICAL SUBSTANCES TO THE WATER USED DIRECTLY WITH THIS PRODUCT. IT MIGHT DAMAGE THE PRODUCT OR MAKE IT UNSAFE TO USE. USE ONLY PURE WATER.
TROUBLESHOOTING:
- Device does not generate steam:
a. Check if the power plug of the device and if the device is turned on correctly.
b. Make sure the water tank is filled and inserted correctly.
c. If the indicator light is on and the device should generate steam.
d. Please wait at least 30 seconds after turning the steam generation on.
e. After checking all the above points and still no steam generation is occurring please contact the customer service.
- When using the rotating floor cleaner the steam is not consistent.
a. Change the steam generation to High.
- The rotating floor cleaner does not rotate.
a. Ensure the device is plugged in and turned on correctly.
b. Make sure the rotating floor cleaner is connected correctly.
- The mop pads do not rotate or sway.
a. Ensure they are properly attached to the cleaner and are put on the correct way.
- Vibration or swing of the steam floor washer.
a. The mop pads are not attached correctly.
Technical details:
Voltage: 220-240V~ 50/60 Hz
Rated Power: 1300 W
Water tank capacity: 550 ml
Rotation speed: 110-130 rpm
Steam generation: 16-28g / min

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.
