USER MANUAL DistanceMaster Plus Laserliner

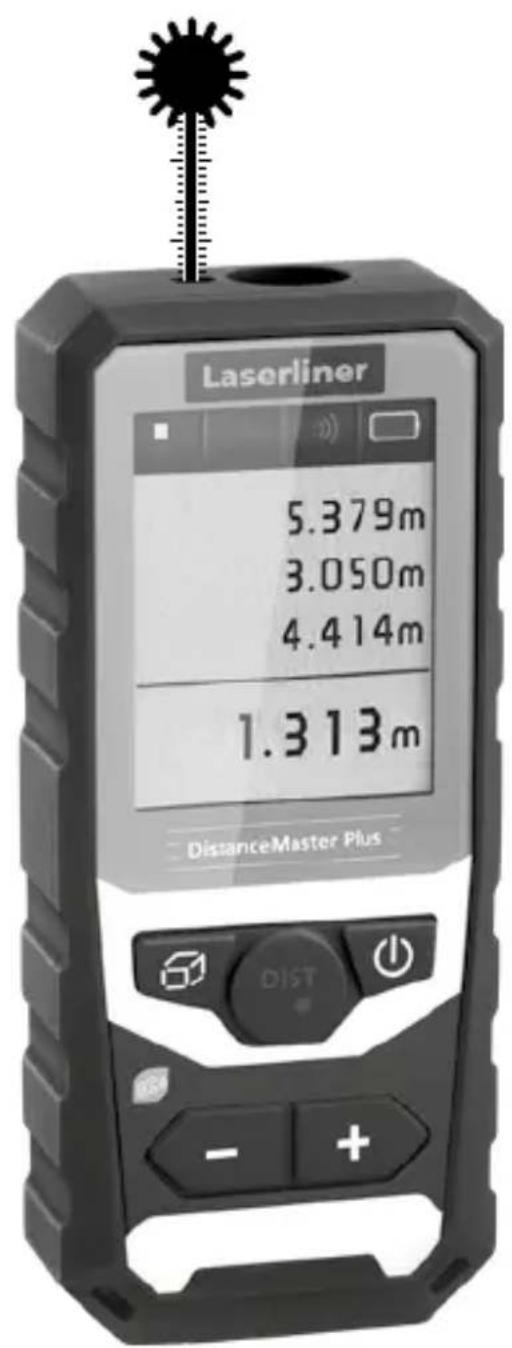

DistanceMaster Plus 100

Laserliner 5.379m 3.050m 4.414m 1.313m DistanceMaster Plus DIST

Laser 635 nm
Digital CONNECTION

Laserliner

Laserliner

!

Close-up of a black USB flash drive with control buttons and battery, labeled 'USB-C' (no other text or symbols visible)

Diagram showing components of an electronic device with labeled parts including a battery, battery pack, recycling symbol, and circuit break symbol.

a b f g h

c- 0.000m max 0.000m -i d- min + 0.000m j

e- 0.000m³ -k

l m n o p q r s t

u v

DISPLAY:

https://packd.li/ble/v2

Download on the App Store

GETT ON Google Play

https://packd.li/ll/ans/in

Laserliner

!

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. These documents must be kept in a safe place and passed on together with the product.

Intended use

This laser rangefinder is suitable for measuring, adding and subtracting lengths, areas and volumes. The Pythagoras angle function is suitable for indirect measurements in hard-to-reach locations. The measured data can be transferred to a smart phone via the digital connection interface.

General safety instructions

- The device must only be used in accordance with its intended purpose and within the scope of the specifications.

- Keep the measuring device away from children. Keep out of reach of children.

- Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.

- Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.

- The device must no longer be used if one or more of its functions fail, the battery charge is weak, or the housing has been damaged.

- When using the device outdoors, make sure that the weather conditions are appropriate and/or that suitable protection measures are taken.

- Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.

Safety instructions

Using class 2 lasers

Laser radiation! Do not stare into the beam! Class 2 laser < 1 mW · 635 nm

EN 60825-1:2014/A11:2021 / EN 50689-1:2021

- Attention: Do not look into the direct or reflected beam.

- Do not point the laser beam towards persons.

- If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.

- Tampering with (making changes to) the laser device is not permitted.

- Under no circumstances should optical instruments (magnifying glass, microscope, binoculars,...)

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
• The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.

Safety instructions

Dealing with RF radiation

• The measuring device is equipped with a wireless interface.
• The measuring device complies with electromagnetic compatibility and wireless radiation regulations and limits in accordance with the RED 2014/53/EU.
• Umarex GmbH & Co. KG hereby declares that the DistanceMaster Plus 100 radio equipment complies with the essential requirements and other provisions of the European Radio Equipment Directive 2014/53/EU (RED). The EU Declaration of Conformity can be found in its entirety at the following address: https://packd.li/ll/ans/in

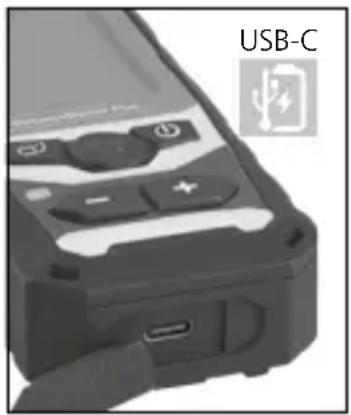

Use of lithium-ion battery

• Use the power supply/charger unit only in closed rooms; do not expose to moisture or rain otherwise risk of electric shock.
• Ensure the device's battery is fully charged before using the device.
• Connect the power pack/charger to the mains power supply and the socket on the device's battery pack. Please only use the power pack/charger supplied. Using any other power pack/charger will invalidate the warranty.

- After the charging cable has been plugged in, a battery symbol with increasing bars appears in the display for the entire duration of the charging process. As soon as the charging process is complete, a battery symbol with a full number of bars appears.

Close-up of a black USB flash drive with control buttons and battery icon (no readable text or symbols)

The device has a replaceable battery. Contact your distributor or the UMAREX-LASERLINER service department.

Laserliner

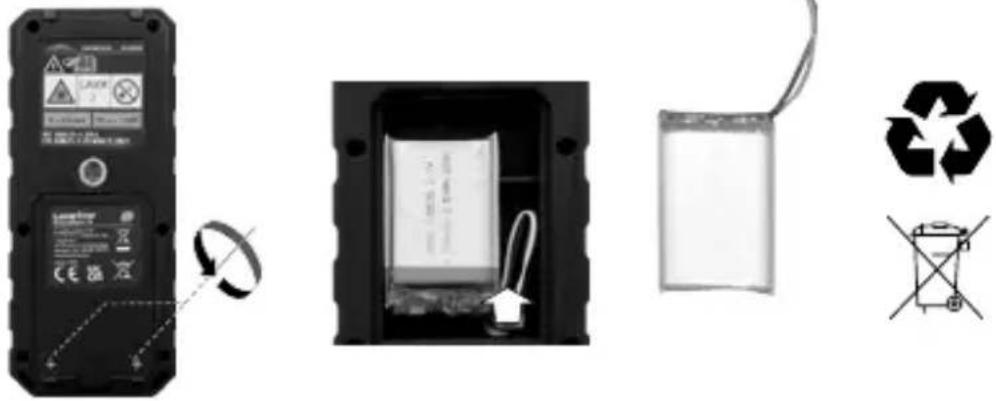

Removal of the battery:

Diagram showing components of an electronic device with labeled parts including a battery, battery pack, recycling symbol, and circuit break symbol.

a b f g h

c- 0.000m max 0.000m -i d- min + 0.000m j

e- 0.000m³ -k

l m n o p q r s t

u v

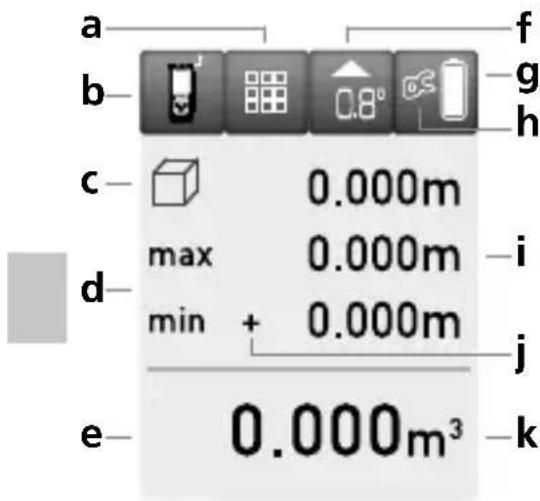

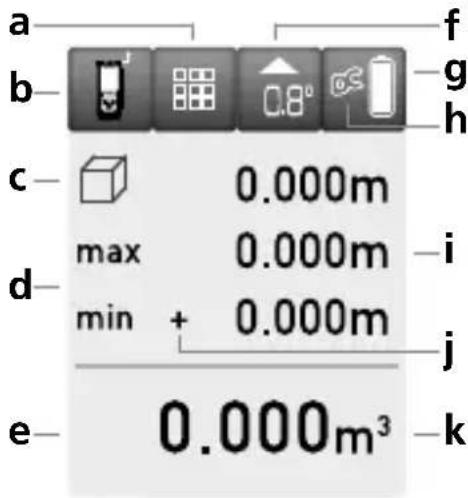

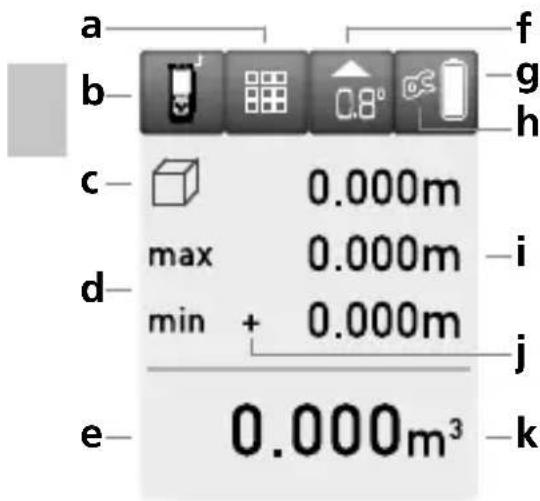

DISPLAY:

a Function display
b Measurement point (reference) rear / thread / front
c Distance to be measured
d Min/max continuous measurement
e Measurement values / Measurement results / malfunction
f Slope angle device
g Battery symbol
h Digital Connection activated
i Intermediate values / min/max-values
j Addition / Subtraction
k unit m / inch / ft
I Length measurement
m Min/max continuous measurement
n Area measurement
- Wall area measurement
p Volume measurement
q Angle function 1
r Angle function 2
s Angle function 3
t Digital bubble level
u Memory
v Digital Connection

DistanceMaster Plus 100

1. 2. 3. 4. 5.

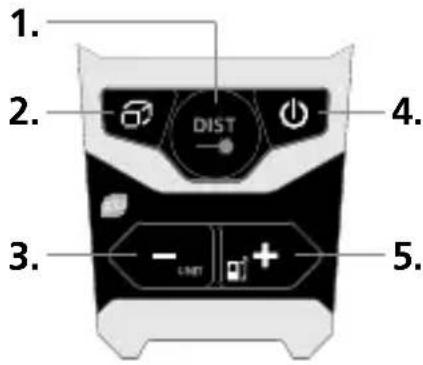

KEYPAD:

1. ON / measure / Min/max continuous measurement
2. Function menu
3. Subtraction / unit m / inch / ft
4. Delete last measurement values / OFF
5. Addition / Measurement point (reference) rear / thread / front

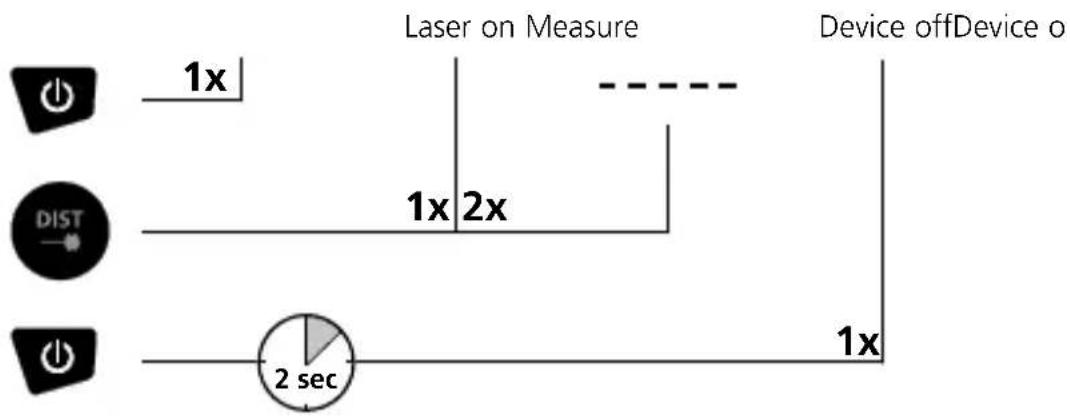

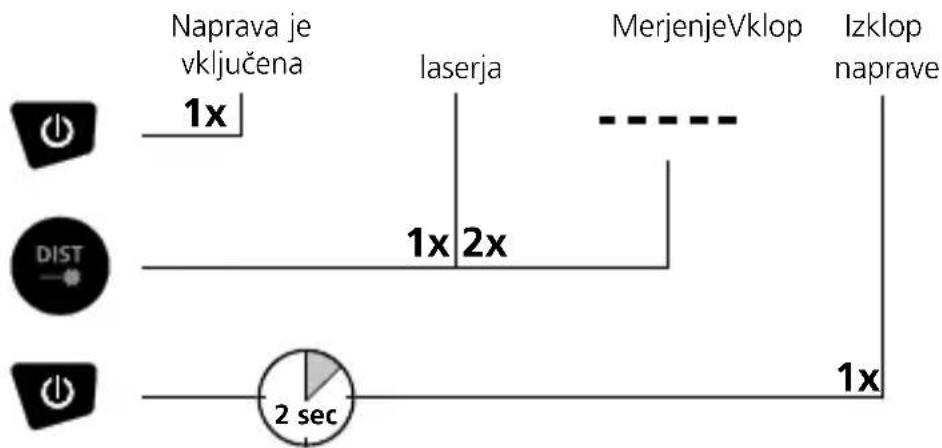

Switch on, measure and switch off:

Change unit of measure: m / inch / ft

Delete the last measured value:

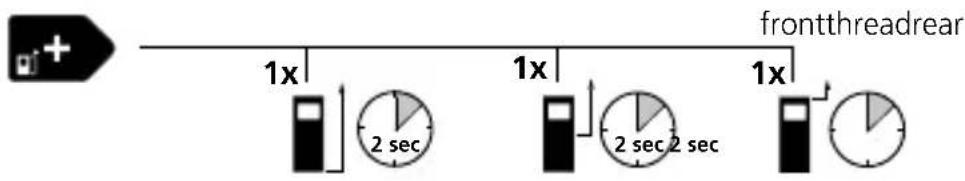

Change measurement point (reference):

frontthreadrear 1x 1x 1x 2 sec 2 sec 2 sec

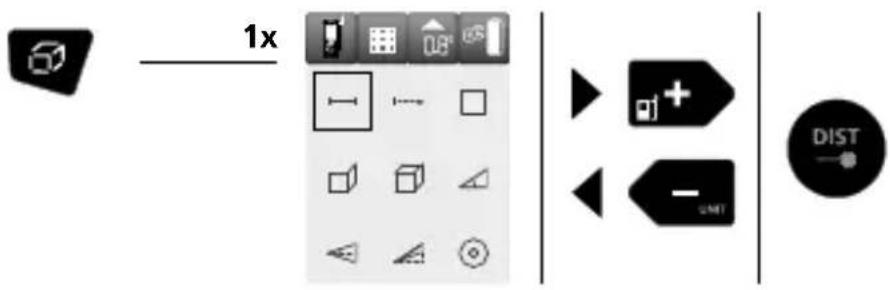

Select function:

1x DIST

Laserliner

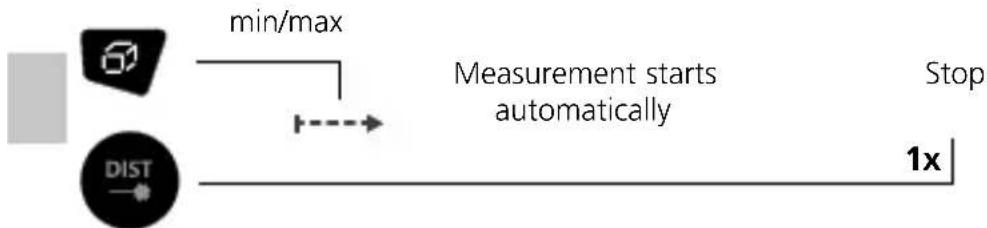

Min/max continuous measurement:

The LC display shows the max value, the min value and the current value.

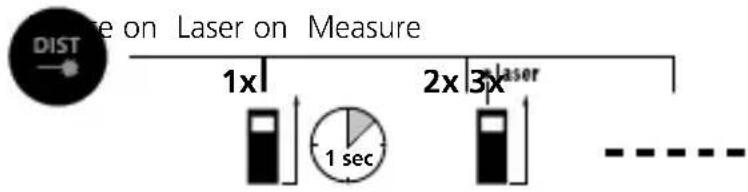

Length measurement:

DISTR on Laser on Measure 1x 2x 3x laser 1 sec

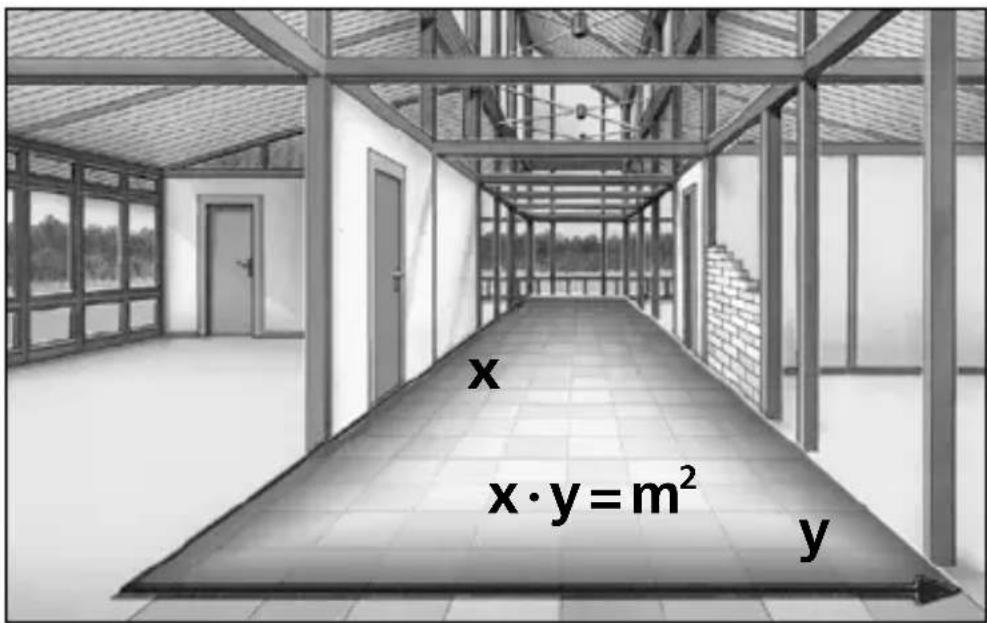

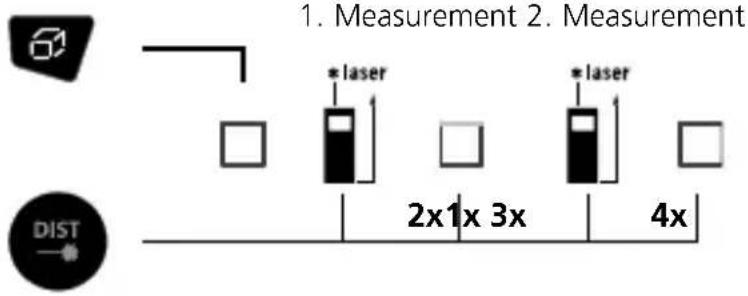

Area measurement:

1. Measurement 2. Measurement * laser 2x1x 3x * laser 4x DIST

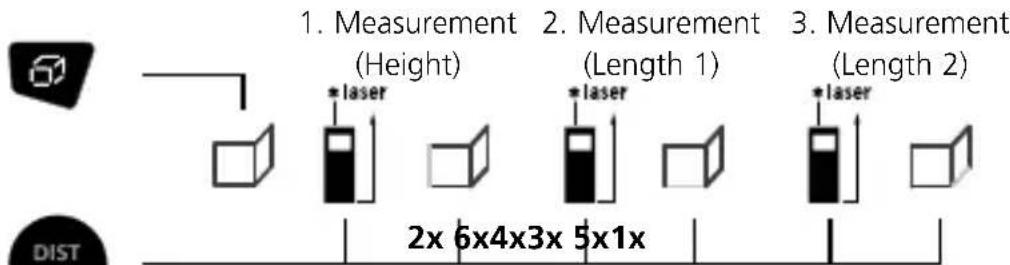

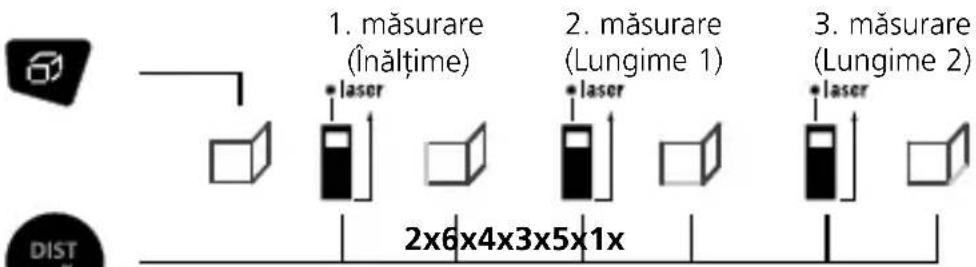

Wall area measurement:

1. Measurement (Height) *laser 2x 6x4x3x 5x1x 2. Measurement (Length 1) *laser 3. Measurement (Length 2) *laser DIST

1st area = height x length 1

2nd area = (height x length 2) + 1st area etc.

This function is suitable for the automatic addition of wall areas of the same height. After the laser is switched on, the room height must be determined with the 1st measurement; this will then act as the height measurement for all of the remaining area calculations. From the second measurement on, only the length measurement needs to be taken. Every area calculation result will be added to the previous ones.

DistanceMaster Plus 100

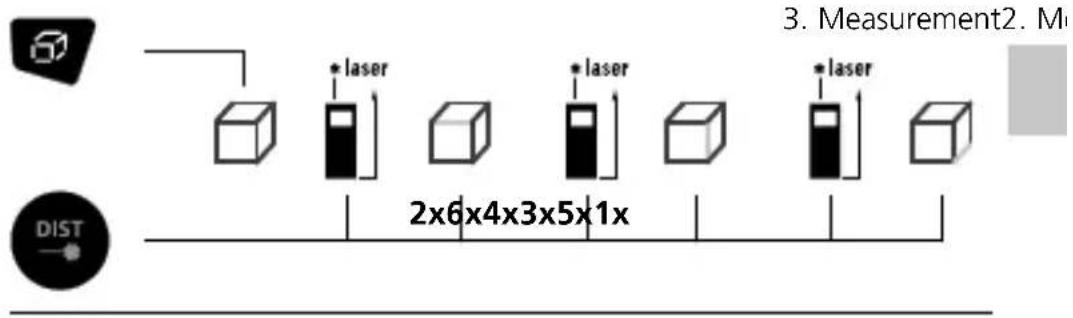

Volume measurement:

3. Measurement2. Mix * laser * laser * laser 2x6x4x3x5x1x DIST

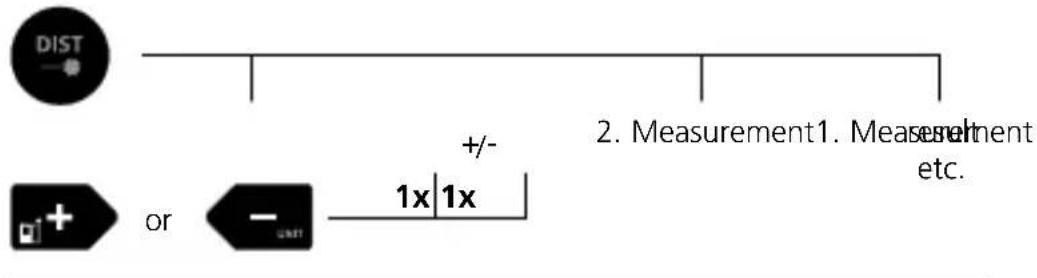

Addition and subtraction of lengths, area and volume:

DIST + or - 1x 1x +/- 2. Measurement1. Measurement etc.

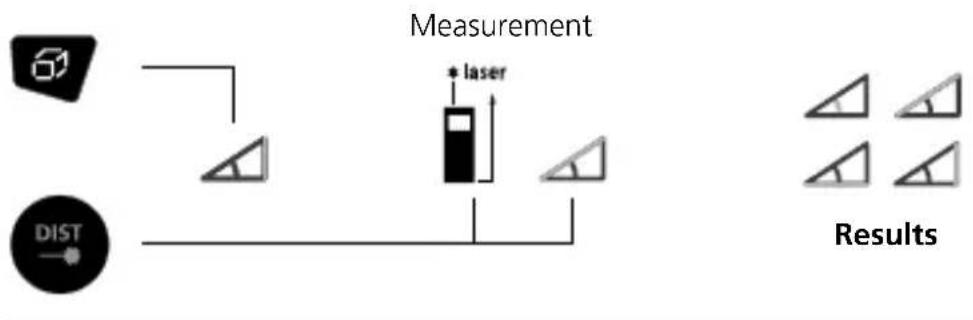

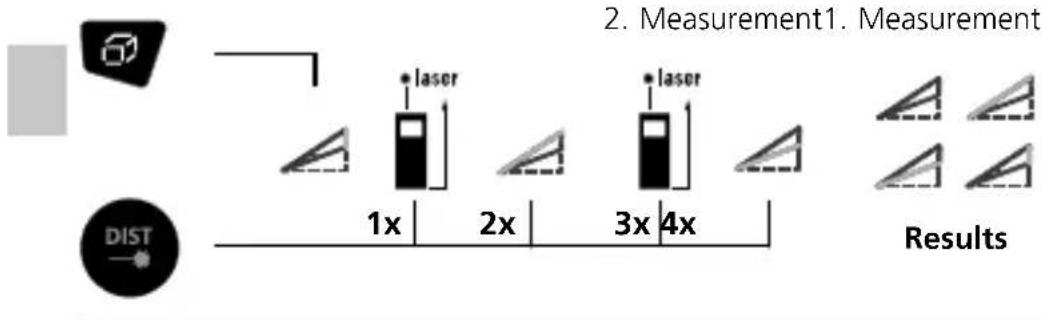

Angle function 1 / 2 / 3:

The measurement results are determined automatically by the 360^ inclination sensor.

The back of the device can be used as a reference surface for measuring angles.

1:
    I["Results 2"]
    J["Results 3"]

2:
    note right of B: * laser
    note right of D: * laser
    note right of H: * laser
    note right of L: * laser
    note right of H: * laser
    note right of L: * laser
    note right of H: * laser
    note right of L: * laser
    note right of H: * laser
    note right of L: * laser
    note right of H: * laser
    note right of L: * laser

Laserliner

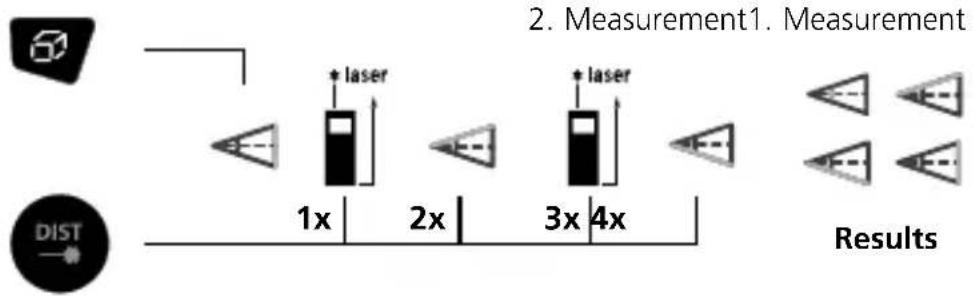

3:

Digital bubble level:

The digital bubble level is used to horizontally align the measuring device.

Memory function:

The device has 50 storage locations.

2 sec - UNT 01 ... 50 +

Enable Digital Connection:

When enabled the Digital Connection symbol appears on the display (h). When the function is active, a mobile device can connect by means of an app to the measuring device.

Data transfer

This device has digital connectivity which allows wireless data transfer to mobile devices such as smart phones or tablets with a wireless interface.

The system prerequisites for a digital connection are specified at https://packd.li/ble/v2

This device can generate a wireless connection to devices which are compatible with the wireless standard IEEE 802.15.4. The wireless standard IEEE 802.15.4 is a transfer protocol for Wireless Personal Area Networks (WPAN).

The range is set to a maximum distance of 10 m from the terminal device and greatly depends on the ambient conditions such as the thickness and composition of walls, sources of interference as well as the transmit / receive properties of the terminal device.

Application (app)

An app is required to use the digital connection. You can download the app from the corresponding stores for the specific type of terminal device:

Download on the App Store

GETIT ON Google Play

Make sure that the wireless interface of the mobile device is activated.

After starting the app and activating the digital connection, a connection can be set up between a mobile device and the measuring device. If the app detects several active measuring devices, select the matching device.

This measuring device can be connected automatically the next time it is switched on.

Error codes:

Er101: Replace the battery

Er104: Calculation error

Er155: Outside the measuring range

Er157: Received signal too weak

Er194: Value outside display range

Laserliner

Important notices

• The laser points to the location that will be measured. No objects may get into the laser's line of measurement.
• The device compensates the measurement for different room temperatures. Therefore allow the device a brief adaptation period when changing locations with large temperature differences.
• The device is only conditionally useable in outdoor areas and cannot be used in strong sunlight.
• The measurement results of outdoor measurements may be influenced or falsified by rain, fog and snow.
• In unfavourable conditions, e.g. with poorly reflecting surfaces, the maximum deviation may be greater than 3 mm.
• Carpeting, upholstery or curtains will not reflect the laser optimally. Measure to flat surfaces.
• Measurements made through glass (window panes) can falsify measurement results.
• An energy-saving function switches the device off automatically.
• Clean with a soft cloth. Water may not be allowed to penetrate the housing.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Calibration

The measuring device should be calibrated and tested on a regular basis to ensure it is accurate and working properly. We recommend the measuring device is calibrated every year. If necessary, contact your distributor or the UMAREX-LASERLINER service department.

Technical Data (Subject to technical changes without notice. 24W16)

Precision (typical)* ± 1,5 mm
Measurement range (inside)**	0,05 m - 100 m
Laser class	2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689-1:2021)
Laser wavelength 635 nm
Speicher 50 Speicherplätze
Schutzart IP 65
Automatic switch-off 30 sec laser / 3 min device
Power supply Li-Ion battery pack 3.7V / 0.7Ah
Operating conditions	-10°C ... 40°C, max. humidity20 ... 85% rH, no condensation, max.working altitude 2000 m above sea level
Storage conditions	-20°C ... 70°C,max. humidity 80% rH
Dimensions (W x H x D) 54 x	126 x 27 mm
Weight 122 g (incl. battery pack)

* measuring distance up to 10 m with strongly reflective target surface and at room temperature. The measurement deviation may increase by ± 0.2 mm/m for greater distances and under unfavourable measuring conditions such as strong sunlight or weakly reflective target surfaces. ** at max. 5000 lux

EU and UK directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU and the UK.

This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials. Electrical devices, batteries and packaging do not belong in household waste. Users are obliged by law to surrender used batteries or battery packs to a public collection point, to sales outlets, or to technical customer services, free of charge. Remove the battery from the device without damaging it using standard commercial tools: arrange separate collection before returning the device for disposal. Please do not hesitate to contact the UMAREX-LASERLINER service department if you have any queries regarding removing the battery. Look for information on local disposal facilities and note the relevant disposal and safety information at the collection points.

Further safety and supplementary notices at:

https://packd.li/ll/ans/in

!
