USER MANUAL LaserRange-Master Gi8 Pro Laserliner

LaserRange-Master Gi8 Pro

Laserliner 87.3° 2.066 m 4.374 m 1.382 m 12.489 m³ DIST C OFF + - LaserRange-Master GIS

Laser 515 nm
DC DIGITAL CONNECTION

Laserliner

Laserliner

!

Close-up of a black USB device with control buttons and a USB-C logo (no readable text or symbols beyond branding)

Laserliner

LaserRange-Master Gi8 Pro

1. DIST 2.5. C OFF 3. + - 4.

TASTATUR:

1x2x laser --- ---

Flächenmessung:

1. Messung 2. Messung

DIST

Wandflächenmessung:

1. Messung (Höhe)

1. Messung (Länge 1)

1. Messung (Länge 2)

DIST

2x 6x4x3x 5x1x

LaserRange-Master Gi8 Pro

Volumenmessung:

Simple horizontal line with two vertical tick marks, no text or symbols present

1. Messung 2. Messung

Ergebnis usw.

oder

https://packd.li/ble/v2

Download on the App Store

GETT ON Google Play

https://packd.li/ll/aoz/in

Laserliner

!

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. These documents must be kept in a safe place and passed on together with the product.

Intended use

This laser rangefinder is suitable for measuring, adding and subtracting lengths, areas and volumes. The angle function is suitable for indirect measurements in hard-to-reach locations. The measured data can be transferred to a smart phone via the digital connection interface.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• Keep the measuring device away from children. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail, the battery charge is weak, or the housing has been damaged.
• When using the device outdoors, make sure that the weather conditions are appropriate and/or that suitable protection measures are taken.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.

Safety instructions

Using class 2 lasers

Laser radiation! Do not stare into the beam! Class 2 laser < 1 mW · 515 nm

EN 60825-1:2014/A11:2021 / EN 50689-1:2021

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.
• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
• Tampering with (making changes to) the laser device is not permitted.
• Under no circumstances should optical instruments (magnifying glass, microscope, binoculars,...)

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
• The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.

Safety instructions

Dealing with RF radiation

• The measuring device is equipped with a wireless interface.
• The measuring device complies with electromagnetic compatibility and wireless radiation regulations and limits in accordance with the RED 2014/53/EU.
• Umarex GmbH & Co. KG hereby declares that the LaserRange-Master Gi8 radio equipment complies with the essential requirements and other provisions of the European Radio Equipment Directive 2014/53/EU (RED). The EU Declaration of Conformity can be found in its entirety at the following address: https://packd.li/ll/aoz/in

Green laser technology

Approx. 6 times brighter than a typical red laser with 630 - 660 nm

Use of lithium-ion battery

• Use the power supply/charger unit only in closed rooms; do not expose to moisture or rain otherwise risk of electric shock.
• Ensure the device's battery is fully charged before using the device.

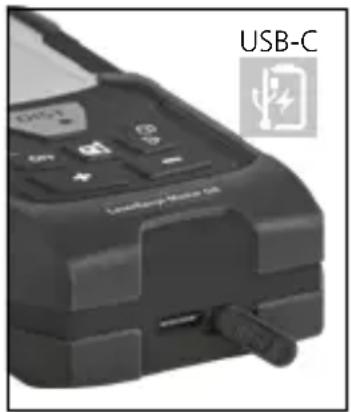

• Connect the power pack/charger to the mains power supply and the socket on the device's battery pack. Please only use the power pack/charger supplied. Using any other power pack/charger will invalidate the warranty.

- After the charging cable has been plugged in, a battery symbol with increasing bars appears in the display for the entire duration of the charging process. As soon as the charging process is complete, a battery symbol with a full number of bars appears.

Close-up of a black USB phone with control buttons and a USB-C battery icon (no readable text or symbols beyond branding)

The device has a replaceable battery. Contact your distributor or the UMAREX-LASERLINER service department.

Laserliner

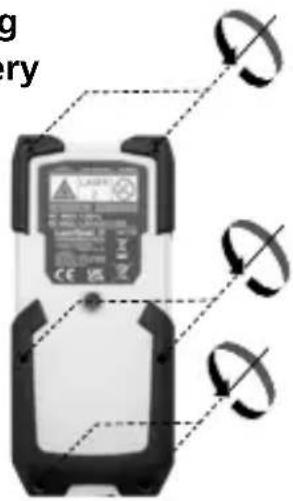

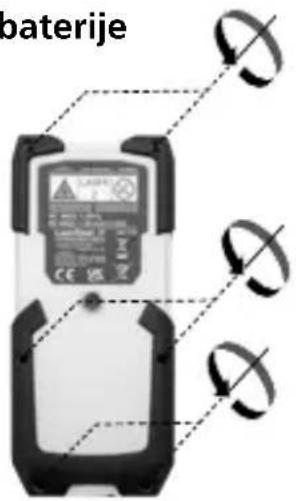

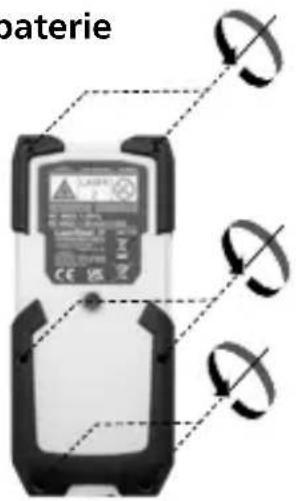

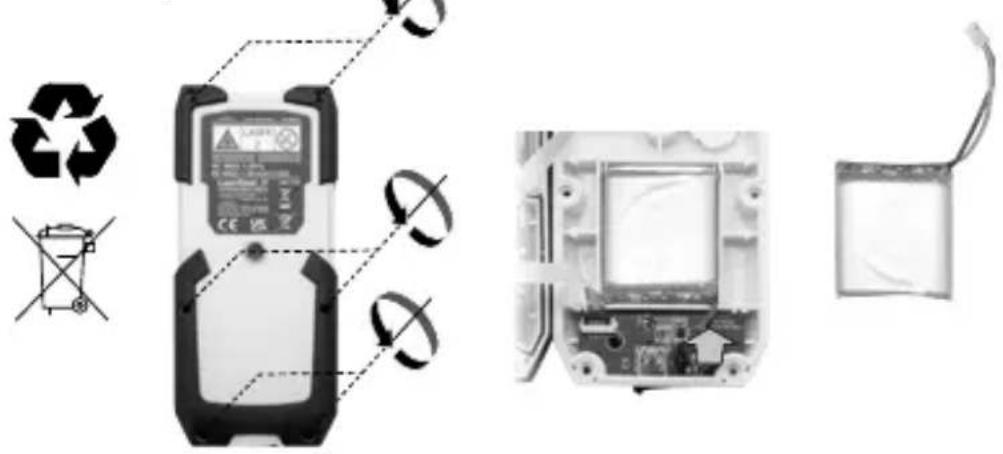

Removing the battery

g ry

Close-up of an electronic component with visible circuit board and mounting holes (no text or symbols)

Simple rectangular object with a curved line extending from its top, resembling a battery or sensor (no text or symbols visible)

a b f g h

c_ 0.000m d_ max 0.000m -i min + 0.000m j

e_ - 0.000m³ - k

l m n o p q r s t

u v w

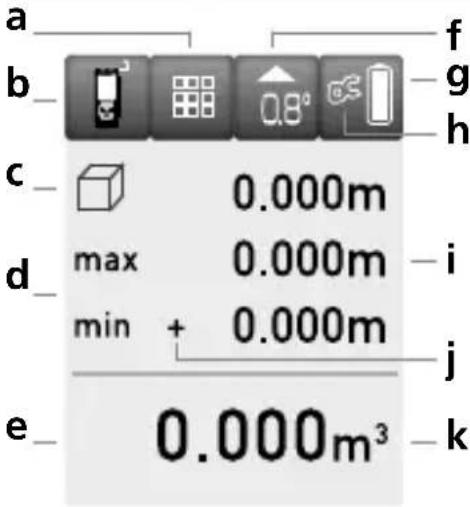

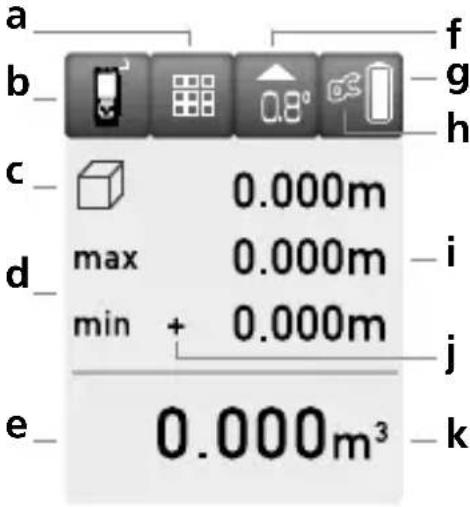

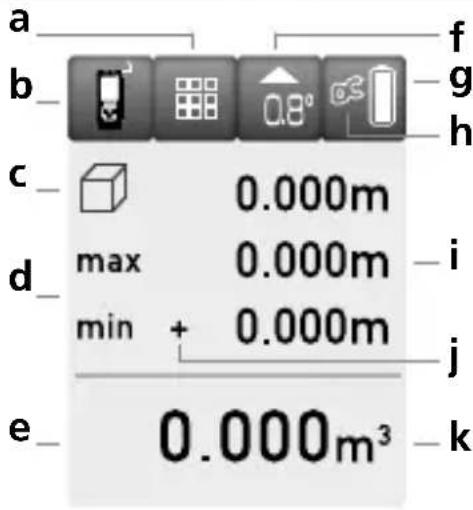

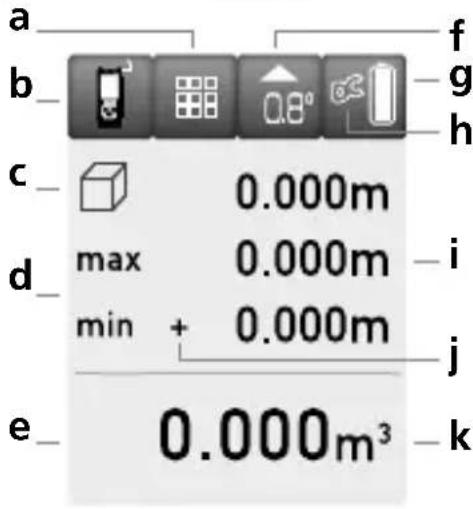

DISPLAY:

a Function display
b Measurement point (reference) rear / thread / front
c Distance to be measured
d Min/max continuous measurement
e Measurement values / Measurement results / malfunction

f Slope angle device

g Battery symbol

h Digital Connection activated

i Intermediate values / min/max-values

j Addition / Subtraction

k Unit

I Length measurement

m Min/max continuous measurement

n Area measurement

- Wall area measurement

p Volume measurement

q Angle function 1

r Angle function 2

s Angle function 3

t Digital bubble level

u Tilt sensor calibration

v Memory

w Digital Connection

LaserRange-Master Gi8 Pro

1. DIST 2.5. C OFF 3. + - 4.

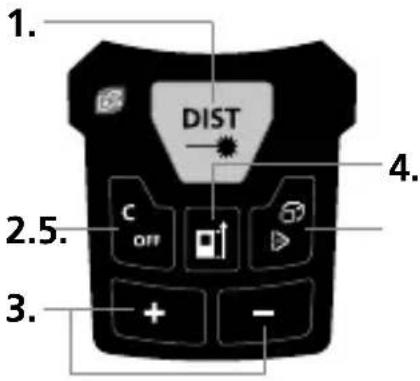

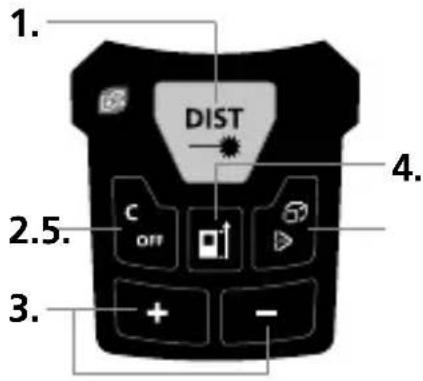

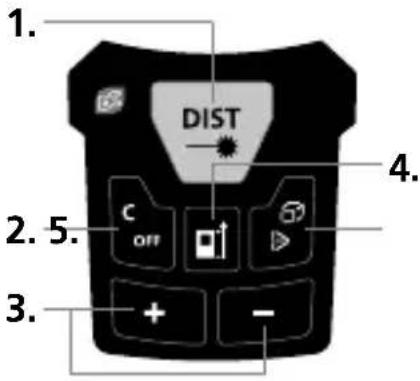

KEYPAD:

1. ON / measure / Timer function
2. Delete last measurement values / OFF
3. Addition / Subtraction
4. Measurement point (reference) rear / thread / front
5. Function menu

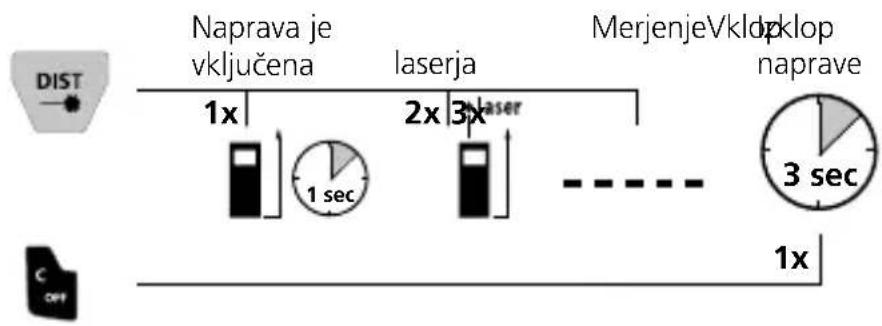

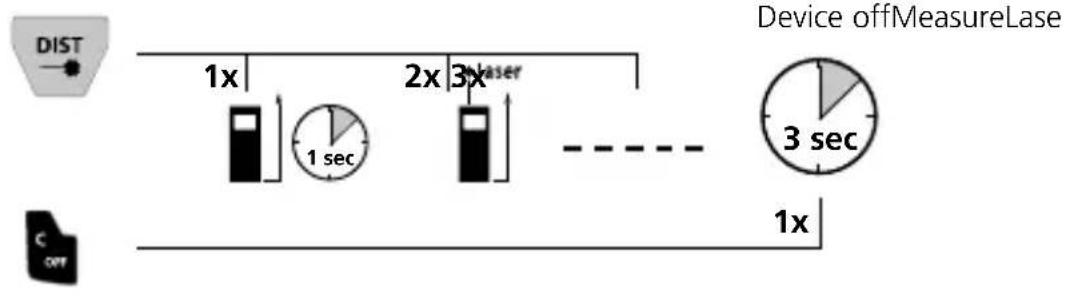

Switch on, measure and switch off:

Delete the last measured value:

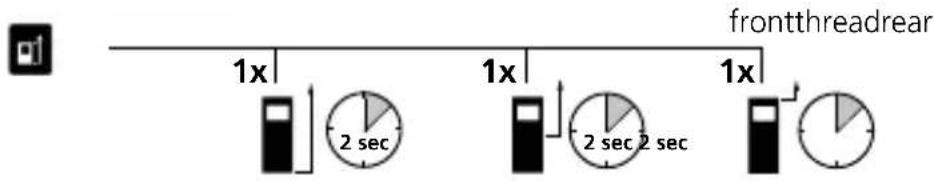

Change measurement point (reference):

frontthreadrear 1x 1x 1x 2 sec 2 sec 2 sec

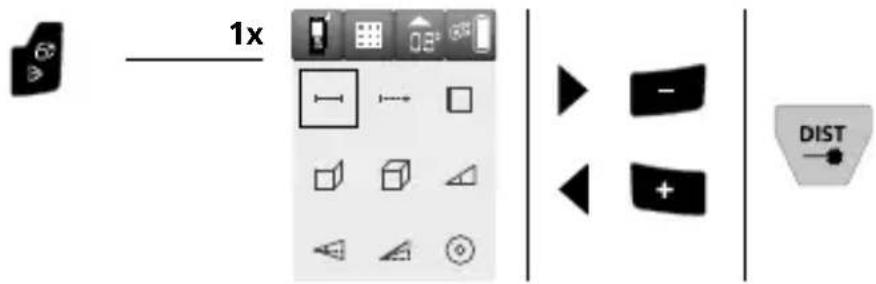

Select function:

1x DIST

Laserliner

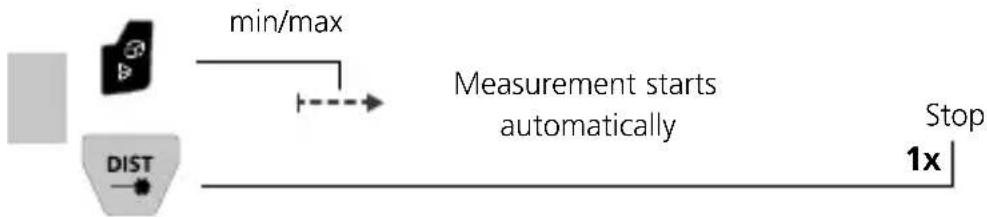

Min/max continuous measurement:

The LC display shows the max value, the min value and the current value.

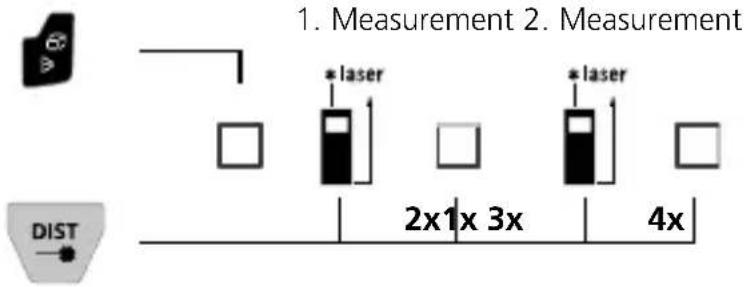

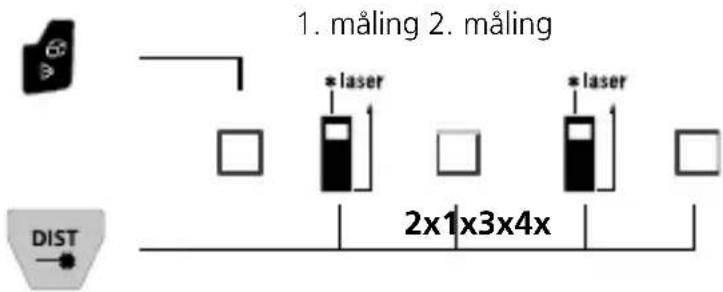

Length measurement:

DIST 1x 2x DASER -- -- --

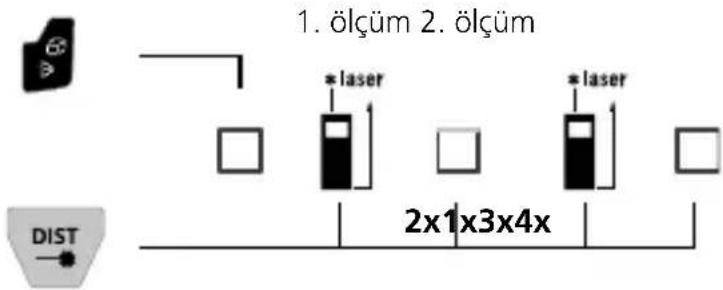

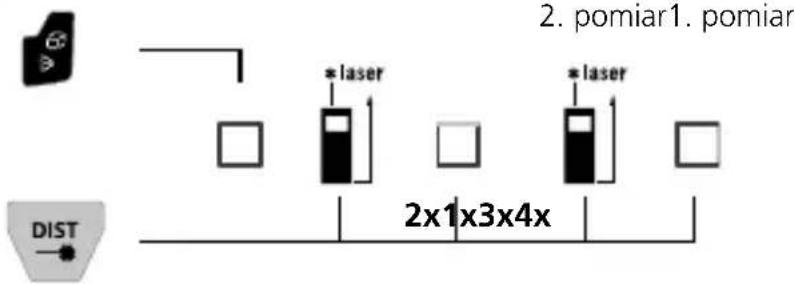

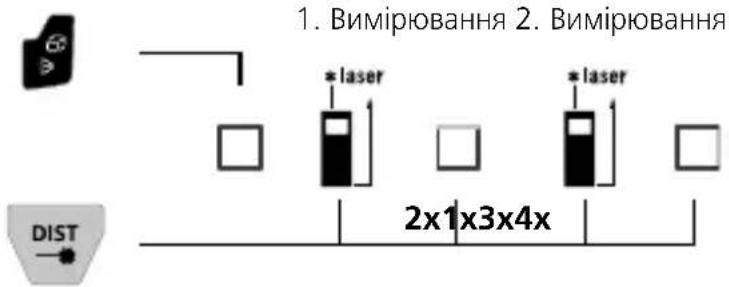

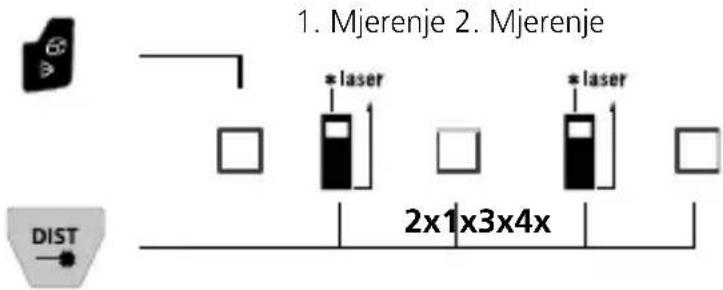

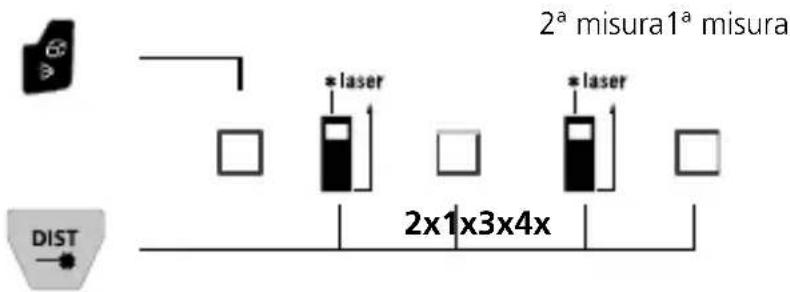

Area measurement:

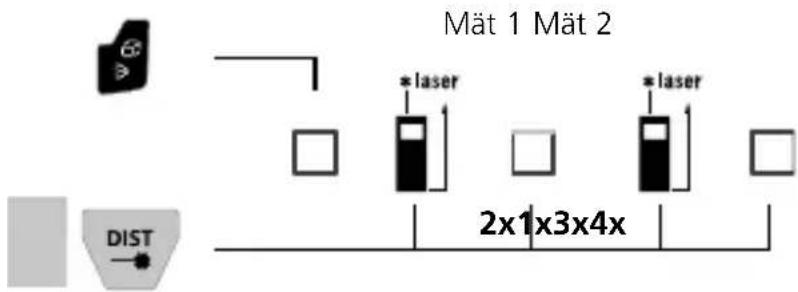

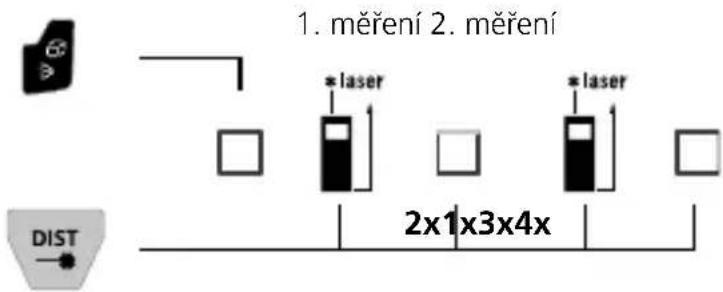

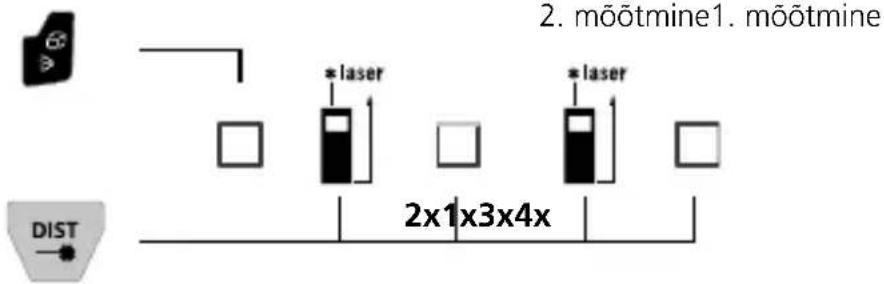

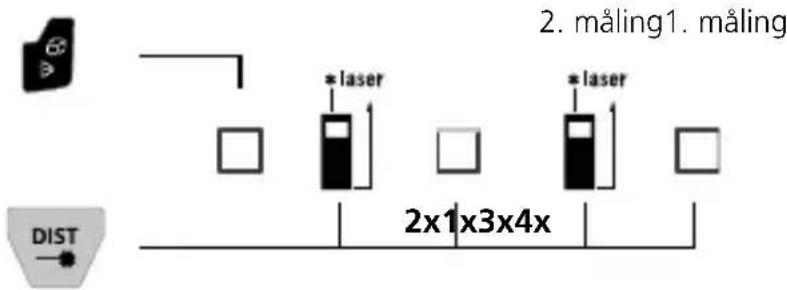

1. Measurement 2. Measurement * laser * laser 2x1x 3x 4x DIST

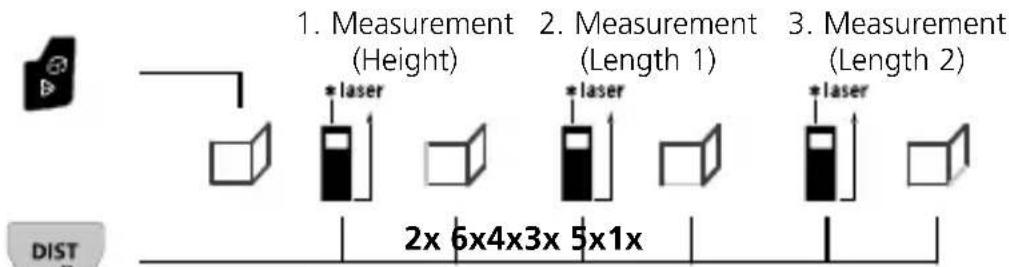

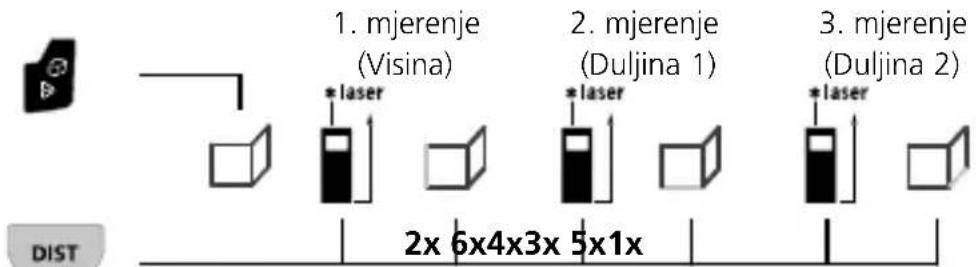

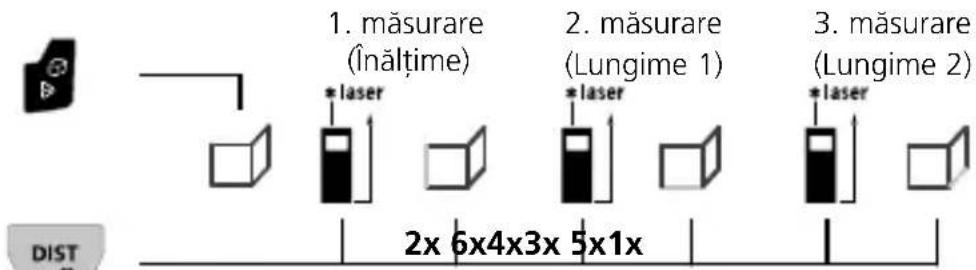

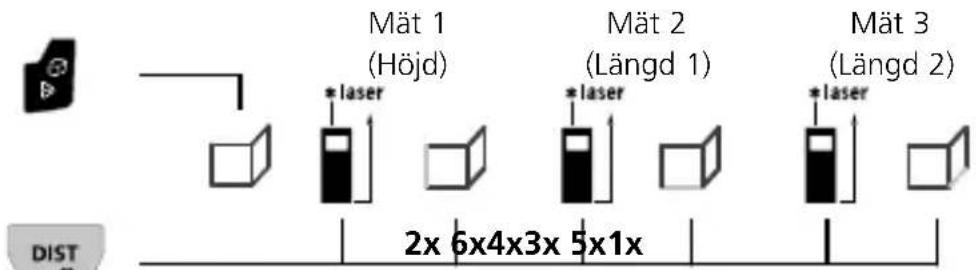

Wall area measurement:

1. Measurement (Height) 2. Measurement (Length 1) 3. Measurement (Length 2) * laser * laser * laser 2x 6x4x3x 5x1x DIST

1st area = height x length 1
2nd area = (height x length 2) + 1st area etc.

This function is suitable for the automatic addition of wall areas of the same height. After the laser is switched on, the room height must be determined with the 1st measurement; this will then act as the height measurement for all of the remaining area calculations. From the second measurement on, only the length measurement needs to be taken. Every area calculation result will be added to the previous ones.

LaserRange-Master Gi8 Pro

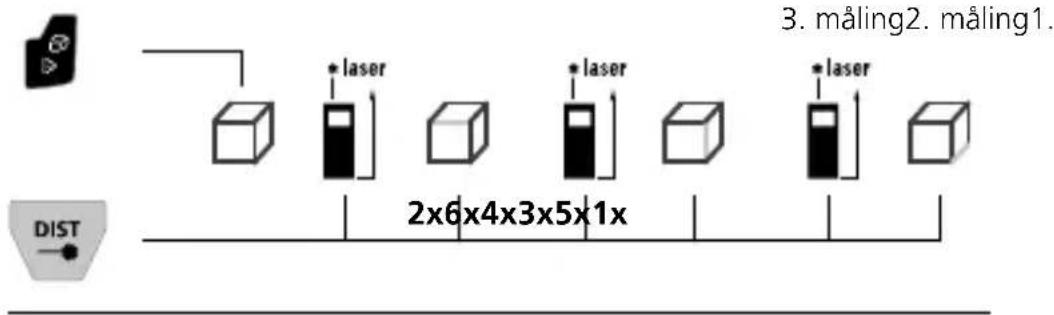

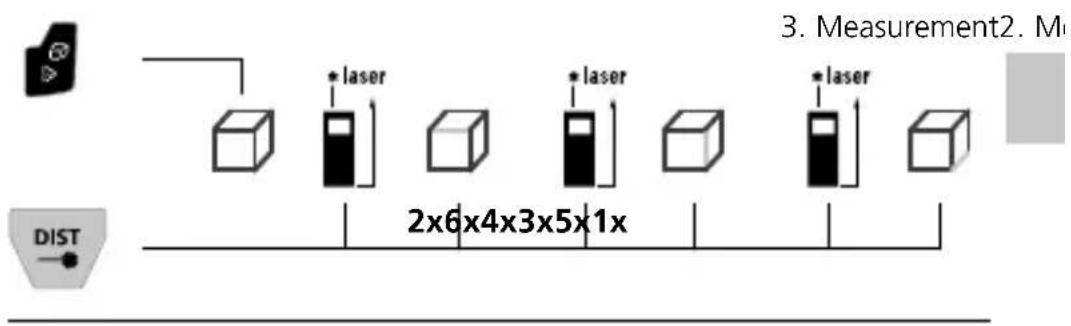

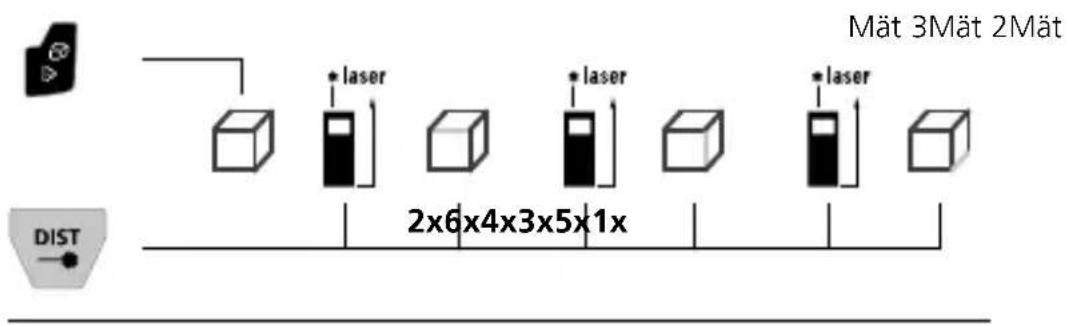

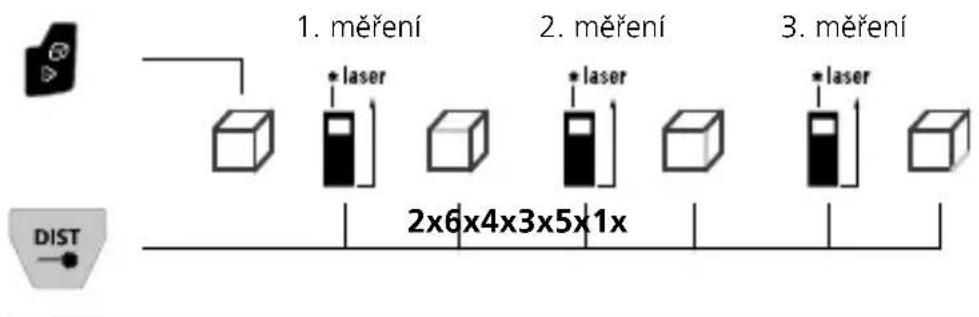

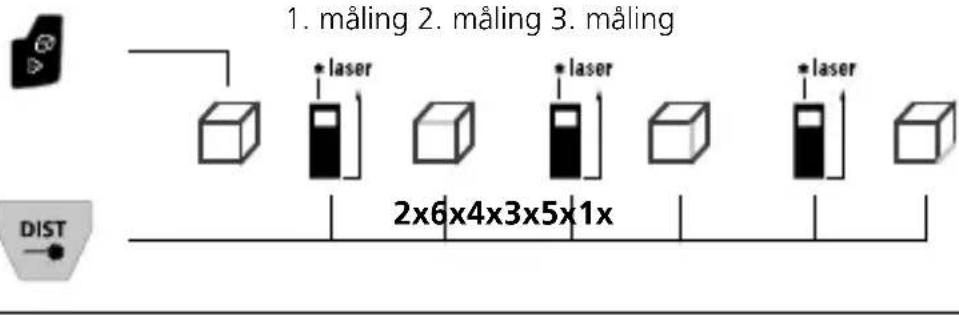

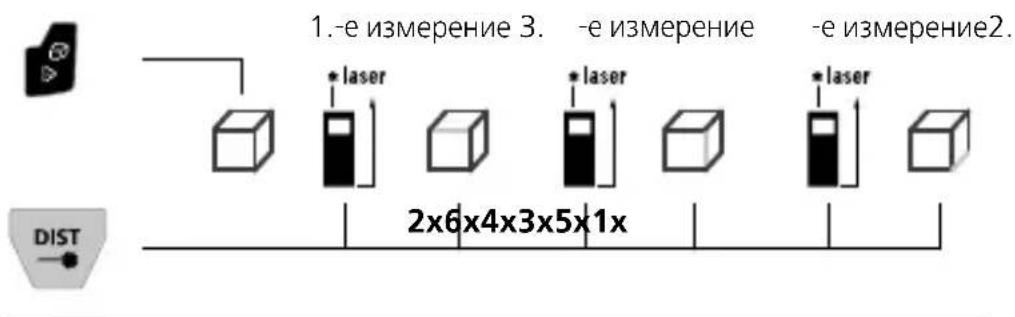

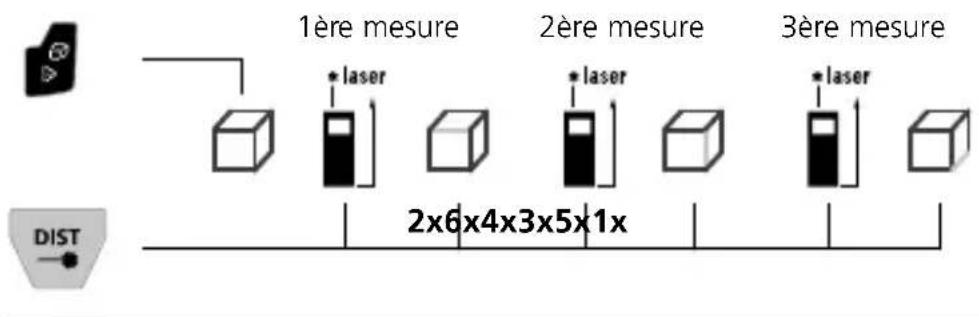

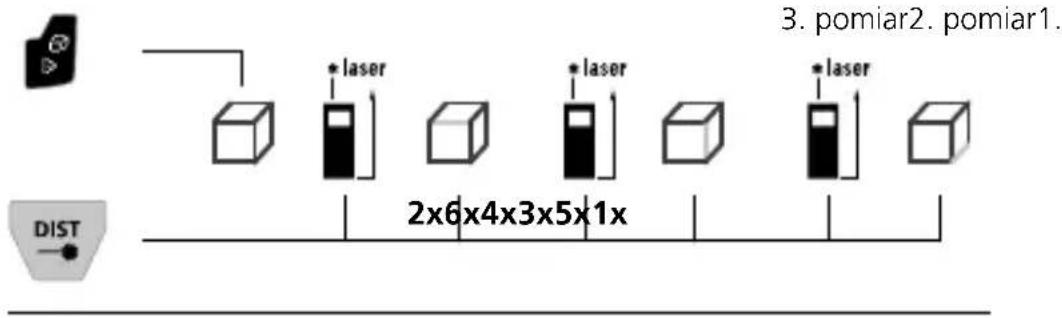

Volume measurement:

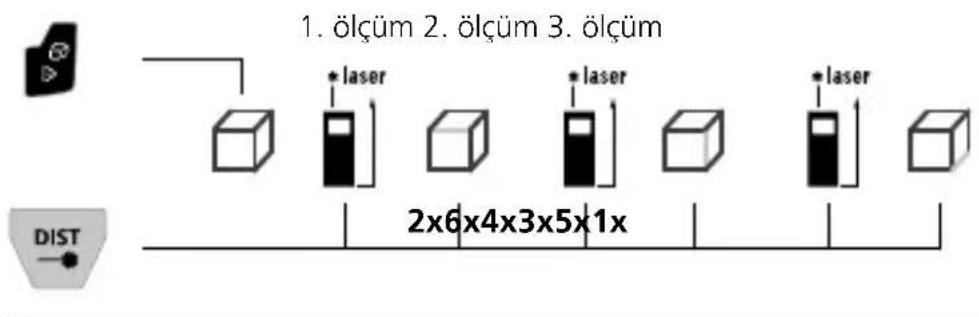

3. Measurement2. M * laser * laser * laser 2x6x4x3x5x1x DIST

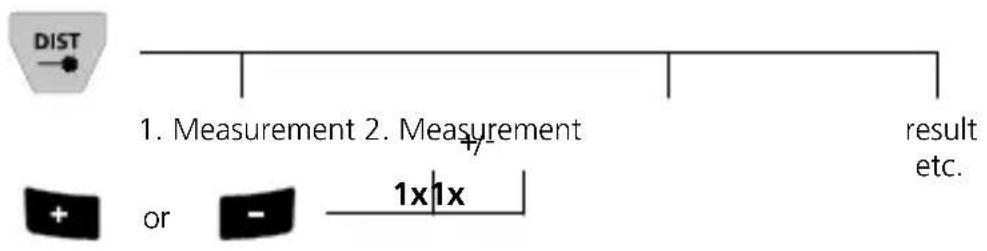

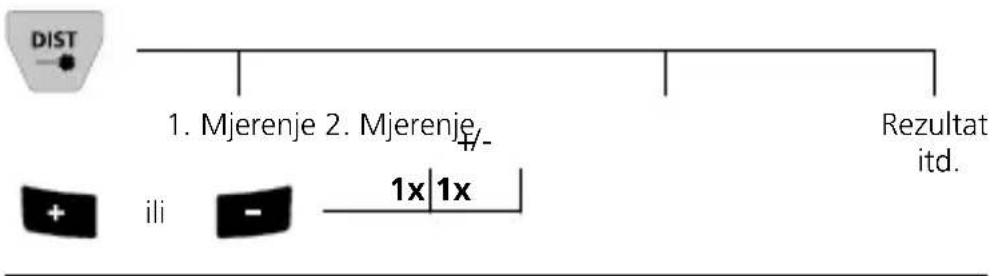

Addition and subtraction of lengths, area and volume:

DIST 1. Measurement 2. Measurement +/- or - 1x1x result etc.

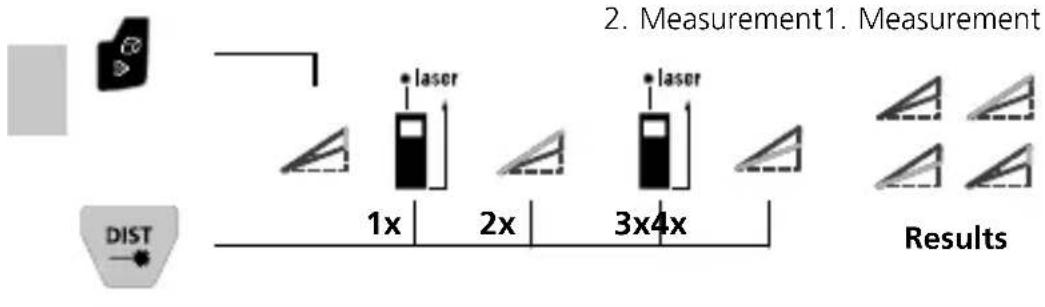

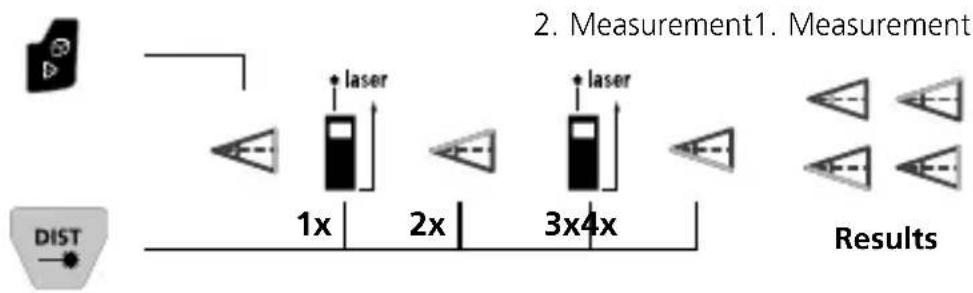

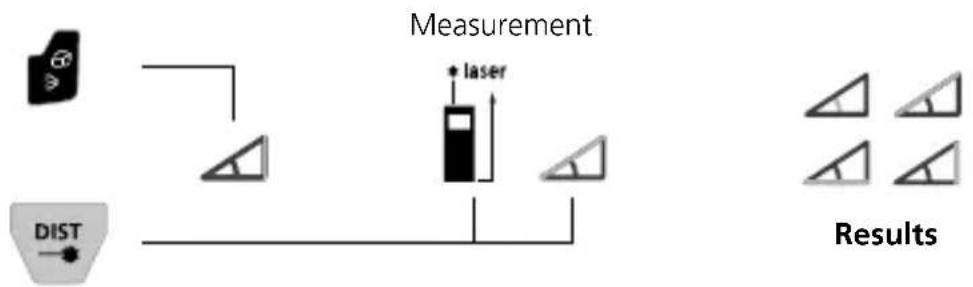

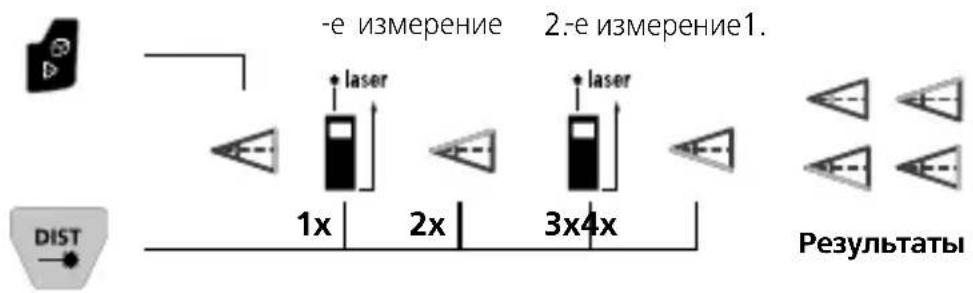

Angle function 1 / 2 / 3:

The measurement results are determined automatically by the 360° inclination sensor.

The back of the device can be used as a reference surface for measuring angles.

1:

2:
    note right of F: '2. Measurement1. Measurement'
    note right of F: 'DISTR' below the main diagram

Laserliner

3:

Digital bubble level:

The digital bubble level is used to horizontally align the measuring device.

Tilt sensor calibration:

To calibrate the tilt sensor follow the instructions on the display.

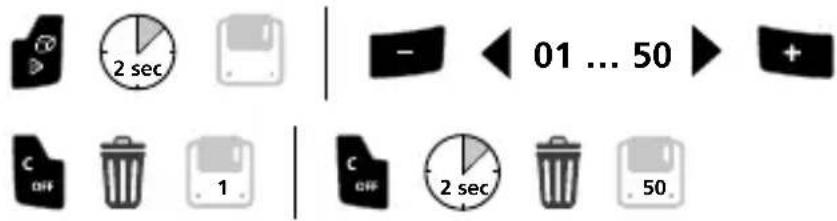

Memory function:

The device has 50 storage locations.

2 sec 01 ... 50 1 2 sec 50

Timer function:

DIST 3 sec 5 sec Measurement

Enable Digital Connection:

When enabled the Digital Connection symbol appears on the display (h). When the function is active, a mobile device can connect by means of an app to the measuring device.

LaserRange-Master Gi8 Pro

Data transfer

This device has digital connectivity which allows wireless data transfer to mobile devices such as smart phones or tablets with a wireless interface.

The system prerequisites for a digital connection are specified at https://packd.li/ble/v2

This device can generate a wireless connection to devices which are compatible with the wireless standard IEEE 802.15.4. The wireless standard IEEE 802.15.4 is a transfer protocol for Wireless Personal Area Networks (WPAN).

The range is set to a maximum distance of 10 m from the terminal device and greatly depends on the ambient conditions such as the thickness and composition of walls, sources of interference as well as the transmit / receive properties of the terminal device.

Application (app)

An app is required to use the digital connection. You can download the app from the corresponding stores for the specific type of terminal device:

Download on the App Store

GETT ON Google Play

Make sure that the wireless interface of the mobile device is activated.

After starting the app and activating the digital connection, a connection can be set up between a mobile device and the measuring device. If the app detects several active measuring devices, select the matching device.

This measuring device can be connected automatically the next time it is switched on.

Error codes:

Er101: Replace the battery

Er108: Pythagorean measurement error

Er118: Tilt sensor calibration error

Er155: Received signal too weak or outside the measuring range

Er181: Data transfer error

Er194: Value outside display range

Laserliner

Important notices

• The laser points to the location that will be measured. No objects may get into the laser's line of measurement.
• The device compensates the measurement for different room temperatures. Therefore allow the device a brief adaptation period when changing locations with large temperature differences.
• The device is only conditionally useable in outdoor areas and cannot be used in strong sunlight.
• The measurement results of outdoor measurements may be influenced or falsified by rain, fog and snow.
• In unfavourable conditions, e.g. with poorly reflecting surfaces, the maximum deviation may be greater than 3 mm.
• Carpeting, upholstery or curtains will not reflect the laser optimally. Measure to flat surfaces.
• Measurements made through glass (window panes) can falsify measurement results.
• An energy-saving function switches the device off automatically.
• Clean with a soft cloth. Water may not be allowed to penetrate the housing.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Calibration

The measuring device should be calibrated and tested on a regular basis to ensure it is accurate and working properly. We recommend the measuring device is calibrated every year. If necessary, contact your distributor or the UMAREX-LASERLINER service department.

Technical Data (Subject to technical changes without notice. 24W19)

Precision (typical)* ± 2 mm
Measurement range (inside)**	0.05 m - 80 m
Laser class	2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689-1:2021)
Laser wavelength 515 nm
Speicher 50 storage locations
Schutzart IP 66
Automatic switch-off 30 sec laser / 3 min device
Power supply Li-Ion battery pack 3.7V / 1.0Ah
Operating conditions	-10°C ... 40°C, max. humidity20 ... 85% rH, no condensation, max.working altitude 2000 m above sea level
Storage conditions	-20°C ... 70°C,max. humidity 80% rH
Dimensions (W x H x D) 57 x 132 x 28 mm
Weight 154 g (incl. battery pack)

* measuring distance up to 10 m with strongly reflective target surface and at room temperature. The measurement deviation may increase by ± 0.2 mm/m for greater distances and under unfavourable measuring conditions such as strong sunlight or weakly reflective target surfaces.
** at max. 5000 lux

EU and UK directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU and the UK.

This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials. Electrical devices, batteries and packaging do not belong in household waste. Users are obliged by law to surrender used batteries or battery packs to a public collection point, to sales outlets, or to technical customer services, free of charge. Remove the battery from the device without damaging it using standard commercial tools: arrange separate collection before returning the device for disposal. Please do not hesitate to contact the UMAREX-LASERLINER service department if you have any queries regarding removing the battery. Look for information on local disposal facilities and note the relevant disposal and safety information at the collection points.

Further safety and supplementary notices at:

https://packd.li/ll/aoz/in

Laserliner

!

Close-up of a black USB phone with control buttons and a USB-C logo (no readable text or symbols beyond branding)

Close-up of an electronic component with visible circuit board and mounting holes (no text or symbols)

Simple illustration of a rectangular object with a curved line extending from its top (no text or symbols)

a b f g h

c_ 0.000m d_ max 0.000m -i min + 0.000m j

e_ - 0.000m³ - k

l m n o p q r s t

u v w

DISPLAY:

w Digital Connection

LaserRange-Master Gi8 Pro

1. DIST 2.5. C OFF 3. + - 4.

TOETSENBORD:

1x2x laser --- ---

Oppervlaktemeting:

2e meting1e meting

LaserRange-Master Gi8 Pro

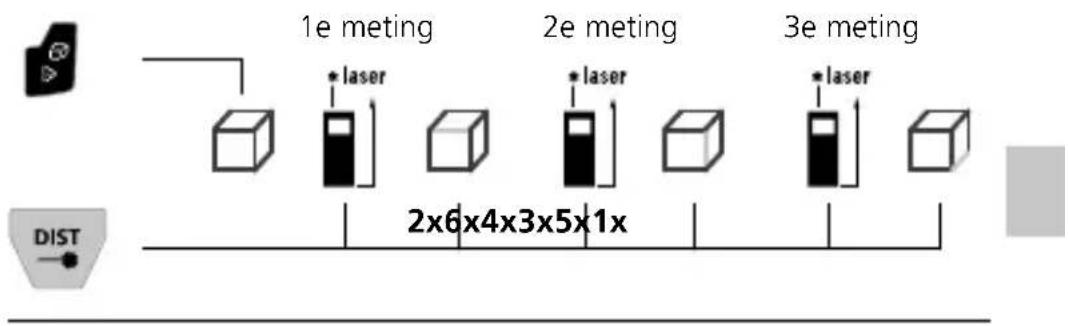

Volumemeting:

1e meting 2e meting 3e meting * laser * laser * laser 2x6x4x3x5x1x DIST

01 ... 50 2 sec 1 2 sec 50

Timerfunctie:

DIST 3 sec 5 sec Meting

Digital Connection activeren:

LaserRange-Master Gi8 Pro

Gegevensoverdracht

Download on the App Store

GETIT ON Google Play

https://packd.li/ll/aoz/in

Laserliner

!

Close-up of a black USB phone with control buttons and a battery icon (no readable text or symbols)

Interior view of an electronic device showing a central display and circuit board (no visible text or symbols)

Simple line drawing of a rectangular object with a curved handle, resembling a battery or container (no text or symbols)

a b f g h

c_ 0.000m d_ max 0.000m -i min + 0.000m j

e_ 0.000m³ - k

l m n o p q r s t

u v w

DISPLAY:

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

TASTATUR:

DIST 1x2* laser --- ---

Længdemåling:

LaserRange-Master Gi8 Pro

Rumfangsmåling:

1. måling 2. måling 3. måling * laser * laser * laser 2x6x4x3x5x1x DIST

01 ... 50 2 sec 1 2 sec 50

Timer-funktion:

DIST 3 sec 5 sec Måling

Aktivering af Digital Connection:

LaserRange-Master Gi8 Pro

Dataoverførsel

https://packd.li/ble/v2

Apparatet kan etablere en radioforbindelse med apparater, der er kompatible med IEEE-standarden 802.15.4. IEEE-standarden 802.15.4 er en overførselsprotokol for Wireless Personal Area Networks (WPAN).

Download on the App Store

GETT ON Google Play

https://packd.li/ll/aoz/in

Laserliner

!

Close-up of a black USB phone with control buttons and ports, labeled 'USB-C' (no readable text beyond label)

Laserliner

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

CLAVIER :

1x2x laser --- ---

LaserRange-Master Gi8 Pro

Mesure du volume :

2 sec - 01 ... 50 + C off 1 C off 2 sec 50

Fonction minuterie:

DIST 3 sec 5 sec mesure

Activer Digital Connection :

Download on the App Store

GETITON Google Play

https://packd.li/ll/aoz/in

Laserliner

!

Close-up of a black USB phone with control buttons and a USB-C logo (no readable text or symbols beyond branding)

Close-up of an electronic component with visible circuit board and mounting holes (no text or symbols)

Simple illustration of a rectangular object with a curved line extending from its top (no text or symbols)

a

f

b

0.000m

d

max 0.000m

min + 0.000m

e

0.000m³

m

n

0

p

q

r

S

t

u

V

W

INDICADOR:

w Digital Connection

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

TECLADO:

LaserRange-Master Gi8 Pro

2 sec 01 ... 50 C OFF 1 2 sec .50

Temporizador:

DIST 3 sec 5 sec medición

https://packd.li/ble/v2

Download on the App Store

GETIT ON Google Play

https://packd.li/ll/aoz/in

Laserliner

!

Close-up of a black USB phone with control buttons and a battery icon (no readable text or symbols)

Close-up of an electronic component with visible circuit board and mounting holes (no text or symbols)

Simple illustration of a rectangular object with a curved line extending from its top (no text or symbols)

a

b

f

g

C

0.000m

-i

d

max 0.000m

-j

min + 0.000m

e

0.000m³

k

l m n o p q r s t

u

V

W

DISPLAY:

w Digital Connection

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

TASTIERA:

DIST 1x2* laser --- ---

Misura dell'area:

2° misura1° misura * laser * laser 2x1x3x4x DIST

LaserRange-Master Gi8 Pro

Misura del volume:

1a misura 2a misura 3a misura 2x6x4x3x5x1x DIST

2 sec 01 ... 50 C OFF 1 C OFF 2 sec 50.

Funzione timer:

DIST 3 sec 5 sec misura

LaserRange-Master Gi8 Pro

Trasmissione dati

https://packd.li/ble/v2

Download on the App Store

GETIT ON Google Play

Er101: Mude as baterias

https://packd.li/ll/aoz/in

Laserliner

!

Close-up of a black USB phone with control buttons and a USB-C battery icon (no readable text or symbols beyond branding)

Close-up of an electronic component with visible circuit board and mounting holes (no text or symbols)

Simple illustration of a rectangular object with a curved line extending from its top (no text or symbols)

a b c d e f g h 0.000m 0.000m i max 0.000m min + 0.000m j 0.000m³ k

l m n o p q r s t

u v w

WYŚWIETLACZ:

w Digital Connection

LaserRange-Master Gi8 Pro

1. DIST 2.5. C OFF 3. + - 4.

KLAWIATURA:

DIST 1x2* laser --- ---

Pomiar powierzchni:

2. pomiar1. pomiar * laser * laser 2x1x3x4x DIST

LaserRange-Master Gi8 Pro

Pomiar kubatury:

3. pomiar2. pomiar1. * laser * laser * laser 2x6x4x3x5x1x DIST

01 ... 50 2 sec 1 2 sec 50

Funkcja timera:

DIST 3 sec 5 sec Pomiar

Download on the App Store

GETIT ON Google Play

Close-up of a black USB phone with control buttons and a USB-C battery icon (no readable text or symbols beyond branding)

Close-up of an electronic component with visible circuit board and mounting holes (no text or symbols)

Simple illustration of a rectangular object with a curved line extending from its top (no text or symbols)

a b f g h

c_ 0.000m d_ max 0.000m -i min + 0.000m j

e_ 0.000m³ - k

l m n o p q r s t

u v w

NÄYTTÖ:

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

NÄPPÄIMET:

LaserRange-Master Gi8 Pro

2 sec - 01 ... 50 C .1 2 sec .50.

Ajastin:

DIST 3 sec 5 sec Mittaus

LaserRange-Master Gi8 Pro

Tiedonsiirto

Download on the App Store

GETT ON Google Play

https://packd.li/ll/aoz/in

Laserliner

!

Close-up of a USB phone with control buttons and a battery icon (no readable text or symbols)

Close-up of an electronic component with visible circuit board and mounting holes (no text or symbols)

Simple illustration of a rectangular object with a curved line extending from its top (no text or symbols)

a b f g h

c_ 0.000m d_ max 0.000m -i min + 0.000m j

e_ 0.000m³ - k

l m n o p q r s t

u v w

VISOR:

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

TECLADO:

1x2x laser --- ---

Medição de áreas:

LaserRange-Master Gi8 Pro

Medição de volumes:

Simple geometric shapes: a black rectangle with '60' and a horizontal line, and a right triangle (no text or symbols)

Função de memória:

01 ... 50 2 sec 1 2 sec .50

Ativar Digital Connection

Download on the App Store

GET IT ON Google Play

Er101: Trocar as pilhas

https://packd.li/ll/aoz/in

Laserliner

Close-up of a black USB phone with control buttons and a USB-C logo (no readable text or symbols beyond branding)

Laserliner

Ta bort batteriet

batteriet

Close-up of an electronic component with visible circuit board and mounting holes (no text or symbols)

Simple illustration of a rectangular object with a curved line extending from its top (no text or symbols)

a b c d e f g h 0.000m 0.000m i max 0.000m min + 0.000m j 0.000m³ k

l m n o p q r s t

u v w

DISPLAY:

w Digital Connection

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

KNAPPSATS:

DIST 1x2* laser --- ---

Ytmätning:

Mät 1 Mät 2 * laser * laser 2x1x3x4x DIST

Väggytormätning:

Mät 1 (Höjd) Mät 2 (Längd 1) Mät 3 (Längd 2) * laser * laser * laser 2x 6x4x3x 5x1x DIST

LaserRange-Master Gi8 Pro

Volymmätning:

Mät 3Mät 2Mät * laser * laser * laser 2x6x4x3x5x1x DIST

01 ... 50 2 sec 1 2 sec .50

Tidursfunktion:

DIST 3 sec 5 sec Mät

Aktivera Digital Connection:

LaserRange-Master Gi8 Pro

Dataöverföring

https://packd.li/ble/v2

Download on the App Store

GETT ON Google Play

https://packd.li/ll/aoz/in

Laserliner

!

Close-up of a black USB device with control buttons and a USB-C logo (no readable text or symbols beyond branding)

Close-up of an electronic component with visible circuit board and mounting holes (no text or symbols)

Simple illustration of a rectangular object with a curved line extending from its top (no text or symbols)

a b f g h

c_ 0.000m d_ max 0.000m -i min + 0.000m j

e_ 0.000m³ - k

l m n o p q r s t

u v w

DISPLAY:

w Digital Connection

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

TASTATUR:

DIST 1x2* laser --- ---

Flatemåling:

LaserRange-Master Gi8 Pro

Volummåling:

3. måling2. måling1. 2x6x4x3x5x1x * laser * laser * laser DIST

2 sec 01 ... 50 1 2 sec .50.

Timerfunksjon:

DIST 3 sec 5 sec Måling

LaserRange-Master Gi8 Pro

Dataoverføring

https://packd.li/ble/v2

Instrumentet kan koble opp en radioforbindelse med enheter som er kompatible med radiostandard IEEE 802.15.4. Radiostandard IEEE 802.15.4 er en overføringsprotokoll for Wireless Personal Area Networks (WPAN).

Download on the App Store

GET IT ON Google Play

https://packd.li/ll/aoz/in

Laserliner

!

https://packd.li/ll/aoz/in

Close-up of a black USB phone with control buttons and a USB-C logo (no readable text or symbols beyond branding)

Laserliner

Akünün çıkarılması

Diagram illustrating recycling and disassembly of a device, showing components like a digital timer, circuit board, and cable.

a b f g h

c_ 0.000m d_ max 0.000m -i min + 0.000m j

e_ 0.000m³ - k

l m n o p q r s t

u v w

EKRAN:

w Digital Connection

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

TUŞ TAKIMI:

ÖndeKonuArkada 1x 1x 1x 2 sec 2 sec 2 sec

1x2x laser --- ---

Alan ölçümü:

LaserRange-Master Gi8 Pro

Hacim ölçümü:

1. ölcüm 2. ölcüm 3. ölcüm * laser * laser * laser 2x6x4x3x5x1x * laser DIST

LaserRange-Master Gi8 Pro

Veri aktarımı

https://packd.li/ble/v2

Download on the App Store

GETIT ON Google Play

https://packd.li/ll/aoz/in

Laserliner

Close-up of a black USB phone with control buttons and a USB-C logo (no readable text or symbols beyond branding)

Laserliner

Diagram illustrating the internal structure and components of a battery pack, including recycling symbol, circuit breakers, and battery casing.

a b f g h

c_ 0.000m d_ max 0.000m -i min + 0.000m j

e_ 0.000m³ - k

l m n o p q r s t

u v w

ДИСПЛЕЙ:

w Digital Connection

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

КЛАВИАТУРА:

1x2x laser --- ---

Измерение площади:

-е измерение

2.-е измерение1.

DIST

LaserRange-Master Gi8 Pro

Измерение объема:
    note right of C: * laser
    note left of A: Distillation

2:

01 ... 50 2 sec 1 2 sec 50

Функция таймера:

DIST 3 sec 5 sec No change

Close-up of a black USB phone with control buttons and a USB-C logo (no readable text or symbols beyond branding)

Laserliner

Close-up of an electronic component with visible circuit board and mounting holes (no text or symbols)

Simple line drawing of a rectangular object with a curved handle and dotted top (no text or symbols)

a

f
b

0.000m

C

max

0.000m

d

min + 0.000m

0.000m³

i
e

m

n

0

p

q

r

S

t

U

V

W

ДИСПЛЕЙ:

w Digital Connection

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

КЛАВІАТУРА:

DIST 1x2x laser --- ---

Вимір площі:

LaserRange-Master Gi8 Pro

Вимір об'єму:

2 sec 01 ... 50 C OFF 1 C OFF 2 sec .50

Функція таймера:

LaserRange-Master Gi8 Pro

Передача даних

Download on the App Store

GETIT ON Google Play

LaserRange-Master Gi8 Pro

https://packd.li/ll/aoz/in

Laserliner

!

Close-up of a black USB phone with control buttons and a battery icon (no readable text or symbols)

Laserliner

Vyjmutí baterie

baterie

Close-up of an electronic component with visible circuit board and mounting holes (no text or symbols)

Simple illustration of a rectangular object with a curved line extending from its top (no text or symbols)

a b c d e f g h 0.000m 0.000m i max 0.000m min + 0.000m j 0.000m³ k

l m n o p q r s t

u v w

DISPLEJ:

LaserRange-Master Gi8 Pro

1. DIST 2.5. C OFF 3. + - 4.

KLÁVESNICE:

DIST 1x2* laser --- ---

Výpočet plochy:

LaserRange-Master Gi8 Pro

Měření objemu:

01 ... 50 2 sec 1 2 sec 50

Funkce časovače:

LaserRange-Master Gi8 Pro

Přenos dat

https://packd.li/ble/v2

Download on the App Store

GETIT ON Google Play

LaserRange-Master Gi8 Pro

https://packd.li/ll/aoz/in

Laserliner

Close-up of a black USB device with control buttons and a USB-C logo (no readable text or symbols beyond branding)

Close-up of an electronic component with visible circuit board and mounting holes (no text or symbols)

Simple illustration of a rectangular object with a curved line extending from its top (no text or symbols)

a b f g h

c_ 0.000m d_ max 0.000m -i min + 0.000m j

e_ 0.000m³ - k

l m n o p q r s t

u v w

EKRAAN:

LaserRange-Master Gi8 Pro

1. DIST 2.5. C OFF 3. + - 4.

KLAVIATUUR:

DIST 1x2* laser --- ---

Pindala möötmine:

LaserRange-Master Gi8 Pro

Ruumala möötmine:

2 sec - 01 ... 50 C .1 2 sec .50.

Taimerifunktsioon:

DIST 3 sec 5 sec Mõõtmine

Digital Connection aktiveerimine:

https://packd.li/ble/v2

Download on the App Store

GETIT ON Google Play

https://packd.li/ll/aoz/in

Laserliner

!

Close-up of a black USB device with control buttons and a USB-C logo (no readable text or symbols beyond branding)

Laserliner

Diagram illustrating battery recycling and internal components with labeled symbols for recycling, circuit breakers, and battery pack.

a b c d e f g h 0.000m 0.000m i max min + 0.000m j 0.000m³ k

l m n o p q r s t

u v w

DISPLAY:

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

TASTATURĂ:

1. măsurare 2. măsurare * laser * laser 2x1x3x4x DIST

Măsurarea suprafetei peretelui:

LaserRange-Master Gi8 Pro

DIST 3 sec 5 sec Măsurare

Activarea Digital Connection:

https://packd.li/ble/v2

Download on the App Store

GETIT ON Google Play

https://packd.li/ll/aoz/in

Laserliner

!

Close-up of a black USB phone with control buttons and a USB-C logo (no readable text or symbols beyond branding)

Laserliner

Diagram illustrating the internal structure and components of a battery pack, including recycling symbol, circuit breakers, and battery casing.

a b f g h

c- 0.000m d- max 0.000m -i min + 0.000m j

e_ 0.000m³ - k

l m n o p q r s t

u v w

ДИСПЛЕЙ:

w Digital Connection

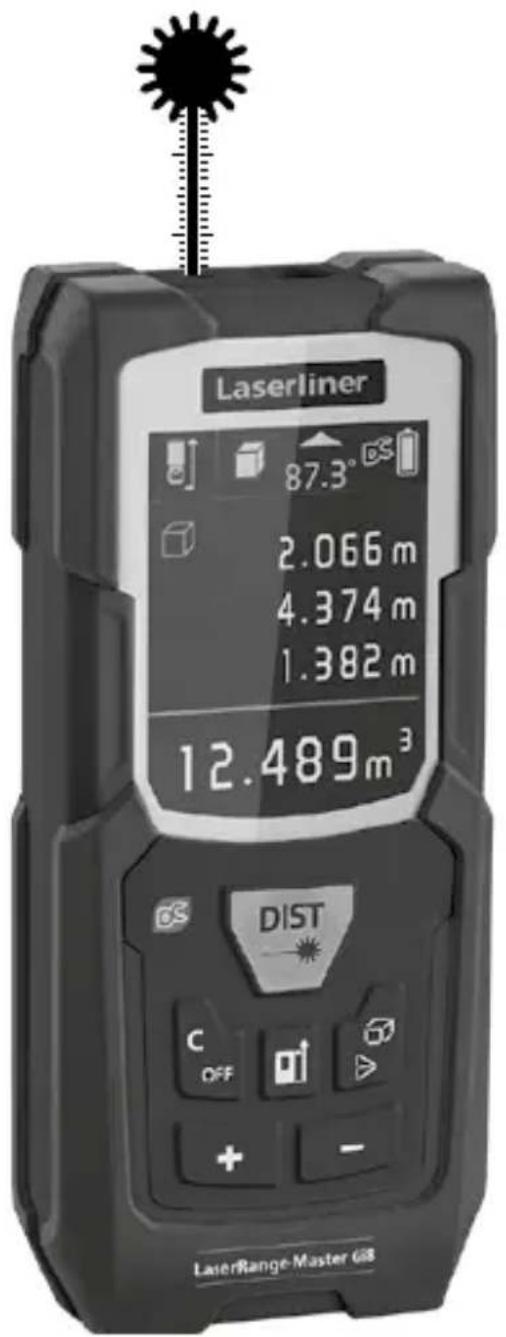

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

КЛАВИАТУРА::

1x2x laser --- ---

Измерване на площ:

LaserRange-Master Gi8 Pro

Измерване на обем:

laser laser laser 2x6x4x3x5x1x DIST

Download on the App Store

GETIT ON Google Play

Close-up of a black USB device with control buttons and a USB-C battery icon (no readable text or symbols beyond branding)

Laserliner

Interior view of an electronic device casing with visible circuitry and components (no text or symbols)

Simple line drawing of a rectangular object with a curved line attached (no text or symbols)

a b c d e f g h 0.000m 0.000m i max 0.000m min + 0.000m j 0.000m³ k

l m n o p q r s t

u v w

OΘONH:

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

ПАНКТРОЛОГО:

1x2x laser --- ---

Μέτρηση επιφάνειας:

1. Μέτρηση 2. Μέτρηση

DIST

LaserRange-Master Gi8 Pro

Μέτρηση όγκου:

1. Métrpôn 2. Métrpôn 3. Métrpôn * laser * laser * laser 2x6x4x3x5x1x DIST

https://packd.li/ble/v2

Download on the App Store

GET IT ON Google Play

LaserRange-Master Gi8 Pro

Close-up of a black USB device with control buttons and a USB-C logo (no readable text or symbols beyond branding)

Uređaj raspolaže zamjenjivom punjivom baterijom. Kontaktirati ovlaštenog zastupnika ili servis UMAREX- LASERLINER.

Laserliner

Vađenje baterije

baterije

Interior view of an electronic device showing a central display and circuit board (no visible text or symbols)

Simple illustration of a rectangular object with a curved line extending from its top (no text or symbols)

a b f g h

c_ 0.000m d_ max 0.000m -i min + 0.000m j

e_ 0.000m³ - k

l m n o p q r s t

u v w

ZASLON:

a Prikaz odabira funkcije
b Merilna raven (referenca) zadaj / Nit / spredaj
c Udaljenost koju treba izmjeriti
d Min./maks. kontinuirano mjerenje
e Mjerne vrijednosti / mjerni rezultati / neispravnost
f Kut nagiba uređaja
g Simbol baterije
h Aktivirana je funkcija Digital Connection
i Srednje vrijednosti / min./maks. vrijednosti
j Dodatak / Oduzimanje
k Merska enota m / inch / ft
I Mjerenje daljine
m Min./maks. kontinuirano mjerenje
n Mjerenje površine
o Mjerenje površine zida
p Mjerenje volumena
q Funkcija za mjerenje kuta 1
r Funkcija za mjerenje kuta 2
s Funkcija za mjerenje kuta 3
t Digitalna libela
u Kalibriranje senzora nagiba
v Memorija
w Digital Connection

LaserRange-Master Gi8 Pro

1. DIST 2.5. OFF 3. + - 4.

TIPKOVNICA:

1. VKLJUČENO / Merjenje / Funkcija vremenskog programatora
2. Brisanje zadnje merske vrednosti / IZKLOP
3. Dodatak / Oduzimanje
4. Merilna raven (referenca) zadaj / Nit / spreda
5. Prikaz odabira funkcije

Vključite, merite in izklop:

DIST 1x2* laser --- ---

Mjerenje površine:

1. Mjerenje 2. Mjerenje * laser * laser 2x1x3x4x DIST

Mjerenje površine zida:

1. mjerenje (Visina) 2. mjerenje (Duljina 1) 3. mjerenje (Duljina 2) * laser * laser * laser 2x 6x4x3x 5x1x DIST

LaserRange-Master Gi8 Pro

Mjerenje volumena:

1. Mjerenje 2. Mjerenje 3. Mjerenje * laser * laser * laser 2x6x4x3x5x1x DIST

Zbrajanje i oduzimanje duljina, površina i volumena:

DIST 1. Mjerenje 2. Mjerenje +/- ili 1x | 1x Rezultat itd.

2 sec - 01 ... 50 + 2 sec .1 .50.

Funkcija vremenskog programatora:

DIST 3 sec 5 sec * laser Mjerenje

Aktiviranje Digital Connection

Nakon aktiviranja zaslona (h) pojavljuje se simbol digitalne veze. Pri aktivnoj funkciji moguće je putem aplikacije spojiti neki mobilni terminalni uređaj s mjernim uređajem.

LaserRange-Master Gi8 Pro

Prijenos podataka

https://packd.li/ble/v2

Uređaj može uspostaviti radijsku vezu s uređajima kompatibilnima s tehničkim standardom IEEE 802.15.4. Tehnički standard IEEE 802.15.4 je protokol za prijenos za bežične osobne područne mreže (Wireless Personal Area Networks – WPAN).

Download on the App Store

GETIT ON Google Play

Uvjerite se da je radio sučelje mobilnog terminala aktivirano.

Nakon pokretanja aplikacije i aktiviranja digitalne veze može se uspostaviti veza između mobilnog terminala i brojila. Ako aplikacija identificira više od jednog aktivnog brojila, odaberite odgovarajuće brojilo.

https://packd.li/ll/aoz/in

LaserRange-Master Gi8 Pro

x x·y=m² y

Manuale

PAP 22

CARTA

RACCOLTA CARTA
