USER MANUAL RP250YBL HiKOKI

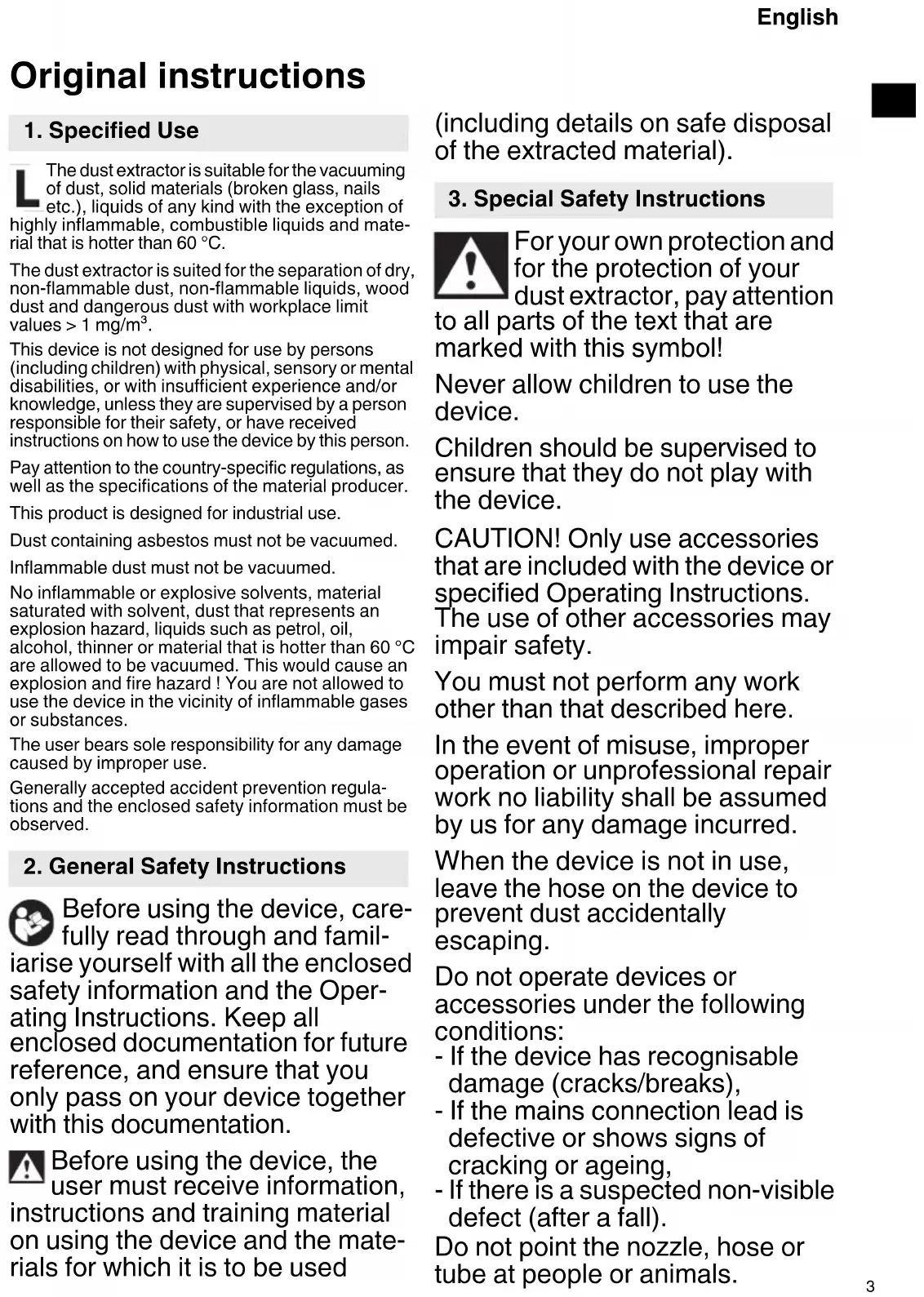

RP250YBL_C99749871_305.book 2 ページ ２０２３年４月６日　木曜日　午後１２時６分3 English Original instructions The dust extractor is suitable for the vacuuming of dust, solid materials (broken glass, nails etc.), liquids of any kind with the exception of highly inflammable, combustible liquids and mate- rial that is hotter than 60 °C. The dust extractor is suited for the separation of dry, non-flammable dust, non-flammable liquids, wood dust and dangerous dust with workplace limit values > 1 mg/m³. This device is not designed for use by persons (including children) with physical, sensory or mental disabilities, or with insufficient experience and/or knowledge, unless they are supervised by a person responsible for their safety, or have received instructions on how to use the device by this person. Pay attention to the country-specific regulations, as well as the specifications of the material producer. This product is designed for industrial use. Dust containing asbestos must not be vacuumed. Inflammable dust must not be vacuumed. No inflammable or explosive solvents, material saturated with solvent, dust that represents an explosion hazard, liquids such as petrol, oil, alcohol, thinner or material that is hotter than 60 °C are allowed to be vacuumed. This would cause an explosion and fire hazard ! You are not allowed to use the device in the vicinity of inflammable gases or substances. The user bears sole responsibility for any damage caused by improper use. Generally accepted accident prevention regula- tions and the enclosed safety information must be observed. Before using the device, care- fully read through and famil- iarise yourself with all the enclosed safety information and the Oper- ating Instructions. Keep all enclosed documentation for future reference, and ensure that you only pass on your device together with this documentation. Before using the device, the user must receive information, instructions and training material on using the device and the mate- rials for which it is to be used (including details on safe disposal of the extracted material). For your own protection and for the protection of your dust extractor, pay attention to all parts of the text that are marked with this symbol! Never allow children to use the device. Children should be supervised to ensure that they do not play with the device. CAUTION! Only use accessories that are included with the device or specified Operating Instructions. The use of other accessories may impair safety. You must not perform any work other than that described here. In the event of misuse, improper operation or unprofessional repair work no liability shall be assumed by us for any damage incurred. When the device is not in use, leave the hose on the device to prevent dust accidentally escaping. Do not operate devices or accessories under the following conditions: - If the device has recognisable damage (cracks/breaks), - If the mains connection lead is defective or shows signs of cracking or ageing, - If there is a suspected non-visible defect (after a fall). Do not point the nozzle, hose or tube at people or animals.

2. General Safety Instructions

3. Special Safety Instructions

RP250YBL_C99749871_305.book 3 ページ ２０２３年４月６日　木曜日　午後１２時６分4 English WARNING - If any foam or water egresses, switch off immediately. Empty the container and, if need be, the pleated filter. Never sit or stand on the device. Always set up the connection lead and hose so there is no danger of tripping. Do not pull the connection lead over any sharp edges and do not kink or pinch it. If the connection lead of the device is damaged, it must be replaced by a special connection lead. See the chapter on Repairs. Always connect to a socket with protective contact. Do not use any damaged exten- sion leads. Never insert or remove the mains plug with wet hands. Only pull on the mains plug, not on the lead. WARNING - The plug socket on the device must be used only for the purposes defined in the oper- ating Instructions. Do not leave the device unat- tended. If there is a long work inter- ruption, disconnect the mains plug. The dust extractor must not be used or stored outside in wet conditions. IMPORTANT - This device must only be stored indoors. Acids, acetone and solvents can corrode the device components. Prior to any servicing work, clean the device. Switch off the device after each use and pull out the mains plug. Steam cleaners and high-pressure cleaners must not be used to clean the dust extractor. The inside of the cover must always be kept dry. Mould contamination can result if the device is not cleaned for an extended period, especially if used in areas where foodstuffs are processed: Always clean and disinfect the dust extractor immedi- ately after use. Never open the device outdoors during rain or storms. Do not use the device outdoors in cold weather. The device must not be operated in areas with an explosion hazard. Ensure that the dust extractor is steady. If the extracted air is discharged into the room, ensure there is an adequate air change rate (L) in the room. Observe the regulations that apply in your country. Keep the tool socket dry and do not expose to moisture. Do not plug extension cords between the dust extractor and the power tool. When using the tool socket, use the dust extractor in a dry environ- ment. RP250YBL_C99749871_305.book 4 ページ ２０２３年４月６日　木曜日　午後１２時６分5 English WARNING! This device contains dust that is harmful to health. Discharge and mainte- nance operations (including disposal of the dust collection containers) must only be carried out by qualified specialists wearing appropriate protective clothing and equipment. WARNING - general danger! CAUTION! Do not use the device until you have read the operating Instructions. WARNING - Operating personnel must receive adequate instruction in the use of this dust extractor and in the materials for which it is used. Special safety instructions Warning sign for devices with dust class L: While the device is suitable for extracting substances that pose a slight threat to health, it is not appropriate for reducing wood dust in inhaled air. Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful. Contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders. Certain kinds of dust are classified as carcinogenic, such as oak and beech dust, especially in conjunction with additives for wood conditioning (chromate, wood preservative).

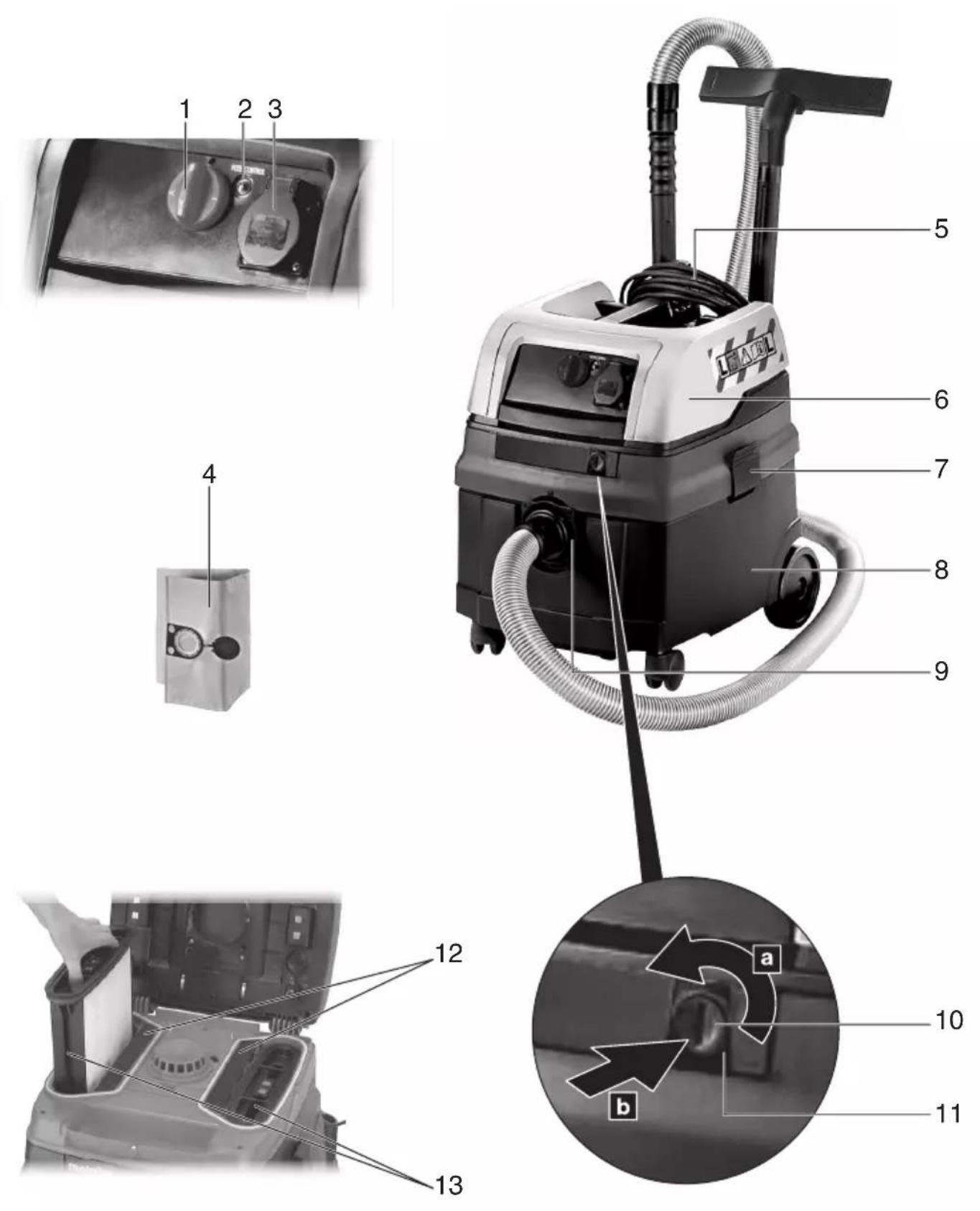

Rotary switch On/Off/Automatic/SelfClean (SC) 2 Volume flow control display 3 Plug socket for power tool 4 Fleece filter bag 5 Cable holder 6 Upper part 7Snap lock 8Container 9 Suction opening 10 Locking knob

Locking bar (for opening the hood to change filter cassettes) 12 Motor protection filter 13 Filter cassette (according to IFA C) RP250YBL_C99749871_305.book 5 ページ ２０２３年４月６日　木曜日　午後１２時６分6 English WARNING The following show symbols used for the device. Be sure that you understand their meaning before use.

*1 at the hose, *2 at the fan *3 Weight: According to EPTA-Procedure 01/2014 Connection line on dust extractors with plug socket: H05RR-F 3X 1.5 Note: Due to HiKOKI’s continuing program of research and development, the specifications herein are subject to change without prior notice. Before plugging in the device, check that the rated mains voltage and mains frequency, as specified on the rating label, match your power supply.

8.1 Fitting wheels (if necessary)

Insert the axles of the guide rollers in the holes in the container until they engage. Fit the large wheels as shown:

8.2 Inserting a Fleece Filter Bag

We recommend using paper and fleece filter bags for: - Applications, where small amounts of fine dust are created (e.g. spot-grinding and grinding of paint and lacquer coatings, extraction of drilling applications with small diameters < 10 mm of short duration, etc.). - Use of devices, such as: routers, planers, small grinding devices, etc. Switch off the device, remove the mains plug and open the snap locks (7). Remove the upper part (6) from the container (8).

RP250YBL: Dust extractor To reduce the risk of injury, user must read instruction manual. WARNING WARNING! The dust extractor may contain hazardous dust. Dust class L (light). The dust extractors are capable of picking up dust class L. Follow your country's regulations relating to dusts and to occupational health and safety.

6. Standard Accessories

Suction hose (φ35 mm / 3.2 m) 1 Polyester filter cassettes (M class): Attached to device

Fleece filter bag 1 Crevice nozzle 1 Universal nozzle 1 Handle adapter 1 Plastic suction tubes 2 Tube support 1

8. Initial Operation

RP250YBL_C99749871_305.book 6 ページ ２０２３年４月６日　木曜日　午後１２時６分7 English Hold the fleece filter bag on the flange and, with its opening, guide it first over the latch at the bottom part of the suction opening, then fit up to the stop on the suction opening. Replace the upper part of the device on the container, close the snap locks.

9.1 Switching On/Off, Automatic, vibrator

Select operating mode at switch (1): 0=Dust extractor off I =Dust extractor on (manual operation) A=Automatic On/Off switch: The dust extractor is switched on or off by means of a power tool connected to the plug socket (3). R A= Automatic On/Off switch and Automatic vibrator switch

• If the switch (1) is turned to position R A, the electromagnetic vibrator switches on. Dust is then shaken off the filter. The vibrator switches off automatically after approx. 10 s.

• In switch position R A, the dust extractor is switched on or off by means of a power tool connected to the plug socket (3).

• In switch position R A, the electronic system checks the air flow during work. If the flow is too low due to a contaminated filter, the volume flow control display lights up (2). During the next work break of the connected power tool, the electronics system switches the vibrator off for approx. 10 s.

The plug socket (3) is designed for connection to a power tool only. The total maximum permissible current consumption (of dust extractor and connected unit) must not exceed 16 A. CAUTION! Ensure that the power tool is switched off when plugging it in. Regardless of the switch position, the plug socket is always live when the mains plug is plugged in. If the switch (1) is in the "0" position, you can use the plug socket as an extension lead (e.g. for a light fitting). If the switch (1) is in the "RA" position, the dust extractor is switched on or off by means of a power tool connected to the plug socket (3).

9.3 Volume flow control display

The volume flow control display (2) lights up when the container is full and/or if the suction hose is blocked.

Vacuum using a dry filter, dry device and dry acces- sories only. If the cartridge is damp, dust may stick and form a crust. Always use filter cassettes (13) when using fleece filter bags (4).

Never operate the device without inserting filter cassettes (13) first. The device may be destroyed and water may also escape. You can use fleece filter bags (4). The filter cassettes (13) are suitable for wet vacuuming. Before carrying out any wet vacuuming, remove the dry vacuumed material. This process will prevent severe soiling and encrustation. The integrated water sensor switches off the motor when the container is full. Empty the device. If the device is not switched off, the restart protection device remains effective. The device is not oper- able again until it has been switched off and switched back on again. After switching off, some water may run back out of the hose. Before emptying, first of all take the suction hose out of the liquid. If you are then going to dry vacuum, insert a dry filter. If there is frequent switching between dry and wet vacuuming, we recommend the use of a second (replacement) filter. Allow the filter, container and accessories to dry: otherwise dust may adhere to damp components.

Leave the hose on the device to prevent dust acci- dentally escaping. Place the accessories in a suitable plastic bag and seal the bag. Suspend the mains connection lead on the cable holder (5). The upper part (6) must be securely sealed to the container (8) - check that the snap locks (7) are closed.

11.1 General Cleaning Instructions

Clean the container and accessories with water. Wipe the upper part (6) with a damp cloth. CAUTION! This device contains dust that is harmful to health. Discharge and maintenance operations (including disposal of the dust collection containers) must only be carried out by qualified specialists wearing appropriate protective clothing and equip- ment. Emptying the Container Only permitted for dusts with occupational exposure limits > 1 mg/m

-Unplug mains cable. - Open the snap locks (7). Remove the upper part (6) from the container (8). Dispose of the fleece filter bag. -Unplug mains cable. - Pull on mask. - Open the snap locks (7). Remove the upper part (6) from the container (8).

RP250YBL_C99749871_305.book 7 ページ ２０２３年４月６日　木曜日　午後１２時６分8 English - Carefully pull back and remove the fleece filter bag (4) from the suction opening (9). Seal the flange of the fleece filter bag by folding over the cover. - Dispose of the vacuumed material in accordance with legal regulations.

12.1 General Instructions

Before performing any maintenance, always switch off the device and remove the mains plug. Clean the device (see section 11.). For maintenance by the user, the dust extractor must be taken apart, cleaned and maintained, to the extent possible, without endangering maintenance staff or other people. Preventive Measures Appropriate preventive measures include: cleaning the device before disassembly; providing local filtered forced ventilation where the dust extractor is disassembled; cleaning of the maintenance area and providing suitable personal protective clothing and equipment.

12.2 Reduction in suction power

If the suction power decreases, carry out the following steps:

1. Clean the filter cassettes by activating the elec-

3. Replace the filter cassettes (13), or rinse them

under running water, dry them and then replace.

12.3 Renew the filter cassettes (13)

Shake the filter cassettes (13) once again before replacing the filters by switching on the electromag- netic vibrator (set switch (1) to the "RA" position). Use a coin or a similar object to turn the locking knob (10) on the locking bar (11) counter-clockwise through 90° and push the bar (11) to the rear. Swing up the hood and pull up the filter cassettes (13) to remove them. Seal the removed filter cassettes immediately in a dust-tight plastic bag and dispose of them in accordance with regulations. Insert new filter cassettes, ensuring they are correctly and securely in place.

12.4 Motor protection filter

Regularly check the motor protection filter. If the motor protection filter (12) is contaminated, this indi- cates that the filter cassettes (13) may be defective: - Replace the filter cassettes (13). - Replace the motor protection filter (12), or rinse it under running water, dry it and then replace.

IMPORTANT - Clean the water sensor regularly and check it for signs of damage. If the volume flow control display (2) lights up, this indicates that the fleece filter bag must be emptied. Reduction in suction power: See the instructions in the section on Cleaning.

• Filter cassettes (13) soiled? Clean the cassettes.

• Fleece filter bag (4) full? Replace the filter bag.

• Container (8) full? Empty the container.

• Motor protection filter (12) clogged? - See

• Nozzle, tubes or hose blocked? Clean. Device will not start:

• Is the plug in the plug socket?

• No power from mains?

• Device hood correctly closed?

• Has the water sensor cut off? - Empty the container; then switch on and off again.

• Switch (1) in "RA / A" position? - Set to "I" posi- tion. See section 9.1.

• The dust extractor is not switched on or off by means of a power tool, even though switch (1) is set to the "RA / A" position. - Connect the power tool to the plug socket (3). Use only genuine HiKOKI accessories. See page 157. Use only accessories that fulfil the requirements and specifications listed in these operating instruc- tions. Replacing supply cord If the replacement of the supply cord is necessary, it has to be done by HiKOKI Authorized Service Center to avoid a safety hazard. CAUTION! In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

• Stekker in stopcontact?

8.2 Sette inn fleece-filterpose

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that Dust Extractor, identified by type and specific identification code *1), is in conformity with all relevant requirements of the directives *2) and standards *3). Technical file at *4) – See below. The European Standard Manager at the representative office in Europe is authorized to compile the technical file. The declaration is applicable to the product affixed CE marking.
