Product type	Wall mount
Brand	Laserliner
Model	CrossGrip Pro
Weight	710 g
Dimensions (W x H x D)	91 x 180 x 215 mm
Material	Metal and resistant plastic
Wall mounting	Direct wall mounting eyelet
Powerful magnets	Yes, on the back for mounting on magnetic surfaces
Laser instrument thread	1/4"
Mounting screw	1/4"
Clamp adjustment screw	Yes, to adjust the opening
Locking mount	For drywall profiles
Quick adjustment	Step-by-step height positioning
Tripod thread	5/8"
Intended use	Mounting of laser measuring instruments with 1/4" thread on walls, magnetic surfaces, and drywall profiles
Maintenance and cleaning	Clean with a slightly damp cloth, without solvent or abrasive products
Safety	Risk of pinching; strong magnetic fields, keep 30 cm away from implants and sensitive devices
Spare parts and repairability	Not communicated – contact the manufacturer
General information	Compliant with EU standards, instructions at www.laserliner.com

Frequently Asked Questions - CrossGrip Pro Laserliner

Which laser instruments are compatible with the CrossGrip Pro?

All laser measuring instruments with a 1/4" thread are compatible.

How to attach the mount to the wall?

Use the mounting eyelets (1) to screw the mount directly onto the wall.

Can I use the CrossGrip Pro on metal surfaces?

Yes, the powerful magnets on the back allow secure mounting on any magnetic surface.

How to adjust the opening width of the clamp?

Turn the adjustment screw (5) to adapt the opening to the thickness of the drywall profile.

Is the quick adjustment secure?

Yes, the quick adjustment allows step-by-step height positioning and locks in place.

What is the maximum supported weight?

The mount is designed for light laser instruments; the maximum weight is not specified, but it easily supports common models.

Is there a risk with the magnets?

Yes, the powerful magnetic fields can affect pacemakers and damage magnetic media. Maintain a distance of at least 30 cm.

How to clean the CrossGrip Pro?

Use a slightly damp cloth without cleaning agents, abrasives, or solvents. Store it in a dry, clean place.

Can I use the mount with a tripod?

Yes, the 5/8" thread (7) allows mounting on a standard tripod.

Where to find the complete safety instructions?

Visit www.laserliner.com for additional notes and safety instructions.

USER MANUAL CrossGrip Pro Laserliner

Close-up of a black plastic mechanical device with mounting brackets and adjustment knobs (no visible text or symbols)

magnetic

Laserliner

!

Diagram of a laser welding machine (no text or symbols visible)

Exterior view of a mechanical device mounted on a wall, with a circular warning symbol and number 3 visible (no readable text or symbols on the device itself)

Close-up of a mechanical measurement device with no visible text or symbols on the device itself

Close-up of a metallic mechanical device mounted on a vertical pole, with no visible text or symbols.

Mechanical assembly diagram showing a motor and a clamping device with directional arrows (no text or symbols)

Mechanical device with directional arrows indicating motion or force, mounted on a cylindrical shaft (no text or symbols visible)

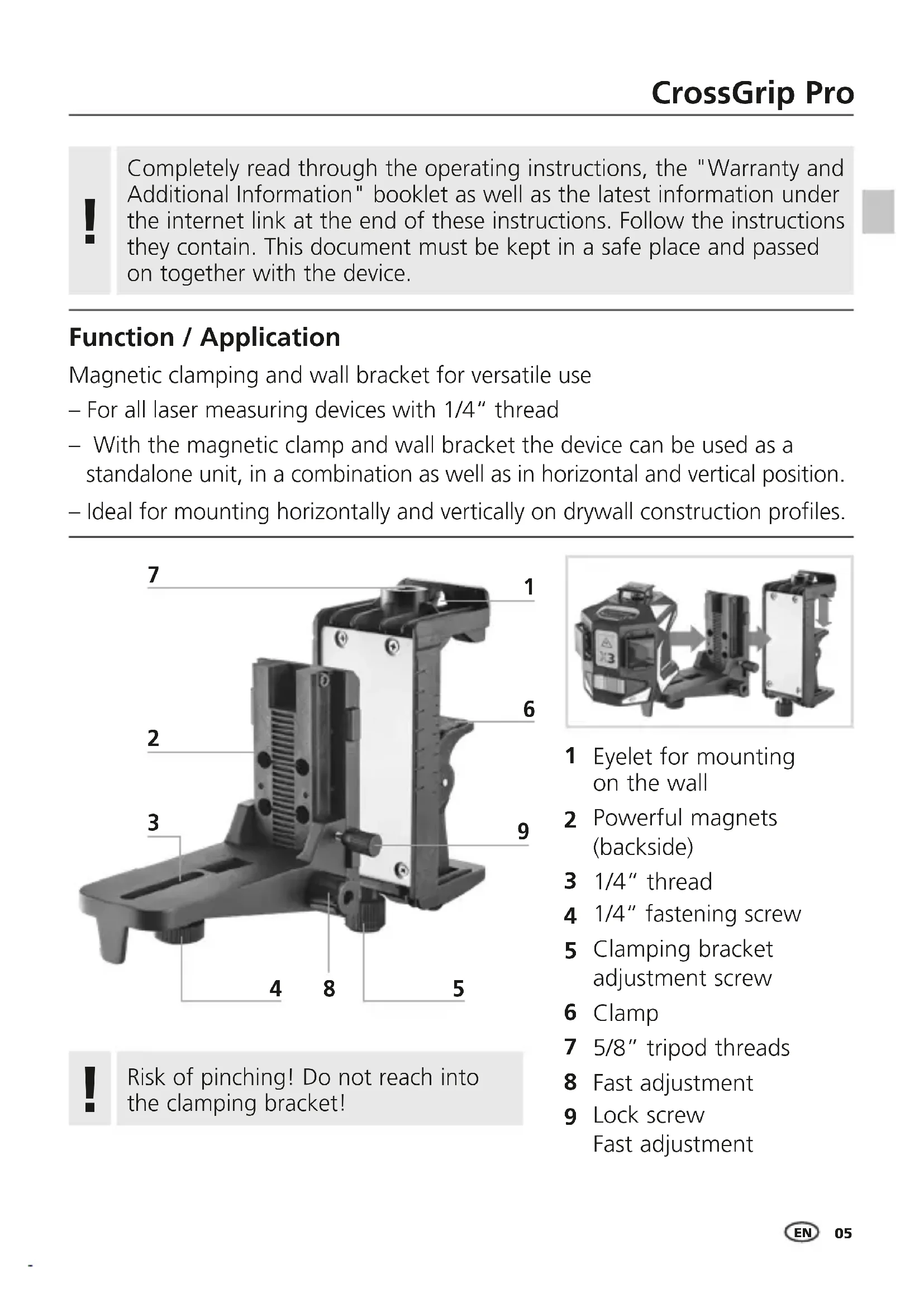

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / Application

Magnetic clamping and wall bracket for versatile use

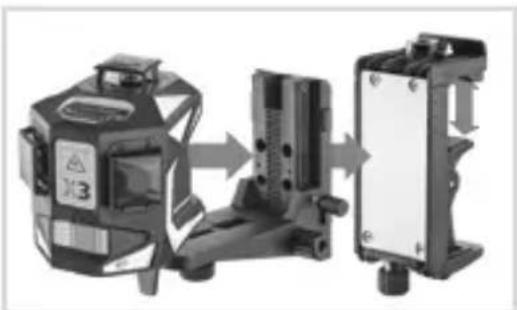

• For all laser measuring devices with 1/4" thread
• With the magnetic clamp and wall bracket the device can be used as a standalone unit, in a combination as well as in horizontal and vertical position.
• Ideal for mounting horizontally and vertically on drywall construction profiles.

Labeled diagram of a mechanical device with numbered parts for identification

!

Risk of pinching! Do not reach into the clamping bracket!

Diagram of a laser measurement device with labeled components and directional arrows indicating assembly (no text or symbols present)

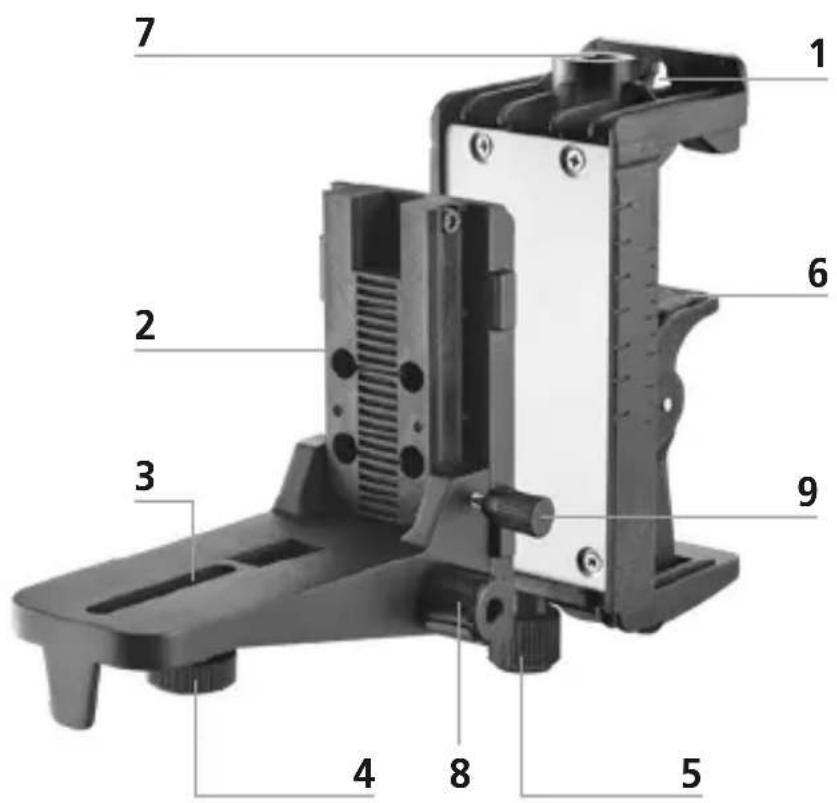

1 Eyelet for mounting on the wall
2 Powerful magnets (backside)
3 1/4" thread
4 1/4" fastening screw
5 Clamping bracket adjustment screw
6 Clamp
7 5/8" tripod threads
8 Fast adjustment
9 Lock screw Fast adjustment

Laserliner

1Mounting on a wall

The lugs (1) facilitate direct mounting on walls.

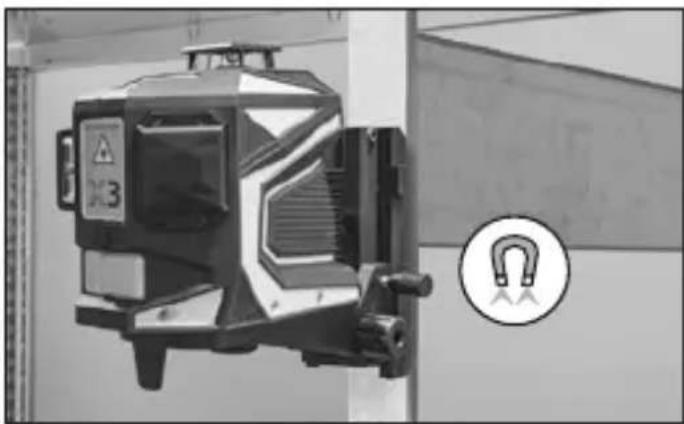

2Mounting on magnetic objects

The powerful magnets (2) at the rear allow the bracket to be fixed to magnetic objects.

Exterior view of a surveying instrument mounted on a wall, with a circular logo featuring a U-turn symbol (no readable text or labels)

BMounting on drywall construction profiles

Close-up of a mounted surveying instrument with warning label and directional arrow (no readable text or symbols)

Close-up of a metallic robotic device mounted on a pole, with no visible text or symbols.

Mechanical assembly diagram showing a motor and a clamping device with directional arrows (no text or symbols)

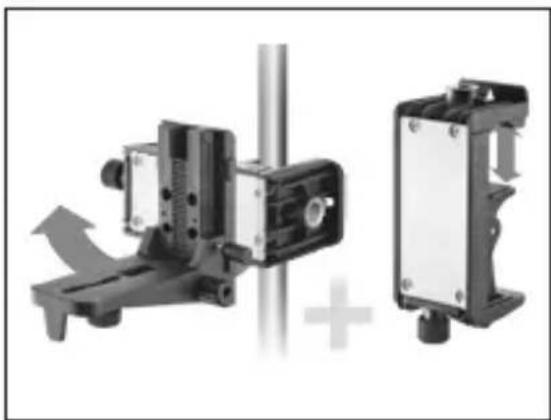

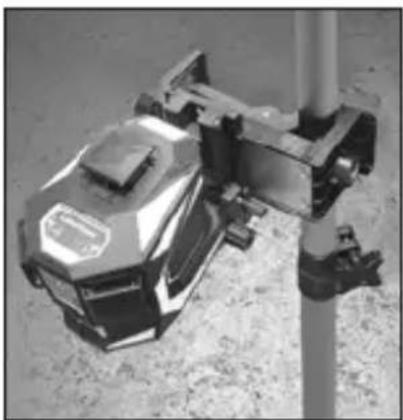

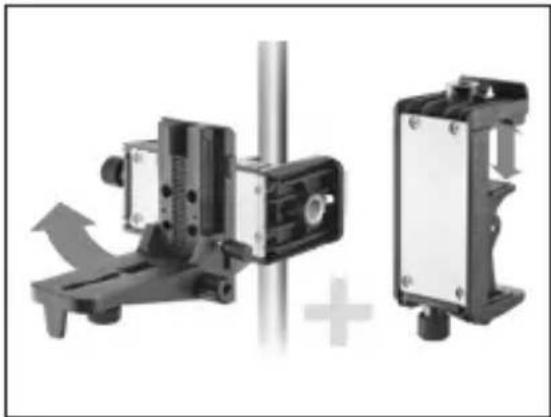

With the clamping bracket (6), the wall bracket can be mounted horizontally or vertically on drywall construction profiles.

The opening width of the clamping bracket can be adjusted with the adjustment screw (5).

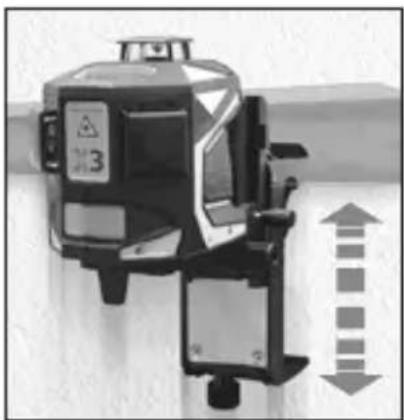

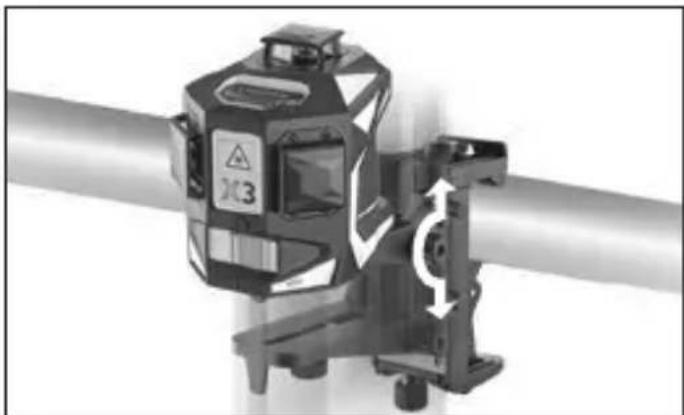

4 Fast adjustment

The fast adjustment function allows the device to be positioned in height step by step on the bracket.

Mechanical device with directional arrows indicating motion or force, mounted on a cylindrical pipe (no text or symbols visible)

Danger - powerful magnetic fields

Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).

With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields“ (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.

To avoid interference/disruption, always keep the implant or device a safe distance of at least 30 cm away from the magnet.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

Technical data (Subject to technical alterations. 22W02)
Weight 710 g
Dimensions (W x H x D) 91 x 180 x 215 mm

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

Further safety and supplementary notices at:

www.laserliner.com

CE UK CA

Laserliner

!
