USER MANUAL CrossGrip Snap Laserliner

Close-up of a black plastic electronic device with metal casing and mounting bracket (no visible text or symbols)

magnetic

Laserliner

!

Diagram showing a device connected to a control panel and a digital display unit (no text or symbols visible)

Exterior view of a modern office building (no signage)

Exterior view of a mechanical device with a vertical arrow indicating upward motion (no text or symbols)

Exterior view of a modern office building (no signage)

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

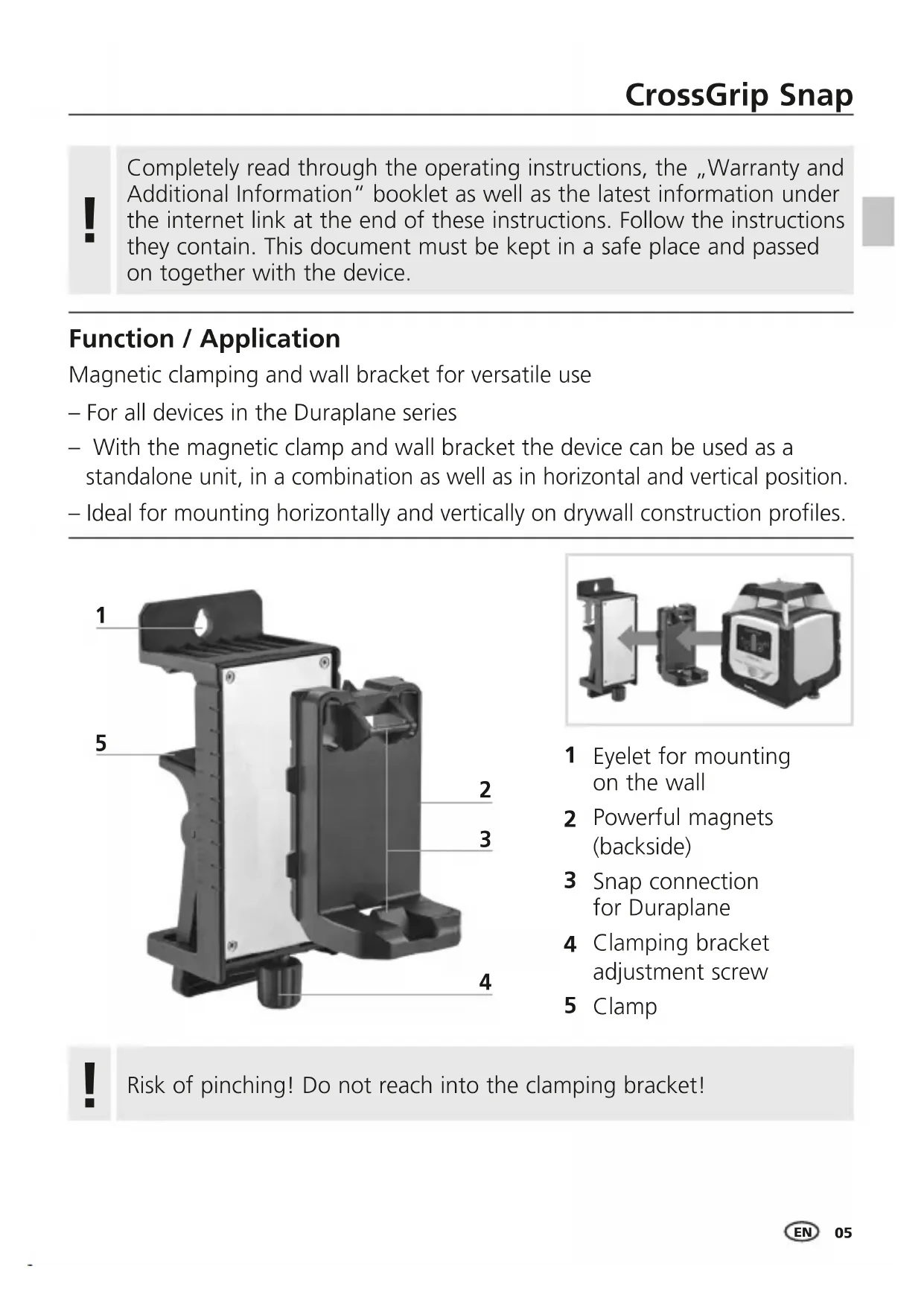

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

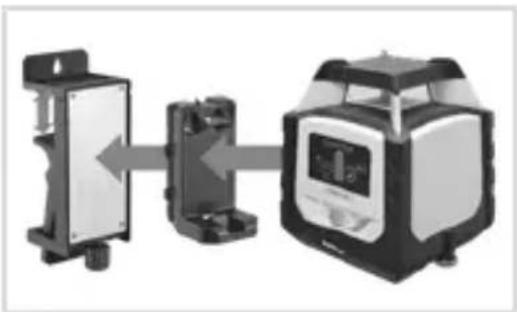

Function / Application

Magnetic clamping and wall bracket for versatile use

• For all devices in the Duraplane series
• With the magnetic clamp and wall bracket the device can be used as a standalone unit, in a combination as well as in horizontal and vertical position.
• Ideal for mounting horizontally and vertically on drywall construction profiles.

1 5 2 3 4

Three electronic devices with black and white components, one connected to a smaller black box (no visible text or symbols)

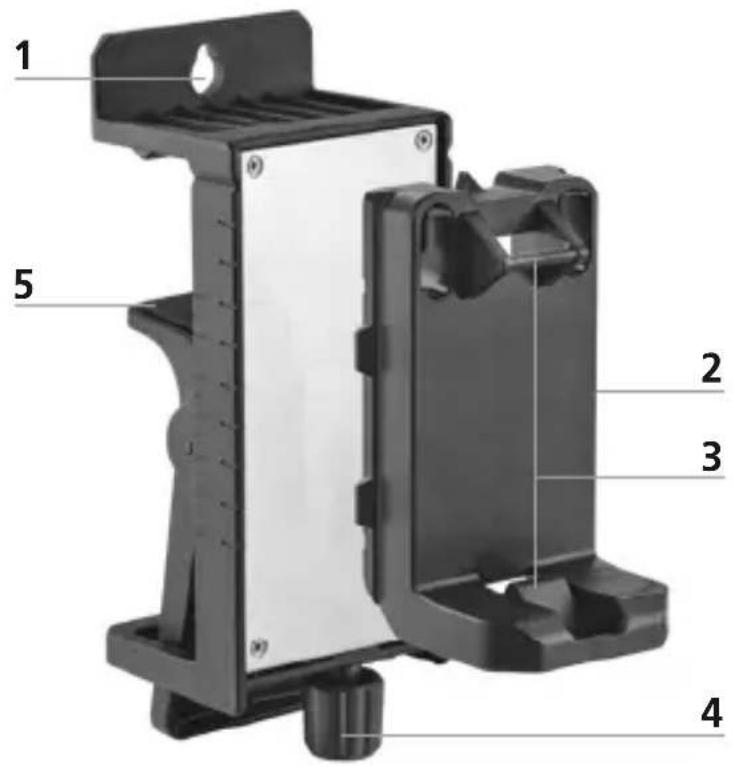

1 Eyelet for mounting on the wall
2 Powerful magnets (backside)
3 Snap connection for Duraplane
4 Clamping bracket adjustment screw
5 Clamp

!

Risk of pinching! Do not reach into the clamping bracket!

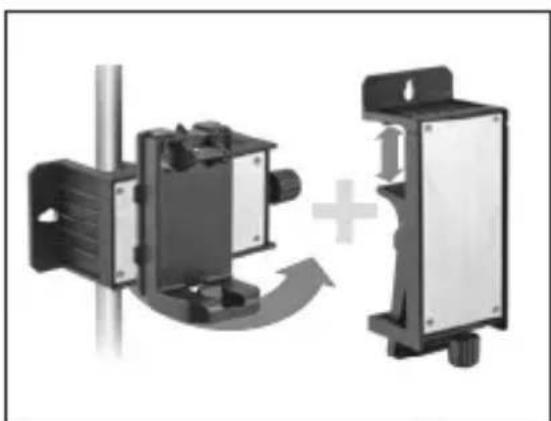

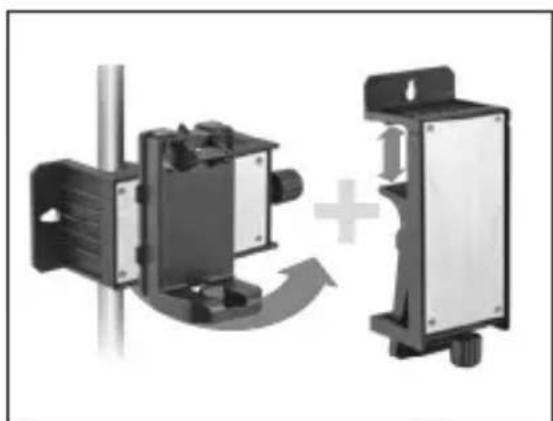

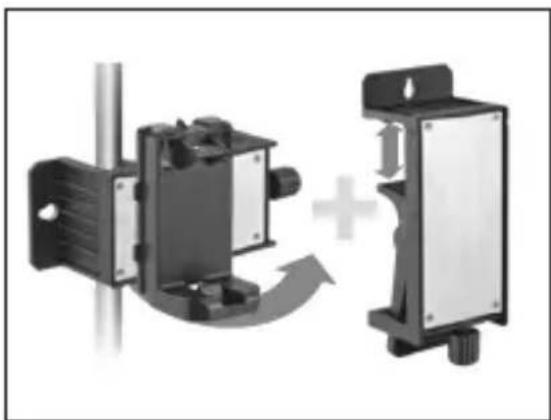

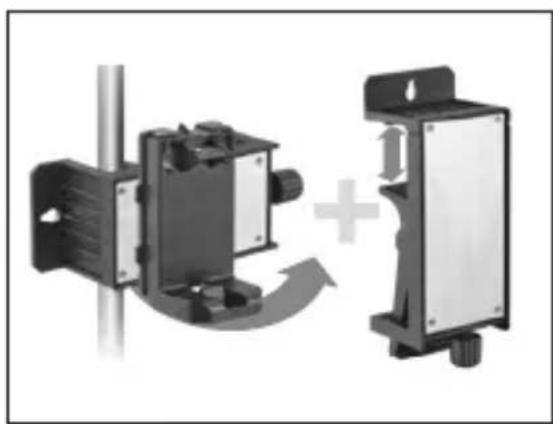

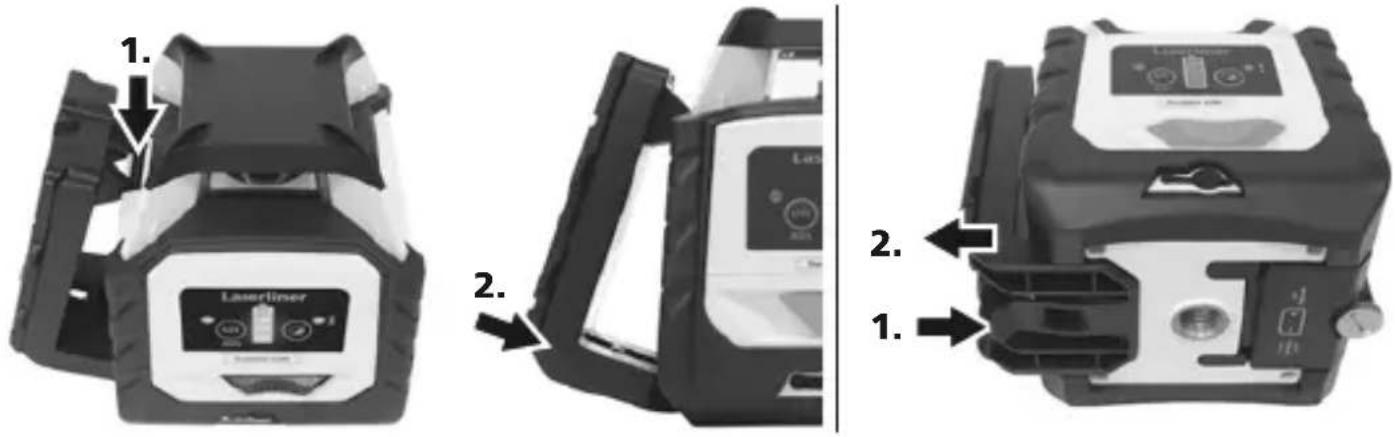

Connecting and separating the device and CrossGrip Snap

2Mounting on a wall

The lugs (1) facilitate direct mounting on walls.

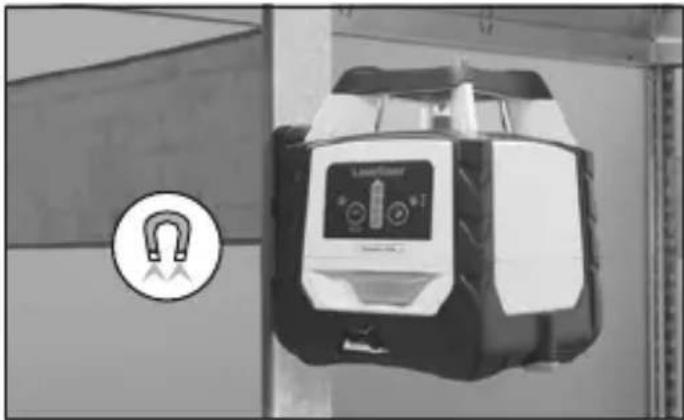

BMounting on magnetic objects

The powerful magnets (2) at the rear allow the bracket to be fixed to magnetic objects.

Exterior view of a modern office building (no signage)

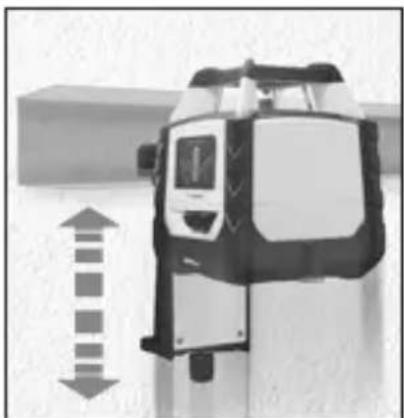

4Mounting on drywall construction profiles

Exterior view of a mechanical device with directional arrows indicating movement (no text or symbols)

Close-up of a mechanical device mounted on a pole, no visible text or symbols

Diagram showing a mechanical device with rotating components and a separate view of a mounted device (no text or symbols present)

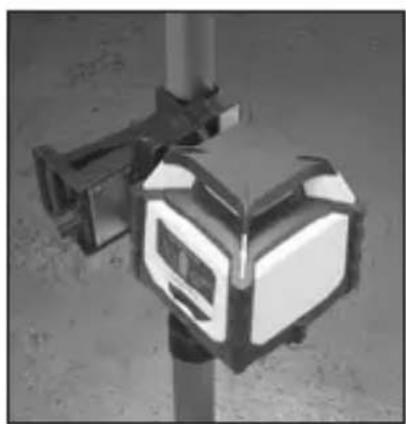

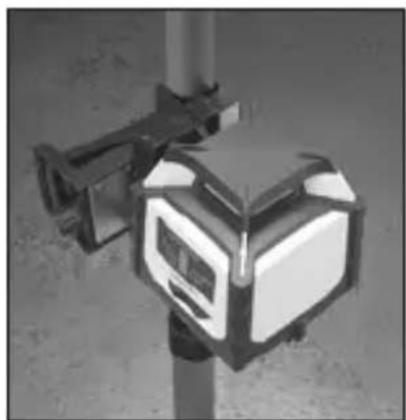

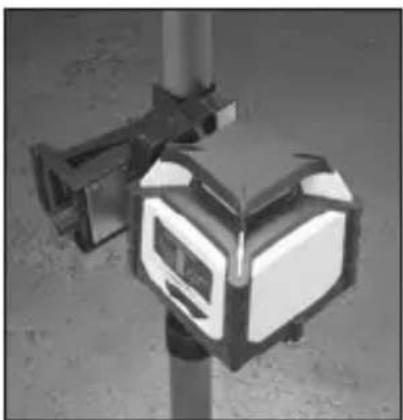

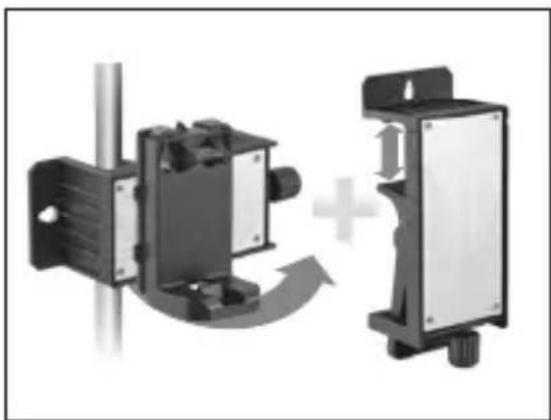

With the clamping bracket (5), the wall bracket can be mounted horizontally or vertically on drywall construction profiles.

The opening width of the clamping bracket can be adjusted with the adjustment screw (4).

Danger - powerful magnetic fields

Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).

With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields“ (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.

To avoid interference/disruption, always keep the implant or device a safe distance of at least 30 cm away from the magnet.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

Technical data (Subject to technical alterations. 22W02)
Weight 392 g
Dimensions (W x H x D) 119 x 183 x 70 mm

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

Further safety and supplementary notices at:

www.laserliner.com

Laserliner

!

Diagram showing a device connected to a control panel and a digital display unit (no text or symbols visible)

Exterior view of a modern office building (no signage)

Front view of a mechanical device with a vertical arrow indicating downward motion (no text or symbols visible)

Close-up of a mechanical device mounted on a pole, no visible text or symbols

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

Diagram showing a device connected to a box and a digital display unit (no text or symbols visible)

Exterior view of a modern office building (no signage)

Front view of a mechanical device with a vertical arrow indicating upward motion (no text or symbols visible)

Close-up of a mechanical device with a transparent cube mounted on a vertical pole (no visible text or symbols)

Diagram showing a mechanical device with rotating components and a separate housing, no text or symbols present.

Diagram showing a device connected to a box, with no visible text or symbols

Exterior view of a modern office building (no signage)

Front view of a vehicle with a vertical arrow indicating upward motion (no text or symbols visible)

Exterior view of a modern office building (no signage)

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

Diagram showing a device connected via a control panel to an electronic device (no text or symbols visible)

Exterior view of a modern office building (no signage)

Front view of a mechanical device with a vertical arrow indicating upward motion (no text or symbols visible)

Close-up of a small mechanical device mounted on a vertical pole, no visible text or symbols

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

Diagram of a device with a box, internal components, and a digital display unit (no visible text or symbols)

Exterior view of a modern office building (no signage)

Front view of a mechanical device with a vertical arrow indicating upward motion (no text or symbols visible)

Black-and-white photo of a small rectangular device mounted on a pole, no visible text or symbols

Diagram showing two mechanical components with directional arrows indicating motion or force (no text or symbols)

Diagram showing a device connected via a device to a box, with no visible text or symbols.

Exterior view of a modern office building (no signage)

Exterior view of a mechanical device with a vertical arrow indicating upward motion (no text or symbols visible)

Close-up of a small 3D cube-mounted device mounted on a pole, no visible text or symbols

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

Diagram showing a device connected via a mechanical or electrical component, with no visible text or symbols.

Exterior view of a modern office building (no signage)

Exterior view of a modern office building (no signage)

Close-up of a mounted digital camera with a display screen and lens, mounted on a pole (no visible text or symbols)

Diagram showing a mechanical device with a rotating arm and a separate view of its internal structure (no text or symbols)

Diagram showing a device connected to a box and a digital display unit (no text or symbols visible)

Exterior view of a modern office building (no signage)

Front view of a vehicle with a vertical arrow indicating upward motion (no text or symbols visible)

Close-up of a 3D cube-mounted sensor mounted on a pole, no visible text or symbols

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

Diagram showing a device connected to a control panel and a digital display unit (no text or symbols visible)

Exterior view of a modern office building (no signage)

Exterior view of a modern office building (no signage)

Exterior view of a modern office building (no signage)

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

Three electronic devices with black and white components, one connected to a smaller device (no visible text or symbols)

1 Hull for feste direkte på veggen
2 Sterke magnetholdere (bakside)
3 Snap-forbindelser for Duraplane
4 Justeringsskrue klemmeholder
5 Klemmeholder

!

Exterior view of a modern office building (no signage)

Front view of a vehicle with a vertical arrow indicating upward motion (no text or symbols visible)

Close-up of a 3D cube-mounted sensor mounted on a pole, no visible text or symbols

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

Diagram showing a device connected to a control panel and a digital display unit (no text or symbols visible)

Exterior view of a modern office building (no signage)

Front view of a mechanical device with a vertical arrow indicating upward motion (no text or symbols visible)

Close-up of a mounted digital camera with a display unit, mounted on a pole (no visible text or symbols)

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

Diagram showing a device connected via a device to a box, with no visible text or symbols.

Exterior view of a modern office building (no signage)

Side view of a vehicle with a vertical arrow indicating upward motion (no text or symbols present)

Close-up of a mounted digital camera unit mounted on a pole, no visible text or symbols

Diagram showing a mechanical device with a rotating shaft and a rectangular housing, both without any text or symbols.

Diagram showing a device connected to a box and a digital display unit (no text or symbols visible)

Exterior view of a modern office building (no signage)

Mechanical device with vertical arrow indicating upward motion (no text or symbols visible)

Close-up of a mechanical device mounted on a pole, no visible text or symbols

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

Diagram showing a device connected via a device to a control panel (no text or symbols visible)

Exterior view of a modern office building (no signage)

Front view of a vehicle-mounted device with a vertical arrow indicating leftward motion (no text or symbols visible)

Close-up of a mounted 3D cube-mounted device mounted on a pole, no visible text or symbols

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

Diagram showing a device connected to a box, with no visible text or symbols

Exterior view of a modern office building (no signage)

Front view of a vehicle with a vertical arrow indicating upward motion (no text or symbols visible)

Close-up of a mechanical device mounted on a pole, no visible text or symbols

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

Diagram showing a device connected to a control panel and a digital display unit (no text or symbols visible)

Exterior view of a modern office building (no signage)

Exterior view of a modern office building (no signage)

Close-up of a mechanical device mounted on a pole, no visible text or symbols

Diagram showing two mechanical components with directional arrows indicating rotation or assembly (no text or symbols present)

Diagram showing a device connected to a box, with no visible text or symbols

Exterior view of a modern office building (no signage)

Front view of a mechanical device with a vertical arrow indicating downward motion (no text or symbols visible)

Close-up of a mechanical device mounted on a pole, no visible text or symbols

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

Diagram showing a device connected via a device to a box, with no visible text or symbols.

Exterior view of a modern office building (no signage)

Front view of a vehicle with a vertical arrow indicating upward motion (no text or symbols visible)

Close-up of a 3D cube-mounted sensor mounted on a pole, no visible text or symbols

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

Diagram showing a device connected to a box and a digital display unit (no text or symbols visible)

1 Ušica za pričvršćivanje izravno na zidu
2 Snažni magneti za držanje (stražnja strana)
3 Snap veza za Duraplane
4 Vijak za namještanje steznog držača
5 Stezni držač

!

Opasnost od prignječenja! Nikad ne posežite rukom u stezni držač!

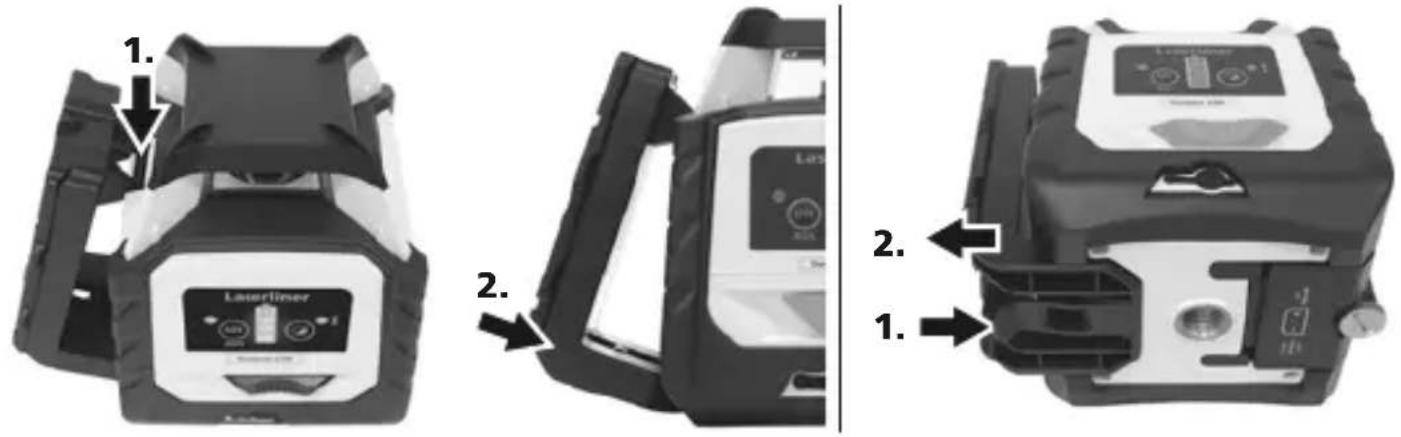

15 pojite / odspojite uređaj i CrossGrip Snap

2Pričvršćivanje na zidu

Exterior view of a modern office building (no signage)

Front view of a vehicle with a vertical arrow indicating upward motion (no text or symbols visible)

Close-up of a mechanical device mounted on a pole, no visible text or symbols

Diagram showing a mechanical device with rotating components and a separate view of a rectangular housing (no text or symbols)

Pomoću steznog držača (5) zidni se držač može pričvrstiti vodoravno i okomito na profilima za suhu gradnju.

Vijak za namještanje (4) omogućava namještanje širine otvora steznog držača.

Opasnost od jakih magnetskih polja

Snažna magnetska polja mogu prouzročiti štetne učinke na ljude s aktivnim pomoćnim tvarima (kao što je pejsmejker) i elektromehaničkim uređajima (kao što su magnetske kartice, mehanički satovi, precizna mehanika, tvrdi diskovi).

S obzirom na učinak jakih magnetskih polja ljude, potrebno je uzeti u obzir odgovarajuće nacionalne propise i regulacije, kao što je npr. u Saveznoj Republici Njemačkoj Regulacija o trgovačkom društvu (die Berufsgenossenschaftliche Vorschrift) BGV B11 §14 „Elektromagnetska polja“.

Da biste izbjegli smetnje, uvijek držite magnete najmanje 30 cm od implantata i uređaja koji su pod rizikom.

Illustration of a ceiling structure with metal beams and support pillars, no visible text or symbols

SERVICE

Umarex GmbH & Co. KG

- Laserliner -
