Product type	Wireless remote control (wall-mounted radio transmitter)
Model	ITW-801 (1 channel)
Brand	Intertechno
Power supply	1× CR2032 3V battery
Battery life	Approximately 20,000 switches or 3 years
Low battery indicator	LED flashes red every 4 seconds
Range	Up to 100 m in open field (depending on receiver)
Radio frequency	433.92 MHz
Number of channels	1
Main functions	On/Off with radio signal, brightness dimming (for compatible dimmer receivers), adjustable auto-off timer
Shutdown delay adjustment	Hold ON and OFF for 3 seconds, then adjust with ON (increase) and OFF (decrease), confirm by holding again for 3 seconds
LED indication	Green light (on/hold), green flashing (adjustment), red light twice (off), red flashing (low battery)
Code learning	Compatible with Intertechno self-learning receivers: put receiver in learning mode, then press ON
Code deletion	Same procedure but pressing OFF (red LED flashes twice)
Mounting	Double-sided adhesive or supplied screws; avoid metal shielding to not reduce range
Approximate dimensions	80 × 80 × 20 mm (estimate)
Approximate weight	30 g (with battery)
Operating temperature	0 °C to +40 °C (estimate)
Safety instructions	Do not swallow button cell, keep out of reach of children, replace with identical CR2032 battery
Compliance	Declaration of conformity at www.intertechno.at/CE
Included accessories	CR2032 battery, double-sided adhesive tape, mounting screws

Frequently Asked Questions - ITW-801 Intertechno

How to pair the ITW-801 remote control with an Intertechno receiver?

Place the transmitter near the receiver. Put the receiver in learning mode (see its manual). Press the ON button on the remote control. The green LED lights up: the code is saved.

How to delete the code of a receiver?

Proceed as for learning, but instead of pressing ON, press OFF. The red LED flashes twice: the code is deleted.

What type of battery to use and how to change it?

Use a CR2032 3V battery. Remove the mounting plate with a screwdriver, insert the battery with the + sign facing up, then close by aligning the arrows until it clicks.

How to set the auto-off timer?

Hold the ON and OFF buttons for 3 seconds (green LED flashes). Use ON to increase the delay, OFF to reduce it. Confirm by holding ON + OFF again for 3 seconds (LED flashes rapidly).

How to use the dimmer function?

Turn on with ON. To adjust brightness, hold ON (brighter) or OFF (dimmer) and release at desired level. Send ON twice for maximum, OFF twice for minimum (night light).

What to do if the LED flashes red every 4 seconds?

This indicates the battery is low. Replace the battery with a new CR2032 as soon as possible.

The remote control no longer works, what to check?

Check the battery (condition and good contact), ensure the remote is within range of the receiver (max 100 m in open field) and there is no metal shielding. Relearn the code if necessary.

Can I use the ITW-801 with an old model dimmer?

Yes, but behavior may differ: old dimmers operate in continuous mode, new ones stop at extremes. Synchronization between multiple dimmers is not guaranteed.

How to mount the remote control on the wall?

Attach the mounting plate with the supplied double-sided adhesive tape or screws. Avoid metal surfaces that reduce range.

Where to find the declaration of conformity?

The declaration of conformity is available on the website www.intertechno.at/CE.

USER MANUAL ITW-801 Intertechno

GB Operating instructions

GR Οδηγίες χρήσης

H Kezelési utasítás

HR Uputa za rukovanje

I Istruzioni d'uso

ISL Notkunarleiðbeiningar

N Bruksanvisning

Illustration of a screwdriver holding a rectangular device with internal compartments, connected to a curved arrow (no text or symbols)

Illustration of a computer monitor with an open button and scroll, showing no text or symbols.

2

Two white electronic wall panels with rectangular slots and a circular button, one showing a downward arrow (no text or symbols)

Two wall-mounted electrical switches with circuit patterns and indicator lights, shown from different angles (no text or symbols visible)

3

1.)

2.)

Simple icon of a door with a black arrow pointing to the left side (no text or symbols)

D

Bedienungsanleitung

ITW-801

ITW-802

Den grønne LED viser:

0 - LED'en lyser 1x

5 s - 2x

1 min. - 3x

10 min. - 4x

30 min. - 5x

60 min. - 6x

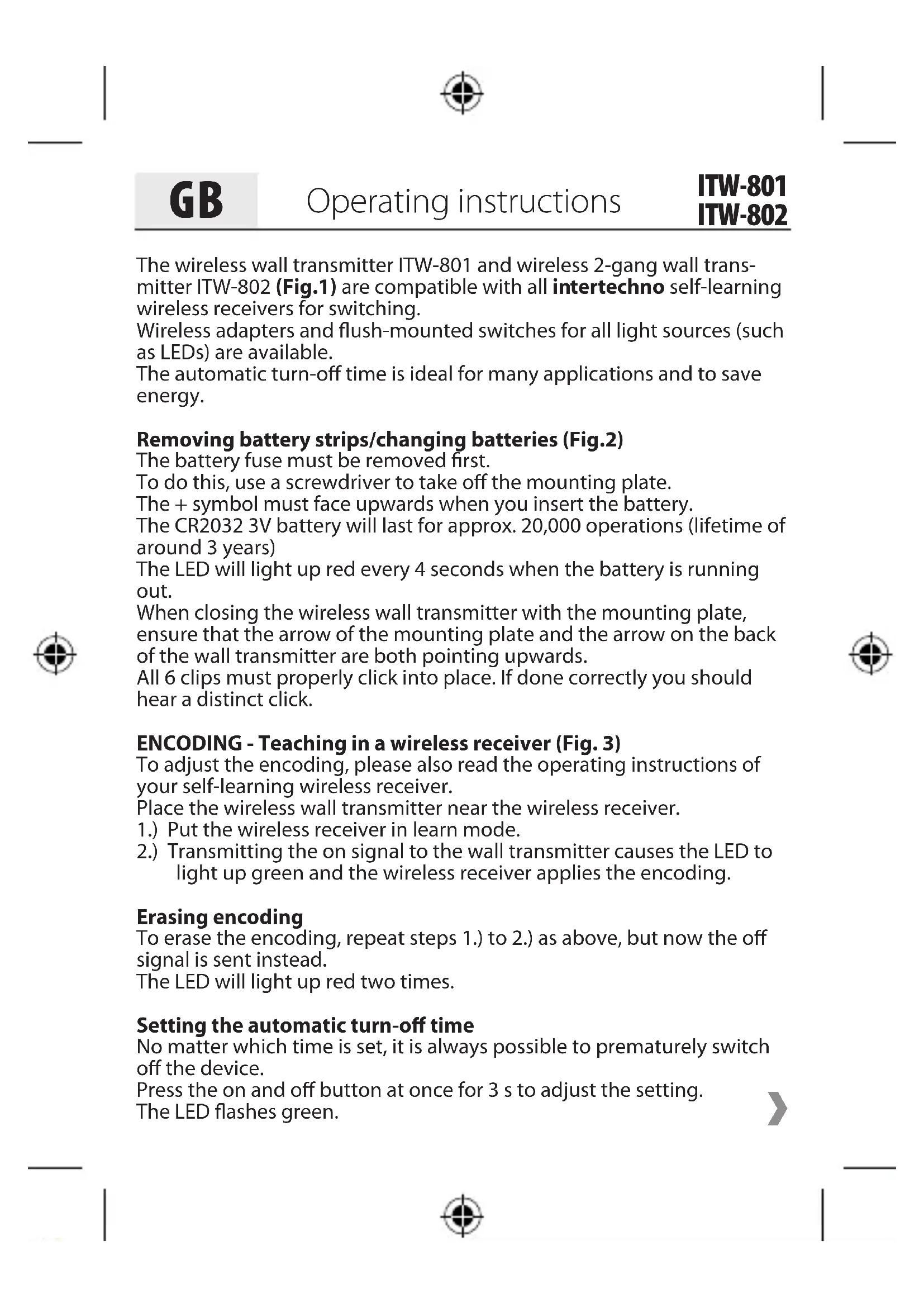

Operating instructions

ITW-801

ITW-802

The wireless wall transmitter ITW-801 and wireless 2-gang wall transmitter ITW-802 (Fig.1) are compatible with all intertechno self-learning wireless receivers for switching.

Wireless adapters and flush-mounted switches for all light sources (such as LEDs) are available.

The automatic turn-off time is ideal for many applications and to save energy.

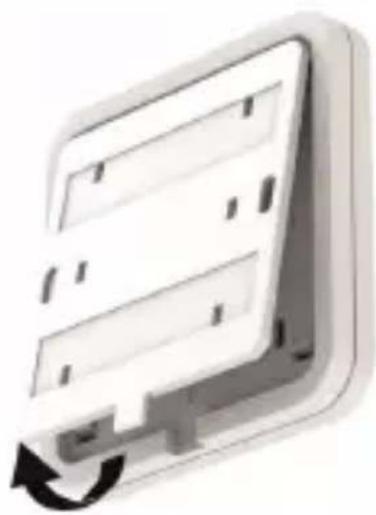

Removing battery strips/changing batteries (Fig.2)

The battery fuse must be removed first.

To do this, use a screwdriver to take off the mounting plate.

The + symbol must face upwards when you insert the battery.

The CR2032 3V battery will last for approx. 20,000 operations (lifetime of around 3 years)

The LED will light up red every 4 seconds when the battery is running out.

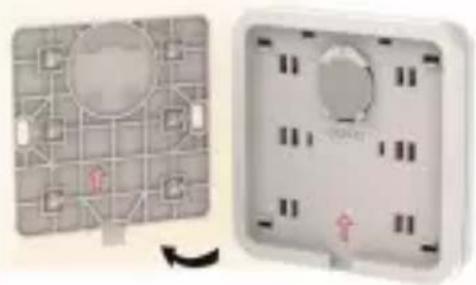

When closing the wireless wall transmitter with the mounting plate, ensure that the arrow of the mounting plate and the arrow on the back of the wall transmitter are both pointing upwards.

All 6 clips must properly click into place. If done correctly you should hear a distinct click.

ENCODING - Teaching in a wireless receiver (Fig. 3)

To adjust the encoding, please also read the operating instructions of your self-learning wireless receiver.

Place the wireless wall transmitter near the wireless receiver.

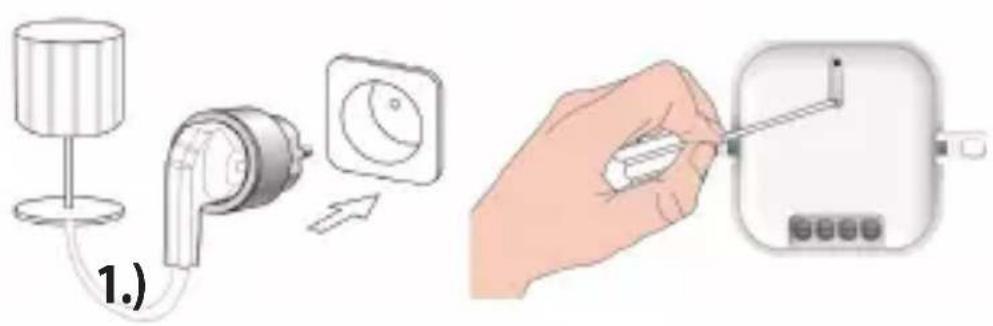

1.) Put the wireless receiver in learn mode.
2.) Transmitting the on signal to the wall transmitter causes the LED to light up green and the wireless receiver applies the encoding.

Erasing encoding

To erase the encoding, repeat steps 1.) to 2.) as above, but now the off signal is sent instead.

The LED will light up red two times.

Setting the automatic turn-off time

No matter which time is set, it is always possible to prematurely switch off the device.

Press the on and off button at once for 3 s to adjust the setting.

The LED flashes green.

GB

Operating instructions

ITW-801

ITW-802

The on button extends the turn-off time;

the off button reduces it.

The green LED displays:

0 - 1x lighting up of the LED

5 s - 2x

1 min. - 3x

10 min. - 4x

30 min. - 5x

60 min. - 6x

Pressing the on and off button at the same time again for 3 s saves the turn-off time. The LED briefly flashes to confirm this.

ITW-802: Each channel can be assigned its own turn-off time.

This means that two receivers can turn off at different times.

However, it is also possible for a receiver that has learned both codes to be assigned a short or long turn-off time (for example, button 1 = 10 min., button 2 = 60 min.).

Mounting

Easy to install mounting plate.

The mounting plate is easy to affix on glass, wood, wallpaper or tiles, etc.

Double-sided adhesive tape and screws are included.

Caution: Avoid shielding through metal objects.

Operation

To turn on: Press on (top) once. The LED will briefly light up green.

To turn off: Press off (bottom) once. The LED will briefly light up red two times.

Dimming:

1.) Start the dimming cycle by pressing the on signal again and stop the dimming or brightening at the desired brightness with the on signal.

Or

2.) Keep the on (brighter) or off (dimmer) button pressed to dim or brighten the device until the desired brightness is reached, then release it to stop.

GB

Operating instructions

ITW-801

ITW-802

3.) In turned on and turned off state, the maximum brightness is set by transmitting the on signal two times in quick succession.

Transmitting the off signal two times sets the brightness to the minimum (night light, for example).

The last used brightness remains saved until the device is turned on again.

Please note that older and newer wireless dimmer receiver models may differ slightly.

The dimming cycle is continuous on older dimmer models.

On newer models the brightness is stopped at the brightest and dim-mest points respectively.

A synchronous dimming cycle with multiple dimmer receivers is not guaranteed.

Safety instruction

Do not ingest batteries, risk of burning due to dangerous substances. This product contains a button cell battery. If the button cell battery is swallowed, severe internal burns can occur within just 2 hours and cause death. Keep new and used batteries out of the reach of children. If the battery compartment does not close securely, do not use the product and keep it away from children. If you think that batteries have been swallowed or are in any part of the body, seek medical attention immediately.

To view the Declaration of Conformity, please visit www.intertechno.at/CE
