A-FS 650 - Saw Alpha Tools - Free user manual and instructions

Brand	Alpha Tools
Model	A-FS 650
Product type	Universal sabre saw
Weight	2.8 kg
Power supply	230-240 V, 50 Hz
Number of strokes	500 - 3000 rpm (adjustable)
Stroke height	20 mm
Cutting depth (wood)	150 mm
Cutting depth (metal)	10 mm
Max. blade width	1.4 mm
Protection category	II
Sound pressure level	86.8 dB(A)
Sound power level	97.8 dB(A)
Delivery contents	Saw, wood blade, metal blade, manual, safety instructions
Main functions	Cutting wood, metal and plastics; variable speed; continuous lock; shoe adjustment; use as a jigsaw
Care and cleaning	Clean after each use with a damp cloth and soap; check the carbon brushes
Safety	Wear hearing protection, goggles and dust mask; read the instructions before use
Spare parts and repairability	Parts available via after-sales service (specify type and article number)
Warranty	5 years (subject to conditions)
Storage	Dark, dry place, frost-free, between 5 and 30 °C
Disposal	Recycle according to WEEE directive; do not dispose of with household waste

Frequently Asked Questions - A-FS 650 Alpha Tools

How to change the saw blade?

Unplug the tool. Turn the ring (a) on the blade holder (6) until the blade slides into the slot. Release the ring; it must return to its original position. Check that the blade is securely attached by pulling on it.

How to adjust the shoe?

Unplug the tool. Press the shoe locking button (7) on the right side to unlock, adjust the shoe, then press the button on the left side to lock again. Check that the shoe is securely fixed.

How to use the saw in jigsaw mode?

Place the saw on the material as shown in figure 4. Turn it on and push it against the material. Adapt the cutting speed to the material.

What accessories are included?

The saw is delivered with a wood blade, a metal blade, the manual and safety instructions.

How to adjust the cutting speed?

Use the adjustment wheel (8) to preselect the stroke rate between 500 and 3000 rpm. The speed must be adapted to the material.

What to do if the saw does not start?

Check that the plug is properly connected and that the voltage matches the data on the rating plate. If the problem persists, contact after-sales service.

What safety precautions should I take?

Always wear hearing protection, a dust mask and safety goggles. Read the safety instructions carefully before use.

How to clean the saw?

Unplug the tool. Clean with a damp cloth and a little soap. Do not use aggressive products. Ensure that no water enters the interior.

Where can I order spare parts?

To order parts, specify the type of device, the article number, the identification number and the part number. Visit www.isc-gmbh.info for prices.

How to recycle the saw at the end of its life?

Do not dispose of the saw with household waste. In accordance with the WEEE directive, take it to a collection point for recycling electrical appliances.

USER MANUAL A-FS 650 Alpha Tools

(vorderer Handgriff)

Schwungsgemissionswert ah = 16,083 m/s²
Unsicherheit K = 1.5 m/s²

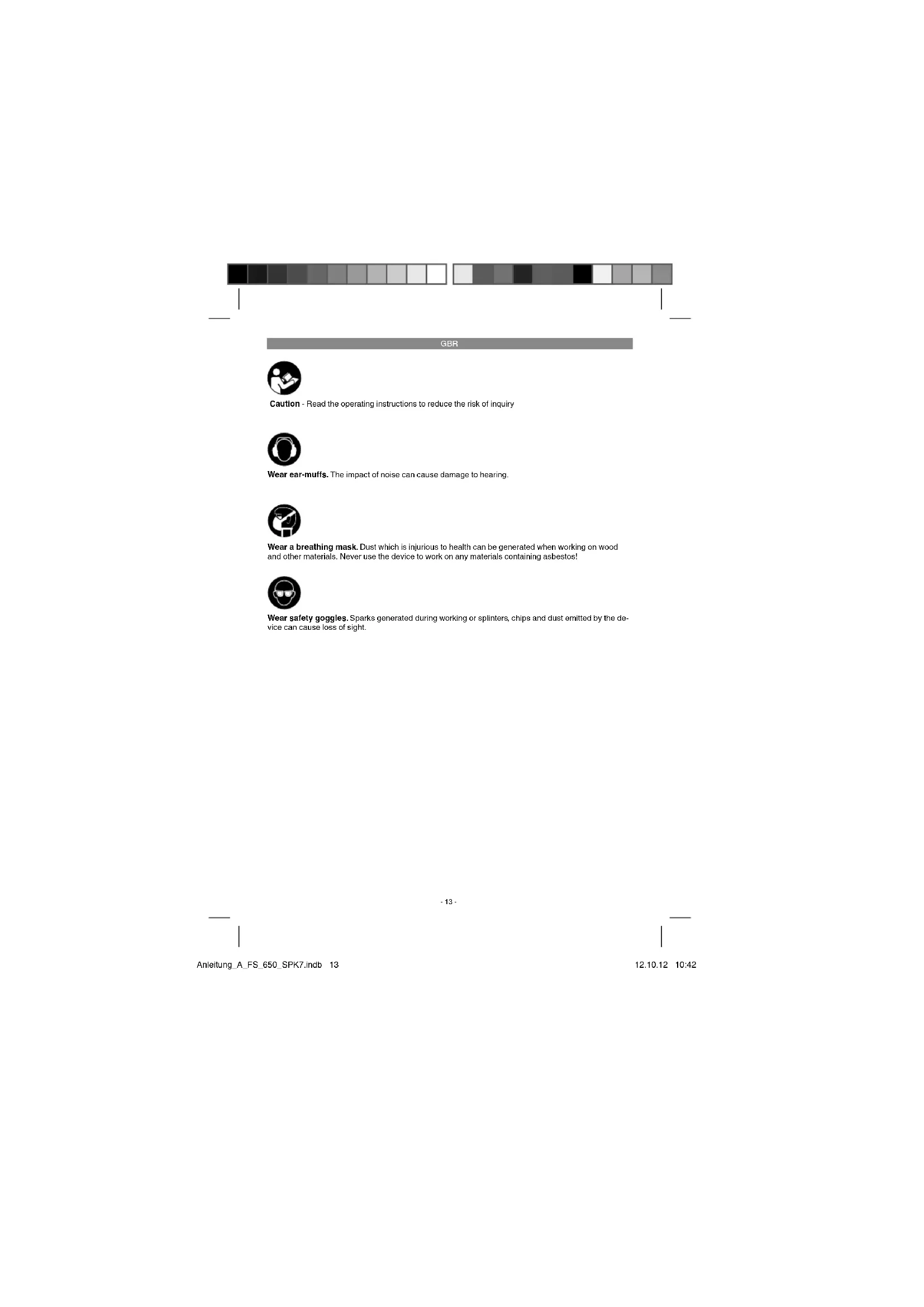

Caution - Read the operating instructions to reduce the risk of inquiry

Wear ear-muffs. The impact of noise can cause damage to hearing.

Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!

Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

·13·

GBR

Important!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Caution!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

2.1 Layout (Fig. 1+2)

1 On/Off switch
2. Button catch
3 Wood saw blade
4 Metal saw blade
5 Soleplate
6. Blade holder
7 Locking button for soleplate
8 Wheel selector for selecting the blade speed

2.2 Items supplied

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
  Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
  If possible, please keep the packaging until the end of the guarantee period.

Important!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff coating!

Universal saw
Saw blade for wood (1x)
Saw blade for metal (1x)
Original operating instructions
Safety information

3. Proper use

The multi-saw is designed for sawing wood, iron, non-ferrous metals and plastic. It should only be used with the appropriate saw blade.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Mains voltage: 230-240 V~50 Hz
Power: 650 W
Stroke rate: 500-3000 mird
Stroke height: 20 mm
Cutting depth in wood: 150 mm
Cutting depth in iron: 10 mm
Maximum saw blade width: 1.4 mm
Protection class:
Weight: 2.8 kg

Sound and vibration

Sound and vibration values were measured in accordance with EN 60745.

Lsound pressure level 86.8 dB(A)
Kuncertainty 3 dB
LNa sound power level 97.8 dB(A)
Kuncertainty 3 dB

14

GBR

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with EN 60745.

Cutting wooden boards (front handle).

Vibration emission value ah = 16.083 m/s²
Uncertainty K = 1.5 m/s²

Cutting wooden boards (rear handle)

Vibration emission value ah = 13.588 m/s²
Uncertainty K = 1.5 m/s²

Cutting wooden beams (front handle)

Vibration emission value ah = 16.345m / s^2 Uncertainty K = 1.5m / s^2

Cutting wooden beams (rear handle)

Vibration emission value ah = 13.813m / s^2 Uncertainty K = 1.5m / s^2

Warning!

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect working order.
Service and clean the appliance regularly.
Adapt your working style to suit the appliance.
Do not overload the appliance.
- Have the appliance serviced whenever necessary.
Switch the appliance off when it is not in use.
Wear protective gloves.

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Always pull the power plug before making adjustments to the equipment.

5.1 Changing the saw blade (Fig. 2)

Always switch off and unplug the multi-saw before working on the machine or changing the saw blade.

Turn the ring (a) on the blade holder (6) as shown in Fig. 2 until the blade (b) lets itself be slipped into the slot of the blade holder (6).

When you now let go of the ring (a) again, the ring (a) should return to its starting position. If this fails to happen, try turning the ring (a) by hand into its starting position.

Pull on the blade to check whether it sits tightly in the holder.

5.2 Adjusting the soleplate (Fig. 3)

Important.

Pull out the power plug.

To adjust the soleplate, press the soleplate locking button (7) on the right-hand side (looking from the bottom) in order to unlock the soleplate (5). Set the required distance and press the soleplate locking button (7) on the left-hand side (looking from the bottom) in order to lock the soleplate again. Check that the soleplate is secure.

·15·

GBR

6. Operation

6.1 ON/OFF switch (Fig. 1/Item 1)

To switch on:

Press the ON/OFF switch

To switch off :

Release the ON/OFF switch

6.2 Locking button (Fig. 1/Item 2)

You can lock the ON/OFF switch (1) using the locking button (2) when the equipment is in operation. To switch off the equipment briefly hold down the ON/OFF switch (1).

6.3 Electronic stroke rate control

Use the wheel selector (8) to set the required blade speed.

The general rules for cutting speeds for cutting work apply.

6.4 Use as a jigsaw (Fig. 4)

Place the multi-saw on the material to be cut as shown in Fig. 4. Switch on the multi-saw and push it along against the material to be cut. Adapt your cutting speed to the material.

7. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  We recommend that you clean the device immediately each time you have finished using it.
  Clean the equipment regularly with a moist cloth and some soft soap. Do not use

cleaning agents or solvents; these could attack the plastic parts of the equipment. En

sure that no water can seep into the device.

8.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a quali ed electrician. Important! The carbon brushes should not be rep laced by anyone but a quali ed electrician.

8.3 Maintenance

There are no parts inside the equipment which require additional maintenance.

8.4 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Type of machine
Article number of the machine
Identification number of the machine
Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

9. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

10. Storage

Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.

·16·

GBR

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the ISC GmbH.

Subject to technical changes

17

GBR

Warranty certificate

Dear Customer,

In the unlikely event that your device develops a fault, we are truly sorry for this, and suggest that you please contact our service department at the address shown on this guarantee card, or contact the nearest authorised DIY store. Please note the following terms, under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months. The guarantee is rendered null and void if any attempt is made to tamper with the device.
3. The guarantee is valid for a period of 5 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
4. In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Also refer to the restrictions of this warranty concerning wear parts/consumables and missing parts as set forth in the warranty conditions in these operating instructions.

·18·
