skimmarine 300 - Aquarium filter EHEIM - Free user manual and instructions

Product type	Surface skimmer for saltwater aquarium
Brand	EHEIM
Model	skimmarine 300
Category	Aquarium filter
Maximum aquarium volume	300 L
Dimensions (H × W × D)	347 × 153 × 91 mm
Nominal power	7 W
Voltage / Frequency	220 - 240 V / 50 Hz
Flow rate	500 L/h
Cable length	1,5 m
Ambient temperature range	4 °C to 35 °C
Maximum immersion depth	1,0 m
Protection class	II (double insulation)
Protection rating	IPX8 (permanent immersion)
Main functions	Removal of metabolites, skimming, fine adjustment of air flow, ozone connection (∅ 6 mm)
Mounting	Magnetic bracket for glass mounting
Maintenance and cleaning	Drain the foam cup 1 to 2 times per week; complete cleaning monthly
Safety	Minimum distance of 30 cm from pacemakers; mandatory use of a residual current device (30 mA max)
Spare parts	Available (page 138 of the manual)
General information	Private indoor use; do not use dry; do not modify technically; only original spare parts

Frequently Asked Questions - skimmarine 300 EHEIM

What is the maximum aquarium volume for the EHEIM skimmarine 300?

The skimmer is designed for saltwater aquariums up to 300 liters.

How to install the skimmer in the aquarium?

The device attaches via magnetic bracket. Place one half of the magnet inside at the desired position, then approach the other half from outside by sliding it on the glass until they overlap.

What is the maximum immersion depth?

The maximum immersion depth is 1.0 meter.

How to adjust the skimmer for optimal operation?

After a break-in period of about one week, adjust the air regulator (central position at start) to obtain the desired skimming power. The water level should be between the 'water level max.' and 'water level min.' markers.

What to do if the skimmer does not produce foam?

Check that the pump is powered and that the impeller is not blocked. Clean the pump if necessary. Also ensure that the skimmer is positioned at the correct height and that the air intake is sufficient.

What are the electrical risks to consider?

The device is Class II and IPX8. It must be protected by a residual current device (30 mA max.). Always disconnect all devices before any intervention. Form a loop in the cable to prevent water infiltration into the socket.

How to clean the EHEIM skimmarine 300?

Empty the foam cup 1 to 2 times per week. Once a month, completely disassemble the skimmer and clean all parts under running water with a brush. Do not use hard objects or aggressive chemicals.

Can I use an ozone generator with this skimmer?

Yes, the device is designed for an ozone connection. Open the theoretical breakpoint on the cover and connect a ∅ 6 mm tube to the connection port.

How to resolve excessive noise?

Significant noise may be due to a dirty pump impeller or excess air. Clean the pump and/or reduce the air intake using the regulator.

Where to find spare parts?

Spare parts are listed on page 138 of the manual. Use only original EHEIM parts.

USER MANUAL skimmarine 300 EHEIM

Technical line drawing of an EHEM industrial control unit (no text or symbols on the device itself)

3549

de	Bedienungsanleitung
en	Operating manual
fr	Mode d'emploi
it	Istruzioni per l'uso
es	Manual de instrucciones
pt	Manual de instruções
nl	Bedieningshandleiding
da	Betjeningsvejledning
sv	Bruksanvisning
no	Bruksanvisning

fi	Käyttöohje
pl	Instrukcja obsługi
cs	Návod k obsluze
sk	Návod na obsluhu
hu	Használati utasítás
sl	Navodilo za upravljanje
ro	Manual de utilizare
ru	Руководство по обслуживанию
el	Однгієх хрі́юнє

A ① ② ① ② Ω

B wat wat ③

C ④ water level max. water level min. max min

D ⑤ EHEM maxmin

E ⑥ ⑦

F ⑧ ⑨

G ① ② ① ⑩

H ⑪ ⑫ ⑫ ② ⑬ ⑬

1 ⑭ ⑭

J

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion or assembly.

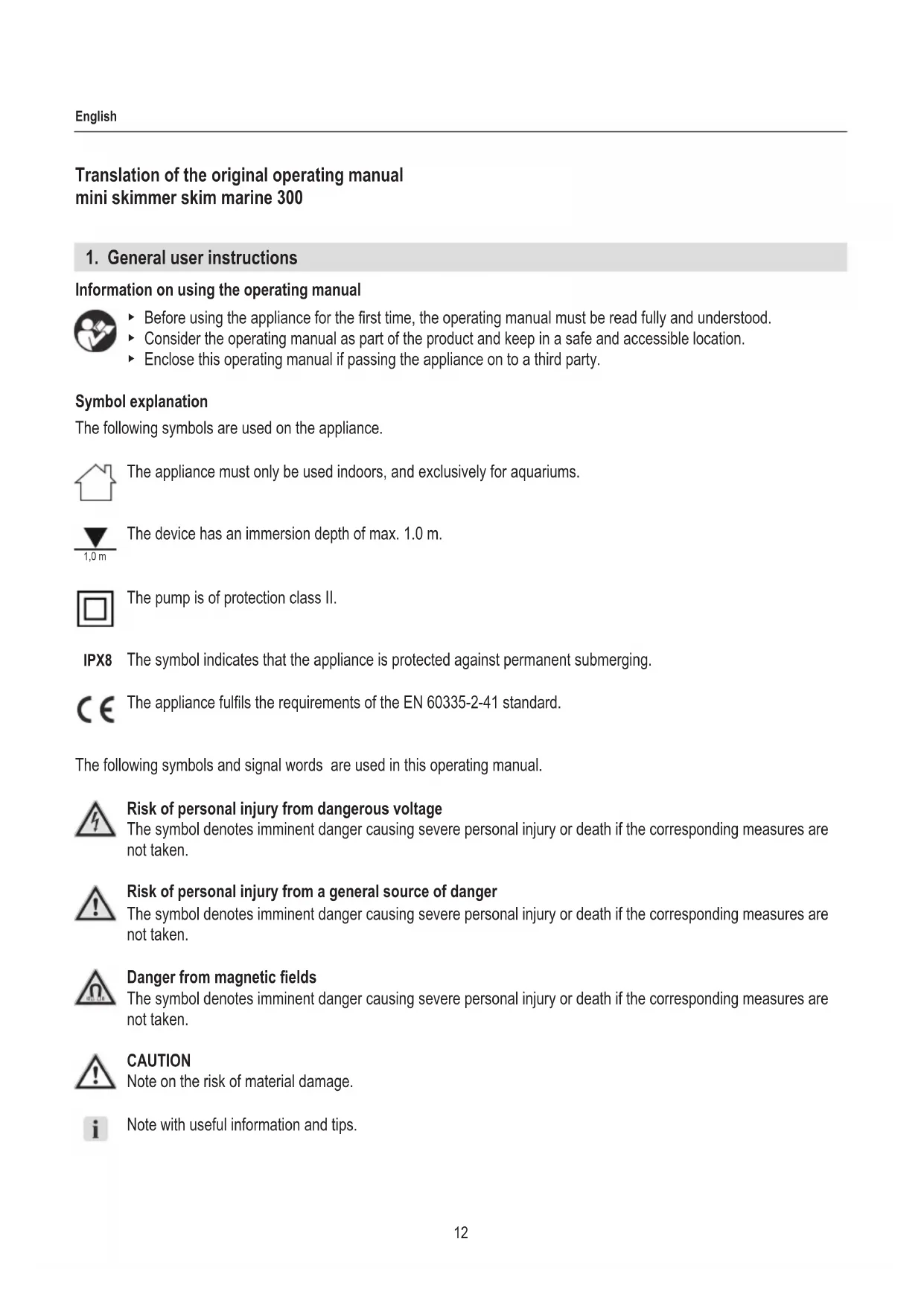

1. General user instructions

Information on using the operating manual

Before using the appliance for the first time, the operating manual must be read fully and understood.
- Consider the operating manual as part of the product and keep in a safe and accessible location.
- Enclose this operating manual if passing the appliance on to a third party.

Symbol explanation

The following symbols are used on the appliance.

The appliance must only be used indoors, and exclusively for aquariums.

The device has an immersion depth of max. 1.0 m.

The pump is of protection class II.

IPX8 The symbol indicates that the appliance is protected against permanent submerging.

The appliance fulfils the requirements of the EN 60335-2-41 standard.

The following symbols and signal words are used in this operating manual.

Risk of personal injury from dangerous voltage

The symbol denotes imminent danger causing severe personal injury or death if the corresponding measures are not taken.

Risk of personal injury from a general source of danger

The symbol denotes imminent danger causing severe personal injury or death if the corresponding measures are not taken.

Danger from magnetic fields

The symbol denotes imminent danger causing severe personal injury or death if the corresponding measures are not taken.

CAUTION

Note on the risk of material damage.

Note with useful information and tips.

☒A Reference to a figure, in this case, reference to figure A

▶ You are prompted for an action.

2. Application

The appliance and all parts included in the scope of delivery are intended for private use and must only be used:

• for the removal of metabolic products in saltwater aquariums up to approx. 300 l
  · indoors
  · in compliance with the technical data

The following limitations apply to the appliance:

· do not use for commercial or industrial purposes
· never operate without a water flow

VERY IMPORTANT SAFETY INSTRUCTIONS

WARNING- To guard against injury, basic safety precautions should be observed, including the following.

· FOR HOUSEHOLD USE ONLY
· WARNING! RISK OF ELECTRIC SHOCK!
This pump has not been investigated for use in swimming pools areas!
· DO NOT RUN DRY!

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

• DANGER. To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the following situations, do not attempt repairs by yourself; return the appliance to an authorized service facility for service or discard the appliance.
• If the appliance shows any sign of abnormal water leakage, immediately unplug it from the power source.
• Carefully examine the appliance after installation. It should not be plugged in if there is water on parts not intended to be wet.
• Do not operate any appliance if it has a damaged cord or plug, or if it is malfunctioning or if it is dropped or damaged in any manner.

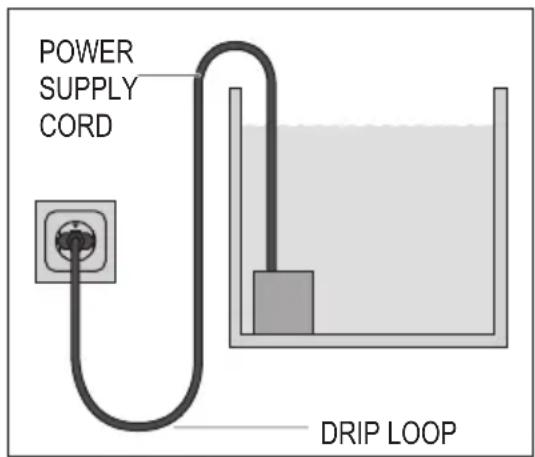

POWER SUPPLY CORD DRIP LOOP

- To avoid the possibility of the appliance plug or receptacle getting wet, position aquarium stand and tank to one side of a wall mounted receptacle to prevent water from dripping onto the receptacle or plug. A “drip loop”, shown in the figure, should be arranged by the user for each cord connecting the aquarium appliance to a receptacle. The “drip loop” is that part of the cord below the level of the receptacle, to prevent water travelling along the cord and coming in contact with the receptacle. If the plug or receptacle does get wet, DON'T unplug the cord; disconnect the fuse or circuit breaker that supplies power to the appliance. Then unplug and examine for presence of water in the receptacle.

• Close supervision is necessary when any appliance is used by or near children.
  · To avoid injury, do not contact moving parts.
• Always unplug an appliance from an outlet when not in use, before putting or taking off parts, and before cleaning. Never yank cord to pull plug from outlet. Grasp the plug and pull to disconnect.
• Do not use an appliance for other than intended use. The use of attachments not recommended or sold by the appliance manufacturer may cause an unsafe condition.
• Do not install or store the appliance where it will be exposed to the weather or to temperatures below freezing.
  • Make sure an appliance mounted on a tank is securely installed before operating it.
• Read and observe all the important notices on the appliance and its cord.
• If an extension cord is necessary, a cord with a proper rating should be used. A cord rated for less amperes or watts than the appliance rating may overheat. Care should be taken to arrange the cord so that it will not be tripped over or pulled.
• Check that the voltage shown on the label of the unit corresponds to the voltage of the mains supply.
• Disconnect all electrical appliances from the mains before placing hands in the water.
• The line cord of this unit cannot be replaced or repaired. Should the line cord become damaged the appliance must be discarded.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

3. Safety instructions

Risks for persons and property can arise from this appliance if the appliance is improperly used or not used as intended or if the safety instructions are not heeded.

For your safety

• Do not let the appliance packaging get into the hands of children as hazards can arise (danger of suffocation!).
• This appliance can be used by children from the age of 8 and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in the safe use of the appliance and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.
• Before use, carry out a visual inspection to ensure that the appliance, especially the mains cable and plug, are undamaged.

• Never use the appliance with a damaged mains cable.
  · Repairs must only be carried out by an EHEIM service centre.

• The appliance must not run dry. It must only be used for liquids from +4°C up to a maximum of +35°C.

• Do not carry the appliance by the mains cable, and to disconnect from the mains, always pull on the plug and not on the cable or appliance.
• Protect the mains cable against heat, oil and sharp edges.
• Only carry out the work described in these instructions.
• Never make technical modifications to the appliance.
• Only use original spare parts and accessories for the appliance.

- The appliance has magnets with strong magnetic fields that can affect pacemakers or implanted defibrillators (ICD). Maintain a distance of at least 30 cm between the implant and magnet.

- The pump must be protected by a residual current protection device with a maximum rated residual current of 30mA . Please contact an electrician if there are any questions or problems. - In the event of water leakage or when the residual current protection device is triggered, immediately disconnect all devices in the aquarium from the power supply. - If they are not being used, always disconnect all devices in the aquarium from the power supply before you install/remove any parts and before all cleaning and maintenance work.

- Protect the mains socket and mains plug against moisture. It is recommended to form a drip loop with the mains cable to prevent any water running along the cable to the mains socket.

- The electrical data of the pump must match the data of the power mains. This data is found on the type plate, the packaging and in these instructions.

- The mains connection cable of the pump cannot be replaced. If the cable is damaged, the pump must be scrapped.

4. Commissioning

Installation in the aquarium (☒A)

Attention! Strong magnets! Danger of crushing!

▶ Separate the magnets by twisting them.
- Place the magnets at a distance of 30 cm away from each other.

1. Remove all transport securing devices (e.g. adhesive tape, filling material etc.), particularly inside the skimmer.
2. With one hand, hold the skimmer at the desired position in the aquarium from the inside.
3. With the other hand, carefully place the magnet half with logo ② onto the glass panel at a distance from the skimmer (from the outside). Ensure that the magnet does not strike against the glass panel!
4. Move the magnet half in the direction of the skimmer on the glass until both magnet halves ①/② lie one above the other.

Laying the mains cable (☒B)

1. Guide the mains cable out of the small side opening and then guide it between the connecting pieces for cable guide ③.

The correct cable guide is indicated by a line.

5. Operation

Start position

1. Position the skimmer so that the water level of your aquarium is between water level max. and water level min. ④ on the skimmer (☒C).
2. Set the air adjustment controller to the middle position ( D ).

Following initial commissioning, the skimmer must “run in”. This can take up to one week. The skimmer usually starts to produce foam within the first 2 days. During this time, residual air may escape at the outlet. This is no cause for concern. Following the running-in period, no further residual air will escape.

Switching on the pump

1. Insert the mains plug in the mains socket. Attention: The pump starts immediately!

Switching off the pump

1. Remove the mains plug from the mains socket.

Fine adjustment (☒D)

For an optimal skimmer performance, a fine adjustment of the appliance should be carried out following the “running in” phase. Set the skimmer performance according to your requirements via the air adjustment controller (☒C).

Ozone connection (☒E)

1. Remove the cover and open the predetermined breaking point⑥ for the hose introduction.
2. Remove the protective sleeve.
3. Attach the hose ( 6 mm) for the ozone feed to the connecting piece ⑦.

6. Maintenance

Attention! Electrocution!

▶ Before all maintenance work, remove the mains plug.

Caution! Material damage.

- Do not use hard objects or aggressive cleaning agents for cleaning.

The following sections describe maintenance work necessary for optimum and fault-free operation. Regular maintenance prolongs the service life and assures functionality of the appliance over a long period.

Weekly maintenance work

1. Empty the foam cup once or twice a week, as required.
2. Check the appliance for algae growth and dirt accumulation.

In the event of algae growth and dirt accumulation, proceed as follows:

1. Remove the mains plug of the pump.
2. Hold the skimmer with one hand.
3. With the other hand, move the magnet halves with logo on the glass panel away from the skimmer.
4. Remove the skimmer.
5. Clean the inlet and outlet openings of the housing, as well as the baffle plate, under a stream of water using a brush.

Monthly maintenance work

Depending on the degree of contamination, we recommend that you completely disassemble and clean the appliance once every month. To do so, proceed as follows:

Disassembling and cleaning the appliance

1. Before maintenance work, remove the mains plug of the pump.
2. Hold the skimmer with one hand.
3. With the other hand, move the magnet halves with logo on the glass panel away from the skimmer.
4. Remove the skimmer.
5. Remove the foam cup ⑧ from the housing ⑨ (☒F).
6. Press the latches inwards and pull the baffle plate ⑩ out of the housing from below (☒G).
7. Pull the side parts of the cover ⑬ gently outward and tilt the cover forward (☒H).
8. Pull the silicone tube ⑫ away from the angle joint ⑪ .
9. Remove the cover from the opening in the housing.
10. Pull the pump ⑭ out of the housing from above (☒I).
11. Using a brush, clean all components under a jet of water.

Disassembling and cleaning the pump (☒J)

1. Press both side latches of the pump cover inwards and pull the pump cover ^⑯ off the pump housing ^⑮ ab.
2. Pull the impeller ⑰, together with the axle grommets, ⑲ out of the pump housing.
3. Pull the axle ⑱ out of the impeller.
4. Using a brush, clean all components under a jet of water.

Assembly

1. Install the pump again in reverse order.
2. Install the appliance again in reverse order.

7. Clearing faults

Attention! Electrocution!

▶ Before clearing faults, remove the mains plug.

Faults Possible cause Remedy

Pump does not start	No mains voltage	▶ Check the mains voltage▶ Check the supply line
No air bubbles, the pump is not pumping	Mains plug is not inserted ▶ Insert the mains plug in the mains socket
	Impeller is blocked ▶ Clean the pump
Residual air at the outlet can occur after the water is changed or after cleaning		▶ this ends automatically after approx. 1 day
Dry foam, ineffective skimmer performance	Skimmer is too low ▶ Position the skimmer higher
	Skimmer is too high ▶ Position the skimmer lower
	Air volume too low ▶ Increase the air intake with the air adjustment controller
	Inlet and outlet openings dirty ▶ Clean the inlet and outlet openings of the housing and baffle plate
	Impeller is dirty ▶ Clean the pump
Moist foam, skimming too strong	Skimmer is too low ▶ Position the skimmer higher
	Air volume too high ▶ Reduce the air intake with the air adjustment controller
High noise generation	Impeller is dirty ▶ Clean the pump
	Air volume too high ▶ Reduce the air intake with the air adjustment controller

For other faults, please contact EHEIM Service.

8. Decommissioning

Storage

1. Take the appliance out of the aquarium.
2. Clean the appliance
3. Store the appliance in a frost-proof place.

Disposal

When disposing of the appliance, heed the respective statutory regulations.

Information on the disposal of electrical and electronic appliances in the European Union:

Within the European Union, disposal of electrically operated appliances is governed by national regulations that are based on the EU Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). The appliance may no longer be disposed of with the municipal or household waste. The appliance will be accepted free of charge at municipal collection points or recycling centres. The product packaging is made up of recyclable materials. Dispose of them in an environmentally responsible manner and take them for recycling.

9. Technical data

Rated power 7 W
Delivery rate 500 l/h
Dimensions (H × W × D) 347 × 153 × 91 mm
Cable length 1.5 m
Media temperature 4°C - 35°C
Mains voltage/frequency 220 - 240 V / 50 Hz

The technical data for other country variants can be found on the type plate.

10. Spare parts

See page 138.

Élimination/destruction

Exploded view diagram of a mechanical assembly with labeled components and part numbers

Reproduction or copying – even parts thereof – only with the express permission of the producer.
