Product type	External filter for ornamental pond with integrated UVC clarifier
Model	LOOPpro 38000
Brand	EHEIM
Dimensions (L × W × H) with UVC	750 × 640 × 435 mm
Water outlet diameter	75 mm
Permissible water temperature	+4 °C to +35 °C
Pump included	EHEIM FLOW6500
UVC clarifier included	EHEIM CLEARUVC-60
Filtration capacity	Up to 38,000 L/h (maximum flow rate)
Recommended pond volume	Up to 38,000 L (estimate)
Provided filter media	Filter sponge, baskets with EHEIM FILTERBIO, pre-filter pad
Main functions	Mechanical and biological filtration and UVC clarification
Backwash function	Yes (backwash nozzle included)
Recommended cleaning interval	Approximately every 4 weeks
Sponge replacement	Every 2 to 3 washes, replace 4 sponges at a time
UVC safety distance	At least 2 meters from accessible area
Minimum immersion depth of pump	20 cm (the pump must be submerged)
Winter storage	Frost-free after cleaning
Housing material	UV-resistant plastic (estimate)
Number of locking clips	6

Frequently Asked Questions - LOOPpro 38000 EHEIM

How often should I clean the EHEIM LOOPpro 38000 filter?

It is recommended to check the contamination level approximately every 4 weeks. Clean the system when the red area of the float becomes visible. Regular cleaning extends the life of the device.

How to replace the filter sponges?

Turn the sponge housing to the right, remove the sponge from the cartridge by pulling downwards, then replace it. To maintain bacteriological efficiency, only replace 4 sponges at a time, after 2 to 3 washes.

What filter media are included with the LOOPpro 38000?

The filter is supplied with a sponge filter cartridge, two baskets with EHEIM FILTERBIO, a pre-filter tray and a blue pre-filter pad.

Can I use this filter in a pond with fish?

Yes, the device is designed for cleaning ornamental ponds with or without fish. Observe the technical specifications and safety instructions.

How to prepare the filter for winter?

Clean the device thoroughly, then store it in a frost-free place. Disconnect the pump and UVC clarifier before storage.

What safety distance must be maintained around the UVC clarifier?

When the UVC clarifier is mounted, the safety distance must be at least 2 meters to avoid any risk of electric shock.

What are the technical characteristics of the included pump?

The supplied pump is an EHEIM FLOW6500. For detailed specifications (flow rate, power, delivery head), refer to the specific pump manual.

How to replace the UVC lamp of the clarifier?

Replacing the UVC lamp is not detailed in these instructions. Refer to the manual of the separately supplied EHEIM CLEARUVC-60 clarifier.

What to do if the filtration flow rate decreases?

Check if the filters are dirty (clean them) and if the pump is blocked (clean the pump filter housing). For any other problem, contact EHEIM customer service.

What are the dimensions of the LOOPpro 38000 filter?

With the UVC clarifier mounted, the dimensions are 750 mm long, 640 mm wide and 435 mm high.

USER MANUAL LOOPpro 38000 EHEIM

3D technical illustration of a mechanical housing or enclosure with internal compartments and mounting holes (no text or symbols)

18000

F G ① ② ②

H min 20 cm min 200 cm

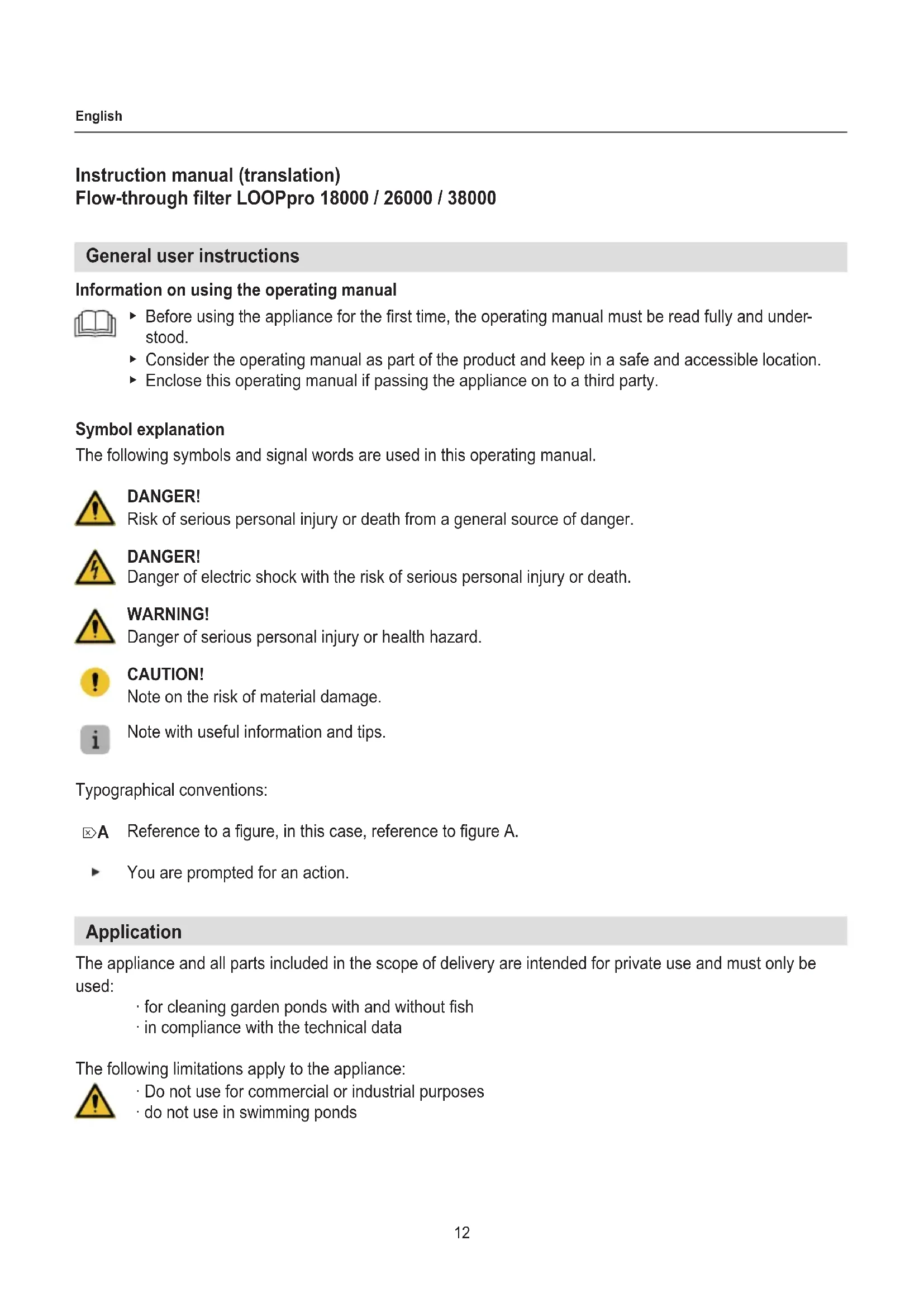

Instruction manual (translation)

Flow-through filter LOOPpro 18000 / 26000 / 38000

General user instructions

Information on using the operating manual

Before using the appliance for the first time, the operating manual must be read fully and understood.
- Consider the operating manual as part of the product and keep in a safe and accessible location.
▶ Enclose this operating manual if passing the appliance on to a third party.

Symbol explanation

The following symbols and signal words are used in this operating manual.

DANGER!

Risk of serious personal injury or death from a general source of danger.

DANGER!

Danger of electric shock with the risk of serious personal injury or death.

WARNING!

Danger of serious personal injury or health hazard.

CAUTION!

Note on the risk of material damage.

Note with useful information and tips.

Typographical conventions:

☒A Reference to a figure, in this case, reference to figure A.

▶ You are prompted for an action.

Application

The appliance and all parts included in the scope of delivery are intended for private use and must only be used:

· for cleaning garden ponds with and without fish
· in compliance with the technical data

The following limitations apply to the appliance:

· Do not use for commercial or industrial purposes
· do not use in swimming ponds

Safety

Risks for persons and property can arise from this appliance if the appliance is improperly used or not used as intended or if the safety instructions are not heeded.

For your safety

• Do not let the appliance packaging and small parts get into the hands of children or people who are unaware of how to handle them, as hazards can arise (danger of suffocation!). Keep away from animals.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are under the supervision of someone responsible for their safety or have received instruction on usage of the appliance from said person. Children should be supervised to ensure that they do not play with the appliance.
  · Only for European markets:
  This appliance can be used by children from the age of 8 if they are being supervised, have been instructed in the operation of the device and understand the associated dangers. Children must not play with the appliance. Children may not perform cleaning and maintenance tasks unless they are at least 8 years old and are being supervised.
• The appliance is operated using the pump and UVC clarifier supplied. Heed the operating manual, especially the chapters concerning the safety, commissioning, operating and maintenance of these components!
• Before use, carry out a visual inspection to ensure that the appliance is undamaged.
• Do not use the appliance if it is not working properly or is damaged.
• Only carry out the work described in these instructions.
  · Never make technical modifications to the appliance.
• Only use original spare parts and accessories for the appliance.

- When the UVC clarifier is fitted, the device's safety distance from the water must be at least 2 m.

Commissioning

Removing the filter container cover (☒A)

1. Open all six fastening clips (☒A0).
2. Lift the filter container cover off the filter container (☒A2).
3. Remove all components from the filter container.

Fitting the backwash connecting piece (☒B)

1. Fit the flat seal ② onto to backwash connecting piece ①.
2. Insert the backwash connecting piece from the inside through the opening in the filter container.
3. Fasten the backwash connecting piece with the union nut ③.
4. Insert the sealing washer ④ into the plug ⑤.
5. Seal the backwash connecting piece with the plug.

Installing the UVC clarifier (☒C)

1. Slip one sealing washer ③ each onto the two threads of the UVC clarifier ④.

2. Insert the UVC clarifier through the openings in the filter container.

3. On the left side, fasten the UVC clarifier with the union nut ①.

4. On the right side, fasten the UVC clarifier with the plug ②.

Use the spanner included in the scope of delivery for installing the union nut and the plug.

Fitting the hose connecting piece (☒D)

1. Slide the union nut ③ onto the hose connecting piece ②.
2. Insert the seal ① into the union nut.
3. Screw the hose connecting piece onto the UVC clarifier with the union nut.

Inserting the filter (☒E)

1. Check the correct fit of the seal ⑤ in the filter insert ①.
2. Check the correct fit of the seal ⑥ in the prefilter tub ③.
3. Fill the two filter baskets ② with one bag of EHEIM FILTERBIO ⑦ each and rinse them out with running water.

Make sure that the filter baskets are not filled to overflowing!

1. Insert the filter in the filter housing in the following order:

① Filter insert with filter foams
② Filter baskets with EHEIM FILTERBIO ⑦
③ Prefilter tub
④ Blue prefilter mat

1. Place the filter container cover onto the filter container and close it using all six fastening clips.

Installing the pump connection (☒H)

1. Screw the hose connecting piece into the pump.
2. Use the spiral hose to connect the hose connecting piece of the pump with the hose connecting piece of the UVC clarifier.

We recommend fastening the hoses with hose clamps.

Connecting the outlet pipe (optional)

Optionally, you can connect the extension pipe (∅ approx. 75 mm) to the outlet pipe.

Operation

DANGER! Electric shock!

- When the UVC clarifier is fitted, the device's safety distance from the water must be at least 2 m.

DANGER!

- Heed the operating manual for the UVC clarifier and the pump, especially the chapters on safety, commissioning and operation!

1. Place the filter on the pond bank (☒H).

2. Place the pump on a solid surface as horizontal as possible in the pond so that the filter housing of the pump is covered by at least 20 cm of water. Pay attention to the maximum pond depth (see Technical data).

Switching on the pump and UVC clarifier

1. Insert the respective mains plug into the mains socket.

Attention: The pump starts immediately!

Switching off the pump and UVC clarifier

1. Remove the respective mains plug from the mains socket.

Maintenance

DANGER! Electric shock!

▶ Before all maintenance work, disconnect the mains plugs of the pump and the UVC clarifier.

DANGER!

- Heed the operating manual for the UVC clarifier and the pump, especially the chapters on safety and maintenance.

CAUTION! Material damage.

- Do not use hard objects or aggressive cleaning agents for cleaning.

The following sections describe maintenance work necessary for optimum and fault-free operation. Regular maintenance prolongs the service life and assures functionality of the flow-through filter over a long period.

Contamination indicator(☒F)

The flow-through filter has a contamination indicator. Check the contamination approximately every 4 weeks.

- Clean the flow-through filter when the red area of the float is visible.

The pump must be switched on to correctly indicate the level of contamination.

Cleaning

1. Remove the mains plugs of the pump and the UVC clarifier.
2. Open all six fastening clips and remove the cover of the filter container (☒A).
3. Remove all filters from the housing (☒E).
4. Clean all filters under cold, running water.
5. Clean the inside of the filter container with a water jet.
6. Re-insert the filters in reverse order and close the filter container ( E ).

Replacing the filter foams

Recommended maintenance

The filter foams should be replaced after every second or third cleaning. In order to maintain the bacteriological filter effect, only four foams may be replaced at a time.

1. Turn the receptacle ① of the filter foam ② to the right (☒G0).
2. Pull the filter foam downwards, and out of the filter insert (☒G2).
3. Remove the filter foam from the receptacle.
4. Fit the new filter foam onto the receptacle.
5. Install the filter foam again in reverse order.

Clearing faults

DANGER! Electric shock!

▶ Before clearing faults, remove the mains plug.

Fault Possible cause Remedy
Filter capacity decreases Filters are soiled ▶ Clean the filter

Pump is soiled ▶ Clean the filter housing of the pump (see the instruction manual of the pump)

For other faults, please contact EHEIM Service.

Technical data

LOOPpro 18000 26000 38000
Type 5217 5218 5219
Pump FLOW5000 FLOW6500 FLOW6500
UVC clarifier	CLEARUVC-24	CLEARUVC-36	CLEARUVC-60
Dimensions with UVC clarifier (L×W×H)	750×640×335 mm	750×640×435 mm	750×640×435 mm
Water outlet	∅ 75 mm
Media temperature	+4°C – +35°C

The technical data of the pump and the UVC clarifier are found in the associated operating manuals.

Decommissioning

Storing and overwintering

1. Clean the appliance
2. Store the appliance in a frost-proof place.

Disposal

When disposing of the appliance, pay attention to the relevant statutory regulations.

The appliance may no longer be disposed of with the municipal or household waste. The appliance will be accepted free of charge at municipal collection points or recycling centres. The product packaging is made up of recyclable materials. Dispose of them in an environmentally responsible manner and take them for recycling.

Spare parts

See page 3.

Storing and overwintering

1. Clean the appliance
2. Store the appliance in a frost-proof place.

Disposal

When disposing of the appliance, pay attention to the relevant statutory regulations.

The appliance may no longer be disposed of with the municipal or household waste. The appliance will be accepted free of charge at municipal collection points or recycling centres. The product packaging is made up of recyclable materials. Dispose of them in an environmentally responsible manner and take them for recycling.

Recambios

Ver página 3.

Reproduction or copying – even parts thereof – only with the express permission of the producer.
