Brand	EHEIM
Model	eXperience 150 (ref. 2422/2424)
Product type	External filter for aquarium
Usage	Aquarium keeping, freshwater and saltwater, indoor use
Delivery contents	Motor head, tank, white filter wadding, blue filter foam, filter baskets, connection with shut-off valves, intake pipe, strainer, elbow fitting, outlet tube, suction cups, hoses, petroleum jelly
Filter media	White filter wadding (single use), blue filter foam (reusable 2-3 times), biological SUBSTRAT
Number of filter baskets	2 (stackable)
Max. installation height	180 cm between water surface and filter bottom
Operating position	Vertical required
Connections	Hoses Ø 12 mm (original EHEIM recommended)
Shut-off valves	Integrated in connection (ON/OFF)
Tank closure	4 closing clips
Seal	Rubber O-ring (grease with petroleum jelly)
Housing material	Plastic (not specified)
Power supply	230 V / 50 Hz (estimate)
Power consumption	Not specified
Weight	Not specified
Dimensions (L x W x H)	Not specified
Cleaning of filter media	Rinse under running water; replace wadding at each cleaning
Pump maintenance	Disassemble impeller, clean with EHEIM brush ref. 4009580; rinse shaft carefully
Safety	Unplug before maintenance; do not use if cable damaged; keep away from children; magnetic fields (pacemakers)
Available spare parts	Filter wadding (ref. 2616225), filter foam (ref. 2616220), cleaning brush (ref. 4009580), etc.
Warranty	Not specified

Frequently Asked Questions - eXperience 150 EHEIM

How to install the EHEIM eXperience 150 filter?

Place the filter in the cabinet respecting a max height of 180 cm between the water surface and the filter bottom. Connect the hoses to the intake pipe and the outlet fitting. Open the shut-off valves (ON position). Prime the filter by separating the return hose from the outlet tube to establish water flow, then reconnect. Plug the filter into the mains.

How to clean the filter media?

Remove the white wadding and the filter baskets from the tank. Rinse the wadding and foam thoroughly under running water until the water runs clear. The white wadding is single-use (replace with a new one ref. 2616225). The blue foam can be reused 2 to 3 times. For the SUBSTRAT, mix about 1/3 old media with new to promote bacterial cultures.

What is the maximum installation height of the filter?

The distance between the aquarium water surface and the filter bottom must not exceed 180 cm to ensure optimal operation.

What to do if the filter does not start after maintenance?

Check that the shut-off valves are in ON position (open). Make sure the filter is properly primed: separate the return hose from the outlet tube to let water flow, then reconnect. Check that all seals are in place and the motor head is properly engaged. If the problem persists, check the power supply.

How to replace the filter wadding?

After unplugging the filter and closing the shut-off valves, open the clips and remove the motor head. Remove the used (white) wadding located above the last basket. Replace it with a new one (ref. 2616225) making sure not to place it under the basket handles. Close the filter and prime.

Can I use the EHEIM eXperience 150 filter in saltwater?

Yes, the filter is designed for freshwater and saltwater. The materials are resistant to salt water. Follow the same maintenance instructions.

How to maintain the filter pump?

Unplug the filter and close the valves. Remove the motor head. Unlock the pump closure ring by turning it to the left, then remove the cover, impeller and shaft. Clean the parts with the EHEIM brush ref. 4009580. Rinse the shaft carefully (fragile). Reassemble in reverse order and lock by turning to the right.

What types of filter media are supplied with the filter?

The filter is supplied with white filter wadding (mechanical filtration), blue filter foam (biological/mechanical filtration), and baskets for filter media like SUBSTRAT (sold separately). The wadding is single-use, the foam reusable 2-3 times.

How to prime the filter after a complete cleaning?

After reassembling the filter, open the shut-off valves (ON position). Separate the return hose from the outlet tube to allow water to flow by gravity. Wait for the tank to fill, then reconnect the hose. Plug the filter into the mains. Check the tightness of all connections.

What are the important safety instructions?

Always unplug all devices in water before placing hands in the water. Never use the filter if the cable is damaged. Operate the filter only in vertical position. Do not clean parts in the dishwasher. Keep away from children under 8 years old without supervision. Magnetic fields can affect pacemakers – observe the recommended safety distances.

USER MANUAL eXperience 150 EHEIM

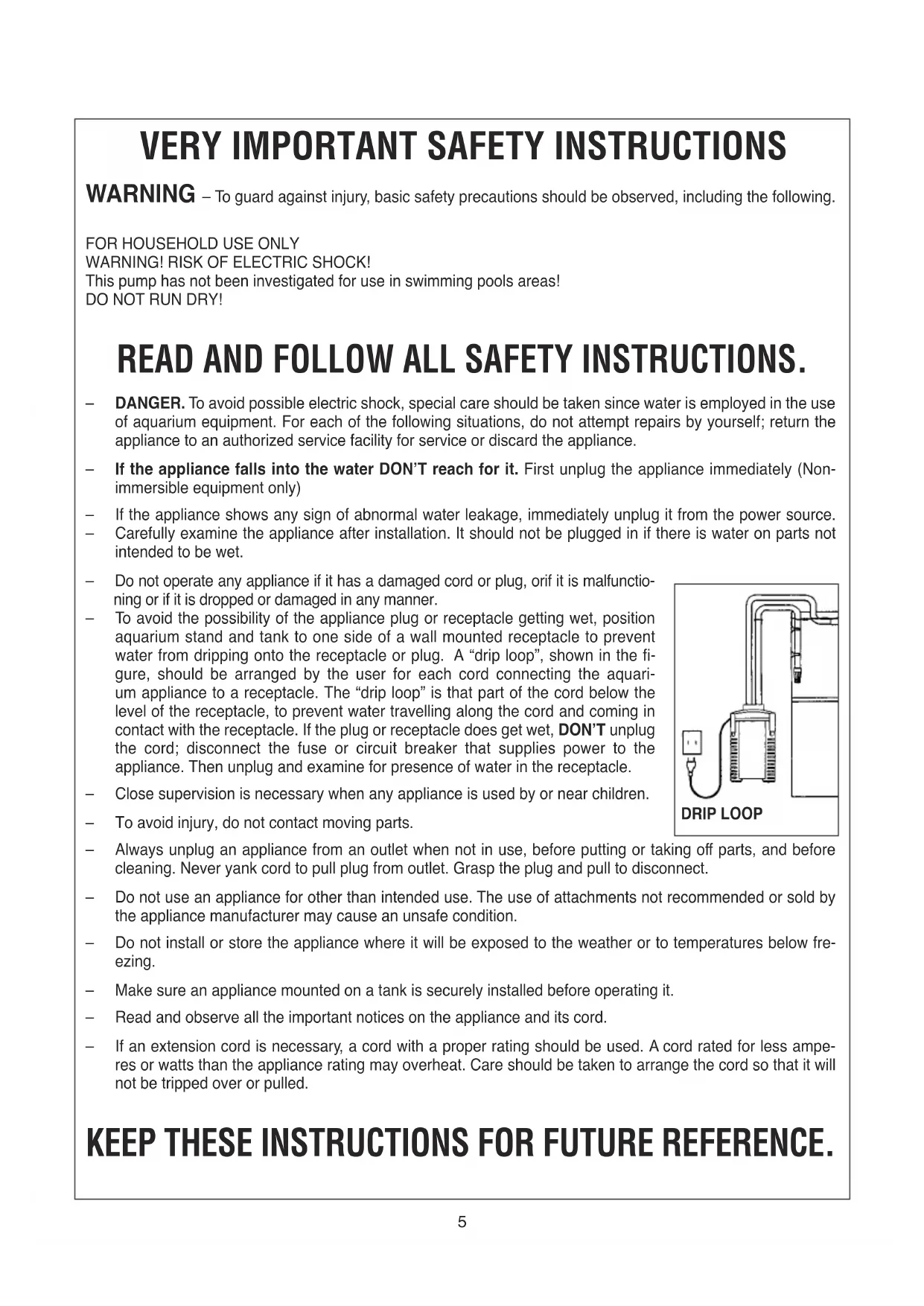

VERY IMPORTANT SAFETY INSTRUCTIONS

WARNING - To guard against injury, basic safety precautions should be observed, including the following.

This pump has not been investigated for use in swimming pools areas!

DO NOT RUN DRY!

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

DANGER. To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the following situations, do not attempt repairs by yourself; return the appliance to an authorized service facility for service or discard the appliance.
If the appliance falls into the water DON'T reach for it. First unplug the appliance immediately (Nonimmersible equipment only)
If the appliance shows any sign of abnormal water leakage, immediately unplug it from the power source.
- Carefully examine the appliance after installation. It should not be plugged in if there is water on parts not intended to be wet.
- Do not operate any appliance if it has a damaged cord or plug, orif it is malfunctioning or if it is dropped or damaged in any manner.

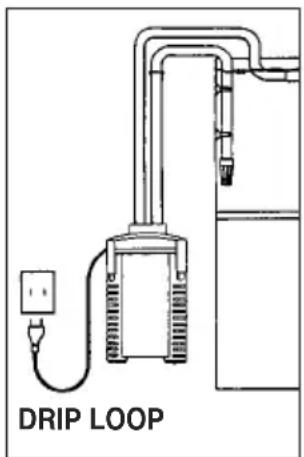

- To avoid the possibility of the appliance plug or receptacle getting wet, position aquarium stand and tank to one side of a wall mounted receptacle to prevent water from dripping onto the receptacle or plug. A "drip loop", shown in the figure, should be arranged by the user for each cord connecting the aquarium appliance to a receptacle. The "drip loop" is that part of the cord below the level of the receptacle, to prevent water travelling along the cord and coming in contact with the receptacle. If the plug or receptacle does get wet, DON'T unplug the cord; disconnect the fuse or circuit breaker that supplies power to the appliance. Then unplug and examine for presence of water in the receptacle.
- Close supervision is necessary when any appliance is used by or near children.
- To avoid injury, do not contact moving parts.
Always unplug an appliance from an outlet when not in use, before putting or taking off parts, and before cleaning. Never yank cord to pull plug from outlet. Grasp the plug and pull to disconnect.
- Do not use an appliance for other than intended use. The use of attachments not recommended or sold by the appliance manufacturer may cause an unsafe condition.
- Do not install or store the appliance where it will be exposed to the weather or to temperatures below freezing.
- Make sure an appliance mounted on a tank is securely installed before operating it.
- Read and observe all the important notices on the appliance and its cord.
If an extension cord is necessary, a cord with a proper rating should be used. A cord rated for less amperes or watts than the appliance rating may overheat. Care should be taken to arrange the cord so that it will not be tripped over or pulled.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Thank you

for buying a new external filter EHEIM eXperience. It gives you optimum performance with excellent reliability and great effectiveness. The large container volume - combined with a balanced combination of filter media - guarantees highly effective disposal of pollutants.

Safety instructions

For indoor use only. For use with aquariums. The aquarium filter is for domestic use only.

All electrical equipment in the water must be disconnected from the mains during care and maintenance work. It is imperative to disconnect the filter from the mains prior to opening it.

The connecting line of this device can not be replaced. When the line is damaged, the device must no longer be used. Never carry the device by the cable; do not bend the cable.

This equipment can be used by children above the age of 8 or by persons with reduced physical, mental or sensory capacities or a lack of experience or knowledge, provided they are supervised or have received instruction in the safe use of the equipment and therefore understand the risks involved. Do not allow children to play with this equipment. Do not allow children to clean or conduct user maintenance without supervision.

20 cm Notice: These devices produce magnetic fields which might cause electronic and mechanical disturbances or damages. This also refers to pacemakers.

Please consult the manuals of medical equipment for the required safety margins.

Attention: Maintenance work presents the risk of crushing th fingers due to high magnetic forces.

For your own safety, we recommend to form a drip loop with the connection cable to prevent any water running along the cable from intruding into the socket.

When using a multiple socket or an external power supply unit, position them atop the filter's power connection.

Since a wide variety of varnishes and polishes are used when processing timer, the appliance feet can leave visible traces on furniture or parquet floors as a result of chemical reactions. Therefore the device should not be placed on unprotected wooden surfaces.

To achieve optimal operational safety there must be a maximum of 180 cm between the surface of the water and the bottom of the filter.

Attention: Filter must always be operated in an upright position only.

Take the necessary precautions when handling components that can discharge static electricity.

Do not clean the unit - or parts of it - in the dishwater. Not dishwater resistant!

Do not dispose of this product as normal household waste. Take it to your local refuse collection side.

The product is qualified in accordance with the respective national regulations and guidelines and meets EC standards.

External filter 2422 and 2424 for fresh and sea water

① Pump head ② Sealing gasket ③ Fine filter pad (white) ④ Coarse foam filter pad (blue) ⑤ Filter media containers ⑥ Rubber hermetic seals ⑦ EZ clips ⑧ Filter canister ⑨ Integrated double tap connector ⑩ Hose clamp ⑪ Intake pipe ⑫ Intake strainer ⑬ Security outlet pipe ⑭ Spray bar and end cap ⑮ Suction cup with clips ⑯ Tubing ⑰ Vaseline.

When unpacking, please check to ensure that all parts have been included.

Installation

(1) Flip all four EZ clips open and push upwards. With the help of the two recessed lid handles, the pump head of the filter can be easily lifted off.
(2) Remove fine filter pad and take out each media container by grabbing the retractable handles and pulling upwards.
(3) Fill the filter media containers with EHEIM filter media to achieve best results.

The lower filter tank is to be filled with EHEIM filter pads.

Fill the second container with the biological media SUBSTRAT to just below the edge.

Attention: Do not overfill. Do not clog flow-through pipe.

(4) Thoroughly rinse the filter media in the containers under running water until all cloudiness has disappeared. Place the container with the blue filter pad in the filter canister and firmly press downwards until it rests on the support frames. This guarantees an hermetic seal between media containers and canister.
(5) Insert the second media container in the same manner. Make sure the flow-through pipe openings line up on top of each other and that the 2 rubber seals are correctly fitted on the openings, so as to achieve a hermetic seal.

Lower each retractable handle and ensure that both media containers lie flush on top of each other. Then insert the fine filter pad (white) in such a manner that the round cut-out lines up with the respective flow-through pipe opening.

Attention: Fine filter pad (white) should not be placed under the retractable handle of the media container.

(6) Check to ensure that the sealing gasket on the pump head of the filter is not soiled and that it is properly placed into its groove.
(7) Place the pump head onto the filter canister so that the input connector of the pump head is lined up with the input guide of the media containers. Close all four EZ clips.
(8) Attention: Before the integrated double tap connector is inserted into the pump head of the filter, examine both o-rings for damage and correct fitting. Lightly grease the o-rings with Vaseline to help installation.
(9) Insert the integrated double tap connector with the locking clamp in an upright position into the opening on the pump head. To fasten the locking clamp into its sealed position push the handle downwards.

(10) Shut off the integrated double tap connector by shifting the two levers to the OFF position.
(11) Push the enclosed tubing onto the intake and output supports of the integrated double tap connector as far as they will go. Since this can be a relatively difficult task, soak the hoses in warm water beforehand to make them softer.

Note: It is very important that you use original EHEIM hoses only.

(12) Place the two-part hose clamp around the installed hoses, hang into the proper position and (13) clip it into place.
(14) Place the now ready to use filter into the lower cabinet of your aquarium stand and observe the prescribed installation height: the distance between water surface and base of the filter should not exceed 180~cm (5'11") in order to attain optimum functioning.
(15) Attach the intake strainer to the intake tube and fasten it onto the interior glass of the aquar

(16) ium with two clips and suction cups.
(17) Connect the security outlet pipe to the spray bar with a short piece of tubing and install in the aquarium with the clips and suction cups. Place on the rear or on one of the sides of the aquarium, depending on available space. Close the open side of the spray bar with the enclosed end cap.

Tip: The spray bar can either be installed below water level or just above the surface, depending upon the amount of oxygen-rich surface movement required.

(18) Guide the hoses from the filter outwards through the opening in the aquarium furniture and connect the installed intake pipe with the suction side of the filter, and the output pipe with the pressure side of the filter.

To achieve an even flow, be sure that the tubing is laid out smoothly and has no kinks; if necessary, shorten them.

Tip: If you lay the tubing into warm water for some time beforehand, they will become soft and possible kinks can be easily squeezed out.

Setting into operation

(19) Open the taps of the integrated double tap connector by shifting both levers to the ON position. Separate the output hose from the spray bar and suck strongly on the hose, to establish the syphon.
(20) Tip: Alternatively use the EHEIM Universal Installation Kit 1 (order no. 4004300, diam. 12 mm)
(21) or the EHEIM suction device (order no. 4003540). The canister will then automatically fill up with water.

Reconnect the hose to the spray bar.

(22) Tip: The water flow from the pump can be controlled by using the tap only on the pressure side (OUT).

Attention: Never reduce the pump output by closing the tap on the suction side (IN).

(23) Once again check all the connections for watertightness, then put the filter into operation by connecting the mains plug of the pump head.

Maintenance and Servicing

(24) Close both tap levers (OFF position). Gently pull the locking clamp upwards and the remove the integrated double tap connector from the pump head of the filter.
(25) Take the filter out of the cabinet by using the two recessed lid handles.
(26) Open all EZ clips and remove the pump head from the canister.
(27) In order to clean the pump chamber, turn the pump head upside down and open the pump cover by turning it anti-clockwise.
(28) Then remove the pump cover, impeller and shaft.
(29) Thoroughly clean pump parts, impeller chamber and cooling channel with EHEIM cleaning set (order no. 4009580). Carefully rinse off shaft (danger of breakage!), then put impeller back together again and insert into proper position.

Pay attention to the correct installation of shaft, bushings and pump cover. Lock pump cover by turning clockwise.

(30) Filter media: Remove filter pads and containers from the canister. Thoroughly wash out the filter media with used aquarium water – until no more clouding can be seen.

The fine filter pad (white) serves as mechanical fine filtration and should only be used once, since adhering dirt particles cannot be washed out completely. Use new pad, (order no. 2616225). The blue filter pad (1 x included in set, order no. 2616220) can be reused up to 2-3 times. Rinse thoroughly before using.

Tip: When renewing the SUBSTRAT media, retain 1/3 of used filter medium and mix with new material to speed-up bacteria recolonization.

(31) Wash out the filter canister and then place the media containers back in position. Press the first one down to the support frame, then insert the second one as far as it will go. In the process, the pipe flow-through openings of the media containers must lie on top of each other, and the rubber seals must be correctly fitted on the openings so as to achieve an hermetic seal.

Attention: Fine filter pad (white) should not be placed under the retractable handle of the media container.

Place the new filter pad on the top container. Check to ensure that the sealing gasket of the pump head fits properly and is clean. Then lightly lubricate the sealing gasket of the pump head with Vaseline. Place the pump head on the filter canister, close the EZ clips and place the filter into the cabinet.

Examine both o-rings on the double tap connector for damage and correct fitting and lightly grease them with Vaseline; insert and lock in place. After both of the tap levers on the integrated double tap connector have been opened (ON position), the filter will automatically fill up again with water and be ready for operation. Put the filter into operation by connecting the mains plug.

Note: All hose connections must be checked at regular intervals for correct fitting.

Attention: Filter must always be operated in an upright position only.
