USER MANUAL Professionel 5e 550 EHEIM

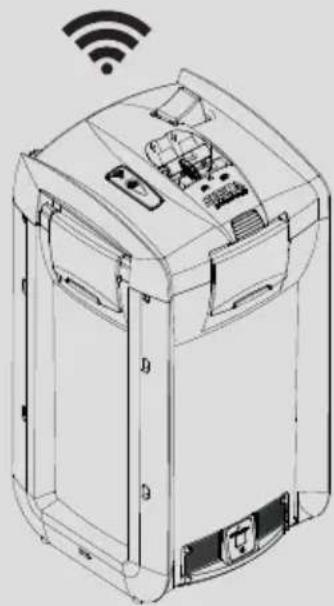

Line drawing of a device with Wi-Fi signal icon above, showing internal components and no text or symbols

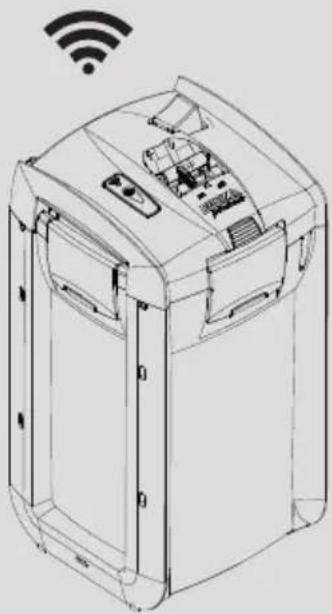

550 (Typ 2076)

Line drawing of a device casing with visible internal components and WiFi signal icon (no text or symbols)

800 (Typ 2078)

Line drawing of a device with labeled ports and Wi-Fi signal icon (no text or symbols)

600 T

(Typ 2178)
not for USA / CAN

de Bedienungsanleitung
en Operating Instructions
fr Mode d'emploi
nl Gebruiksaanwijzing
sv Bruksanvisning
no Bruksanvisning
fi Käyttöohje
da Betjeningsvejledning
it Istruzioni per l'uso
es Instrucciones de uso
pt Manual de instruções
el Οδηγίες χρήσης

cs Návod k obsluze
hu Kezelési utasítás
pl Instrukcja obsługi
sl Navodila za uporabo
sk Návod na obsluhu
ro Manual de folosința
tr Kullanım Kılavuzu
sr Uputstvo za rukovanje
bg Ръководство за експлоатация
ru Руководство по эксплуатации
zh 使用说明
ko 사용 설명서

Exploded view diagram of an EHEIM air purifier with numbered parts for identification

click EHEM

Diagram showing mechanical assembly steps with arrows indicating motion (no text or symbols)

Illustration of a connected power strip with a cable and terminal plug, no text or symbols present

Diagram of a curved pipe with attached circular components, showing fluid flow direction (no text or symbols)

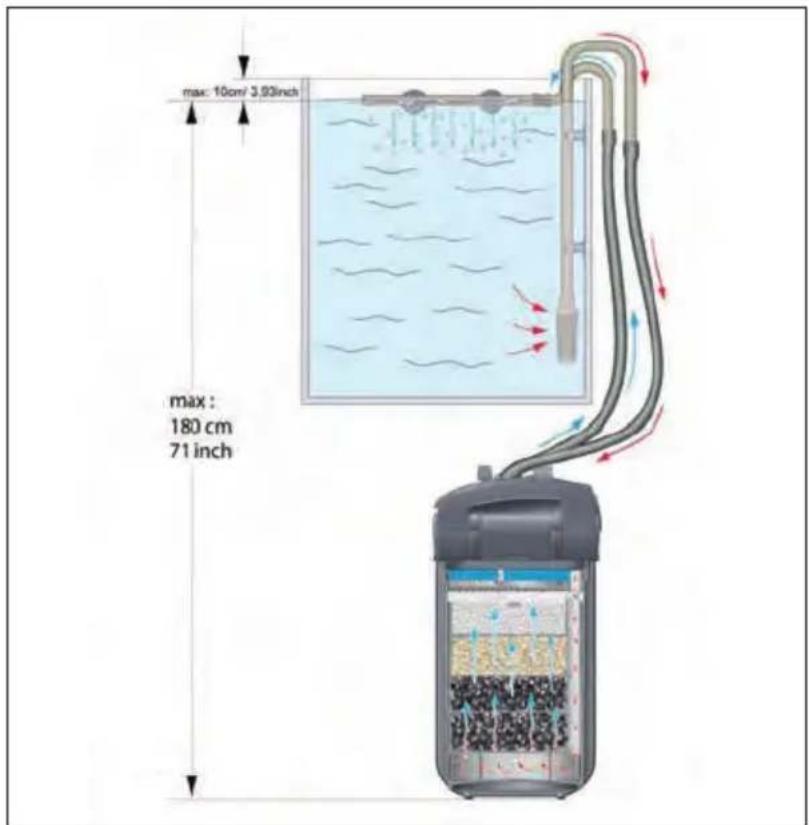

max: 10cm/ 3.93inch max: 180 cm 71 inch

5. (1. - 21.)

1. EHEM 2000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Illustration of two conveyor belts emitting powder under blue light, no text or symbols present

10.

max: 10 cm' 3,93 inch 17.

2.

6.

Pure mechanical diagram showing a lever and handle without any text, numbers, or symbols

18. EVEEM

3.

12.

Diagram of a water purifier with inlet and outlet pipes, showing liquid levels and red directional arrows (no text or labels)

4.

7. 6

Mechanical assembly diagram showing fluid flow with red arrows indicating direction (no text or symbols)

19.

8.

Mechanical clamp or clamp assembly with red arrows indicating force direction (no text or symbols)

20.

Warning sign and checkmark symbols on a surface, indicating warning and rejection status

9.

15. ENEM 2014

21. 1-2x

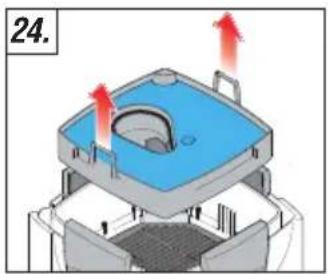

8.1 (22.-33.)

22.

Illustration of a hand pressing a blue plastic component with an upward arrow, no text or symbols present

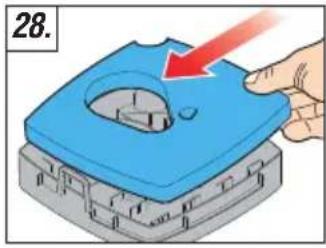

28.

Diagram of a mechanical component with a blue base and red directional arrows indicating motion (no text or symbols)

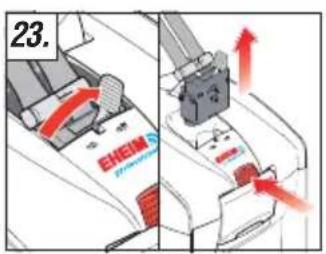

23. EHEM POTATO

Illustration of a hand pressing down on a blue plastic tray with a white spray or foam (no text or symbols)

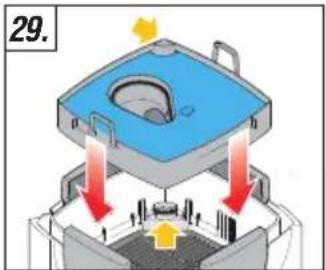

29.

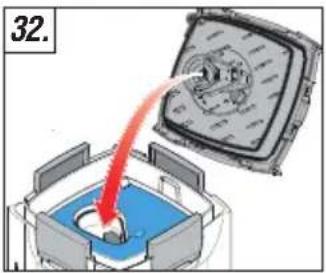

32.

3D diagram of a mechanical assembly with blue platform and red arrows indicating motion or force (no text or symbols)

Illustration of a water transfer machine with a green liquid flowing through it (no text or symbols)

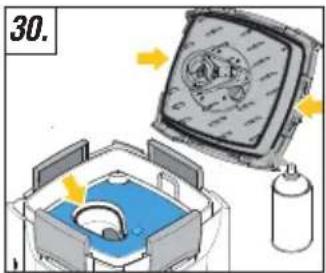

30.

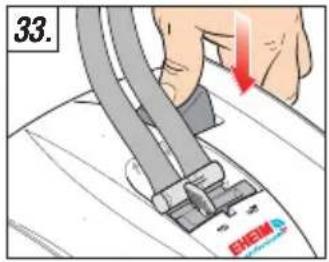

33. CHEM

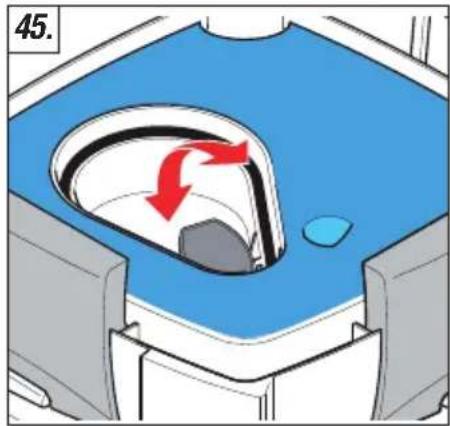

8.2 (34.-48.)

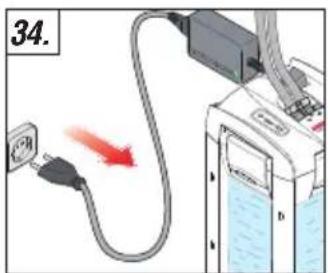

34.

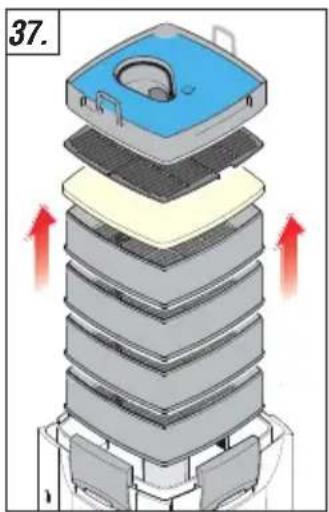

37.

Diagram of a mechanical component with layered structure and highlighted area (no text or symbols)

3D diagram of a layered material sample with a red arrow indicating a process or feature, no text or symbols present.

3D diagram of a mechanical component with red arrows indicating direction, no text or symbols present

Illustration of two grain processing containers with water spray, no text or symbols present

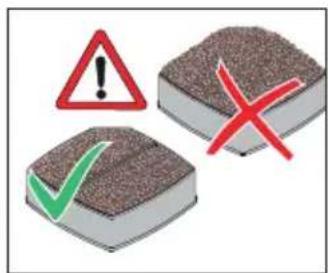

Warning sign and checkmark symbols on a surface, indicating alert and incorrect conditions

42.

43.

Diagram of a car interior with a blue roof and red directional arrows indicating flow or movement (no text or symbols)

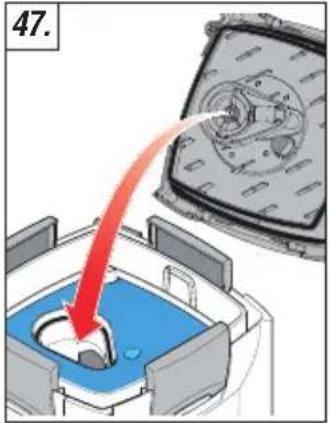

47.

3D diagram of a mechanical device with blue housing and red/grey arrows indicating motion or force directions (no text or symbols)

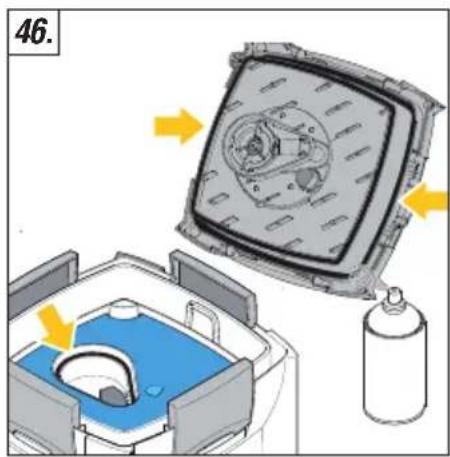

46.

3D diagram of a vehicle interior with red arrows indicating movement or force direction (no text or symbols)

52.

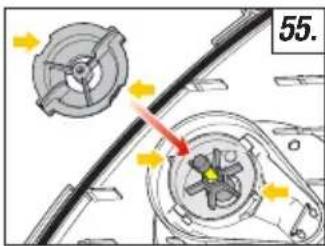

55.

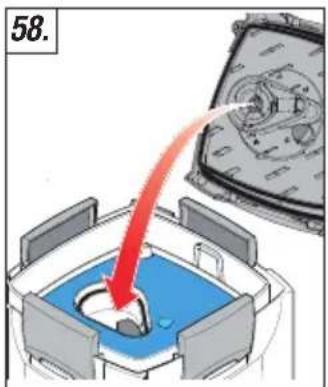

58.

Mechanical assembly diagram showing a rotating component with a highlighted arrow (no text or symbols)

53.

56.

Not included in scope of supply

Non inclus

Niet meegeleverd

IMPORTANT SAFETY INSTRUCTIONS

WARNING! RISK OF ELECTRIC SHOCK! This pump has not been investigated for use in swimmung pools areas! DO NOT RUN DRY!

WARNING – To guard against injury, basic safety precautions should be observed, including the following.

a) READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

b) DANGER – To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the following situations, do not attempt repairs by yourself; return the appliance to an authorized service facility for service or discard the appliance.

1) If the appliance falls into the water, DON'T reach for it! First unplug it and then retrieve it. If electrical components of the appliance get wet, unplug the appliance immediately.
2) If the appliance shows any sign of abnormal water leakage, immediately unplug it from the power source.
3) Carefully examine the appliance after installation. It should not be plugged in if there is water on parts not intended to be wet.
4) Do not operate any appliance if it has a damaged cord or plug, or if it is malfunctioning or has been dropped or damaged in any manner.
5) To avoid the possibility of the appliance plug or receptacle getting wet, position aquarium stand and tank to one side of a wall-mounted receptacle to prevent water from dripping onto the receptacle or plug.

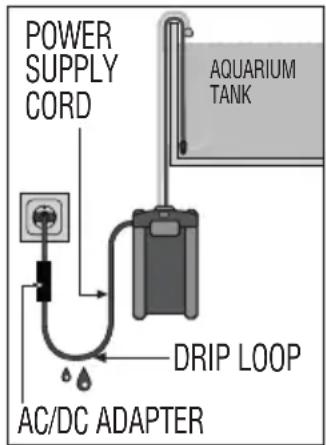

A "drip loop", shown in the figure, should be arranged by the user for each cord connecting an aquarium appliance to a receptacle. The "drip loop" is that part of the cord below the level of the receptacle, or the connector if an extension cord is used, to prevent water traveling along the cord and coming in contact with the receptacle.

If the plug or socket does get wet, DON'T unplug the cord. Disconnect the fuse or circuit breaker that supplies power to the appliance. Then unplug and examine for presence of water in the receptacle.

POWER SUPPLY CORD AQUARIUM TANK DRIP LOOP AC/DC ADAPTER

c) Close supervision is necessary when any appliance is used by or near children.
d) To avoid injury, do not contact moving parts or hot parts such as heaters, reflectors, lamp bulbs, and the like.
e) Always unplug an appliance from an outlet when not in use, before putting on or taking off parts, and before cleaning. Never yank cord to pull plug from outlet. Grasp the plug and pull to disconnect.
f) Do not use an appliance for other than intended use. The use of attachments not recommended or sold by the appliance manufacturer may cause an unsafe condition.
g) Do not install or store the appliance where it will be exposed to the weather or to temperatures below freezing.
h) Make sure an appliance mounted on a tank is securely installed before operating it.
i) Read and observe all the important notices on the appliance.
j) If an extension cord is necessary, a cord with a proper rating should be used. A cord rated for less amperes or watts than the appliance rating may overheat. Care should be taken to arrange the cord so that it will not be tripped over or pulled.
k) Use only the AD/DC adapter supplied with the filter. If it is to be used as a spare part, you must specify the EHEIM order number 7212538 for replacement.

1) "SAVE THESE INSTRUCTIONS".

FCC WARNING STATEMENT (USA only)

FCC CAUTION This device oo

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Translation of the original operating manual Aquarium exterior filters professionel 5e 550 and 800 Aquarium exterior filters professionel 5e 600T (not for USA / CAN)

1. General user instructions

Information on using the operating manual

Before using the appliance for the first time, the operating manual must be read fully and understood. Consider the operating manual as part of the product and keep in a safe and accessible location. Enclose this operating manual if passing the appliance on to a third party.

Symbol explanation

The following symbols are used on the appliance:

The appliance must only be used indoors, and exclusively for aquariums.

The appliance is of protection class I (professionel 5e 600T - Typ 2178).

The appliance is of protection class II.

The appliance is of protection class III.

IP X4

The symbol advises that the device is protected against splashed water.

The appliance is certified according to the relevant national regulations and directives, and conforms to EU standards.

The following symbols and signal words are used in this operating manual:

DANGER!

The symbol indicates imminent danger from electric shock that can result in death or serious injury.

DANGER!

The symbol indicates imminent danger that can result in death or serious injury.

WARNING!

The symbol indicates imminent danger that can result in moderate to minor injury or a health risk.

HOT SURFACE!

The symbol advises of an imminent risk from hot surfaces that can cause burn injuries.

CAUTION!

The symbol indicates the danger of material damage.

Note with useful information and tips.

Reference to a figure; in this case, reference to figure A.

You are prompted for an action.

2. Application

The appliance and all parts included in the scope of delivery are intended for private use and must only be used:

Aquarium external filter professionel 5e 550 and 800 (type 2076 and 2078)

• For the cleaning of aquarium water in fresh and salt water aquariums.
• indoors
  • in compliance with the technical data.

Aquarium external filte professionel 5e 600T (type 2178)

• for the cleaning of aquarium water in freshwater aquariums.
• indoors.
  • in compliance with the technical data.

The following limitations apply to the appliance:

• do not use for commercial or industrial purposes.
  • the water temperature may not exceed 35^ C.
• Corrosive, highly flammable, aggressive or explosive substances, foodstuffs and drinking water must not be conveyed.
• never operate without a water flow.

3. Safety instructions

Risks for persons and property can arise from this appliance if the appliance is improperly used or not used as intended or if the safety instructions are not heeded.

For your safety

• Do not let the appliance packaging and small parts get into the hands of children or people who are unaware of how to handle them, as hazards can arise (danger of suffocation!). Keep away from animals.
• Only for EU countries:

This appliance can be used by children from the age of 3 and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in the safe use of the appliance and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.

• This equipment is not intended for use by persons (including children) with limited physical, sensory or mental abilities or for persons with no experience or knowledge unless they are supervised by a person respond for safety or unless they have received from such a person instructions on how to use the equipment. Children should be supervised to ensure that they do not play with the equipment.
• Before use, carry out a visual inspection to ensure that the appliance, especially the mains cable and plug, are undamaged.
• Do not use the device if it does not function properly or if it is damaged.
• Never use the appliance with a damaged mains cable.
• The connecting line of this device can not be replaced. When the line is damaged, the device must no longer be used.
  • Repairs must only be carried out by an EHEIM service centre.
• Do not carry the appliance by the mains cable, and to disconnect from the mains, always pull on the plug and not on the cable or appliance.
• Protect the mains cable against heat, oil and sharp edges.
• Only carry out the work described in these instructions.
• Never make technical modifications to the appliance.
• Only use original spare parts and accessories for the appliance.
• The device should be protected by means of a residual current protective device with a maximum rated residual current of 30 mA. Ask your electrician.
• If they are not being used, always disconnect all devices in the aquarium from the power supply before you install/remove any parts and before all cleaning and maintenance work.
• Protect the mains socket and mains plug against moisture. It is recommended to form a drip loop with the mains

cable to prevent any water running along the cable to the mains socket.

• The electrical data of the power supply must match the data of the power mains. This data is found on the type plate of power supply, the packaging and in these instructions.
  • This appliance working without the earth connection (type 2076 / 2078)
• Use only the AC/DC adapter supplied with the filter. If it is to be used as a spare part, you must specify the EHEIM order number 7212538 for replacement.
• This product contains a button cell battery that cannot be replaced by the user and must be disposed correctly.

POWER SUPPLY CORD DRIP LOOP AC/DC ADAPTER

Only for exterior filters professionnel 5e 600T (Type 2178)

• Risk of burn injuries! The device is very hot during and directly after operation. Never touch hot parts or the heater unit 37 !
• Never operate the heater dry. DANGER OF BURNS!

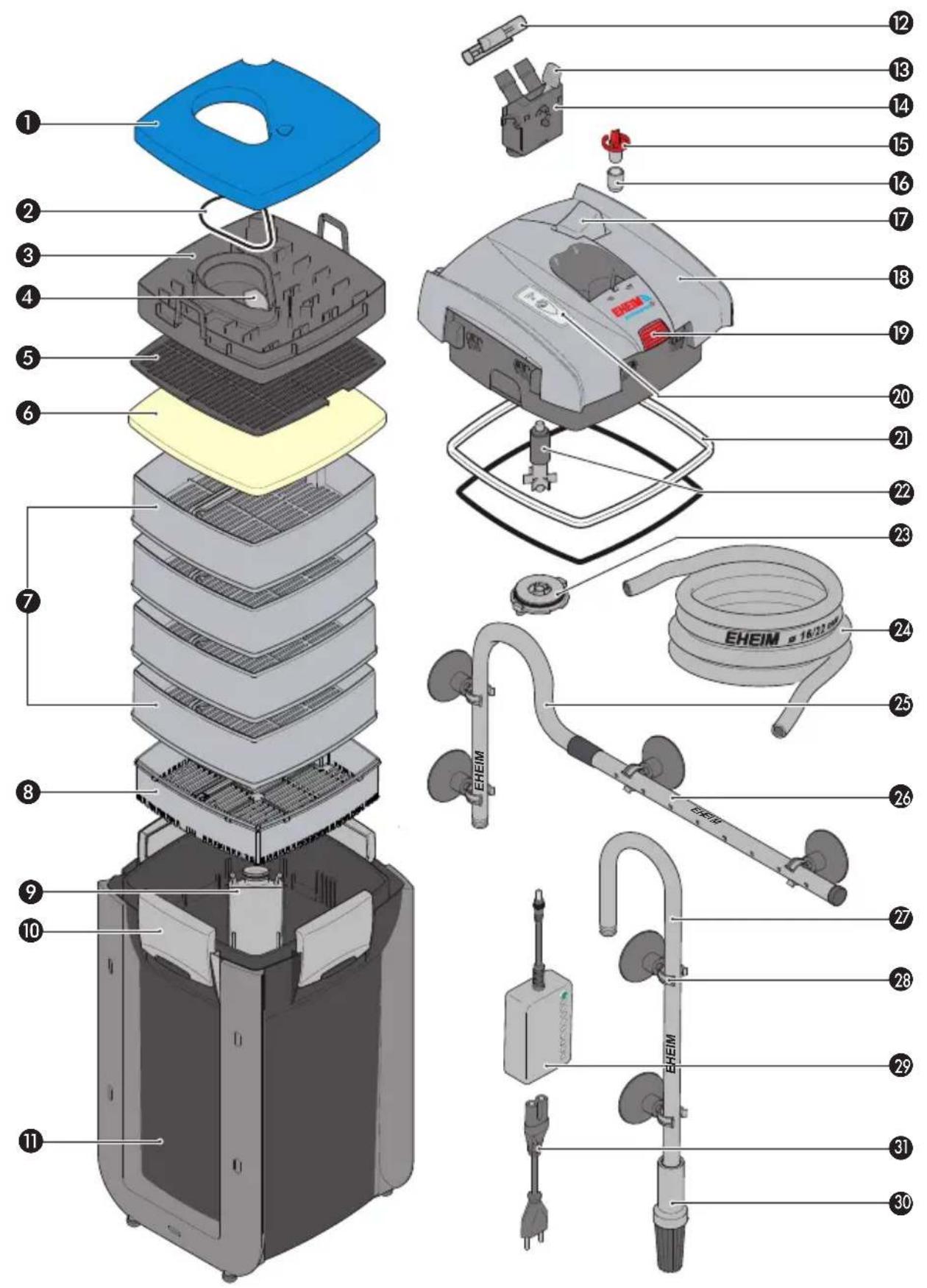

4. Component overview (see I)

① Filter mat blue ② Prefilter seal ③ Prefilter ④ Prefilter flap ⑤ Cover grating ⑥ Filter pad white ⑦ Filter inserts ⑧ Filter insert only for 2076/2078 ⑨ Partition wall ⑩ Locking clips ⑪ Filter tank ⑫ Hose locking device ⑬ Locking lever ⑭ Safety adapter ⑮ Bracket ⑯ Float ⑰ Suction aid ⑱ Pump head ⑲ Adapter bar ⑳ Status LED ㉑ Profile seal ㉒ Pump wheel ㉓ Pump cover ㉔ Hoses ㉕ Outlet elbow ㉖ Nozzle pipe ㉗ Suction pipe ㉘ Sucker with terminal clamp ㉙ Power supply unit ㉚ Suction basket ㉛ Power cable

5. Connection and commissioning (Filter) (1. - 21.)

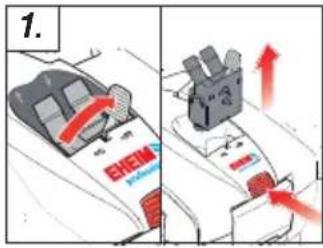

1. Set the locking lever 13 to „OFF“ and press the adapter bar 19 until the safety adapter 14 disengages.
2. Open the locking clips 10 by pulling the clips' lower edge.

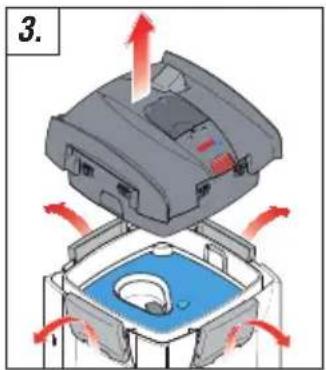

3. Remove the pump head 18.

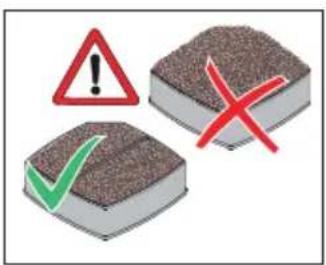

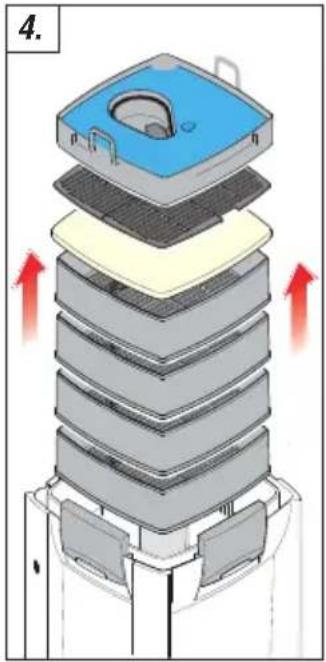

4. Remove all inserts and fill with filter media (see Fig. III) Caution: Do not overfill filter inserts as, otherwise, their accurate fit is no longer assured.

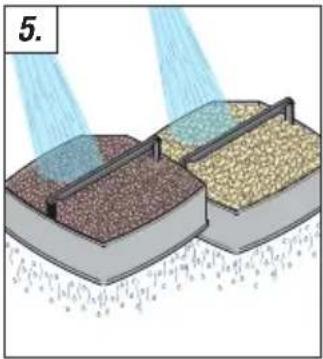

5. Rinse the filled filter inserts with water.

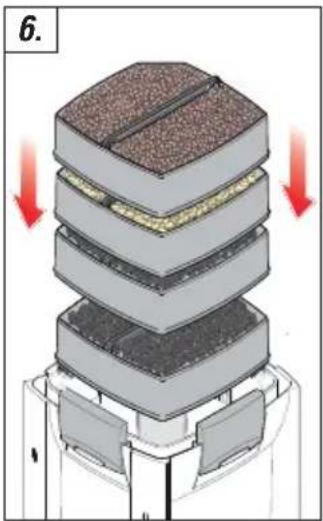

6. Re-insert the filter inserts in the filter tank ⑪ (see Fig. III).

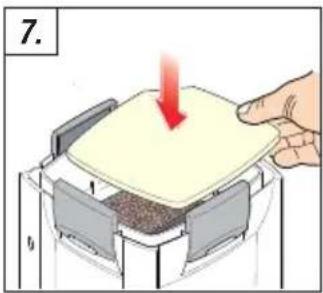

7. Place the white filter fleece ⑥ on the top filter insert.

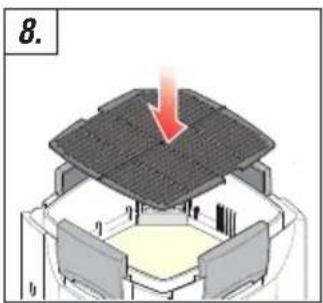

8. Place the cover grating ⑤ on the white filter fleece ⑥.
9. Insert the prefilter ③ with the blue filter mat ① (place onto supports → arrows).

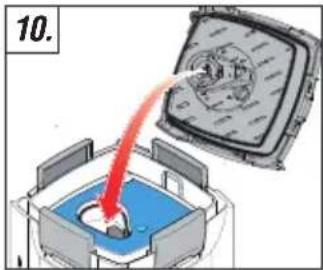

10. Attach the pump head 18 (observe fitting position) and close the locking clips 10.

Note: Use original EHEIM hoses only.

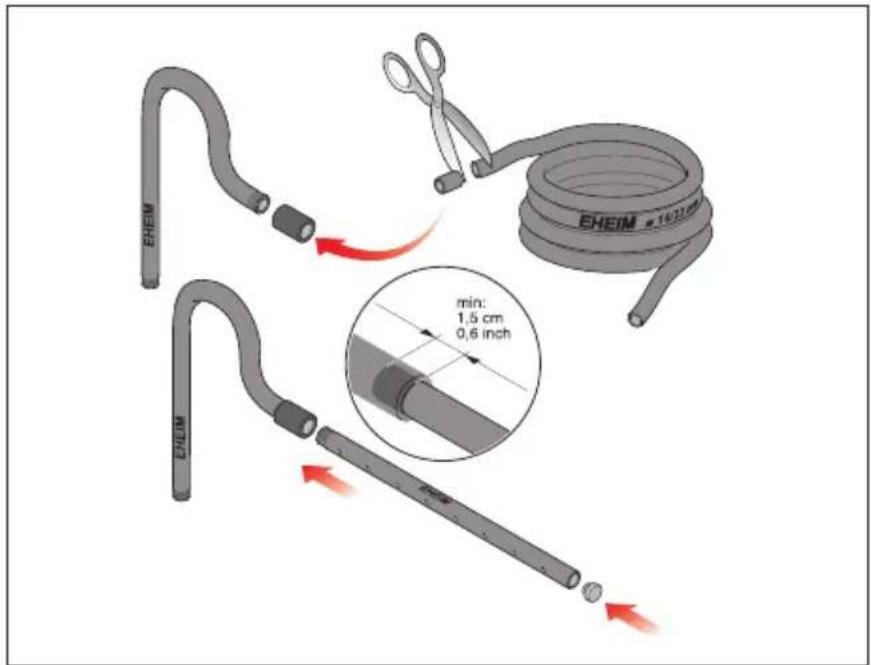

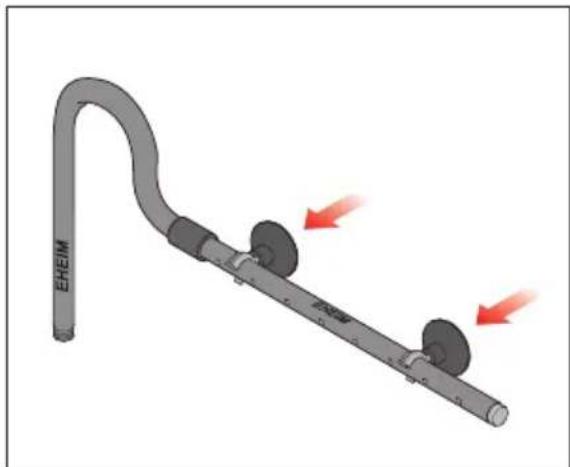

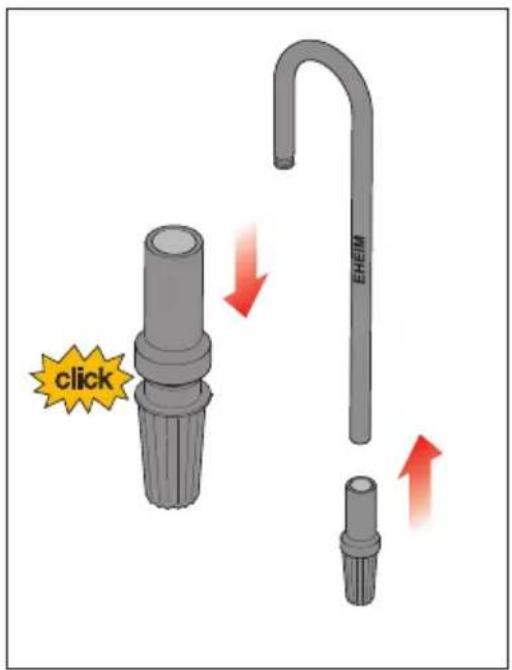

1. Attach the pre-assembled hose accessories (see II). to the aquarium.

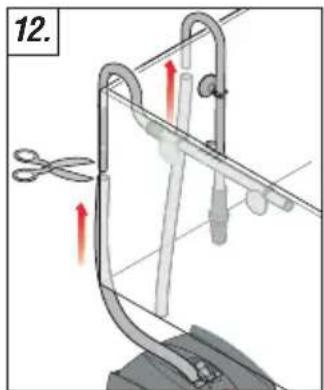

2. Cut the hoses ^24 to length in accordance with the clearance between the filter and the aquarium and plug onto the accessories.
3. Plug the hoses 24 onto the safety adapter 14 down to the limit stop.
4. Attach the hose locking device 12.

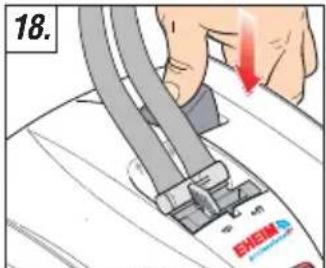

5. Push the safety adapter 14 into the pump head 18 until it audibly latches.
6. Set the locking lever ⑬ to „ON“.
7. Assure the the nozzle pipe 26 is suspended above the water surface.
8. Rapidly press the suction aid ⑰ several times consecutively until the filter tank ⑪ automatically fills with water (no water must be present in the prefilter!).

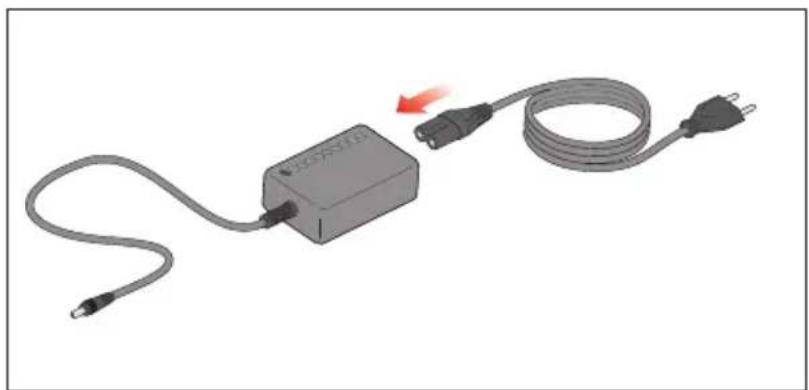

9. Plug in the power supply unit 29 at the pump head 18.

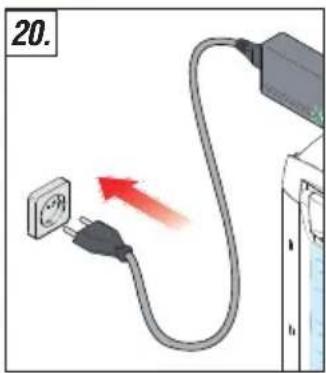

10. Plug in the power cable 31.

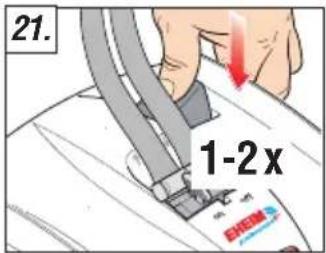

11. For bleeding, press the suction aid 17 once or twice and push the nozzle pipe 26 to the desired position.

6. Operation

6.1 Creating a network

Insert the plug of the mains cable into the mains socket.

• Status LED ^20 flashes white: Network of the unit is being created.
• Status LED lights up blue: Device has created network.

6.2 Connecting to the Wi-Fi network

Open the network settings of your end device (smart phone, tablet, notebook etc.). Connect your end device to the Wi-Fi network of the device (SSID) EHEIM Filter XXXXXXXX. Enter the network security key.

You will find the label with the SSID as well as the network security key (Key) on the bonnet of the filter or scan the QR code 1 to establish a connection.

6.3 Calling up the website

Open your web browser and enter the following web address: http://192.168.1.1

You can also use the QR code 2 (see label) to open the web page in the browser.

6.4 Initial configuration

Select the desired language from the language selector and follow the instructions for the initial configuration.

Reset

Touch the touch field below the status LED 20 with a finger for approx. 8-10 seconds until the status LED lights up in a colour change. If the status LED lights up green, the reset is completed and the unit creates its network again. Network security key (Key) and QR code 1 are invalid. Connection to the network is possible without a network security key.

Meaning Status-LED 20

• Status LED flashes white: Network is being created.
• Status LED lights up blue: Device has created network and is ready for operation.
• Status LED lights up green: Device is connected to another EHEIMdigital device.

7. Thermofilter professionel 5e - 600 T, Typ 2178 (see IV)

Only thermofilter: 32 Control indicator („ON“ / „OFF“) 33 LED indicator in Celsius (°C) 34 Status indicator for target temperature in Celsius (°C) 35 Pushbutton 36 Display in Fahrenheit (°F) 37 Heating spiral.

Setting range of the target temperature	18° – 34°C 64° – 93°F
Factory setting of the target temperature	24°C / 75°F
Factory setting of the temperature unit	Celsius (C) / Fahrenheit (F)
Switching hysteresis	± 1°C
Power consumption	210 W
Voltage	see type plate on canister bottom

7.1 Operation

A Control indicator 32 is not lit up = Heater off.
B Control indicator 32 is lit up = Heater is heating.

7.2 Display mode

C The actual temperature is displayed. Indicator is lit up, status indicator of target temperature 34 is off. Pressing the pushbutton 35 once will display the target temperature stored. The status indicator for target temperature 34 lights up. After about 5 sec., the indicator changes back to the actual temperature.

7.3 Setting mode for target temperature

The factory setting for the target temperature = 24^ C ( 75^ F).

How to set the temperature:

D Press and hold the pushbutton 35 for approx 3 sec. The target temperature blinks (temperature indicator 33 and the status indicator for the target temperature 34 blinks).

E Set the desired target temperature by pressing the pushbutton 35 briefly. Pressing once = increase by 1°C (2°F). When the maximum set point of 34°C (93°F) is reached, the indicator will begin again at 18°C (64°F).

F When the desired target temperature is set, wait until the indicator blinks again. Then press and hold the pushbutton 35 for approx 3 sec. in order to store the desired target temperature. After 15 sec. without an entry, the indicator returns to the display mode, and the previous setting will be maintained (child guard).

7.4 System messages

Control indicator lights up. The actual temperature and target temperature are displayed alternatively.

Control indicator is off. The actual temperature and target temperature are displayed alternatively.

The target temperature set is more than 2^ C above the water temperature.

The target temperature set is more than 2^ C below the water temperature.

- The water temperature set has not yet been reached (may take up to 24 hrs).

- The water volume is too large. Raise the ambient temperature and/or reduce the water volume.

- Lower the temperature of the aquarium water by colder fresh water, cold packs, or the like.

- Reduce the ambient temperature. Heater cannot cool.

8. Maintenance and care

• Implement maintenance works in case of reduced filter capacity (approx. every 3 to 6 months).
• First, clean prefilter (8.1).
• If prefilter cleaning insufficient: Clean all filter inserts (general cleaning 8.2).
• If general cleaning insufficient: Clean the pump chamber. (8.3).

8.1 Prefilter cleaning

Note: Renew the blue filter mat after the third cleaning.

1. Disconnect the power cable 31.
2. Disassemble the safety adapter 14 and the pump head 18 (chapter 5, step 1 - 3).
3. Remove the prefilter ③.
4. Remove the blue filter mat ①.
5. Rinse the blue filter mat ① under running, lukewarm water (replace if required).

6. Empty the prefilter ③ and rinse it.

7. Insert the blue filter mat ① into the prefilter ③.

8. Insert the prefilter ③ with the blue filter mat ① (place onto supports → arrows).
9. Check and, if required, clean the seals and treat them with EHEIM care spray (No. 4001000).
10. The prefilter flap 4 must be unobstructed.
11. Attach the pump head 18 (observe fitting position) and close the locking clips 10.
12. Put the filter system into operation (chapter 5, step 17 - 21).

8.2 General cleaning (34. - 48.)

1. Disconnect the power cable ③1.

2. Disassemble the safety adapter 14 and the pump head 18 (chapter 5, step 1 - 3).

3. Remove the pre-filter ③, the filter cartridge with the screened cover ⑤ and white filter fleece. Renew the white filter fleece ⑥ during each cleaning process.

4. Remove all filter inserts.

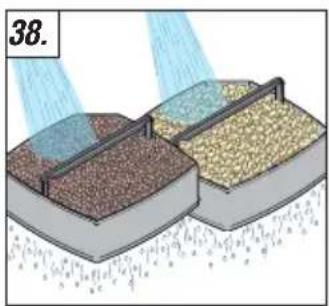

5. Rinse the filter inserts ⑦ + ⑧ and filter media with water until they are clean.

6. Empty the filter tank 11.

Note: Only carry out steps 40 - 41 during every third to fourth general cleaning. The required bacterial cultures are retained by mixing the used and new filter media.

Caution: Do not overfill filter inserts as, otherwise, their accurate fit is no longer assured.

1. Leave 1/3 - 2/3 of the used filter material in the filter insert.

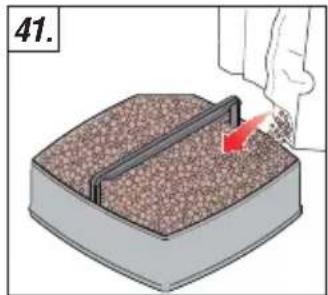

2. Refill with new filter material.

3. Re-insert all filters and filter inserts (chapter 5, step 6 - 8).

4. Clean the hose system using an EHEIM universal cleaning brush (No. 4005570).
5. Insert the pre-filter ③ with the blue filter mat ① (attach to partition wall's socket → arrows).
6. The pre-filter flap ④ must be unobstructed.
7. Check the seals and, if required, treat them with EHEIM care spray (No. 4001000).

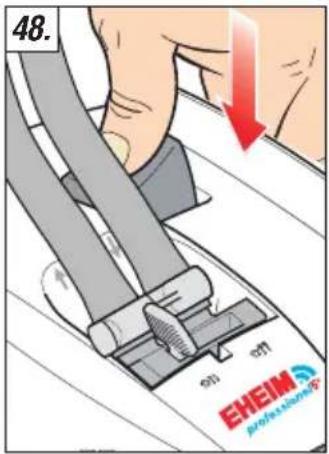

8. Attach the pump head 18 (observe fitting position) and close the locking clips 10.
9. Put the filter system into operation (chapter 5, step 17-21).

8.3 Cleaning the pump chamber (49. - 59.)

Caution: The caramic axis may break. Clean carefully!

1. Disassemble the safety adapter ^14 and the pump head ^18 (chapter 5, step 1 - 3)
2. Turn pump cover 23 and remove it. Grease the seal ring with EHEIM care spray (No. 4001000).
3. Disassemble the pump wheel ^22 .

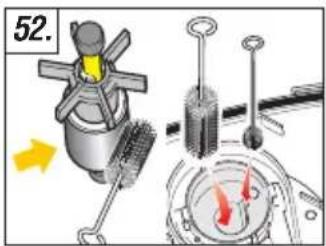

4. Clean pump chamber, pump cover, pump wheel and lubrication duct with the EHEIM cleaning set (No. 4009560).

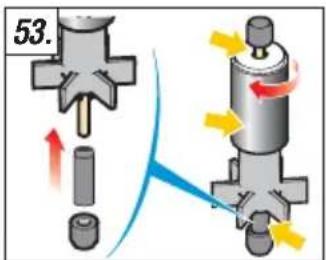

5. Pump wheel ^22 must be clean and unobstructed ( arrows). Observe the installation position of the bearing sleeve.

6. Insert the pump wheel into the pump chamber.

7. Close pump chamber with the pump cover 23 observing the cutout and studs ( arrows).
8. Disassemble the bracket 15 and the float 16 on the top side of the pump head 18 and clean them.
9. Install the check valve (15/16) (observing the installation position; the float must be unobstructed).

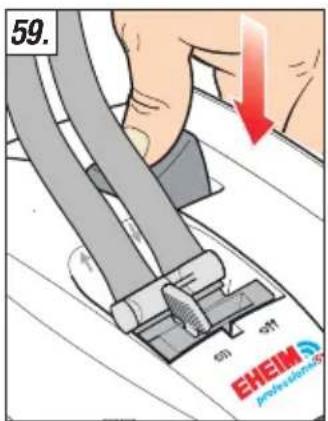

10. Attach the pump head 18 (observe fitting position) and close the locking clips 10.
11. Put the filter system into operation (chapter 5, step 17-21).

9. What to do if . . .

Danger!

When working on the filter, make sure that no water gets onto electrical interfaces. Pull out the mains plug! In case of problems, go to our website www.eheim.com or call the service number +49 (0)71 53 - 70 02 183.

... Top part of filter can't be closed?

Cause	Solution
Filter inserts have been inserted wrongly.	Push filter inserts and pre-filter in until they lie flush on top of each other.
Filter inserts are too full.	Do not overfill filter inserts. If need be, clean the touching surfaces.
Partition not fitted properly.	Push partition into the filter container until it engages correctly.
Gasket not fitted properly.	Insert correctly into the groove provided in the upper part of the filter. Check for damage and if necessary replace.

... Top of filter leaks?

Cause	Solution
Closing clips not closed properly.	Close all clips properly.
Sealing areas or gasket soiled.	Clean seal areas and spray lightly with EHEIM silicone grease spray (Order no. 4001000).
Sealing ring not fitted, inserted wrongly or damaged.	Insert sealing ring correctly or renew.

... Primer does not work?

Cause	Solution
Prefilter flap in prefilter not closed.	Check the prefilter flap for pollution and, if required, clean it.The prefilter flap must be unobstructed (see chapter 8.2, step 45).
Prefilter is filled with water.	Empty prefilter, repeat priming. Priming only works with empty prefilter.
Check valve polluted/defective.	Clean and, if required, replace the check valve (see chapter 8.3).

... Pump does not work?

Cause	Solution
No mains supply.	Plug in to mains.
Shaft broken.	Renew shaft (see list of spares).
Impeller missing or blocked by bits of gravel, shells or similar.	Fit impeller, clean pump chamber (see chapter 8.3).

... Filter performance has greatly deteriorated?

Cause	Solution
Safety adapter lever position not correct.	Check lever setting and adjust.
Safety adapter soiled.	Remove safety adapter; open shut-off lever and clean openings with EHEIM cleaning brush (no. 4005570).
Hose installation.	Check that there are no kinks or marked narrowing of cross-section.
Hose installation soiled.	Clean hose installation with EHEIM cleaning brush (no. 4005570).
Strainer blocked.	Remove coarse dirt, clean strainer.
Filter media heavily soiled.	Clean the filter masses thoroughly according to chapter 8.
Filter media filled into a net bag.	Never put long-term filter media in net bags or nylon stockings. This leads to a drastic reduction in pump performance within a short time.
Filter media not cleaned properly.	When cleaning, remove the filter media from the filter media basket and rinse through with lukewarm water (see III).
Filter media wrongly assembled.	Check that filter media have been assembled correctly in the recommended layers of filtering. Fill bottom filter insert to just under edge with EHEIM MECH. Fill next filter inserts with EHEIM SUBSTRAT, also to just under edge. Never place white filter pad under the handle.
Filter pad not renewed.	Be sure to renew the filter pad each time you clean.
Pump is dirty.	Clean pump chamber, cooling and lubrication channel with EHEIM cleaning brush set (no. 4009560).
Water is not circulating properly.	Take filter into operation by priming (see chap. 5, step 17-21). Make sure that the water runback (delivery side) is above the surface of the water during filling so that air is optionally bled from the device.
Too many accessories installed on the hose system.	Connected accessories reduce filter performance. Check and remove unnecessary accessories or operate via a separate water system.

... Air in the filter?

Cause	Solution
Filter location.	The top edge of the pump head should be at least 10 cm beneath the surface of the water. It is better to place it underneath the aquarium.
Air is being sucked in via the hose installation.	Check that hose connector is fitted properly, and may be check whether hoses leak.
Additional air supply (membrane pump).	Do not install diffuser in the vicinity of the suction pipe.
Filter media heavily soiled.	Clean filter media.
Filter media have been placed in net bags.	Never put long-term filter media in net bags or nylon stockings.

... The pump causes loud operating noise?

Cause	Solution
Bearing sleeve not or incorrectly installed.	Correctly install or, if required, replace the bearing sleeve.
Ceramic axis broken.	Replace the ceramic axis.

10. Decommissioning and disposal

Storage

1. Uninstall the device from the aquarium.
2. Clean the appliance.
3. Store the appliance in a frost-proof place.

Disposal

When disposing of the appliance, heed the respective statutory regulations. Information on the disposal of electrical and electronic appliances in the European Union: Within the European Union, disposal of electrically operated appliances is governed by national regulations that are based on the EU Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). The appliance may no longer be disposed of with the municipal or household waste. The appliance will be accepted free of charge at municipal collection points or recycling centres. The product packaging is made up of recyclable materials. Dispose of them in an environmentally responsible manner and take them for recycling.

11. Technical data

See page 214

12. Spare parts

See page 215

Élimination/destruction

6.3 De website openen

Hereby, EHEIM GmbH & Co. KG, declares that the radio equipment type EHEIM professionel 5e is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.eheim.com

7212538 2616760 7428670 7428580 7428668 7376888 2616760 7428658 7429710 2076: 7426220 2078 7426230 2178: 7608138 7271958 7428608 4005843 7212258 7428718 7428728 7428680 2076: 1476000 2078/2178: 1478000 7428670 7603220 7334538 7480970 7428590 7428690 7428670 2076: 7428630 2078/2178: 7428640 4005750 4015150 7334528 7447150

Reproduction or copying – even parts thereof – only with the express permission of the producer.
