USER MANUAL MP13240 SCHEPPACH

Explanation of the symbols on the equipment Observe all safety instructions before use Caution - Read the operating instructions to reduce the risk of inquiry! On a slope, do not mow uphill or downhill. Before operating the lawn mower, remove lawn debris which may be ejected by the blade. There is a risk of debris being ejected when the engine is running. Make sure you keep a safe distance. Make sure other people also keep a safe distance. Remove the ignition cable before all maintenance work, and read the in- structions for use. Warning! Risk of injury! Do not let your hands or feet come in contact with the blades when the motor is running. Important. Exhaust gas is poisonous, do not operate in an unventilated area. Danger - Hot surface! Wear ear-mu󰀨s and safety goggles! Attention! Operating materials are ammable and explosive. Do not ll with fuel while the motor is hot or running. Fuel tank capacity Engine oilwww.scheppach.com

Length knives. Max. Cutting width Guaranteed sound power The product complies with the applicable European directives and an evaluation method of conformity for this directives was done. The product complies with the applicable Serbian directives. max. 3

The minimum age requirement must be complied with. 6 In addition to the safety requirements in these op- erating instructions and your country’s applicable regulations, you should observe the generally rec- ognized technical rules concerning the operation of identical constructed machines. 7 We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

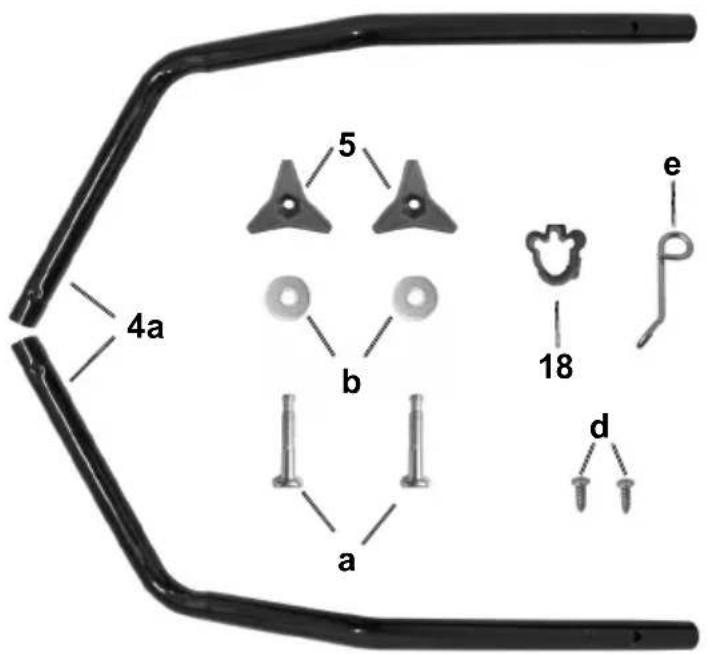

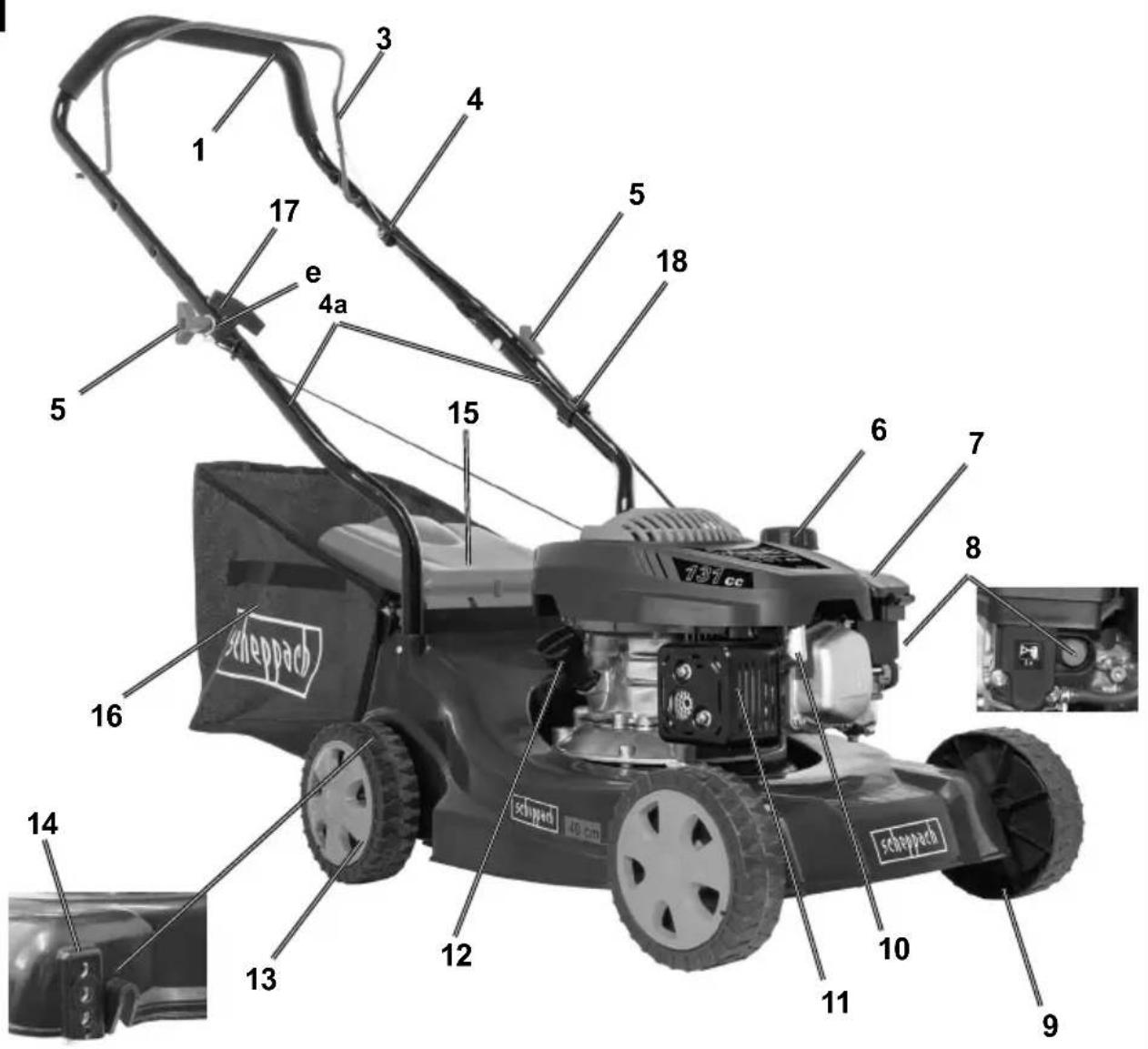

3. Scope of delivery

• Open the packaging and remove the device carefully.

• Remove the packaging material as well as the pack- aging and transport bracing (if available)

• Check that the delivery is complete.

• Check the device and its spare parts for possible damage caused by transportation. In the event of complaints, you must contact the distributor without delay. Claims at a later stage will not be accepted.

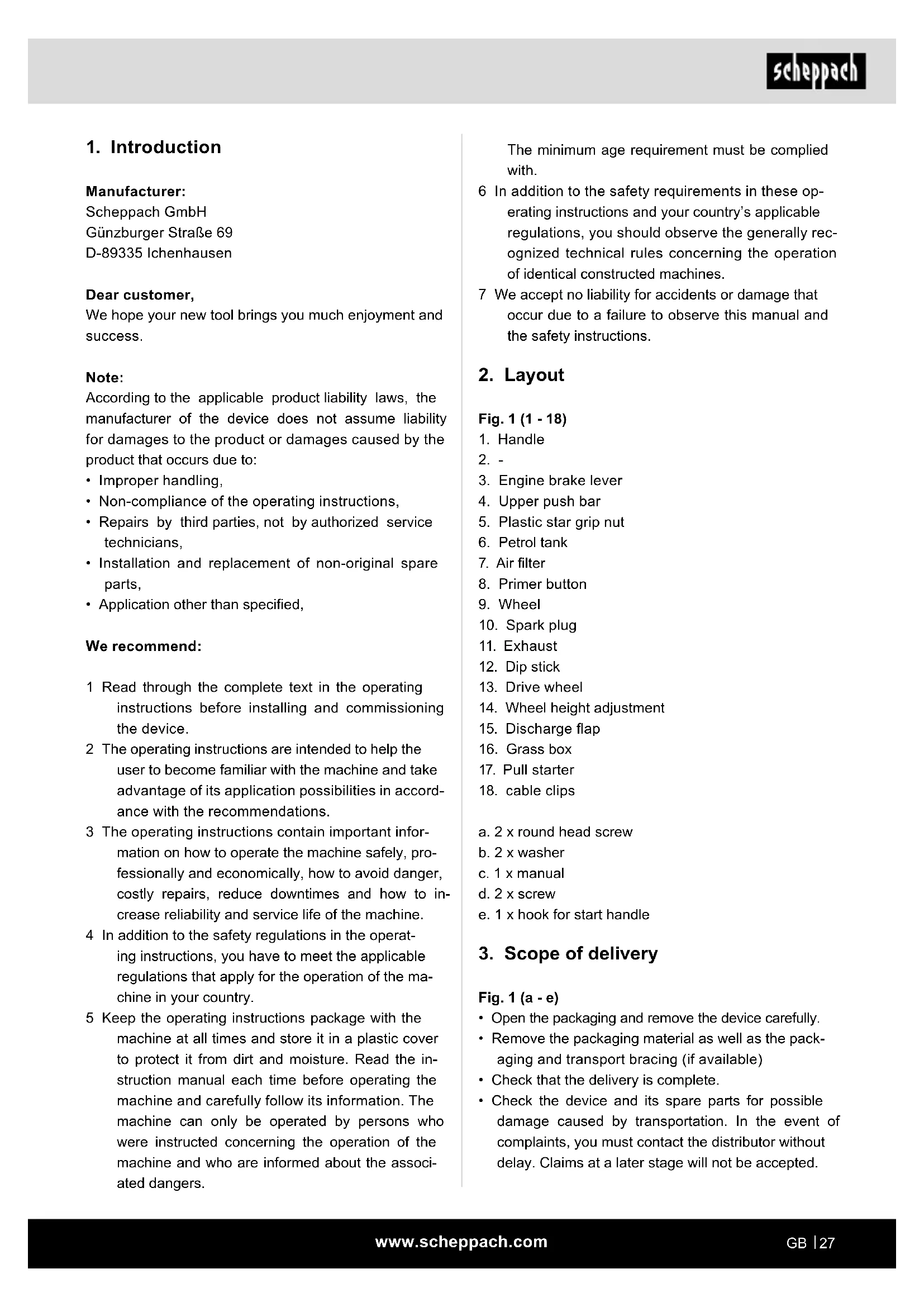

Manufacturer: Scheppach GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear customer, We hope your new tool brings you much enjoyment and success. Note: According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Non-compliance of the operating instructions,

• Repairs by third parties, not by authorized service technicians,

• Installation and replacement of non-original spare parts,

• Application other than specied, We recommend: 1 Read through the complete text in the operating instructions before installing and commissioning the device. 2 The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accord- ance with the recommendations. 3 The operating instructions contain important infor- mation on how to operate the machine safely, pro- fessionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to in- crease reliability and service life of the machine. 4 In addition to the safety regulations in the operat- ing instructions, you have to meet the applicable regulations that apply for the operation of the ma- chine in your country. 5 Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the in- struction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associ- ated dangers.www.scheppach.com

• The machine is intended for use only with original spare parts and original tools from the producer.

• Any other use is considered to be not intended. The manufacturer excludes any liability for resulting damages, the risk is exclusively borne by the user.

• The device must not be used for commercial, techni- cal or industrial applications.

• If you are not sure whether working conditions are safe or unsafe, do not work with the machine.

• The petrol lawn mower is intended for private use i.e. for use in home and gardening environments. Pri- vate use of the lawn mower refers an annual oper- ating time generally not exceeding that of 50 hours, during which time the machine is primarily used to maintain small-scale, residential lawns and home/ hobby gardens. Public facilities, sporting halls, and agricultural/forestry applications are excluded. Important! Due to the high risk of bodily injury to the user, the lawn mower may not be used to trim bushes, hedges or shrubs, to cut scaling vegetation, planted roofs, or balcony-grown grass, to clean (suck up) dirt and debris o󰀨 walkways, or to chop up tree or hedge clippings. Moreover, the lawn mower may not be used as a power cultivator to level out high areas such as molehills.

• For safety reasons, the lawn mower may not be used as a drive unit for other work tools or toolkits of any kind. m WARNING For your own safety, please thoroughly read this manu- al and the general safety instructions before turning the device on. If you give the device to third parties, always include these instructions.

5. Safety instructions

These operating instructions provide places concerning your safety which are marked with this indication: m Furthermore this manual contains other important sec- tions which are marked with the word „Attention!“. m DANGER Failure to follow these instructions may cause serious danger to life of danger or fatal injuries.

• If possible, store the packaging until the warranty period has expired

• Before handling the device, make yourself familiar with it by reading the operating instructions.

• For accessories, consumables and spare parts, only use original parts. Spare parts are available from your stockist.

• Include our item number, the device model and year of manufacture in your order. m Attention! The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, lm and small parts! m Danger There is a risk of swallowing and su󰀨ocation!

The machine meets the currently valid EU machine directive. Before starting any work, all protective and safety de- vices must be in place.

• The machine has been designed to be operated by one person.

• The operator is responsible for third parties in the area of operations.

• All safety and hazard notices on the machine must be observed.

• All safety and hazard notices on the machine must be kept in a completely legible condition.

• Use the machine in a technically awless condition only, as well as for its intended purpose, in a safe manner and being aware of dangers, in compliance with the operating instructions!

• Disruptions which can a󰀨ect safety in particular must be eliminated straight away!

• The manufacturer’s safety, operation and mainte- nance instructions as well as the technical data given in the calibrations and dimensions must be adhered to.

• Relevant accident prevention regulations and oth- er generally recognized safety and technical rules must also be adhered to.

• The machine may only be used, maintained or re- paired by trained persons who are familiar with the machine and have been informed about the dan- gers. Unauthorized modications of the machine exclude a liability of the manufacturer for damages resulting from the modications.www.scheppach.com

• Check the grounds on which the machine will be used and remove all objects such us stones, wires, toys, wood and so on. m WARNING Petrol is highly ammable! Therefore:

• Only store petrol in containers designed to hold pe- troleum-based liquids.

• Only refuel out in the open and do not smoke during the refueling process.

• Always refuel the lawn mower before starting the en- gine. Always ensure that the fuel tank cap is closed when the engine is running and when the mower is hot; also do not refuel.

• If petrol has overowed, do not under any circum- stances attempt to start the engine. Instead, remove the machine from the a󰀨ected area. Avoid starting the engine until the petrol fumes have completely evaporated.

• For safety reasons, the petrol tank and other tank closures must be replaced if they are damaged.

• Replace defective mu󰀪ers.

• Before using the mower, visually inspect it to ensure that the blade, mounting bolts and the entire cutting apparatus are in good working order (i.e. not worn out or damaged). To prevent any imbalance, replace worn out or damaged blades and mounting bolts as a set only (if applicable).

• Please note that where a mower has more than one blade, the rotation of one of the blades can cause the others to rotate as well. Handling

• Do not let the combustion engine run in enclosed are- as, as dangerous carbon monoxide gas can build up.

• Only mow in broad daylight or in well-lit conditions. Avoid using the machine on wet grass as far as pos- sible.

• Do not use the lawn mower in a thunderstorm - risk of lightning strike!

• Always maintain good footing on inclines.

• Only operate the machine at a walking pace.

• For machines with wheels: Always mow across hills i.e. never straight up or straight down.

• Be particularly careful when you change direction on a slope.

• Do not mow on overly steep inclines.

• Always be extra careful when turning the mower around and when pulling it towards you. m WARNING Failure to follow these instructions may cause danger to life or danger of serious injuries. m CAUTION Failure to follow these instructions may cause light to medium risk of injury. m NOTE Failure to follow these instructions may cause danger of damage of the engine or other property values. m CAUTION When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety reg- ulations as well. We cannot accept any liability for dam- age or accidents which arise due to a failure to follow these instructions and the safety instructions. The following must not use the machine:

• Children and other people who do are not familiar with the operating manual (local stipulations may specify a minimum age for users).

• People under the inuence of alcohol, drugs and medication, as well as those who are tired or ill. Safety instructions for handoperated lawn mowers Note

• Read the directions with due care. Familiarize yourself with the settings and proper operation of the machine. Never allow children or other persons who are not familiar with the operating instructions to use the mower. Contact your local governmental agency for information regarding minimum age requirements for operating the mower.

• Never mow in the direct vicinity of persons - espe- cially children - or animals. Always keep in mind that the operator is responsible for accidents involving other persons and/or their property.

• If you give the equipment to any other person, give them these operating instructions as well.

• Always wear sturdy, non-slip footwear and long trou- sers when mowing. Never mow barefoot or in sandals.www.scheppach.com

• Observe improper maintenance, the use of non-com- pliant spare parts, or removal or modication of the safety devices may result in damage to the device and serious injury to the person working with it.

• Use only manufacturer recommended cutting tools and accessories. The use of other tools and other accessories may cause injury to the user. Always keep the lawnmower in good working condition.

• Check the device regularly and make sure before each use that all start locks and push buttons func- tion properly.

• Please note that the safety systems or features of the lawnmower must not be tampered with or deac- tivated.

• Note that the user should not modify or manipulate any sealed engine speed control settings.

• The user must be adequately trained in use, ad- justment and operation (including prohibited oper- ations).

• It is necessary to take su󰀩cient breaks to reduce the noise and vibration load. Residual risks and accident prevention standards Neglect of ergonomic principles Negligent handling of personal protective equip- ment (PPE) Negligent handling or ommission of the personal pro- tective equipment may cause serious injuries. – Wear prescribed personal protection equipment. Human behaviour, misbehaviour – For any work be fully concentrated. m Residual risks - Cannot be entirely excluded. Danger from noise hearing damage Prelonged unprotected work with the device may cause hearing damage. – Always wear ear-mu󰀨s. In case of emergency In case of a possibly occuring accident take the neces- sary rst aid steps as appropriate and obtain qualied medical aid as quickly as possible. During longer work, because of vibrations, there is a risk of circulation problems in the user‘s hands (white-n- ger-syndrome). White-nger-syndrome is a vascular dis- ease where the small blood vessels in ngers and toes contract seizure-like. The a󰀨ected areas are no longer supplied with blood and therefore look very pale.

• Switch o󰀨 the lawn mower and ensure that the blade has stopped rotating whenever the mower has to be tilted for transporting over areas other than lawns and whenever it has to be moved from or to the area you want to mow.

• Never use the lawn mower if the blade or safety grilles are damaged, or without the attached guards, e.g. deectors and/or grass catching devices.

• Do not adjust or overclock the engine speed settings.

• Release the engine brake before you start the engine.

• Start the engine with care, in accordance with the manufacturerʼs instructions. Make sure that your feet are far enough away from the mower blade!

• Do not tilt the lawn mower when you start the engine unless the mower must raised o󰀨 of the ground a lit- tle in order to start it. In the latter case, tilt the mower as little as absolutely necessary and only raise the side opposite to that of the user.

• Never start the engine while standing in front of the chute.

• Never move your hands or feet toward or under any rotating parts. Keep clear of the chute opening at all times.

• Never lift or carry a lawn mower with the engine run- ning.

• Switch o󰀨 the engine and pull the spark plug boot. Make sure that all rotating parts are stopped: – before you dislodge any blockages or clogs in the chute. – before carrying out any checks, cleaning, mainte- nance or other work on the lawn mower – if the lawn mower strikes a foreign body, examine it for signs of damage and carry out any neces- sary repairs before restarting and continuing to work with the mower. If the lawn mower begins to experience exceptionally strong vibrations, im- mediately switch it o󰀨 and check it.

• Switch o󰀨 the engine: – when you leave the lawn mower. – before you refuel.

• Operation of the machine at higher than normal speed can lead to an increased risk of accidents.

• Take care when carrying out installation work on the machine, and avoid trapping ngers between the moving cutting tool and the xed parts of the ma- chine.

• Please be particularly careful when mowing on ground that may subside, on nearby landlls, trench- es and embankments.www.scheppach.com

(left/right) = 7.218 m/s

Before starting the equipment Assembling the components Some parts of the mower come disassembled. For quick and easy assembly, read and follow the instruc- tions below. Important! You will need the following additional tools (not sup- plied) for assembly, and also for maintenance work:

• A 1 liter measuring jug (oil/petrol resistant)

• A petrol can (5 liters is su󰀩cient for approx. 6 oper- ating hours)

• A funnel (suitable for the tankʼs petrol ller neck)

• Household wipes (to wipe up oil/petrol residue; dis- pose of these at a lling station)

• A petrol suction pump (plastic, available from DIY stores)

• An oil can with hand pump (available from DIY stores)

• 0,4 liter of engine oil (SAE 30/10W30) mATTENTION! Always make sure the product is fully assembled before commissioning! Assembly

1. Take the mower and attachment parts out of the

packaging and check that all parts are present

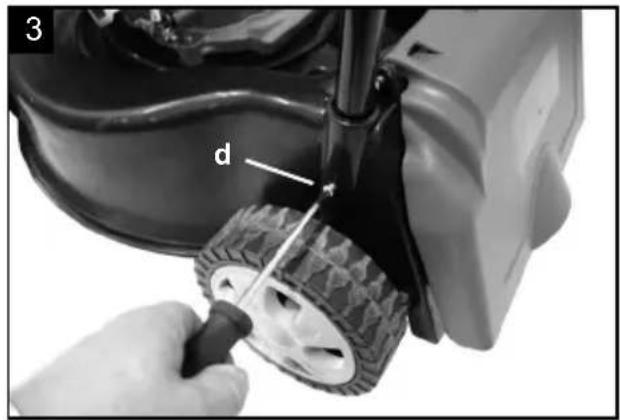

2. Insert the bottom push bar (4a) in the hole in the

lawnmower and secure it with 2 screws (d).

3. Attach the upper push bar (4) on the lower push

bar (4a) with one screw (a), one washer (b) and one star grip nut (5) each on both sides (Fig. 4-5).

4. Insert the pull start handle (17) in the designated

hook as shown in Fig. 6.

5. Fix the cables to the push bar with the cable clips

(18) provided (Fig. 7).

6. Grass box (16) - open it up and click the plastic

clips into position on the frame (Fig. 8).

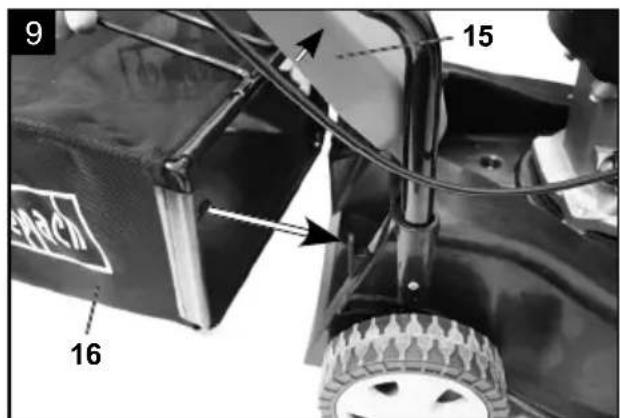

7. Mowing with grass box:

Lift the discharge ap (15) with one hand and hang the grass box (16) as shown in Fig. 9. Frequent use of vibrating machines can cause nerve damage in people whose circulation is compromised (e.g. smokers, people with diabetes). If you notice unusual impairment, immediately stop the work and consult a doctor. Observe the following notic- es in order to reduce risks:

• Keep your body, and particularly your hands, warm in cold weather.

• Take regular breaks during which you should move your hands to promote circulation.

• Ensure the lowest possible vibration of the machine by regularly maintaining it and keeping components tight.

Type engine four stroke engine/air cooled Cubic capacity 131 cm

output 1033 g/kWh Subject to technical changes! Information concerning noise emission measured ac- cording to relevant standards: Sound pressure L

= 82.3 dB Uncertainty K

= 3 dB Sound power L

= 94 dB Uncertainty K

= 1.79 dB Wear ear-mu󰀨s. The impact of noise can cause damage to hearing.www.scheppach.com

m Note! Using the drive:

• Engine brake (3): Use the lever to stop the engine. When you release the lever the engine and the blade stop automatically.

• Before you start to mow, check the start/stop lever several times to be sure that it is working properly. Ensure that the tension cable can be smoothly oper- ated (i.e. is not catching or kinking in any way). Caution: The blade begins to rotate as soon as the engine is started. Important: Before you start the engine, move the mo- tor brake several times to be sure that the stop cable is properly working. Note: The engine is factory set to a speed that is opti- mal for cutting and blowing grass into the basket and is designed to provide many years of use.

• Check the oil level.

• Open the fuel tank cap and ll the petrol tank (6) up to the lower point of the tank inlet with about 1,0 litres of petrol. Use a funnel and a measuring container for lling. Do not overll the tank. Use fresh, clean unleaded fuel. Never mix oil with petrol. Buy fuel in amounts which can be used within 30 days in order to guarantee its freshness. Note: Use only unleaded gasoline. m WARNING Only use a safety petrol can. Do not smoke when refu- eling. Remove any oil or petrol residues. Switch o󰀨 the engine before refueling and allow the engine to cool down for a few minutes. Start engine (Fig. 14)

• Ensure that the ignition cable is connected to the spark plug.

• Stand behind the mower. One hand squeezes the engine brake lever (3) to the handle, the other pulls the pull start.

• Start the engine using the reversing starter (17). To do this pull the handle approx. 10 – 15 cm (until you feel a resistance) and then start the engine with a sharp pull. If the engine does not start, pull the han- dle again.

• Due to protective coating on the engine, a small amount of smoke may be present during the initial use of the product and should be considered normal. Setting the cutting height m CAUTION! Adjust the cutting height only when the engine is switched o󰀨 and the plug boot has been pulled.

• Before you begin to mow, check to ensure that the blade is not blunt and that none of the fasteners are damaged.

• To prevent any imbalance, replace blunt and/or dam- aged blades as a set only (if applicable). To carry out this check, rst switch o󰀨 the engine and pull the spark plug boot.

• locate the two front wheels as well as the two rear wheels into the desired cutting height (30-48-66 mm) position. (L = left-hand thread, R = right-hand thread)

• ! ensure that the four wheels are xed in the same cutting height position (Fig. 13)

m CAUTION! The engine does not come with oil in it. Therefore, ensure that you add 0,4 liters of oil before starting it up. Use normal, multigrade oil (SAE30). The oil level in the engine must be checked each time be- fore mowing. You will also need to ll in petrol, as this is also not supplied upon delivery.

• In order to avoid any unintentional start-ups of the lawn mower, it comes equipped with an engine brake (Fig. 1/ Item 3) which must be pulled back before the engine can be started. When the engine control lever is released it must return to its initial position, at which point the engine automatically switches o󰀨.

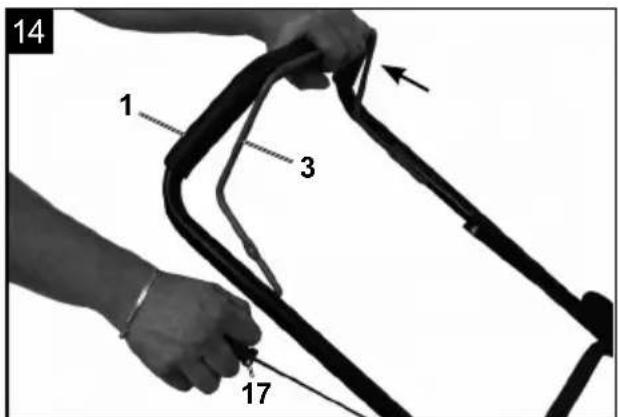

• Press the engine brake lever (3) together and give the starter cord (17) a vigorous pull. (Fig. 14) Attention: When you pull the starting rope the cut- ting blade rotates even when dissolved motor brake lever. Make sure that there are no body parts in dan- ger zone of cutting blade.

• Before you start mowing, you should run through this operation several times in order to ensure that the machine is working properly. m WARNING Whenever you need to perform any kind of adjust- ment and/or repair work on your lawn mower, wait until the blade has come to a complete stop. Always switch o󰀨 the engine before carrying out any adjustments, maintenance or repairs.www.scheppach.com

Tips for proper mowing m CAUTION! Never open the chute ap when the catch bag has been detached (to be emptied) and the engine is still running. The rotating blade can cause serious injuries! Always carefully fasten the chute ap and grass bas- ket. Switch o󰀨 the engine before emptying the grass basket. Always ensure that a safe distance (provided by the length of the long handles) is maintained between the user and the mower housing. Be especially careful when mowing and changing direction on slopes and inclines. Maintain a solid footing and wear sturdy, non-slip foot- wear and long trousers. Always mow along the incline (not up and down). For safety reasons, the lawn mower may not be used to mow inclines whose gradient exceeds 15 degrees. Use special caution when backing up and pulling the lawn mower. Tripping hazard! Mowing Only use a sharp blade that is in good condition. This will prevent the grass blades from fraying and the lawn from turning yellow. Try to mow in straight lines for a nice, clean look. Inso- doing, the mowing swaths should always overlap each other by a few centimeters in order to avoid bare strips. Keep the underside of the mower housing clean and remove grass build-up. Deposits not only make it more di󰀩cult to start the mower; they decrease the quality of the cut and make it harder for the machine to bag the grass. Always mow along inclines (not up and down). Slightly turning the front wheels up the hill while mowing will prevent the mower from sliding out of the straight line. Select the cutting height according to the length of the grass. If the lawn has grown quite a bit, mow over it several times so that no more than 4 cm of grass are cut at one time. Switch o󰀨 the engine before doing any checks on the blade. Keep in mind that the blade continues to rotate for a few seconds after the engine has been switched o󰀨. Never attempt to manually stop the blade. Note: Easier starting in colder temperatures by pressing the primer (Fig. 15/ Pos. 8). Use only by a cold engine! m CAUTION!

• Never allow the starter cord to snap back.

• Note: In cold weather, it may be necessary to repeat the starting process several times. Stop engine:

• To turn o󰀨 the engine, then the engine brake lever (3) and wait for the blades to stop.

• Pull the spark plug boot from the spark plug (10) boot in order to prevent the engine from restarting.

• Before you start the engine again, check the cord for the engine brake. Check that the cord is correctly tted. If the cord is kinked or damaged, it should be replaced. Before mowing Important information

• Make sure that you are properly dressed when mow- ing. Wear sturdy, non-slip footwear; do not wear sandals or tennis shoes.

• Inspect the blade. A blade that is bent or damaged in any other way must be immediately exchanged for a genuine replacement blade.

• Do not ll the fuel tank indoors, but rather out in the open. Use a lling funnel and a measuring jug. Wipe o󰀨 any spilled petrol.

• Read and follow in the instructions in the operating manual as well as the information regarding the en- gine and accessory equipment. Store the manual in a place where it can be readily accessed by other users of the machine.

• Exhaust gas is dangerous. Only start the engine out in the open.

• Make sure that all the guards are tted and that they are in good working order.

• The machine should only be operated by persons who are well informed with the way it works, and who are in reasonably good physical condition.

• It can be dangerous to mow the grass when it is wet. Try to ensure that you only mow the grass when it is dry.

• Advise children and others to keep well away from the lawn mower.

• Never mow the grass in poor visibility.

• Remove all loose objects from the lawn before you start mowing the grass.www.scheppach.com

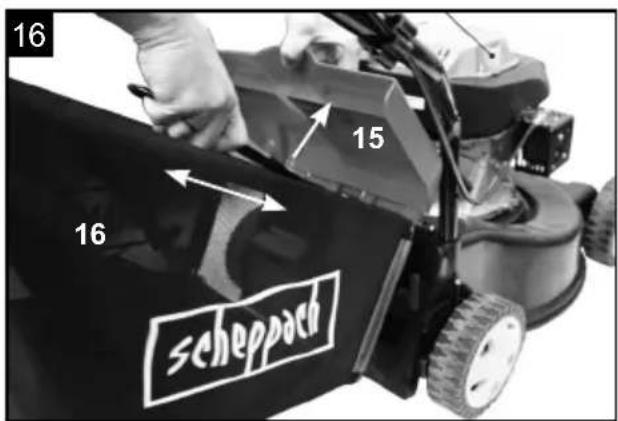

m WARNING Before taking o󰀨 the grass basket, switch o󰀨 the engine and wait until the blade has come to a stop. To take o󰀨 the grass basket (16), use one hand to lift up the chute ap (15) and the other to grab onto the basket handle (Fig. 16). Remove the basket. For safety reasons, the chute ap (15) automatically falls down after removing the grass basket and closes o󰀨 the rear chute opening. If any grass remains in the opening, it will be easier to restart the engine if you pull the mower back approx. 1 meter. Do not use your hands or feet to remove clip- pings in or on the mower housing, but instead use suit- able tools such as a brush or a hand broom. In order to ensure that the majority of grass clippings are picked up, the inside of both the grass basket (16) and especially the air grill must be cleaned after each use. Reattach the grass basket (16) only when the en- gine is switched o󰀨 and the blade is stopped. Using one hand, lift up the chute ap (15), while grabbing onto the basket handle with the other. Hang in the basket from the top. Fig. 9 After mowing

• Allow the engine to cool before you put the lawn mower in an enclosed area. Remove grass, foliage, grease and oil before storing the mower. Do not place any objects on top of the mower.

• Check all the screws and nuts once more before you start to use the lawn mower again. Tighten any loose screws.

• Also be sure to empty the grass basket (16).

• Pull the spark plug boot to prevent unauthorized use.

• Ensure that you do not park the mower next to any source of danger. Petrol fumes can lead to explo- sions.

• Only original parts or parts approved by the manu- facturer may be used for repairs (see address on the warranty certicate).

• If the lawn mower is not going to be used for an ex- tended period, empty the petrol tank using a petrol suction pump.

• Oil and maintain the machine. Regularly check to see if the blade is securely attached, is in good condition and is sharp. If the contrary is the case, sharpen the blade or replace it. In the event that the blade strikes an object,immediately switch o󰀨 the lawn mower and wait for the blade to come to a com- plete stop. Then inspect the condition of the blade and the blade mount. Replace any parts that are damaged. Tips for proper mowing:

• Pay attention to ensure that you do not run into or over anything that could damage the mower. The lawn mower could be damaged and/or the machine could inict bodily injury.

• A hot engine, exhaust or drive unit can burn the skin if touched. Thus, do not touch these parts unless the mower has been switched o󰀨 for a while and you know that they have cooled down!

• Use extra caution when mowing on inclines and steep grades.

• Insu󰀩cient daylight or even a su󰀩cient level of arti- cial light is one reason not to mow.

• Check the mower, the blade and other parts if they have struck a foreign object or if the machine vi- brates more than usual.

• Do not make any adjustments or repairs until the en- gine has been switched o󰀨. Pull the plug boot.

• Pay special attention if you are mowing directly next to a street or are close by one (tra󰀩c). Always keep the grass chute pointed away from the street.

• Avoid mowing in places where the wheels have trou- ble gripping or mowing is unsafe in any other way. Before you back up, ensure that nobody is standing behind you (especially little children, who are more di󰀩cult to see).

• When mowing over thick, high grass, select the highest cutting level and mow at a slower speed. Be- fore you remove any grass or blockages of any kind, switch o󰀨 the engine and pull the plug boot.

• Never remove any safety-related parts.

• Never ll the engine with petrol when it is hot or is running. Emptying the grass basket The debris bag (16) is equipped with a lling level in- dicator (Fig. 16). This will be opened by the air current produced by the mower. If the ap falls during mowing, the debris bag (16) is full and should be emptied. To ensure that the lling level indicator works properly, the holes under the ap must be kept clean and permeable. As soon as grass clippings start to trail the lawn mower, it is time to empty the grass basket.www.scheppach.com

Do not use aggressive cleaning products such as cold cleaners or white spirit. Wheel axles and wheel hubs

• These should be lightly greased once a season. Blade For safety reasons you should only ever have your blade sharpened, balanced and mounted by an authorized service workshop. For optimum results it is recommend- ed that the blade should be inspected once a year. Replacement number: 7911200630 Changing the blade (Fig. 17) Only ever use original spare parts when having the blade replaced. Wear gloves when replacing the blade in order to pre- vent injury. Never have any other blade tted.

• Empty the fuel tank before removing the blade

• To replace the blade, undo the screw.

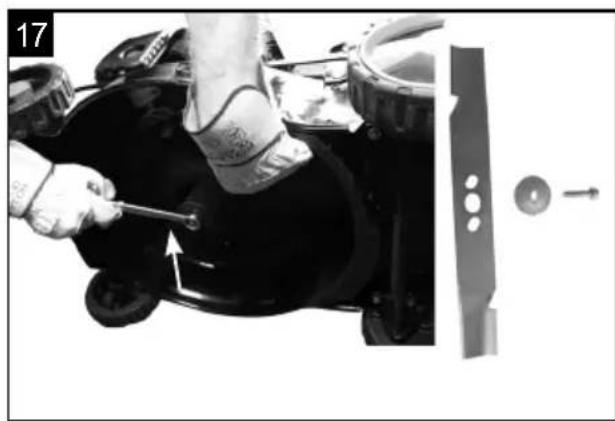

• Reinstall as illustrated in Fig. 17. Tighten the screw properly. Tightening torque 45 Nm. When replacing the blade, the blade screw should also be replaced. Damaged blades Should the blade, in spite of all precautions, come into contact with an obstruction, shut down the engine im- mediately and pull the spark plug boot. Tip the lawn mower onto its side and check the blade for damage. Damaged or bent blades must be replaced. Never at- tempt to bend a bent blade back to straight again. Nev- er mow the lawn with a bent or heavily worn blade as this will cause vibrations and can lead to further dam- age to the lawn mower. m CAUTION! There is a risk of injury if you work with a damaged blade. Resharpening the blade The blades can be resharpened with a metal le. In order to avoid imbalance, the blade should be resharp- ened by an authorized service workshop Checking the oil level m CAUTION! Never run the engine with no or too little oil. This could cause severe damage to the engine. Use only SAE30 engine oil.

9. Maintenance and cleaning

• Regular, careful maintenance is required to guaran- tee the safety level and performance of the machine.

• Make sure that all nuts, bolts and screws are tight- ened securely and that the machine is in safe work- ing condition.

• Routinely check the grass basket for signs of wear and impaired functionality. Regularly clean the grass box with water and let it dry thoroughly.

• For your own safety, replace worn or damaged parts without delay.

• If the fuel tank should require emptying this should only be done in the open air using a petrol suction pump (available from DIY shops). m WARNING Never work on or touch conducting parts on the ignition unit with the engine running. Always pull the spark plug boot from the spark plug before starting any work of care or maintenance. Never perform any work on the machine while it is running. Any work not described in these Operating Instructions must be performed by an authorized service workshop only. Pay attention to moving knife assemblies. Cleaning The mower should be thoroughly cleaned after each use. In particular, the underside and the blade retainer. m Attention! For safety reasons, disconnect the spark plug cable before cleaning. It is best to tilt the mower backwards. The spark plug should point upwards to prevent engine oil from enter- ing the intake tract or leaking out. Alternatively, you can tilt the device on its side, but you must make sure that the air lter is on the upper side. Note: Before tilting the lawnmower, empty the fuel tank fully with a fuel scavenge pump. Do not tilt the lawnmower beyond 90 degrees. It is easiest to remove the dirt and grass immediately after mowing. Grass residues and dirt that have dried on can impair mowing. Check that the grass ejection channel is clear of grass residues and remove these if necessary. Never clean the mower with a water jet or high pressure cleaner. The motor should remain dry.www.scheppach.com

Repairs After any repair or maintenance work, check that all safety-related parts are in place and in proper working order. All parts which may cause injury must be kept where they are inaccessible to children or others. Important: In accordance with product liability legisla- tion we are not liable for any damages caused by im- proper repairs or the use of spare parts that are not original spare parts or parts approved by us. In addition, we are also not liable for any damages aris- ing from improper repairs. Such work should be per- formed by a customer services workshop or authorized specialist. The same applies to accessory parts. Times of use Please comply with statutory regulations, which may vary from location to location. Important hint in case of sending the equipment to a service station: Due to security reasons please see to it that the equip- ment is sent back free of oil and gas! Ordering replacement parts Please quote the following data when ordering re- placement parts:

• Article number of the machine Service information With this product, it is necessary to note that the follow- ing parts are subject to natural or usage-related wear, or that the following parts are required as consuma- bles. Wear parts*: spark plug, air lter, petrol lter, knife, belt

• may not be included in the scope of supply! Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page. Checking the oil level (Fig. 18):

• Stand the lawn mower on a at level surface.

• Unscrew the oil dip stick (12) by turning anticlock- wise, pull out and wipe. Insert the dip stick back in the lling mount as far as the stop, but do not screw back in.

• Pull out the dip stick (12) again and read o󰀨 the oil level while holding horizontally. The oil level must be between the maximum and the minimum Changing the oil

• Change the engine oil every year before the start of the season when the engine is warm.

• Use only engine oil (SAE30/ 10W30).

• Empty the fuel tank (with a petrol suction pump)

• Place a at oil drip tray in front of the mower (min. volume 1 Liter).

• Remove the dipstick and tip over the mower untill the whole oil is run out into the oil drip tray.

• Fill up with engine oil as far as the top mark on the dipstick (approx. 0.4 l).

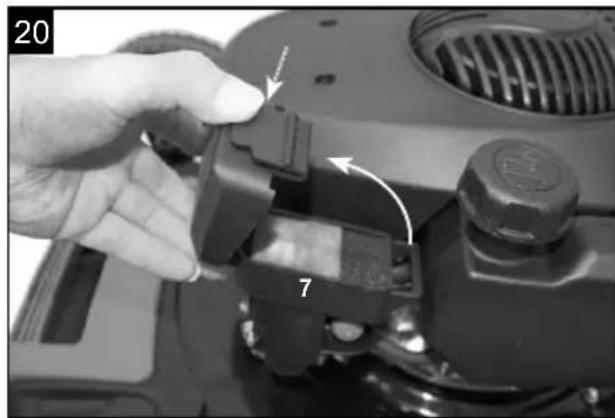

• Important! Do not screw in the oil dipstick to check the oil level – only insert it as far as the thread. Dispose of the used oil in accordance with applicable regulations. Maintenance of the air lter (g. 20) A soiled air lter will reduce the performance of the engine because it will prevent enough air getting to the carburetor. It is therefore imperative that regular checks are made. The air lter should be checked every 25 hours and cleaned if required. If the air is very dusty the air lter should be checked more regularly. Unclip the air lter cover and remove the sponge lter element. To avoid objects falling into the air intake, re- place the air lter cover. (g. 20). Important: Never clean the air lter with petrol or in- ammable cleaning agents. Clean the air lter with compressed air or simply by knocking out any soiling. Maintenance of the spark plug (g. 21) Check the spark plug for dirt and grime after 10 hours of operation and if necessary clean it with a copper wire brush. Thereafter service the spark plug after every 50 hours of operation. Pull o󰀨 the spark plug boot with a twist. Remove the spark plug (10) with a spark plug wrench. Using a feeler gauge, set the gap to 0.75 mm( 0.030”). Ret the spark plug taking care not to overtighten.www.scheppach.com

11. Disposal and recycling

Notes for packaging The packaging materials are recyclable. Please dis- pose of packaging in an environmentally friend- ly manner. You can nd out how to dispose of the disused device from your local authority or city adminis- tration. Fuels and oils

• Before disposing of the unit, the fuel tank and the engine oil tank must be emptied!

• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!

• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

• Never store the mower (with petrol in the tank) in- side a building in which petrol fumes could come into contact with open ames or sparks.

• Allow the motor to cool before you put the lawn mow- er in an enclosed area.

• In order to avoid re hazards, keep the engine, ex- haust and the area around the fuel tank free from grass, leaves and leaking grease (oil). Preparing the mower for long-term storage Caution: Do not empty the petrol tank in enclosed are- as, near re or when smoking. Petrol fumes can cause explosions and re.

• Clean and maintain the machine before storage

• Empty the petrol tank with a petrol suction pump.

• Start the engine and let it run until any remaining petrol has been used up.

• Change the oil at the end of every season. To do so, remove the used engine oil from a warm engine and rell with fresh oil.

• Remove the spark plug from the cylinder head. Fill the cylinder with approx. 20 ml of oil from an oil can. Slowly pull back the starter handle, which will bathe the cylin- der wall with oil. Screw the spark plug back in.

• Clean the cooling ns of the cylinder and the housing.

• Be sure to clean the entire machine to protect the paint.

• Store the machine in a well-ventilated place. Preparing the mower for transportation (Fig. 22)

• Empty the petrol tank.

• Always let the engine run until it has used up the remainder of petrol in the tank.

• Empty the engine oil from the warm engine.

• Remove the spark plug boot from the spark plug.

• Clean the cooling ns of the cylinder and the housing.

• Remove the start tension cable (17) from the hook. Loosen the quick-release lever (5) and fold the up- per push bar down. Make sure the cables are not bent during this process.

• Wedge a few layers of corrugated cardboard be- tween the upper and lower push bars and the engine in order to prevent any chang.www.scheppach.com

Troubleshooting The table shows potential failures, their possible cause and removal options. However, if you are unable to re- move the problem, contact a professional to assist you. m CAUTION! Always switch o󰀨 the engine and pull the ignition cable before starting any inspection or adjustment work. m CAUTION! If, after making an adjustment or repair to the engine, you let it run for a few minutes, remember that the exhaust and other parts will get hot. Thus, do not touch parts that emanate heat, as these may burn you. Important hint in case of sending the equipment to a service station: Due to security reasons please see to it that the equipment is sent back free of oil and gas! Fault Possible cause Remedy Loud while running, machine vibrates heavily - Screws are loose - Blade fasteners are loose - Blade is unbalanced - Check screws - Check blade fasteners - Replace blade Engine does not start - Brake lever not pressed - Speed lever in wrong position - Spark plug is defective - Fuel tank is empty - Contaminated fuel - Cold environment - Engine faulty - Press brake lever - Check setting - Replace spark plug - Rell with fuel - Empty fuel tank and ll with clean fuel - Push the primer button - Contact authorised customer service Engine runs unsteadily - Air lter is soiled - Spark plug is soiled - Clean the air lter - Clean the spark plug Uneven mowing results - Blade is blunt - Cutting height is too low - Sharpen the blade - Set correct height Unsatisfactory bagging of the grass - Cutting height is too low - Blade is worn - Basket is clogged - Set correct height - Replace the blade - Empty the basketwww.scheppach.com

EU Declaration of Conformity Translation of the original Declaration of Conformity We declare under our sole responsibility that the product described here com-plies with the applicable directives and standards. The object of the declaration described here fulls the regulations of the direc- tive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment. * Technical documentation available at: ** Item number*** Item designation: Petrol lawnmower MP132-40 Brand****

13. Declaration of conformity

2000/14/EG; 2005/88/EG Noise: measured L = 94 dBguaranteed L = 96 dB
