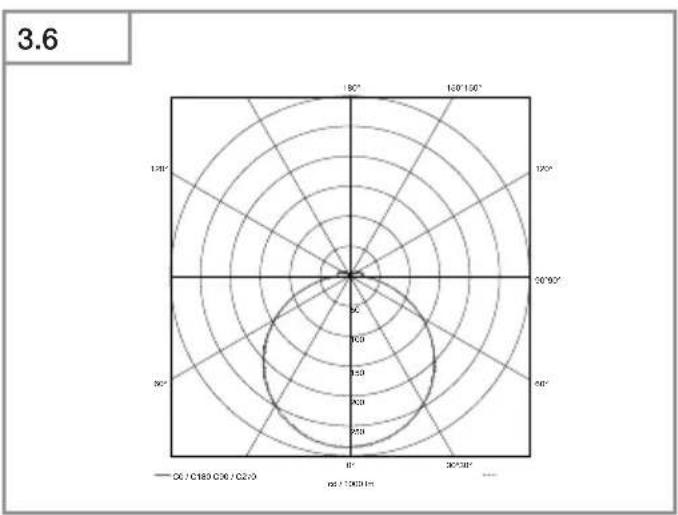

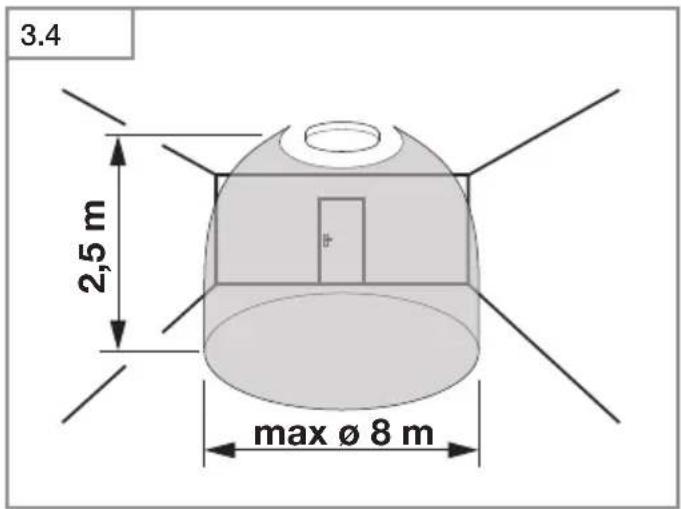

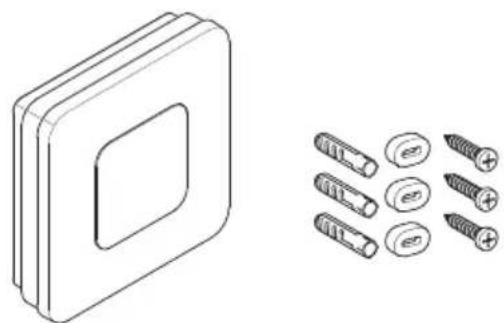

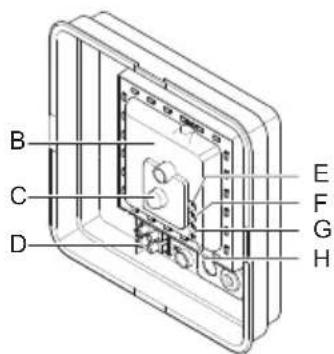

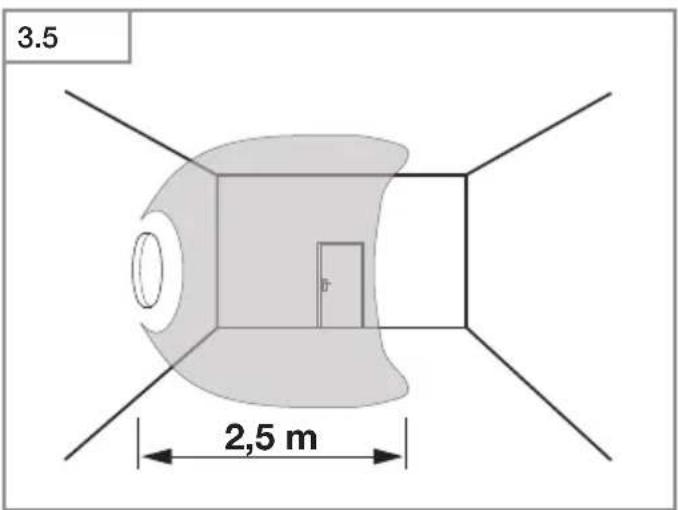

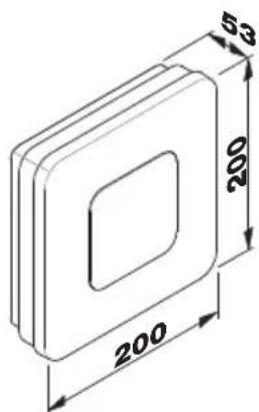

DE- 10 - Package contents M1 (Fig.3.1) Sensor-switched light 3 screws 3 wall plugs 3 spacers Product dimensions M1 (Fig.3.2) Product components M1 (Fig.3.3) A Shade B Electronics enclosure C HF sensor D Connecting terminal E Basic light level F Time setting G Reach setting H Twilight setting Detection zones for ceiling mounting M1: Ø 3 – 8 m (Fig.3.4) Detection zones for wall mounting M1: 2.5 m (Fig.3.5) Detection zones may vary slightly depending on type of enclosure used. Luminous intensity distribution (Fig.3.6)

4. Electrical connection

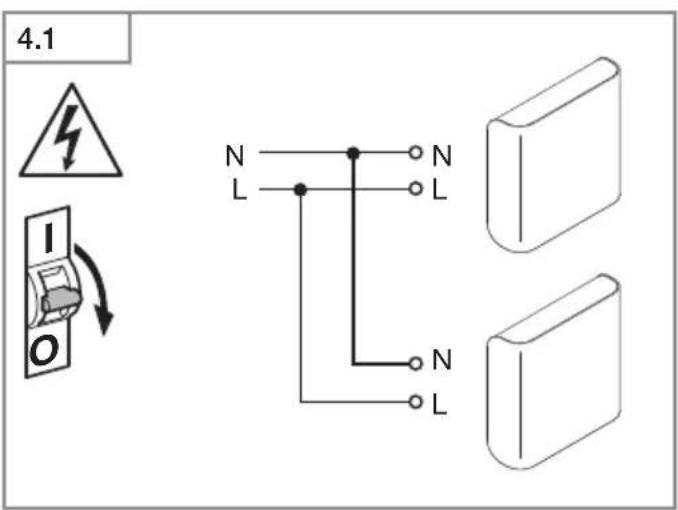

Wiring diagram (Fig.4.1) The mains power supply lead is a 3-core cable: L = Phase conductor (usually black, brown or grey) N = Neutral conductor (usually blue) PE = Protective-earth conductor (green/yellow) If you are in any doubt, identify the conductors using a volt- age tester; then disconnect from the power supply again. Connect the phase conductor (L) and neutral conductor (N) to the terminal block. Important: incorrectly wired connections will produce a short circuit later on in the product or your fuse box. In this case, you must identify the individual conductors once again and reconnect them. A mains power switch for turning the unit ON and OFF may of course be installed in the mains supply lead. The light source of this luminaire cannot be replaced. If the light source needs to be replaced (e.g. at the end of its service life), the complete luminaire must be replaced. Connection to a dimmer will result in damage to the sen- sor-switched light.

Please read carefully and keep in a safe place. – Under copyright. Reproduction either in whole or in part only with our consent. – Subject to change in the interest of technical progress. Symbols

Reference to other information in the document.

2. General safety precautions

Disconnect the power supply before attempt- ing any work on the unit.

• During installation, the electric power cable being con- nected must not be live. Therefore, switch o the power first and use a voltage tester to make sure the wiring is o-circuit.

• Installing the sensor-switched light involves work on the mains supply voltage. This work must therefore be carried out professionally in accordance with national wiring regulations and electrical operating conditions. (e.g.: DE:VDE0100, AT: ÖVE/ÖNORM E8001-1, CH: SEV1000)

• Only use genuine replacement parts.

• Repairs may only be made by specialist workshops.

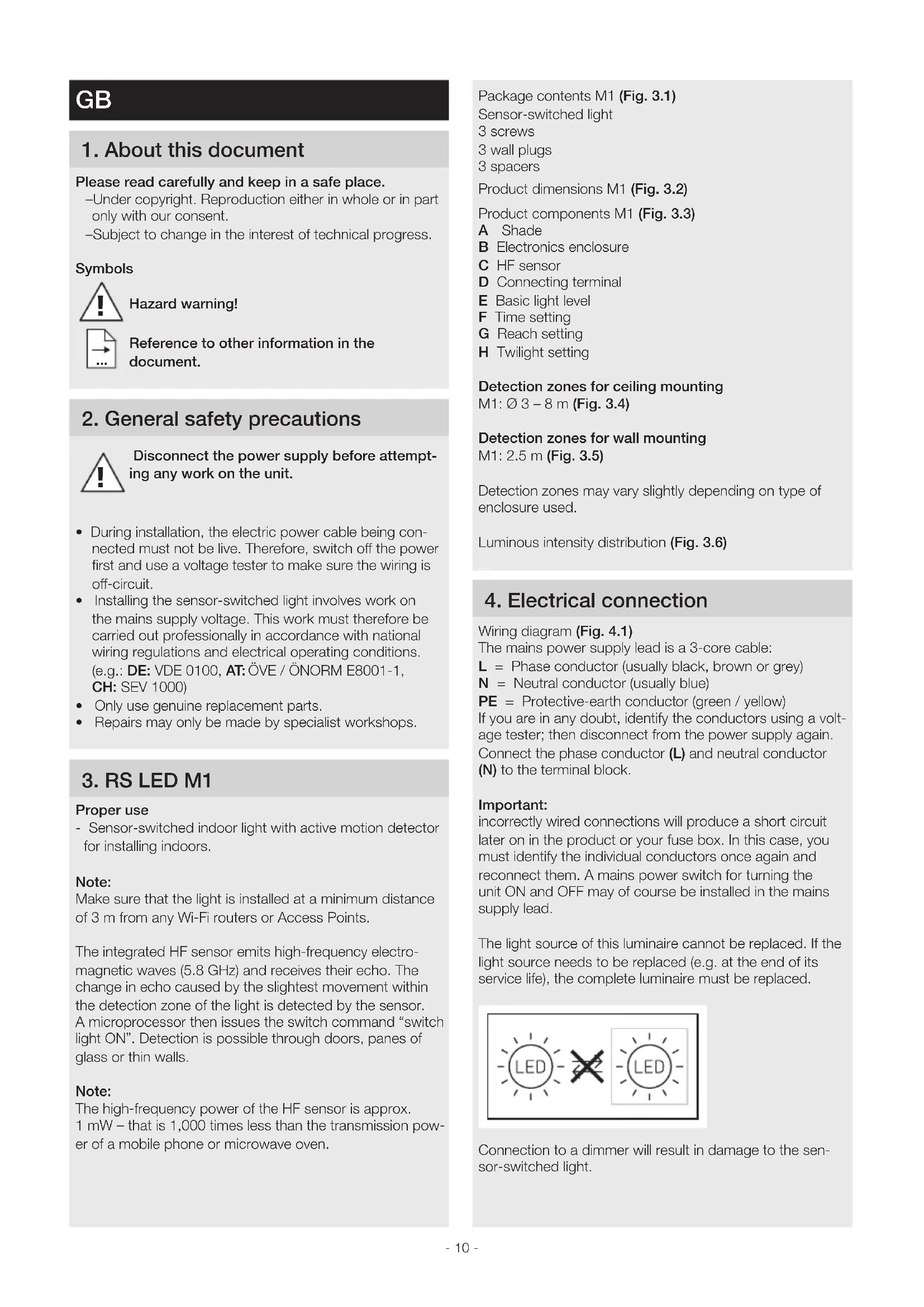

Proper use - Sensor-switched indoor light with active motion detector for installing indoors. Note: Make sure that the light is installed at a minimum distance of 3 m from any Wi-Fi routers or Access Points. The integrated HF sensor emits high-frequency electro- magnetic waves (5.8 GHz) and receives their echo. The change in echo caused by the slightest movement within the detection zone of the light is detected by the sensor. A microprocessor then issues the switch command “switch light ON”. Detection is possible through doors, panes of glass or thin walls. Note: The high-frequency power of the HF sensor is approx. 1mW – that is 1,000 times less than the transmission pow- er of a mobile phone or microwave oven. !- 11 -

• Check all components for damage.

• Do not use the product if it is damaged.

• When installing the sensor-switched light, make sure the installation site is not exposed to vibration.

• Select an appropriate mounting location, taking the reach and motion detection into consideration. Mounting procedure

• Switch OFF power supply (Fig.4.1)

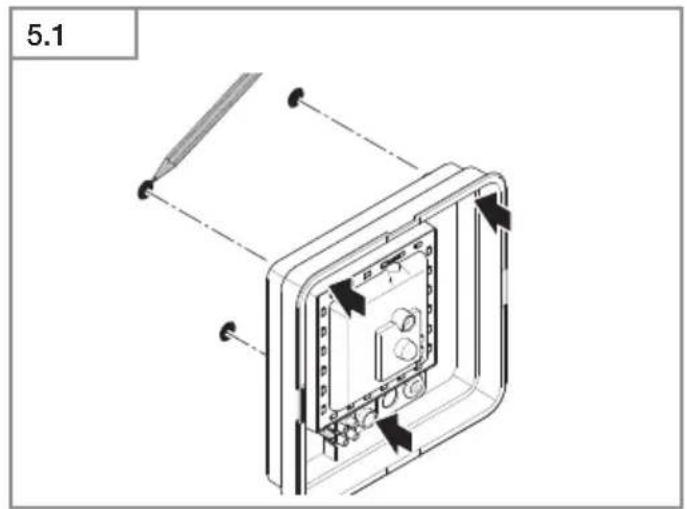

• Mark drill holes (Fig.5.1)

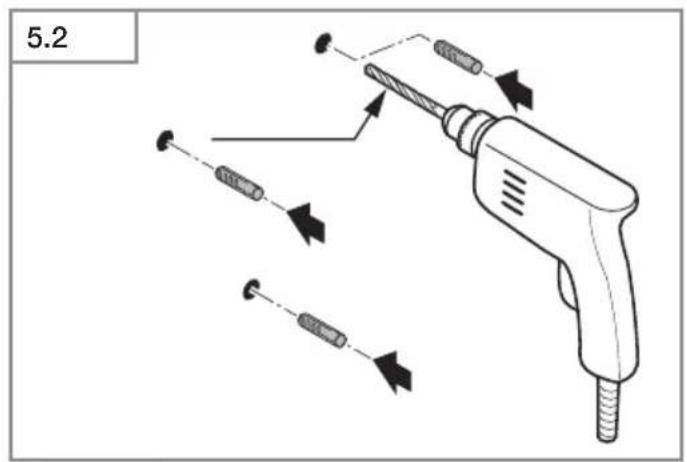

• Drill holes and insert wall plugs (Fig.5.2)

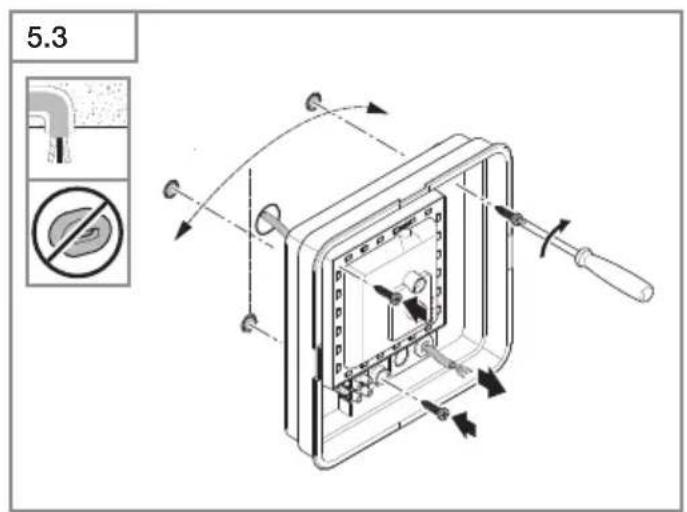

• Installation with concealed power supply lead (Fig.5.3)

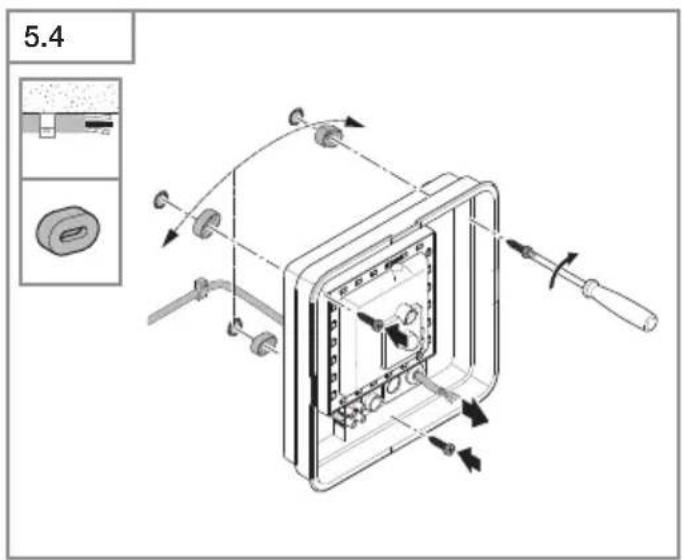

• Installation with surface-mounted power supply lead (Fig.5.4)

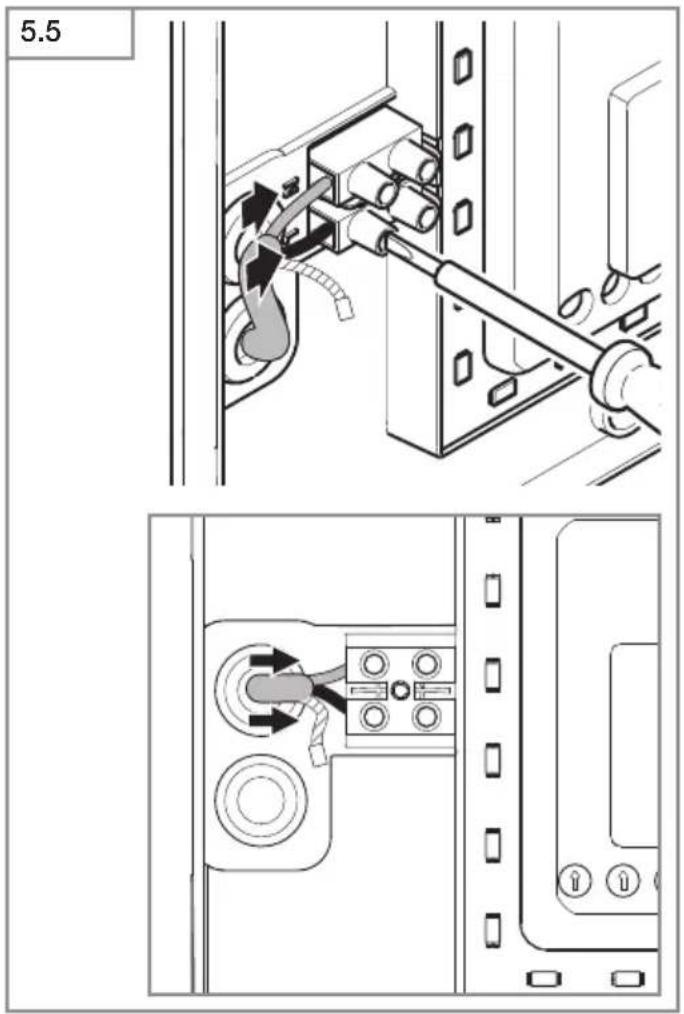

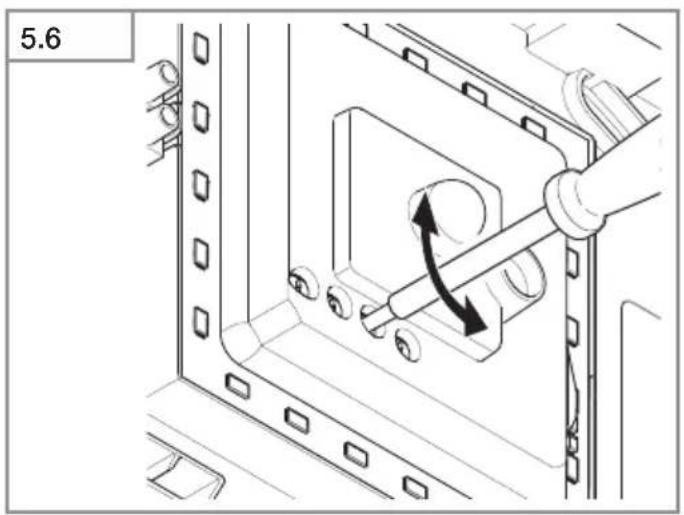

• Connect conductors (Fig.5.5)

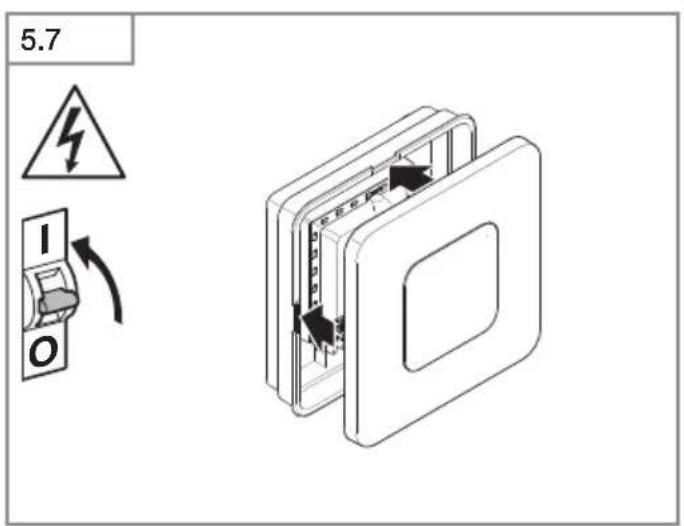

• Switch ON power supply (Fig.5.7)

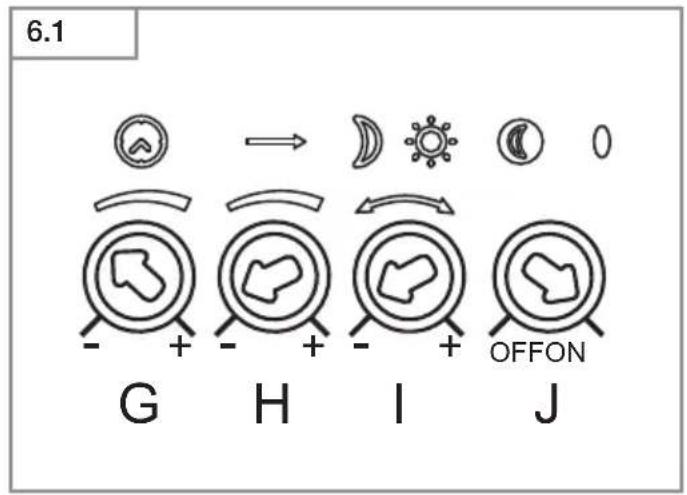

Factory settings: Time setting: 5 seconds Reach setting: M1: max. 8 m Twilight level: 2,000 lux Basic light level: OFF The sensor-switched light can be put into service after mounting the enclosure and connecting to the mains power supply. When putting into operation manually at the mains switch, the light will switch OFF after 10seconds for the calibration phase and is then activated for sensor mode. It is not necessary to operate the mains switch a second time. Function – control dials (Fig.6.1) Time setting (stay-ON time) (Fig.6.1/G) The light's ON time can be set to any period from approx. 5 seconds to a maximum of 15 minutes. Any movement detected before this time elapses will restart the timer. Note: After the light switches OFF, it takes approx. 1second before it is able to start detecting movement again. The light will only switch ON in response to movement once this period has elapsed. The shortest time setting is recommended when adjusting the detection zone and performing the functional test. Reach setting (sensitivity) (Fig.6.1/H) Reach is the term used to describe the diameter of the more or less circular detection zone produced on the ground for a mounting height of 2.5 m. – Control dial set to maximum = max. reach (M1: 8m) – Control dial set to minimum = min. reach (M1: 2.5m) Twilight setting (response threshold) (Fig.6.1/I) The light's chosen response threshold can be infinitely varied from approximately 2 to 2,000 lux. – Control dial set to = daylight mode (depending on ambient brightness) – Control dial set to = twilight mode (approx. 2 lux) The control dial must be turned to when adjusting the detection zone and performing the functional test in daylight. Basic light level function (Fig.6.1/J) The basic light level function provides illumination at approx. 10% light output when the brightness setting is reached. Movement in the detection zone switches the light ON at 100% brightness for the time selected. Light switches OFF completely after the selected time has elapsed. If the brightness setting has not yet been reached, basic light is switched back ON again. – Control dial set to = basic light level ON – Control dial set to 0 = basic light level OFF Basic light is ON when the level of light falls below the brightness threshold. Basic light is always ON when daylight mode is activated. Basic light switches OFF every hour to measure ambient brightness. Basic light switches back ON again after a short period. Manual override function If an optional mains switch is installed in the mains supply lead, the following functions are available in addition to simply switching light ON and OFF: Manual override (Fig. 6.2)

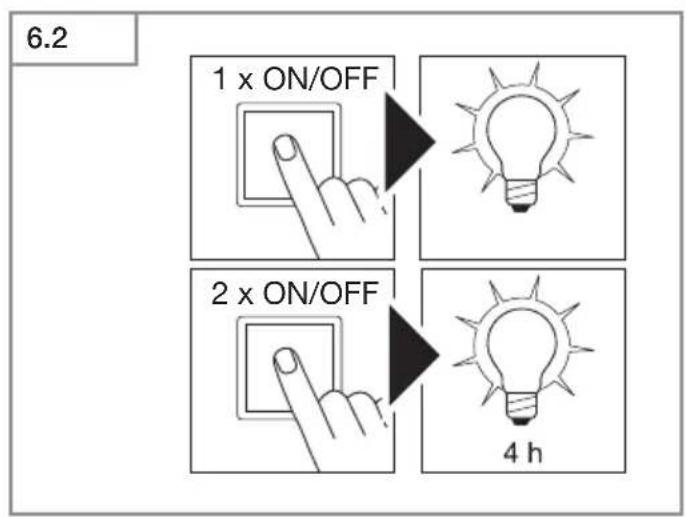

1) Activate manual override:

Switch OFF and ON twice. The light is set to manual override for 4 hours. Then it returns automatically to sensor mode.

2) Deactivate manual override:

Switch OFF and ON once. Light goes out or switches to sensor operation. Important: Switching must take place within 0.2 to 1second.

Electrical and electronic equipment, accessories and pack- aging must be recycled in an environmentally compatible manner. Do not dispose of electrical and electronic equipment as domestic waste. EU countries only Under the current European Directive on Waste Electri- cal and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner. Important note: the control gear cannot be replaced. GB- 12 -

8. Declaration of Conformity

STEINEL GmbH hereby declares that the RS LED M1 radio equipment type conforms to Directive 2014/53/EU. The full wording of the EU Declaration of Conformity is available for downloading from the following Internet address: www.steinel.de

9. Manufacturer's warranty

Manufacturer’s warranty of STEINEL GmbH, Diesel-strasse 80-84, DE-33442 Herzebrock-Clarholz, GermanyAll STEINEL products meet the highest quality standards. For this reason, we, the manufacturer, are pleased to pro-vide you, the consumer, with a warranty under the following terms and conditions:The warranty covers the absence of deficiencies which are proven to be the result of a material defect or fault in manufacturing and which are reported to us immediately after detection and within the warranty period. The war-ranty shall apply to all STEINEL products sold and used in Germany - excluding STEINEL Professional products.You can opt for warranty cover in the form of repair or replacement which will be provided free of charge (if ap-plicable, in the form of a successor model of the same or higher quality) or in the form of a credit note.The warranty period for the STEINEL product you have purchased is 3 years (5 years for products from the XLED home range) in each case from the date on which the product was purchased. We shall bear the shipping costs but not the transport risks involved in return shipment.Statutory rights accruing from defects, gratuitousnessThe warranty cover described here shall be applicable in addition to the statutory rights of warranty – including special consumer protection provisions – and shall not restrict or replace them. Exercising your statutory rights in the event of defects is gratuitous.Exemptions from the warrantyAll replaceable lamps are expressly excluded from this warranty. In addition to this, the warranty shall not cover: – any wear resulting from use or any other natural wear of product parts or any deficiencies in the STEINEL product that are attributable to wear caused by use or other natural wear, – any improper or non-intended use of the product or any failure to observe the operating instructions, – any unauthorised additions, alterations or other modifi-cations to the product or any deficiencies attributable to the use of accessory, – supplementary or replacement parts which are not genuine STEINEL parts, – any maintenance or care of products that is not carried out in accordance with the operating instructions, – any attachment or installation that is not in accordance with STEINEL’s installation instructions, – any damage or loss occurring in transit.Application of German lawThe warranty shall be governed by German law excluding the United Nations Convention concerning the International Sale of Goods (CISG).Making claimsIf you wish to make a warranty claim, please send your product complete and carriage paid with the original re-ceipt of purchase, which must show the date of purchase and product designation, either to your retailer or directly to us at STEINEL (UK) Ltd. – 25 Manasty Road, Axis Park, Orton Southgate, GB- Peterborough Cambs PE2 6UP United Kingdom. For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires.

10. Technical specifications

Dimensions (H×W×D) M1: 200×200×53 mm Supply voltage 220 – 240 V, 50/60 HzPower consumption (P ) 8.80 WLuminous flux * M1: 759 lmEfficiency M1: 86 lm/WStandby sensor (P ) 0.39 WMains current 46.50mAACPower factor 0.93Colour temperature 3,000K (warm white)Colour rendering index R = 82Average rated life expectancy L70B50 at 25°C: >60,000 hoursColour consistencySDCM Starting value: 3Luminous intensity distribution 10015020025090°90° 180°

WARRANTY MANUFACTURER'S YEAR WARRANTY MANUFACTURER'S YEAR WARRANTY- 13 - Malfunction Cause Remedy Sensor-switched light without power ■ Fuse has tripped, not switched ON, break in wiring ■ Short circuit in mains power supply lead ■ Any mains switch OFF ■ Activate, change fuse, turn ON mains switch, check wiring with voltage tester ■ Check connections ■ Switch on mains switch Sensor-switched light will not switch ON ■ Incorrect twilight setting selected ■ Mains switch OFF ■ Fuse has tripped ■ Readjust ■ Switch ON ■ Activate, change fuse, check connec- tion if necessary Sensor-switched light will not switch OFF ■ Continued movement within the detec- tion zone ■ Check detection zone Sensor-switched light switches ON without any identifiable move- ment ■ Light not mounted for detecting move- ment reliably ■ Movement occurred, but not identified by the sensor (movement behind wall, movement of a small object in immediate lamp vicinity etc.) ■ Securely mount enclosure ■ Check detection zone Sensor-switched light does not switch ON despite movement ■ Rapid movements are suppressed to minimise malfunctioning or detection zone set too small ■ Incorrect twilight setting selected ■ Check detection zone ■ Readjust
