ADM 30 smart - Rangefinder Flex - Free user manual and instructions

Product type	Laser distance meter
Brand	Flex
Model	ADM 30 smart
Laser class	2
Wavelength	670 nm
Measuring range	0.03 to 30 m
Accuracy	± 3 mm
Power supply	Li-Polymer battery 180 mAh/3.7 V
Weight	0.38 kg
Charging	USB (plug and cable included)
Operating temperature	0 °C to 40 °C
Storage temperature	-20 °C to 60 °C
Max number of measurements	3000
Functions	Length, height, deviation, area measurement, continuous measurement
Display	Integrated display
Audible signal	Yes, can be turned on/off
Lighting	Yes, can be turned on/off
Reference point	Adjustable
Unit of measurement	Adjustable (m, ft, in, etc.)
Cleaning	Soft, dry cloth
Safety	Do not direct the beam towards eyes
Repairability	Entrust to an approved workshop, original parts
Disposal	Recycle according to EU directive, do not dispose of with household waste

Frequently Asked Questions - ADM 30 smart Flex

How to turn the ADM 30 smart laser distance meter on and off?

To turn on the device, press the ON button. To turn it off, press the C/OFF button. The device also turns off automatically after a period of inactivity.

How to charge the battery of the Flex ADM 30 smart?

Connect the provided USB cable to the USB charging port on the device, then plug the other end into a standard USB charger. The Li-Polymer 180 mAh battery fully recharges in a few hours. It is recommended to fully charge the battery before first use.

What is the maximum measuring range?

The measuring range is 0.03 to 30 meters. However, under unfavorable conditions (strong sunlight, reflective surfaces), the range may be reduced. The use of an optional laser targeting target is recommended to improve accuracy.

How to check the accuracy of my distance meter?

It is recommended to check the accuracy regularly. The steps are described from page 140 of the manual. If the accuracy is out of tolerance, entrust the device to an after-sales service workshop approved by the manufacturer.

What to do if the device does not turn on?

First check that the battery is charged. Plug in the USB charger and wait a few minutes. If the device still does not turn on, contact an approved after-sales service.

Can I use the device on a ladder?

Yes, but ensure you adopt a stable posture and keep your balance. Avoid abnormal positions and secure your ladder. The distance meter is lightweight (0.38 kg) and easy to handle.

How to clean the lens and the device?

Use a soft, dry cloth to clean the exterior. Do not touch the receiver lens with your fingers. Never use liquids or abrasive products.

Is the device water resistant?

No, the ADM 30 smart distance meter is not waterproof. Never immerse it in water or any other liquid. Store it in a dry place.

How to change the unit of measurement?

Refer to page 126 of the manual. Use the mode button to browse through options and select the desired unit (meters, feet, inches, etc.).

What to do in case of malfunction?

Do not attempt to repair the device yourself. Entrust it exclusively to specialized and qualified personnel using original spare parts. Contact a workshop approved by the manufacturer.

USER MANUAL ADM 30 smart Flex

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Laserstrahlung

Safety instructions....9
Identification on the device 9
Overview 11
Technical specifications 11
Instructions for use 12
Checking precision 13
Maintenance and care 13
Disposal instructions 13

Safety instructions

WARNING!

Read all safety information and instructions to be able to work safely and securely with the measuring instrument. Keep all warnings and instructions in a safe place for future reference.

Identification on the device

Before switching on the power tool, read the operating manual!

LASER RADIATION

DO NOT STARE INTO BEAM

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Laser radiation

Do not stare into beam.

Laser class 2 product

Maximum output power P ≤ 1

Wavelength λ=670 nm

EN 60825-1:2015-07

Laser classification

The device complies with laser class 2, based on the standard IEC 825-1/EN 60825.

513.091 ADM30 smart.book Seite 10 Donnerstag, 2 April 2021 9:36 21

ADM 30 smart

en

Intended use

This measuring instrument is designed for commercial use in industrial and trade applications. The laser distance-measuring device is designed for measuring lengths, heights and gaps as well as determining surface areas.

Laser distance-measuring device

• Do not point the laser beam at people or animals and do not stare into the laser beam. This measuring tool generates a laser beam, which can dazzle others.
• Have the measuring instrument repaired by qualified technicians and with original spare parts only. This ensures that the safety of the measuring instrument is maintained.
• Do not let children use the measuring instrument unsupervised. They could accidentally blind people.
• Do not use the measuring instrument in a potentially explosive environment which contains flammable liquids, gases or dust. The measuring instrument may generate sparks which will ignite the dust or the vapours.
  – If devices other than the operating and adjusting devices specified here are used or if different procedures are implemented, this may result in a hazardous exposure to radiation.

• Do not disable any safety devices and do not remove any information or warning signs.
  – Before switching on the device, check for visible damage. Do not switch on damaged devices.
• When using the measuring instrument on ladders, avoid an abnormal body posture. Ensure that you have a secure footing and keep your balance at all times.

513.091 ADM30 smart.book Seite 11 Donnerstag, 2 April 2021 9:36 21

April 2021 9:36 21

en

ADM 30 smart

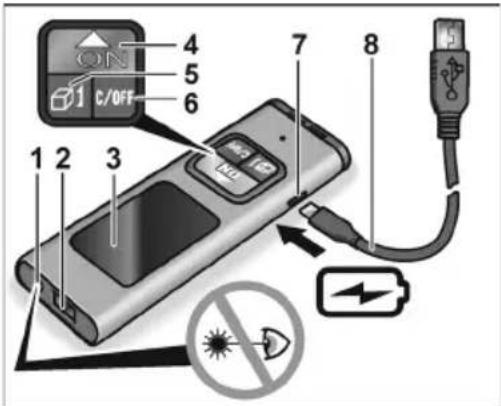

Overview

ON 1 2 3 4 5 6 C/OFF 7 8 No Battery

1 Laser discharge window
2 R e c e i v e r l e n s
3 Display
4 ON button/Measurement button/Mode
5 Mode button
6 OFF button
7 USB charge socket
8 USB charge cable

Technical specifications

Laser distance-measuring device ADM 30 smart

Visible laser diode 670 nm

Laser class 2

Measurement range * 0.03–30 m

Precision * ± 3 mm

Individual measurements ≤ 3000

(number)

513.091 ADM30 smart.book Seite 12 Donnerstag, 2 April 2021 9:36 21

ADM 30 smart

en

Laser distance-measuring device ADM 30 smart

Temperature range
- for operation	0 °C ... 40 °C
- for storage	-20 °C ... 60 °C

Lithium polymer battery 500mAh/3.7V

Weight 0.38 kg

* The measurement range may be less under unfavourable conditions (bright sunlight, reflective surfaces). It is recommended to use a laser target plate (optional).

Instructions for use

WARNING!

• Do not point the laser beam at people or animals.
• Do not stare into the laser beam.
• Do not place any optical instruments in the path of the beam.
  This measuring instrument generates laser radiation which may cause blindness.

NOTE

The battery is supplied partly charged only. Before using the device for the first time, fully charge the battery. The most important operating steps are explained at the end of these instructions on the illustrated pages. See from page 124.

Switching the device on and off	124
Setting unit of measurement	126
Selecting reference point	128
Setting measuring mode	130
Linear measurement	132
Continuous measurement	134
Switching acoustic signal on and off	136
Switching light on/off	138
Checking precision	140

513.091 ADM30 smart.book Seite 13 Donnerstag, 2 April 2021 9:36 21

en

ADM 30 smart

Checking precision

It is recommended to check the device regularly to ensure that it is always precise.

If the precision deviates from the permitted tolerance range, the device must be taken to a customer service workshop authorised by the manufacturer.

Have the device adjusted by authorised technicians only.

The steps required to check the precision are explained at the end of these instructions on the illustrated pages. See from page 140.

Maintenance and care

Observe the following instructions:

• Handle the measuring instrument with care and protect it from impacts, vibrations and extreme temperatures.
• Do not touch the receiver lens with your fingers.
  – Clean the lens with a soft, dry cloth only.

• Never submerse the measuring instrument in water or other liquids.

• Keep the measuring instrument in a dry place.

• Have the measuring instrument repaired by qualified technicians and with original spare parts only. This ensures that the safety of the measuring instrument is maintained.

Disposal information

EU countries only:

Do not dispose of electric power tools in the household waste!

In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic

Equipment and transposition into national law, used electric power tools must be collected separately and recycled in an environmentally friendly manner.

Raw material recovery instead of waste disposal.

The device, accessories and packaging should be recycled in an environmentally-friendly manner. Plastic parts are identified for recycling according to material type.

513.091_ADM30_smart.book Seite 14 Donnerstag, 2 April 2021 9:36 21

ADM 30 smart

en

WARNING!

Do not throw accumulators/batteries into the household waste, fire or water. Do not open disused batteries.

EU countries only:

In accordance with Directive 2006/66/EC defective or used batteries must be recycled.

NOTE

Please ask your dealer about disposal options!

14

513.091 ADM30 smart.book Seite 15 Donnerstag, 2 April 2021 9:36 21

ADM 30 smart

Table des matières

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Rayonnement laser

Classification laser

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Radiación láser

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Radiação laser

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Laserstraling

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Laserstråling

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Laserstråle

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Laserstrålning

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Lasersäteilyä

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Ακτινοβολία λέιζερ

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Promień laserowy

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Lézersugárzás

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Laserové záření

ON 1 C/OFF 4 5 6 7 8 1 2 3 No. 10 No. 11 No. 12 No. 13 No. 14 No. 15 No. 16 No. 17 No. 18 No. 19 No. 20 No. 21 No. 22 No. 23 No. 24 No. 25 No. 26 No. 27 No. 28 No. 29 No. 30 No. 31 No. 32 No. 33 No. 34 No. 35 No. 36 No. 37 No. 38 No. 39 No. 40 No. 41 No. 42 No. 43 No. 44 No. 45 No. 46 No. 47 No. 48 No. 49 No. 50 No. 51 No. 52 No. 53 No. 54 No. 55 No. 56 No. 57 No. 58 No. 59 No. 60 No. 61 No. 62 No. 63 No. 64 No. 65 No. 66 No. 67 No. 68 No. 69 No. 70 No. 71 No. 72 No. 73 No. 74 No. 75 No. 76 No. 77 No. 78 No. 79 No. 80

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Laserové žiarenie

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Laserkiirgus

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Lāzera starojums

Neskatieties starā.

Class 2 Laser Product

P≤1mW λ=670nm

IEC60825-1:2015-07

Лазерное излучение

1 sec ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON IN M IN M

133

513.091 ADM30 smart.book Seite 134 Donnerstag, 2 April 2021 9:36 21

ADM 30 smart

de Dauermessung
en Continuous measurement
fr Mesure permanente
it Misurazione continua
es Medición permanente
pt Medição contínua
nl Duurmeting
da Kontinuerlig måling
no Langtidsmåling
sv Kontinuerlig mätning
fi Jatkuva mittaus
el Métrηση διαρκείας
pl Pomiar ciągły
hu Tartós mérés
cs Trvalé měření
sk Trvalé meranie
et Pidevmõõtmine
It Nuolatinis matavimas
Iv Ilgstoša mērīšana
ru Продолжительное измерение

134
