Product Type	Garden pond air pump
Brand	Pontec
Model	PondoAir Set 900
Intended Use	Pond aeration and oxygenation, water features, anti-ice function in winter
Power Supply	230 V / 50 Hz (standard mains)
Power cable length	1.5 m
Number of flexible hoses supplied	2 hoses of 5 m each
Number of diffusers	4 diffusers
Spare membranes included	2 membranes
Y-connector included	2 distributors to distribute air
Safe distance to water	At least 2 meters
Required electrical protection	30 mA residual current circuit breaker
Installation	Horizontal, above water level, protected from flooding
Wear parts	Membrane, air filter, diffuser
Maintenance	Cleaning air filter, replacing membranes, cleaning diffusers
Frost conditions	Usable in winter if in continuous operation, otherwise store dry
Warranty	2 years (subject to the conditions in the manual)
Disposal	Do not dispose with household waste, cut the cable and recycle

Frequently Asked Questions - PondoAir Set 900 Pontec

How to install the PondoAir Set 900?

Place the device horizontally, at least 2 m from the pond and above water level. Connect the air hose to the diffuser and to the air outlet of the pump. Plug the device into the mains: it starts immediately.

What to do if the device does not expel air or the flow is insufficient?

Check that the diffusers are not clogged (clean or replace them). Clean or replace the air filter. Ensure the flexible hose is not kinked or porous. If the problem persists, replace both membranes.

How to clean the air filter?

Disconnect the power supply. Remove the filter holder from the lower part of the housing using a screwdriver. Remove the filter element, clean it or replace it. Reinstall the filter element and the O-ring, then reassemble the device.

How to replace the membranes of the pneumatic motor?

Cut the power. Open the housing (screws on the lower part). Unscrew the pneumatic motor. Remove the nut from the membrane bracket, tilt the bracket, replace the membrane. Reassemble in reverse order. Always replace both membranes even if only one is defective.

What are the essential safety precautions?

Use a 30 mA residual current circuit breaker. Only connect if the electrical characteristics match. Never immerse the device. Before any work in the water, cut the power. Do not use if the cable or housing is damaged.

Can the PondoAir Set 900 be used in winter?

Yes, the device can serve as an anti-ice device in continuous operation, provided the permissible outdoor temperature is respected. If you do not use it in winter, store it in a dry indoor place at room temperature.

What accessories are supplied with the set?

The set includes: 1 pump with 1.5 m cable, 2 flexible hoses of 5 m, 4 diffusers, 2 spare membranes, and 2 Y-connectors.

How to store the device during winter?

If the device is not used continuously, unplug it and store it in a dry indoor room (room temperature). Ensure it is clean and dry before storage.

What to do in case of abnormal noise or failure?

Unusual noises often indicate a defective membrane: replace both membranes. If the device does not work at all, check the mains voltage. For any other problem, contact the authorized after-sales service.

What is the warranty of the PondoAir Set 900?

PfG offers a 2-year warranty from the date of sale against material or manufacturing defects, upon presentation of the purchase receipt. The warranty is excluded in case of improper use, electrical or mechanical damage, or unauthorized repair.

USER MANUAL PondoAir Set 900 Pontec

EN Operating instructions

FR Notice d'emploi

Line drawing of a portable air purifier with hoses and two spherical components (no text or symbols)

A

PAR0001

B

≥2 m

PAR0004

C

PondoAir Set 200/450

PondoAir Set 800

PAR0002

D PondoAir Set 200/450 PondoAir Set 900 PAR0003

E PondoAir Set 200/450 PondoAir Set 900 1. 2. PAR0009

F G PAR0005 1. 2. PAR0006

H

Technical diagram showing mechanical assembly steps with numbered components and a magnified detail view

PAR0007

|

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement

PAR0011

J

PondoAir Set 900 4 x

PAR0010

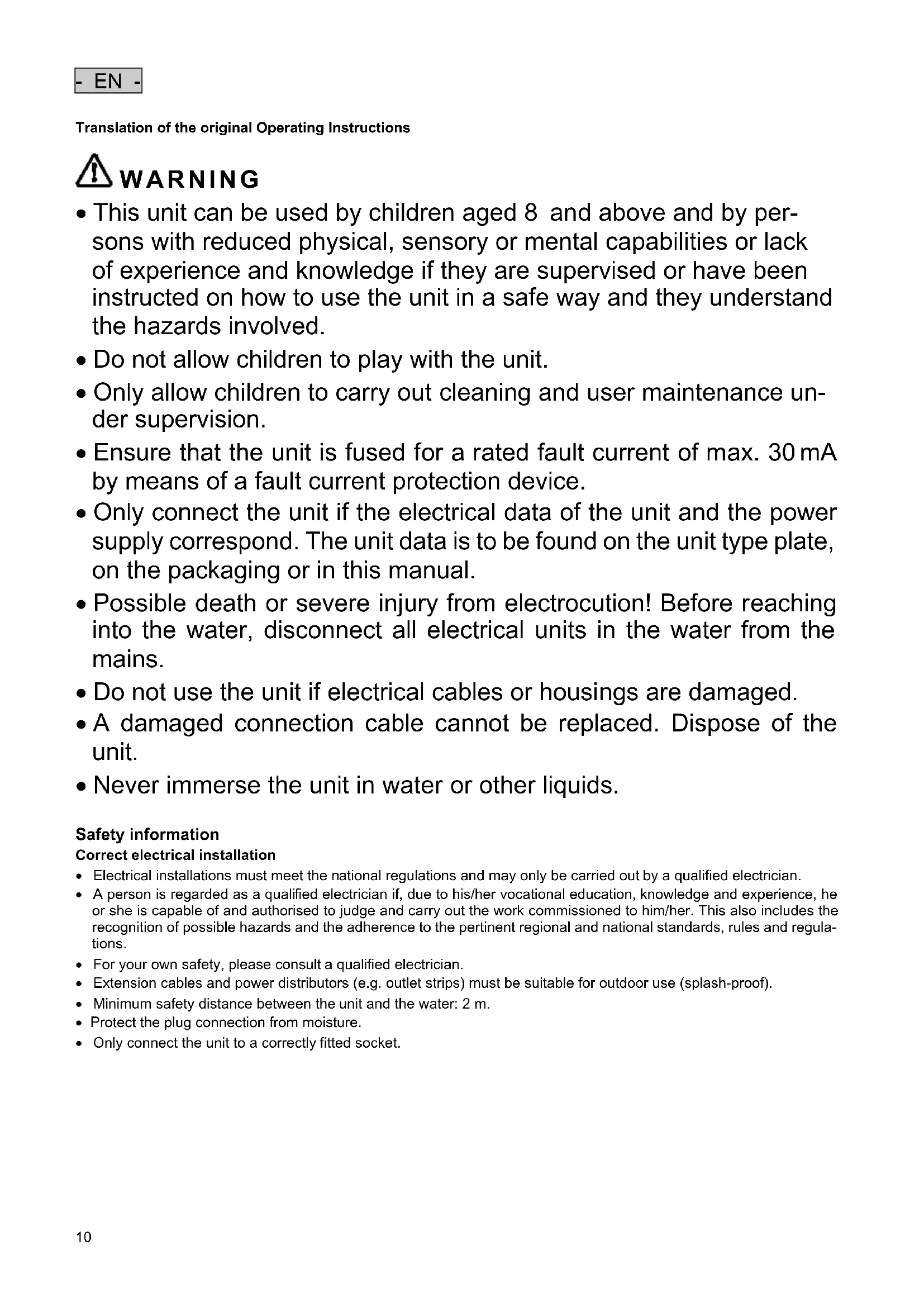

Translation of the original Operating Instructions

WARNING

• This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved.
• Do not allow children to play with the unit.
• Only allow children to carry out cleaning and user maintenance under supervision.
• Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protection device.
• Only connect the unit if the electrical data of the unit and the power supply correspond. The unit data is to be found on the unit type plate, on the packaging or in this manual.
• Possible death or severe injury from electrocution! Before reaching into the water, disconnect all electrical units in the water from the mains.
• Do not use the unit if electrical cables or housings are damaged.
• A damaged connection cable cannot be replaced. Dispose of the unit.
• Never immerse the unit in water or other liquids.

Safety information

Correct electrical installation

• Electrical installations must meet the national regulations and may only be carried out by a qualified electrician.
• A person is regarded as a qualified electrician if, due to his/her vocational education, knowledge and experience, he or she is capable of and authorised to judge and carry out the work commissioned to him/her. This also includes the recognition of possible hazards and the adherence to the pertinent regional and national standards, rules and regulations.
• For your own safety, please consult a qualified electrician.
• Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof).
  • Minimum safety distance between the unit and the water: 2 m.
• Protect the plug connection from moisture.
• Only connect the unit to a correctly fitted socket.

Safe operation

• Never carry or pull the unit by the electrical cable.
• Route cables such that they are protected from damage and do not present a tripping hazard.
• Only open the unit housing or its attendant components if this is explicitly specified in the operating instructions.
• Only carry out work on the unit that is described in this manual. If problems cannot be overcome, please contact an authorised customer service point or, if in doubt, the manufacturer.
• Only use original spare parts and accessories for the unit.
• Never carry out technical changes to the unit.
• Keep the socket and power plug dry.

Information about these operating instructions

You made a good choice with the purchase of this product PondoAir Set 200/450/900.

Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit.

Ensure that all work on and with this unit is only carried out in accordance with these instructions.

Adhere to the safety information for the correct and safe use of the unit.

Keep these instructions in a safe place! Please also hand over the instructions when passing the unit on to a new owner.

Warnings used in these instructions

The warning information is categorised by signal words, which indicate the extent of the hazard.

DANGER

Indicates an immediately dangerous situation, which will lead to death or severe injuries, if not avoided.

WARNING

Indicates a possibly dangerous situation, which could lead to death or severe injuries, if not avoided.

CAUTION

Indicates a possibly dangerous situation, which could lead to medium or minor injuries, if not avoided.

NOTE

Indicates a possibly dangerous situation, which could lead to damage to property or the environment, if not avoided.

Cross-references used in these instructions

☐ A Reference to a figure, e.g. Fig. A.

→ Reference to another section.

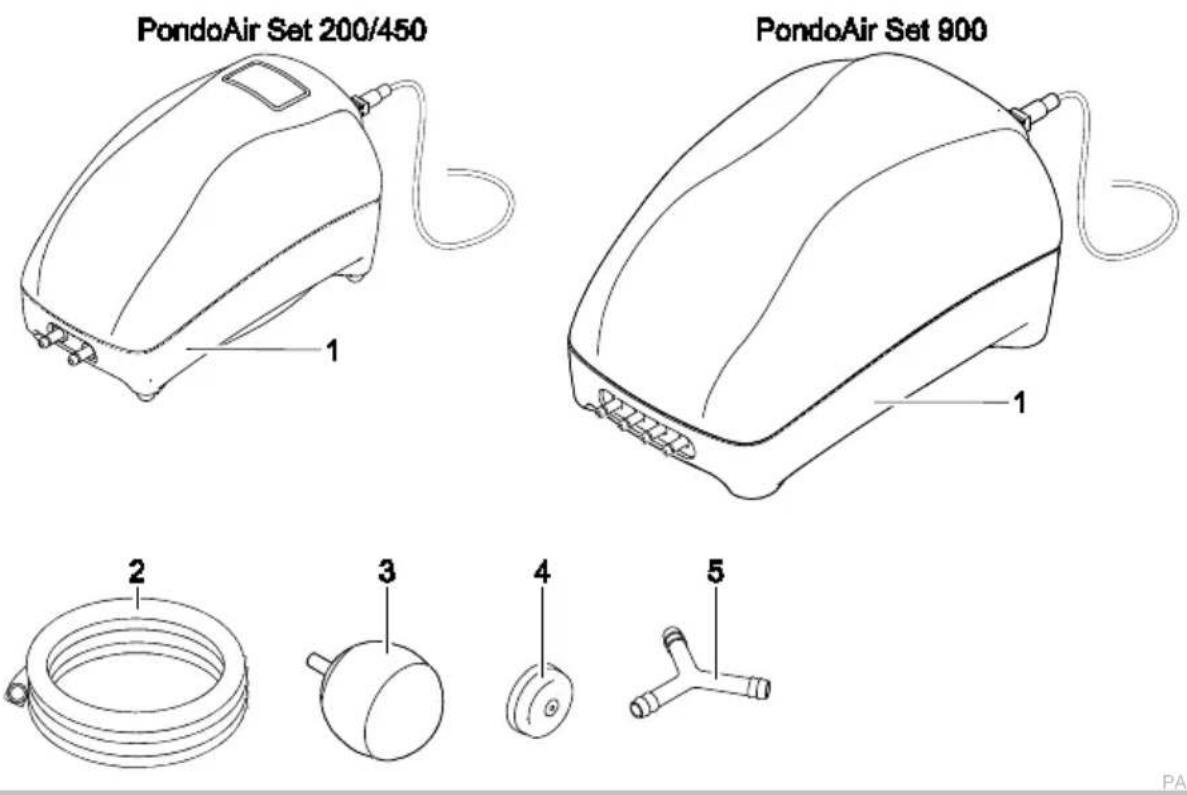

Scope of delivery

☐ A	PondoAir Set			Description
	200	450	900
	Quantity	Quantity	Quantity
1	1	1	1	Aerator pump with 1.5 m connection cable
2	2	2	2	5 m air hose
3	2	2	2	Aeration stone
4	2	2	4	Membrane (replacement)
5	-	-	2	Y distributor

- EN -

Intended use

PondoAir Set 200/450/900, referred to as "unit", may only be used as specified in the following:

- For aeration and supplying oxygen to garden ponds.

- For use in water fountain systems and ponds.

- Operate in accordance with instructions.

- During the winter months, the unit can be used to keep the surface of the pond free of ice and prevent the pond from freezing up. The prerequisite for this is that the temperature does not exceed the permissible outdoor temperature.

Installation and connection

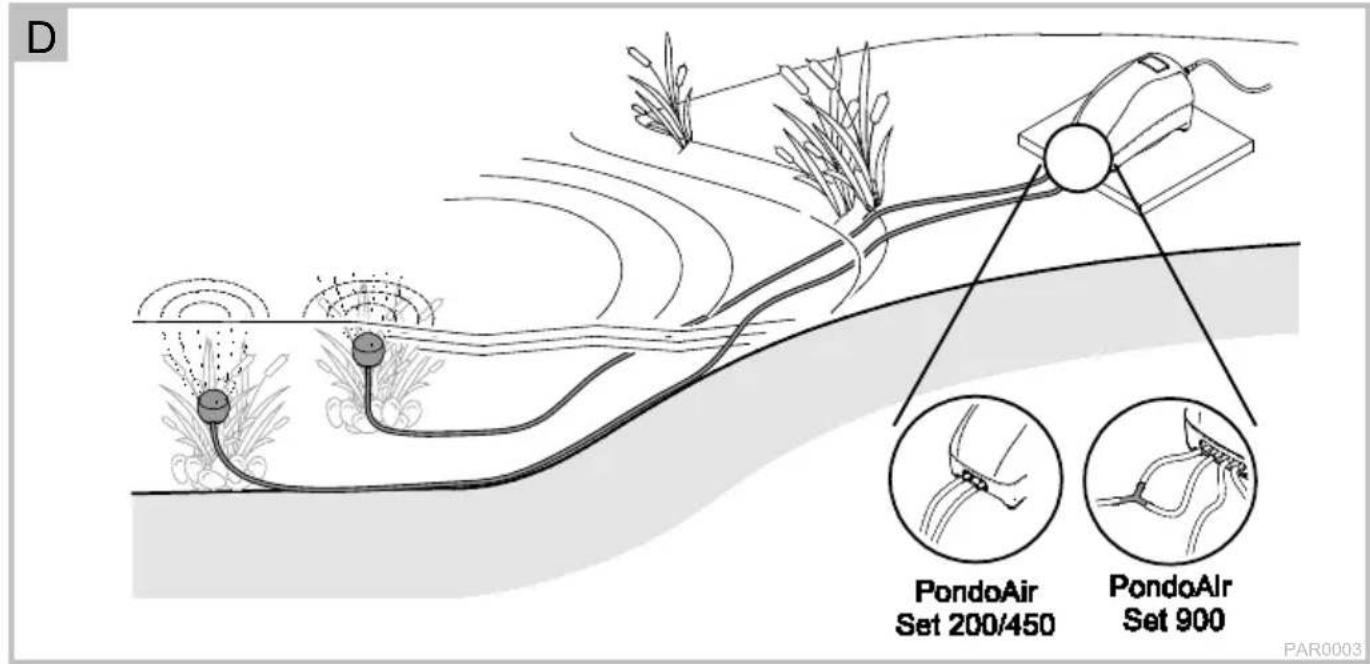

□ B, C, D

Installing the unit

• Install the unit flood protected in a horizontal position.

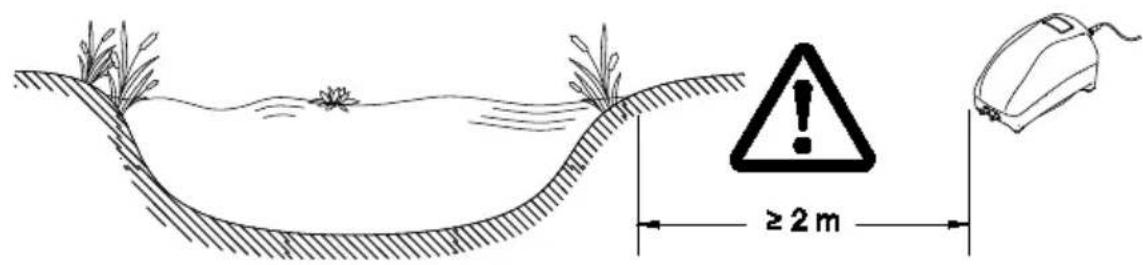

Ensure that the unit is installed with a safety distance of at least 2 m from the water.

• Install the unit above the level of the water, otherwise it will be damaged by water flowing back.

Damage resulting from incorrect installation is not basis for a claim within the framework of the guarantee or warranty.

Connect the unit

- Keep the air hose as short as possible and lay it well protected.

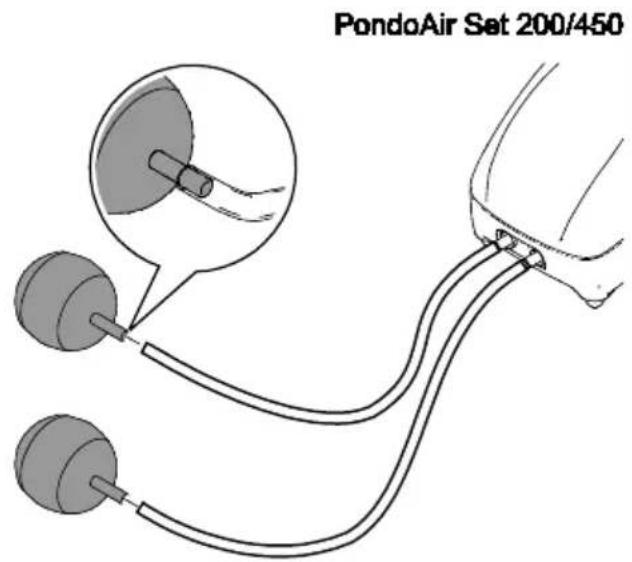

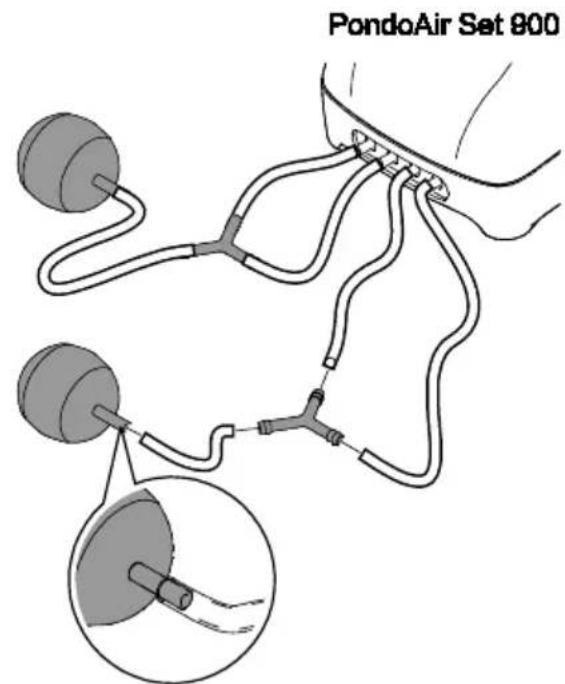

- Connect the aeration stone to the air hose and position the aeration stone in the pond.

- Attach the free end of the air hose to the air outlet on the unit.

Commissioning/start-up

Switching on: Connect the unit to the mains. The unit switches on immediately.

Switching off: Disconnect the unit from the mains.

Remedy of faults

Malfunction	Cause	Remedy
The unit is not operating	No mains voltage	Check mains voltage
The unit does not deliver any air or the amount delivered is insufficient	The aeration stones are soiled	Clean or replace the aeration stones
	The air filter is soiled	Clean or replace the air filter
	Air hose kinked or porous	Lay the air hose without kinks or replace
	Membrane is defective	Replace both membranes
The unit is unusually loud	Membrane is defective	Replace both membranes

Wear parts

• Membrane
• Air filter
• Aeration stone

Maintenance and cleaning

WARNING

Possible death or severe injury from hazardous electrical voltage!

• Prior to reaching into the water, isolate (switch off and disconnect) all units/devices used in the water.
• Isolate the device (disconnect from the power supply) before carrying out any work on it.

Cleaning the air filter

How to proceed:

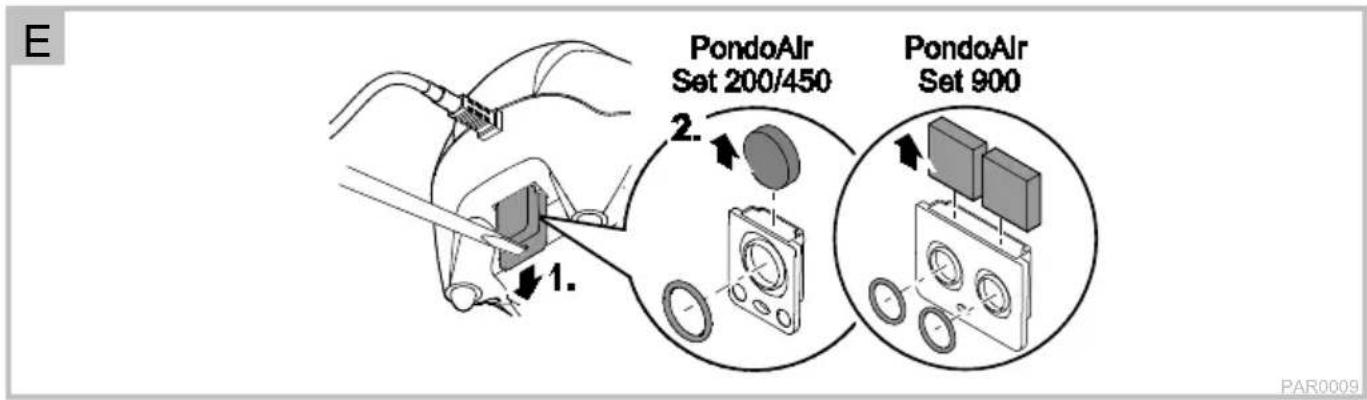

□ E

1. Remove the filter holder from the top section of the housing with the aid of a screwdriver.
2. Remove and shake out the filter fleece or replace if necessary.
3. Push the filter fleece into the filter holder.

– Pay attention to the O ring as it holds the filter holder in the housing.

1. Reassemble the unit in the reverse order.

Replace membranes

If the air flow rate decreases, it is necessary to replace the membranes of the aerator motor. To do this, it is necessary to remove the aerator motor.

NOTE

• Never operate the unit with defective membranes.
• Always replace both membranes even when only one membrane is defective. The procedure is identical for both membranes.
• Please contact your specialist dealer if you do not wish to undertake the replacement yourself.

Opening the housing

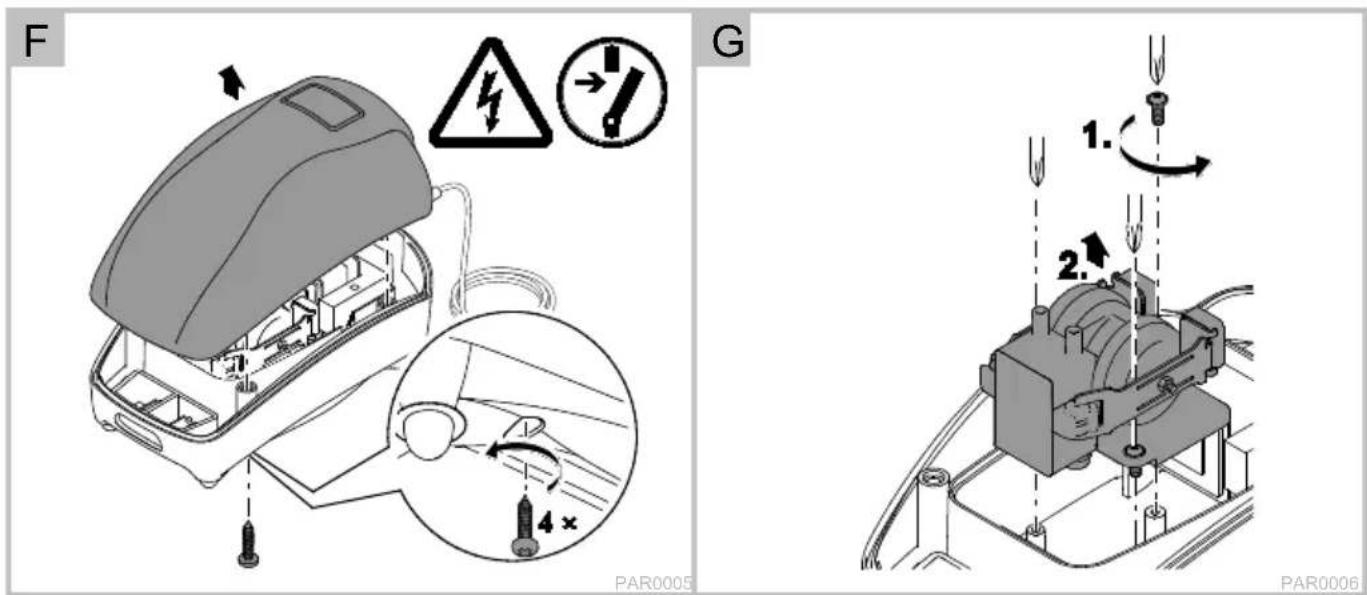

□F

- Undo the screws on the bottom section of the housing and remove the top section of the housing from the bottom section.

Removing the aerator motor

How to proceed:

□G

1. Unscrew the screws from the base of the aerator motor.
2. Slightly bend the membrane clip sideways if necessary.
3. Remove the aerator motor.
   – There will be initial resistance caused by the two air outlets fastened to the housing.

Replace membranes

How to proceed:

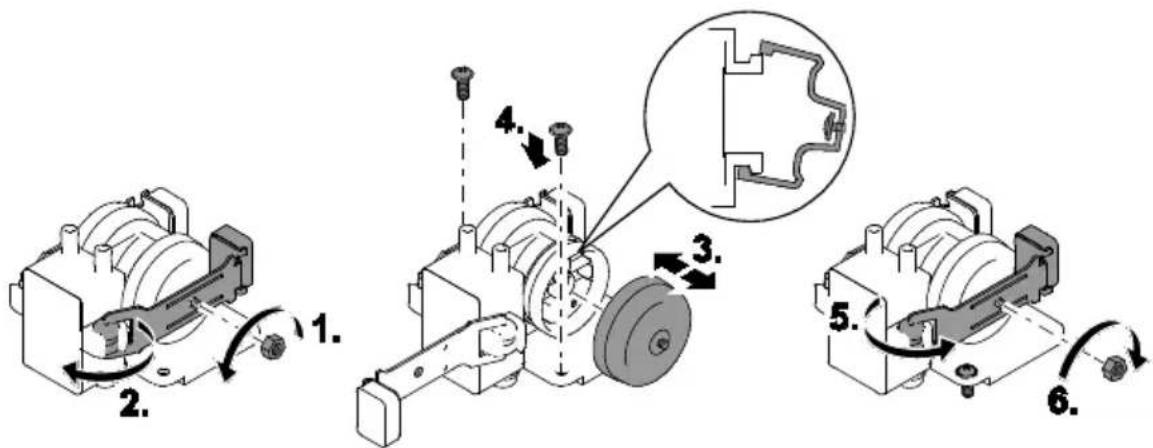

□H

1. Undo and remove the nut from the membrane clip.
2. Hinge the membrane clip to the side.
3. Fit the new membrane.
4. Fit the screws.
5. Close the membrane clip.
6. Fit the nut and tighten.

- EN -

Fitting the aerator motor

How to proceed:

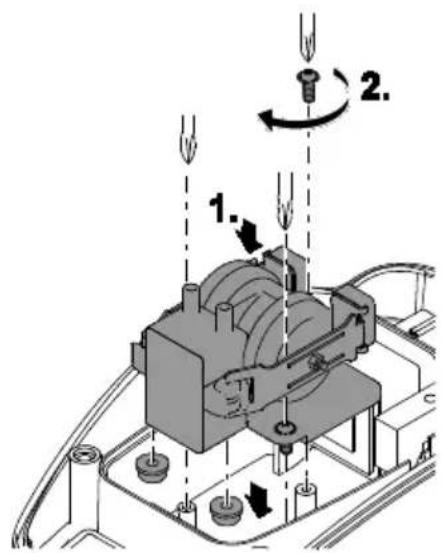

□1

1. Place the aerator motor into the housing.

- Ensure that the air outlets are equipped with sealing rings.

– During fitting, there will be initial resistance from the two air outlets.

1. Screw the aerator motor in place.

Closing the housing

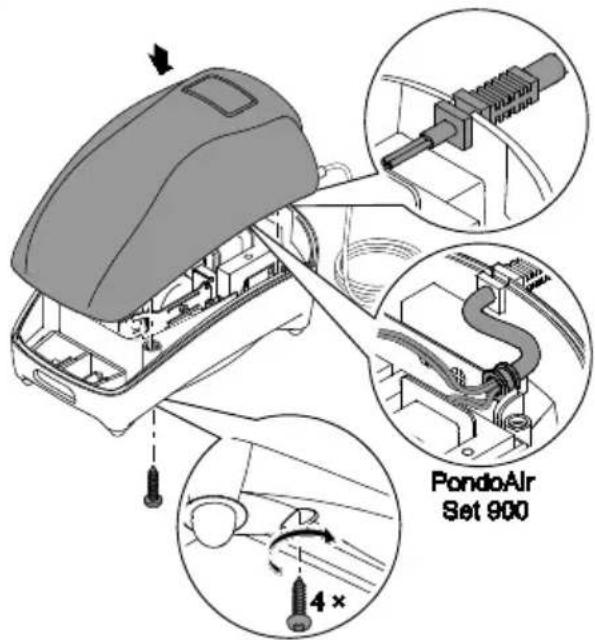

□ J

- Place the top section of the housing onto the bottom section and screw on.

– Ensure that the strain relief of the power connection cable is correctly located in the recess of the housing.

Storage/overwintering

When the unit is in continuous operation it can remain in place at freezing temperatures.) Otherwise store the unit indoors in a dry room (room temperature).

Disposal

NOTE

Do not dispose of this unit with domestic waste.

- Render the unit unusable beforehand by cutting the cables and dispose of the unit via the return system provided for this purpose.

Guarantee conditions

PfG grants a 2 year guarantee from the date of sale on proven material and manufacturing faults. Prerequisite for our guarantee is the presentation of the purchase receipt. Our guarantee will become null and void if the unit is misused, electrically or mechanically damaged by inappropriate use and improper repair by non-authorised workshops. Repairs are reserved for workshops authorised by PfG or by PfG itself. In the case of warranty claims, please return the defective unit or part freight paid to PfG together with a description of the fault and the purchase receipt. PfG reserves the right to invoice repair costs. PfG is not liable for transport damage. Any damage must be claimed against the carrier. Further claims of whatever type, especially consequential damage, are excluded. This guarantee does not affect the final customer's claims against the dealer.

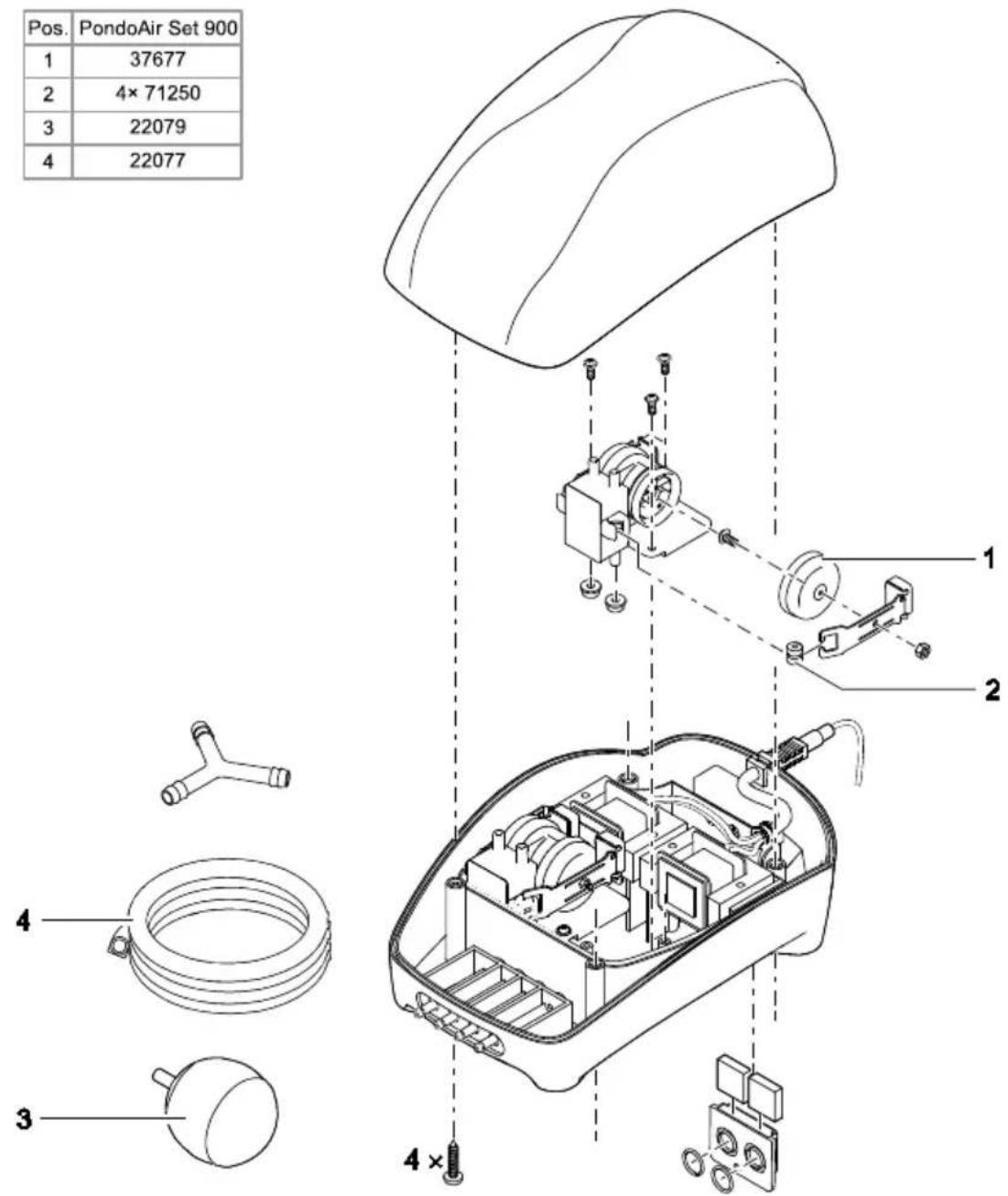

Technical diagram of a device assembly with numbered parts and labeled connections

PAR0008_01_57514

Pos.	PondoAir Set 900
1	37677
2	4×71250
3	22079
4	22077

PAR0014_01_57516

pontec

PIG GmbH Tecklenburger Straße 161 D - 48469 Hörstel Germany www.pontec.com
