KJ2200 - Pressure washer RIDGID - Free user manual and instructions

Product type	High-pressure drain cleaner (pressure washer)
Brand	Ridgid
Model	KJ-2200
Engine	Gasoline, 6.5 HP
Rated pressure	2200 PSI (150 bar)
Rated flow	2.4 GPM (9 l/min)
Compatible pipe diameter	1 1/4" to 6" (32 to 152 mm)
Weight	30 kg (65 lbs)
Water supply	Cold water, max 60 °C
Operating mode	Continuous pressure or pulsation
Foot pedal	Included (FV-1)
Pump	Triplex plunger pump
Safety system	Safety valve, thermal probe
Nozzles included	Yes (selection according to diameter)
Pump maintenance	Non-detergent SAE 30W oil, change every 500 h
Transmission maintenance	SAE 90W oil (if applicable)
Winter storage	RV-type antifreeze or compressed air
Warranty	Lifetime warranty

Frequently Asked Questions - KJ2200 RIDGID

How to start the KJ-2200 high-pressure drain cleaner?

Before starting, make sure the water supply valve is open and the pulsation lever is in the 'Pressure' position. Press the foot pedal to release pressure, then start the engine according to the engine manual. Let the engine warm up before using the machine.

What is the maximum pressure I can achieve with the KJ-2200?

The rated pressure is 2200 PSI (150 bar). Never exceed this pressure as it may damage the machine and cause injury.

Can I use hot water with the KJ-2200?

Yes, but the water temperature must not exceed 60 °C (140 °F). Hotter water could open the pump's thermal relief valve and damage the system.

How to clean the nozzles of the KJ-2200?

Use the provided nozzle cleaning tool. Remove the nozzle, insert the tool into each orifice to dislodge debris. Be careful not to enlarge the orifices. If the nozzle is damaged, replace it.

What to do if pressure is insufficient?

First check that the water supply valve is fully open and that the hose is not kinked. Purge air from the system by removing the nozzle and running the machine. Also clean the water inlet filter and the nozzle orifices. If the problem persists, check the safety valve settings.

How to winterize the KJ-2200?

Two methods: either open the valves and blow compressed air through the system to remove water, or use RV-type antifreeze (without ethylene glycol). Never use antifreeze containing ethylene glycol.

What type of oil to use for the pump?

Use a non-detergent oil of type SAE 30W. Check the level before each use and change after the first 50 hours, then every 500 hours.

Can I use detergent with the KJ-2200?

Yes, with the pressure washing kit and product injector. Only use washing products designed for pressure washers. Never spray flammable or toxic products.

What to do if the high-pressure hose accidentally comes out of the pipe?

Immediately release the foot pedal to cut off the water supply. The pressurized hose can whip and cause serious injury. Only restart after reinserting the hose at least one meter into the pipe.

Where to find spare parts for the KJ-2200?

Contact your local Ridgid distributor or visit www.RIDGID.com or www.RIDGID.eu. You can also contact technical service at [e-mail] or, in the US and Canada, at [phone].

USER MANUAL KJ2200 RIDGID

Red industrial machine with visible internal components and a black cable, labeled 'RIOGIO KJ-3100' (no readable text beyond label)

Red portable oil pump cart with attached black spool and control panel (no visible text or symbols)

RIDGE TOOL COMPANY

Water Jetter

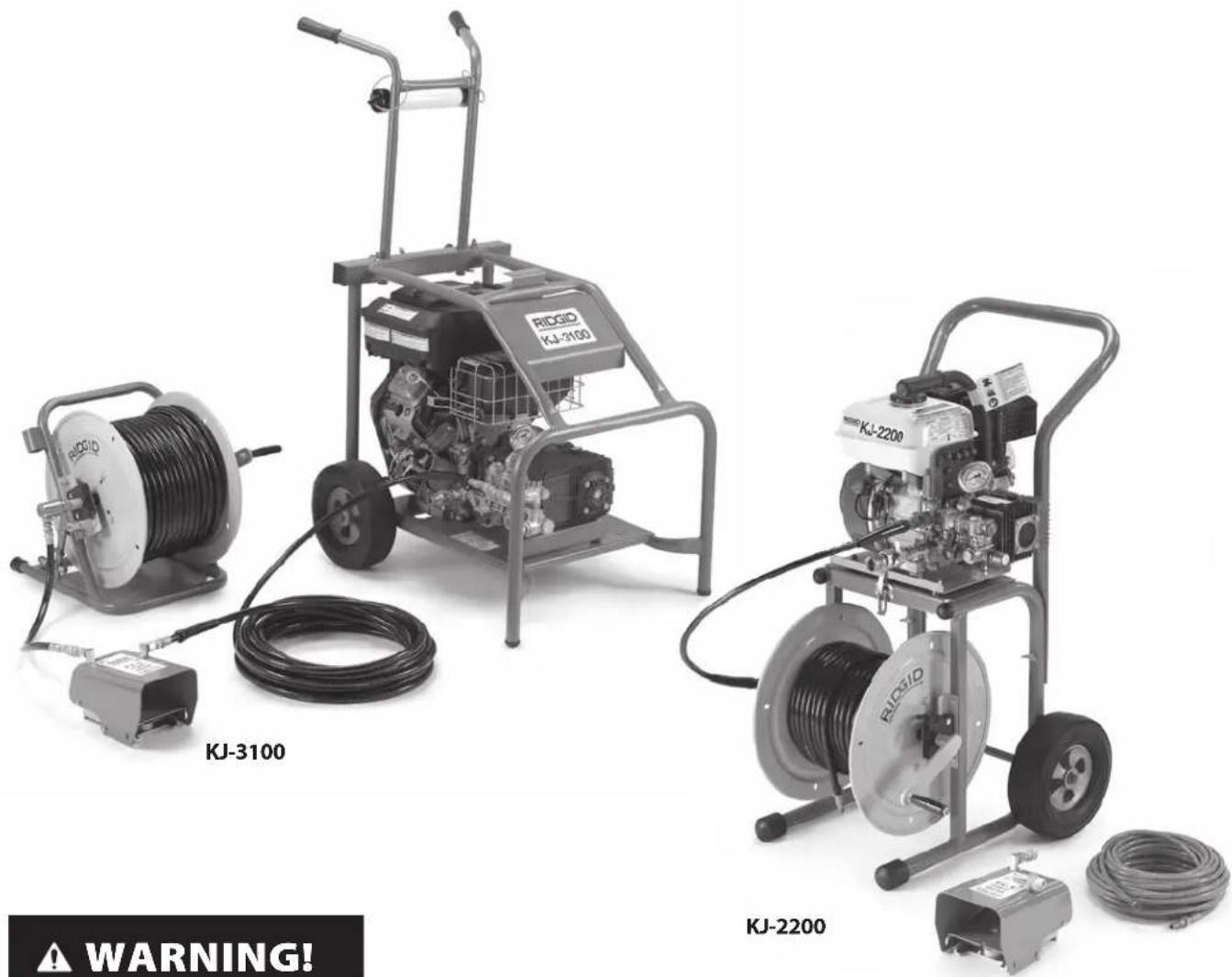

KJ-2200/KJ-3100 Water Jetting Machines

Two RICGIO machines (KJ-3100 and KJ-2200) with coiled hoses and cable spools, no visible text or symbols on the devices themselves.

WARNING!

Read this Operator's Manual carefully before using this tool. Failure to understand and follow the contents of this manual may result in electrical shock, fire and/or serious personal injury.

KJ-2200/KJ-3100 Water Jetting Machines
Record Serial Number below and retain product serial number which is located on nameplate.

Serial No.

Contents

Recording Form For Machine Serial Number....1

Safety Symbols....3

General Safety Rules 3

Work Area Safety....3

Electrical Safety....3

Personal Safety 3

Tool Use and Care....3

Service 4

Water Jetter Safety Warnings....4

Description, Specifications and Standard Equipment ....5

Description 5

Specifications 6

Icons....6

Standard Equipment....6

Machine Assembly 6

Engine Oil 6

Pump/Gearbox Oil 6

KJ-2200 Transport Cart....6

KJ-3100 Handle Assembly 6

Pre-Operation Inspection....7

Machine and Work Area Set-Up 8

Water Supply 9

Drain Preparation 10

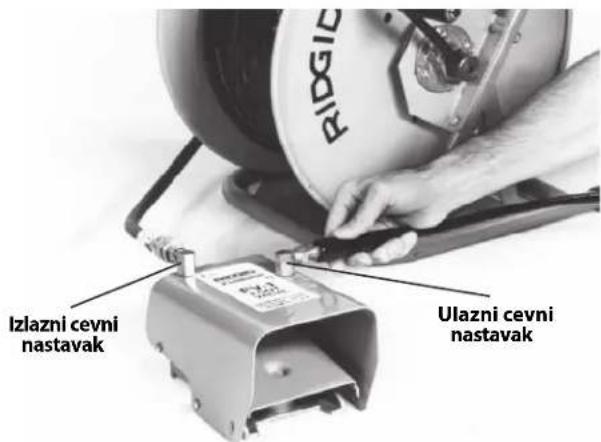

Hose Set-Up 10

JETTER HOSE SELECTION CHART 11

JETTER NOZZLE SELECTION CHART 11

Operating Instructions 12

Jetting the Drain 13

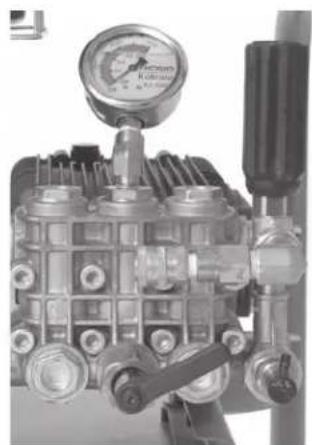

Using the Pulse Mode....14

Using Water Jetter Machine as a Pressure Washer 15

Pressure Washer Operation....15

Detergent Injector....15

Maintenance Instructions....16

Cleaning....16

Engine....16

Pump Lubrication....16

Gearbox Lubrication 16

Preparing Pump for Cold Weather Storage....16

Accessories 16

Troubleshooting....18

Machine Storage 18

Service And Repair....18

Disposal....18

Lifetime Warranty....Back Cover

* Original instructions - English

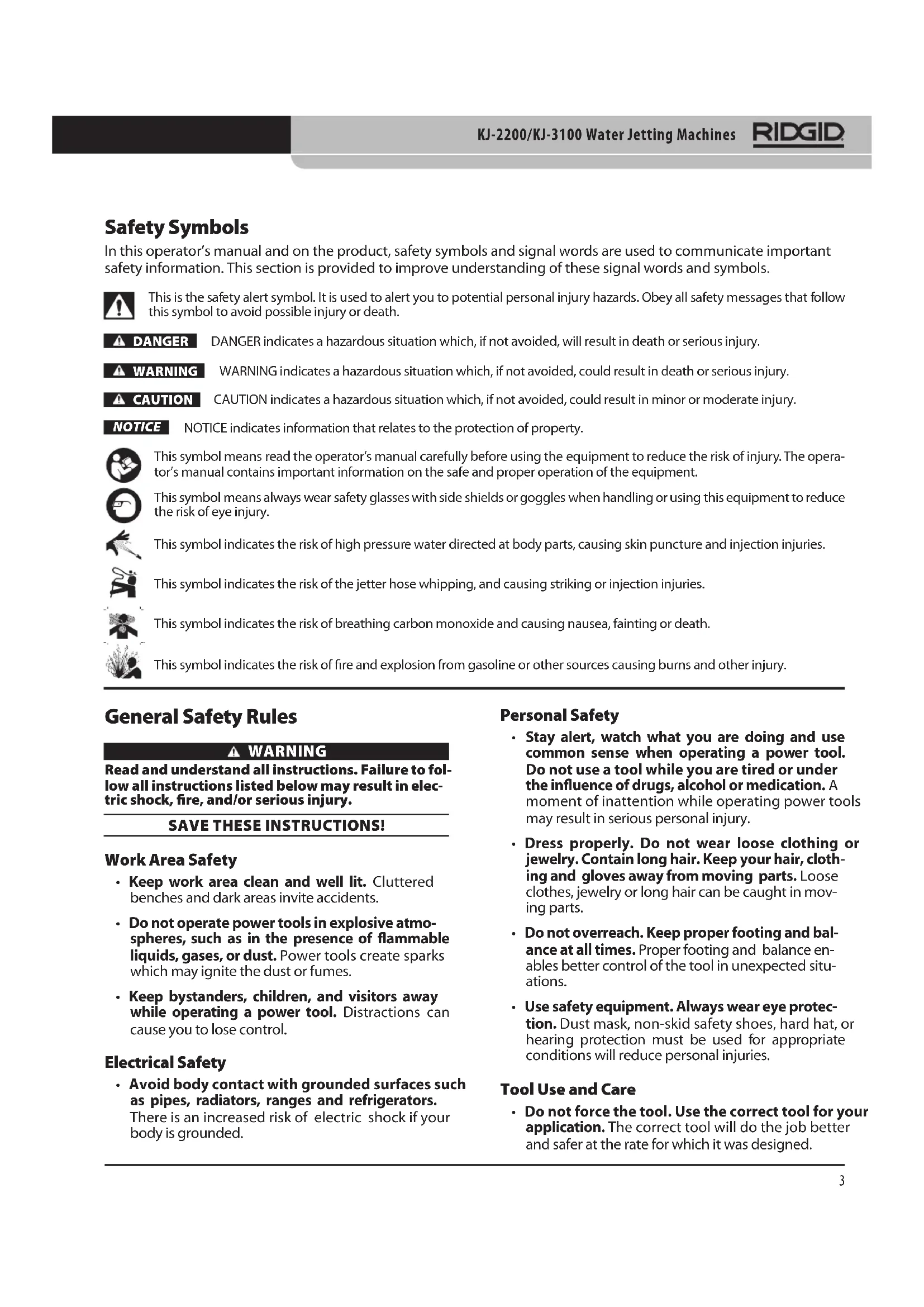

Safety Symbols

In this operator's manual and on the product, safety symbols and signal words are used to communicate important safety information. This section is provided to improve understanding of these signal words and symbols.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE NOTICE indicates information that relates to the protection of property.

This symbol means read the operator's manual carefully before using the equipment to reduce the risk of injury. The operator's manual contains important information on the safe and proper operation of the equipment.

This symbol means always wear safety glasses with side shields or goggles when handling or using this equipment to reduce the risk of eye injury.

This symbol indicates the risk of high pressure water directed at body parts, causing skin puncture and injection injuries.

This symbol indicates the risk of the jetter hose whipping, and causing striking or injection injuries.

This symbol indicates the risk of breathing carbon monoxide and causing nausea, fainting or death.

This symbol indicates the risk of fire and explosion from gasoline or other sources causing burns and other injury.

General Safety Rules

WARNING

Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

SAVE THESE INSTRUCTIONS!

Work Area Safety

• Keep work area clean and well lit. Cluttered benches and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

- Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is grounded.

Personal Safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
• Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.
• Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions will reduce personal injuries.

Tool Use and Care

- Do not force the tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it ON and OFF. Any tool that cannot be controlled with the switch is dangerous and must be repaired.
• Store idle tools out of the reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.
• Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting edges are less likely to bind and are easier to control.
• Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the tool's operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools.
• Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool.

Service

• Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury.
• When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of electrical shock or injury.

Water Jetter Safety Warnings

WARNING

This section contains important safety information that is specific to this tool.

Read these precautions carefully before using this Drain Cleaning Machine to reduce the risk of electrical shock or other serious personal injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE!

Keep this manual with the machine for use by the operator.

• Never operate the jetter with the hose end outside of the drain. Hose can whip, causing striking injuries and spray can penetrate skin and cause serious injury.

• High pressure water can inject under skin resulting in serious injury including amputation. Do not direct spray at people or animals.

• Do not operate jetter above pressure rating or 140°F / 60°C (inlet water temperature). This increases the risk of injury, including burns, and damage to the jetter.

• One person must control both the jetting process and the foot valve. Always use the foot valve. If the jetter hose comes out of the drain, the operator must be able to shut the water flow off to reduce the risk of the jetter hose whipping, causing striking and high pressure injection injuries.
• Always use appropriate personal protective equipment while handling and using drain cleaning equipment. Drain may contain chemicals, bacteria and other substances that may be toxic, infectious, cause burns or other issues. Appropriate personal protective equipment always includes safety glasses and gloves, and may also include equipment such as latex or rubber gloves, face shields, goggles, protective clothing, respirators, and steel toed footwear.
• Practice good hygiene. Use hot soapy water to wash hands and other body parts exposed to drain contents after handling or using drain cleaning equipment. Do not eat or smoke while operating or handling drain cleaning equipment. This will help prevent contamination with toxic or infectious material.
• Do not spray toxic or flammable liquids. This will reduce the risk of burns, fire, explosion or other injury.
• Gasoline and its vapors are highly flammable and explosive. See engine manual for precautions to reduce the risk of burns, explosions and serious injury while handling and using gasoline.
• Engines produce carbon monoxide, a colorless, odorless poison gas. Breathing carbon monoxide can cause nausea, fainting or death. Do not start and run engine in an enclosed area, even if doors and windows are open. Only operate outside.
• Hot surfaces can cause burns and fire. Keep body parts and flammable material away from hot surfaces.
• Read and understand this manual, the engine manual and the warnings and instructions for all equipment being used with this tool before operating. Failure to follow all warnings and instructions may result in property damage and/or serious injury.

The EC declaration of conformity (890-011-320.10) will accompany this manual as a separate booklet when required.

If you have any question concerning this RIDGID® product:

• Contact your local RIDGID distributor.
• Visit www.RIDGID.com or www.RIDGID.eu to find your local RIDGID contact point.
• Contact RIDGID Technical Services Department at [e-mail], or in the U.S. and Canada call [phone].

Description, Specifications and Standard Equipment

Description

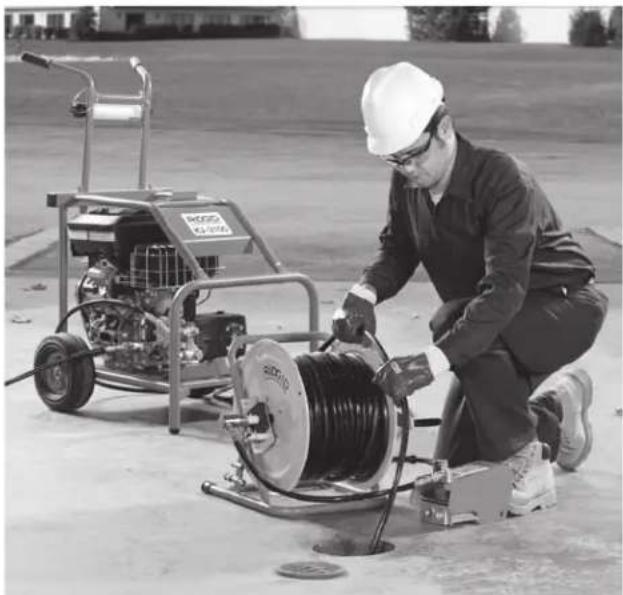

The RIDGID® Engine Powered Water Jetting Machines are portable high pressure water jetters designed to use a combination of water pressure and flow to clear grease, sludge, sediment and roots out of drains. A highly flexible and lightweight hose is propelled through the drain by the reverse jets on the jetter nozzle, and when retrieved scrubs the line flushing debris away. With the pulse activation engaged, difficult bends and traps are more easily negotiated. All machines are equipped with a gasoline engine to drive the triplex plunger pump.

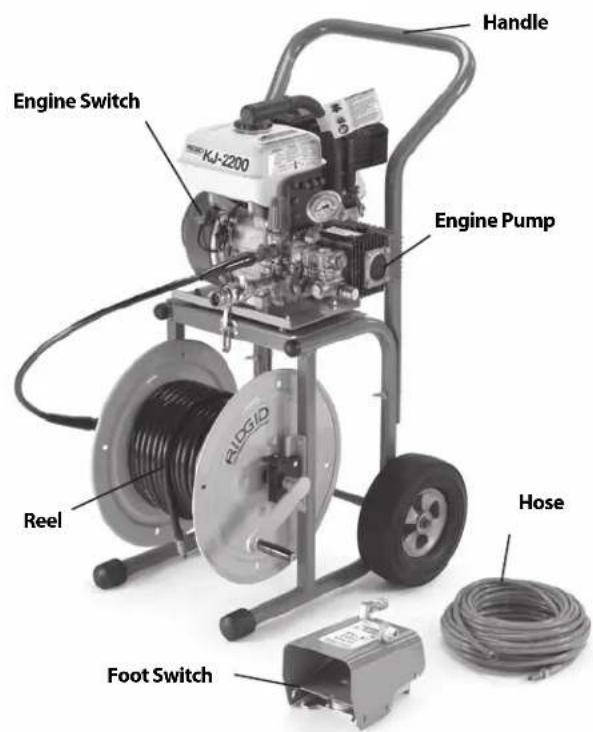

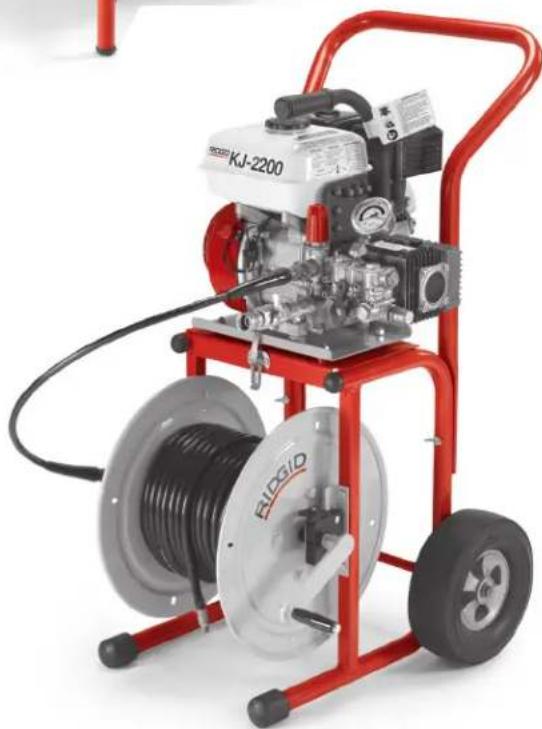

Handle Engine Switch KJ-2200 Engine Pump Reel Foot Switch Hose

Figure 1 – KJ-2200 Water Jetting Machine

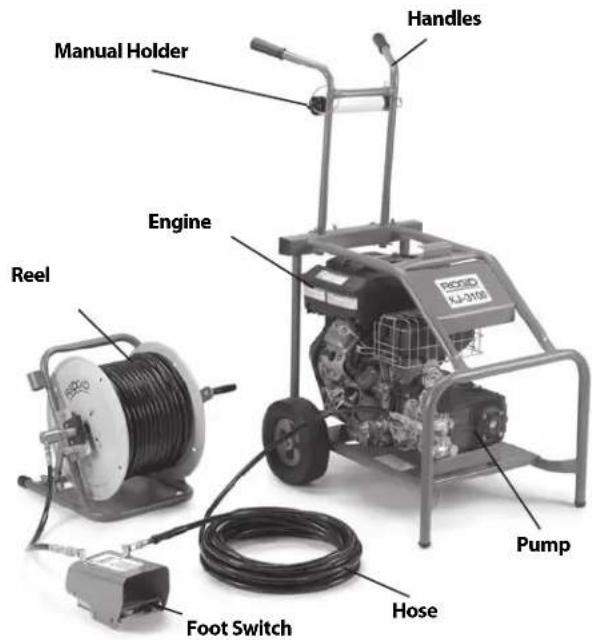

Manual Holder Reel Engine Handles Pump Foot Switch Hose

Figure 2 – KJ-3100 Water Jetting Machine

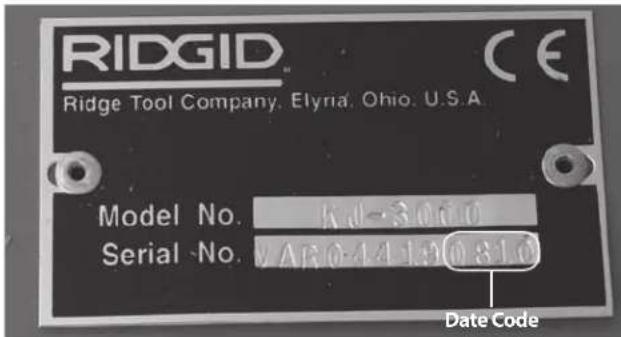

RIDGID™ Ridge Tool Company, Elyria, Ohio, U.S.A. CE Model No. 3000 Serial No. 44190810 Date Code

Figure 3 – Machine Serial Number

The machine serial number is located on the frame. The last 4 digits indicate the month and year of the manufacture. (08 = month, 10 = year).

Specifications

Jetter Model	Motor H.P.	Pressure PSI / bar
KJ-2200	6.5 / 6,5	2200 / 150
KJ-3100	16	3000 / 205
Flow Rate GPM / liter	Drain Line Capacity inch / mm	Weight (w/o Hose Reel) lbs / kg
2.4 / 9	1^1/_4 - 6 / 32 - 152	65 / 30
5.5 / 20	2 - 10 / 50 - 250	262 / 119

Icons

Pressure Mode

Pulse Mode

Standard Equipment

All Jetters come with

• Appropriate Jetter Nozzles
- Nozzle Cleaning Tool
- FV-1 Foot Valve
• Engine Operator's Manual

See the RIDGID catalog for specific equipment supplied with each catalog number.

NOTICE This machine is made to clean drains. If properly used it will not damage a drain that is in good condition and properly designed, constructed and maintained. If the drain is in poor condition or not properly designed, constructed or maintained, the drain cleaning process may not be effective or could cause damage to the drain. The best way to determine the condition of a drain before cleaning is through visual inspection with a camera. Improper use of this jetting machine can damage the jetter and the drain. This machine may not clear all blockages.

Machine Assembly

WARNING

To prevent serious injury during use and prevent machine damage, follow these procedures for proper assembly.

Engine Oil

NOTICE Jetter is shipped without oil in the engine. Operating the engine without oil will result in engine failure. Add oil prior to operation. See supplied engine operator's manual for specific information on adding oil and oil selection.

Pump/Gearbox Oil

Pump: Replace the plug in the top of the pump and replace with dipstick/breather cap. Operating the jetter with the plug in place could damage the pump seals. Check oil level per Maintenance Instruction section.

Gearbox (KJ-3100 only): Replace the plug in the top of the pump with dipstick/breather cap. Operating the jetter with the plug in place could damage the gearbox seals. Check lubricant level per the Maintenance Instruction section.

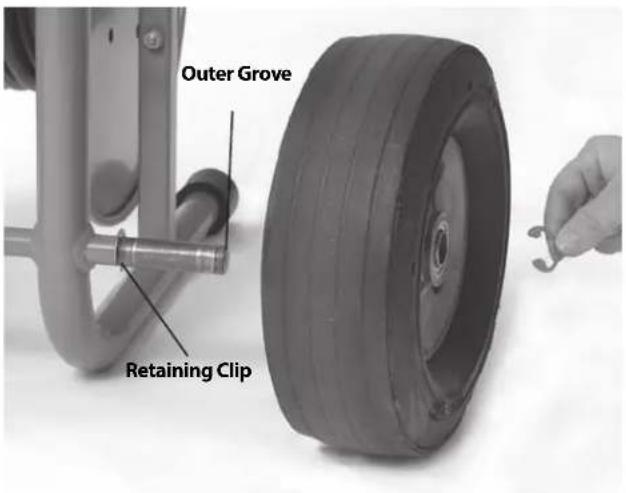

Outer Grove Retaining Clip

Figure 4 – Assembly of the KJ-2200

KJ-2200 Transport Cart

1. Install retaining clip into inner groove on each end of axle. (See Figure 4.)
2. Slide a wheel over each end of axle.
3. Install retaining clip into outer groove on each end of axle to retain wheel.
4. Use the supplied carriage bolts and wing nuts to attach the handle to the frame.
5. Lift the motor/pump assembly onto the cart, aligning the holes in the base plate with the pins in the top of the cart. Use the latches on the cart to retain the motor/pump. Make sure the assembly is securely attached.

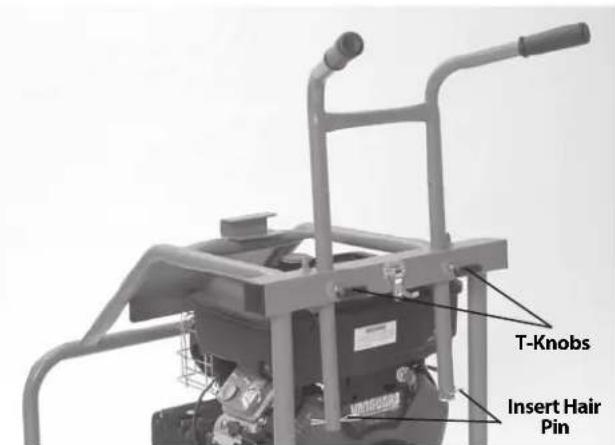

KJ-3100 Handle Assembly

1. Insert handle through the two holes in the rear cross bar of the frame. (See Figure 5.)
2. Insert a hairpin through the holes at the bottom of the handle to prevent the handle from pulling out.
3. Screw the T-knobs into the rear cross bar. Adjust the handles as desired and tighten the knobs to secure the handle.

T-Knobs Insert Hair Pin

Figure 5 – KJ-3100 Handle Assembly

Pre-Operation Inspection

WARNING

Before each use, inspect your water jetter and correct any problems to reduce the risk of serious injury from high pressure water and other causes and prevent jetter damage.

Always wear safety glasses, gloves and other appropriate protective equipment when inspecting your jetter to protect against chemicals and bacteria on the equipment.

1. Make sure that the engine switch/key is in the OFF position.
2. Clean any oil, grease or dirt from the equipment, including the handles and controls. This aids inspection and helps prevent the machine or control from slipping from your grip.
3. Inspect the water jetter and accessories for the following:
   • Proper assembly and completeness.
4. Broken, worn, missing, mis-aligned, binding or loose parts.
   • Presence and readability of the warning labels. (See Figure 6.)
5. Any other condition which may prevent the safe and normal operation.

If any problems are found, do not use the water jetter until the problems are corrected.

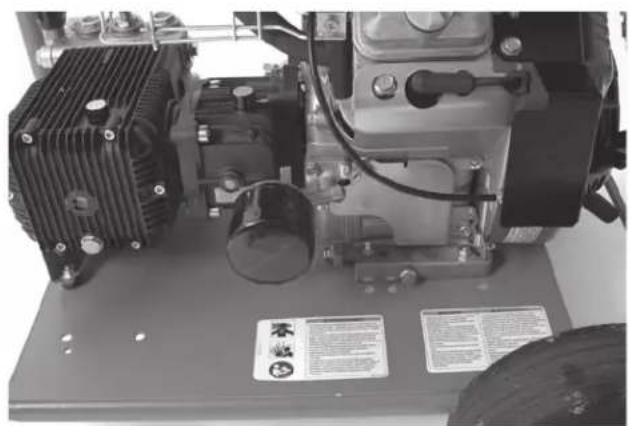

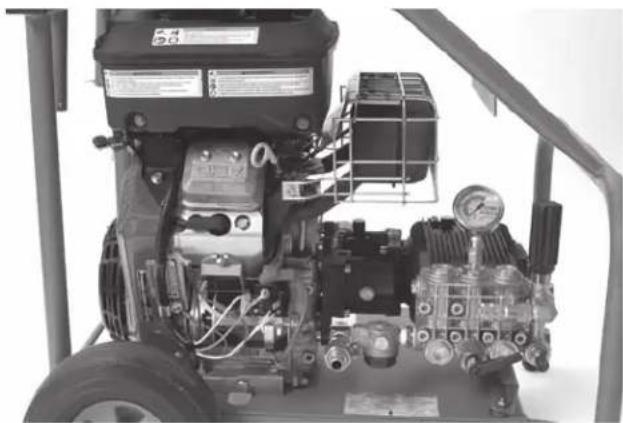

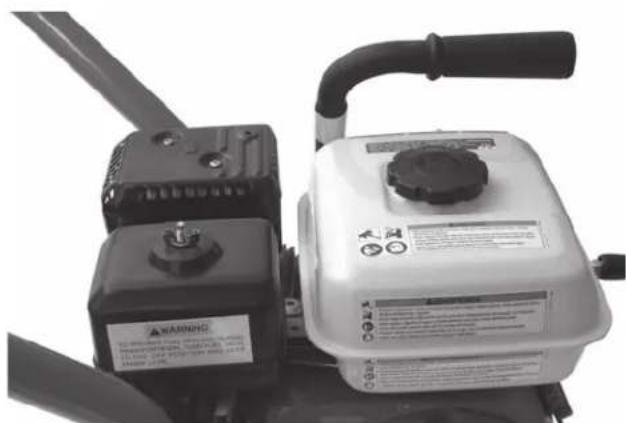

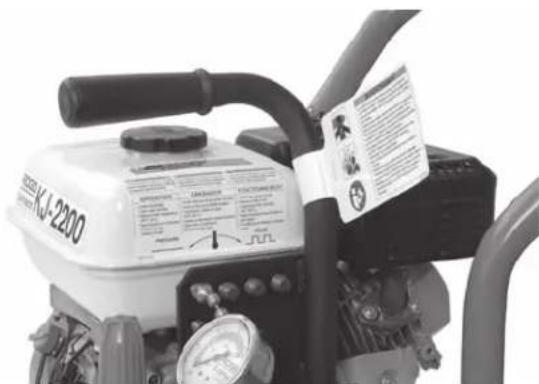

Figure 6A - KJ-2200 Warning Labels

Close-up of two industrial machines with visible branding and mounting brackets (no readable text or symbols)

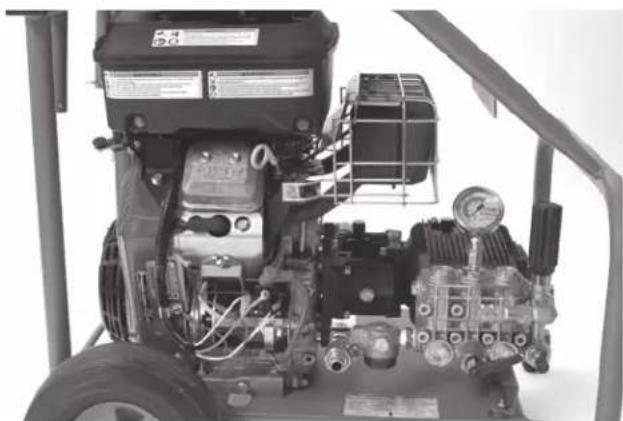

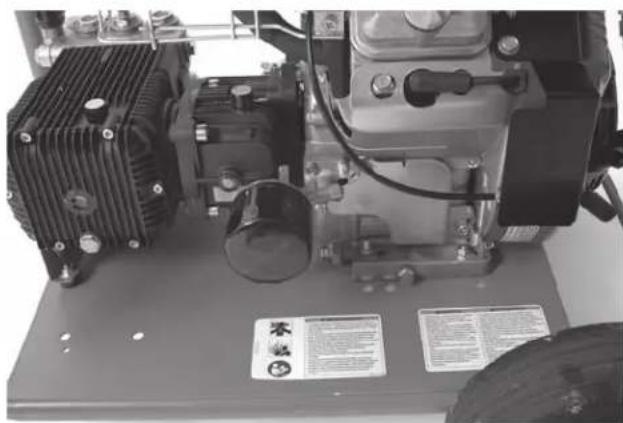

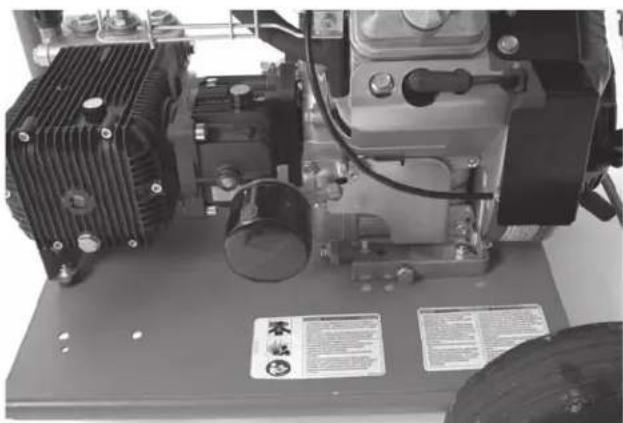

Figure 6B - KJ-2200 Warning Labels

Close-up of a mechanical assembly with cooling fans and a motor, no visible text or symbols

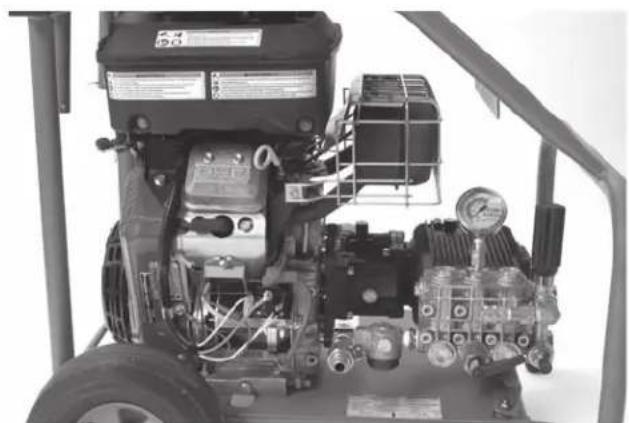

Figure 6C - KJ-3100 Warning Labels

Close-up of a mechanical engine assembly with visible gears, springs, and pressure gauges (no text or symbols)

Figure 6D - KJ-3100 Warning Labels

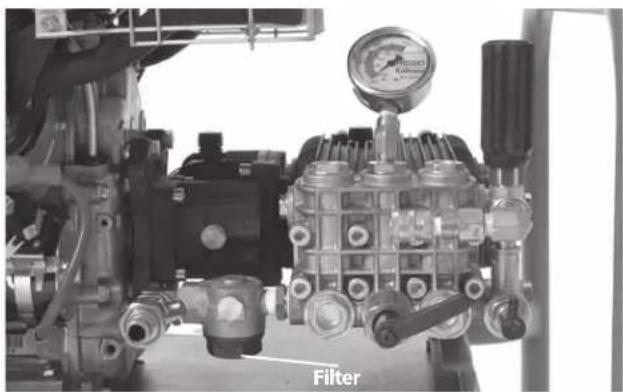

1. Clean water inlet filter/filter washer.Unscrew cover from bottom of inlet filter for cleaning. Dirt and debris can restrict the water flow to the pump and cause performance issues.

Close-up of a mechanical engine assembly with pressure gauge and valve (no visible text or symbols)

Figure 7 – Inlet Filter/Filter Washer

1. Inspect the jetter nozzle orifices for any damage or blockage. Blockages can be cleaned with a nozzle cleaning tool. Use care not to enlarge nozzle orifices while cleaning. Damaged nozzles or nozzles with enlarged orifices can decrease jetter performance and should be replaced.
2. Inspect the hoses, connectors and fittings for wear and damage. If there are any kinks, cracks, breaks or wear through the outer jacket of the hose or other damage, do not use the hose. Damaged hoses can burst or leak high pressure water and cause serious injury. Replacement hoses and fitting should be rated at or higher than the jetter pressure.
3. Inspect and maintain the engine per the engine operator's manual.
4. Check engine fuel level. For the KJ-3100, disconnect the hose reel latch and rotate the hose reel forward

until it rests on the frame to provide access to the engine gas cap Figure 8. If needed, add unleaded gasoline. See engine operator's manual for details. Use caution when handling gasoline. Re-fuel in a well ventilated area. Do not overfill tank and do not spill fuel. Make sure tank cap is securely closed.

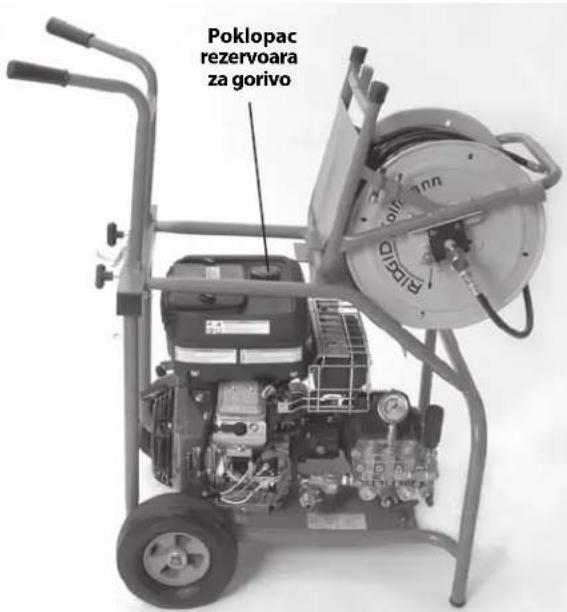

Fuel Tank Cap

Figure 8 – KJ-3100 Fuel Tank Access

1. Check the oil level in the pump and gear box (if e equipped) and add oil if needed (see Maintenance Instructions section).

Machine and Work Area Set-Up

WARNING

Always wear safety glasses, gloves and other appropriate protective equipment when setting up your jetter to protect against chemicals and bacteria on the equipment. Rubber soled, non-slip shoes can help prevent slipping on wet surfaces.

Engines produce carbon monoxide, a colorless, odorless poison gas. Breathing carbon monoxide can cause nausea, fainting or death. Do not start and run engine in an enclosed area, even if doors and windows are open. Only operate outside.

Set up the jetter and work area according to these procedures to reduce the risk of injury from high

pressure water, chemical burns, infections, carbon monoxide and other causes, and prevent jetter damage.

1. Check work area for:

2. Adequate lighting.

3. Flammable liquids, vapors or dust that may ignite. If present, do not work in area until sources have been identified and corrected. The jetter is not explosion proof and can cause sparks.
4. Clear, level, stable dry place for machine and operator. If needed, remove the water from the work area. Wood or other coverings may need to be put down.
5. Jetter location that is in a well ventilated outdoor area. Do not place the jetter indoors, even with doors and windows open. Jetter can be located remotely from the point of use.
6. Suitable water supply.
7. Clear path to transport the jetter to the set up location.
8. Inspect the drain to be cleaned. If possible, determine the access point(s) to the drain, the size(s) and length(s) of the drain, distance to tanks or mainlines, the nature of the blockage, presence of drain cleaning chemicals or other chemicals, etc. If chemicals are present in the drain, it is important to understand the specific safety measures required to work around those chemicals. Contact the chemical manufacturer for required information.
   If needed, remove fixture (water closet, etc.) to allow access to the drain. Do not feed the hose through a fixture. This could damage the hose and the fixture.
9. Determine the correct equipment for the application. See the Specifications section for information on these jetters. Drain cleaners and jetters for other applications can be found by consulting the RIDGID Catalog, on line at www.RIDGID.com or www.RIDGID.eu.
10. Make sure all equipment has been properly inspected.
11. Evaluate the work area and determine if any barriers are needed to keep bystanders away. Bystanders can distract the operator. If working near traffic, erect cones or other barriers to alert drivers.
12. If needed, place protective covers in the work area. The drain cleaning process can be messy.
13. Take the jetter to the well-ventilated outdoor work area along the clear path. If the machine needs to be lifted, use proper lifting techniques. Use care moving equipment up and down stairs, and be aware of possible slip hazards. Wear appropriate footwear to help prevent slips.

Water Supply

Confirm that there is sufficient water flow for jetter. Run a hose from the water source to the jetter. Use the largest diameter, shortest length hose possible. A ^3/_4 / 19 mm I.D. hose is the minimum recommended size. An appropriate backflow prevention device should be used to comply with all local codes and ordinances. Turn the water on at the source and measure the time it takes to fill a clean five gallon / 18,9 liter bucket. See the following table for maximum bucket fill times for each jetter.

Jetter	Rating GPM / liter	Maximum 5 Gallon / 18,9 liter Bucket Fill Time
KJ-2200	2.4 / 9	125 seconds
KJ-3100	5.5 / 20	55 seconds

Insufficient water flow will prevent the jetter from reaching the pressure rating and could damage the pump. Inspect the water in the bucket for dirt and debris. Dirt and debris in the water supply can cause excess pump wear, clog the jetter filters nozzles and reduce performance. Do not use water from ponds, lakes or other sources that may be contaminated.

In cases of insufficient water flow, possible solutions include using fittings to allow multiple supply hoses to be connected to the jetter or the use of a tank.

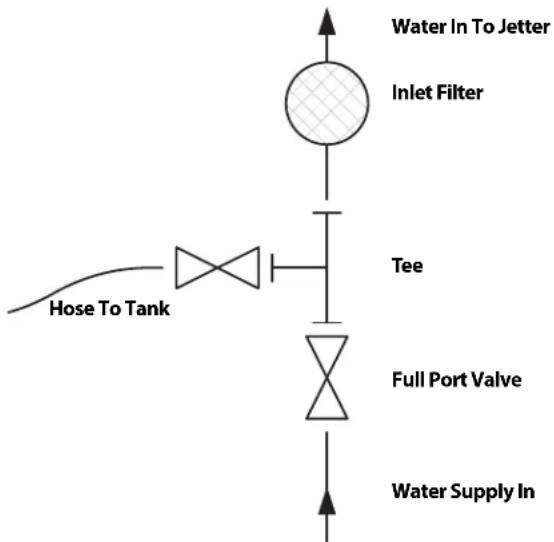

If a tank is used, plumb a tee with full port valves to the jetter water inlet as shown in Figure 9. Connect a ^3/_4 " / 19 mm hose no longer than 6 feet / 1,8 m to the valve on the outlet of the tee, and connect the water supply to the run of the tee. Either place the hose end in the tank or connect to the tank outlet. The entire length of the tank hose should be no more than 5" / 12,7 cm above the jetter water inlet, or the jetter will not draw water from the tank.

Figure 9 – Water Supply Connections When Using A Tank

Fill the tank prior to starting the jetter. When starting jetter, turn the tank valve off. As soon as the jetter is started, open the tank valve. Monitor the tank water level, and if needed, stop jetting to allow the tank to refill. Do not allow the water level to fall below the hose end.

Hot water can be used for improved cleaning. Do not use water hotter than 140^ F / 60^ C – this can cause the pump thermal overload to open. When using hot water, use appropriate personal protective equipment to reduce the risk of burns.

When using in cold weather, use precautions to prevent water from freezing in the pump. This can damage the pump.

Make sure that the inlet supply valve on the jetter is closed and attach the supply hose to the jetter.

Drain Preparation

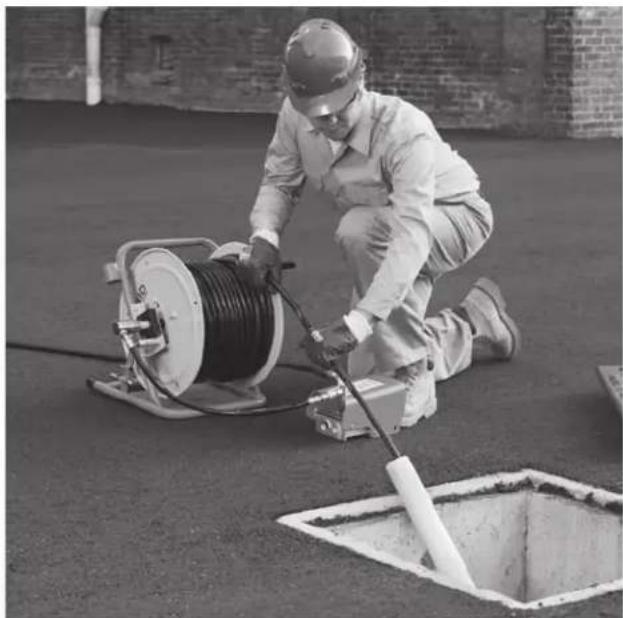

If working through a manhole, storm grate or other large access, use pipe and fittings to create a guide for the jetter hose from the drain opening to operation point. This will prevent the jetter hose from whipping around in the access and protect the hose from damage.

Worker in hard hat operating a cable-driven power pump on an open manhole (no text or symbols visible)

Figure 10 – Extending the Drain Opening to the Operation Point

Hose Set-Up

Use care when routing jetter hoses. Routing hoses over rough surfaces, sharp edges, crossing hoses, etc. can damage the hose jacket, especially when the jetter is used in the pulse mode. Keeping the jetter hose on the reel will help to minimize hose damage.

1. Select a jetter hose size appropriate for the drain being cleaned. It is not generally recommended to connect two jetter hoses together for cleaning drains. The connection between the two hoses is less flexible and can prevent passage through fittings See Jetter Hose Selection Chart.

2. As needed, separate the hose reel from the mot or/pump assembly. Locate the hose reel within 3 feet / 90 cm of the drain opening. Do not allow excessive amounts of hose outside of the drain to prevent hose damage. If the hose reel cannot be placed within 3 feet / 90 cm of the drain opening, extend the drain opening back to the hose reel with similar sized pipe and fittings.

3. Route a hose from the jetter to the IN fitting on the foot valve. Use PTFE tape to seal the connection. Position the foot valve for accessibility. You must be able to control the jetter hose and the foot valve.

4. Connect the hose from the reel to the OUT fitting on the foot valve.

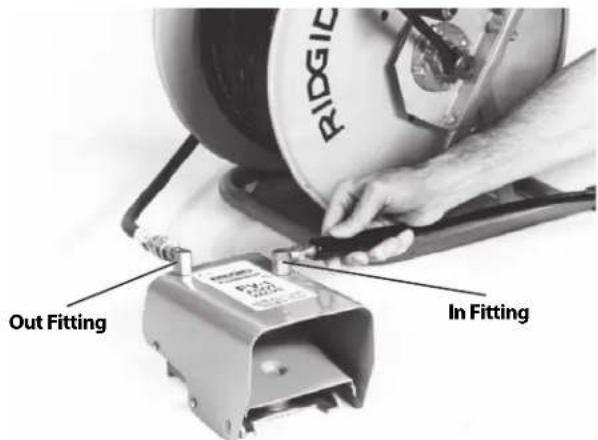

RIDGIC Out Fitting In Fitting

Figure 11 – Foot Valve Connection

1. Mark the jetter hose near the end to indicate when the nozzle is getting close to the drain opening when withdrawn. This will help prevent the nozzle from coming out of the drain and whipping around. The distance depends on the configuration of the drain, but should be at least 4' / 1,2 m.

2. Remove the nozzle from the end of the jetter hose and place the end of the jetter hose in the drain. Open the inlet supply valve to purge the air and any debris from the jetter and hoses. Allow water to flow for at least 2 minutes.

3. Close the inlet supply valve.

4. Select a nozzle. Use nozzles specifically sized for the jetter being used. Using incorrect nozzles can cause poor performance (low operating pressure or low flow) or may damage the jetter with excessively high

pressures. Make sure the nozzle orifices are clear and open. See Jetter Nozzle Selection Chart.

If using the RR3000 nozzle for drains larger than 6" / 152 mm and up to 9" / 229 mm, the extension must be used. For drains 6" / 152 mm and smaller, no extension is needed. If needed, firmly hand tighten the extension to the RR3000 – do not over tighten. Using the RR3000 nozzle in a line larger than 6" and up to 9" / 152 mm and up to 229 mm without an extension, or in lines larger than 9" / 229 mm may allow the nozzle to change direction in the drain, exit at the user and cause serious injury (Figure 12).

1. Firmly hand tighten the nozzle to the end of the hose – do not over tighten. Over tightening the nozzle can damage the nozzle and cause poor performance.

2. Insert the hose with nozzle attached into the drain and open the inlet supply valve. Confirm that water flows freely through the nozzle and close the inlet supply valve.

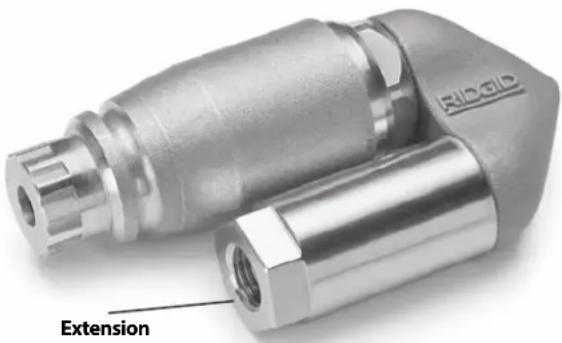

Close-up of a metallic RIGD connector with labeled extension (no text or symbols beyond branding)

Figure 12 - RR3000 Nozzle with Extension

JETTER HOSE SELECTION CHART

Applications		Pipe Size inch / mm	Nozzle Size inch / mm	Hose Size (ID) inch / mm	Hose Size (OD) inch / mm
KJ-2200	Bathroom sinks, urinals, and small lines.	1^1/_4 - 2/32 - 50	^1/_8/3,2 NPT	^1/_8/3,2	^3/_16/4,8
	Kitchen sinks, laundry tubs and stacks, clean-outs, and vents.	2 - 3 / 50 - 76	^1/_8/3,2 NPT	^3/_16/4,8	^1/_4/6,4
	Shower and floor drains, lateral lines, and grease traps.	3 - 4 / 76 - 101	^1/_4/6,4 NPT	^1/_4/6,4	^1/_2/13
	Lateral and main lines.	4 - 6 / 101 - 152	^1/_4/6,4 NPT	^1/_4/6,4	^1/_2/13
KJ-3100	Stacks, clean-outs and vents.	2 - 3 / 50 - 76	^1/_8/3,2 NPT	^3/_16/4,8	^1/_4/6,4
	Floor drains, lateral lines, and grease traps.	3 - 4 / 76 - 101	^1/_4/6,4 NPT	^3/_8/9,5	^5/_8/16
	Lateral and main lines.	4 - 10 / 101 - 250	^1/_4/6,4 NPT	^3/_8/9,5	^5/_8/16

JETTER NOZZLE SELECTION CHART

KJ-2200	Thread Size, inch / mm	^1/_8 / 3,2 NPT	^1/_4 / 6,4 NPT
	Hose Size (Inside Diameter), inch / mm	^1/_8 & ^3/_16 / 3,2 & 4,8	^1/_4 / 6,4
	Hose Size (Outside Diameter), inch / mm	^3/_16 & ^1/_4 / 4,8 & 6,4	^1/_2 / 13
	Features three reverse jet thrusts for maximum propulsion to jet long distances. Use this nozzle for most applications.	H-61 H-71
	Uses three jet thrusters in reverse plus one jet pointed forward to penetrate solid grease or sludge blockages. The forward jet blasts a small hole in the blockage for the nozzle to follow. It is also very effective when jetting ice blockages.	H-62 H-72
	Use the drop head to help negotiate difficult bends. This nozzle has three reverse jet thrusts.	H-64
	Use the spinning nozzle to clean grease and similar blockage from drain.	H-65 H-75
KJ-3100	Thread Size, inch / mm	^1/_8 / 3,2 NPT	^1/_4 / 6,4 NPT
	Hose Size (Inside Diameter), inch / mm	^3/_16 / 4,8	^3/_8 / 9,5
	Hose Size (Outside Diameter), inch / mm	^1/_4 / 6,4	^5/_8 / 16
	Features four (4) reverse jet thrusts for maximum propulsion to jet long distances. Use this nozzle for most applications.	H-101 H-111
	Uses three jet thrusters in reverse plus one jet pointed forward to penetrate solid grease or sludge blockages. The forward jet blasts a small hole in the blockage for the nozzle to follow. It is also very effective when jetting ice blockages.	H-102 H-112
	Use the drop head to help negotiate difficult bends. This nozzle has four (4) reverse jet thrusts.	H-104
	Use the spinning nozzle to help clean grease and similar blockage from drain.	H-105 H-115
	Use to clear roots and other type of blockages.NOTE! Use extension to stabilize the RR3000 when cleaning 8" / 200 mm diameter drains.		RR3000

Operating Instructions

WARNING

Always wear eye protection to protect your eyes against dirt and other foreign objects. Always wear appropriate personal protective equipment for the work environment.

Never operate the jetter with the hose end outside of the drain. Hose can whip, causing striking injuries and spray can penetrate skin and cause serious injury.

High pressure fluid can inject under skin resulting in serious injury, including amputation. Do not direct spray at people or animals.

Do not operate jetter above pressure rating or 140^ F / 60^ C (inlet water temperature). This increases the risk of injury, including burns, and damage to the jetter.

One person must control both the jetting process and the foot valve. Always use the foot valve. If the jetter hose comes out of the drain, the operator must be able to shut the water flow off to reduce the risk of the jetter hose whipping, causing striking and high pressure injection injuries.

Always use appropriate personal protective equipment while handling and using drain cleaning equipment. Drain may contain chemicals, bacteria and other substances that may be toxic, infectious, cause burns or other issues. Appropriate personal protective equipment always includes safety glasses and gloves, and may also include equipment such as latex or rubber gloves, face shields, goggles, protective clothing, respirators, and steel toed footwear.

Follow operating instructions to reduce the risk of injury from whipping hoses, high pressure liquid injection, carbon monoxide and other causes.

1. Make sure that machine and work area is properly set up and that the work area is free of bystanders and other distractions. If the jetter is located remotely from the point of use, another person should be located at the jetter.
2. Insert the hose with nozzle attached into the drain at least three feet so that the end of the hose will not come out of the drain and whip around when the machine is started.
3. Confirm that the pulse actuator lever is rotated count er-clockwise in the "Pressure" position (Figure 16).
4. Open the inlet supply valve. Never start the engine without the water supply turned ON. This can damage the pump.
5. Press the foot valve to reduce pressure and allow the engine to start. Confirm that water flows freely through the nozzle. Following the starting instructions supplied in the engine manual, start the engine. Allow the engine to warm up.

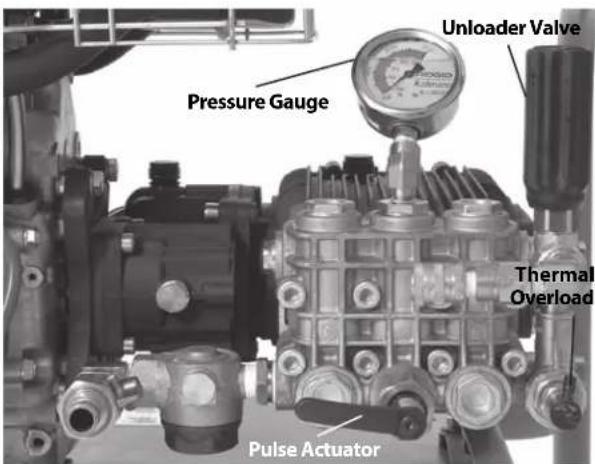

Pressure Gauge Unloader Valve Thermal Overload Pulse Actuator

Figure 13 – Controls

1. Turn the unloader valve while monitoring the pressure gauge to adjust the pressure as desired (clockwise to increase pressure, counter-clockwise to decrease pressure). Do not exceed the machine pressure rating being used. Do not force the unloader valve or use wrenches or tools to turn. This will damage the unloader valve.

Jetter Pressure Rating, PSI / bar

KJ-2200 2200 / 150

KJ-3100 3000 / 205

If the jetter will not generate the rated pressure or is erratic:

• Make sure the engine throttle is properly adjusted.
  • Make sure that the inlet supply valve is fully open and other valves in the supply system are fully open.
• Turn unloader valve clockwise to increase pressure. Do not force.
• Make sure the pulse actuator is on the "Pressure" setting.
• Cycle the pulse actuator between the "Pressure" and "Pulse" position several times while the unit is running to clear any trapped air from the system.
• Inspect system for leaks. Use caution during inspection to prevent injury. If leaks are found, shut jetter OFF before fixing.
• Turn the jetter OFF. Check the inlet filter/filter washer and make sure that they clear of debris.
  • Make sure there is adequate water flow to the jet-ter.
• Turn the jetter and inlet supply valve OFF. Re move the nozzle and clean the orifices with the nozzle cleaning tool.

- Run the jetter without a nozzle on the hose to remove air or debris from the system. Turn the jetter OFF before removing or attaching the nozzle.

1. Assume a proper operating position.

2. Be sure you can control the ON/OFF action of the foot valve. Do not press the foot valve yet.

3. Be sure that you have good balance and do not have to overreach.
4. You must be able to place one hand on the jetter hose at all times to control and support the hose.
5. You must be able to reach the reel for coiling the hose.

This operating position will help to maintain control of the jetter hose.

Worker in hard hat operating a power pump equipment outdoors (no visible text or symbols)

Figure 14 – Proper Operating Position

Jetting the Drain

When jetting a drain, typically the hose is fed into the drain the full distance to be cleaned and slowly pulled back. This allows the high pressure water directed at the drain walls to remove build-up.

Release the locking pin on the hose reel. With at least three feet of hose in the drain and one hand on the hose to control its movement, depress the foot valve. The reverse jet thrusters on the nozzle will help pull the hose into the drain. Feed the hose in the as far as needs to be cleaned. If the hose stops, it has encountered some type of obstruction.

If the nozzle cannot pass through an obstruction, such as a change in direction (trap, turn, etc.) or a blockage.

• Use sharp thrusts of the hose.
- Rotate the hose a quarter to half turn to orient the set of the hose to the direction change (if the hose is rotated, once through the obstruction, turn the hose back to help prevent kinks) See Figure 15.
- Use the pulse mode. (see next section).
- Use a trap hose or smaller diameter hose.

Two-panel black-and-white photo showing hands holding a rope, one with 'RIDGE' and the other with 'HOTELA' patch (no text or symbols visible)

Figure 15 – Rotating the Hose

Once past a blockage, take the time to clean that section of drain prior to moving forward. Move several feet past the area of the obstruction and slowly pull the nozzle back through the area of the obstruction. Do this several times and then move further into the drain.

Watch the drain water level. If the water level gets too high, you may need to turn the jetter OFF and allow the water to drain prior to continuing. Jetting when the line is full of water is less effective than when the line is empty. Do not allow the jetter to run for extended period of time with the foot valve OFF. When the foot valve is OFF, water recirculates in the pump and cause the water to heat up. This can cause the pump thermal overload to open.

Once the nozzle is the desired distance into the drain, slowly (1 ft / 30 cm per minute for heavy drain accumulations) pull the nozzle back through the drain. Use one hand to control the hose and the other to wind the hose onto the reel. Watch as the nozzle gets closer to the drain opening that the nozzle does not come out of the drain while water is flowing. This could allow the hose to whip around and cause striking and high pressure fluid injuries. Always control the hose. Look for the mark on the hose near the nozzle. Release the foot valve to shut off the water flow.

Turn OFF the engine as directed in the engine manual, and depress the foot valve to release the system pressure. Never leave the system pressurized. If needed, change the nozzle and continue cleaning following the above process. Several passes through a line are recommended for complete cleaning.

When finished, with the jetter shut off, remove the nozzle and open inlet supply valve to flush out the pump and hose. If using the jetter in cold weather conditions, immediately drain the water from the system to help prevent damage from freezing. See Machine Storage for information on freeze protecting.

Using the Pulse Mode

When manipulating the hose is not enough to pass through a direction change or obstruction, the pulse mode should be used. The pulse mode induces large variation in water pressure that causes the hose to vibrate, easing hose advancement.

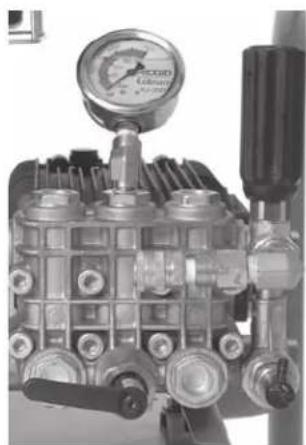

1. Turn the pulse actuator lever clockwise to the "Pulse" position. In pulse mode, the pressure gauge will read less than full pressure. This is normal.

Close-up of a mechanical pump assembly with pressure gauge and valve (no visible text or symbols)

Close-up of a mechanical pump assembly with pressure gauge and valve (no visible text or symbols)

Figure 16 – Pulse Actuator Lever Position

1. If needed, use sharp thrusts of the hose and hose rotation to help the nozzle through the obstruction.
2. Once through the obstruction, turn the pulse actuator lever counter-clockwise to the "Pressure" position. Do not leave the jetter in pulse mode any longer than needed to pass through an obstruction. Excessive use of the pulse feature can cause premature wear on hoses and system.

Using Water Jetter Machine as a Pressure Washer

The RIDGID water jetting machines can also be used as pressure washers with the addition of the pressure wash package. Use as a pressure washer is similar to use as a jetter, and those instructions should be used in conjunction with the following.

1. Locate an appropriate work area.
2. Make sure all equipment has been properly inspected.
3. Attach the wash wand to the wash wand hose. Always use hose with a pressure rating at least as high as the jetter pressure rating. Use a thread sealant to prevent leaks.
4. Attach hose to the jetter outlet. Make sure the ends of the hose are securely connected to prevent them from coming off under pressure.
5. Connect an appropriate water supply, as discussed earlier, to the jetter.
6. Open the inlet supply valve and squeeze the wash wand trigger to allow water to flow and purge any air from the system. Never start the engine without the water supply turned ON. This can damage the pump.
7. Make sure that pulse actuator lever is rotated counter-clockwise in the "Pressure" position.
8. Wash Wand Nozzle Adjustments – By rotating the nozzle, the wash pattern can be adjusted from a fine stream to a wide fan type spray. By pulling the nozzle forward (low pressure) and backward (high pressure), the pressure can be adjusted. Make sure that the nozzle is pulled back to the high pressure position to start operation.

Low Pressure High Pressure Pattern Adjustment Lock Out

Figure 17 – Wash Wand Nozzle Adjustments

1. Wash Wand Lock Out – the wash wand includes a lock out on the back of the trigger. Flip the lock out down to prevent the operation of the trigger when the wash wand is not in use.
2. With the wand pointed in a safe direction, squeeze the wash wand trigger to reduce pressure and allow the engine to be started. Following the starting instructions supplied in the engine manual, start the engine. Allow the engine to warm up. Release the trigger as soon as the engine starts.
3. With the wand pointed in a safe direction, squeeze the wash wand trigger. Turn the unloader valve while monitoring the pressure gauge to adjust the pressure as desired. Do not exceed the machine pressure rating. Release the wash wand trigger.

Pressure Washer Operation

1. When using as a pressure washer use both hands to grip and direct the wash wand for greater control. Never direct the wash wand at people. High pressure fluid can inject under skin resulting in serious injury. Never direct wash wand at electrical equipment or wiring to reduce the risk of electrical shock.
2. Control the flow of water with the trigger. Use care when using the pressure washer. Holding the nozzle too close to a surface can damage it. Test a small, inconspicuous area to confirm the settings work as desired.
3. Do not allow the jetter to run for extended period of time with the trigger OFF. When the trigger is OFF, water recirculates in the pump and it causes the water to heat up. This can cause the pump thermal overload to open.
4. Once pressure washing is complete, release the trigger and turn OFF the engine as directed in the engine manual. Squeeze the trigger to release system pressure. Never leave the system pressurized.

Detergent Injector

1. If needed, attach the detergent injector to the outlet port. Remove the output hose and attach the detergent injector with arrow on the unit pointing the same direction as the water flow. Use thread sealant to prevent leaks. Reattach the output hose.

2. Attach the siphon hose to the detergent injector. Place the strainer end of hose into the detergent container. Only use detergents designed for use with pressure washers. Follow all detergent instructions. Do not spray flammable liquids or toxic chemicals. Other detergents, solvents, cleaners, etc. can damage the jetter, or cause serious injury.

3. When pressure washing, detergents are only dispensed when wash wand nozzle is in the low pressure position. Pull the nozzle forward to the low pressure position to dispense detergent.

4. During operation, the detergent application rate can be adjusted by turning the sleeve on the detergent injector. Counter-clockwise increases the amount of detergent, clockwise decreases.
5. When detergent application is complete, remove the strainer from the detergent, place into a bucket of clean water and flush the system of any detergent.

Maintenance Instructions

WARNING

Before performing any maintenance, engine switch should be in OFF position and spark plug wires should be disconnected to prevent inadvertent operation. Press foot valve or wand trigger to release any fluid pressure in system.

Always wear safety glasses and gloves when performing any maintenance to help protect against drain chemicals and bacteria.

Cleaning

The hose should be cleaned as needed with hot, soapy water and/or disinfectants. Do not allow water to enter the engine or electrical system. Do not clean with pressure washer. Wipe the unit down with a damp cloth.

Engine

Maintain the engine as directed in the engine operator's manual supplied with the unit.

Pump Lubrication

Check the pump oil level prior to use. Place the jetter on a level surface. Wipe any dirt and debris from the area of the dipstick and remove the dipstick – check the oil level. If needed, add SAE 30W non-detergent oil. Do not overfill. Reinstall dipstick.

Change oil in pump after first 50 hours of operation and every 500 hours of operation after that. With the pump warm from operation, remove plug on bottom of pump and drain oil into suitable container. Replace plug. Fill with approximately 32 oz / 0,9 kg of SAE 30W non-detergent oil using the checking procedure.

Gearbox Lubrication

Check the gearbox oil level prior to use. Place the jetter on a level surface. Wipe any dirt and debris from the area of the dipstick and remove the dipstick – check the oil level. If needed, add SAE 90W gear lubricant. Do not overfill. Reinstall dipstick.

Change oil in gearbox every 500 hours of operation. With the gearbox warm from operation, remove plug on bottom of gearbox and drain oil into suitable container. Replace plug. Fill with approximately 8 oz / 0,2 kg of SAE 90W gear lubricant oil using the checking procedure.

Preparing Pump for Cold Weather Storage

NOTICE If the jetter will be stored under conditions where the temperature is near or below 32^ F / 0^ C, the jetter must be properly prepared. If water freezes in the pump, it can damage it.

There are two methods for preparing the jetter for cold weather storage. The first is to open all valves in the system and use compressed air to force any water out of the system. This can also be used to remove water from the hoses.

The second method uses RV antifreeze (non-ethylene glycol antifreeze). Do not use ethylene glycol antifreeze in the jetter pump. Ethylene glycol cannot be used in drainage systems.

1. Attach a 3' / 90 cm section of hose to the inlet supply valve and open valve.
2. Place the end of the hose into the container of RV antifreeze.
3. Remove the nozzle from the end of the hose.
4. Start the jetter and run until antifreeze comes out of the end of the hose.

Accessories

WARNING

To reduce the risk of serious injury, only use accessories specifically designed and recommended for use with the RIDGID Water Jetter Machines, such as those listed below. Other accessories suitable for use with other tools may be hazardous when used with RIDGID Water Jetter Machines.

KJ-2200 Jetter Nozzle and Hoses

Catalog No.	Model No. Description		Hose I.D. inch / mm	Hose O.D. inch / mm
64772 H-61 Propulsion Nozzle ^1/8 "/3,2 mm NPTFits ^1/4 "/6,4 mm Hose
64777 H-62 Penetrating Nozzle
64782 H-64 Drop Head Nozzle
82842 H-65 Spin Nozzle 2200
64787 H-71 Propulsion Nozzle ^1/4 "/6,4 mm NPTFits ^1/2 "/13 mm Hose
64792 H-72 Penetrating Nozzle
82852 H-75 Spin Nozzle 2200
47592 H-1425	^1/4 " x 25' / 6,4 mm x 7,6 m		^3/_16 /4,8	^1/4 /6,4
47597 H-1435	^1/4 " x 35' / 6,4 mm x 10,7 m		^3/_16 /4,8	^1/4 /6,4
47602 H-1450	^1/4 " x 50' /6,4 mm x 15,2 m	^1/4 " / 6,4 mm Trap Hose	^3/_16 /4,8	^1/4 /6,4
49272 H-1475	^1/4 " x 75' /6,4 mm x 22,9 m	Orange	^3/_16 /4,8	^1/4 /6,4
49277 H-1400	^1/4 " x 100' /6,4 mm x 30,5 m		^3/_16 /4,8	^1/4 /6,4
64732 H-1415	^1/4 " x 150' /6,4 mm x 45,7 m		^3/_16 /4,8	^1/4 /6,4
50002 HL-1	Flexible Leader, ^1/4 " / 6,4 mm		^1/8 /3,2	^3/_16 /4,8
50007 HL-2	Flexible Leader, ^1/2 " / 13 mm		^1/8 /3,2	^3/_16 /4,8
47607 H-1250	^1/2 " x 50' /13 mm x 15,2 m		^1/4 /6,4	^1/2 /13
47612 H-1275	^1/2 " x 75' /13 mm x 22,9 m		^1/4 /6,4	^1/2 /13
47617 H-1200	^1/2 " x 100' /13 mm x 30,5 m		^1/4 /6,4	^1/2 /13
51587 H-1211	^1/2 " x 110' /13 mm x 33,5 m	^1/2 " / 13 mmJet Hose	^1/4 /6,4	^1/2 /13
49487 H-1215	^1/2 " x 150' /13 mm x 45,7 m	Black	^1/4 /6,4	^1/2 /13
51597 H-1220	^1/2 " x 200' /13 mm x 61 m		^1/4 /6,4	^1/2 /13

KJ-2200 Jetter Accessories

Catalog No.	Model No. Description
62882	H-5 Mini Hose Reel (No Hose included)
64737	H-30 H-30 Cart with Hose Reel
62877	H-30 WH H-30 Cart with Hose Reel and 110' / 33,5 m x^1/2'' / 13 mm Jet Hose
64077	HP-22 Pressure Wash Package, KJ-2200
64767	HW-22 Wash Wand, KJ-2200
51572	H-1235 Wash Wand Hose ^1/2'' / 13 mm x 35' / 10,7 m
48157	FV-1 Foot Valve
66732	HF-4 Quick Connect Hose
48367	H-25 Winterizing Kit
47542	H-21 Nozzle Cleaning Tool
67187	H-32 Jet Vac

KJ-3100 Jetter Nozzles and Hoses

Catalog No.	Model No. Description	Hose I.D. inch / mm	Hose O.D. inch / mm
38698 H-101 Propulsion Nozzle ^1/_8" / 3,2 mm NPT38713 H-102 Penetrating NozzleFits ^1/_4" / 6,4 mm Hose38703 H-104 Drop Head Nozzle38723 H-105 ^1/_8" / 3,2 mm NPT Spin Nozzle
38693 H-111 Propulsion Nozzle ^1/_4" / 6,4 mm NPT38708 H-112 Penetrating NozzleFits ^3/_8" / 9,5 mm Hose38718 H-115S ^1/_4" / 6,4 mm NPT Spin Nozzle16713 RR3000 Root Ranger Nozzle
47592 H-1425 ^1/_4" / 6,4 mm x 25' / 7,6 m Trap Hose47597 H-1435 ^1/_4" / 6,4 mm x 35' / 10,7 m ^1/_4" / 6,4 mm Trap Hose47602 H-1450 ^1/_4" / 6,4 mm x 50' / 15,2 mOrangeTrap Hose49272 H-1475 ^1/_4" / 6,4 mm x 75' / 22,9 mTrap Hose49277 H-1400 ^1/_4" / 6,4 mm x 100' / 30,5 mTrap Hose64732 H-1415 ^1/_4" / 6,4 mm x 150' / 45,7 mTrap Hose64827 H-3835 ^3/_8" / 9,5 mm ID x 35' / 10,7 m Wash Hose64832 H-3850 ^3/_8" / 9,5 mm ID x 50' / 15,2 mJet/Wash Hose64837 H-3810 ^3/_8" / 9,5 mm ID x 100' / 30,5 mJet Hose64842 H-3815 ^3/_8" / 9,5 mm ID x 150' / 45,7 mJet Hose64847 H-3820 ^3/_8" / 9,5 mm ID x 200' / 61 mJet Hose64852 H-3825 ^3/_8" / 9,5 mm ID x 250' / 76,2 mJet Hose64857 H-3830 ^3/_8" / 9,5 mm ID x 300' / 91,4 mJet Hose	^3/_16 / 4,8 ^3/_16 / 4,8 ^3/_16 / 4,8 ^3/_16 / 4,8 ^3/_16 / 4,8 ^3/_16 / 4,8 ^3/_16 / 4,8 ^5/_8" / 16 ^3/_8 / 9,5 ^3/_8 / 9,5 ^3/_8 / 9,5Jet Hose ^3/_8 / 9,5mm ID x 35' / 9,5 mm Jet Hose ^3/_8 / 9,5 mm ID x 150' / 45,7 mJet Hose ^3/_8 / 9,5 mm ID x 200' / 61 mJet Hose ^3/_8 / 9,5 mm ID x 250' / 76,2 mJet Hose ^3/_8 / 9,5 mm ID x 300' / 91,4 mJet Hose	^1/_4" / 6,4 mmNPT ^1/_4" / 6,4 mm Trap Hose ^3/_16 / 4,8 ^3/_16 / 4,8 ^3/_16 / 4,8 ^3/_16 / 4,8 ^3/_16 / 4,8 ^5/_8" / 16 ^5/_8" / 16 ^5/_8" / 16 ^5/_8" / 16 ^5/_8" / 16 ^5/_8" / 16	^1/_4" / 6,4mmNPT ^1/_4" / 6,4 mm Trap Hose ^3/_16 / 4,8 ^3/_16 / 4,8 ^3/_16 / 4,8 ^3/_16 / 4,8 ^3/_16 / 4,6,4 ^1/_4" / 6,4mmID x 35' / 10,7 mWash Hose ^3/_8" / 9,5 mm ID x 50' / 15,2 mJet/Wash Hose ^3/_8" / 9,5 mm ID x 100' / 30,5 mJet Hose ^3/_8" / 9,5 mm ID x 200' / 61 mJet Hose ^3/_8" / 9,5 mm ID x 250' / 76,2 mJet Hose ^3/_8" / 9,5 mm ID x 300' / 91,4 mJet Hose

KJ-3100 Jetter Accessoires

Catalog No.	Model No. Description
62882 H-5 Mini Hose Reel
64862 H-38 Hose Reel (Fits KJ-3100)
64902 H-38 WH	Hose Reel with 200' / 61 m x 38 " / 9,5 mm ID Hose (Fits KJ-3100)
64797 HW-30 Wash Wand, KJ-3100
48367 H-25 Winterizing Kit
48157 FV-1 Foot Valve
66732 HF-4 Quick Connect Hose (Reel to Foot Valve)
47542 H-21 Nozzle Cleaning Tool
67187 H-32 Jet Vac

Machine Storage

⚠ WARNING Store the jetter in a well ventilated area protected from rain and snow. Keep the machine in a locked area that is out of reach of children and people unfamiliar with jetters. This machine can cause serious injury in the hands of untrained users. See Maintenance section for information on cold weather storage. See engine operator's manual for specific information on engine storage.

Service And Repair

WARNING

Improper service or repair can make machine unsafe to operate.

The "Maintenance Instructions" will take care of most of the service needs of this machine. Any problems not addressed by this section should only be handled by an authorized RIDGID service technician.

Tool should be taken to a RIDGID Independent Authorized Service Center or returned to the factory.

For information on your nearest RIDGID Independent Service Center or any service or repair questions:

• Contact your local RIDGID distributor.
• Visit www.RIDGID.com or www.RIDGID.eu to find your local RIDGID contact point.
• Contact RIDGID Technical Services Department at [e-mail], or in the U.S. and Canada call [phone].

Disposal

Parts of the water jetter contain valuable materials and can be recycled. There are companies that specialize in recycling that may be found locally. Dispose of the components in compliance with all applicable regulations. Contact your local waste management authority for more information.

For EC Countries: Do not dispose of electrical equipment with household waste!

According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national legislation,

electrical equipment that is no longer usable must be collected separately and disposed of in an environmentally correct manner.

Troubleshooting

PROBLEM CAUSE	CORRECTION
Jetter runs but produces little or no pressure.	Inadequate water supply. Make certain water supply	Apply faucet is ON.
		Make certain jetter's water supply inlet valve is ON.
		Make certain water supply hose is clear and not kinked or collapsed.
Jetter will not adjust to full operating pressure at start-up.	Air is trapped in system. Remove nozzle from jet	hose and run jetter to flush air/debris from system.
	Jetter nozzle thrusters are blocked Remove nozzle	and clean thruster orifices with nozzle cloning tool.
Jetter pressure gage oscillates from 500 to full operating pressure.	Jetter nozzle thrusters are blocked.	Remove nozzle. Use nozzle cleaning tool to clear nozzle orifices: select proper wire size and push completely through each thruster orifice to remove debris.
	Debris or air trapped in system.	Remove nozzle and insert jet hose in drain line. Run jetter to flush trapped air or debris.

RIDGID Ridge Tool Company, Elyria, Ohio, U.S.A. CE Model No. ND-3000 Serial No. AR044190816 Code date

KJ-2200 OPERATION OPERATION CONTROL INVENT PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISIONS PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISION S PROVISIONS

Close-up of a mechanical power plant with two control units and a hose, no visible text or symbols.

Close-up of a mechanical engine assembly with cooling fan, pressure relief valve, and tire (no visible text or symbols)

Interior view of a mechanical pressure pump assembly (no visible text or labels)

Worker in hard hat operating a cable pump on an open manhole (no text or symbols visible)

Worker in hard hat operating a portable water pump on a construction site (no visible text or symbols)

Two black-and-white photos showing hands holding a rope, one with a visible 'RIOXID' patch and the other with 'RIOXID' and 'WATER', both wearing gloves.

Figure 15 - Rotation du tuyau haute-pression

Two abstract icons: a black bird-like figure emitting light rays and a black circular logo with a stylized face (no text or symbols)

ADVERTENCIA

Close-up of a mechanical power tool with black and white components, no visible text or symbols on the main body.

Close-up of a mechanical engine assembly with cooling fans and hydraulic cylinders (no visible text or symbols)

Interior view of a mechanical pump assembly with visible components and wiring (no text or symbols)

Close-up of an engine cylinder assembly with pressure gauge and valve (no visible text or symbols)

Worker in hard hat operating a cable pump on an outdoor manhole (no visible text or symbols)

PAGGIC Conector OUT Conector IN

Worker in hard hat operating a portable power pump on a construction site (no visible text or symbols)

Close-up of hands holding a black cable with a visible label (no text or symbols on the cable itself)

Close-up of hands holding a black cable with a ring, no visible text or symbols

Close-up of a mechanical pump assembly with dual views (left and right) showing internal components and gauges (no visible text or symbols)

PRESIÓN
PULSACIONES

Two RIC3010 and RIC3200 industrial machines with coiled cables and hoses, no visible text or symbols on the devices themselves.

WARNING!

RIDGID Ridge Tool Company. Elyria. Ohio. U.S.A Model No. 3000 Serial No. 4190810 Datumcode

Close-up of a mechanical device with black and white components, no visible text or symbols on the main body.

Abbildung 6B – KJ-2200 Warnaufkleber

Close-up of a mechanical engine assembly with cooling fans and hydraulic cylinder (no visible text or symbols)

Abbildung 6C - KJ-3100 Warnaufkleber

Industrial mechanical device with visible gears, springs, and tubing (no text or symbols)

Abbildung 6D - KJ-3100 Warnaufkleber

Close-up of industrial engine components including a pressure gauge and filter valve (no visible text or symbols)

Worker in hard hat operating a cable pump on an open manhole (no visible text or symbols)

Worker in hard hat operating a power pump on a construction site (no visible text or symbols)

Close-up of hands holding a black cable with 'RIGAM' branding, no visible text or symbols on the cable itself.

Close-up of hands holding a black cable with a white wristband (no visible text or symbols)

Product photos of two RICQID machines (KJ-3100 and KJ-2200) with coiled hoses and cable spools, no visible text or symbols on the devices themselves.

WAARSCHUWING!

RIDGID™ Ridge Tool Company, Elyria, Ohio, U.S.A. Model No. 10-3000 Serial No. VAR044190810 Datumcode

KJ-2200 CONTINUATION FANCTIONSHIP 100% COOL 100% COOL 100% COOL 100% COOL 100% COOL 100% COOL 100% COOL 100% COOL 100% COOL 100% COOL 100% COOL 100% COOL 100% COOL 100% COOL 100% COOL 99.99 99.98 99.97 99.96 99.95 99.94 99.93 99.92 99.91 99.90 99.89 99.88 99.87 99.86 99.85 99.84 99.83 99.82 99.81 99.80 99.79 99.78 99.77 99.76 99.75 99.74 99.73 99.72 99.71 99.70 99.69 99.68 99.67 99.66 99.65 99.64 99.63 99.62 99.61 99.60 99.59 99.58 99.57 99.56 99.55 99.54 99.53 99.52 99.51 99.50 99.49 99.48 99.47 99.46 99.45 99.44 99.43 99.42 99.41 99.40 99.39 99.38 99.37 99.36 99.35 99.34 99.33 99.32 99.31 99.30 100% COOL

Close-up of two industrial equipment units with visible branding and mounting brackets (no readable text or symbols)

Close-up of a mechanical device with cooling fans and a tire, no visible text or symbols

Close-up of a mechanical engine assembly with visible gears, springs, and hydraulic components (no text or symbols)

Close-up of industrial engine components including a pressure gauge and filter valve (no visible text or symbols)

Figuur 7 – Inlaatfilter/filterpakking

Worker in hard hat operating a cable pump on an outdoor construction site (no visible text or symbols)

RIDGIC Uit-fitting In-fitting

Worker in hard hat operating a portable oil pump on a construction site (no visible text or symbols)

Close-up of hands holding a black cable with a visible logo (no text or symbols on the cable itself)

Close-up of hands holding a black cable with a white label (no readable text or symbols)

Close-up of a mechanical pump assembly with dual views showing internal components and gauges (no text or symbols visible)

Figuur 16 – Stand van pulsbedieningshendel

RIDGID Ridge Tool Company, Elyria, Ohio, U.S.A. Model No. 30-3000 Serial No. 44190810 Codice data

Close-up of two industrial equipment units with visible labels, no readable text or symbols on the main body.

Close-up of a mechanical engine assembly with cooling fans and hydraulic cylinder (no visible text or symbols)

Close-up of an industrial engine bay with visible motors, springs, and pressure gauges (no text or symbols)

Close-up of mechanical components including a valve, pump, and actuator (no visible text or symbols)

Figura 7 – Filtro ingresso/ondella filtro

Worker in protective gear operating a cable pump on an open manhole (no visible text or symbols)

Worker in hard hat operating a portable water pump on a construction site (no visible text or symbols)

Two-panel black-and-white photo showing hands holding a rope, one with 'RIDGE' and the other with 'HOTEL FROZEN' patch (no text or symbols visible)

PRESSIONE IMPULSO

Product photos of RIC3100 and KJ-2200 electric pressure pump machines with coiled cables and hoses (no text or symbols on main devices)

! AVISO!

Close-up of two industrial machines with visible branding and control buttons (no readable text or symbols)

Figura 6B – Etiquetas de aviso da KJ-2200

Close-up of a mechanical assembly with cooling fans and a motor, no visible text or symbols

Figura 6C – Etiquetas de aviso da KJ-3100

Industrial engine assembly with visible motors, gears, and wiring (no text or symbols)

Figura 6D – Etiquetas de aviso da KJ-3100

Close-up of an engine cylinder assembly with pressure gauge and valve (no visible text or symbols)

Worker in hard hat operating a cable pump on an open manhole (no visible text or symbols)

Worker in hard hat operating a power pump on a construction site (no visible text or symbols)

Close-up of hands holding a black cable with a white label (no readable text or symbols)

Close-up of hands holding a large cylindrical cable or hose, wearing gloves and a branded patch (no visible text or symbols)

Figura 15 – Rodar a Mangueira

Two RIC3010 and RIC3200 industrial machines with coiled cables and hoses, no visible text or symbols on the devices themselves.

WARNING!

Transportkärra KJ-2200....149

Handtag KJ-3100 149

RIDGID™ Ridge Tool Company, Elyria, Ohio, U.S.A Model No. 10-3000 Serial No. 24044190810 Datumkod

Figur 3 – Maskinens serienummer

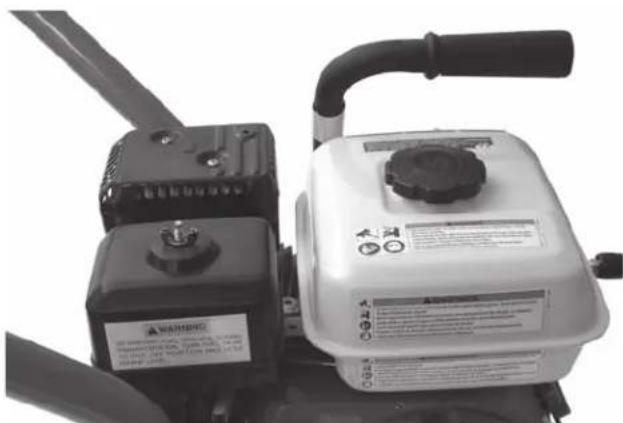

Transportkärra KJ-2200

Close-up of a JNJ-2200 utility tool with visible branding and control buttons (no readable text beyond labels)

Figur 6A – Varningsetiketter på KJ-2200

Close-up of a mechanical device with black and white components, no visible text or symbols on the main body.

Figur 6B – Varningsetiketter på KJ-2200

Close-up of a mechanical device with cooling fans and a motor, no visible text or symbols on the main body.

Figur 6C – Varningsetiketter på KJ-3100

Close-up of a mechanical engine assembly with visible gears, springs, and hydraulic components (no text or symbols)

Figur 6D – Varningsetiketter på KJ-3100

Industrial mechanical assembly with pressure gauge and valve components (no visible text or symbols)

Figur 7 – Inloppsfilter/Filterbricka

Worker in hard hat operating a cable pump on a construction site with an open manhole (no visible text or symbols)

Worker in hard hat operating a portable oil pump on a construction site (no visible text or symbols)

Close-up of hands holding a black cable with a white RIOG 10 brand tag (no text or symbols visible)

Close-up of hands holding a black cable with a cloth, no visible text or symbols

Figur 15 – Vrida slangen

Product photos of RICQID KJ-3100 and KJ-2200 electric pressure pump units with coiled cables and hoses (no text or symbols on main components)

ADVARSEL!

Close-up of a white agricultural machine (no visible text or symbols on the device body)

Close-up of two industrial machines with visible branding and control buttons (no readable text or symbols)

Industrial machine component with cooling fans and hydraulic cylinder, no visible text or symbols

Figur 6C – KJ-3100-advarselsmærkater

Industrial engine assembly with pressure gauges and motor components (no visible text or symbols)

Figur 6D – KJ-3100-advarselsmærkater

Close-up of industrial engine components including a pressure gauge and filter valve (no visible text or symbols)

Figur 7 – Indløbsfilter/filterrenser

Worker in hard hat operating a cable pump on a construction site with a manhole cover (no visible text or symbols)

RIDGIC Ud-sampling Ind-sampling

Figur 11 – Fodventiltislutning

Worker in hard hat operating a power pump on a construction site (no visible text or symbols)

Figur 14 – Passende betjeningsstilling

Two black-and-white photos showing hands holding a rope, one with a visible 'RIDGE 10' patch and the other with a logo (no text or symbols on the main subjects)

Product photos of RICQID KJ-3100 and KJ-2200 electric pressure pump units with coiled cables and hoses (no text or symbols on main components)

ADVARSEL!

Close-up of a white KJ-2200 tiller with attached control panel and pressure gauge (no visible text or symbols)

Figur 6A – Varselsmerker for KJ-2200

Close-up of a mechanical device with a black and white housing, attached to a curved pipe (no visible text or symbols)

Figur 6B – Varselsmerker for KJ-2200

Close-up of a mechanical assembly with cooling fans and a motor, no visible text or symbols

Figur 6C – Varselsmerker for KJ-3100

Close-up of a mechanical engine assembly with visible gears, springs, and pressure gauges (no text or symbols)

Figur 6D – Varselsmerker for KJ-3100

Close-up of industrial mechanical components including a pressure gauge and filter valve (no visible text or symbols)

Figur 7 – Inntaksfilter/filterskive

Worker in hard hat operating a cable pump on an outdoor manhole (no visible text or symbols)

Close-up of a metallic cylindrical mechanical component with labeled parts, no readable text or symbols beyond the label 'Forlengelse'

Figur 12 – RR3000 dyse med forlengelse

TABELL FOR VALG AV H∅YTRYKKSSLANGE

Anvendelser		Gjengestørrelse tommer / mm	Dysestørrelse tommer / mm	Slangestørrelse (ID) tommer / mm	Slangestørrelse (YD) tommer / mm
KJ-2200	Avløp i bad, urinaler og små rørledninger.	114 - 2/32 - 50	18/3,2 NPT	18/3,2	316/4,8
	Sluker i kjøkken, vaskekummer og gulvslu- ker, renseåpninger og ventiler.	2 - 3 / 50 - 76	18/3,2 NPT	316/4,8	14/6,4
	Avløp i dusj og gulv, siderørledninger og fettutskillere.	3 - 4 / 76 - 101	14/6,4 NPT	14/6,4	12/13
	Side- og hovedrørledninger.	4 - 6 / 101 - 152	14/6,4 NPT	14/6,4	12/13
KJ-3100	Vaskekummer, renseåpninger og ventiler.	2 - 3 / 50 - 76	18/3,2 NPT	316/4,8	14/6,4
	Avløp i dusj og gulv, siderørledninger og fettutskillere.	3 - 4/76 - 101	14/6,4 NPT	38/9,5	58/16
	Side- og hovedrørledninger.	4 - 10 / 101 - 250	14/6,4 NPT	38/9,5	58/16

TABELL FOR VALG AV H∅YTRYKKSDYSE

Worker in hard hat operating a power pump on a construction site (no visible text or symbols)

Figur 14 – Korrekt bruksstilling

Close-up of hands holding a black cable with a white safety patch (no visible text or symbols)

Close-up of hands holding a black cable with a white wristband, no visible text or symbols

Figur 15 – Rotere slangen

Forberede pumpen for kald oppbevaring

Product photos of RICGIO KJ-2100 and KJ-2200 electric pressure pump units with coiled hoses, no visible text or symbols on the devices themselves.

! VAROITUS!

Close-up of a small agricultural machine (no visible text or symbols on body)

Close-up of a mechanical pump unit with black and white casing, no visible text or symbols on the main body.

Close-up of a mechanical device with cooling fans and a heat exchanger, no visible text or symbols

Close-up of a mechanical engine assembly with visible gears, springs, and hydraulic components (no text or symbols)

Close-up of industrial machinery components including a pressure gauge and hydraulic cylinder, labeled 'Suodatin' (no other text or symbols visible)

Worker in hard hat operating a cable pump on a construction site (no visible text or symbols)

Worker in hard hat operating a portable oil pump on a construction site (no visible text or symbols)

Close-up of hands holding a black cable with a visible logo (no text or symbols on the cable itself)

Close-up of hands holding a black cable with a white label, no visible text or symbols on the main subject.

Product catalog image showing two RIC3100 and KJ-2200 electric pressure pump machines with coiled cables and hoses (no visible text or symbols on main devices)

⚠ OSTRZEŻENIE!

RIDGID Ridge Tool Company. Elyria. Ohio. U.S.A CE Model No. 30-3000 Serial No. V AR 0.44190810 Kod daty

Close-up of a mechanical device with two control buttons and a handle, no visible text or symbols.

Close-up of a mechanical device with cooling fans and hydraulic cylinders, no visible text or symbols

Interior view of a vehicle engine bay with visible motors, pressure gauges, and wiring (no text or symbols)

Close-up of industrial mechanical components including a pressure gauge and filter mechanism (no visible text or symbols)

Worker in hard hat operating a cable-based power pump on a construction site (no visible text or symbols)

Worker in hard hat operating a portable water pump on a construction site (no visible text or symbols)

Two black-and-white photos showing hands holding a rope, one with a visible 'RIDGE' patch and the other with a white bandage (no text or symbols)

Product catalog image showing two RICGIO KJ-3100 and KJ-2200 electric pressure pump units with coiled hoses and cable spools (no text or symbols on main devices)

⚠️ VAROVÁNÍ!

RIDGID™ Ridge Tool Company, Elyria, Ohio, U.S.A. CE Model No. 30-3000 Serial No. VAR044190810 Datovy kod

Close-up of a small white KJ-2200 tiller with visible branding and control buttons (no readable text beyond branding)

Close-up of a mechanical device with black and white components, no visible text or symbols on the main body.

Close-up of a mechanical engine assembly with cooling fans and a pressure regulator (no visible text or symbols)

Close-up of a mechanical engine assembly with visible gears, springs, and motors (no text or symbols)

Industrial mechanical assembly with hydraulic cylinders and pressure gauge (no visible text or symbols)

Worker in hard hat operating a cable pump on an outdoor manhole (no visible text or symbols)

Worker in hard hat operating a portable oil pump on a paved surface (no visible text or symbols)

Close-up of hands holding a black cable with a white wristband (no visible text or symbols)

Close-up of hands holding a black cable with a white cap and wristband (no visible text or symbols)

Close-up of a mechanical pump assembly with dual views showing internal components and gauges (no text or symbols on the main image)

TIETO POKYNY USCHOVAJTE!

Close-up of a KJ-2200 utility tool with visible branding and control buttons (no readable text beyond labels)

Close-up of a mechanical pump unit with black and white casing, no visible text or symbols on the main body.

Close-up of an industrial machine with cooling fans and mechanical components (no visible text or symbols)

Close-up of a mechanical engine assembly with visible gears, springs, and hydraulic components (no text or symbols)

Close-up of an engine cylinder and valve assembly with pressure gauge (no visible text or symbols)

Worker in hard hat operating a cable pump on an open manhole (no visible text or symbols)

Worker in hard hat operating a portable power pump on a construction site (no visible text or symbols)

Close-up of hands holding a black cable with a visible 'RIDAR' patch, no text or symbols present.

Close-up of hands holding a rope with a metal clip, no visible text or symbols

Close-up of two industrial engine components with gauges and hydraulic heads, labeled TLAK PULZ (no readable text beyond label)

Product catalog image showing two RICSID KJ-2100 and KJ-2200 electric drill machines with coiled hoses and cable spools, no readable text or symbols on the devices themselves.

AVERTIZARE!

RIDGID™ Ridge Tool Company. Elyria, Ohio, U.S.A CE Model No. 30-3000 Serial No. 24044190810 Cod de data

Figura 3 – Seria maşinii

Close-up of industrial equipment including a black and white pump unit with a handle and label (no readable text or symbols)

Figura 6B – Etichete de avertizare KJ-2200

Close-up of a mechanical device with cooling fins and a motor, no visible text or symbols

Figura 6C – Etichete de avertizare KJ-3100

Close-up of a mechanical engine assembly with visible gears, springs, and pressure gauges (no text or symbols)

Figura 6D – Etichete de avertizare KJ-3100

Close-up of industrial mechanical components including a pressure gauge and filter valve (no readable text or symbols)

Worker in hard hat operating a cable pump on an open manhole (no visible text or symbols)

Worker operating a portable power pump on a construction site (no visible text or symbols)

Close-up of a person holding a black cable with a 'RiDigi' patch, against a plain background (no text or symbols visible)

Close-up of hands holding a black cable with 'Riogio' branding, no visible text or symbols on the cable itself.

Two RICGIO machines (KJ-3100 and KJ-2200) with coiled hoses and power equipment, no visible text or symbols on the devices themselves.

⚠ FIGYELMEZTETÉS!

Close-up of industrial machine components including a black control box and white pump unit with handle (no visible text or symbols)

Close-up of a mechanical assembly with cooling fans and a motor, no visible text or symbols

Industrial engine assembly with visible motors, gears, and wiring (no text or symbols)

Close-up of industrial engine components including a pressure gauge and valve assembly (no readable text or symbols)

Worker in hard hat operating a cable pump on an outdoor manhole (no visible text or symbols)

Worker in hard hat operating a portable power pump on a construction site (no visible text or symbols)

Close-up of hands holding a black cable with a visible logo (no text or symbols on the cable itself)

Close-up of hands holding a black cable with a cloth, no visible text or symbols

NYOMÁS IMPULZUS

RIDGID Ridge Tool Company. Elyria. Ohio. U.S.A. Model No. KJ-3060 Serial No. VAR044190810 Kwbiććnperopnivács

Close-up of a mechanical pump unit with black and white casing, no visible text or symbols on the main body.

Close-up of a mechanical engine assembly with cooling fan and pressure regulator (no visible text or symbols)

Close-up of a mechanical engine assembly with visible gears, hoses, and control panel (no text or symbols)

Close-up of industrial mechanical components including a pressure gauge and hydraulic cylinder (no visible text or symbols)

Worker in hard hat operating a power pump on an open manhole (no visible text or symbols)

Worker in hard hat operating a portable oil pump on a construction site (no visible text or symbols)

Two-panel black-and-white photo showing hands holding a rope, one with 'RIDGE' and the other with 'POTATO' on the belt (no text or symbols visible)

Product photo of two RICGIO machines (KJ-3100 and KJ-2200) with coiled hoses and cable spools, no visible text or symbols on the devices themselves.

UPOZORENJE!

RIDGID™ Ridge Tool Company, Elyria, Ohio, U.S.A CE Model No. KJ-3000 Serial No. VAR044190810 Kod datuma

Close-up of a mechanical device with black and white components, no visible text or symbols

Close-up of an industrial machine with cooling fans and a mechanical component, no visible text or symbols.

Industrial engine assembly with visible gears, hoses, and control panel (no text or symbols)

Close-up of industrial mechanical components including a filter valve and pressure gauge (no visible text or symbols)

Slika 7 - Ulazni filtar/brtva filtra

Worker in hard hat operating a cable pump on an open manhole (no visible text or symbols)

Worker operating a portable oil pump on a construction site (no visible text or symbols)

Slika 14 – Pravilan radni položaj

Mlazno pranje odvoda

Kod mlaznog pranja odvoda, gibljiva cijev se obično uvodi do kraja u odvod koji treba očistiti i polako se vuče unatrag. Tako voda pod visokim tlakom usmjere-na na stjenke odvoda može ukloniti talog.

Otpustite osigurač na kolutu gibljive cijevi. Kad je gibljiva cijev ušla u odvod do dužine od barem tri stope / devedeset centimetara, jednom rukom držite cijev kako biste kontrolirali njezino kretanje i pritisnite nožni ventil.

Two black-and-white photos showing hands holding a long cable with a visible 'RIDGIN' patch, no text or symbols present.

Slika 15 – Rotiranje gibljive cijevi

Nakon što ste prošli začepljenje, uzmite dovoljno vremena za čišćenje tog dijela odvoda i tek onda krenite dalje. Pomaknite se tridesetak do pedesetak centimetara dalje od mjesta prepreke i polako povucite mlaznicu natrag kroz mjesto prepreke. Napravite to nekoliko puta i zatim krenite dalje u odvod.

Promatrajte razinu vode u odvodu. Ako se razina vode previše podigne, možda ćete morati ISKLJUČITI mlaznik i pustiti vodu da oteče pa tek onda nastaviti. Mlazno pranje punog cjevovoda manje je učinkovito od pranja praznog. Nemojte dopustiti da mlaznik radi duži period s ISKLJUČENIM nožnim ventilom. Kad je nožni ventil ISKLJUČEN, voda kruži u pumpi, što dovodi do njezinog zagrijavanja. To može uzrokovati aktiviranje zaštite od toplinskog preopterećenja pumpe.

Kad je mlaznica dosegnula željenu udaljenost u odvodu, polako (1 stopu / 30 cm u minuti kod velikih nakupina u odvodu) povlačite mlaznicu natrag kroz odvod. Jednom rukom kontrolirajte gibljivu cijev, a drugom je namatajte na kolut. Pratite kako se mlaznica približava otvoru odvoda da ne bi izašla iz odvoda dok teče voda. To bi moglo dovesti do vitlanja gibljive cijevi i uzrokovati ozljede izazvane tekućinom pod visokim tlakom. Gibljiva cijev uvijek mora biti pod kontrolom. Potražite oznaku na gibljivoj cijevi blizu mlaznice. Puštanjem nožnog ventila zatvorite protok vode.

UGASITE motor prema uputama u priručniku za uporabu motora i pritiskom nožnog ventila ispustite tlak sustava. Nikada nemojte ostavljati sustav pod tlakom. Po potrebi zamijenite mlaznicu i nastavite čišćenje pridržavajući se prije opisanog postupka. Za potpuno čišćenje preporuča se nekoliko prolazaka kroz cjevovod.

Close-up of two industrial engine components with visible hydraulic gauges and valve bodies, labeled 'TLAK IMPULS' below (no readable text or symbols on the components themselves)

Slika 16 – Položaj poluge za aktiviranje impulsnog režima

1. Po potrebi snažnim potiskivanjem i okretanjem gibljive cijevi potpomognite njezin prolaz kroz prepreku.

2. Nakon svladavanja prepreke, okrenite polugu za aktiviranje impulsnog režima suprotno od kazaljke na satu u položaj "Tlak". Nemojte ostavljati mlaznik u impulsnom režimu duže nego što je to potrebno za prolaz kroz prepreku. Pretjerana uporaba funkcije impulsnog režima može uzrokovati prijevremeno trošenje na gibljivim cijevima i sustavu.

Product photo of two RIC3100 and KJ-2200 electric pressure pump machines with coiled hoses and control panels (no visible text or symbols on equipment)

OPOZORILO!

RIDGID™ Ridge Tool Company. Elyria, Ohio, U.S.A CE Model No. 30-3000 Serial No. VAR044190810 Koda datuma

Close-up of a mechanical pump unit with black and white casing, no visible text or symbols on the main body.

Industrial machine component with cooling fans and heat exchangers, no visible text or symbols

Slika 6C – Opozorilne nalepke za model KJ-3100

Industrial engine assembly with pressure gauges and motor components (no visible text or symbols)

Slika 6D – Opozorilne nalepke za model KJ-3100

Close-up of industrial mechanical components including a pressure gauge and filter valve (no visible text or symbols)

Worker in hard hat operating a cable pump on a construction site with an open manhole (no visible text or symbols)

Worker in hard hat operating a power pump on a manhole (no visible text or symbols)

Slika 14 – Pravilen položaj pri uporabi

Čiščenje odtoka

Close-up of hands holding a black cable with a visible logo (no text or symbols on the cable itself)

Close-up of hands holding a large cylindrical cable or wire, wearing gloves and a RICKIO brand tag (no visible text or symbols)

Slika 15 – Vrtenje cevi

Product catalog image showing two RIC3100 and KJ-2200 electric pressure pump machines with coiled hoses and cable spools (no text or symbols on main devices)

⚠ UPOZORENJE!

Pažljivo pročitajte uputstva pre korišćenja ovog alata. Nepoznavanje i nepridržavanje uputstava iz ovog priručnika može imati za posledicu strujni udar, požar i/ili teške telesne povrede.

KJ-2200/KJ-3100 mašine za ispiranje vodom pod pritiskom

RIDGID® Ridge Tool Company. Elyria, Ohio, U.S.A. CE Model No. 14-3000 Serial No. V AR 0-44190810 Sifra datuma

Slika 3 – Serijski broj mašine

Serijski broj mašine se nalazi na ramu. Poslednje 4 cifre označavaju mesec i godinu proizvodnje. (08 = mesec, 10 = godina).

Tehnički podaci

Model mašine za ispiranje	Motor KS	Pritisak PSI / bar
KJ-2200	6.5 / 6,5	2200 / 150
KJ-3100	16	3000 / 205
Količina protoka	Dimenzija odvodnog voda	Težina (sa/bez kalema creva)
GPM / litar	inch / mm	Ibs / kg
2.4 / 9	114 -6 / 32 - 152	65 / 30
5.5 / 20	2 - 10 / 50 - 250	262 / 119

Ikone

Režim pritiska

Režim pulziranja

Standardna oprema

Sve mašine za ispiranje vodom pod pritiskom se isporučuju sa

• Odgovarajućim brizgaljkama ispirača
• Alatom za čišćenje brizgaljki
  • FV-1 nužnim ventilom
• Priručnikom za rukovanje motorom

Close-up of a mechanical device with a black component and a white housing, no visible text or symbols.

Close-up of a mechanical device with cooling fins and a motor, no visible text or symbols

Close-up of a mechanical engine assembly with visible gears, springs, and pressure gauges (no text or symbols)

Close-up of industrial engine components including a pressure gauge and valve assembly (no visible text or symbols)

Slika 7 – Ulazni filter/filter perača

1. Proverite rupice brizgaljki ispirača na oštećenje ili blokadu. Blokirane rupice treba očistiti sa alatom za čišćenje brizgaljki. Vodite računa da ne povećate rupice brizgaljki u toku čišćenja. Oštećene brizgaljke ili brizgaljke sa uvećanim rupicama mogu umanjiti performanse ispirača i u tom slučaju ih treba zameniti.

2. Porverite creva, priključke i cevne nastavke na habanje i oštećenja. Ako postoji bilo kakvo uvijanje, naprsline, prelomi ili pohabanost na spoljašnjem omotaču creva ili neka druga oštećenja, nemojte koristiti crevo. Oštećena creva mogu eksplodirati ili propustiti vodu pod visokim pritiskom i tako prouzrokovati ozbiljne povrede. Zamenska creva treba da budu u klasi predviđenoj, za pritisak ispirača, ili višoj.

3. Proveravajte i održavajte motor po upustvima datim u Priručniku za rukovanje.

4. Proverite nivo goriva u motoru. Za KJ-3100, odvojite rezu crevnog kalema i okrenite crevni kalem unapred sve dok njegov ostatak na ramu ne omogući pristup poklopcu rezervoara benzina motora Slika 8. Ako je potrebno, dospite bezolovni benzin. Za detalje pogledajte Priručnik za rukovanje. Budite oprezni kada rukujete benzinom. Dosipanje vršite u dobro provetrenom prostoru. Nemojte prepuniti rezervoar i nemojte prosipati gorivo. Vodite računa da je poklopac rezervoara bezbedno zatvoren.

Poklopac rezervoara za gorivo

Slika 8 - KJ-3100 Pristup rezervoaru za gorivo

1. Proverite nivo ulja u pumpi i kućištu zupčastog prenosa (ako postoji) i dodajte ulje ako je to potrebno ( pogledajte poglavlje Uputstva ua održavanje).

Podešavanje mašine i radnog područja

UPOZORENJE

Worker in hard hat operating a cable pump on an open manhole (no visible text or symbols)

Slika 10 – Produžetak otvora odvoda do mesta rada

Postavljanje creva

Vodite računa kada vodite creva mašine za ispiranje. Vođenje creva preko neravnih površina, oštrih ivica, ukrštanje creva, itd. može oštetiti oblogu creva, posebno kada se ispirač koristi u režimu pulziranja. Držanje creva na kalemu pomaže da se oštećenje smanji na minimum.

1. Izaberite odgovarajuću veličinu creva za odvod koji treba da se očisti. Ovde ne postoje opšte preporuke za spajanje dva creva zajedno za čišćenje odvoda. Veza između dva creva je manje fleksibilna i može sprečiti prolaz kroz cevne nastavke pogledajte Tabelu asortimana creva za mašinu za ispiranje.

2. Ako je potrebno, odvojite kalem sa sklopa motora/pumpe. Postavite kalem sa crevom na udaljenosti manjoj od 3 stope / 90 cm od otvora odvoda. nemojte dozvoliti da prevelika veličina creva bude izvan odvoda da bi sprečili oštećenje creva. Ako kalem za crevo ne može da se postavi na razdaljini do 3 stope / 90 cm od otvora odvoda, približite otvor odvoda kalemu tako što ćete upotrebiti sličnu veličinu cevi i cevne nastavke.

3. Sprovedite crevo od ispirača do ulaznog cevnog nastavka na nužnom ventilu. Koritite PTFE traku za zaptivanje priključka. Postavite nužni ventil da bude pristupačan. Morate biti sposobni da upravljate i crevom ispirača i nužnim ventilom.

4. Priključite crevo iz ispirača na izlazni cevni nastavak na nužnom ventilu.

RIDGIC Izlazni cevni nastavak Ulazni cevni nastavak

Close-up of a metallic mechanical component with labeled 'Dodatak' and 'Rioid' branding (no other text or symbols visible)

Worker in hard hat operating a power pump on a manhole (no visible text or symbols)

Close-up of hands holding a black cable with 'RIDOM' branding, no visible text or symbols on the cable itself.

Close-up of hands holding a rope with a circular cable, wearing gloves and a RIOLO brand tag (no visible text or symbols)

Slika 15 – Zakretanje creva

Kada prođete blokadu, zadržite se neko vreme da očistite sekciju odvoda pre nego što se pomerite unapred. Pomerite se nekoliko stopa od područja u kome je bilo začepljenje i polako povlačite brizgaljku unazad kroz područje začepljenja. Ovo učinite nekoliko puta i zatim nastavite kretanje dalje kroz odvod.

Close-up of a mechanical engine assembly with pressure gauge and valve (no visible text or symbols)

PRITISAK PULZIRANJE

Close-up of a mechanical pump assembly with pressure gauge and valve (no visible text or symbols)

Product photo of RICGIO KJ-3100 and KJ-2200 electric pressure pump units with coiled hoses and cable spools (no text or symbols on main devices)

ВНИМАНИЕ!

Close-up of a mechanical device with black and white components, no visible text or symbols on the main body.

Close-up of a mechanical engine assembly with visible cooling fans and pressure gauges (no text or symbols)

Close-up of a mechanical pump assembly with visible gears, valves, and control panel (no text or symbols)

Close-up of mechanical engine components including pressure gauge and valve (no visible text or symbols)

Worker in hard hat operating a cable-driven power pump on a construction site (no visible text or symbols)

Worker in hard hat operating a portable water pump on a construction site (no visible text or symbols)

Close-up of hands holding a black cable with a white safety patch (no visible text or symbols)

Close-up of hands holding a black cable with a white cap (no visible text or symbols)

Product catalog image showing two RIC3100 and KJ-2200 electric pressure pump machines with coiled cables and hoses (no text or symbols on main devices)

! UYARI!

Elden Çıkarma....447

Sorun Giderme 448

Ömür Boyu Garanti......Arka Kapak

RIDGID™ Ridge Tool Company, Elyria, Ohio, U.S.A CE Model No. 10-3000 Serial No. 24044190810 Tarih Kodu

Close-up of a mechanical device with two control buttons and a handle (no visible text or symbols)

Close-up of an industrial machine with cooling fans and a mounted motor, no visible text or symbols

Close-up of a mechanical engine assembly with visible gears, springs, and hydraulic components (no text or symbols)

Close-up of industrial mechanical components including a valve, pump, and pressure gauge (no visible text or symbols)

Şekil 7 – Giriş Filtresi/Filtre Pulu

Worker in hard hat operating a cable pump on an open manhole (no visible text or symbols)

Worker in hard hat operating a portable power pump on a paved outdoor area (no visible text or symbols)

Two black-and-white photos showing hands holding a rope, one with a visible 'RIDGIO' patch and the other with a logo (no text or symbols in the image)

Close-up of a mechanical valve assembly with dual views (left and right) showing internal components and gauges, labeled 'BASING DARBE' below (no readable text or symbols on the main components)

Şekil 16 – Darbe Aktüatör Kolunun Konumu

Elyria, Ohio 44035-6001

U.S.A.

Authorized Representative:

RIDGE TOOL EUROPE N.V.

Research Park, Haasrode

B-3001 Leuven

Belgium

CE Conformity

This instrument complies with the European Council Electromagnetic Compatibility Directive 2004/108/EC using the following standards: EN 61326-1:2006, EN 61326-2-1:2006.

Conformité CE

Research Park Haasrode,

3001 Leuven Belgium

Phone: [phone]

Fax: [phone]

www.RIDGID.eu

We Build Reputations™ RIDGID®
