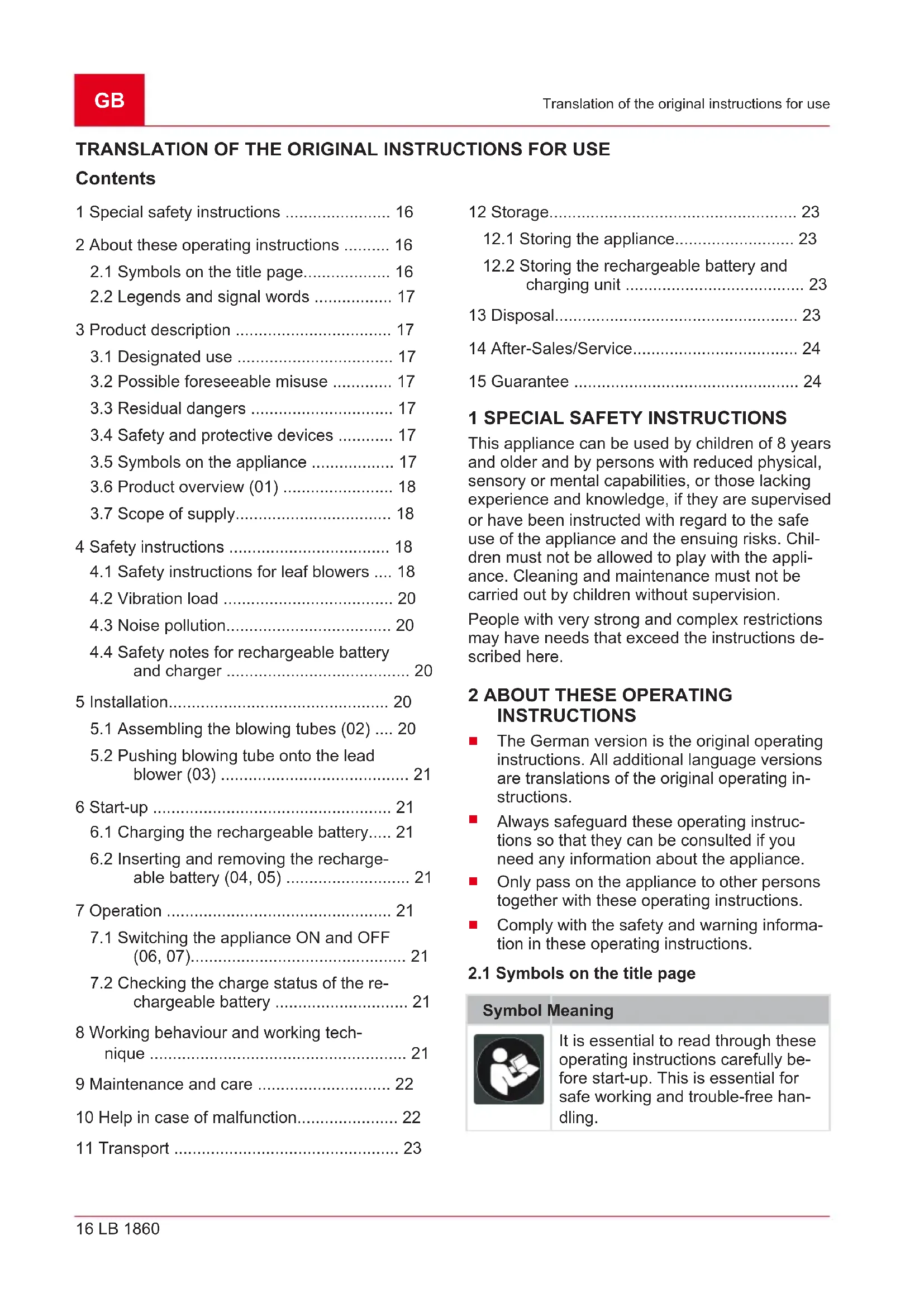

USER MANUAL LB 1860 AL-KO

3.4 Safety and protective devices ............ 17

4.1 Safety instructions for leaf blowers .... 18

4.4 Safety notes for rechargeable battery

5.2 Pushing blowing tube onto the lead

blower (03) ......................................... 21 6 Start-up .................................................... 21

6.1 Charging the rechargeable battery..... 21

6.2 Inserting and removing the recharge-

able battery (04, 05) ........................... 21 7 Operation ................................................. 21

7.1 Switching the appliance ON and OFF

(06, 07)............................................... 21

7.2 Checking the charge status of the re-

12.2 Storing the rechargeable battery and

This appliance can be used by children of 8 years and older and by persons with reduced physical, sensory or mental capabilities, or those lacking experience and knowledge, if they are supervised or have been instructed with regard to the safe use of the appliance and the ensuing risks. Chil- dren must not be allowed to play with the appli- ance. Cleaning and maintenance must not be carried out by children without supervision. People with very strong and complex restrictions may have needs that exceed the instructions de- scribed here.

2 ABOUT THESE OPERATING

The German version is the original operating instructions. All additional language versions are translations of the original operating in- structions.

Always safeguard these operating instruc- tions so that they can be consulted if you need any information about the appliance.

Only pass on the appliance to other persons together with these operating instructions.

Comply with the safety and warning informa- tion in these operating instructions.

2.1 Symbols on the title page

Symbol Meaning It is essential to read through these operating instructions carefully be- fore start-up. This is essential for safe working and trouble-free han- dling.443168_a 17 Product description Symbol Meaning Operating instructions

Handle Li-Ion rechargeable batter- ies with care! In particular, observe the notes on transport, storage and disposal in these operating instruc- tions!

2.2 Legends and signal words

DANGER! Denotes an imminently danger- ous situation which will result in fatal or serious injury if not avoided. WARNING! Denotes a potentially danger- ous situation which can result in fatal or serious injury if not avoided. CAUTION! Denotes a potentially dangerous situation which can result in minor or moderate injury if not avoided. IMPORTANT! Denotes a situation which can result in material damage if not avoided. NOTE Special instructions for ease of under- standing and handling. 3 PRODUCT DESCRIPTION These operating instructions describe a hand-op- erated, battery-powered leaf blower. The appliance may only be used together with the lithium-ion rechargeable batteries and char- gers specified in the technical data. See the sep- arate operating instructions for further information on rechargeable batteries and chargers:

Operating instructions 443130: rechargeable batteries

Operating instructions 443131: chargers IMPORTANT! Danger of damage to the ap- pliance and battery. If the appliance is operated with unsuitable batteries, both the device and the batteries may be damaged.

Operate the appliance only with the specified rechargeable batteries.

This battery-powered leaf blower is designed for private use. It can be used for:

Blowing away and collecting leaves, grass, dirt and refuse. Only work with the appliance when it is fully as- sembled. This appliance is intended solely for use in non- commercial applications. Any other use as well as unauthorised conversions or modifications are regarded as contrary to the intended use and will result in voiding of the warranty as well as loss of conformity; the manufacturer will thus decline any responsibility for damage and/or injury suffered by the user or third parties.

3.2 Possible foreseeable misuse

The tool is designed neither for commercial use in public parks and sports facilities, nor for use in farming and forestry.

3.3 Residual dangers

Even during correct use of the appliance, there is always a certain residual risk that cannot be ex- cluded. Depending on the use, the following po- tential risks can be derived from the type and construction of the appliance:

Throwing out of cuttings, soil and small stones.

Inhalation of cuttings particles if no breathing protection is worn.

3.4 Safety and protective devices

WARNING! Risk of injury. Defective and disabled safety and protective devices can result in serious injury.

Have any defective safety and protective de- vices repaired.

Never disable safety and protective devices.

3.5 Symbols on the appliance

Symbol Meaning Pay special attention when handling this appliance! Read the operating instructions be- fore starting operation!GB 18 LB 1860 Safety instructions Symbol Meaning Wear safety goggles and ear pro- tectors! Danger due to objects being thrown out! Keep other people out of the danger area! Read the operating instructions be- fore performing maintenance work. Protect the appliance from rain and moisture! Do not reach into the fan. Danger due to rotating parts

Turbo button 6 Upper blowing tube 7 Lower blowing tube 8 Operating instructions 9 Rechargeable battery* 10 Charger* *Not included in the scope of supply, but can be purchased under the following article numbers: See Technical data.

The items listed here are included in the standard scope of supply. Check that all items are present: No. Component 1 Battery-powered leaf blower 2 Upper blowing tube 3 Lower blowing tube 4 Operating instructions NOTE The rechargeable battery and charging unit are not included in the scope of delivery and must therefore be purchased separately. 4 SAFETY INSTRUCTIONS

4.1 Safety instructions for leaf blowers

Carefully read the safety instructions. Famil- iarise yourself with the operating and adjust- ment elements and the intended use of the appliance.

Never allow children or persons unfamiliar with these instructions to use the appliance. National regulations may limit the age of the operator.

The user is responsible for accidents involv- ing other people and their property.

Do not operate the appliance if you are under the influence of alcohol, drugs or medication. Preparation

Always wear hearing protection and protec- tive eyewear as long as the appliance is in operation.

Always wear sturdy shoes and long trousers when operating the appliance. Do not use the appliance when barefoot or wearing light san- dals. Avoid wearing loose clothing or clothing with dangling cords or ties.

Do not wear loose clothing or jewellery that could be drawn into the intake opening. Keep long hair away from the intake openings.

Use the appliance only in the recommended position and only on solid ground.

Do not operate the appliance on paved or gravel surfaces where material blown out could cause injuries.

Before switching on the appliance, always check that all screws, nuts, bolts and other fasteners are securely tightened and that the443168_a 19 Safety instructions protective devices and protective grilles are in place.

Damaged protective devices and covers must be replaced, missing protective de- vices and covers must be correctly fitted.

Worn or damaged signs must be replaced.

Never put the appliance into operation while people, especially children or pets, are in the immediate vicinity.

Before working, remove any dangerous ob- jects from the working area, e.g. branches, glass or metal pieces, stones. operation

Only use the appliance in daylight or good ar- tificial light. Do not work with the appliance in bad weather conditions, especially when thunderstorms are approaching.

When working, move cautiously and slowly. Do not run. Watch out for obstacles.

When working on a slope:

Never work on a smooth and slippery slope.

Always ensure that you are standing se- curely.

Always blow the leaves near to the ground.

Never work down a slope.

Switch off the appliance:

When moving it to and from the working area.

When crossing gravel surfaces.

Do not lay the appliance down on gravel whilst switched on.

Never aim the blowing tube at persons or ani- mals.

Never blow refuse in the direction of persons or pets.

Never use the appliance with damaged pro- tective devices or protective grilles or without mounted protective devices, e.g. baffle plates and/or grass catcher.

Switch on the appliance as described in the op- erating instructions and take care to keep your feet well away from the discharge opening.

Never put your hands or feet on or under ro- tating parts.

Always disconnect the appliance from the power supply (i.e. remove rechargeable bat- teries or standard batteries) and ensure that all moving parts have come to a complete stop:

before leaving the appliance unattended

before removing blockages or clogging in the appliance

before checking, cleaning or working on the appliance

after contact with foreign objects

whenever the appliance starts to vibrate in an unusual way

After contact with dangerous objects and for- eign bodies, check the appliance for damage. Have a damaged appliance repaired before starting or working with it again.

An immediate check is required if the appli- ance begins to vibrate unusually:

Have damaged parts repaired.

Inspect the appliance for loose parts and tighten them securely.

Always make sure that the ventilation open- ings on the appliance are free of foreign ob- jects. Maintenance and storage

Always wear protective gloves during mainte- nance, care and cleaning work.

Disconnect the appliance from the power supply (i.e. activate switch-on lock, if fitted, remove rechargeable batteries or standard batteries) before starting any maintenance, service, cleaning or repair work. Ensure that all moving parts have come to a complete standstill and allow the appliance to cool down.

Handle the appliance with care and keep it clean.

Regularly check and maintain the appliance. The appliance may only be repaired at one of the manufacturer’s service centres.

Make sure that all nuts, bolts and screws are tight and that the appliance is in a safe work- ing condition.

For safety reasons, replace any worn or dam- aged parts. Only use the spare parts and ac- cessories recommended by the manufacturer.

Allow the appliance to cool down before put- ting it into storage for a prolonged period.

Keep the appliance out of the reach of chil- dren when not in use.GB 20 LB 1860 Installation

WARNING! Danger due to vibration. The actual magnitude of the vibration emissions during the use of the appliance may deviate from that stated by the manufacturer. Observe the fol- lowing influencing factors before or during use:

Is the appliance being used as intended?

Is the material being processed in the proper manner?

Is the appliance in a proper condition of use?

The noise and vibrations of the appliance can increase due to improper use and mainte- nance. This leads to damage of the health. In this case, immediately switch off the appli- ance and have it repaired by an authorised service workshop.

The degree of stress due to vibration de- pends on the work to be performed or on the use that the appliance is put to. Estimate the stress and plan appropriate work breaks. This considerably reduces stress due to vi- bration over the entire working time.

Extensive use of the appliance exposes the operator to vibrations, which can lead to cir- culatory issues ("white fingers"). To avoid this risk, wear gloves and keep your hands warm. If any symptoms of "white fingers" occur, im- mediately consult a physician. These symp- toms include: Numbness, loss of feeling, tin- gling, itching, pain, reduced muscular strength, changes in the colour or condition of the skin. Normally these conditions affect the fingers, hands or pulse. The risk increas- es at low temperatures.

Take long breaks during your working day so you can recover from the noise and the vibra- tions. Plan your work in such a way that the use of appliances that generate strong vibra- tions is spread over several days.

If you notice an unpleasant sensation or disc- olouration of the skin on your hands when us- ing the appliance, stop work immediately. Take sufficient work breaks. Without suffi- cient breaks, a hand/arm vibration syndrome can occur.

Minimise your risk of being exposed to vibra- tions. Maintain the appliance according to the instructions in the operating instructions.

If the appliance is used frequently, contact your dealer to purchase anti-vibration acces- sories (e.g. handles).

Avoid working with the appliance at tempera- tures below 10°C. Define how the vibration load can be limited in a work plan.

A certain level of noise exposure from this appliance is inevitable. Carry out noisy work at approved and specified time periods.

Observe rest periods as necessary and re- strict the duration of the work to a minimum.

For your personal protection and protection of persons in the vicinity, appropriate hearing protection must be worn.

National and/or regional regulations may re- strict the use of this device at certain times of the day.

4.4 Safety notes for rechargeable battery

and charger Please observe the safety instructions for the re- chargeable battery and the charger in the sepa- rate operating instructions. See:

Operating instructions 443130: rechargeable batteries

Operating instructions 443131: chargers 5 INSTALLATION WARNING! Danger if assembly is not carried out completely! Operation of an incom- pletely assembled appliance can result in serious injury.

Only operate the appliance when it is fully as- sembled.

Do not insert the battery into the appliance until it is fully assembled.

Check that all safety and protective devices are in place and functioning correctly before switching on.

5.1 Assembling the blowing tubes (02)

1. Align upper blowing tube (02/1) with lower

blowing tube (02/2) as follows:

The cam (02/3) in the upper blowing tube must be aligned with the hole (02/4) in the lower blowing tube.

2. Push upper blowing tube and lower blowing

tube together (02/a) until the cam engages in the hole.443168_a 21 Start-up

5.2 Pushing blowing tube onto the lead

1. Align blowing tube (03/1) with fitting (03/2) of

the leaf blower until longitudinal groove (03/3) and cam (03/4) are facing each other.

2. Push the blowing tube completely onto the fit-

3. Turn the blowing tube through 90° (03/b) until

the cam engages. 6 START-UP

6.1 Charging the rechargeable battery

Observe the temperature range for charging, see technical data. NOTE For detailed information, see the sep- arate operating instructions for the rechargeable battery and the charger:

Operating manual 443130: Rechargeable batteries

Operating manual 443131: Chargers

6.2 Inserting and removing the

rechargeable battery (04, 05) IMPORTANT! Danger of damage to the re- chargeable battery. If the rechargeable battery is left in the appliance after use, it may damage the rechargeable battery.

Immediately after use, pull the rechargeable battery out of the appliance and store in a frost-protected area.

Only insert the rechargeable battery in the appliance immediately before starting work. Inserting the rechargeable battery

1. Push rechargeable battery (04/1) into battery

slot (04/2) until it engages (04/a). Removing the rechargeable battery

1. Press and hold the unlock button (05/1) on

the rechargeable battery (05/2).

2. Pull out the rechargeable battery (05/a).

7 OPERATION WARNING! Risk of injury due to detach- ing appliance parts. Appliance parts detaching during operation can lead to serious injury.

Before switching on the appliance, check that all appliance parts are firmly attached.

7.1 Switching the appliance ON and OFF

(06, 07) CAUTION! Risk of injury and damage to property. Persons or animals can be injured and soiled by the air jet and blown away material.

It is essential to make sure that the air jet and blown away material does not negatively af- fect persons or animals or damage objects.

Note the wind direction. NOTE Never work against the wind to en- sure that you and persons behind you are not soiled. Switching on the appliance

Increasing the blowing speed

blows normally again. Switching off the appliance

1. Release the ON/OFF switch. The appliance

7.2 Checking the charge status of the

rechargeable battery The charge status indicator (01/7) is located on the control panel. It has three segments. The segments light up or flash, depending on the battery charge status. Segment Battery charge level 3 segments lit: Rechargeable battery fully charged. 2 segments lit: Rechargeable battery 2/3 charged. 1 segment lit: Rechargeable battery 1/3 charged. 1 segment flashing: Rechargeable battery almost flat. The appli- ance will switch off shortly.

8 WORKING BEHAVIOUR AND

Angle the machine forwards slightly, and walk forwards slowly.GB 22 LB 1860 Maintenance and care

Sweep the machine to the right and left in or- der to blow away the leaves.

Do not overload the appliance during work.

After use, remove the rechargeable battery and check the appliance for damage.

Do not get the machine wet or expose it to moisture. Do not spray with water.

Remove the rechargeable battery and check the appliance for damage each time after use.

Regularly check the machine is in good work- ing order.

Check the appliance's electrical contacts for corrosion, clean with a fine wire brush if nec- essary and then spray with a contact spray.

10 HELP IN CASE OF MALFUNCTION

CAUTION! Risk of injury. Sharp-edged and moving appliance parts can lead to injury.

Always wear protective gloves during mainte- nance, care and cleaning work! NOTE For malfunctions that are not listed in this table or that you cannot resolve yourself, please contact our customer service. Malfunction Cause Remedy Appliance does not blow. Attachment blocked. Clean the attachment. Intake grille blocked. Clean the intake grille. Motor does not start. Rechargeable battery is flat. Charge the rechargeable battery. Rechargeable battery miss- ing or rechargeable battery not seated correctly. Insert the rechargeable battery cor- rectly. Rechargeable battery is too cold or too hot. Warm up the rechargeable battery slightly or allow it to cool down. The ON/OFF switch is not set to "OFF" and the re- chargeable battery has been removed. Set the ON/OFF switch to "OFF" and wait for 3 seconds. Then switch on the appliance. Motor keeps cutting out. Air speed regulator is defec- tive. Contact one of the manufacturer’s ser- vice centres. Motor cuts out. Motor protection switch has tripped. Wait until the motor protection switch switches the appliance on again. Ventilation slots soiled. Clean the appliance. Rechargeable battery oper- ating time is significantly shorter. Rechargeable battery dis- charged because it has not been used for some time. Charge the rechargeable battery. The service life of the re- chargeable battery has ex- pired. Replace the rechargeable battery. Only use genuine accessories from the manufacturer. Rechargeable battery can- not be charged. Rechargeable battery con- tacts are dirty. Contact one of the manufacturer’s ser- vice centres. Rechargeable battery or charging unit is defective. Order spare parts. Contact one of the manufacturer’s service centres. Rechargeable battery is too hot. Allow the battery to cool down.443168_a 23 Transport 11 TRANSPORT Before transporting, carry out the following mea- sures:

1. Switch off the appliance.

2. Remove the rechargeable battery from the

3. Pack the battery properly (see below).

Battery "B125 Li" (Art. No. 113896) NOTE The nominal energy of the recharge- able battery is more than 100Wh. Therefore, ob- serve the following transport instructions. The li-ion rechargeable battery contained in the appliance is subject to the hazardous goods law, but can be transported under simplified conditions:

The rechargeable battery can be transported on public roads by the private user without further conditions provided it is packaged for retail sale and the transport serves personal purposes.

Commercial users who carry out the trans- port in connection with their main activity (e.g. delivery from and to building sites, or demonstrations) can also take advantage of this simplification. In both cases, it is essential to take the mandato- ry precautions mentioned above to prevent any leakage of the contents. In other cases, it is es- sential to comply with the regulations of the haz- ardous goods law. In the case of non-compli- ance, severe penalties can be imposed on the sender and possibly the transporter. Additional notes on transport and shipment

Only transport or send the li-ion rechargeable battery in an undamaged condition.

For transporting the rechargeable battery, on- ly use the original cardboard box or a suitable hazardous goods cardboard box (not re- quired for rechargeable batteries with a nomi- nal energy less than 100Wh).

Tape off exposed rechargeable battery con- tacts to avoid a short circuit.

Secure the rechargeable battery against shifting in the packaging to avoid damage to the rechargeable battery.

Ensure the correct marking and documenta- tion of the shipment for transport or shipping (e.g. by parcel service or freight forwarding).

Check in advance that transport with the se- lected service provider is possible and indi- cate the shipment. We recommend involving a hazardous goods specialist in preparation of the shipment. Also heed any further national regulations. 12 STORAGE

12.1 Storing the appliance

Thoroughly clean the appliance after each use and – if present – attach all covers. Store the ap- pliance in a dry, lockable place out of the reach of children. Carry out the following jobs before intervals in work lasting for longer than 30 days:

Thoroughly clean the appliance and store it in a dry place.

12.2 Storing the rechargeable battery and

charging unit NOTE For detailed information, heed the separate operating instructions for the recharge- able battery and for the charging unit. 13 DISPOSAL Information on the German Electrical and Electronic Equipment Act (ElectroG)

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.

Used batteries or rechargeable batteries that are not installed permanently in the old appli- ance must be removed before disposal. Their disposal is regulated by the battery law.

Owners or users of electrical and electronic appliances are obliged by law to return them after use.

The end user bears personal responsibility for deleting his personal data from the old ap- pliance to be disposed of. The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish. Electrical and electronic appliances can be hand- ed in at the following places at no charge:

Public service disposal or collection points (e.g. municipal building yards)

Points of sale of electrical appliances (sta- tionary and online) provided traders are obliged to take them back or offer this volun- tarily.GB 24 LB 1860 After-Sales/Service These statements only apply to appliances that are installed and sold in the countries of the Eu- ropean Union and are subject to European Direc- tive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appli- ances in countries outside the European Union. Information on the German Battery Act (BattG)

Used batteries and rechargeable bat- teries do not belong in household waste, but should be collected and dis- posed of separately.

For safe removal of batteries or rechargeable batteries from the electrical appliance and for information on their type or chemical system, follow the further information within the oper- ating or installation instructions.

Owners or users of batteries and recharge- able batteries are obliged by law to return them after use. Return is limited to the han- dover of customary household quantities. Used batteries can contain harmful substances or heavy metals that can cause damage to the envi- ronment and human health. Reuse of the used batteries and use of the resources contained therein contributes to the protection of these two essential commodities. The symbol of the crossed-through rubbish bin means that batteries and rechargeable batteries may not be disposed of in household rubbish. In addition, if the symbol Hg, Cd or Pb appears under the rubbish bin, this stands for the follow- ing:

Hg: Battery contains more than 0.0005% mercury

Cd: Battery contains more than 0.002% cad- mium

Pb: Battery contains more than 0.004% lead Rechargeable batteries and batteries can be handed in at the following places at no charge:

Public service disposal or collection points (e.g. municipal building yards)

Points of sale of batteries and rechargeable batteries

Disposal points of the common take-back system for the used batteries of appliances

Disposal point of the manufacturer (if not a member of the common take-back system) These statements apply only to rechargeable bat- teries and batteries that are sold in the countries of the European Union and that are subject to European Directive 2006/66/EU. Different provi- sions can apply to the disposal of rechargeable batteries and batteries in countries outside the European Union. 14 AFTER-SALES/SERVICE In the event of questions of warranty, repair or spare parts, please contact your nearest AL- KOService Centre. These can be found on the Internet at: www.al-ko.com/service-contacts 15 GUARANTEE We will resolve any material or manufacturing faults on the appliance during the legal warranty period for claims relating to faults, in accordance with our choice either to repair or replace. The legal warran- ty period is determined by the legislation of the country in which the appliance was purchased. Our warranty promise applies only if:

These operating instructions are heeded

The appliance is handled correctly

Original spare parts have been used The warranty becomes void in the case of:

Unauthorised repair attempts

Unauthorised technical modifications

Non-intended use The guarantee excludes:

Paint damage that can be attributed to normal wear and tear

Wear parts that are marked with a frame xxxxxx (x) on the spare parts card The guarantee period commences with purchase by the first end user. The date on the proof of pur- chase is decisive. In the event of a guarantee claim, please take this guarantee declaration and the original proof of purchase, and contact your dealer or the nearest authorised customer service centre. This statement does not affect the purchaser's statutory claims for defects against the vendor.443168_a 25 Vertaling van de originele gebruikershandleiding
