USER MANUAL Solo LB 4250 AL-KO

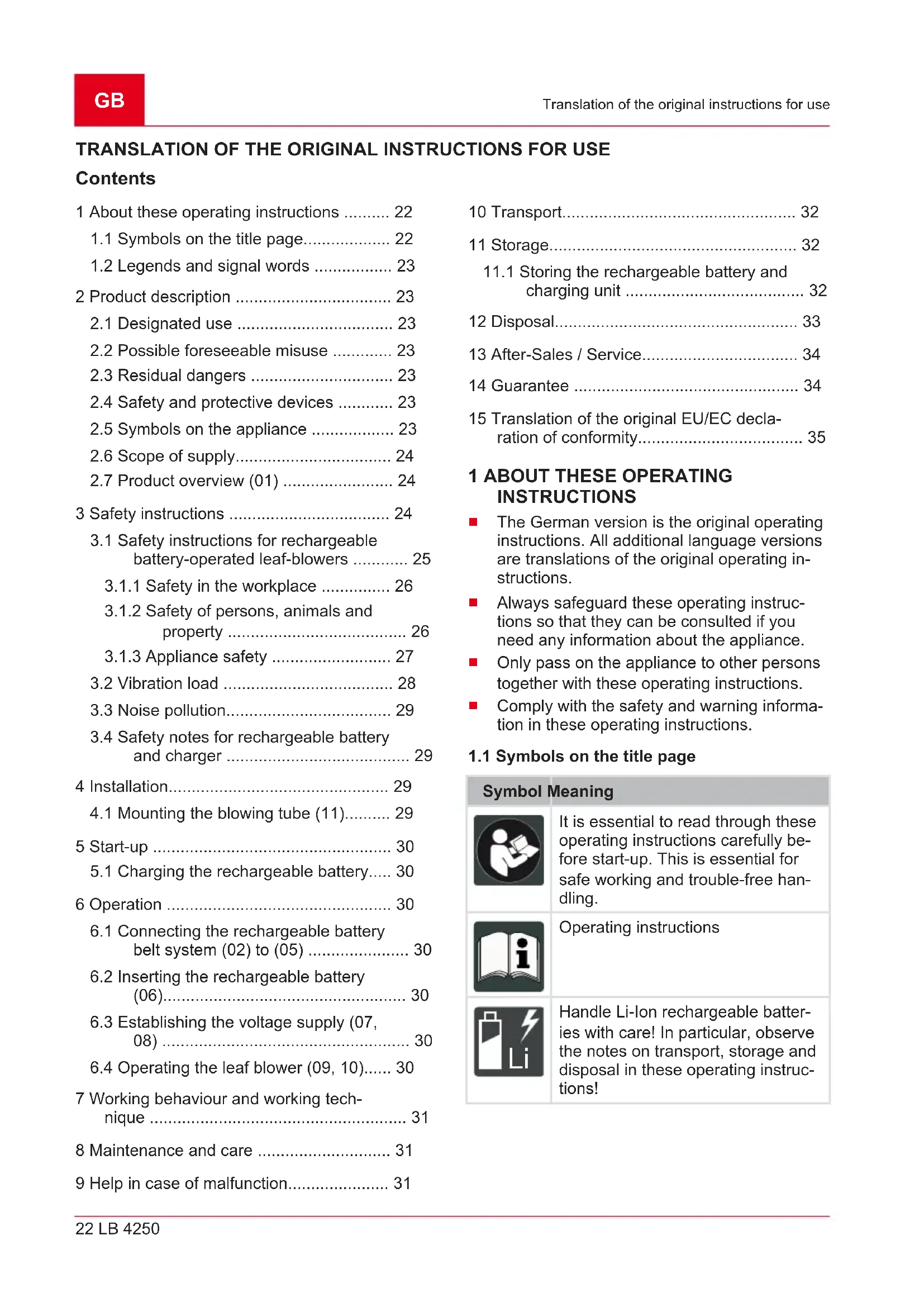

1.2 Legends and signal words ................. 23

2.4 Safety and protective devices ............ 23

3.1 Safety instructions for rechargeable

battery-operated leaf-blowers ............ 25

3.1.1 Safety in the workplace ............... 26

3.1.2 Safety of persons, animals and

3.4 Safety notes for rechargeable battery

and charger ........................................ 29 4 Installation................................................ 29

4.1 Mounting the blowing tube (11).......... 29

5 Start-up .................................................... 30

5.1 Charging the rechargeable battery..... 30

6 Operation ................................................. 30

6.1 Connecting the rechargeable battery

belt system (02) to (05) ...................... 30

6.2 Inserting the rechargeable battery

(06)..................................................... 30

6.3 Establishing the voltage supply (07,

08) ...................................................... 30

6.4 Operating the leaf blower (09, 10)...... 30

• 7 Working behaviour and working tech- nique p. 31
• 8 Maintenance and care p. 31
• 9 Help in case of malfunction p. 31
• 10 Transport p. 32
• 11 Storage p. 32

11.1 Storing the rechargeable battery and

• charging unit p. 32
• 12 Disposal p. 33
• 13 After-Sales / Service p. 34
• 14 Guarantee p. 34
• 15 Translation of the original EU/EC decla- ration of conformity p. 35

1 ABOUT THESE OPERATING

The German version is the original operating instructions. All additional language versions are translations of the original operating in- structions.

Always safeguard these operating instruc- tions so that they can be consulted if you need any information about the appliance.

Only pass on the appliance to other persons together with these operating instructions.

Comply with the safety and warning informa- tion in these operating instructions.

1.1 Symbols on the title page

Symbol Meaning It is essential to read through these operating instructions carefully be- fore start-up. This is essential for safe working and trouble-free han- dling. Operating instructions

Handle Li-Ion rechargeable batter- ies with care! In particular, observe the notes on transport, storage and disposal in these operating instruc- tions!442509_a 23 Product description

1.2 Legends and signal words

DANGER! Denotes an imminently dangerous situa- tion which will result in fatal or serious injury if not avoided. WARNING! Denotes a potentially dangerous situa- tion which can result in fatal or serious injury if not avoided. CAUTION! Denotes a potentially dangerous situa- tion which can result in minor or moder- ate injury if not avoided. IMPORTANT! Denotes a situation which can result in material damage if not avoided. NOTE Special instructions for ease of under- standing and handling. 2 PRODUCT DESCRIPTION These operating instructions describe a hand-op- erated, rechargeable battery-powered leaf blow- er.

This rechargeable battery-powered leaf blower is designed for private use. It can be used for:

Blowing away and collecting leaves, grass, dirt and refuse. Before starting work, assemble the accessories that are enclosed. Any other use, as well as unauthorised conver- sions or add-ons, are regarded as being contrary to the intended use and will result in invalidation of the warranty as well as loss of conformity (CE mark); the manufacturer will thus decline any re- sponsibility for damage and/or injury suffered by the user or third parties.

2.2 Possible foreseeable misuse

The tool is designed neither for commercial use in public parks and sports facilities, nor for use in farming and forestry.

2.3 Residual dangers

Even during correct use of the appliance, there is always a certain residual risk that cannot be ex- cluded. Depending on the use, the following po- tential risks can be derived from the type and construction of the appliance:

Throwing out of cuttings, soil and small stones

Inhalation of cuttings particles if no breathing protection is worn.

2.4 Safety and protective devices

WARNING! Risk of injury Defective and disabled safety and pro- tective devices can lead to serious inju- ry.

Have any defective safety and pro- tective devices repaired.

Never disable safety and protective devices.

2.5 Symbols on the appliance

Symbol Meaning Pay special attention when handling this product! Read the operating instructions be- fore starting operation. Danger due to objects being thrown out! Keep other people out of the danger area. Do not reach into the fan! Danger due to rotating parts.GB 24 LB 4250 Safety instructions Symbol Meaning Read the operating instructions be- fore performing maintenance work. Wear protective glasses and ear defenders! Protect the appliance from rain and moisture!

The items listed here are part of the scope of supply. Check that all items are included:

No. Component 1 Blowing tube 2 Base unit 3 Operating instructions NOTE Rechargeable battery, charger and belt are not included in the scope of supply and must therefore be purchased sepa- rately. Available under the following part numbers are:

Lithium-ion rechargeable batteries – Item no.

Rechargeable battery belt system BTA 42 – Item no. 127442

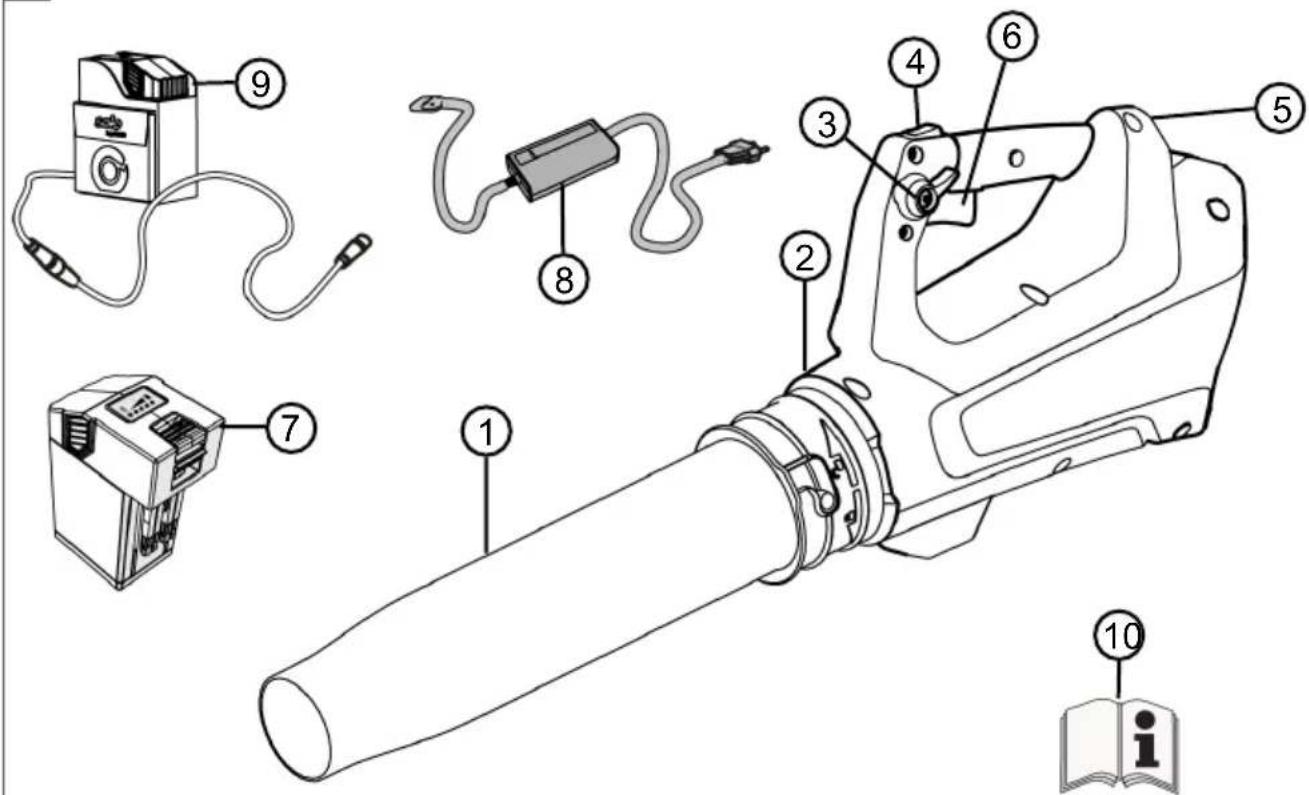

2.7 Product overview (01)

The product overview provides an overview of the appliance. No. Component 1 Blowing tube 2 Rechargeable battery leaf blower 3 Steplessly-adjustable locking lever for On/Off switch 4 Turbo button 5 Grip bar with connection socket for connecting cable 6 Stepless On/Off switch 7 Rechargeable battery* 8 Charger with mains plug* 9 Rechargeable battery belt system with connecting cable* 10 Operating instructions

• Not included in the scope of delivery 3 SAFETY INSTRUCTIONS DANGER! Danger of fatal injury and danger of extremely severe injury! Lack of knowledge of the safety instruc- tions and operating instructions can lead to extremely serious and even fatal inju- ry.

Observe all safety instructions and instructions for use in these operat- ing instructions as well the operating instructions which are referred to be- fore you start using the appliance.

Keep all supplied documents in a safe place for future reference.442509_a 25 Safety instructions

3.1 Safety instructions for

rechargeable battery- operated leaf-blowers Operator

Carefully read the safety in- structions. Familiarise yourself with the operating and adjust- ment elements and the in- tended use of the appliance.

This appliance must not be used by children, persons with impaired physical, sensory or mental abilities or insufficient experience and knowledge or persons who are not familiar with the instructions. Local regulations may set an age limit for the user.

People with very strong and complex restrictions may have needs that exceed the instruc- tions described here.

Do not operate the appliance if you are under the influence of alcohol, drugs or medica- tion.

The user is responsible for ac- cidents involving other people and their property. Preparation

Before operation, always check that protective devices and covers are undamaged, present or correctly fitted. Damaged protective devices and covers must be replaced, missing protective devices and covers must be correctly fitted.

Never put the appliance into operation while people, espe- cially children or pets, are in the immediate vicinity.

Before working, remove any dangerous objects from the working area, e.g. branches, glass or metal pieces, stones. operation

Always wear safety glasses and sturdy shoes when work- ing with the appliance.

Do not work with the appli- ance in bad weather condi- tions, especially when thun- derstorms are approaching.

Only use the appliance in day- light or good artificial light.

Never use the appliance if protective devices and covers are damaged or not present.

Always disconnect the appli- ance from the power supply, i.e. remove rechargeable bat- teries or non-rechargeable batteries:

before leaving the appli- ance unattended

before removing blockages in the applianceGB 26 LB 4250 Safety instructions

before checking, cleaning or working on the appliance

whenever the appliance starts to vibrate in an un- usual way

Always make sure that the ventilation openings on the appliance are free of foreign objects.

After contact with dangerous objects and foreign bodies, check the appliance for dam- age. Have the appliance re- paired if it has been damaged. Maintenance and storage

Before carrying out mainte- nance or cleaning work, dis- connect the appliance from the power supply i.e. activate switch-on lock, remove re- chargeable batteries or non- rechargeable batteries.

Always wear protective gloves during maintenance, care and cleaning work.

Only use the spare parts and accessories recommended by the manufacturer.

Regularly check and maintain the appliance. The appliance may only be repaired by an AL-KO service centre.

Keep the appliance out of the reach of children when not in use.

3.1.1 Safety in the workplace

Work only in daylight or under very bright artificial light.

Before work, remove any haz- ardous products and objects from the working area, e.g. explosive and inflammable products, hot ashes, combus- tion residues, smouldering cigarettes, branches, pieces of glass, sharp objects, pieces of metal, stones.

Operate the appliance only on solid and level ground and not on sharp inclines.

Pay attention to stability.

When working, move cau- tiously and slowly. Do not run. Watch out for obstacles.

When working on a slope:

Never work on a smooth and slippery slope.

Always ensure that you are standing securely.

Always blow the leaves near to the ground.

Never work up a slope.

3.1.2 Safety of persons,

animals and property

Only use the appliance for the purposes for which it is in- tended. Any non-intended use can lead to injury and property damage.442509_a 27 Safety instructions

You are responsible for acci- dents and endangering other persons or your property.

Only switch on the appliance when there are no persons and/or animals in the working area.

Maintain a safe distance to persons or animals, or switch off the appliance if persons or animals approach.

Never aim the blowing tube at persons or animals.

Never blow refuse in the di- rection of persons or pets.

During operation, keep your eyes and ears away from the intake opening.

Do not reach into the vacuum and vent grilles when the mo- tor is running. Injuries can oc- cur due to rotating appliance parts.

Always switch off the appli- ance when it is not needed, e.g. when changing the work area, during maintenance and care work.

Immediately switch off the ap- pliance if there is an accident in order to avoid further inju- ries and/or property damage.

Never operate the appliance with worn or defective parts. Worn or defective appliance parts can cause serious inju- ries.

Keep the appliance out of the reach of children.

Switch off the appliance be- fore crossing gravel paths.

Do not lay the appliance down on gravel whilst switched on.

Only use the appliance under the following conditions:

The appliance is not dirty, especially not with petrol and oil.

All controls function proper- ly.

All accessory parts intend- ed for the respective oper- ating mode are fitted on the appliance.

Do not force the power tool. It is intended for light work in the private sector. Overload can lead to damage to the ap- pliance.

Never block the vacuum and ventilation grille during opera- tion in order to avoid any overheating of the engine.

Immediately switch off the ap- pliance if the engine begins toGB 28 LB 4250 Safety instructions vibrate abnormally or strongly. There is an appliance fault in this case.

Never operate the appliance with worn or defective parts. Always replace defective parts with original spare parts from the manufacturer. If the appliance is operated with worn or defective parts, guar- antee claims against the man- ufacturer are excluded.

Danger due to vibration The actual magnitude of the vibration emissions during the use of the appliance may de- viate from that stated by the manufacturer. Observe the following influencing factors before or during use:

Is the appliance being used as intended?

Is the material being cut or processed in the proper manner?

Is the appliance in a proper condition of use?

Are the handle grips and any optional vibration grips mounted, and are they firmly attached to the appli- ance?

Only operate the tool at the motor speed required for the respective work. Avoid using the maximum speed in order to reduce noise and vibra- tions.

The noise and vibrations of the tool may increase due to improper use and mainte- nance. This leads to health damage. In this case, immedi- ately switch off the tool and have it repaired by an autho- rised service workshop.

The degree of stress due to vibration depends on the work to be performed or on the use of the tool. Estimate the stress and plan appropriate work breaks. This considerably re- duces stress due to vibration over the entire working time.

Extensive use of the tool ex- poses the operator to vibra- tions, which can lead to circu- latory issues ("white fingers"). To avoid this risk, wear gloves and keep your hands warm. If any symptoms of "white fin- gers" occur, immediately con- sult a physician. These symp- toms include: Numbness, loss of feeling, tingling, itching, pain, reduced muscular strength, changes in the co- lour or condition of the skin. Normally these conditions af- fect the fingers, hands or442509_a 29 Installation pulse. The risk increases at low temperatures.

Take long breaks during your working day so you can re- cover from the noise and the vibrations. Plan your work in such a way that the use of ap- pliances that generate strong vibrations is spread over sev- eral days.

If you notice an unpleasant sensation or discolouration of the skin on your hands when using the tool, stop work im- mediately. Take sufficient work breaks. Without suffi- cient breaks, a hand/arm vi- bration syndrome can occur.

Minimise your risk of being exposed to vibrations. Main- tain the tool according to the instructions in the operating instructions.

If the tool is used frequently, contact your dealer to pur- chase anti-vibration accesso- ries (e.g. handles).

Avoid working with the tool at temperatures below 10°C. Define how the vibration load can be limited in a work plan.

A certain level of noise expo- sure from this appliance is in- evitable. Carry out noisy work at approved and specified time periods.

Observe rest periods as nec- essary and restrict the dura- tion of the work to a minimum.

For your personal protection and protection of persons in the vicinity, appropriate hear- ing protection must be worn.

National and/or regional regu- lations may restrict the use of this device at certain times of the day.

3.4 Safety notes for

rechargeable battery and charger Heed the safety instructions for the rechargeable battery and for the charging unit in the separate operating instructions. 4 INSTALLATION WARNING! Danger if assembly is not carried out completely! Operation of an incompletely assembled appliance can result in serious injury.

Only operate the appliance when it is fully assembled.

Do not insert the battery into the ap- pliance until it is fully assembled.

Check that all safety and protective devices are in place and functioning correctly before switching on.

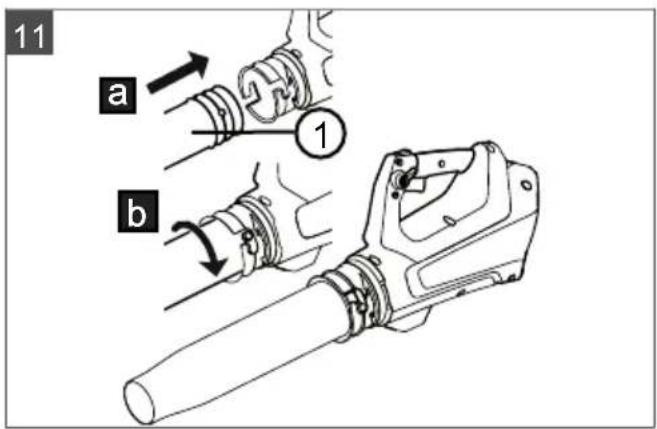

4.1 Mounting the blowing tube (11)

1. Push the blowing tube (11/1) into the ma-

chine up to the stop (11/a).

2. Lock the blowing tube (11/1) by rotating it

(11/b).GB 30 LB 4250 Start-up

3. Check the fastened blowing tube to ensure it

is seated firmly. 5 START-UP

5.1 Charging the rechargeable battery

NOTE For detailed information, heed the sepa- rate operating instructions for the re- chargeable battery and for the charging unit. NOTE When charging, the rechargeable bat- tery is protected from overcharging due to automatic detection of the charge sta- tus and thus can remain connected to the charging unit for some time, but not permanently. NOTE Fully charge the rechargeable battery before using it for the first time. The re- chargeable battery can be charged in any charge status. Interrupting charging does not damage the rechargeable bat- tery. 6 OPERATION WARNING! Risk of injury due to detaching appli- ance parts Appliance parts detaching during opera- tion can lead to serious injury.

Before switching on the appliance, check that all appliance parts are firmly attached.

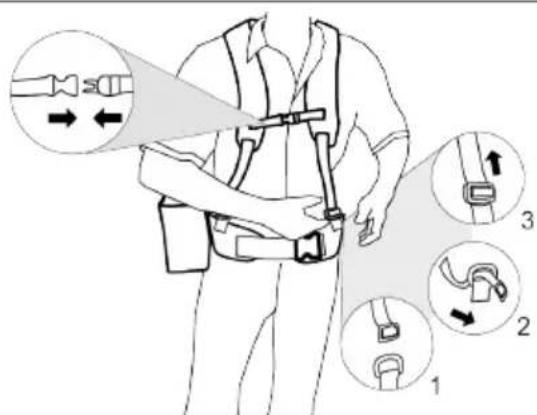

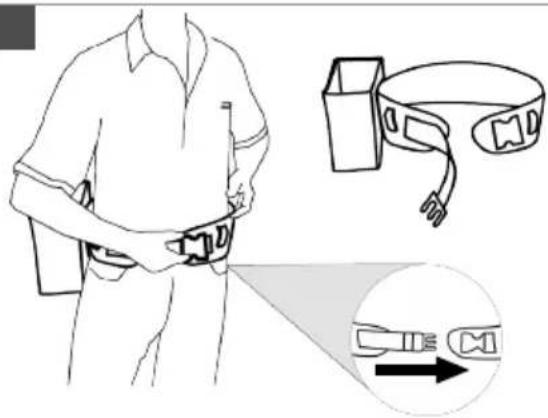

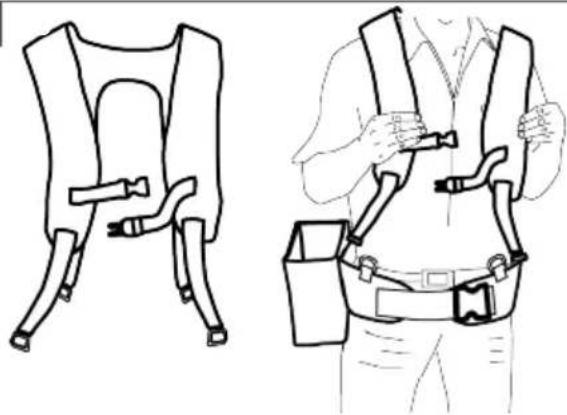

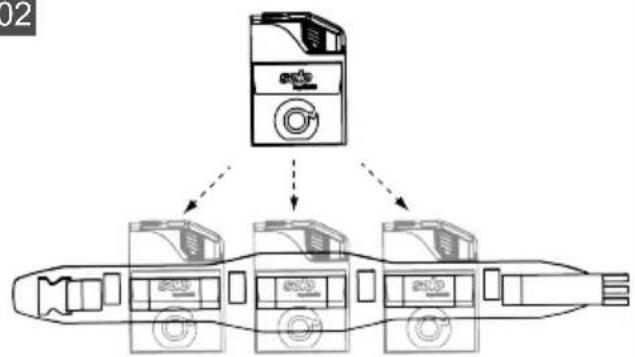

6.1 Connecting the rechargeable battery

belt system (02) to (05) Connect the rechargeable battery belt system ac- cording to the illustration (02) to (05).

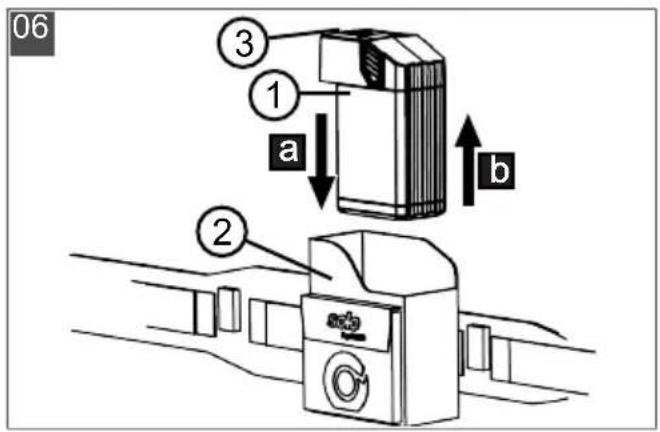

6.2 Inserting the rechargeable battery (06)

Inserting the battery

1. Push in (06/a) the rechargeable battery

(06/1) into the rechargeable battery belt sys- tem (06/2) until it locks. Pull out the rechargeable battery

1. Press and hold the unlock button (06/3) on

the rechargeable battery (06/1).

2. Pull out (06/b) rechargeable battery (06/1).

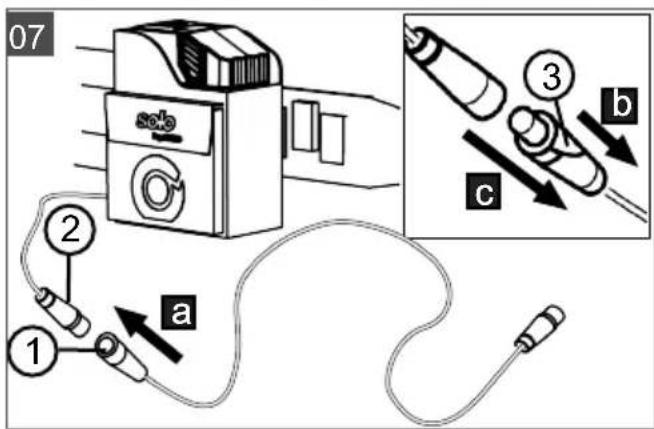

6.3 Establishing the voltage supply (07, 08)

Mounting the connecting cable

1. Align the first connector of the connecting ca-

ble (07/1) to the guiding pin and guide slot of the rechargeable battery belt system connec- tor (07/2), join, and turn slightly clockwise un- til the locking and unlocking switch (07/3) au- dibly engages.

2. Align the second connector of the connecting

cable (08/1) to the guiding pin and guide slot of the connection socket, push (08/a) into the connection socket of the machine (08/2), and turn slightly clockwise until the locking and unlocking switch (08/3) audibly engages. Dismounting the connecting cable

1. Pull locking and unlocking switch (07/3) back-

wards (07/b), turn the connector slightly to the left and pull out (07/c).

2. Pull the locking and unlocking switch (08/3)

backwards (08/b), turn the connector slightly to the left and pull it out (08/c) of the connec- tion socket of the machine (08/2).

6.4 Operating the leaf blower (09, 10)

CAUTION! Risk of injury and damage to property Persons or animals can be injured and soiled by the air jet and blown away ma- terial.

It is essential to make sure that the air jet and blown away material does not negatively affect persons or ani- mals or damage objects.

Note the wind direction. NOTE Never work against the wind to ensure that you and persons behind you are not soiled.

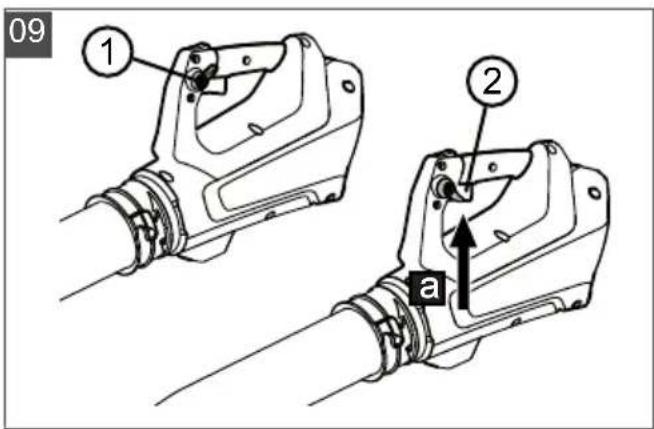

Switching on the leaf blower

1. Press the On/Off switch (09/2). The leaf

blower runs.442509_a 31 Working behaviour and working technique

2. With the leaf blower operating, turn the lock-

ing lever (09/1) upward for continuous opera- tion. Turbo mode

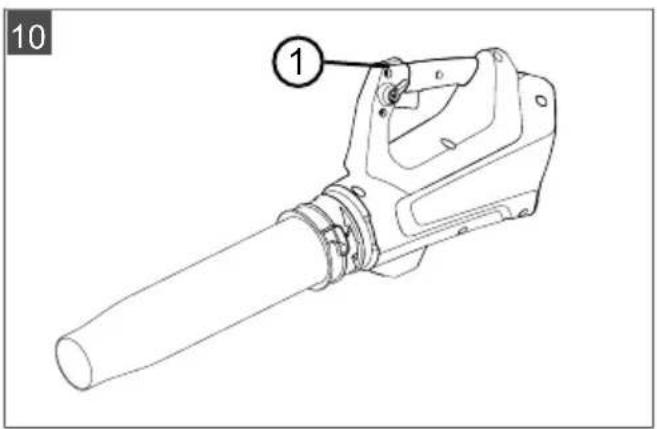

1. With the machine operating, press the Turbo

button (10/1). The leaf blower is operating in the Turbo mode. Switching off the leaf blower

1. Turn the locking lever (09/1) downwards.

2. Release the On/Off switch (09/2). The leaf

blower is switched off.

7 WORKING BEHAVIOUR AND

Angle the machine forwards slightly, and walk forwards slowly.

Sweep the machine to the right and left in or- der to blow away the leaves.

Do not overload the appliance during work.

After use, remove the rechargeable battery and check the appliance for damage.

Do not get the machine wet or expose it to moisture. Do not spray with water.

Remove the rechargeable battery and check the appliance for damage each time after use.

Regularly check the machine is in good work- ing order.

Check the appliance's electrical contacts for corrosion, clean with a fine wire brush if nec- essary and then spray with a contact spray.

9 HELP IN CASE OF MALFUNCTION

CAUTION! Risk of injury Sharp-edged and moving appliance parts can lead to injury.

Always wear protective gloves during maintenance, care and clean- ing work. NOTE If you encounter any malfunctions that are not listed in this table or that you cannot rectify yourself, please contact our customer service. Malfunction Cause Remedy Appliance does not blow. Attachment blocked. Clean the attachment. Intake grille blocked. Clean the intake grille. Motor does not run. Rechargeable battery is flat. Charge the rechargeable battery. Rechargeable battery miss- ing or rechargeable battery not seated correctly. Insert the rechargeable battery cor- rectly. Rechargeable battery is too cold or too hot. Warm up the rechargeable battery slightly or allow it to cool down. Motor keeps cutting out. Air speed regulator is defec- tive. Contact an AL-KO service centre. Motor cuts out. Motor protection switch has tripped. Wait until the motor protection switch switches the machine back on. Ventilation slots soiled. Clean the equipment. Rechargeable battery operat- ing time is significantly short- er. Rechargeable battery dis- charged because it has not been used for some time. Charge the rechargeable battery. The service life of the re- chargeable battery has ex- pired. Replace the rechargeable battery. Only use genuine accessories from the manufacturer.GB 32 LB 4250 Transport Malfunction Cause Remedy Rechargeable battery cannot be charged. Rechargeable battery con- tacts are dirty. Contact an AL-KO service centre. Rechargeable battery or charging unit is defective. Order spare parts. Contact an AL-KO service centre. Rechargeable battery is too hot. Allow the battery to cool down. 10 TRANSPORT Before transporting, carry out the following mea- sures:

1. Switch off the tool.

2. Remove the rechargeable battery from the

3. Pack the battery properly.

NOTE The nominal energy of the rechargeable battery is more than 100Wh. Therefore, observe the following transport instruc- tions. The li-ion rechargeable battery contained in the appliance is subject to the hazardous goods law, but can be transported under simplified condi- tions:

The rechargeable battery can be transported on public roads by the private user without further conditions provided it is packaged for retail sale and the transport serves personal purposes.

Commercial users who carry out the trans- port in connection with their main activity (e.g. delivery from and to building sites, or demonstrations) can also take advantage of this simplification. In both cases, it is essential to take the mandato- ry precautions mentioned above to prevent any leakage of the contents. In other cases, it is es- sential to comply with the regulations of the haz- ardous goods law. In the case of non-compli- ance, severe penalties can be imposed on the sender and possibly the transporter. Additional notes on transport and shipment

Only transport or send the li-ion rechargeable battery in an undamaged condition.

For transporting the rechargeable battery, on- ly use the original cardboard box or a suitable hazardous goods cardboard box (not re- quired for rechargeable batteries with a nomi- nal energy less than 100Wh).

Tape off exposed rechargeable battery con- tacts to avoid a short circuit.

Secure the rechargeable battery against shifting in the packaging to avoid damage to the rechargeable battery.

Ensure the correct marking and documenta- tion of the shipment for transport or shipping (e.g. by parcel service or freight forwarding).

Check in advance that transport with the se- lected service provider is possible and indi- cate the shipment. We recommend involving a hazardous goods specialist in preparation of the shipment. Also heed any further national regulations. 11 STORAGE Thoroughly clean the appliance after each use and – if present – attach all covers. Store the ap- pliance in a dry, lockable place out of the reach of children. Carry out the following jobs before intervals in work lasting for longer than 30 days:

Thoroughly clean the appliance and store it in a dry place.

11.1 Storing the rechargeable battery and

charging unit DANGER! Danger of explosion and fire! Persons will be fatally or severely injured if the rechargeable battery explodes be- cause it was stored in front of naked flames or heat sources.

Store the rechargeable battery in cool and dry conditions, but not in front of naked flames or heat sourc- es.442509_a 33 Disposal NOTE When charging, the rechargeable bat- tery is protected from overcharging due to automatic detection of the charge sta- tus and thus can remain connected to the charging unit for some time, but not permanently.

Store the battery in a dry, frost-free place at the prescribed storage temperature (see op- erating instructions for the battery) and with a charge of approx. 40 - 60 %.

Due to a risk of short-circuit, do not store the battery near metallic or acid-containing ob- jects.

Recharge the rechargeable battery for ap- prox. 2 hours after approx. 6 months’ stor- age. 12 DISPOSAL Information on the German Electrical and Electronic Equipment Act (ElectroG)

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.

Used batteries or rechargeable batteries that are not installed permanently in the old appli- ance must be removed before disposal. Their disposal is regulated by the battery law.

Owners or users of electrical and electronic appliances are obliged by law to return them after use.

The end user bears personal responsibility for deleting his personal data from the old ap- pliance to be disposed of. The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish. Electrical and electronic appliances can be hand- ed in at the following places at no charge:

Public service disposal or collection points (e.g. municipal building yards)

Points of sale of electrical appliances (sta- tionary and online) provided traders are obliged to take them back or offer this volun- tarily. These statements only apply to appliances that are installed and sold in the countries of the Eu- ropean Union and are subject to European Direc- tive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appli- ances in countries outside the European Union. Information on the German Battery Act (BattG)

Used batteries and rechargeable bat- teries do not belong in household waste, but should be collected and dis- posed of separately.

For safe removal of batteries or rechargeable batteries from the electrical appliance and for information on their type or chemical system, follow the further information within the oper- ating or installation instructions.

Owners or users of batteries and recharge- able batteries are obliged by law to return them after use. Return is limited to the han- dover of customary household quantities. Used batteries can contain harmful substances or heavy metals that can cause damage to the envi- ronment and human health. Reuse of the used batteries and use of the resources contained therein contributes to the protection of these two essential commodities. The symbol of the crossed-through rubbish bin means that batteries and rechargeable batteries may not be disposed of in household rubbish. In addition, if the symbol Hg, Cd or Pb appears under the rubbish bin, this stands for the follow- ing:

Hg: Battery contains more than 0.0005% mercury

Cd: Battery contains more than 0.002% cad- mium

Pb: Battery contains more than 0.004% lead Rechargeable batteries and batteries can be handed in at the following places at no charge:

Public service disposal or collection points (e.g. municipal building yards)

Points of sale of batteries and rechargeable batteries

Disposal points of the common take-back system for the used batteries of appliances

Disposal point of the manufacturer (if not a member of the common take-back system) These statements apply only to rechargeable bat- teries and batteries that are sold in the countries of the European Union and that are subject to European Directive 2006/66/EU. Different provi- sions can apply to the disposal of rechargeableGB 34 LB 4250 After-Sales / Service batteries and batteries in countries outside the European Union. 13 AFTER-SALES / SERVICE In the event of questions of warranty, repair or spare parts, please contact your nearest AL- KOService Centre. These can be found on the Internet at: www.al-ko.com/service-contacts 14 GUARANTEE We will resolve any material or manufacturing faults on the appliance during the legal warranty period for claims relating to faults, in accordance with our choice either to repair or replace. The legal warran- ty period is determined by the legislation of the country in which the appliance was purchased. Our warranty promise applies only if:

These operating instructions are heeded

The appliance is handled correctly

Original spare parts have been used The warranty becomes void in the case of:

Unauthorised repair attempts

Unauthorised technical modifications

Non-intended use The guarantee excludes:

Paint damage that can be attributed to normal wear and tear

Wear parts that are marked with a frame xxxxxx (x) on the spare parts card The guarantee period commences with purchase by the first end user. The date on the proof of pur- chase is decisive. In the event of a guarantee claim, please take this guarantee declaration and the original proof of purchase, and contact your dealer or the nearest authorised customer service centre. This statement does not affect the purchaser's statutory claims for defects against the vendor.442509_a 35 Translation of the original EU/EC declaration of conformity 15 TRANSLATION OF THE ORIGINAL EU/EC DECLARATION OF CONFORMITY We hereby declare, as the exclusive responsible party, that this product in its marketed form conforms to the requirements of the harmonised EU Directives, EU safety standards and the product-specific standards. Product Rechargeable battery leaf blower Serial number G2043022 Manufacturer AL-KO Geräte GmbH Ichenhauser Str. 14 D-89359 Kötz Germany Duly authorised person for technical file Andreas Hedrich Ichenhauser Str. 14 D-89359 Kötz Germany Type LB 4250 Sound power level EN ISO 3744 measured/guaranteed 98 dB(A) / 101 dB(A) EU directives 2006/42/EC 2014/30/EU 2000/14/EC 2011/65/EU Conformity evaluation 2000/14/EC Appendix VI Harmonised standards EN 60335-1:2012+A11:2014 EN 50636-2-100:2014 EN 62233:2008 EN 55014-1:2006+A1:2009 +A2 2011 EN 55014-2:2015 EN ISO 12100:2010 Kötz, 19/06/2018 Dr. Wolfgang Hergeth Managing DirectorNL 36 LB 4250 Vertaling van de originele gebruikershandleiding
