QC80F - Battery charger HUSQVARNA - Free user manual and instructions

Product type	Battery charger
Brand	Husqvarna
Model	QC80F
Usage	Battery charging via vehicle 12 V outlet
Compatible batteries	Original Husqvarna batteries (software coded)
Input voltage	12 V (vehicle)
Operating temperature range	5 °C to 40 °C (41 °F to 104 °F)
Storage temperature range	5 °C to 25 °C (41 °F to 77 °F)
LED indicators	Charging LED (solid green = charging, flashing green = temperature deviation, solid red = permanent error, flashing red = battery too cold/hot), battery indicator (charge level)
Fuse	Replaceable fuse in the 12 V power outlet
Protection	Indoor use only, protected from water and rain
Safety	Do not disassemble, do not use non-rechargeable battery, do not connect terminals to metal objects, disconnect after use
Maintenance	Keep charger and terminals clean and dry; replace fuse if blown
Repairability	Fuse replaceable by user; for other repairs, contact an authorized service center
Disposal	Do not dispose of with household waste; recycle at an appropriate site for electrical equipment
Standards	Compliant with current EU directives

Frequently Asked Questions - QC80F HUSQVARNA

How to charge the battery with the QC80F?

Plug the charger into a vehicle 12 V outlet. The charging LED flashes once. Insert the compatible Husqvarna battery. The charging LED turns solid green during charging. Remove the battery when fully charged (all battery indicator lights on). Disconnect the plug by pulling on the plug, not the cable.

Which batteries can I charge with the QC80F?

Use only original Husqvarna batteries. The batteries are software coded to work with QC80, QC80F, and QC250 chargers. Do not use non-rechargeable batteries.

What does a solid red charging LED mean?

A solid red charging LED indicates a permanent charger error. Contact your Husqvarna dealer for assistance.

What to do if the charging LED flashes red?

A red flash (QC80F) means a temperature deviation: the battery is too cold or too hot. Let it cool down or warm up until it reaches the operating temperature range (5 °C to 40 °C). Charging will resume automatically.

Can I use the QC80F charger outdoors?

No, the QC80F charger must be used indoors only, in a dry and well-ventilated area. Keep it protected from water, rain, and humidity.

How to clean the battery charger?

Do not clean the battery or charger with water. Ensure terminals are clean and dry before connecting. Use a dry cloth if necessary.

What to do if the charger does not work and the LED is off?

For the QC80F model, this may be due to a blown fuse in the 12 V power outlet. Remove the screw, open the power plug, and replace the fuse with one of the same type.

Where to store the QC80F charger?

Store the charger in a dry, clean place, protected from frost and light. The ideal storage temperature is between 5 °C and 25 °C. Keep the battery away from the charger when storing.

How to dispose of the charger or battery?

Husqvarna products are not household waste. Follow local regulations: dispose of them at an appropriate recycling site for electrical and electronic equipment. Contact your dealer for more information.

Is the QC80F charger safe for children?

This charger can be used by children aged 8 years and above under supervision. Children must not play with the device. Cleaning and maintenance must not be performed by children without supervision. Keep the charger out of reach of children when not in use.

USER MANUAL QC80F HUSQVARNA

Two symbolic icons: a warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols present)

Husqvarna®

EN Operator's manual 3-10

Full operator's manual

To download the full operator's manual, go to www.husqvarna.com. In the "SUPPORT" section

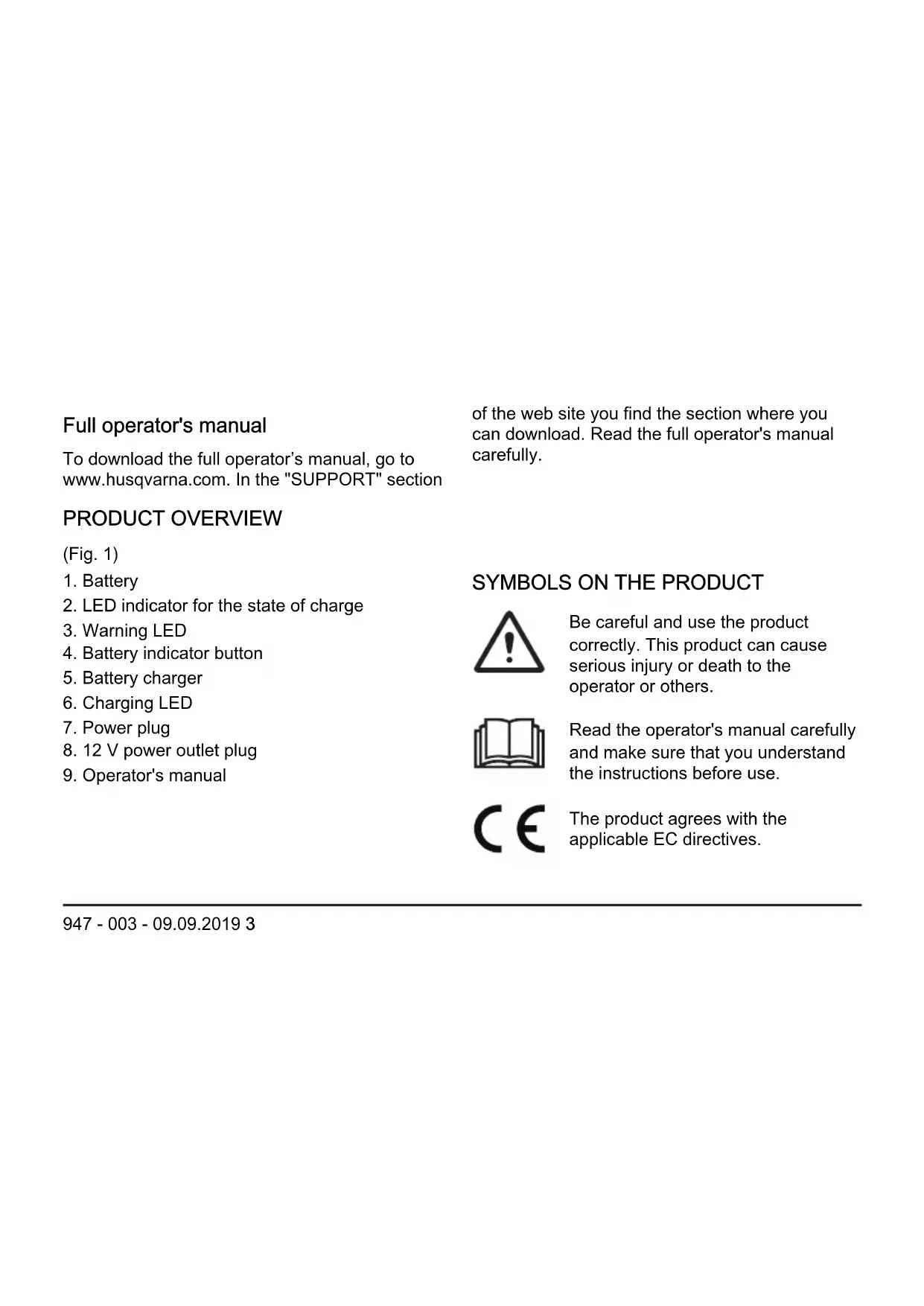

PRODUCT OVERVIEW

(Fig. 1)

1. Battery
2. LED indicator for the state of charge
3. Warning LED
4. Battery indicator button
5. Battery charger
6. Charging LED
7. Power plug
8. 12 V power outlet plug
9. Operator's manual

of the web site you find the section where you can download. Read the full operator's manual carefully.

SYMBOLS ON THE PRODUCT

Be careful and use the product correctly. This product can cause serious injury or death to the operator or others.

Read the operator's manual carefully and make sure that you understand the instructions before use.

The product agrees with the applicable EC directives.

The product or package of the product is not domestic waste. Recycle it at an applicable disposal location for electrical and electronic equipment.

Keep the unit away from water and rain.

Use and keep the battery charger indoors only.

Note: Other symbols/decals on the product refer to certification requirements for some commercial areas.

SAFETY DEFINITIONS

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the

instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Read all safety warnings and all instructions. Failure to obey the warnings and instructions may result in

electrical shock, fire and/or serious injury.

Note: Save all warnings and instructions.

• Only use the battery chargers QC80, QC80F or QC250 to charge Husqvarna original batteries. The batteries are software encrypted.
• Do not use non-rechargeable batteries.

• Do not try to disassemble or repair the battery charger.

• Do not connect the battery charger terminals to metal objects.

• Use an approved grounded mains socket that is not damaged.
• Regularly examine that the power cord is not damaged. Immediately disconnect the battery charger if the power cord is damaged.
• If the power cord is damaged, let an approved service agent replace the power cord.
• Do not lift the battery charger by the power cord. To disconnect

the battery charger from a mains socket or a 12 V power outlet, pull out the power plug. Do not pull the power cord.

• Keep all cables and extension leads away from water, oil and sharp edges. Make sure that the power cord is not caught between doors, fences or equivalent.
• Do not clean the battery or the battery charger with water.

• Keep the battery charger away from children.

• Do not use a defective or damaged battery charger or battery.

• Do not use the battery charger when there is a risk of lightning.
• Only use the battery charger indoors in an environment with good airflow and the correct temperature.
• Keep the battery charger away from sunlight. Do not use the battery charger outdoors or in wet conditions.

• Do not operate the battery charger with wet hands.

• Do not use the battery charger near flammable materials or materials that can cause corrosion. Pull out the power plug to the battery charger if there is smoke or fire.

• Do not put a cover on the battery charger during operation.
• Use QC80 and QC250 to charge the battery in a mains socket. Use QC80F to charge the battery in a 12 V power outlet in a vehicle.
• Disconnect the battery charger from the mains socket or the 12 V power outlet after use. Do not

keep the battery charger connected.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

OPERATION

- Use the battery charger only when the ambient temperature is between 5^ (41 °F) and 40^ (104 °F).

To charge the battery

CAUTION: Make sure that the battery, the battery charger and the terminals on the battery are clean and dry. Do not put the battery in the battery charger if it is dirty or wet.

1. Connect the battery charger to a power outlet. The charging LED flashes 1 time.

CAUTION: Only connect the battery charger to a power outlet with the voltage and frequency specified on the rating plate.

1. Connect the battery to the battery charger. The charging LED comes on.

2. Remove the battery from the battery charger when it is fully charged. Push the battery indicator button for battery status. When all the LED indicators come on, the battery is fully charged.

3. Pull the power plug to disconnect the battery charger from the power outlet. Do not pull the power cord.

TROUBLESHOOTING

Condition Possible faults	Possible action
The charging LED is red.	Permanent battery charger error.	Speak to your dealer.
The charging LED flashes red (QC80 and QC80F).	Temperature deviation, the battery is too cold or too hot to use or charge.	Let the battery cool down or warm it up. When the battery has the correct temperature, it can be used or charged again. Use the battery charger in ambient temperatures between 5 °C (41 °F) and 40 °C (104 °F).
The charging LED flashes green (QC250)
The charging LED flashes red (QC250).	Faulty battery Speak to your dealer
Condition Possible faults Possible action
Battery charger does not operate and charging LED is off (QC80F).	Blown fuse. Replace the blown fuse in the 12 V power plug. Remove the screw, open the power plug and change the fuse.

TRANSPORTATION AND STORAGE

• Safely attach the product during transportation to prevent damage and accidents.
• Keep the product in a locked area to prevent access for children or persons that are not approved.
• Put the product in a dry, frost-free and clean space with correct temperature.
• Put the product in storage where the temperature is between 5^ (41 °F) and 25 °C (77 °F). Keep the product away from sunlight.
• Keep the battery away from the battery charger during storage.

DISPOSAL

Husqvarna products are not domestic waste and must only be discarded as given in this manual.

• Obey the local disposal requirements and applicable regulations.
• Recycle the product and package at an applicable disposal location.
• Speak to your local Husqvarna dealer for more information on how to recycle and discard the product.

TECHNICAL DATA

For technical data, refer to the rating plate of the battery charger.
