USER MANUAL AD 4496 ADLER

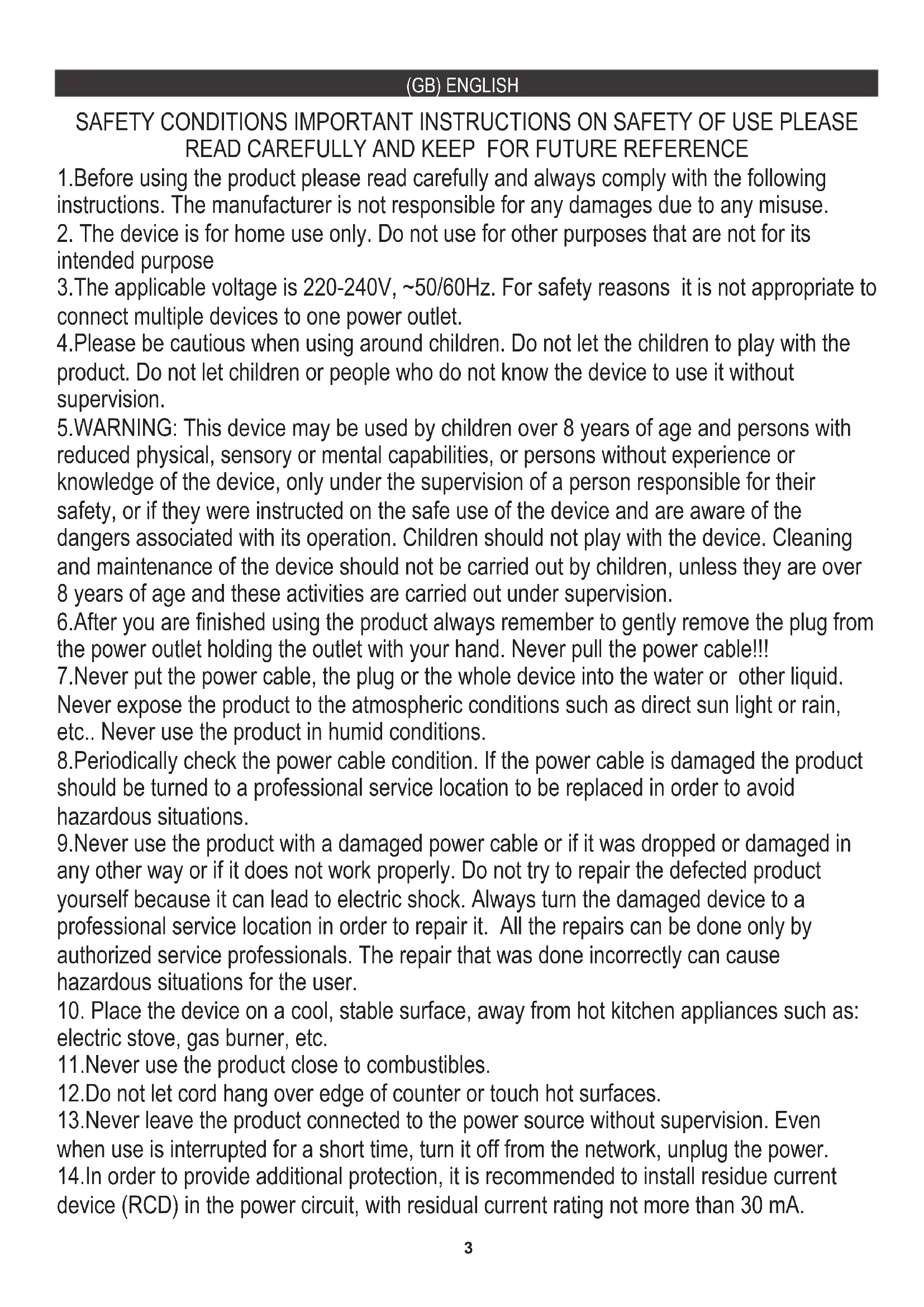

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.
2. The device is for home use only. Do not use for other purposes that are not for its intended purpose
3. The applicable voltage is 220-240V, 50 / 60Hz . For safety reasons it is not appropriate to connect multiple devices to one power outlet.
4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.
   5.WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.
5. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!
6. Never put the power cable, the plug or the whole device into the water or other liquid. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.
   8.Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.
7. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.
8. Place the device on a cool, stable surface, away from hot kitchen appliances such as: electric stove, gas burner, etc.
   11.Never use the product close to combustibles.
9. Do not let cord hang over edge of counter or touch hot surfaces.
   13.Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.
10. In order to provide additional protection, it is recommended to install residue current device (RCD) in the power circuit, with residual current rating not more than 30mA .

Contact professional electrician in this matter.

1. If the device is overfilled it may spurt boiling water.
2. WARNING: Do not open the lid if the water is boiling.

17. CAUTION

Risk of burns! The unit becomes hot during use. Only touch the controls and handles so that you do not burn yourself.

1. Always use caution when boiling water in the device. Do not touch the housing of device or lid. Do not open the lid during boiling in device or immediately after boiling, because steam coming out of lid can cause burns.
2. Move the device only by holding it by handle..
3. Do not fill the device above the MAX level or below 4.5l MIN, as this may cause burns or damage the device
4. Never switch on device without water, as this may cause damage the device
5. Never use device with open cover.
6. Descale your device regularly. Using device with heating element covered by scale may cause damage.
7. Do not use aggressive detergents to wash the device housing - they can damage the device or remove the markings.
8. The device is not designed to work with external schedulers or separate remote control system.
9. Children aged 3 to 8 years old can enable and disable the device only when it is in its normal position of use, they are supervised or instructed on the safe use and understand the resulting risks. Children aged 3 to 8 years old cannot connect device, operate, clean or maintain.
10. Before first use, remove all packaging components. Attention! In the case of a casing with metal parts, on these elements a slightly visible protective foil can be stretched, which should also be removed.
11. NEVER cover the device during operation or when it does not cool down completely, remember that the heating elements of the device take time to cool down completely.

DESCRIPTION:

1:Temperature control knob On/Off
6:Tap
2:Target temperature
7:Handles
3:Time remaining
8: Lid
4: Time control knob
9:Water tank
5: Current temperature
10:Rack

BEFORE FIRST USE

Before first use, remove all packaging components.

Boil fresh water to remove dust and production residues. Add 6 litres of water and set the thermostat to MAX 100^ by temperature control knob (1).

To start the device, set the timer to 60 minutes by time control knob (4) and then push the temperature control knob (1).

Time on the display (3) will start counting down after reaching the set temperature (2).

When the time has elapsed, the appliance switches off automatically.

Allow the appliance to cool down and remove the water.

The appliance can be used both for boiling food and for heating water, other liquids and pasteurization.

Pasteurization.

1. Place e rack (10) on the bottom of device.
2. Put up jars with food on the rack as shown in the illustration (B).
3. Fill the device with water to cover 3/4 of the highest jar with water. Do not exceed the maximum mark on the water tank (9).
4. Put on the lid (8) on the device and set the desired time by time control knob (4) and set the desired temperature by temperature control knob (1) then push the temperature control knob (1).

The device will now start to heat up, which can take up to 90 min.

Once the set temperature is reached, the unit automatically switches from

heating mode to warm-keeping mode. Time on the display (3) will start counting down.

Note: Set the temperature and time according to the cooking chart. The time indicated there is counted from the point at which the desired temperature is reached.

1. After the set time has elapsed, the device automatically switches off and a signal tone sounds
   After you finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!
2. Place the appliance in the sink or tub and drain the water by pressing the tap (6). Move the device only by holding it by handles (7).
3. After the appliance has cooled down, remove the jars with oven gloves as they will be hot for a long time. Allow the jars to cool completely.

Heating liquids

Note: If you heat liquids, the device may be filled up to the maximum mark only. Failure to do so could cause liquid to leak when the device is heated.

1. Add the desired drink or water to the device.
2. Put on the lid (8), set the desired temperature by temperature control knob (1) max 100^ and set the desired time by time control knob(4) max 180 minutes, and then push the time control knob (1) when the desired temperature is reached, the device automatically switches to keep warm mode. Time on the display (3) will start counting down.

After the set time has elapsed, the device automatically switches off and a signal tone sounds

1. Stir the drink regularly to distribute the heat evenly.
2. If you want to fill the drink, hold a cup under the tap (6) and push the tap down. When the cup is full release the tap (6).

Note: Do not use the tap when heating liquids with pieces of food (fruit punch, soup etc.) otherwise it will clog the tap.

Cleaning:

1. Allow the device to cool down completely before cleaning.
2. Always unplug the appliance before cleaning.
3. Clean the bottom of the pot with a soft brush or a damp cloth. Never use sharp or hard objects to avoid damaging the surface .
4. Wipe the case with a damp, soft cloth. Then wipe with a dry cloth.

Note: This information is recommendations for jar volume 1 liter

Fruit: Example: Type of food - Celsius degrees in desired temperature / cooking time after reaching the desired temperature

Apples soft / hard 90°C/30 minutes Apple sauce 90°C/30 minutes

Apricots 80^ / 30 minutes Blueberries 90^ / 30 minutes

Cherries 80^ / 25 minutes Currants / cranberries 100^ / 30 minutes

Mirabelles / greengages 80^ / 30 minutes Peaches 90^ / 25 minutes

Pears soft / hard 90°C/30 minutes Plums / prunes 90°C/30 minutes

Quince 90^ / 30 minutes Raspberries / gooseberries 90^ / 30 minutes

Rhubarb 95^ / 25 minutes Strawberries/blackberries 85^ / 25 minutes

Vegetables: Example: Type of food - Celsius degrees in desired temperature / cooking time after reaching the desired temperature

Asparagus 100^ / 90 minutes Beans 100^ / 120 minutes

Brussels sporouts /cabbage 100°C/120 minutes Carrots 100°C/90 minutes

Cauliflower 90^ / 30 minutes Celery 90^ / 30 minutes

Kohlrabi 100^ / 90 minutes Mushrooms 100^ / 120 minutes

Peas 100^ / 120 minutes Pickled gherkins 100^ / 110 minutes

Pumpkin 100^ / 120 minutes Tomatoes/tomato paste 90^ / 30 minutes

Meat: Example: Type of food - Celsius degrees in desired temperature / cooking time after reaching the desired temperature

Game / poultry, well - done 100^ / 120 minutes Meat broth 100^ / 60 minutes

Meat, well-done 100^ / 75 minutes Minced sausage meat, raw 100^ / 75 minutes

Roast meat, well- done 100^ / 110 minutes

Power Nominal: 2000W

Power Maximum:2600W

Power supply 220-240V ~ 50/60 Hz

Capacity: 28L

Please transfer cardboard packaging to waste paper. Pour the polyethylene bags (PE) into the plastic container Worn device should be returned to the appropriate point storage because it is dangerous in the device ingredients may pose a threat to the environment. The electrical device should be handed over to limit its reuse and use. If in the device there are batteries you have to take out and give to the point stored separately.
