Product type	Passive infrared motion detector (PIR)
Model	IR 180 UP Easy (recessed) / IR 180 AP Easy (surface-mounted)
Brand	Steinel
Dimensions (H × W × D)	81 × 81 × 57 mm (UP) / 82 × 72 × 67 mm (AP)
Mains connection	220-240 V, 50/60 Hz
Power consumption	25 mW
Max. load power (incandescent/halogen)	200 W
Max. load power (LED/electronic ballast)	160 W (50 pieces, c < 132 μF)
Minimum connected load (with N/without N)	1 W / 4 W
Recommended installation height	1.1 m
Detection angle	180° with 90° angular opening
Maximum range	8 m (tangential)
Adjustment of trigger threshold (brightness)	2 to 1,000 lx, continuously adjustable
Time delay	5 seconds to 30 minutes, adjustable
Operating temperature	0 to +40 °C
Protection rating	IP20 (UP) / IP54 (AP)
Manufacturer's warranty	3 years (5 years for XLED home series)
Main features	Passive infrared detection, brightness threshold adjustment, time delay, Teach mode, push-button for lighting, LED on/off, two-wire or three-wire connection, networking up to 5 detectors
Maintenance and cleaning	Clean with a damp cloth; do not use detergent
Safety	Disconnect power before any intervention; installation according to NF C-15-100 standard
Spare parts and repairability	Replaceable parts excluded from warranty; contact dealer or Steinel France SAS for warranty repair
General information	User manual available in several languages; delivery contents: load module, frame, detection module, push-button, screws (depending on version)

Frequently Asked Questions - IR 180 UP Easy STEINEL

How to adjust the trigger threshold (brightness)?

Open the detection module (press the snap-in lug for the UP version or unscrew the diffuser for the AP version). Turn the adjustment knob B (trigger threshold) to the desired value, from 2 lx (nighttime operation) to 1,000 lx (daytime operation). For testing in full daylight, set it to the sun symbol.

How to adjust the time delay?

In the detection module, turn knob C (time delay) to the desired duration, from 5 seconds to 30 minutes. The time delay restarts with each motion detection. For tests, set the shortest duration.

Why doesn't the detector turn off?

Check that there is no continuous movement in the detection area. Make sure the connected luminaire is not within the detection area (temperature variations). If multiple detectors are networked, wait for others' time delay to end.

Can I use this detector with LED bulbs?

Yes, the maximum power for LEDs/electronic ballasts is 160 W (up to 50 pieces, with capacitance c < 132 μF). In case of flickering, connect the neutral conductor (N).

What is the maximum detection range?

The maximum range is 8 metres for tangential movement (crossing the area). The detection angle is 180° with a 90° angular opening.

How to reset the detector to factory settings?

There is no specific reset function. You can manually set the trigger threshold to 1,000 lx and the time delay to 5 seconds to restore factory settings.

What does the LED flashing mean?

The flashing codes indicate malfunctions: 1 time/second = disturbed operation; 2 times/5s = incorrect voltage; 3 times/5s = overload or short circuit; 4 times/5s = temperature too high; 5 times/5s = temperature too low. Refer to the malfunction table in the manual.

Can I connect several detectors together?

Yes, you can network up to 5 detectors in parallel via conductor L'. The maximum connected load must not be exceeded. Each detector must have the neutral (N) connected.

How to clean the detector?

Use a damp cloth without detergent. Do not use abrasive or solvent-based products. The product requires no additional maintenance.

What is the recommended installation height?

The recommended installation height is 1.1 metres for optimal detection. Respect this height for the range and 180° angle.

USER MANUAL IR 180 UP Easy STEINEL

White wall-mounted device with a circular lens and handle, mounted on a square frame (no text or symbols visible)

Close-up of a white mechanical component with a central circular dial and mounting holes (no text or symbols visible)

IR 180 UP easy

IR 180 AP easy

DE.....14 Textteil beachten!
GB .....24 Follow written instructions!
FR. . . . . .34 Se référer à la partie texte!
NL.....44 Neem tekstpassage in acht!
IT .....54 Seguire attentamente le istruzioni!
ES.....64 ¡Téngase en cuenta el texto!
PT.....73 Siga as instruções escritas!
SE.....82 laktta texten!
DK .....91 Følg den skriftlige vejledning!
FI .....100 Huomaa tekstiosio!
NO ....109 Se de skriftlige instruksene!
GR ....118 Τηρείτε γραπτές οδηγίες!
TR. . . . .127 Metin kısmını dikkate alın!
HU ....136 Szöveges részre figyelni!
CZ.....145 Dodržujte písemné pokyny!
SK.....154 Dodržiavajte písomné informácie!
PL.....163 Postępować zgodnie z instrukcją!
RO ....173 Respectați instrucțiunile următoare!
SI .....182 Upoštevajte besedilo!
HR ....191 Pridržavajte se uputa!
EE. . . . 200 Järgige tekstiosa!
LT .....209 Atsižvelgti j rašytines instrukcijas!
LV .....218 Pievērsiet uzmanību teksta dalai!
BG ....227 Соблюдать текстовую инструкцию!
CN ....236 Прочетете инструкциите!
RU . . .243 遵守文字说明要求!

3.1

Technical line drawing of an electrical contactor assembly (no text or symbols)

3.2

Technical line drawing of three mechanical components with internal cutouts and mounting holes (no text or symbols)

3.3

Technical line drawing of a mechanical component with dimension标注 (no text or symbols)

3.4

3.5

3.6

3.7

4.1

4.2

4.3

5.3

Pure diagram of a pipe or channel with no text, numbers, or symbols

Mechanical assembly diagram showing a disassembled component with arrows indicating motion or force (no text or symbols present)

5.4

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

6.3

Simple line drawing of a circular object with a central vertical line and horizontal bands, labeled 'H' at the bottom (no text or symbols beyond the label)

DE

Please read carefully and keep in a safe place.

- Under copyright. Reproduction either in Whole or in part only With our consent.

-Subject to change in the interest of technical progress.

-All product dimensions in mm.

Symbols

Hazard Warning!

Reference to other information in the document.

2. General safety precautions

Disconnect the power supply before attempting any Work on the sensor switch.

- During installation, the electric power cable being connected must not be live. Therefore, switch off the power first and use a voltage tester to make sure the Wiring is off-circuit.

- Installing the sensor switch involves work on the mains voltage supply. This work must therefore be carried out professionally in accordance with national wiring regulations and electrical operating conditions (e.g.

DE: VDE 0100, AT: OVE-EN 1, CH: SEV 1000).

3. IR 180 UP easy / IR 180 AP easy

Proper use - IR 180 UP easy:

–Sensor switch for concealed installation in dry interior spaces.

Proper use - IR 180 AP easy:

- Sensor switch for surface installation in dry interior spaces and those exposed to moisture.

The sensor switches are equipped with a pyro sensor which detects the invisible heat emitted by moving objects (people, animals etc.). The heat detected in this way is converted electronically into a signal that switches a connected load ON (e.g. a light).

Heat is not detected through obstacles, such as walls or panes of glass, and will therefore not activate the light.

The sensor switch is designed for both 2 and 3-wire electrical systems.

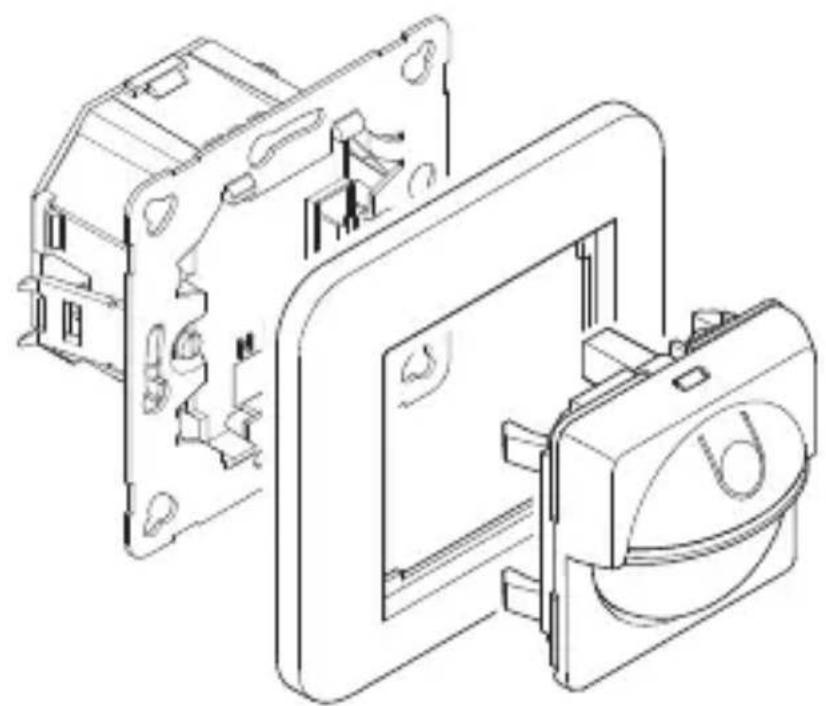

Package contents - IR 180 UP easy (Fig. 3.1) Package contents - IR 180 AP easy (Fig. 3.2)

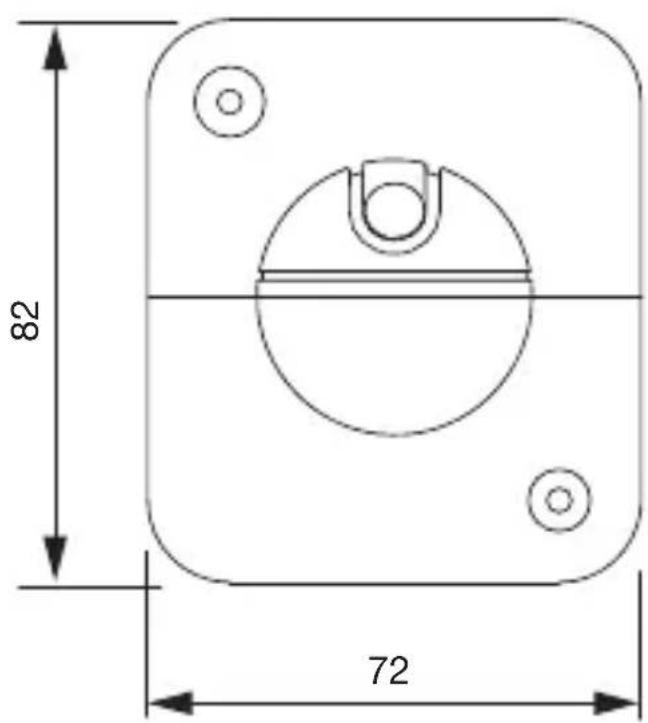

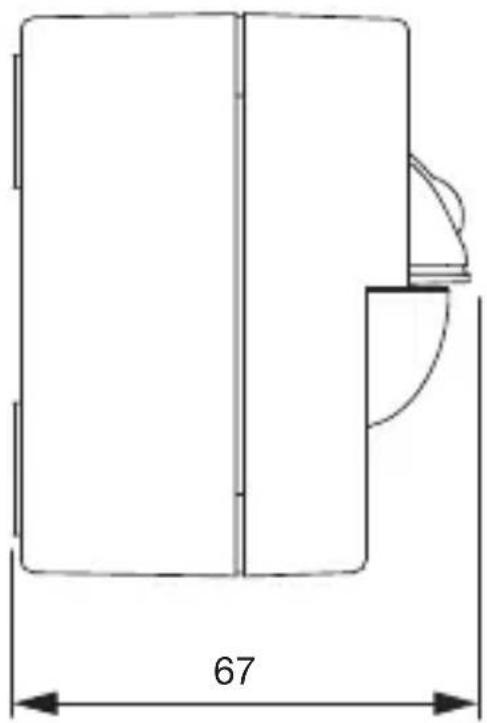

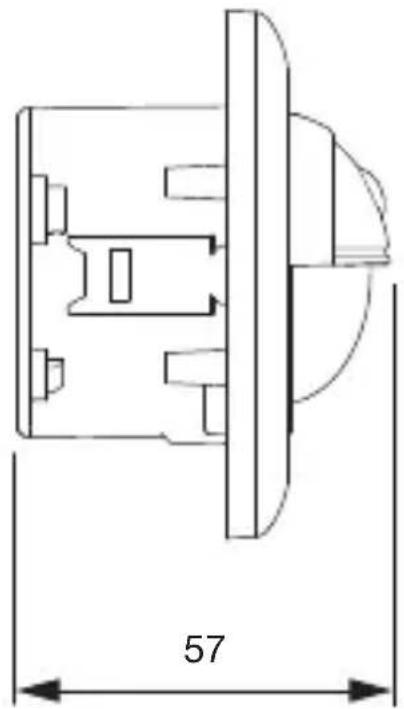

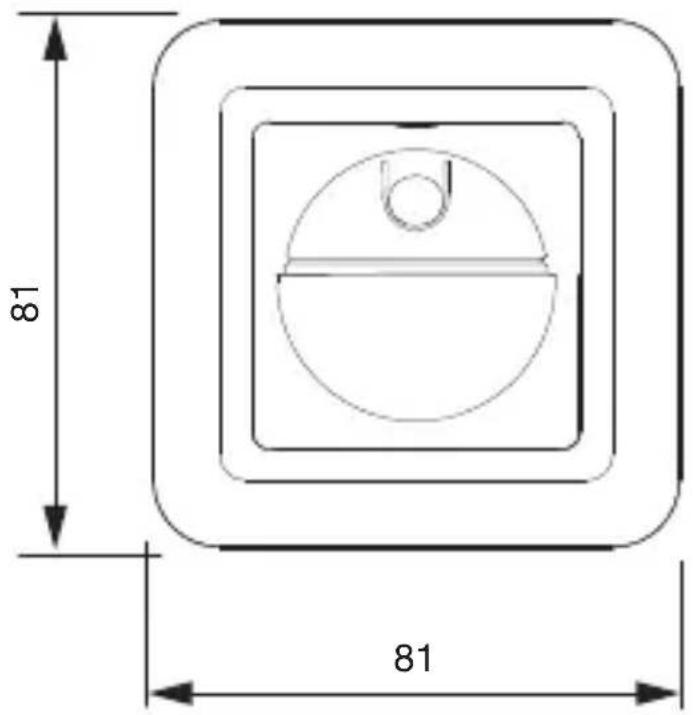

Product dimensions - IR 180 UP easy (Fig. 3.3) Product dimensions - IR 180 AP easy (Fig. 3.4)

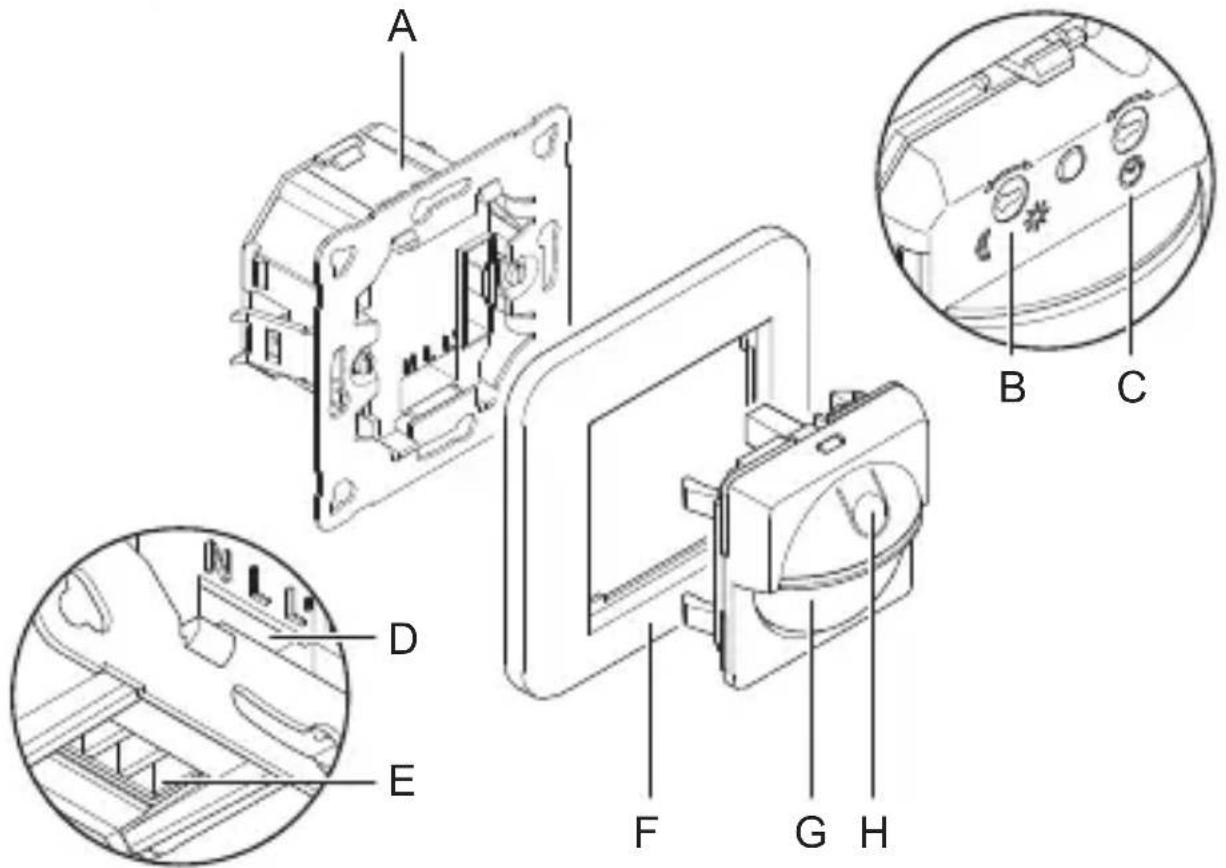

Product components - IR 180 UP easy (Fig. 3.5)

A Load module
B Twilight setting
C Time setting
D Connecting terminal screw shaft
E Connecting terminal cable duct
F Surround
G Sensor module
H Switch for light function

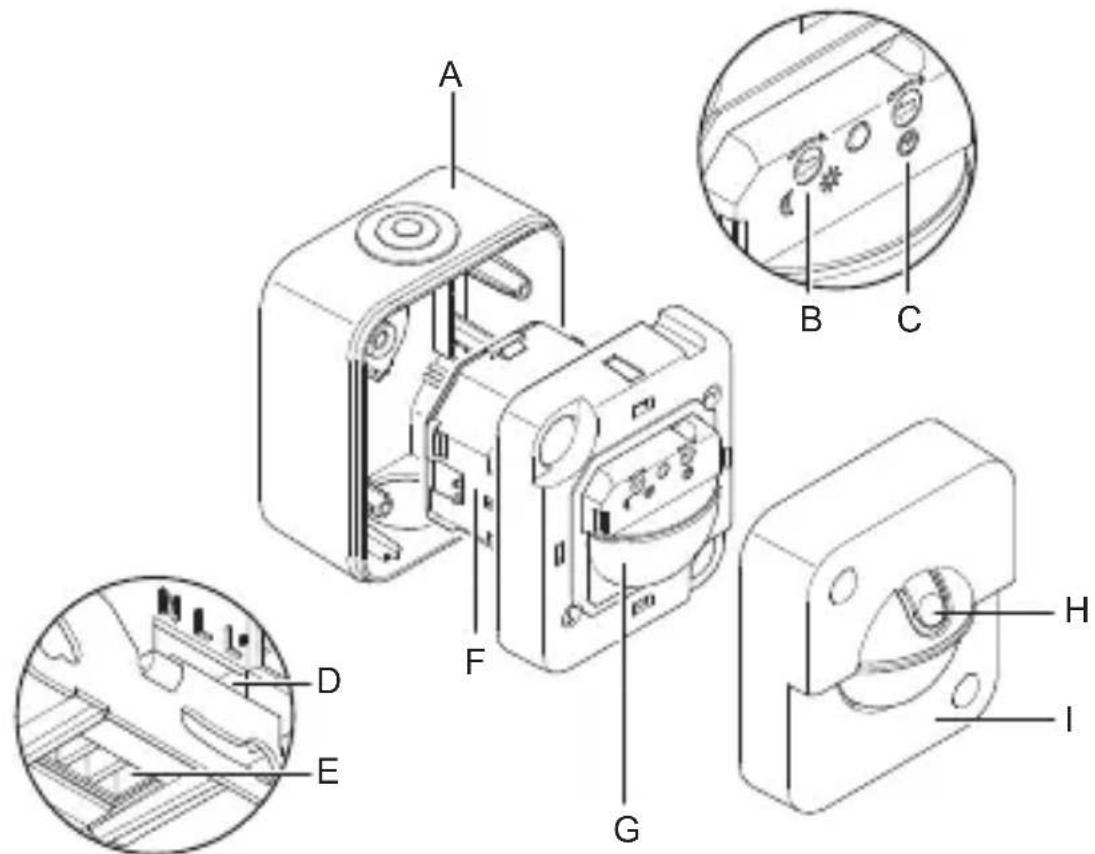

Product components - IR 180 AP easy (Fig. 3.6)

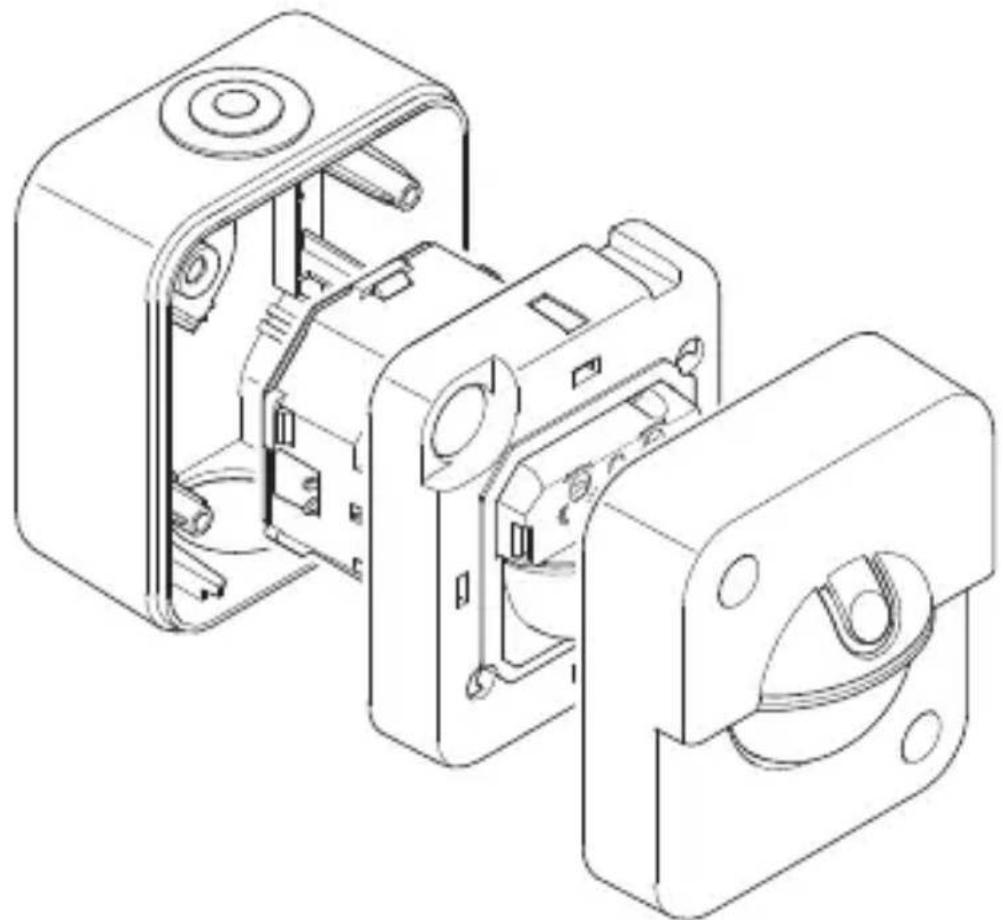

A Surface-mounting enclosure
B Twilight setting
C Time setting
D Connecting terminal screw shaft
E Connecting terminal cable duct
F Load module
G Sensor module
H Switch for light function
I Cover

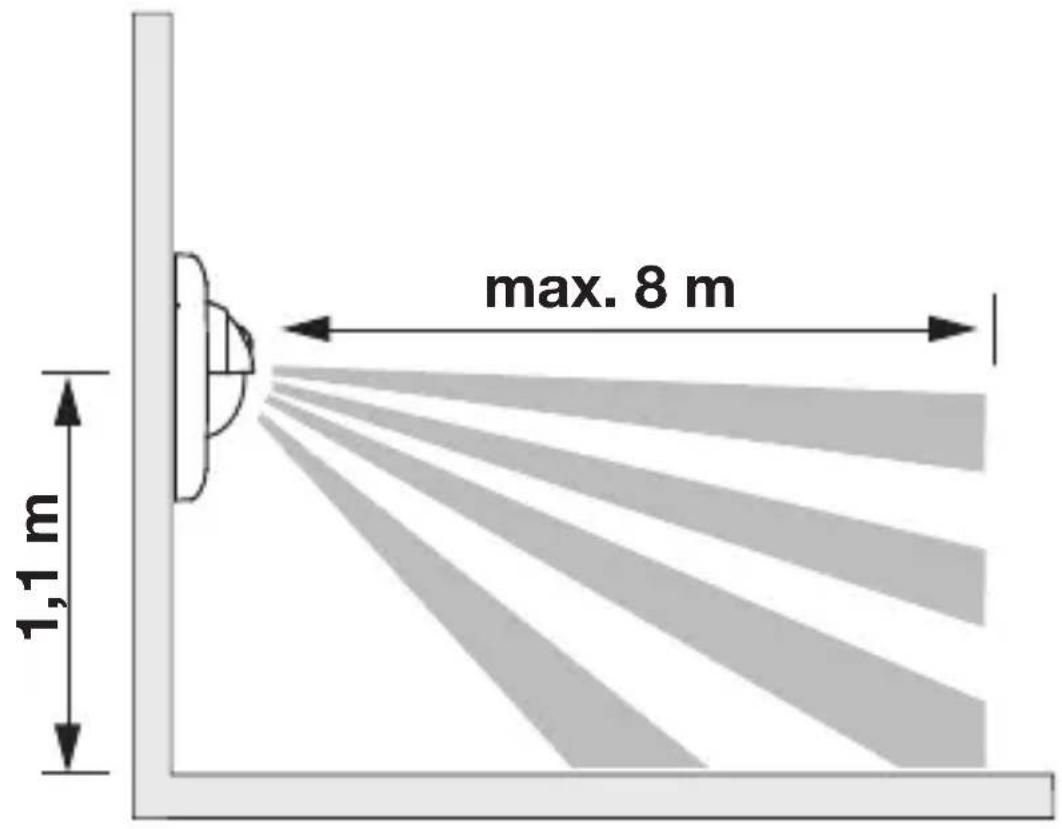

Detection zone (Fig. 3.7)

4. Electrical connection

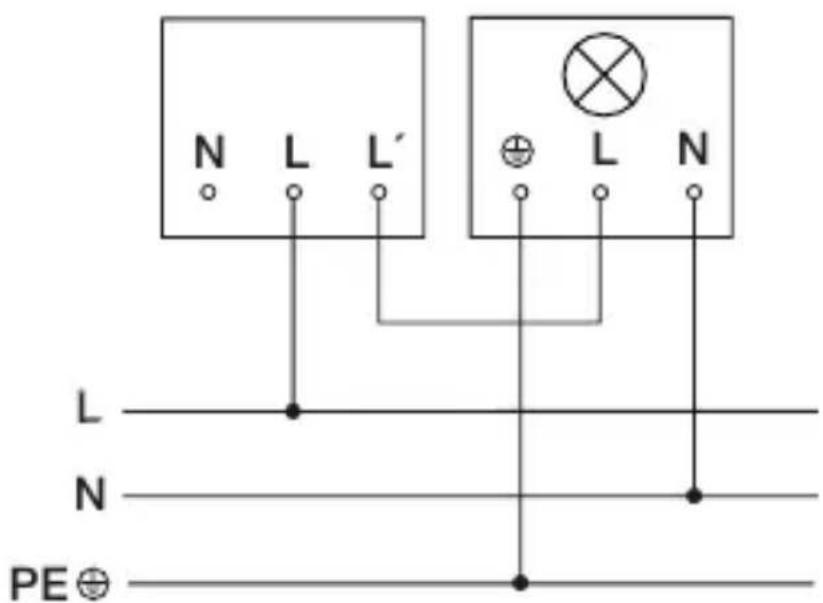

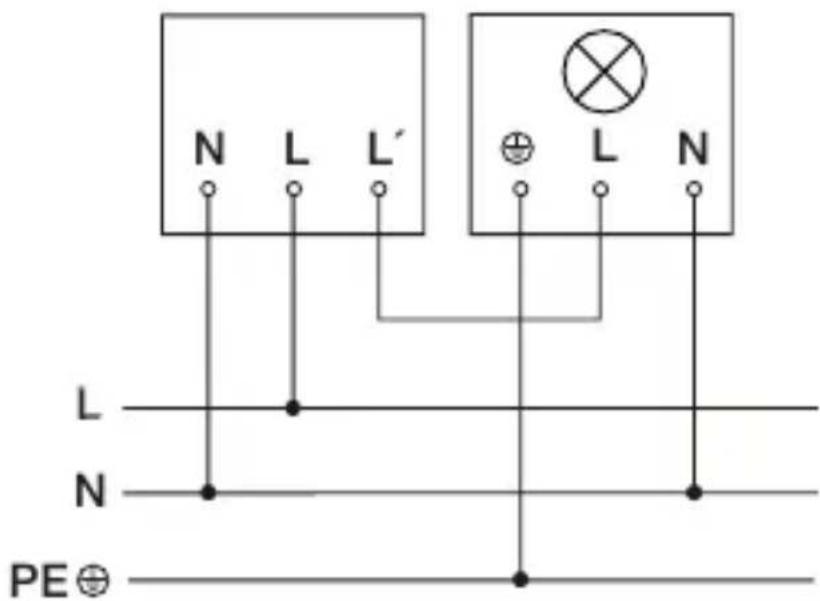

Connection wiring diagram: two-wire (Fig. 4.1)

Connection wiring diagram: three-wire (Fig. 4.2)

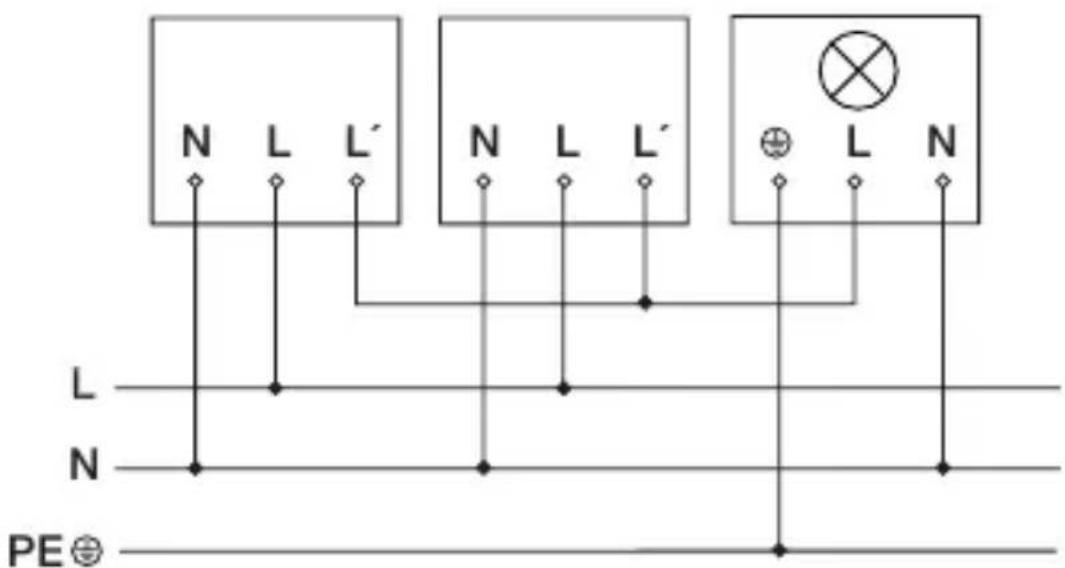

Connection wiring diagram: interconnecting several sensor switches (Fig. 4.3)

The supply lead is a 2 or 3-core cable:

L = phase conductor (usually black or brown)

N = neutral conductor (usually blue, optional)

L' = switched phase conductor (usually black, brown or grey)

If you are in any doubt, identify the conductors using a voltage tester; then disconnect from the power supply again. Connect phase conductor (L) and (L') to the terminal. Neutral conductor (N) can be connected to the terminal as an option. A protective-earth conductor is not required.

Important:

Mixing up the connections Will cause a short circuit in the product or your fuse box. In this case, you must identify the individual conductors once again and reconnect them.

L' detection provides the option of connecting as many as 5 sensors in parallel. This does not increase the maximum connectable load. The neutral conductor (N) must be connected at each sensor switch.

5. Mounting

• Check all components for damage.
• Do not use the product if it is damaged.
• Select an appropriate mounting location, taking the reach and motion detection into consideration.

Mounting procedure for concealed installation (UP)

• Switch OFF power supply (Fig. 4.1/4.2/4.3)

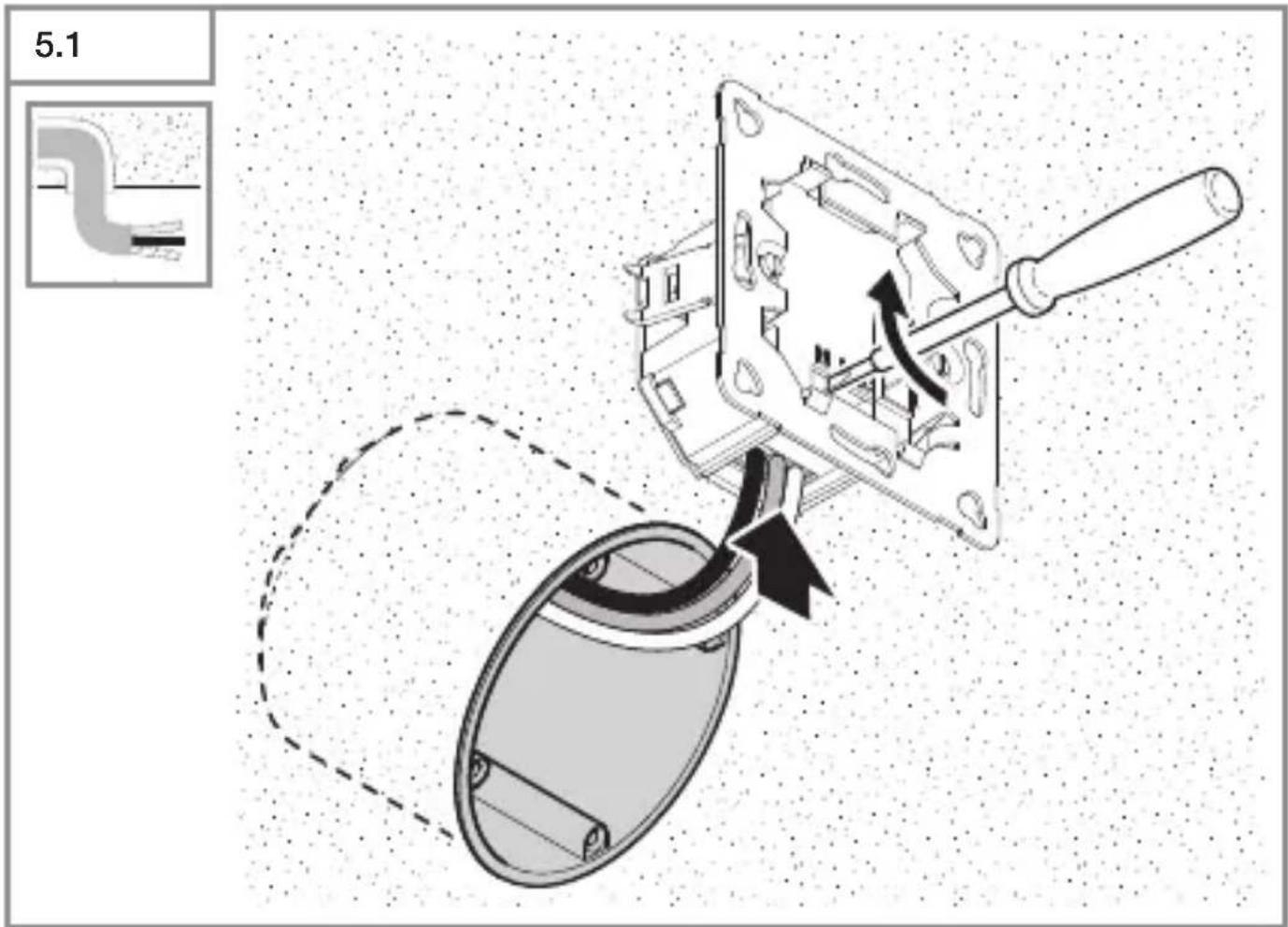

• Connect conductors to load module (Fig. 5.1)
  -2-wire connection (Fig. 4.1)
  -3-wire connection (Fig. 4.2)

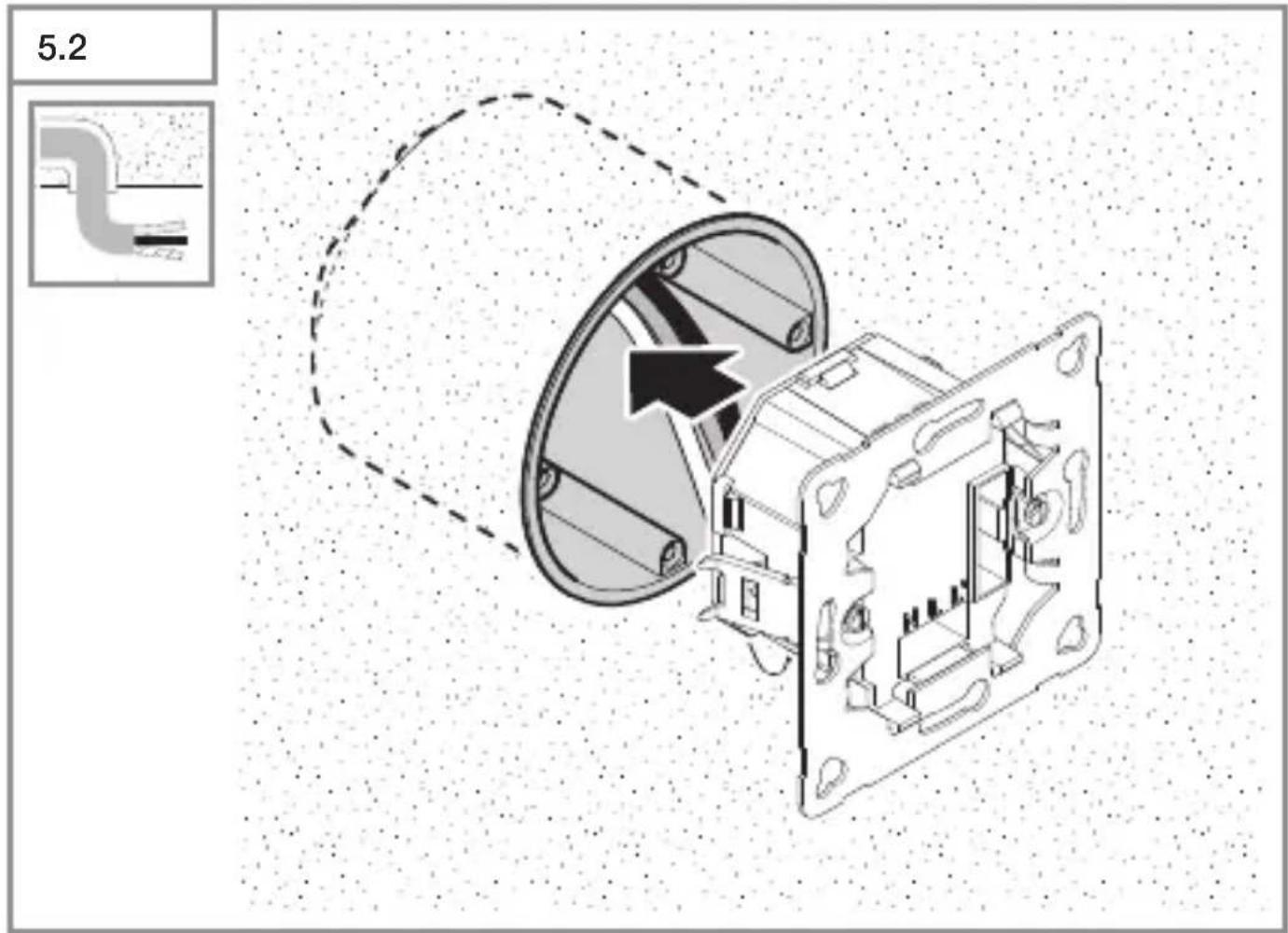

• Push load module into the flush-mounting box (Fig. 5.2)
• Screw load module into place (Fig. 5.3)

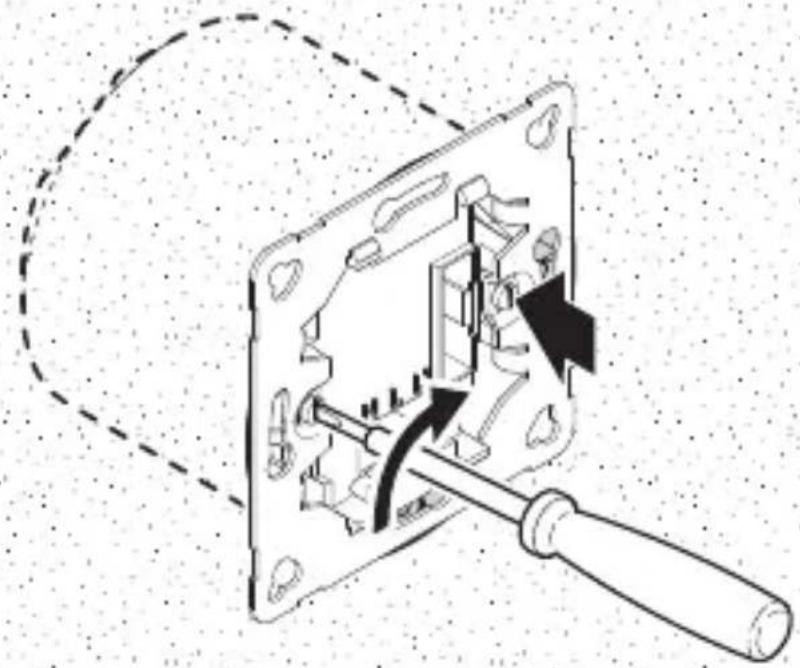

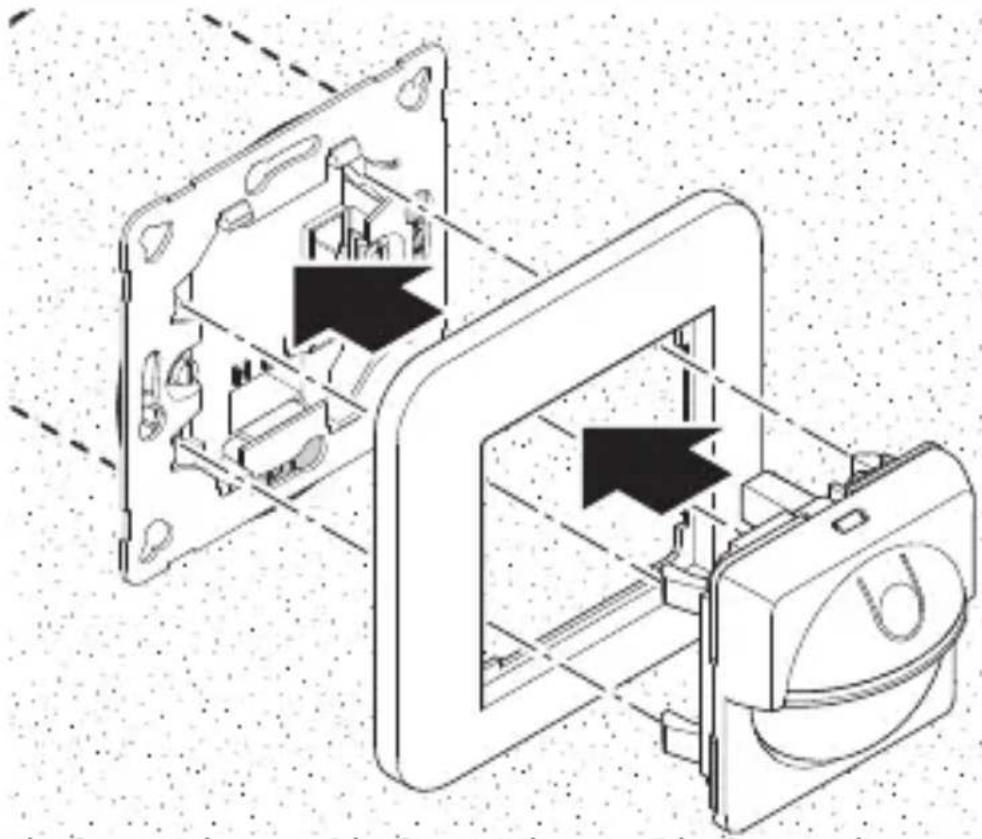

• Fit surround and sensor module on load module (Fig. 5.4)

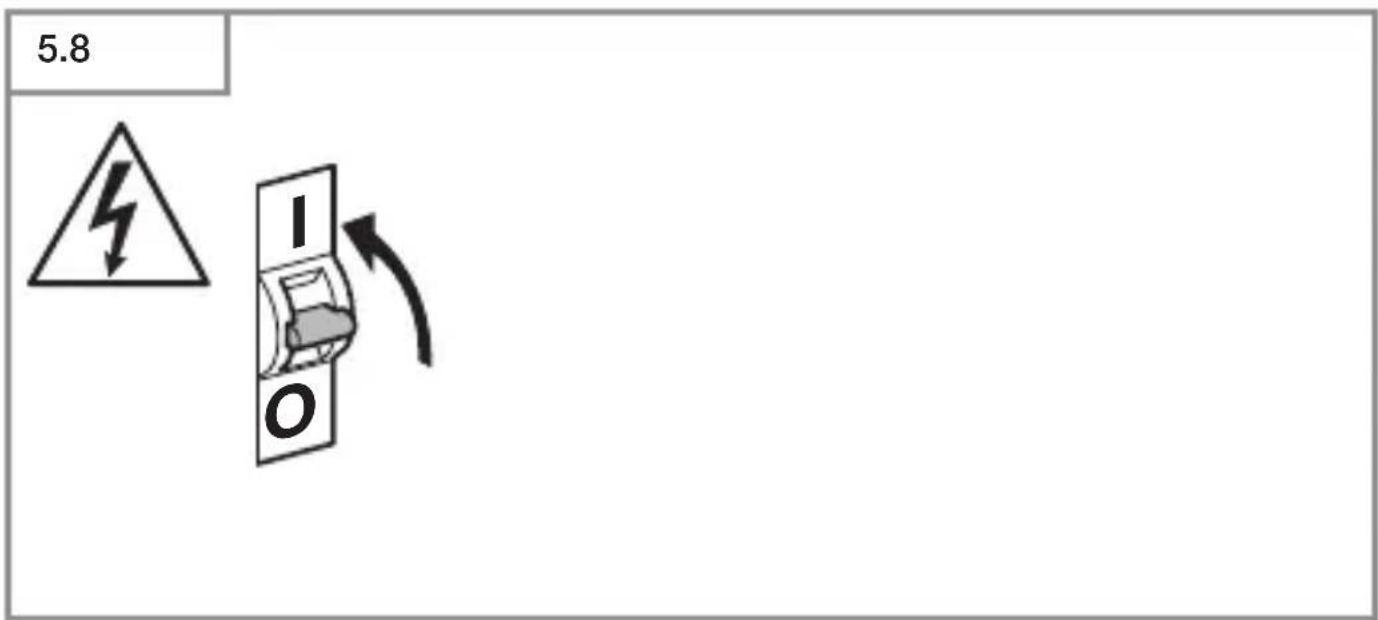

• Switch ON power supply (Fig. 5.8)
• Settings → "6. Function"

Mounting procedure for surface installation (AP)

• Switch OFF power supply (Fig. 4.1/4.2/4.3)

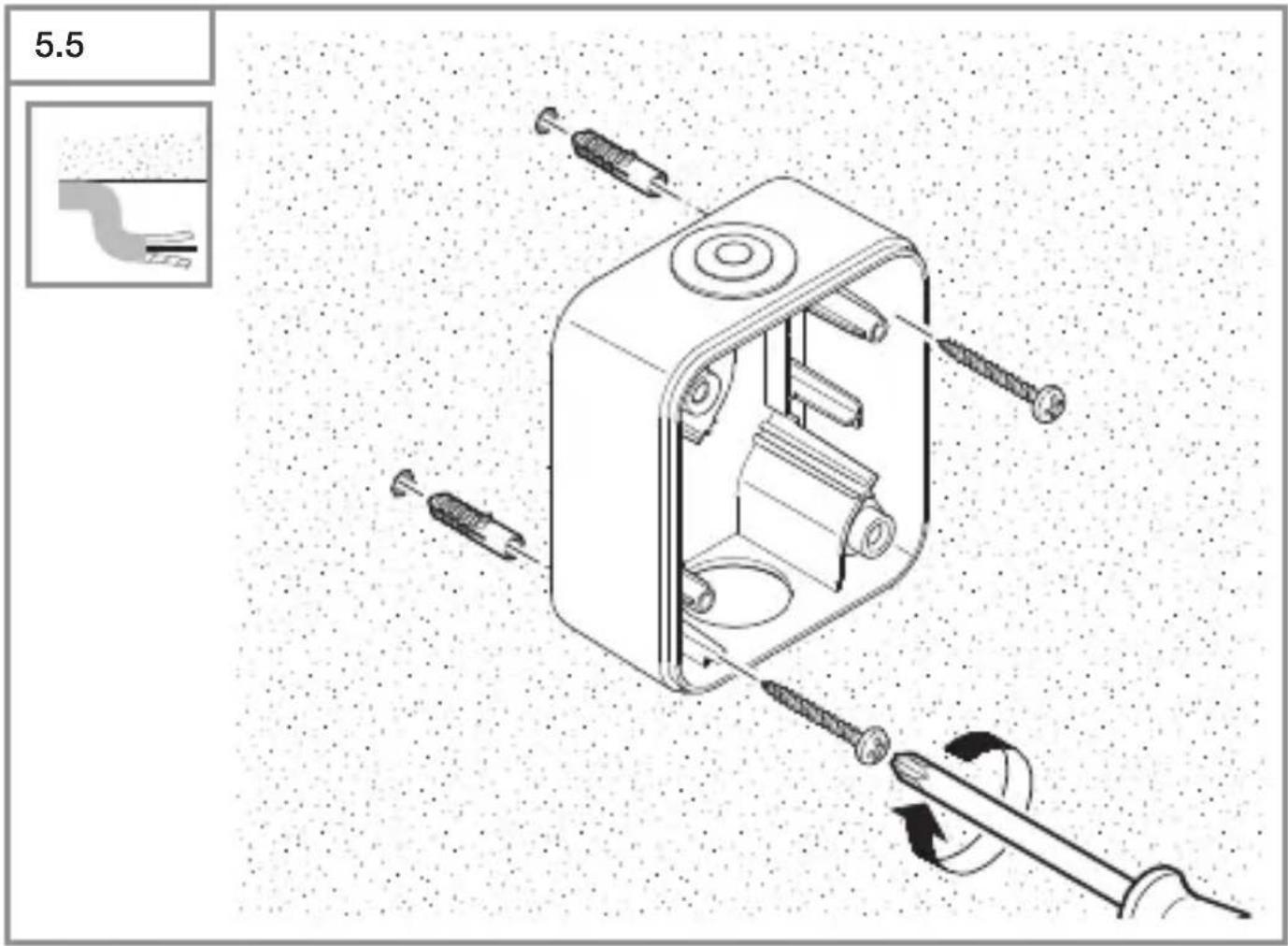

• Screw on surface-mounting enclosure (Fig. 5.5)

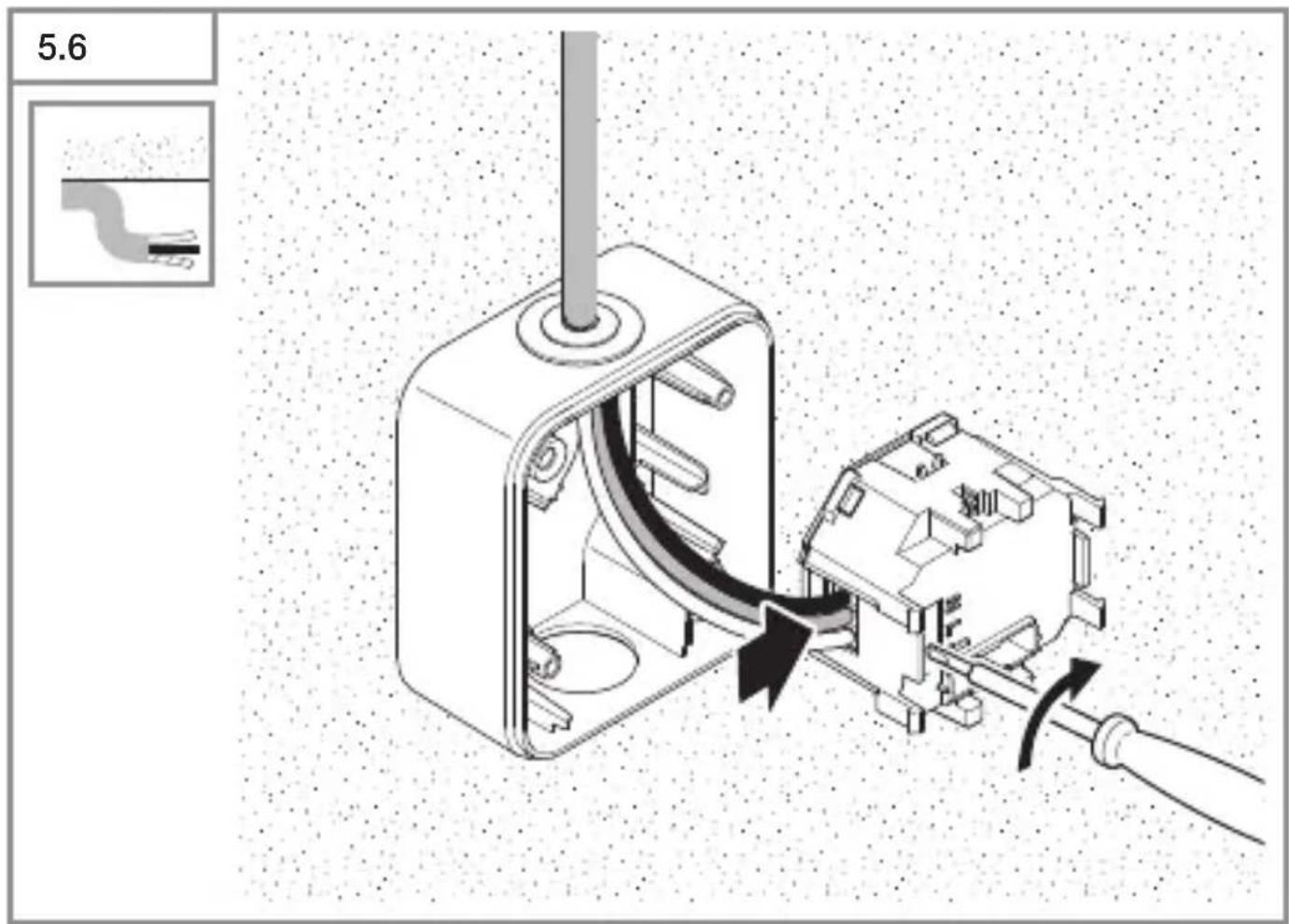

• Connect conductors to load module (Fig. 5.6)
  -2-wire connection (Fig. 4.1)
  -3-wire connection (Fig. 4.2)

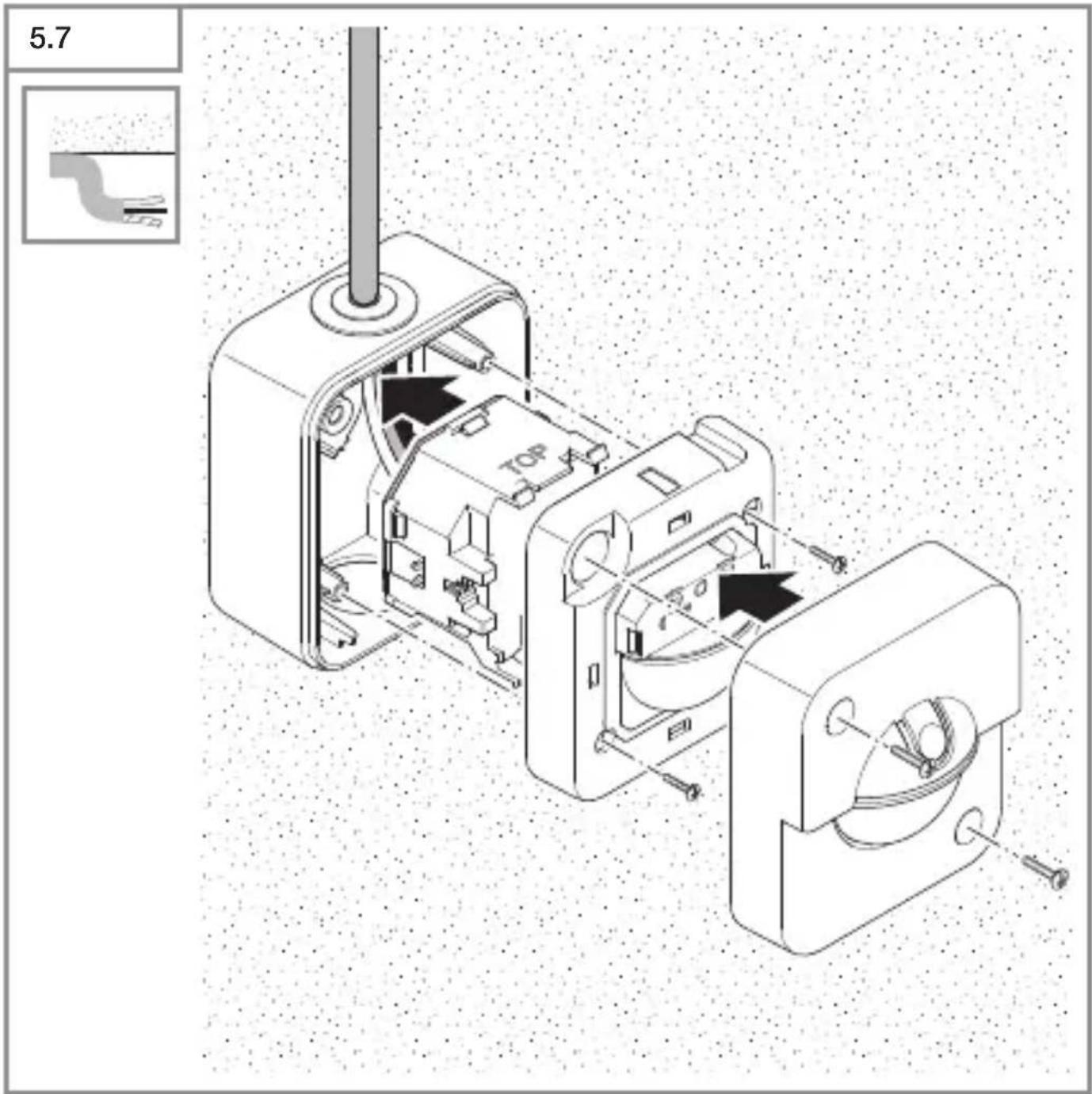

• Fit load module, sensor module and cover (Fig. 5.7)
- Switch ON power supply (Fig. 5.8)
- Settings → "6. Function"

6. Function

Factory settings

Twilight setting: 1,000 Lux (daylight mode)

Time setting: 5 seconds

The sensor module must be opened to make the function settings.

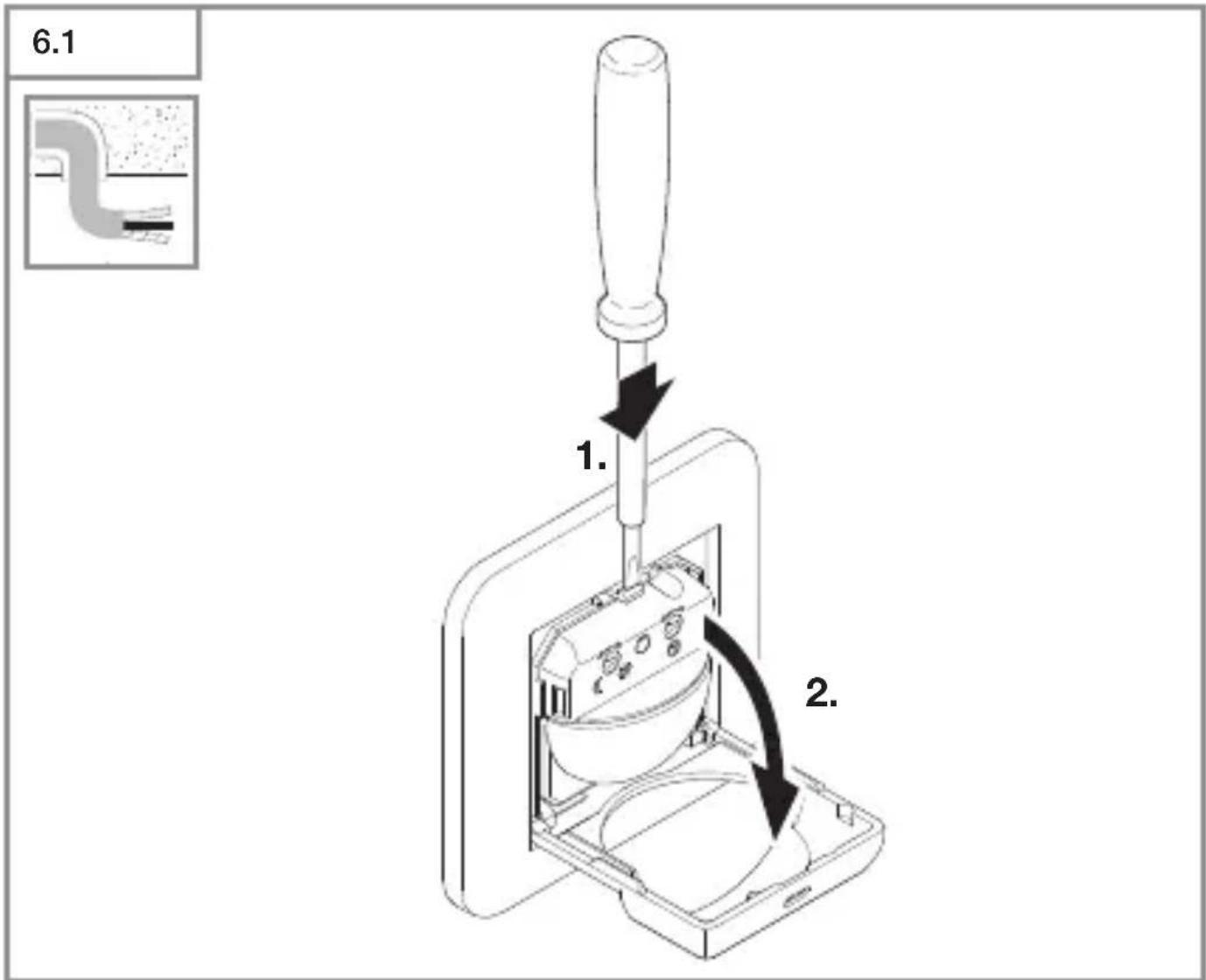

• Press the screwdriver onto the tab and open the flap (concealed installation). (Fig. 6.1)

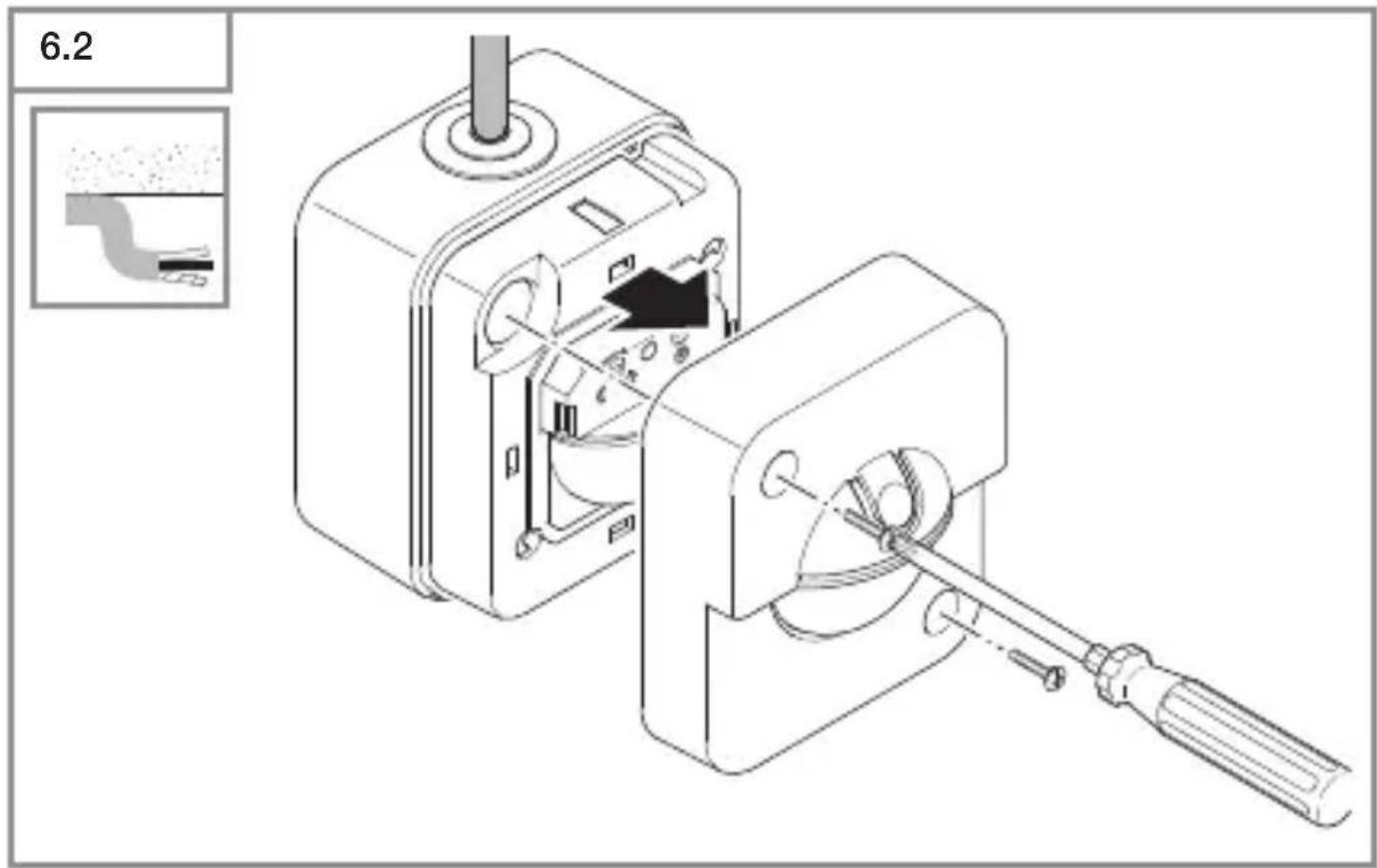

• Unscrew the cover (surface installation). (Fig. 6.2)

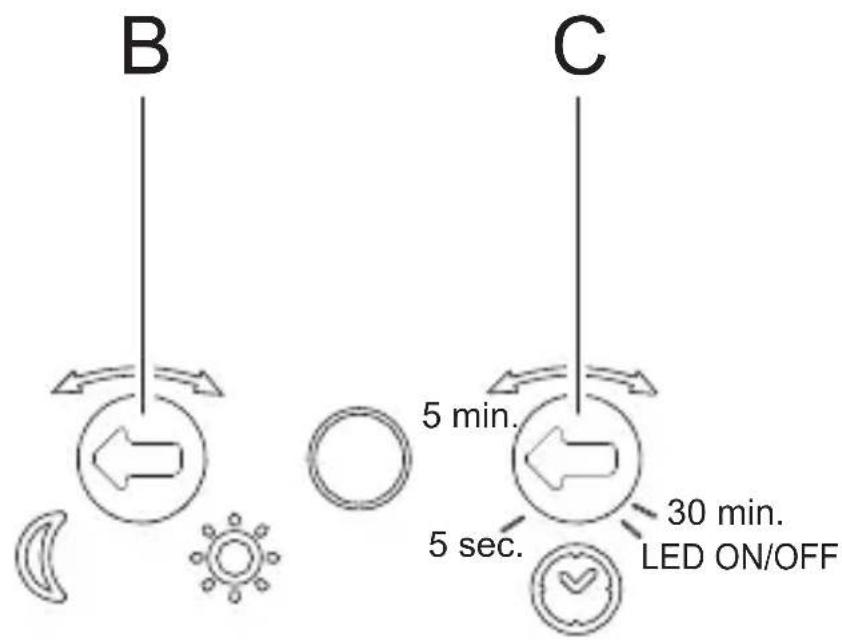

Twilight setting (Fig. 6.3/B)

The sensor switch response threshold can be set in increments from 2 lux to 1,000 lux.

Control dial set to 📋: daylight operation (independent of ambient light level) Control dial set to ⚙: twilight operation (2 lux)

The control dial must be turned to 📋 When adjusting the detection zone and performing the functional test in daylight.

Time setting (Fig. 6.3/C)

The time you Want the connected lamp to stay ON for can be set in increments from 5 seconds to a maximum of 30 minutes.

Control dial set to 5 s: shortest time (5 seconds)

Control dial set to 5 min: 5 minutes

Control dial set to 30 min: longest time (30 minutes)

The stay-ON time s restarted by any movement before this time elapses.

The shortest time setting is recommended When adjusting the detection zone and performing the functional test.

Note:

Every time the light switches OFF, it takes approximately 6 seconds for the sensor to start detecting movement again. Only after this time elapses can the sensor switch turn light ON again in response to motion.

LED ON / OFF

If you are irritated by the status LED, it can easily be switched OFF.

Briefly (1 second) set control dial to LED ON / OFF.

LED flashes once: LED is ON.

LED flashes twice: LED is OFF.

The control dial must then be adjusted to the chosen time setting. If this is not done, the time set is 2 minutes.

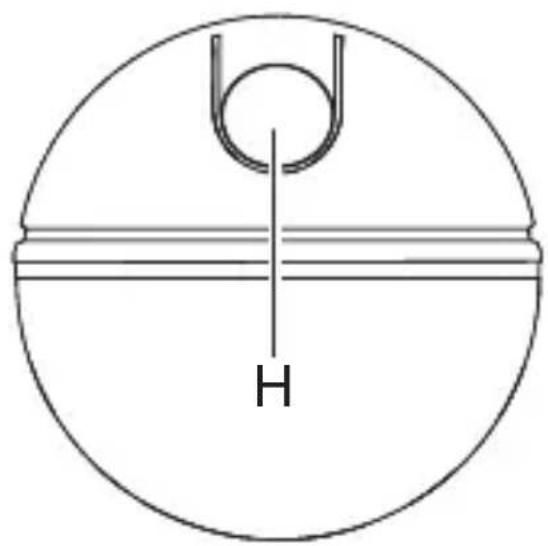

Switch for light function (Fig. 6.3/H)

Light ON status: press once

Light goes out. If no movement is being detected, the stay-ON time elapses and the sensor switch changes to normal sensor mode.

Light OFF status: press once

Light come ON even in sufficient ambient brightness. The light stays switched ON until the sensor switch turns it OFF because no movement is being detected or ambient brightness is sufficient.

Teach mode

Teach mode saves the current ambient light level below which you do not want the sensor switch to respond to movement from now on.

Pressing the button for 5 seconds programs in the light level. This takes place 5 seconds after releasing the button to prevent any shadow being cast over the brightness sensor. The LED flashes once to indicate that Teach mode has been selected. The connected lamp is switched OFF While the Teach cycle is in progress. The LED flashes once to confirm that the current ambient light level has been saved. The sensor switch then returns to sensor mode and operates With the new threshold. Teach mode can be repeated any number of times.

To quit Teach mode, turn the twilight setting control dial.

7. Maintenance and care

This product requires no maintenance.

The surface can be cleaned With a damp cloth (without detergents) if dirty.

8. Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic Waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

9. Manufacturer's Warranty

Manufacturer's warranty of STEINEL GmbH, Dieselstrasse 80-84, DE-33442 Herzebrock-Clarholz, Germany

All STEINEL products meet the highest quality standards. For this reason, we, the manufacturer, are pleased to provide you, the consumer, with a warranty under the following terms and conditions:

The warranty covers the absence of deficiencies which are proven to be the result of a material defect or fault in manufacturing and which are reported to us immediately after detection and within the warranty period. The warranty shall apply to all STEINEL products sold and used in Germany - excluding STEINEL Professional products.

You can opt for warranty cover in the form of repair or replacement which will be provided free of charge (if applicable, in the form of a successor model of the same or higher quality) or in the form of a credit note. The warranty period for the STEINEL product you have purchased is 3 years (5 years for products from the XLED home range) in each case from the date on which the product was purchased.

We shall bear the shipping costs but not the transport risks involved in return shipment.

Statutory rights accruing from defects, gratuitousness

The warranty cover described here shall be applicable in addition to the statutory rights of warranty – including special consumer protection provisions – and shall not restrict or replace them. Exercising your statutory rights in the event of defects is gratuitous.

Exemptions from the warranty

All replaceable lamps are expressly excluded from this warranty. In addition to this, the warranty shall not cover:

• any wear resulting from use or any other natural wear of product parts or any deficiencies in the STEINEL product that are attributable to wear caused by use or other natural wear,
  – any improper or non-intended use of the product or any failure to observe the operating instructions,
  – any unauthorised additions, alterations or other modifications to the product or any deficiencies attributable to the use of accessory,
  – supplementary or replacement parts which are not genuine STEINEL parts,
  – any maintenance or care of products that is not carried out in accordance with the operating instructions,
• any attachment or installation that is not in accordance with STEINEL's installation instructions,
  -any damage or loss occurring in transit.

Application of German law

The warranty shall be governed by German law excluding the United Nations Convention concerning the International Sale of Goods (CISG).

Making claims

If you wish to make a warranty claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or directly to us at STEINEL (UK) Ltd. – 25 Manasty Road, Axis Park, Orton Southgate, GB- Peterborough Cambs PE2 6UP United Kingdom. For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires.

1. Technical specifications

	IR 180 UP easy IR	180 AP easy
Dimensions (H × W × D) 81 × 81 × 57 mm	82 × 72 × 67 mm
Power supply 220 – 240 V, 50/60 Hz
Power consumption 25 mW
OutputIncandescent / halogen lamp loadLED / ECG load	200 W160 W (50 units, c < 132 μF)
Minimum connected load with N: 1 W	without N: 4 W
Mounting height 1.1 m
Sensor system Passive infrared
Angle of coverage 180° with 90° angle of aperture
Reach Max. 8 m tangential
Twilight setting 2 – 1,000 lux
Time setting 5 s – 30 min
Temperature	0 °C to +40 °C
IP rating	IP20	IP54

11. Troubleshooting

Malfunction Cause Remedy

Sensor switch Without voltage	■ Fuse has tripped, not switched ON■ Short circuit	■ Activate, change fuse, turn ON mains switch, check Wiring With voltage tester■ Check connections
Sensor switch not switching ON	■ Lamp faulty	■ replace lamp
Sensor switch not switching ON	■ Twilight setting in night-time mode during daytime operation■ Fuse has tripped	■ Reset■ Activate, change fuse, check connection if necessary
Sensor switch not switching OFF	■ Continued movement Within the detection zone■ Light is in detection zone and keeps switching ON as a result of temperature change■ Other sensor switch is connected in parallel and still active	■ Check detection zone■ Check detection zone■ Wait for time setting of the other sensor switch to elapse
Sensor switch always switches ON / OFF	■ Light being operated in the detection zone■ Animals moving in detection zone	■ Check detection zone■ Check detection zone
LEDs glowing, flickering	■ LEDs responding too sensitively	■ Connect neutral conductor (N), change lamp

12. LED flashing code for malfunction

LED flashing code Cause	Remedy
1 flash every second	Operating malfunction Check	ck connections, change bulb, connect neutral conductor
2 flashes every 5 seconds	Faulty power supply Check	connections, change bulb, connect neutral conductor
3 flashes every 5 seconds	Overload, short circuit Check	ck connections, reduce output, reduce number of bulbs connected
4 flashes every 5 seconds	Temperature too high Reduce	duce output
5 flashes every 5 seconds	Temperature too low Check	place of use

Once the malfunction has been remedied, the sensor switch can be restarted by pressing the button. For temperature faults only: the sensor automatically goes to normal operating mode as soon as the temperature has returned to normal.

FR

Mode Teach (apprentissage)

Led knippert 1 keer: led is ingeschakeld.

Monteringstrin for UP

Monteringstrin for AP

- Odvrnite poklopac (AP). (SI. 6.2)

Aja seadmine (Joon. 6.3/C)

World map silhouette in grayscale, showing continents and oceans without any text or labels

Contact

www.steinel.de/contact
