USER MANUAL iSpin 360 E Joie

enhanced child restraint

GB Instruction Manual

Simple icon depicting a person relaxing and sitting on a surface, with no text or symbols present.

ECE R129/03: ISO/F2X, ISO/R2

ECE R129/03: i-Size

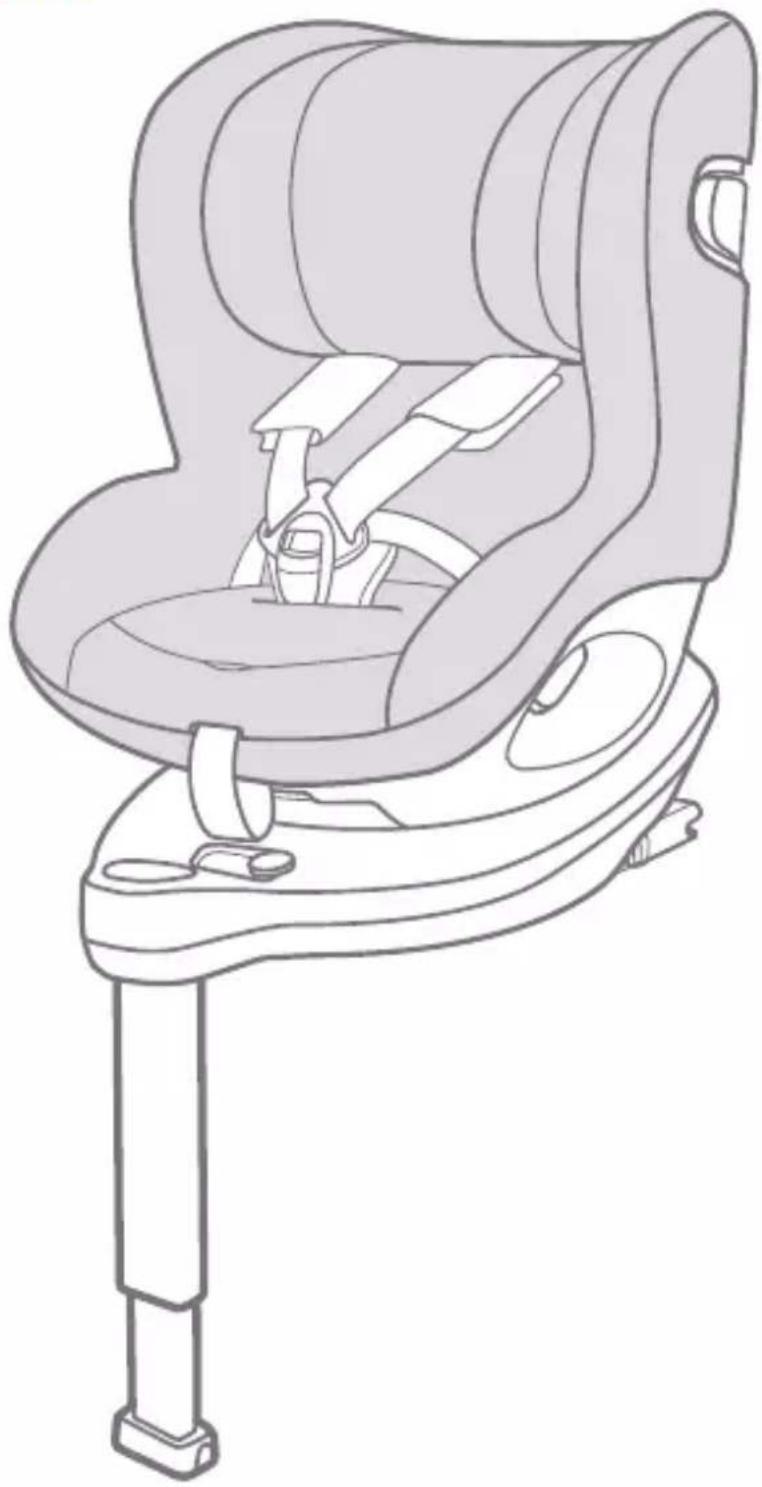

Line drawing of a baby car seat with seatbelt and seat, no text or symbols present

GB

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the i-Spin 360 E enhanced child restraint you are using a high quality, fully certified safety i-Size enhanced child restraint. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

To use this Joie enhanced child restraint with the i-Size ISOFIX connections according to the ECE R129/03 Regulation, your child must meet the following requirements.

Rearward Facing: Child height 61cm-105cm/ Child age at least 6 months/ Child weight≤19kg;

Forward Facing: Child height 76cm-105cm/ Child age at least 15 months / Child weight≤19kg;

Base

Please read all the instructions in this manual before installing and using the product.

IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.

Please keep the instruction manual in the storage compartment at the back of the base as right figure.

For warranty information, please visit our website at joiebaby.com

Simple line drawing of a laptop with an open book and a pointer, no text or symbols present

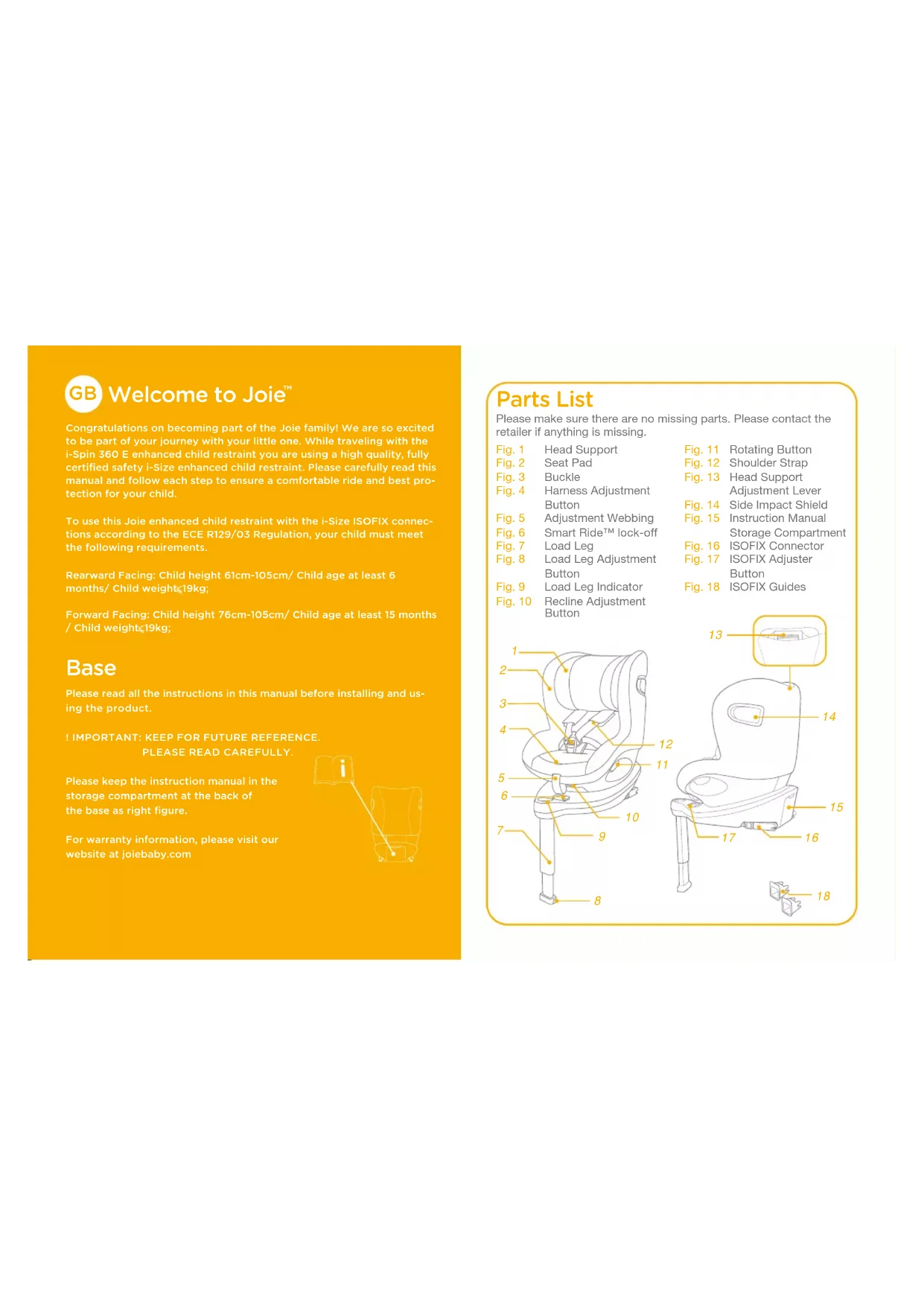

Parts List

Please make sure there are no missing parts. Please contact the retailer if anything is missing.

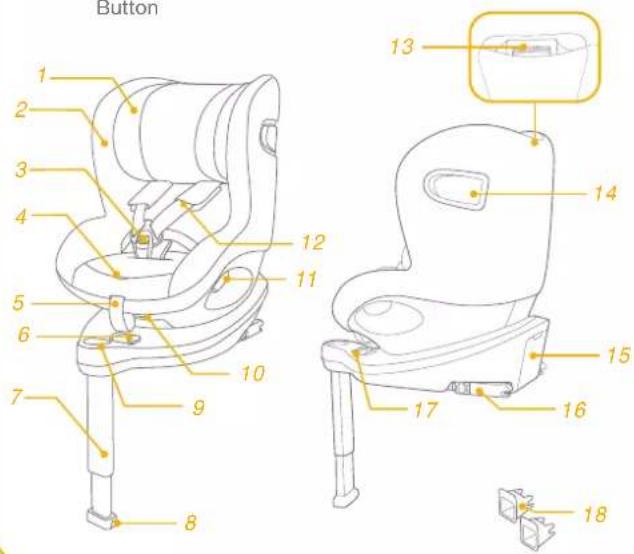

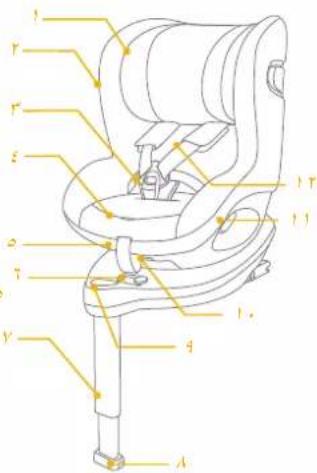

Fig. 1 Head Support
Fig. 2 Seat Pad
Fig. 3 Buckle
Fig. 4 Harness Adjustment Button
Fig. 5 Adjustment Webbing
Fig. 6 Smart Ride™ lock-off
Fig. 7 Load Leg
Fig. 8 Load Leg Adjustment Button
Fig. 9 Load Leg Indicator
Fig. 10 Recline Adjustment Button

Fig. 11 Rotating Button
Fig. 12 Shoulder Strap
Fig. 13 Head Support Adjustment Lever
Fig. 14 Side Impact Shield
Fig. 15 Instruction Manual Storage Compartment
Fig. 16 ISOFIX Connector
Fig. 17 ISOFIX Adjuster Button
Fig. 18 ISOFIX Guides

Button 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

WARNING

! To use this enhanced child restraint with the ISOFIX connections according to the ECE R129/03 Regulation, your child must meet the following requirements.

Rearward Facing:

Child height 61cm-105cm/ Child age at least 6 months / Child weight ≤19kg;

Forward Facing:

Child height 76cm-105cm/ Child age at least 15 months/ Child weight ≤ 19kg;

! IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 months (Refer to instructions)
! Any straps holding the enhanced child restraint to the vehicle should be tight, that any support-leg should be in contact with the vehicle floor, that any straps restraining the child should be adjusted to the child's body, and that straps should not be twisted.
! After your child is placed in this enhanced child restraint, the safety belt must be used correctly, and ensure that any lap strap is worn low down, so that the pelvis is firmly engaged, shall be stressed.
This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. An accident can cause damage to them that you cannot see.

WARNING

! Concern the danger of making any alterations or additions to the device without the approval of the competent authority, and a danger of not following closely the installation instructions provided by the enhanced child restraint manufacturer.
! Please keep this enhanced child restraint away from sunlight, otherwise it may be too hot for child's skin. Always touch the enhanced child restraint before placing child in it.
! Child is not left in the enhanced child restraint system unattended.
! Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
! The enhanced child restraint shall not be used without the soft goods.
! The soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance.
! DO NOT use any load bearing contact points other than those described in the instructions and marked on the enhanced child restraint.

WARNING

! NEVER install this enhanced child restraint on any vehicle seat equipped with safety airbags when used with babymode.
! Please check before you purchase this enhanced child restraint to make sure it can be installed properly in your vehicle.
NO enhanced child restraint can guarantee full protection from injury in an accident. However, proper use of this enhanced child restraint will reduce the risk of serious injury or death to your child.
! DO NOT install this enhanced child restraint without following the instructions in this manual or you may put your child at serious risk of injury or death.
! DO NOT use this enhanced child restraint if it has damaged or missing parts.
! DO NOT have your child in large/oversized clothes because this may prevent your child from being properly and securely fastened by the shoulder harness straps and the crotch strap between the legs.
! DO NOT leave this enhanced child restraint or other items unbelted or unsecured in your vehicle because an unsecured enhanced child restraint can be thrown around and may injure occupants in a sharp turn, sudden stop, or collision.

WARNING

! NEVER use a second-hand enhanced child restraint or an enhanced child restraint whose history you do not know because it may have structural damage that compromises your child's safety.
! NEVER use ropes or any other substitutes to secure enhanced child restraint in vehicle or to secure child into enhanced child restraint.
! Be sure that the enhanced child restraint is installed in such a way that no part of it interferes with movable seats or in the operation of vehicle doors.
! Consult the distributor for issues concerning maintenance, repair and part replacement.
Remove this enhanced child restraint from the vehicle seat when it is not in use for a long period of time.
! The parts of this enhanced child restraint should not be lubricated in any way.
! Always secure child in enhanced child restraint, even on short trips, as this is when most accidents occur.
! Frequently check the ISOFIX guides for dirt and clean them if necessary. Reliability can be effected by ingress of dirt, dust, food particles etc.
! DO NOT put anything other than the recommended inner cushions in this enhanced child restraint.
! The child restraint may not fit in all approved vehicles when used in one of these positions.

Emergency

In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

"i-Size" (Integral Universal ISOFIX Enhanced Child Restraint Systems) is a category of Enhanced Child Restraint System for use in all i-Size seating position of a vehicle.
1. According to the ECE R129/03 Regulation, the product is a Universal ISOFIX Class ISO/F2X, ISO/R2 enhanced child restraint and should be fitted using the ISOFIX connections.
2. This is an "i-Size" Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.
3. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

Materials Plastics, metal, fabrics

Patent No. Patents pending

Concerns on Installation

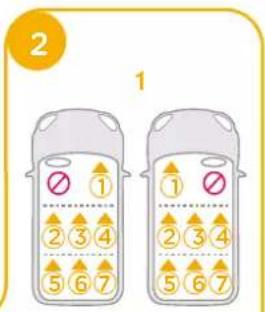

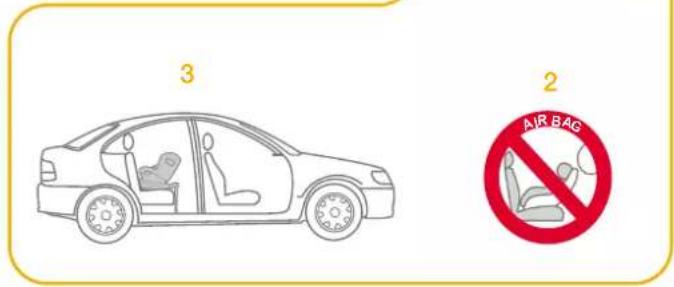

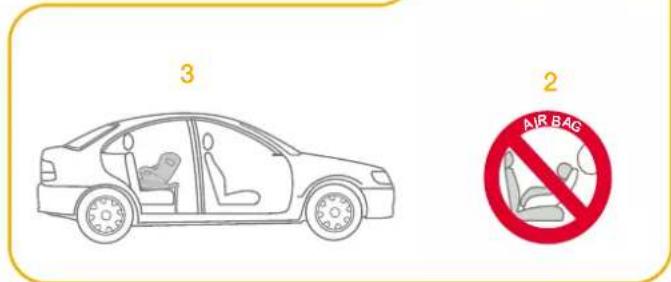

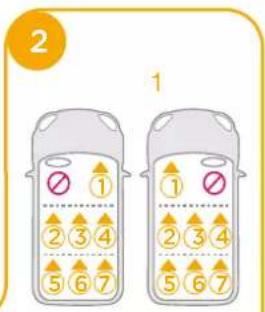

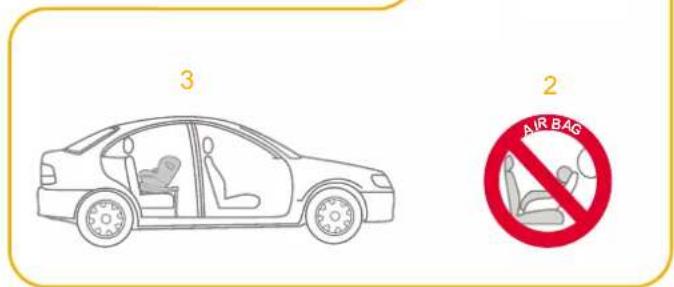

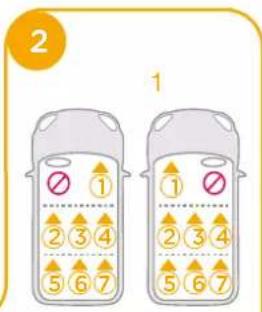

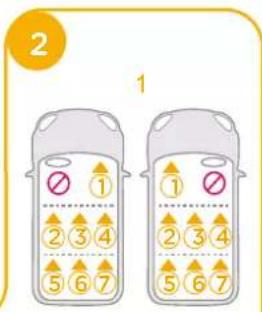

see images 1 - 2

Illustration of a seat with red buttons and a checkmark, no text or symbols present

2 1 1 2 3 4 5 6 7 2 3 4 5 6 7

3 2 AIR BAG

Choose the Installation Mode

ECE R129/03	Child's Size	Installation Mode	Installation		Reference Age	Recline Position
	61cm-105cm/ €19kg	Rear facing mode			6 months to approx 4 years	Position 1 -6
	76cm-105cm/ €19kg	Forward facing mode			15 months to approx 4 years	Position 1 -6

Child's Age	Installation Mode	Installation		Smart RideTM lock-off
6-15M	Rear facing mode
>15M	Rear/ Forward facing mode

Installing the Base

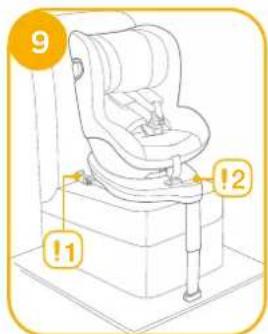

see images 3 - 12

! After placing the base on the vehicle seat, pull the load leg downward to floor. 3

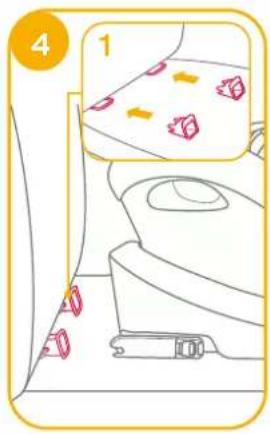

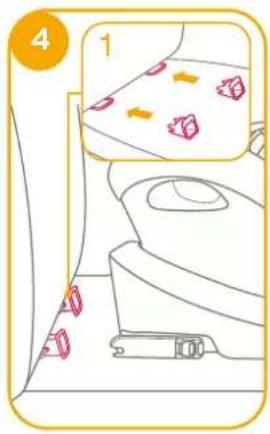

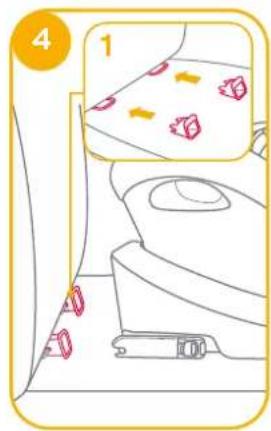

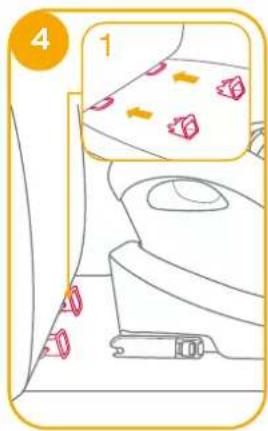

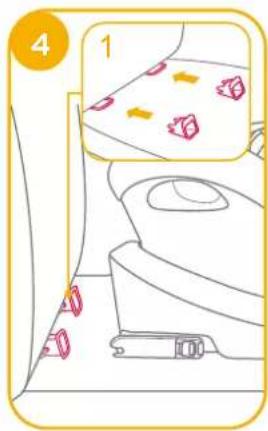

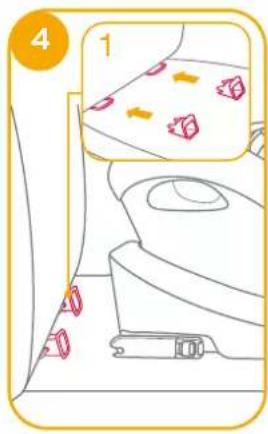

! Insert ISOFIX guides to assist with installation. 4 -1

Illustration of a bicycle leg with legs and feet, showing motion direction (no text or symbols)

4 1

! There are 11 adjustable positions for ISOFIX. Whilst depressing the ISOFIX button 5 -1, pull out the ISOFIX connector. 5 -2
! Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. The colors of the indicators on both ISOFIX connectors should be completely green. 6-1
After successfully installing the ISOFIX connectors, press the ISOFIX adjustment buttons again while pushing the seat back until it comes in contact with the vehicle seat back.
! After attaching the ISOFIX, pull the load leg downward to floor. When the load leg indicator shows green, the load leg is installed correctly.
! Squeeze the load leg releasing button, then adjust the load leg length. 7
! Always make sure the support load leg has direct contact with the floor and is in locked position even when the child is not in it.

5 2 1

6 CLICK 1X ✓

Illustration of a sewing machine needle stitching fabric, with a hand adjusting the part (no text or symbols)

! The load leg has 19 positions. When the load leg indicator shows red this means the load leg is in the wrong position.
! Make sure the load leg is in full contact with the vehicle floor pan. Red means it is installed incorrectly. 8

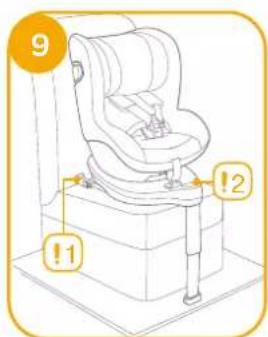

! Check to make sure the base is securely installed by pulling on both ISOFIX connectors.

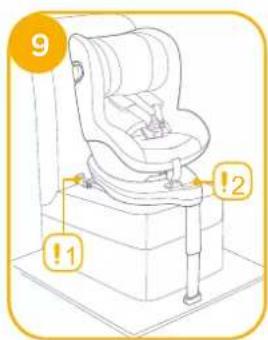

! The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. 9 -1

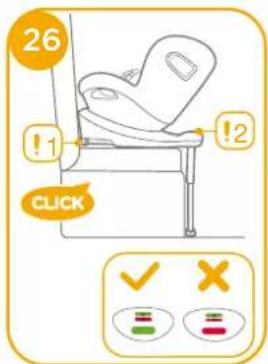

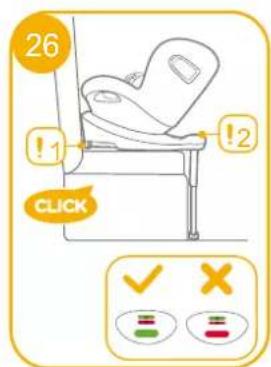

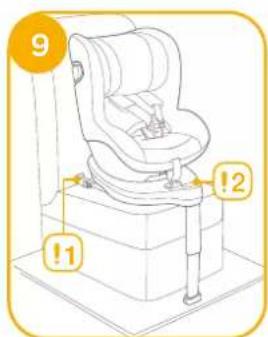

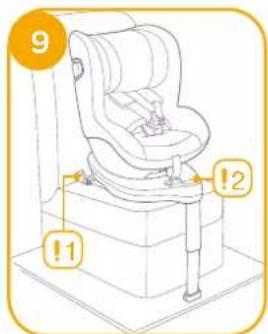

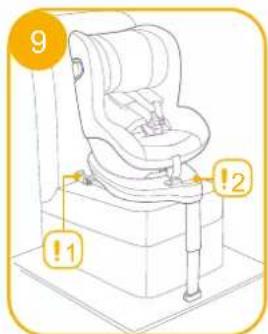

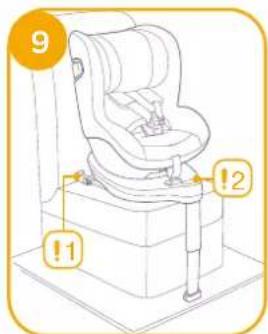

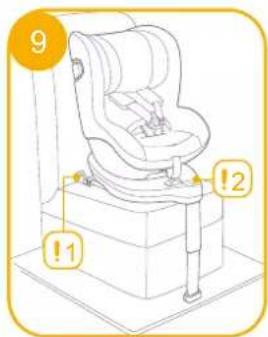

! The load leg must be installed correctly with green indicator. Ⓙ -2

8 ✓ × = = =

9 !1 !2

Removing the base

To remove from the vehicle press the ISOFIX adjuster button 10 -1 and pull the base back from the seat.

Then press and release the connectors from the vehicle's ISOFIX. 11

To prevent damage during transit, press the ISOFIX adjuster button

12 -1 and fold the connector completely. 12 -2

10 2 1

11 2 1

12 2 1

Use Side Impact Shield

see images 13 - 15

! Ensure the side impact protection shield is locked in the open position for maximum side impact safety.
1. Side impact shields are automatically activated when the harness buckle is moved back into position and the harness is tightened, both sides will be opened automatically. 13 -1 13 -2
! IMPORTANT: Please note that unfolding the side impact protection elements does NOT mean that the child is already restrained tight enough.
2. The side impact shield opposite the vehicle door can be closed to allow more seating space, if needed. The side closest to the vehicle exterior should always be in the open position. 14-11-2
3. The side impact can be manually opened as shown on 15.

13 2 1

14 1 2

15 1 2

Recline Adjustment

see images 16 - 17

Squeeze the recline adjustment button 16, to adjust the enhanced child restraint to the proper position. The recline angles are shown as 17

Please recheck the load leg position after reclining.

There are 6 recline positions for rear facing mode and 6 recline positions for forward facing mode.

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with a yellow label indicating number 17 (no text or symbols on the diagram itself)

Height Adjustment for Head Support and Shoulder Harnesses

see images 18 - 20

1. Please adjust the head support and check if the shoulder harnesses are at the correct height according to 18
   When used rear facing, the shoulder harness height must be even with or below the top of child's shoulders. 18
   When used forward facing, the shoulder harness height must be even with the top of child's shoulders. 18
2. Squeeze the head support adjustment lever 19, meanwhile pull up or push down on the head support until it snaps into one of the 6 positions. The head support positions are shown as 20.

Illustration of a person with a red curved line and two seated figures, no text or symbols present

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and backrest, no text or symbols present

Using in the Rear Facing Mode (Child height 61cm-105cm/ Child weight ≤slant 19kg/ 6 months - 4 years old)

see images 21 - 31

! Please install the enhanced child restraint on the rear vehicle seat, and then put the child in the enhanced child restraint.
! Please slide Smart Ride™ lock-off to left when enhanced child restraint used in rearward facing mode.

1. Press the ISOFIX adjuster button -1 and pull the base back from the vehicle seat.

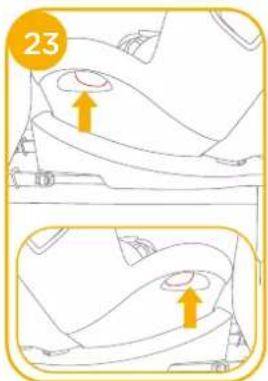

2. Press the rotating button to rotate for easier side loading/unloading of the child, then rotate the seat to the rear facing position. 23824 ! Press the rotating button on either side to rotate the enhanced child restraint. ! Always make sure the seat is in locked position (rearward facing / forward facing) even when the child is not in it.

21

22 1 2

23

1. After successfully installing the ISOFIX connectors, press the ISOFIX adjustment buttons again while pushing the seat back until it comes in contact with the vehicle seat back. Ⓞ -1 Ⓞ -2

! The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. 26-1

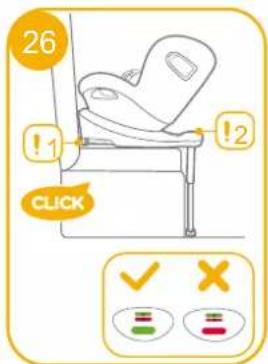

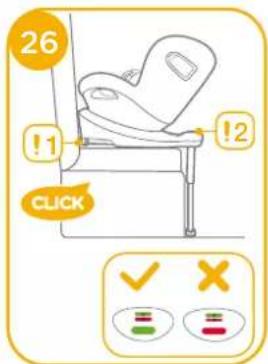

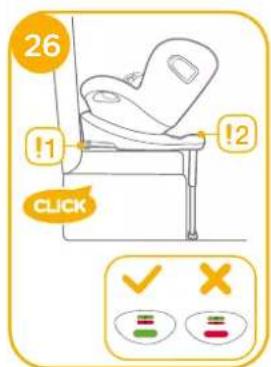

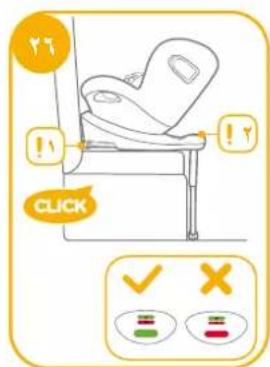

! The load leg must be installed correctly with green indicator. 26 -2

Line drawing of a baby seat with no text or symbols

25 1 2

26 !1 !2 CLICK

Securing Child

1. Press the webbing adjustment button, while pulling out the shoulder harnesses to the desired (Pull from below the fixed shoulder pads to lengthen) length.
2. Unlock the buckle of the harnesses by pressing the red button. 28
3. Fix the buckles on the both sides of the seat shown as 29 which located on the both sides of seat to make placing the child in rear facing mode more convenient.

Line drawing of a baby washing machine with a hand adjusting the button (no text or symbols)

28

29 →

1. Place the child into the enhanced child restraint and pass both arms through the harnesses.
   ! After the child is seated, recheck whether the shoulder harnesses are at the proper height.

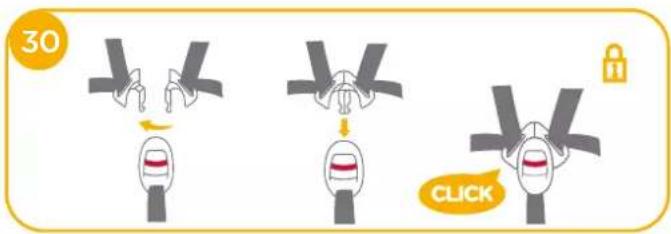

2. Engage the buckle. Please refer to 30

30 CLICK

1. Pull down the adjustment webbing and adjust it to the proper length to make sure your child is properly secured. 31
   ! Always keep child secured in harness and properly tightened by removing any slack.

Illustration of a baby in a baby seat being held, with a hand adjusting the seat (no text or symbols)

Using in the Forward Facing Mode (Child height 76cm-105cm/ Child weight 19kg/ 15 months - 4 years old)

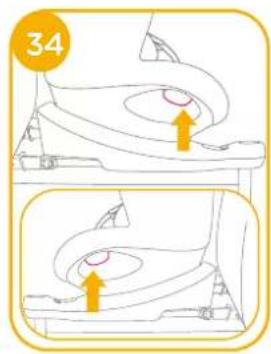

see images 32 - 41

! Please install the enhanced child restraint on the vehicle seat, and then put the child in the enhanced child restraint.
! Please slide Smart Ride™ lock-off to right when enhanced child restraint used in forward facing mode. 32

1. Press the ISOFIX adjuster button 33 -1 and pull the base back from the vehicle seat. 33 -2

32

33 2 1

1. Press the rotating button to rotate for easier side loading/unloading of the child, then rotate the seat to the forward facing position.

! Press the rotating button on either side to rotate the enhanced child restraint.

! Always make sure the seat is in locked position (rearward facing / forward facing) even when the child is not in it.

1. After successfully installing the ISOFIX connectors, press the ISOFIX adjustment buttons again while pushing the seat back until it comes in contact with the vehicle seat back. 36-1 35-2

34

Line drawing of a car seat assembly (no text or symbols)

36 2 1

! The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. 37 -1

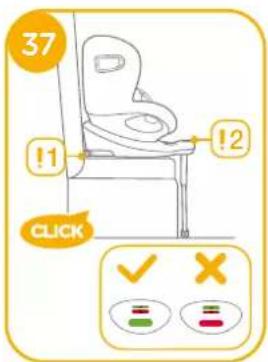

! The load leg must be installed correctly with green indicator. 37 -2

Securing Child

1. Press the webbing adjustment button, while pulling out the shoulder harnesses to the desired (Pull from below the fixed shoulder pads to lengthen) length.
2. Unlock the buckle of the harnesses by pressing the red button. 39

37 !1 !2 CLICK ✓ X = = =

Illustration of a baby car seat with hand placement and directional arrows indicating movement (no text or symbols)

39

1. Fix the buckles on the both sides of the seat shown as 40 which located on the both sides of seat to make placing the child in forward facing mode more convenient.
2. Place the child into the enhanced child restraint and pass both arms through the harnesses. Engage the buckle.

! After the child is seated, recheck whether the shoulder harnesses are at the proper height.
5. Pull down the adjustment webbing and adjust it to the proper length to make sure your child is properly secured. 41
! Always keep child secured in harness and properly tightened by removing any slack.

40

41

Detach Soft Goods

see images 42 - 48

Press the red button to disengage the buckle. 42

Follow steps 43 - 18 to detach soft goods.

To re-attach the soft goods please repeat the above steps in the reverse step.

42

43

44

Illustration of a person's head with arrows indicating motion or movement, no text or symbols present

Illustration of a hand using a seatbelt to lift a passenger seat, showing motion arrows (no text or symbols)

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seat with arms and seatbelt, no text or symbols present

Care and Maintenance

! Please wash the seat cover and inner padding with cold water under 30°C.
! Do not iron the soft goods.
! Do not bleach or dry clean the soft goods.
Do not use undiluted detergents, gasoline or other organic solvent to wash the enhanced child restraint or base. It may cause damage to the enhanced child restraint.
Do not wring out the seat cover and inner padding to dry. It may leave the seat cover and inner padding with wrinkles.
! Please hang dry the seat cover and inner padding in the shade.
! Please remove the enhanced child restraint and base from the vehicle seat if not in use for a long period of time. Put the enhanced child restraint in a cool, dry place where your child cannot access it.
! Do not tamper with the harness connectors during cleaning.

PT

Bem-vindo à Joie™

Simple line drawing of a laptop with an open book and a pointer, set against a solid yellow background (no text or symbols)

Lista de componentes

Labeled diagram of a car seat assembly with numbered parts for identification

Illustration of a car seat with red buttons and a yellow checkmark (no text or symbols)

2

1

3

Line drawing of a car showing the interior and exterior view of the seat (no text or symbols)

2

Illustration of a bicycle seat with legs and suspension rods, showing motion direction (no text or symbols)

4 1

6 CLICK 1X ✓

Illustration of a sewing machine needle stitching fabric, with no text or symbols present

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with a yellow label indicating number 17 (no text or symbols on the diagram itself)

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and seatbelt, no text or symbols present

Line drawing of a car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

Line drawing of a sewing machine with a hand adjusting the base (no text or symbols)

28

Line drawing of a car seat with seatbelt and belt, no text or symbols present

Line drawing of a car seat assembly (no text or symbols)

36 2 1

Illustration of a hand using a switch to adjust the seat area (no text or symbols present)

39

Diagram of a car seat with arrows indicating clockwise motion (no text or symbols)

Illustration of a hand using a seatbelt to lift a passenger seat, showing motion arrows (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

Simple line drawing of a person sitting with an open book, no text or symbols present

Lista de piezas

Labeled diagram of a mechanical device with numbered parts for identification

Illustration of a car seat with a highlighted section and checkmark (no text or symbols)

2 1 1 2 3 4 5 6 7 2 3 4 5 6 7

Line drawing of a car interior showing a seat, driver, and passenger (no text or symbols)

Illustration of a chair with legs and legs supporting feet, showing motion direction (no text or symbols)

4 1

6 CLICK 1X ✓

Illustration of a sewing machine needle stitching fabric, with no text or symbols present

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with a yellow label indicating number 17 (no text or symbols on the diagram itself)

Ajuste de la altura

Illustration of a person with a red band and two seated figures, no text or symbols present

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and backrest (no text or symbols)

Diagram of a car interior showing a highlighted circular area with an upward arrow (no text or symbols)

Line drawing of a baby car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

Asegurar al niño

Line drawing of a sewing machine with a hand adjusting the base (no text or symbols)

28

29 转

Illustration of a baby in a baby seat being held, with a hand adjusting the seat (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

36 2 1

37 !1 !2 CLICK ✓ × = 1 = 2

Illustration of a hand using a switch to adjust the seat (no text or symbols present)

39

Illustration of a person's head with arrows indicating motion or movement, no text or symbols present

Illustration of a person using a seatbelt to lift a car seatbelt, with arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seat with hands placed on top, no text or symbols present

Simple line drawing of a book with a bookmark and a chair, no text or symbols present

Liste des pièces

Labeled diagram of a car seat with numbered parts for identification

Illustration of a car seat with red buttons and a checkmark (no text or symbols)

2 1 1 2 3 4 5 6 7 2 3 4 5 6 7

3 2 AIR BAG

Illustration of a bicycle suspension system with arrows indicating motion (no text or symbols)

4 1

6 CLICK 1 X ✓

Illustration of a sewing machine needle stitching fabric, with a hand adjusting the part (no text or symbols)

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with orange accents, no text or symbols present

Illustration of a person with a red arm and two seated individuals, no text or symbols present

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and backrest, no text or symbols present

Diagram showing two views of a car's seat and wheel assembly with directional arrows (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

Sécuriser l'enfant

Line drawing of a sewing machine with a hand adjusting the base (no text or symbols)

28

Line drawing of a car seat with arrows indicating left and right motion (no text or symbols)

Illustration of a baby in a baby seat being held by a hand, with a numbered label '31' in the corner (no text or symbols on the diagram itself)

Line drawing of a car seat assembly (no text or symbols)

36 2 1

Illustration of a hand adjusting a car seatbelt with arrows indicating force (no text or symbols)

39

Diagram of a car seat with arrows indicating clockwise motion (no text or symbols)

Illustration of a person using a seatbelt to lift a vehicle, showing motion arrows (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seat with hands placed on top, no text or symbols present

Simple line drawing of a book with an open book and a pencil, no text or symbols present

Onderdelenlijst

Technical diagram of a car seat assembly with numbered parts for identification

WAARSCHUWING

Illustration of a car seat with red buttons and a checkmark (no text or symbols)

2 1 1 2 3 4 5 6 7 2 3 4 5 6 7

3 2 AIR BAG

Illustration of a chair with legs and legs supporting feet, showing motion direction (no text or symbols)

4 1

6 CLICK 1 X ✓

Illustration of a sewing machine needle stitching fabric, with a hand adjusting the part (no text or symbols)

8 ✓ × = = =

9 !1 !2

De voet verwijderen

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with a yellow label indicating number 17 (no text or symbols on the diagram itself)

Hoogteafstelling

Illustration of a person with a red arm and two seated figures, no text or symbols present

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and backrest, no text or symbols present

Diagram of a car interior showing a curved surface with an upward arrow indicating motion or force (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

Het kind vastzetten

Line drawing of a sewing machine with a hand operating the base (no text or symbols)

28

29 转

Illustration of a baby in a baby seat being held, with a hand adjusting the seat (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

36 2 1

37 !1 !2 CLICK ✓ × = = =

Illustration of a baby car seatbelt with hand placement and orange warning symbol (no text or symbols)

39

Line drawing of a car seat with two seats and a belt, no text or symbols present

41

Illustration of a person's head with arrows indicating movement or pressure direction (no text or symbols)

Illustration of a hand using a seatbelt to lift a passenger seat, showing motion arrows (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement or force (no text or symbols)

Illustration of a car seat with a highlighted arm and arrow indicating rotation (no text or symbols)

Simple line drawing of a laptop with an open book icon, no text or symbols present

Elenco parti

Technical diagram of a car seat assembly with numbered parts for identification

AVVERTENZA

Illustration of a car seat with a checkmark indicating selection (no text or symbols present)

2 1 1 2 3 4 5 6 7 2 3 4 5 6 7

3 2 AIR BAG

Illustration of a chair with legs and legs supporting a seat, showing motion direction (no text or symbols)

6 CLICK 1X ✓

Illustration of a sewing machine needle stitching fabric, with a hand adjusting the base (no text or symbols)

8 ✓ × = = =

9 !1 !2

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with orange accents, no text or symbols present

Illustration of a person with a red curved line and two seated figures, no text or symbols present

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a pink outline and number 20 in the top-left corner (no text or symbols on the diagram itself)

Line drawing of a baby car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

Line drawing of a sewing machine with a hand adjusting the base (no text or symbols)

28

29 锁

Line drawing of a car seat assembly (no text or symbols)

36 2 1

Illustration of a baby car seat with a hand adjusting the seatbelt (no text or symbols)

39

Illustration of a person's head with arrows indicating motion or movement, no text or symbols present

Illustration of a person using a seatbelt to lift a vehicle, with no text or symbols present.

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seat with hands placed on top, no text or symbols present

Cura e manutenzione

Simple line drawing of a laptop with an open book and a pointer, no text or symbols present.

Teileliste

Illustration of a car seat with a highlighted seat and checkmark (no text or symbols)

2

1 2 3 4 5 6 7 1 2 3 4 5 6 7

3

Side view line drawing of a car showing the front and side views of a seat (no text or symbols)

2

Illustration of a chair with legs and legs bent, showing motion direction (no text or symbols)

4 1

6 CLICK 1X ✓

Illustration of a sewing machine needle stitching fabric, with arrows indicating seam allowance (no text or symbols)

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with a highlighted seat (no text or symbols)

Höheneinstellung

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and backrest (no text or symbols)

Diagram of a car interior with an upward arrow indicating motion or movement (no text or symbols present)

Line drawing of a baby car seat assembly (no text or symbols)

25 1 2

26 !1 !2 click

Kind sichern

Line drawing of a baby washing machine with a hand adjusting the base (no text or symbols)

28

29 转心

1. Pull down the adjustment webbing and adjust it to the proper length to make sure your child is properly secured. 31
   ! Always keep child secured in harness and properly tightened by removing any slack.

Illustration of a baby in a baby seat being lifted by a hand, with a numbered circle highlighting the number 31 (no text or symbols on the diagram itself)

Illustration of a car seat with highlighted movement arrows (no text or symbols)

Line drawing of a baby car seat assembly (no text or symbols)

Illustration of a baby car seatbelt with a hand adjusting the seatbelt (no text or symbols)

39

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seat with a highlighted arm and arrow indicating motion (no text or symbols)

Pflege und Wartung

Simple line drawing of a person reading a book with a pointer and a small 'i' icon, no text or symbols present.

Lista över delar

Angående installation

se bilder 1 - 2

Illustration of a car seat with a red clip and a yellow checkmark (no text or symbols)

2

1

3

Line drawing of a car interior showing the seat, seatbelt, and dashboard (no text or symbols)

2

Illustration of a bicycle leg with motion arrows indicating movement (no text or symbols)

4 1

6 CLICK 1X ✓

Illustration of a sewing machine needle being inserted into a base, with arrows indicating force direction (no text or symbols)

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with a yellow label indicating number 17 (no text or symbols on the diagram itself)

Höjdjustering

Illustration of a person with a red arm and two seated figures, no text or symbols present

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and seatbelt, no text or symbols present

Line drawing of a baby car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

Spänna fast barnet

Line drawing of a sewing machine with a hand adjusting the base (no text or symbols)

28

29 转速

Illustration of a baby in a baby car seat being lifted, with a hand adjusting the seat (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

36 2 1

Illustration of a hand adjusting a car seatbelt with arrows indicating force (no text or symbols)

39

Illustration of a person's seat with arrows indicating movement or pressure direction (no text or symbols)

Illustration of a hand using a seatbelt to lift a passenger seat, showing motion arrows (no text or symbols)

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seat with a highlighted arm and number 48 (no text or symbols on the diagram itself)

Simple line drawing of a person reading a book with a bookmark, against an orange background (no text or symbols)

Technical diagram of a car seat assembly with numbered parts for identification and assembly reference.

ΠΡΟΕΙΔΟΠΟΙΗΣΗ

Illustration of a car seat with a highlighted section and checkmark (no text or symbols)

2

1

3

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

2

Illustration of a chair with legs and legs supporting feet, showing motion direction (no text or symbols)

4 1

6 CLICK 1 X ✓

Illustration of a sewing machine needle stitching fabric, with hands operating the needle (no text or symbols)

8 ✓ × = = =

9 !1 !2

Αφαιρέστε τη βάση

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with a yellow arrow pointing to the seat (no text or symbols)

Illustration of a person with a red bandage and two seated figures (no text or symbols)

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and seatbelt, no text or symbols present

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a car interior with an upward arrow indicating motion or movement (no text or symbols present)

Line drawing of a baby car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

Line drawing of a sewing machine with a hand adjusting the base (no text or symbols)

28

Line drawing of a car seat with belt and straps, no text or symbols present

Line drawing of a car seat assembly (no text or symbols)

36 2 1

Illustration of a baby car seatbelt with a hand adjusting the seat (no text or symbols)

39

Illustration of a person's head with arrows indicating motion or movement, no text or symbols present

Illustration of a hand using a seatbelt to lift a passenger seat, showing motion arrows (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a baby car seat with a highlighted arm and arrow indicating rotation (no text or symbols)

Simple line drawing of a book with an open book and a diagonal line, no text or symbols present.

Wykaz części

Illustration of a car seat with a checkmark indicating selection (no text or symbols present)

2 1 1 2 3 4 5 6 7 2 3 4 5 6 7

3 2 AIR BAG

Wybór trybu montażu

Illustration of a chair with legs and legs supporting feet, showing motion direction (no text or symbols)

4 1

6 CLICK 1 X ✓

Illustration of a sewing machine needle stitching fabric, with a hand adjusting the seam (no text or symbols)

8 ✓ × = = =

9 !1 !2

Odłączanie podstawy

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with orange accents, no text or symbols present

Illustration of a person with a red curved line and two seated figures, no text or symbols present

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and backrest, no text or symbols present

Line drawing of a car's seat with an arrow indicating upward motion (no text or symbols)

Line drawing of a car interior with a highlighted orange arrow indicating a specific area (no text or symbols present)

Line drawing of a car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

Przypinanie dziecka

Illustration of a sewing machine with a hand adjusting the base (no text or symbols)

28

29

Illustration of a foot pressing down on a seat, showing two views with arrows indicating movement (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

36 2 1

37 !1 !2 CLICK ✓ × = = =

Illustration of a baby car seatbelt with a hand adjusting the seat (no text or symbols)

39

Line drawing of a car seat with two seats and a belt, no text or symbols present

41

Illustration of a person's head with arrows indicating motion or movement, no text or symbols present

Illustration of a hand using a seatbelt to lift a car seatbelt, showing motion arrows (no text or symbols)

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seat with a highlighted seatbelt and arrow indicating rotation (no text or symbols)

Simple line drawing of a person holding an open book with a diagonal line extending from the right (no text or symbols)

Zoznam dielov

Labeled diagram of a mechanical device with numbered parts for identification

Illustration of a car seat with red buttons and a checkmark (no text or symbols)

2 1 1 2 3 4 5 6 7 2 3 4 5 6 7

3 2 AIR BAG

Illustration of a person sitting on a chair with legs and legs elevated, showing motion direction (no text or symbols)

4 1

6 CLICK 1 X ✓

Illustration of a sewing machine needle stitching fabric, with no text or symbols present

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with a yellow arrow pointing to the seat (no text or symbols)

Nastavenie výšky

Illustration of a person with a red belt and two seated figures, no text or symbols present

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and seatbelt, no text or symbols present

Diagram showing two views of a car's side profile with orange arrows indicating motion or movement (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

Zaistenie dietata

Line drawing of a baby car seat with hand and arrow indicating movement (no text or symbols)

28

Line drawing of a car seat with arrows indicating clockwise motion (no text or symbols)

Illustration of a baby being held in a baby seat, with a hand adjusting the seat (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

36 2 1

Illustration of a hand adjusting a car seatbelt with arrows indicating force (no text or symbols)

39

Illustration of a hand using a seatbelt to lift a car seatbelt, showing motion arrows (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a baby car seat with a highlighted section and number 48 (no text or symbols on the diagram itself)

Simple line drawing of a laptop with an open book icon, no text or symbols present

Seznam dílů

Labeled diagram of a mechanical device with numbered parts for identification

Illustration of a car seat with a highlighted section and checkmark (no text or symbols)

2 1 1 2 3 4 5 6 7 2 3 4 5 6 7

3 2 AIR BAG

Illustration of a chair with legs and legs supporting feet, showing motion direction (no text or symbols)

4 1

6 CLICK 1 X ✓

Illustration of a sewing machine needle stitching fabric, with no text or symbols present

8 ✓ × = = =

9 !1 !2

Vyjmutí základny

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with orange accents, no text or symbols present

Illustration of a person with a red band and two seated figures, no text or symbols present

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and backrest, no text or symbols present

Diagram showing two views of a car's side profile with arrows indicating motion or movement (no text or symbols)

Line drawing of a baby seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK ✓ X

Zajištění dítěte

Line drawing of a sewing machine with a hand adjusting the base (no text or symbols)

28

29 锁

Illustration of a baby in a baby seat being held, with a hand adjusting the seat (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

36 2 1

Line drawing of a baby car seatbelt with hand adjusting seatbelt (no text or symbols)

39

Line drawing of a car seat with two seats and a belt, no text or symbols present

41

42

43

44

Diagram of a car seat with arrows indicating clockwise motion (no text or symbols)

Illustration of a hand using a seatbelt to lift a passenger seat, showing motion arrows (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seat with a highlighted seatbelt and arrow indicating rotation (no text or symbols)

Péče a údržba

Simple line drawing of a person holding an open book, no text or symbols present

Parça Listesi

Illustration of a car seat with a highlighted section and checkmark (no text or symbols)

2 1 1 2 3 4 5 6 7 2 3 4 5 6 7

3 2 AIR BAG

Montaj Modunu Seçin

Illustration of a chair with legs and legs supporting a seat, showing motion direction (no text or symbols)

4 1

6 CLICK 1 X ✓

Illustration of a sewing machine needle stitching fabric, with no text or symbols present

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with orange accents, no text or symbols present

Yükseklik Ayarı

Illustration of a person with a red bandage and two seated figures (no text or symbols)

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and seatbelt, no text or symbols present

Arkaya Dönük Modda Kullanma

Diagram showing two views of a car's side profile with orange arrows indicating motion or movement (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK ✓ X = = = =

Çocuğu Sabitleme

Line drawing of a baby washing machine with a hand adjusting the button (no text or symbols)

28

29 转

Illustration of a baby in a baby seat being held, with a hand adjusting the seat (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

36 1 2

Illustration of a baby car seat with a hand adjusting the seat (no text or symbols)

39

Diagram of a car seat with arrows indicating clockwise motion (no text or symbols)

Illustration of a person using a seatbelt to lift a car seatbelt, with arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seat with hands placed on top, no text or symbols present

Bakım ve Koruma

Simple line drawing of a book and a chair with a bookmark, no text or symbols present

Комплектность

Labeled diagram of a mechanical device with numbered parts for identification

C1801C/C1801F/C1801L (i-Spin 360 E)

Illustration of a car seat with a checkmark indicating selection (no text or symbols present)

2 1 1 2 3 4 5 6 7 2 3 4 5 6 7

3 2 AIR BAG

Illustration of a bicycle suspension system with arrows indicating motion (no text or symbols)

4 1

6 CLICK 1 X ✓

Illustration of a sewing machine needle stitching fabric, with no text or symbols present

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with a yellow label indicating number 17 (no text or symbols on the diagram itself)

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and backrest, no text or symbols present

Diagram of a car interior showing a highlighted seat area with an upward arrow (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK ✓ × = = =

Фиксация ребенка

Line drawing of a sewing machine with a hand adjusting the base (no text or symbols)

28

29 转速

Line drawing of a car seat assembly (no text or symbols)

36 2 1

Illustration of a baby car seat with hand placement and orange arrows indicating movement (no text or symbols)

39

Diagram of a car's seat and dashboard with directional arrows indicating movement (no text or symbols)

Illustration of a person using a seatbelt to lift a vehicle, showing motion arrows (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seat with hands placed on top, no text or symbols present

Simple line drawing of a laptop with an open book and a pointer, set against a solid orange background (no text or symbols)

Liste over dele

Kontroller, at der ikke mangler nogen dele. Kontakt venligst din forhandler, hvis noget mangler.

Illustration of a car seat with a highlighted section and checkmark (no text or symbols)

2 1 1 1 2 3 4 5 6 7 2 3 4 5 6 7

3 2 AIR BAG

Illustration of a person sitting on a chair with legs and legs bent, showing motion indicated by an arrow (no text or symbols)

4 1

Illustration of a sewing machine needle stitching fabric, with no text or symbols present

8 ✓ × = = =

9 !1 !2

Fjernelse af bunden

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with a yellow label indicating number 17 (no text or symbols on the diagram itself)

Illustration of a person with a red arm and two seated individuals, no text or symbols present

19 ↑ 2 ↑ 1

Line drawing of a chair with a pink outline and a circular badge showing number 20 (no text or symbols on the diagram itself)

Line drawing of a car's seat with an arrow indicating upward motion (no text or symbols)

Line drawing of a car interior with an arrow indicating direction (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

Line drawing of a sewing machine with a hand operating the base (no text or symbols)

28

29 转

Illustration of a baby in a baby seat being held, with a hand adjusting the seat (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

36 2 1

37 !1 !2 CLICK ✓ X = = =

Illustration of a hand using a belt switch to adjust the seat (no text or symbols present)

39

Illustration of a person's head with arrows indicating movement or pressure direction (no text or symbols)

Illustration of a hand using a seatbelt to lift a passenger seat, showing motion arrows (no text or symbols)

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seat with a highlighted arm and arrow indicating rotation (no text or symbols)

1 T 1 S 1 S 1 Y 1 Y 1 A

Labeled diagram of a mechanical device with numbered parts for identification

Simple line drawing of a book and a chair on orange background (no text or symbols)

Illustration of a car seat with red buttons and a yellow checkmark (no text or symbols)

Illustration showing two car seats with numbered circles and symbols, likely for counting or basic arithmetic exercises.

Line drawing of a car interior showing a passenger seat and passenger seat, with no text or symbols present.

الطوارئ

Illustration of a person sitting on a chair with legs and legs bent, showing motion direction (no text or symbols)

1

Illustration showing a person standing on a bench with checkmarks and crosses indicating selection or confirmation steps.

Diagram of a car seat assembly with numbered labels indicating parts of the seat.

Diagram showing a hand pressing down a seat with labeled parts and directional arrows indicating movement or positioning.

7 CLICK 1X ✓

Illustration of a baby car seat with a pink tag and yellow motion arrows indicating movement (no text or symbols)

Illustration of a hand pressing down on a car seat with motion arrows indicating movement (no text or symbols)

Illustration of a hand pressing down on a chair with directional arrows indicating motion (no text or symbols)

Illustration of a baby seat with arrows indicating movement or force (no text or symbols)

Simple line drawing of a toilet with a door and seat, no text or symbols present

Diagram showing a hand pressing down a seatbelt with directional arrows indicating movement or force, labeled with '12' in yellow circle.

إزالة NCAA

Illustration of a person with a red arm and two seated figures, no text or symbols present

19 ↑ ↑ ↑

Simple line drawing of a chair with a seat and backrest, no text or symbols present

۲. - ۳. راجع الصور

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with a yellow arrow pointing to the seat (no text or symbols)

ضبط الانحناء

١٢ - ٣٦ راجع الصور

Line drawing of a baby car seat with no text or symbols

70

Y Y ! ! CLICK

Diagram showing a medical procedure with a labeled arrow and a circular icon containing the number 11.

٢١ - ٢١ راجع الصور

Illustration of a person's seat with arrows indicating movement or force (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a baby in a baby seat being assisted by a hand, with a downward arrow indicating the motion (no text or symbols present)

Illustration of a hand using a sewing machine to adjust the seat (no text or symbols visible)

Illustration showing a hand holding a medical device with an arrow indicating downward motion and a lock icon, suggesting a medical or diagnostic step.

49 转盘

تامين الطفل

Illustration of a medical procedure showing two steps of a procedure with arrows indicating movement (no text or symbols present)

Line drawing of a baby car seat with no text or symbols

Simple line drawing of a funnel with an arrow pointing to a small object inside (no text or symbols)

راجع الصور

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration showing a child in a seatbelt with a hand adjusting the seatbelt, accompanied by a downward arrow indicating pressure or reduction.

Illustration showing a hand holding a small object with arrows indicating process steps: up/down and lock.

٢٠ - ٣١ رراجع الصور

Illustration showing a hand holding a padlock with a downward arrow and lock icon, indicating a step in a procedure.

العينية والصيانة

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

Illustration of a hand pressing down on a seatbelt, showing motion arrows (no text or symbols)

Illustration of a baby seat with a hand placed on the seat, showing a rotation arrow (no text or symbols)

Illustration of a hand placing a yellow object into a purple rectangular area on a curved surface (no text or symbols)

Diagram of a person's seat with arrows indicating rotation or movement (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating motion (no text or symbols)

Üdvözli a Joie™

Simple line drawing of a laptop with an open book and a pointer, no text or symbols present

Alkatrészek listája

Technical diagram of a car seat assembly with numbered parts for identification

FIGYELMEZTETÉS

Illustration of a car seat with a checkmark indicating selection (no text or symbols present)

2 1 1 2 3 4 5 6 7 2 3 4 5 6 7

3

Line drawing of a car interior showing a seat and passenger seat (no text or symbols)

2

Illustration of a chair with legs and legs bent, showing motion direction (no text or symbols)

4 1

6 CLICK 1 X ✓

Illustration of a sewing machine needle stitching fabric, with a hand operating the needle (no text or symbols)

8 ✓ × = = =

9 !1 !2

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with orange accents, no text or symbols present

Illustration of a person wearing a red bandage and two seated individuals (no text or symbols)

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and backrest, no text or symbols present

Diagram showing two views of a car's seat with orange arrows indicating points of interest (no text or symbols present)

Line drawing of a car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

A gyermek rögzítése

Line drawing of a sewing machine with hands operating the base (no text or symbols)

28

29

Illustration of a foot pressing down on a seat, showing two views with arrows indicating movement (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

36 2 1

37 !1 !2 CLICK ✓ × = 1 = 2

Illustration of a baby car seat with hand and arrow indicating adjustment (no text or symbols)

39

Line drawing of a car seat with arrows indicating movement or change (no text or symbols)

41

Diagram of a car seat with arrows indicating clockwise motion (no text or symbols)

Illustration of a car seatbelt with a hand adjusting the seat (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement or force (no text or symbols)

Illustration of a car seat with arms crossed, no text or symbols present

Simple line drawing of a chair with an open book and a diagonal line, no text or symbols present.

Osade loend

Technical diagram of a car seat assembly with numbered parts for identification

HOIATUSED

Interior view of a car seat with a checkmark indicating selection (no text or symbols on the seats)

2 1 1 2 3 4 5 6 7 2 3 4 5 6 7

Line drawing of a car interior showing a passenger seat and driver seat (no text or symbols)

Illustration of a chair with legs and legs bent, showing motion direction (no text or symbols)

4 1

6 CLICK 1 X ✓

Illustration of a sewing machine needle stitching fabric, with no text or symbols present

Illustration of a hand pressing down on a seatbelt with an orange arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with orange accents, no text or symbols present

Illustration of a person with a red bandage and two seated figures (no text or symbols)

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and backrest, no text or symbols present

Diagram showing two views of a car's seat with orange arrows indicating direction (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

Lapse turvaline kinnitamine

Line drawing of a sewing machine with hands operating the base (no text or symbols)

28

29

Illustration of a baby in a baby car seat being lifted, with a hand adjusting the seat (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

36 2 1

37 !1 !2 CLICK ✓ × = = =

Illustration of a baby car seat with a hand adjusting the seat (no text or symbols)

39

Line drawing of a car seat with arrows indicating motion direction (no text or symbols)

41

Pehmete katete eemaldamine

Diagram of a car seat with arrows indicating clockwise motion (no text or symbols)

Illustration of a person using a seatbelt to lift a vehicle, showing motion arrows (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seat with a highlighted arm and arrow indicating rotation (no text or symbols)

Simple line drawing of a person reading a book with a bookmark, no text or symbols present

Osaluettelo

Technical diagram of a car seat assembly with numbered parts for identification

VAROITUS

Illustration of a car seat with a checkmark indicating selection (no text or symbols present)

2 1 1 2 3 4 5 6 7 2 3 4 5 6 7

3 2 AIR BAG

Valitse asennustila

Illustration of a chair with legs and legs bent, showing motion direction (no text or symbols)

4 1

6 CLICK 1 X ✓

Illustration of a sewing machine needle stitching fabric, with no text or symbols present

8 ✓ × = = =

9 !1 !2

Telakan irrotus

Line drawing of a baby car seat with orange accents, no text or symbols present

Illustration of a person with a red arm and two seated figures, no text or symbols present

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and backrest, no text or symbols present

Diagram showing two views of a car's head and side, with arrows indicating direction of motion or movement (no text or symbols present)

Line drawing of a car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

Line drawing of a sewing machine with hands operating the base (no text or symbols)

28

29

Line drawing of a mechanical component with no visible text or symbols

36 2 1

37 !1 !2 CLICK ✓ × = = =

Illustration of a hand adjusting a car seatbelt with a lightning bolt (no text or symbols)

39

Diagram of a car seat with arrows indicating clockwise motion (no text or symbols)

Illustration of a person using a seatbelt to lift a vehicle (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seat with a highlighted arm and arrow indicating rotation (no text or symbols)

Hoito ja huolto

Simple line drawing of a chair with an open book and a diagonal line, no text or symbols present.

Dalių sąrašas

Technical diagram of a car seat assembly with numbered parts for identification

ISPÈJIMAS

Interior view of a car seat with a checkmark indicating selection (no text or symbols on the seats)

2 1 1 2 3 4 5 6 7 2 3 4 5 6 7

3

Line drawing of a car showing interior seating and seat layout (no text or symbols)

2

Illustration of a person sitting on a chair with legs and legs bent, showing motion indicated by an orange arrow (no text or symbols)

4 1

6 CLICK 1 X ✓

Illustration of a sewing machine needle stitching fabric, with a hand operating the needle (no text or symbols)

8 ✓ × = = =

9 !1 !2

Pagrindo nuémimas

Illustration of a hand pressing down on a seatbelt (no text or symbols)

Line drawing of a baby car seat with orange accents, no text or symbols present

Illustration of a person with a red arm and two seated individuals, no text or symbols present

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and seatbelt, no text or symbols present

Diagram showing two views of a car's seat and wheel assembly with orange arrows indicating features (no text or symbols)

Line drawing of a baby car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

Vaiko sodinimas

Line drawing of a baby washing machine with hands operating the button (no text or symbols)

28

Illustration of a car seatbelt with arrows indicating side arm movement (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

36 2 1

Illustration of a hand adjusting a car seatbelt device (no text or symbols visible)

39

Diagram of a car interior with arrows indicating motion or movement, no text or symbols present

Illustration of a hand using a seatbelt to lift a car seatbelt, showing motion arrows (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a car seat with hands placed on the seat, no text or symbols present

Simple line drawing of a person holding an open book, no text or symbols present

Detalu saraksts

Technical diagram of a car seat assembly with numbered parts for identification

BRĪDINĀJUMS

Illustration of a car seat with red buttons and a checkmark (no text or symbols)

2

1

3

Side-view line drawing of a car with passenger seat and driver seat (no text or symbols)

2

Illustration of a chair with legs and legs bent, showing motion direction (no text or symbols)

4 1

6 CLICK 1 X ✓

Illustration of a sewing machine needle stitching fabric, with no text or symbols present

Illustration of a hand pressing down on a seatbelt with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby car seat with orange accents, no text or symbols present

Illustration of a person with a red arm and two seated figures, no text or symbols present

19 ↑ 2 ↑ 1

Simple line drawing of a chair with a seat and seatbelt, no text or symbols present

Diagram showing two views of a car's seat with orange arrows indicating direction (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

25 1 2

26 !1 !2 CLICK

Line drawing of a baby washing machine with hands operating the button (no text or symbols)

28

29

Illustration of a car seat with highlighted areas and arrows indicating movement (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

36 2 1

Illustration of a baby car seat with a hand adjusting the seatbelt (no text or symbols)

39

Diagram of a car seat with arrows indicating clockwise motion (no text or symbols)

Illustration of a car seatbelt with a hand adjusting the seat (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a baby car seat with a highlighted arm and arrow indicating rotation (no text or symbols)

Kopšana un apkope

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V. Van der Valk Boumanweg 178 C, 2352 JD Leiderdorp, The Netherlands
