USER MANUAL RBC430SES RYOBI

NL MAAIMACHINE BOSMAAIER

GEBRUIKERSHANDLEIDING It is essential that you read the instructions in this manual before assembling, maintaining and operating this machine. Subject to technical modifications.

Avertissement:

To reduce the risk of injury, the user must read and understand the operator’s manual before using this product. Your string trimmer has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance. Warnung: Lame Triarc 8" (200mm) Lame Triarc 8" (200mm) English (original instructions)

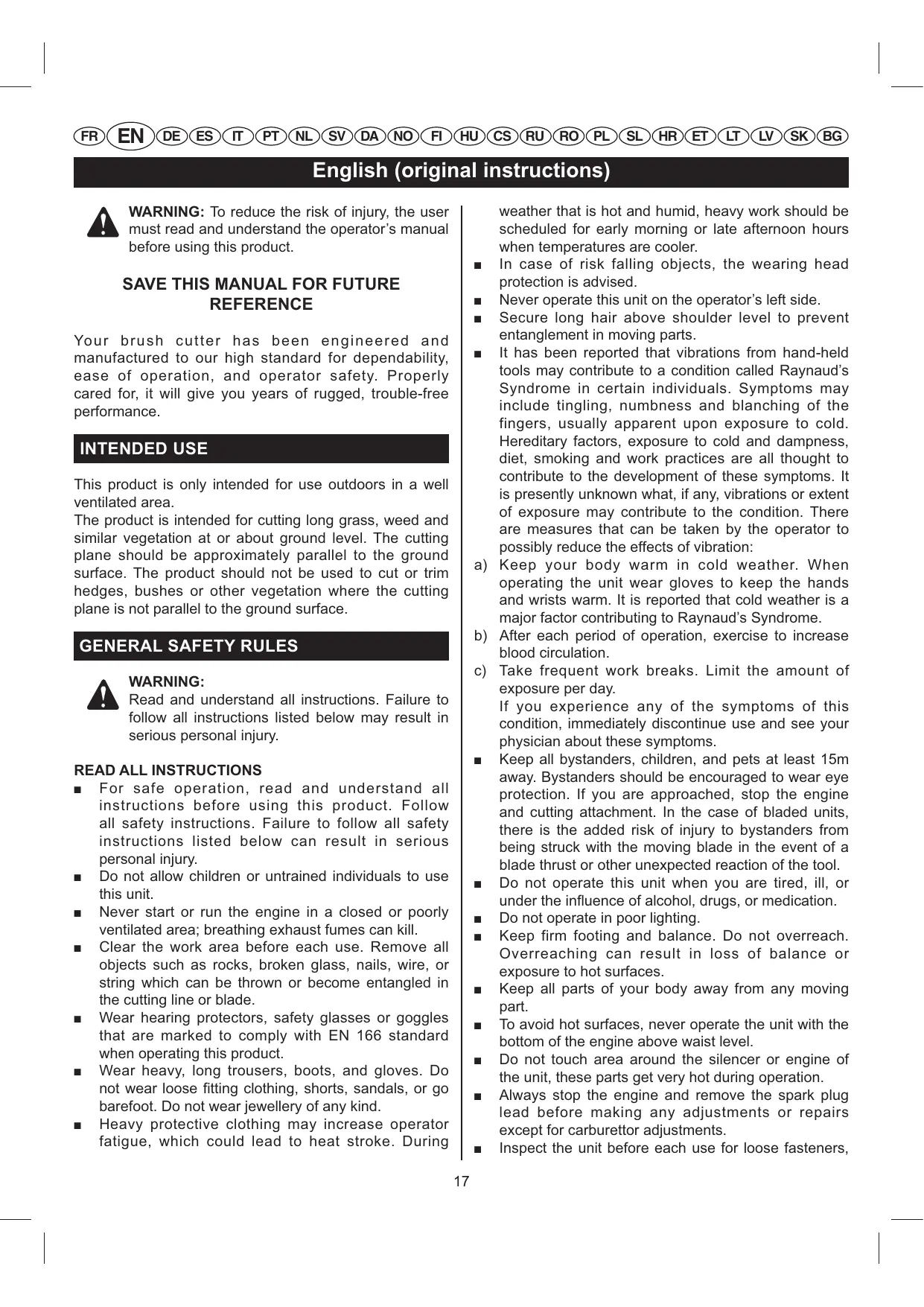

WARNING: To reduce the risk of injury, the user

must read and understand the operator’s manual before using this product.

SAVE THIS MANUAL FOR FUTURE

Yo u r b r u s h c u t t e r h a s b e e n e n g i n e e r e d a n d manufactured to our high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.

INTENDED USE This product is only intended for use outdoors in a well ventilated area. The product is intended for cutting long grass, weed and similar vegetation at or about ground level. The cutting plane should be approximately parallel to the ground surface. The product should not be used to cut or trim hedges, bushes or other vegetation where the cutting plane is not parallel to the ground surface.

WARNING:

Read and understand all instructions. Failure to follow all instructions listed below may result in serious personal injury.

READ ALL INSTRUCTIONS

Q For safe operation, read and understand all instructions before using this product. Follow all safety instructions. Failure to follow all safety instructions listed below can result in serious personal injury. Q Do not allow children or untrained individuals to use this unit. Q Never start or run the engine in a closed or poorly ventilated area; breathing exhaust fumes can kill. Q Clear the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string which can be thrown or become entangled in the cutting line or blade. Q Wear hearing protectors, safety glasses or goggles that are marked to comply with EN 166 standard when operating this product. Q Wear heavy, long trousers, boots, and gloves. Do not wear loose fitting clothing, shorts, sandals, or go barefoot. Do not wear jewellery of any kind. Q Heavy protective clothing may increase operator fatigue, which could lead to heat stroke. During

weather that is hot and humid, heavy work should be scheduled for early morning or late afternoon hours when temperatures are cooler. In case of risk falling objects, the wearing head protection is advised. Never operate this unit on the operator’s left side. Secure long hair above shoulder level to prevent entanglement in moving parts. It has been reported that vibrations from hand-held tools may contribute to a condition called Raynaud’s Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. It is presently unknown what, if any, vibrations or extent of exposure may contribute to the condition. There are measures that can be taken by the operator to possibly reduce the effects of vibration: Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud’s Syndrome. After each period of operation, exercise to increase blood circulation. Take frequent work breaks. Limit the amount of exposure per day. If you experience any of the symptoms of this condition, immediately discontinue use and see your physician about these symptoms. Keep all bystanders, children, and pets at least 15m away. Bystanders should be encouraged to wear eye protection. If you are approached, stop the engine and cutting attachment. In the case of bladed units, there is the added risk of injury to bystanders from being struck with the moving blade in the event of a blade thrust or other unexpected reaction of the tool. Do not operate this unit when you are tired, ill, or under the influence of alcohol, drugs, or medication. Do not operate in poor lighting. Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance or exposure to hot surfaces. Keep all parts of your body away from any moving part. To avoid hot surfaces, never operate the unit with the bottom of the engine above waist level. Do not touch area around the silencer or engine of the unit, these parts get very hot during operation. Always stop the engine and remove the spark plug lead before making any adjustments or repairs except for carburettor adjustments. Inspect the unit before each use for loose fasteners,

English (original instructions)

fuel leaks, etc. Replace any damaged parts before use. The cutting attachment should never rotate at idle during normal use. The cutting attachment may rotate at idle during carburettor adjustments. Store fuel in a container approved for petrol. Wipe up any fuel spillage. Move 10m away from refuelling site before starting the engine. Slowly remove the fuel cap after stopping engine. DO NOT SMOKE when refuelling. Stop the engine and allow it to cool before refuelling or storing the unit. Allow the engine to cool; empty the fuel tank and secure the unit from moving before transporting in a vehicle. Wear protective equipment and observe all safety instructions. For units equipped with a clutch, be sure the cutting attachment stops turning when the engine idles. When the unit is turned off make sure the cutting attachment has stopped before the unit is set down. This product is intended for infrequent use by homeowners and other occasional users for such general applications as trimming light and heavy vegetation, etc. It is not intended for prolonged use. Prolonged periods of operation can cause circulatory problems in the user’s hands due to vibration. For such use, it may be appropriate to use a device having an anti-vibration feature.

After engine stops, keep rotating blade in heavy grass or pulpy weeds until it stops. Do not operate the brush cutter unless the blade guard is firmly secured in place and in good condition. Use heavy gloves while installing or removing blades. Always stop the engine and remove the spark plug wire before attempting to remove any obstruction caught or jammed in the blade or before removing and installing the blade. Do not attempt to touch or stop the blade when it is rotating. A coasting blade can cause injury while it continues to spin after the engine is stopped or throttle trigger released. Maintain proper control until the blade has completely stopped rotating. Replace any blade that has been damaged. Always make sure blade is installed correctly and securely fastened before each use. Use only the manufacturer’s replacement TRI-ARC blade intended for use on this brush cutter. Do not use any other blade.

The TRI-ARC blade is suited for cutting pulpy weeds and vines only. Do not use for any other purpose. Never use the TRI-ARC blade to cut woody brushes. Exercise extreme caution when using the blade with this unit. Blade thrust is the reaction that may occur when the spinning blade contacts anything it cannot cut. This contact may cause the blade to stop for an instant, and suddenly “thrust” the unit away from the object that was hit. This reaction can be violent enough to cause the operator to lose control of the unit. Kick back can occur without warning if the blade snags, stalls, or binds. This is more likely to occur in areas where it is difficult to see the material being cut. For cutting ease and safety, approach the weeds being cut from the right to the left. In the event an unexpected object or woody stock is encountered, this could minimize the blade kick back reaction. Never cut any material over 13mm diameter. Always wear the shoulder strap when using the brush cutter and adjust to a comfortable operating position. Maintain a firm grip on both handles while cutting with a blade. Keep the blade away from body and below waist. Never use the brush cutter with the blade located 75cm or more above the ground level. Cover the blade with the blade protector before storing the unit, or during transportation. Always remove the blade protector before using the unit. If not removed, the blade protector could become a thrown object as the blade begins to turn. thrown object as the blade begins to turn. Inspect before use. Replace damaged parts. Make sure fasteners are in place and secure. Check for fuel leaks. Replace cutting blade if cracked, chipped, or damaged in any way. Be sure the blade is properly installed and securely fastened. Failure to do so can cause serious injury. Make sure all guards, straps, deflectors, and handles are properly and securely attached. Use only the manufacturer’s replacement cutting blade. Do not use any other cutting attachment. To install any other brand or cutting head to this brush cutter can result in serious personal injury. Never use, for example, wire or wire-rope, which can break off and become a dangerous projectile. Never operate the unit without the guard in place and in good condition. Always shut the engine off before fuelling. Never add fuel to a machine with a running or hot engine. Move at least 10m from the refuelling site before starting engine. Wipe up any fuel spillage. DO NOT SMOKE. Failure to heed this warning could result in serious personal injury.

English (original instructions) SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME EXPLANATION Safety Alert Precautions that involve your safety. To reduce the risk of injury, user must read and understand operator’s manual before using this product. Wear Eye, Head and Hearing Protection Wear eye protection which is marked to comply with EN 166 as well as head, hearing protection when operating this equipment.. Keep all bystanders at least 15m away. Ricochet Thrown objects can ricochet and result in personal injury or property damage. No Blade Do not install or use any type of blade on a product displaying this symbol. Tri-Arc blade Tri-Arc blade is appropriate for this unit and is suited for cutting pulpy weeds and vines. Do not use toothed blade This unit is not intended for use with a toothed saw type blade. RPM Decal Rotational direction and maximum speed of the shaft for the cutting attachment. Boots Wear non-slip safety footwear when using this equipment. Gloves Wear non-slip, heavy-duty gloves. No Smoking Do not smoke when filling fuel tank. Petrol Use unleaded petrol intended for motor vehicle use with an octane rating of 91([R+M]/2) or higher. Lubricant Use 4-stroke lubricant for air cooled engines. Switch On/Off Switch I = On to Run O = OFF to Stop Conforms to all regulatory standards in the country in the EU where the product is purchased. Run position.

English (original instructions) Start/Choke position.

Do not press triggers.

Place the engine switch to the “I” position

SET start lever to the “START” position Pull the starter rope until the engine attempts to start Set the start lever back to the RUN position. NOTE: If the engine stops, set the start lever to the RUN position and pull the starter grip until engine starts Squeeze throttle trigger to run To stop the unit: Place the engine switch to the “O” position The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING

DANGER:

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING:

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in property damage. SERVICE Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest AUTHORISED SERVICE CENTER for repair. When servicing, use only identical replacement parts.

WARNING:

To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the operator’s manual. If you do not understand the warnings and instructions in the operator’s manual, do not use this product. Call Ryobi customer service for assistance.

English (original instructions)

WARNING:

The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and, when needed, a full face shield. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is marked to comply with EN 166. Figure 3

27. Hole on the attachment hanger to fit lock button of

28. Hole on lower attachment

29. Attachment hanger

30. Screw

31. Clamp

32. Gear case assembly

33. Mounting bracket

34. Holding pin tool

35. Stamping, wrench, combination

36. Reel easy string head

37. Bolt

SAVE THESE INSTRUCTIONS

INTRODUCTION This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate. Figure 10

38. Trimmer line cut-off blade

39. Start position

40. Run position

1. Shoulder strap

2. Tri-arc Blade

3. Drive shaft

4. Coupler

5. Strap hanger

6. Ignition switch

7. Trigger lock

8. Rear handle

9. Primer bulb

10. Fuel cap

11. Recoil starter

12. Throttle trigger

13. Latch

14. Foam tube

15. Front handle

16. Wing knob

17. Blade deflector

18. Choke lever

19. Grass deflector

20. Cutting line

21. Reel easyTM string head

22.Pro cut ‚TM string head Figure 18

41. Tri-arc Blade protector

42. Idle speed screw

43. Filter screen

44. Air filter cover

45. Oil cap/dipstick

46. Hatched area

47. Oil fill hole

48. Funnel

49. Drive shaft

50. Retainer

51. Top cover

52. Screw

53. Spark play

23. Lock button

24. Guide recess

25. Power head (upper) shaft

26. Position hole

54. Cover

55. Latches

56. Bump/Feed knob

English (original instructions)

57. Hex bolt

58. Spool

59. Spring

60. Line trimmer head

61. Latch opening

34.Stamping, wrench, combination

35. Retainer

36. Nut

37. Trimmer line cut-off blade

62. Lines

63. Lines hole

38. Start position

39. Run position

1. Shoulder strap

2. Tri-arc Blade

3. Drive shaft

4. Coupler

5. Strap hanger

6. Ignition switch

7. Trigger lock

8. Left handle

9. Primer bulb

10. Fuel cap

11. Recoil starter

12. Throttle trigger

13. Latch

14. Right handle

15. Wing knob

16. Blade deflector

17. Choke lever

18. Grass deflector

19. Cutting line

20. Reel easyTM string head

20b.Pro cut ‚TM string head Figure 17

40. Tri-arc Blade protector

41. Idle speed screw

42. Filter screen

43. Air filter cover

44. Oil cap/dipstick

45. Hatched area

46. Oil fill hole

47. Funnel

48. Drive shaft

49. Cover

50. Latches

51. Bump / Feed knob

52. Hex bolt

53. Spool

54. Spring

55. Line Trimmer head

56. Latch opening

21. Lock button

22. Guide recess

23. Power head (upper) shaft

24. Position hole

57. Top cover

58. Screw

59. Spark plug

25. Hole on the attachment hanger to fit lock button of

26. Attachment hanger

27. Hole on lower attachment

60. Line slot

61. Line hole

28. Clamp

29. Screw

30. Mounting bracket

31. Gear case assembly

32. Holding pin tool

33. Mounting bracket

ASSEMBLY UNPACKING This product requires assembly. Q Carefully remove the tool and any accessories from

English (original instructions) the box. Make sure that all items listed in the packing list are included. Q Inspect the tool carefully to make sure no breakage or damage occurred during shipping. Q Do not discard the packing material until you have carefully inspected and satisfactorily operated the tool. Q If any parts are damaged or missing do not operate this product until the parts are replaced. operating equipment; check it periodically for tightness during use to avoid serious personal injury.

REMOVING THE ATTACHMENT FROM THE POWER

HEAD For removing or changing the attachment: Q Loosen the knob. Q Push in the button and twist the shafts to remove and separate ends.

ATTACHING THE HANGER CAP

See Figure 3. There are two ways to hang your attachment for storage. Q To use the hanger cap, push in the button and place the hanger cap over end of the lower end attachment shaft. Slightly rotate the cap from side to side until the button locks into place. Q The secondary hole in the attachment shaft can be used for hanging purposes as well.

WARNING:

If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to heed this warning could result in serious personal injury.

WARNING:

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

ATTACHING THE FRONT HANDLE

See Figure 4. RBC430SES Q Install the front handle onto the top side of the drive shaft boom with the barrier bar on the same side as the recoil starter (compare to product images in figure sheet or on giftbox) Q Reinstall the clamp, align the screw to the screw hole on the front handle. Q Tighten bolts securely.

WARNING:

To prevent accidental starting that could cause serious personal injury, always disconnect the engine spark plug wire from the spark plug pack when assembling parts. INSTALLING THE POWER HEAD SHAFT TO THE ATTACHMENT See Figure 2.

WARNING:

Never install, remove, or adjust any attachment while power head is running. Failure to stop the engine can cause serious personal injury. RBC430SBS NOTE: The throttle trigger must be mounted to the operator’s right side. Q Remove the clamp (Item 28), Q Place the handle in the bracket (Item 30) located on the shaft housing. Q Hold the stamping clamp and align the bolts into the bracket. Q Adjust the handle bar for best operator control in a comfortable upright position. Q Tighten bolts with the stamping wrench to hold the bike handle securely. The attachment connects to the power head shaft by means of a coupler device. Q Loosen the knob on the coupler of the power head shaft and remove the end cap from the attachment. Q Push in the button located on the attachment shaft. Align the button with the guide recess on the power head coupler and slide the two shafts together. Rotate the attachment shaft until the button locks into the positioning hole. NOTE: If the button does not release completely in the positioning hole, the shafts are not locked into place. Slightly rotate from side to side until the button is locked into place. Q Tighten the knob securely.

ATTACHING THE GRASS DEFLECTOR

See Figure 5. Q Attach the blade guard to the mounting bracket and align the screw holes on the blade guard to the screws on the mounting bracket. Q Using the combination wrench, tighten all two screws securely. NOTE: When using the string head, the grass deflector must be attached to the blade guard. Q Attach the grass deflector to the blade guard and

WARNING:

Be certain the knob is fully tightened before

English (original instructions) align the 3 screws on the grass deflector to the screw holes on the blade guard. Q Using the combination wrench supplied, tighten all 3 screws securely. seat. Q Installing the spool. For the RLT430SES curved line trimmer attachment, the spool should be placed so "this side out for curved shaft" is visible. If you are using a straight shaft attachment with the Real easy cutting head the spool should be placed "the side out for straight shaft" is visible. Q Replace the knob in the spool. Q Replace the line trimmer head cover, aligning latches with openings in the line trimmer head. Press cover and line trimmer head together until both latches snap into openings securely. Q Install line as described in the next section of this manual. WARNING Always stop the engine and remove the spark plug wire before making any adjustments such as changing cutting heads; this is to reduce the risk of serious personal injury.

INSTALLING REEL EASY STRING HEAD

See Figure 6. Q Open the Reel easy line trimmer head by depressing the latches on each side. The contents of the line trimmer head are spring loaded, so keep your other hand over the line trimmer head cover while depressing the latches. Q Remove the line trimmer head cover, knot and spool then set aside. Q Place the line trimmer head on the drive shaft. Make sure the line trimmer head is fully seated. Q Install the hex bolt into the opening on the drive shaft and secure using the hexshaped opening in the knob to tighten. NOTE: Only use the knob to tighten the bolt. The use of other tools may allow over tightening of the bolt, which could damage the line trimmer head. Q Install the spring into the line trimmer head and push down to

ATTACHING THE SHOULDER STRAP

Note: Always use the shoulder strap/harness with your brushcutter. RBC430SES Follow these steps to attach the shoulder strap. Q Connect the latch on the strap to the hanger bracket. Q Adjust the strap to a comfortable position. RBC430SBS See Figure 4. Follow these steps to attach the shoulder strap. Q Connect the latch on the shoulder harness to the strap hanger. Q Adjust the strap to a comfortable position. FEATURES RBC430SES RBC430SBS Engine Displacement 30 cm³ 30 cm³ Mass(without fuel with string head)

5.90 kg

6.40 kg

Mass(without fuel, with blade head)

5.85 kg

6.35 kg

Volume (fuel tank) 350 cm³ 350 cm³ Maximum rotational frequency of the spindle 10000/min 10000/min Engine speed (rotational frequency) at recommended max. spindle rotational frequency 12000/min 12000/min Volume (oil tank) Maximum engine perform (in accordance with ISO8893)

English (original instructions) Engine speed (rotational frequency) at idling 3000-3600/min 3000-3600/min Fuel consumption (in accordance with ISO8893) at max. engine performance

0.48 kg/h

0.48 kg/h

Specific fuel consumption (in accordance with ISO8893) at max. engine performance 640 g/kW.h 640 g/kW.h Vibration level idling(Trimmer-reel easy string head) (m/s2) - Front handle / Left handle - Rear handle / Right handle Vibration level racing(Trimmer-reel easy string head) (m/s2) - Front handle / Left handle - Rear handle / Right handle Vibration level racing(Trimmer-Pro cut II string head) (m/s2) - Front handle / Left handle - Rear handle / Right handle Vibration level idling(Trimmer-Pro cut II string head) (m/s2) - Front handle / Left handle - Rear handle / Right handle Vibration level idling (Brush Cutter) (m/s2) - Front handle / Left handle - Rear handle / Right handle Vibration level racing (Brush Cutter) (m/s2) - Front handle / Left handle - Rear handle / Right handle Sound pressure level at operator's ear (in accordance with EN ISO 22868) dB (A) 103 ,K=3 103 ,K=3 Sound power level (in accordance with EN ISO 22868) dB (A) 110 ,K=3 110 ,K=3 support the product.

KNOW YOUR BRUSHCUTTER

See Figure 1. The safe use of this product requires an understanding of the information on the tool and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarise yourself with all operating features and safety rules. TOP-MOUNTED MOTOR The top-mounted motor improves balance and is located away from the dust and debris of the cutting area. OPERATION PRO CUT IITM LINE HEAD AND REEL EASY STRING HEAD The brushcutter is provided with two additional string heads.

WARNING:

Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. GRASS DEFLECTOR The brushcutter includes a grass deflector that helps protect you from flying debris.

WARNING:

Always wear safety goggles or safety glasses with side shields when operating power tools. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. SHOULDER STRAP The brushcutter includes a shoulder strap that helps

English (original instructions)

WARNING :

Keep all bystanders, especially children and pet, at least 15m away. corrosion inhibitors to protect the fuel system. Petrol containing more than 5% methanol by volume may cause starting and/or performance problems. It may also damage metal, rubber, and plastic parts of the product or your fuel system. If you notice any undesirable operating symptoms, try another service station or switch to another brand of Petrol. NOTE: Fuel system damage or performance problems resulting from the use of an oxygenated fuel containing more than the percentages of oxygenates stated previously are not covered under warranty.

WARNING:

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

WARNING:

Beware of the emission of exhaust gases.

ADDING/CHECKING ENGINE LUBRICANT

See Figure 17 for RBC430SES See Figure 20 for RBC430SBS Engine lubricant has a major influence on engine performance and service life. For general, alltemperature use, SAE 20W-50 is recommended. Always use a 4-stroke motor lubricant that meets or exceeds the requirements. NOTE: Non-detergent or 2-stroke engine lubricants will damage the engine and should not be used. To add engine lubricant: Q R emove the cap and seal from lubricant bottle provided. Q Unscrew the oil cap/dipstick and remove. Q Using the funnel provided, add the entire bottle of engine lubricant through oil fill hole. Q Reinstall the oil cap/dipstick and secure. To check engine lubricant level: Q Set engine on a flat surface unscrew the oil cap/ dipstick and remove. Q Wipe the dipstick clean and re-seat in hole; do not re-screw. Q R emove dipstick again and check lubricant level. Lubricant level should fall within the hatched area on the dipstick. Q If level is low, add engine lubricant until the fluid level rises to the upper portion of the hatched area on the dipstick. Q Replace and secure the oil cap/dipstick.

FUELING AND REFUELING

Q Clean the surface around the fuel cap to prevent contamination. Q Loosen the fuel cap slowly. Rest the cap on a clean surface. Q Pour the fuel carefully into the tank. Avoid spillage. Q Clean and inspect the gasket prior to replacing the fuel cap. Q Replace the fuel cap immediately and hand tighten it. Wipe up any fuel spillage. NOTE: It is normal for the engine to emit smoke during and after the first use.

WARNING:

Always shut the engine off before fueling. Never add fuel to a machine with a running or hot engine. Move at least 10m away from refueling site before starting engine. Do not smoke! Failure to heed this warning could result in serious personal injury. OXYGENATED FUELS Some conventional petrols are blended with alcohol or an ether compound. This type of petrol is collectively referred to as oxygenated fuels. If using an oxygenated fuel, make sure it is unleaded and meets the minimum octane rating requirements. Before using an oxygenated fuel, try to confirm the fuel’s contents. Some areas require this information to be posted on the pump. The following are the EPA approved percentages of oxygenates: Ethanol (ethyl or grain alcohol) 10% by volume. You may use petrol containing up to 10% ethanol by volume. Petrol containing ethanol may be marketed under the name “Gasohol.” Do not use E85 fuel. MTBE (methyl tertiary butyl ether) 15% by volume. You may use petrol containing up to 15% MTBE by volume. Methanol (methyl or wood alcohol) 5% by volume. You may use petrol containing up to 5% methanol by volume as long as it also contains co solvents and CAUTION: Do not overfill. Overfilling the crankcase may cause -excessive smoke and engine damage.

OPERATING THE BRUSHCUTTER / TRIMMER

See Figure 8. 7a.7b for RBC430SES

WARNING:

Always position the unit on the operator’s right side. The use of the unit on the operator’s left side will expose the user to hot surfaces and can result in possible burn injury.

English (original instructions)

WARNING:

To avoid burns from hot surfaces, never operate unit with the bottom of the engine above waist level. strap will reduce the risk of operation contact with the blade. BLADE THRUST Exercise extreme caution when using the blade with this unit. Blade thrust is the reaction that may occur when the spinning blade contacts anything it cannot cut. This contact may cause the blade to stop for an instant, and suddenly “thrust” the unit away from the object that was hit. This reaction can be violent enough to cause the operator to lose control of the unit. Blade thrust can occur without warning if the blade snags, stalls, or binds. Hold the trimmer with your right hand on the rear/right handle and your left hand on the other handle. Keep a firm grip with both hands while in operation. The brushcutter should be held at a comfortable position with the rear handle about hip height. Always operate brushcutter at full throttle. Cut tall grass from the top down. This will prevent brush from wrapping around the shaft housing and blade which could cause damage from overheating. If grass becomes wrapped around the cutting blade, stop the engine, disconnect the spark plug lead, and remove the grass. Prolonged cutting at partial throttle will result in lubricant dripping from the silencer. This is more likely to occur in areas where it is difficult to see the material being cut. For cutting ease and safety, approach the weeds being cut with the brushcutter from the right to the left. In the event an unexpected object or woody stock is en countered, this practice could minimize the blade thrust re action.

WARNING:

Always hold the brushcutter away from the body keeping clearance between the body and the product. Any contact with the housing or brushcutter head can result in burns and/or other serious personal injury. WARNING To avoid burns from hot surfaces, never operate unit with the bottom of the engine above waist level. CUTTING TIPS

OPERATING THE BRUSHCUTTER

See Figures 8, 7a, 7b. RBC430SES Hold the brushcutter with your right hand on the rear handle and your left hand on the "Ergo handle". Keep a firm grip with both hands while in operation. Brushcutter should be held at a comfortable position with the rear handle about hip height. Maintain your grip and balance on both feet. Position yourself so that you will not be drawn off balance by the kickback reaction of the cutting blade. Adjust the shoulder harness to position the brushcutter at a comfortable operating position and to assure that the shoulder harness will reduce the risk of operator contact with the blade. TRI-ARC® BLADE The Tri-Arc® blade is suited only for thicker weeds and pulpy stalks. When the blade becomes dull, it can be turned over to extend the life of the blade. Do not sharpen the Tri-Arc® blade.

CUTTING TECHNIQUE - BLADE

WARNING Extreme care must be taken when using blades to ensure safe operation. Read the safety information for safe operation using the blade, refer to Specific Safety. Rules for Brushcutter and Blade Use earlier in this manual. Always hold brushcutter on your right side with both hands when operating. Use a firm grip on both handles. Maintain your grip and balance on both feet. Position your self so that you will not be drawn off balance by the kick back reaction of the cutting blade. See Figures 7 - 8. Q Avoid hot surfaces by always keeping the tool away from your body. (Proper operating position shown in figure 9.) Q Keep the brushcutter tilted toward the area being cut; this is the best cutting area. RBC430SBS Hold the brushcutter with the right hand on the trigger handle and the left hand on the left handle. Keep a firm grip with both hands while in operation. Brushcutter should be held at a comfortable position with the trigger handle about hip height. Maintain your grip and balance on both feet. Position yourself so that you will not be drawn off balance by the kick-back reaction of the cutting blade. Adjust the shoulder strap to position the brushcutter at a comfortable position and to assure that the shoulder

English (original instructions)

MAINTENANCE The trimmer cuts when passing the unit from left to right. This will avoid throwing debris at the operator. Avoid cutting in the dangerous area shown in illustration. Q Use the tip of string to do the cutting; do not force string head into uncut grass. Q Wire and picket fences cause extra line wear, even breakage. Stone and brick walls, curbs, and wood may wear line rapidly. Q Avoid trees and shrubs. Tree bark, wood mouldings, siding, and fence posts can easily be damaged by the string.

WARNING:

When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.

WARNING:

Always wear safety goggles or safety glasses with side shields during tool operation. If operation is dusty, also wear a dust mask.

WARNING:

Before inspecting, cleaning, or servicing the machine, shut off engine, wait for all moving parts to stop, and disconnect spark plug lead and move it away from spark plug. Failure to follow these instructions can result in serious personal injury or property damage.

GRASS DEFLECTOR LINE TRIMMING CUT-OFF

BLADE See Figure 10. The trimmer is equipped with a line trimming cut-off blade on the grass deflector. For best cutting, advance line until it is trimmed to length by the cut-off blade. Advance the line whenever you hear the engine running faster than normal, or when trimming efficiency diminishes. This will maintain best performance and keep the line long. GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, lubricant, grease.

STARTING AND STOPPING

To start a cold engine: See Figure 9a. DO NOT squeeze the throttle trigger until the engine starts and runs.

WARNING:

Do not at any time let brake fluids, petrol, petroleum-based products, penetrating lubricants, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury. Note: If you are having difficulties starting this product, please refer to the troubleshooting guide in the manual. When starting the product the first time after the purchase the starting might be more difficult than for the following starts. Q Lay the trimmer on a flat, even surface. Q Place the engine switch to the “I” position. Q PRIME - press the primer bulb 10 times slowly. Q SET the start lever to the “START” position. Q PULL the starter rope until the engine attempts to start. Q SET the start lever back to the RUN position. Note: If the engine stops, set the start lever to the RUN position and pull the starter grip until engine starts. Q Squeeze throttle trigger to run You can often make adjustments and repairs described here. For other repairs, have the trimmer serviced by an authorised service dealer.

INSTALLING PRO CUT II LINE HEAD

See Figure 13. Q Stop the engine and disconnect the spark plug wire. Q Remove currently installed line head. Q Install the line head on the drive shaft until fully seated. Q Install the spool retainer and turn counter clockwise. Q Install cutting line as described in the next section of this manual. To start a warm engine: See Figure 9b. Make sure there is fuel visible in the primer bulb, if not, follow cold start procedure. Q PULL the rope until the engine starts. INSTALLING CUTTING LINE IN PRO CUT II LINE HEAD See Figure 14 for RBC430SES See Figure 16 for RBC430SBS Use monofilament line between 2.4mm and 2.7mm diameter. Use original manufacturer’s replacement line To stop the unit: Place the engine switch to the stop “O” position.

English (original instructions) for best performance. Q Stop the engine and disconnect the spark plug lead. Q Gather two of the pre-cut lengths of trimmer line provided or cut two pieces of trimmer line, in 28cm lengths. Q Insert the line into the slots located on the sides of the line head. Line should be pushed in until approximately 2.5cm protrudes from the holes on the top of the line head. Q Remove old line by pulling it from the holes located on the top of the line head. Q CLEANING THE EXHAUST PORT, SILENCER AND SPARK ARRESTOR NOTE: Depending on the type of fuel used, the type and amount of lubricant used, and/or your operating conditions, the exhaust port, silencer, and/or spark arrestor screen may become blocked with carbon deposits. If you notice a power loss with your petrol powered tool, you may need to remove these deposits to restore performance. We highly recommend that only qualified service technicians perform this service. The spark arrestor must be cleaned or replaced every 50 hours or yearly to ensure proper performance of your product. Spark arrestors may be in different locations depending on the model purchased. Please contact your nearest service dealer for the location of the spark arrestor for your model. latch with your thumb while gently pulling on the cover. Q Brush the air filter screen lightly to clean. Q Replace the air filter cover by inserting the tabs on the bottom of the cover into the slots on the air filter base; push the cover up until it latches securely in place. FUEL CAP

WARNING:

A leaking fuel cap is a fire hazard and must be replaced immediately.

The fuel cap contains a non-serviceable filter and a check valve. A clogged fuel filter will cause poor engine performance. If performance improves when the fuel cap is loosened, check valve may be faulty or filter clogged. Replace fuel cap if required.

SPARK PLUG REPLACEMENT

See Figure 21. for RBC430SBS See Figure 20. for RBC430SES This engine uses a Champion RY4C or NGK CMR7A spark plug with 0.6mm electrode gap. Use an exact replacement and replace annually.

STORING THE PRODUCT

Q Clean all foreign material from the product. Store idle unit indoors in a dry, well-ventilated area that is inaccessible to children. Keep away from corrosive agents such as garden chemicals.

IDLE SPEED ADJUSTMENT

See Figure 14 for RBC430SBS See Figure 15 for RBC430SES If the cutting attachment turns at idle, the idle speed screw needs adjusting on the engine. Turn the idle speed screw counter clockwise to reduce the idle RPM and stop the cutting attachment movement. If the cutting attachment still moves at idle speed, contact a service dealer for adjustment and discontinue use until the repair is made. When storing 1 month or longer: Drain all fuel from tank into a container approved for petrol. Run engine until it stops.

WARNING:

The cutting attachment should never turn at idle. Turn the idle speed screw counter clockwise to reduce the idle RPM and stop the cutting attachment, or contact a service dealer for adjustment and discontinue use until the repair is made. Serious personal injury may result from the cutting attachment turning at idle.

CLEANING AIR FILTER SCREEN

See Figure 15, 19. for RBC430SBS See Figure 16, 21. for RBC430SES Q For proper performance and long life, keep air filter screen clean. Q Remove the air filter cover by pushing down on the

English (original instructions) TROUBLESHOOTING IF THESE SOLUTIONS DO NOT SOLVE THE PROBLEM CONTACT YOUR AUTHORISED SERVICE DEALER. PROBLEM Engine will not start POSSIBLE CAUSE SOLUTION

1. No spark.

1. Clean or replace spark plug. Reset spark plug gap.

Refer to Spark Plug Replacement earlier in this manual.

2. Push primer bulb until bulb is full of fuel. If bulb does not fill, primary

fuel delivery system is blocked. Contact a service dealer. If primer bulb fills, engine may be flooded, proceed to next item.

3. Set the start lever to the START position. Squeeze the trigger

and pull the rope repeatedly until the engine starts and runs. NOTE: Depending on the severity of the flooding, this may require numerous pulls of the rope.

2. No fuel.

3. Engine is flooded.

Engine does not reach full speed Fuel flow problem Squeeze and release the throttle trigger 5 times while the engine is running. Engine does not reach full speed and emits excessive smoke

1. Air filter screen is dirty.

2. Spark arrestor screen is dirty.

1. Clean air filter screen.

Refer to Cleaning Air Filter Screen earlier in this manual.

2. Contact a servicing dealer.

3. Clean or replace spark plug. Reset spark plug gap. Refer to Spark

Plug Replacement earlier in this manual.

3. Spark plug fouled.

Engine starts, runs, and but will not idle Idle speed screw on carburettor needs adjustment. Turn idle speed screw clockwise to increase idle speed. See Figure 15. String will not advance

1. String is welded to itself.

2. Not enough string on spool.

5. Engine speed is too slow.

1. Lubricate string with silicone spray.

2. Install more string. Refer to the applicable string replacement

section in this manual.

3. Pull strings while alternately pressing down on and releasing

4. Remove string from spool and rewind.

Refer to the applicable string replacement section in this manual.

5. Advance string at full throttle.

Spool retainer hard to turn Screw threads are dirty or damaged. Clean threads and lubricate with grease - if no improvement, replace the spool retainer. Grass wraps around driveshaft housing and string head

1. Cutting tall grass at ground

2. Operating trimmer at part

1. Cut tall grass from the top down to prevent wrapping.

Engine emits too much smoke Too much oil in crankcase. Drain lubricant and refill with correct amount of 10W-30 engine lubricant. See Adding/Checking Engine Lubricant in the Operation section of this manual.

3. String is worn too short.

4. String is tangled on spool.

2. Operate trimmer at full throttle.

CALL US FIRST

For any questions about operating or maintaining your product, call the Ryobi® Help Line! Your product has been fully tested prior to shipment to ensure your complete satisfaction.

Cuchilla Tri-Arc SIGNAAL GEVAAR: WAARSCHUWING: LET OP: LET OP:

BESCHRIJVING VAN DE FIGUREN

3. Motor is verzopen.

Start-stopknap I = START (ON) I = stop (OFF) BESKRIVELSE AF DELENEFigur 1 Triarc-klinge 8" (200 mm) Triarc-klinge 8" (200 mm) Engine does not reach full speed Fuel ‰ow problem Squeeze and release the throttle trigger 5 times while the engine is running. Interruptor Marcha / Parada I = ENCENDIDO (ON) O = PARADA (OFF)

OMINAISUUDET RBC430SES RBC430SBS 30 cm³ 30 cm³ 18 in / 457 mm 18 in / 457 mm 2,4 & 2,7 mm 2,4 & 2,7 mm 200 mm 200 mm

3. A motor lefullad.

Triarc n”ž 8"(200 mm) Triarc n”ž 8"(200 mm)

LamË Triarc 8" (200 mm) LamË Triarc 8" (200 mm)

2. Nu are combustibil

POSEBNA VARNOSTNA NAVODILA

LASTNOSTI RBC430SES RBC430SBS 30 cm³ 30 cm³ Premer rezanja 18 palcev / 457 mm 18 palcev / 457 mm Polmeter nitke

2.4 & 2.7 mm

2.4 & 2.7 mm

Premer rezila 200 mm 200 mm Rezilo Triarc 8" (200 mm) Rezilo Triarc 8" (200 mm)

5.90 kg

6.40 kg

Prostornina motorja SPETSIIFILISED OHUTUSREEGLID

O = OFF to Stop OMADUSED RBC430SES RBC430SBS Mootori töömaht 30 cm³ 30 cm³ Lõikediameeter 18 in / 457 mm 18 in / 457 mm Jõhvi läbimõõt

2.4 & 2.7 mm

2.4 & 2.7 mm

Tera diameeter 200 mm 200 mm Eesti (Originaaljuhendi tõlge) VEAOTSING K U I N E E D L A H E N D U S E D E I L A H E N D A P R O B L E E M I , K O N TA K T E E R U G E O M A V O L I TAT U D TEENINDUSKESKUSEGA. PROBLEEM 12 pav.

38. Startin3 pad3tis

39. Darbin3 pad3tis

YPATYBS RBC430SES RBC430SBS 30 cm³ 30 cm³ 18 coli1 / 457 mm 18 coli1 / 457 mm 2,4 & 2,7 mm 2,4 & 2,7 mm 200 mm 200 mm Ska as spiediena l5menis operatora ausu l5men5 (saska 4 ar EN ISO 22868) dB (A) 103 ,K=3 103 ,K=3

› Triarc 8" (200 LIMITED WARRANTY (Original Instructions) TTI warrants this outdoor product to be free of defects in material or workmanship for 24 months from the date of purchase by the original purchaser, subject to the limitations below. Please keep your invoice as proof of date of purchase. This warranty is only applicable where the product is used for personal and non-commercial purposes. This warranty does not cover damage or liability caused by / due to misuse, abuse, accidental or intentional acts by user, improper handling, unreasonable use, negligence, failure by end user to follow operating procedures outlined in the user’s manual, attempted repair by non-qualified professional, unauthorized repair, modification, or use of accessories and/or attachments not specifically recommended by authorized party. This warranty does not cover belts, brushes, bags, bulbs or any part which ordinary wear and tear results in required replacement during warranty period. Unless specifically provided under applicable law, this warranty does not cover transportation cost or consumable items such as fuses. This limited warranty is void if the product’s original identification (trade mark, serial number, etc.) markings have been defaced, altered or removed or if product is not purchased from an authorized reseller or if product is sold AS IS and / or WITH ALL FAULTS. Subject to all applicable local regulations, the provisions of this limited warranty are in lieu of any other written warranty, whether express or implied, written or oral, including any warranty of MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL WE BE LIABLE FOR SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES. OUR MAXIMUM LIABILITY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID BY YOU FOR THE PRODUCT. This warranty is valid only in the European Union, Australia and New Zealand. Outside these areas, please contact your authorized Homelite dealer to determine if another warranty applies.

EC DECLARATION OF CONFORMITY (Original Instructions) Manufacturer: Homelite Far East Co.,Ltd Address: 24/F, CDW building, 388 Castle Peak Road, Tsuan Wan, HongKong. Name and address of the person authorised to compile the technical file: Name: Simon Del-Nevo (Director of Outdoor Power Equipment) Address: Techtronic Industries Europe, Middle East and Africa, Medina House, Fieldhouse Lane, Marlow,Bucks, UK,SL7 1TB Herewith we declare that the product Category .................................................................................... String trimmer / Brush cutter Model ............................................................................................RBC430SBS/RBC430SES Serial number ................................................................................... See product rating label Year of Construction ......................................................................... See product rating label

is in conformity with the relevant provisions of the Machinery Directive (2006/42/EC) is in conformity with the provisions of the following other EC-Directives EMC Directive (2004/108/EC), Noise Emission Directive (2000/14/EC amended by 2005/88/EC), and Gas Emission Directive (97/68/EC amended by 2002/88/EC, 2004/26/EC). And furthermore, we declare that the following (parts/clauses of) European harmonised standards have been used

EN ISO 11806 :2008, EN ISO 22867 :2008

EN ISO 22868 :2008, EN ISO 14982:1998

RBC430SBS Measured sound power level 110 dB (A) Guaranteed sound power level 110 dB (A) Conformity assessment method to Annex V/ Directive 2000/14/EC Place, date: HongKong, 10/11/2009 RBC430SES 110 dB (A) 110 dB (A) Signature: Andrew John Eyre BEng CEng MIET Vice president of Engineering

Unterschrift: Andrew John Eyre BEng CEng MIET Vice President of Engineering Signatur: Andrew John Eyre BEng CEng MIET Vice president of Engineering

RBC430SES 110 dB (A) 110 dB (A) SemnËtura: Andrew John Eyre BEng CEng MIET Vice president of Engineering RBC430SBS 110 dB (A) 110 dB (A) RBC430SES 110 dB (A) 110 dB (A) RBC430SES 110 dB (A) 110 dB (A) RBC430SES 110 dB (A) 110 dB (A)
