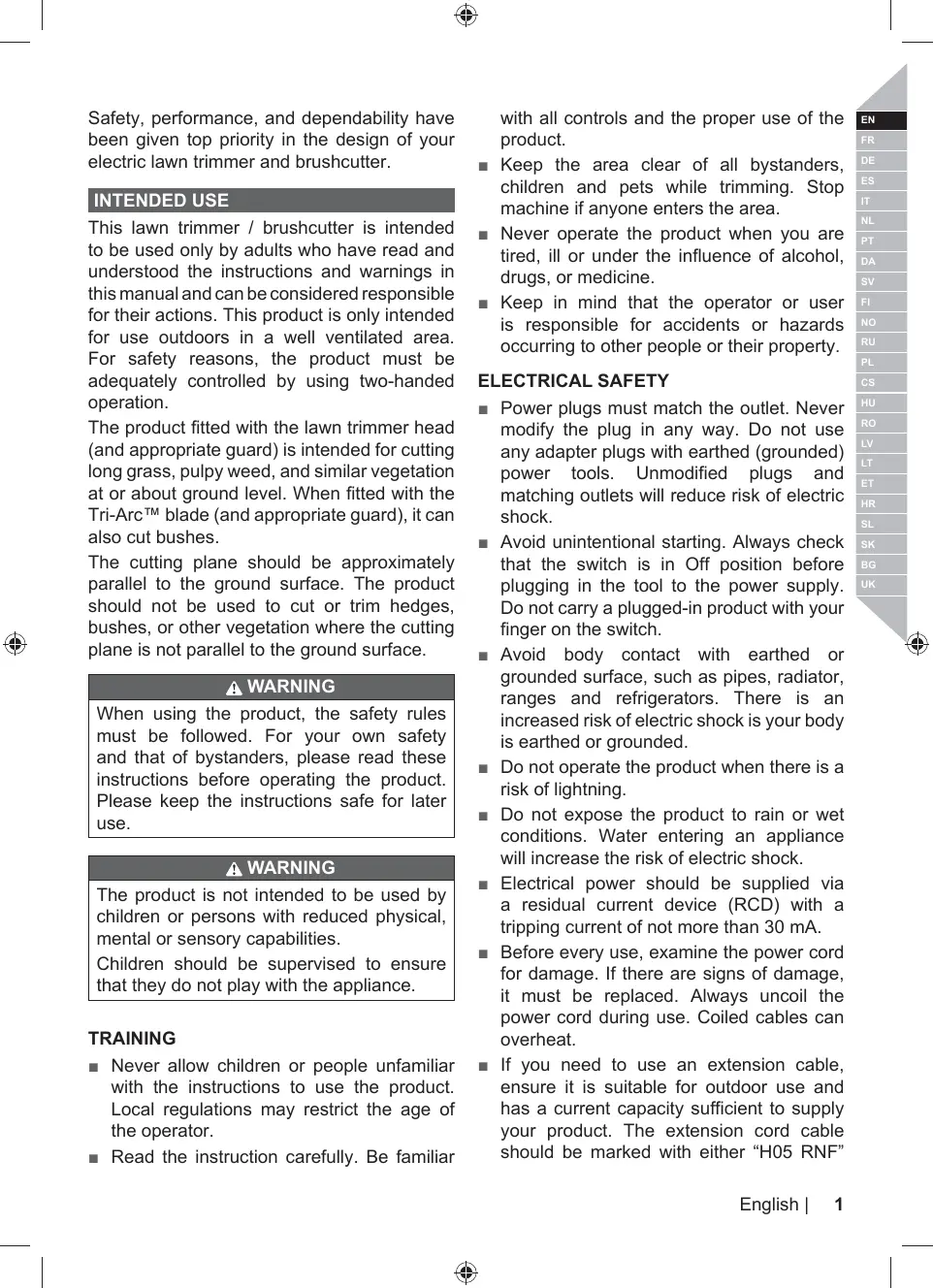

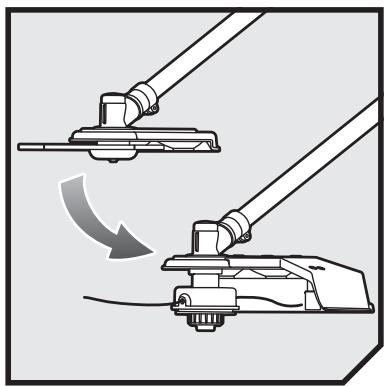

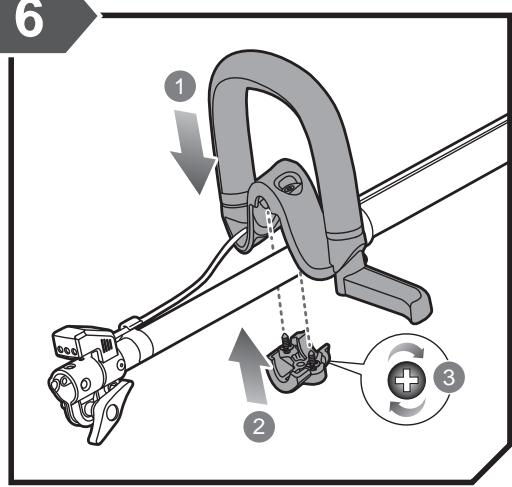

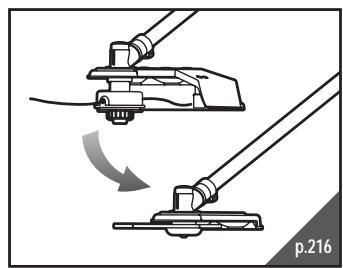

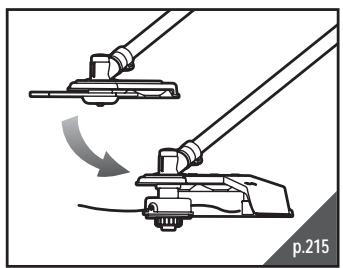

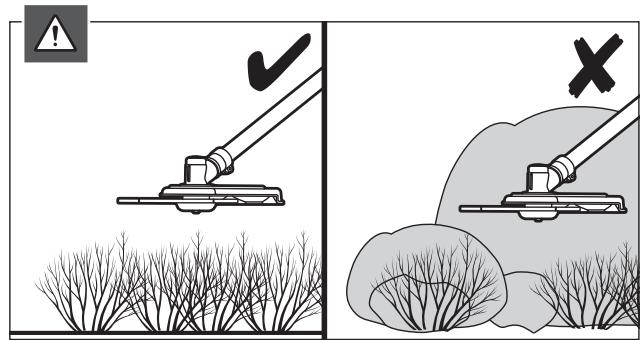

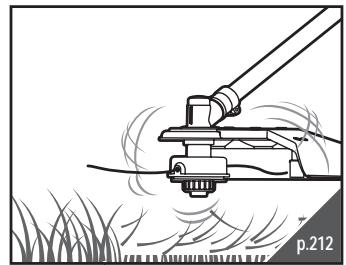

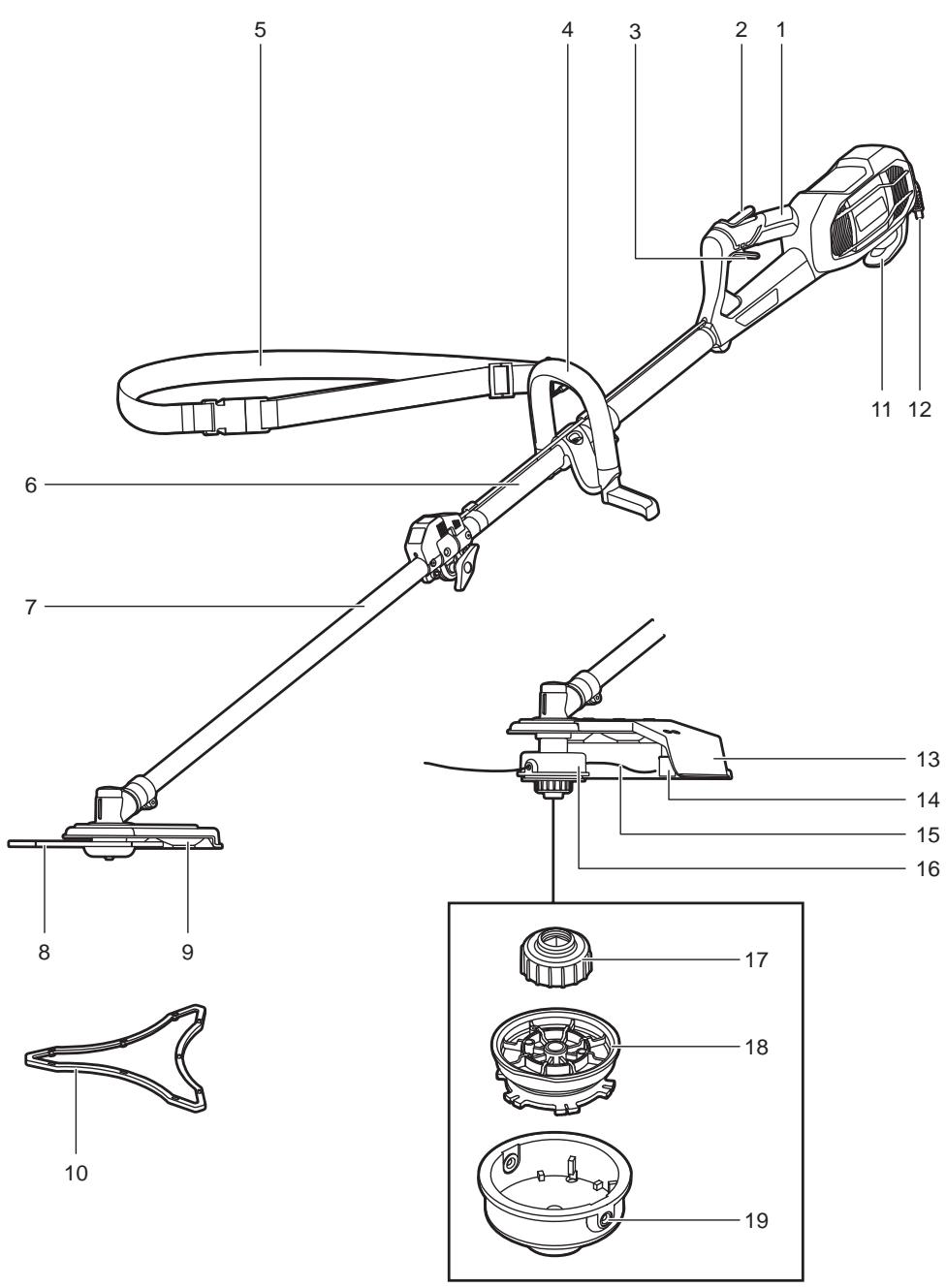

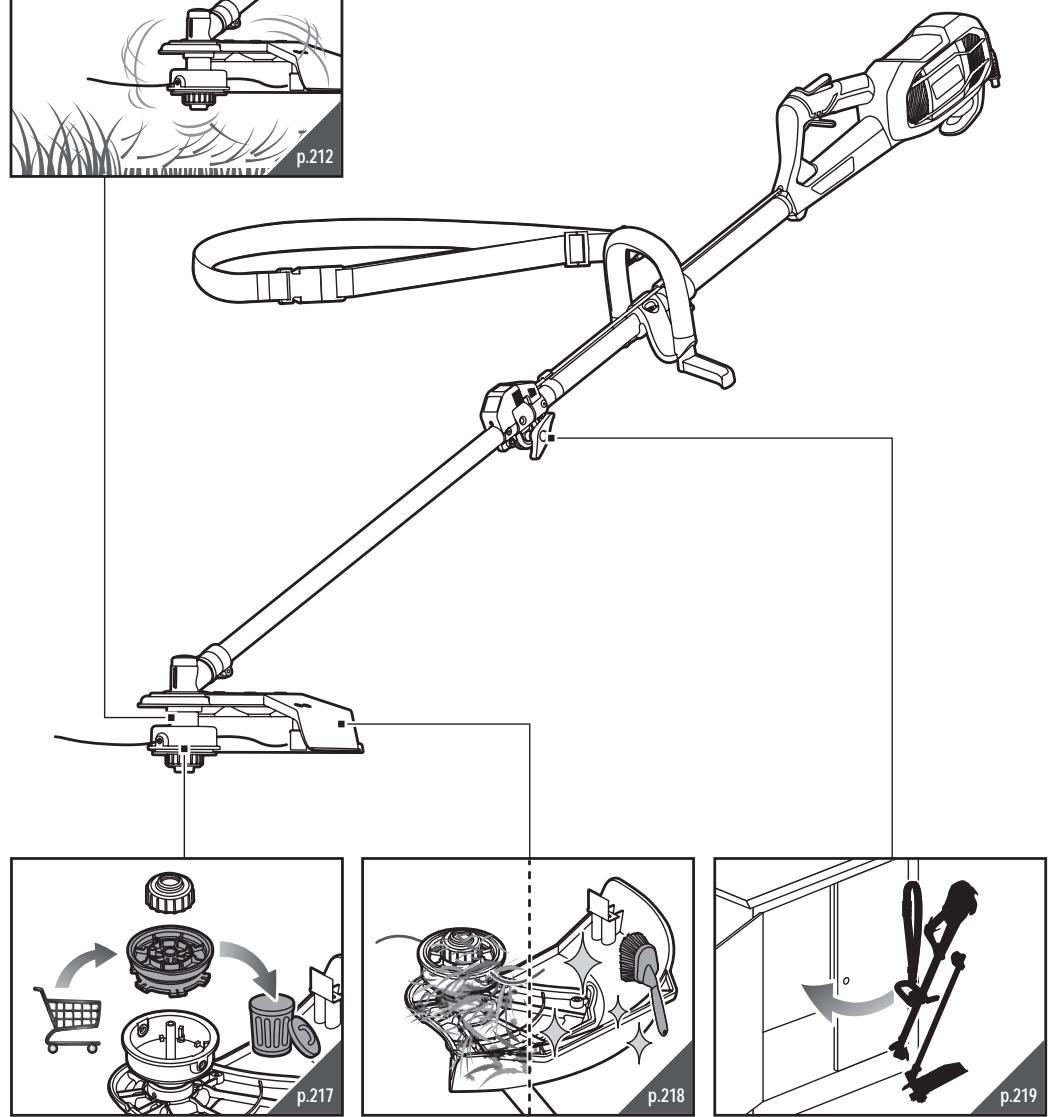

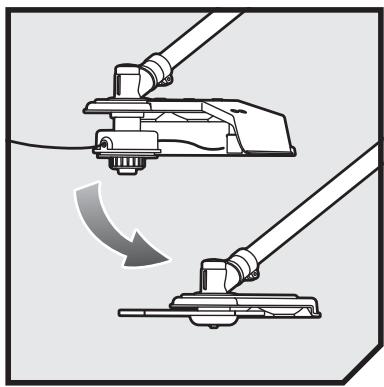

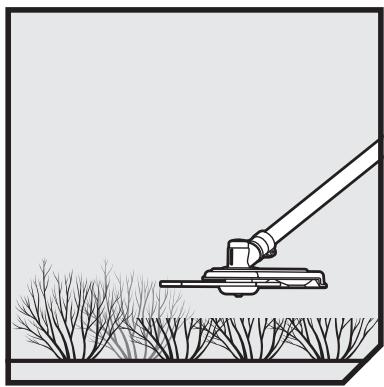

Safety, performance, and dependability have been given top priority in the design of your electric lawn trimmer and brushcutter. INTENDED USE This lawn trimmer / brushcutter is intended to be used only by adults who have read and understood the instructions and warnings in this manual and can be considered responsible for their actions. This product is only intended for use outdoors in a well ventilated area. For safety reasons, the product must be adequately controlled by using two-handed operation. The product fitted with the lawn trimmer head (and appropriate guard) is intended for cutting long grass, pulpy weed, and similar vegetation at or about ground level. When fitted with the Tri-Arc'" blade (and appropriate guard), it can also cut bushes. The cutting plane should be approximately parallel to the ground surface. The product should not be used to cut or trim hedges, bushes, or other vegetation where the cutting plane is not parallel to the ground surface. When using the product, the safety rules must be followed. For your own safety and that of bystanders, please read these instructions before operating the product. Please keep the instructions safe for later use. À WARNING The product is not intended to be used by children or persons with reduced physical, mental or sensory capabilities. Children should be supervised to ensure that they do not play with the appliance. TRAINING = Never allow children or people unfamiliar with the instructions to use the product. Local regulations may restrict the age of the operator. Read the instruction carefully. Be familiar

with all controls and the proper use of the EI product. Keep the area clear of all bystanders, children and pets while trimming. Stop machine if anyone enters the area. = Never operate the product when you are tired, ill or under the influence of alcohol, drugs, or medicine. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. ELECTRICAL SAFETY = Power plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid unintentional starting. Always check that the switch is in Off position before plugging in the tool to the power supply. Do not carry a plugged-in product with your finger on the switch. Avoid body contact with earthed or grounded surface, such as pipes, radiator, ranges and refrigerators. There is an increased risk of electric shock is your body is earthed or grounded. = Do not operate the product when there is a risk of lightning. Do not expose the product to rain or wet conditions. Water entering an appliance will increase the risk of electric shock. Electrical power should be supplied via a residual current device (RCD) with a tripping current of not more than 30 mA. Before every use, examine the power cord for damage. If there are signs of damage, it must be replaced. Always uncoil the power cord during use. Coiled cables can overheat. If you need to use an extension cable, ensure it is suitable for outdoor use and has a current capacity sufficient to supply your product. The extension cord cable should be marked with either “HO5 RNF” English | 1

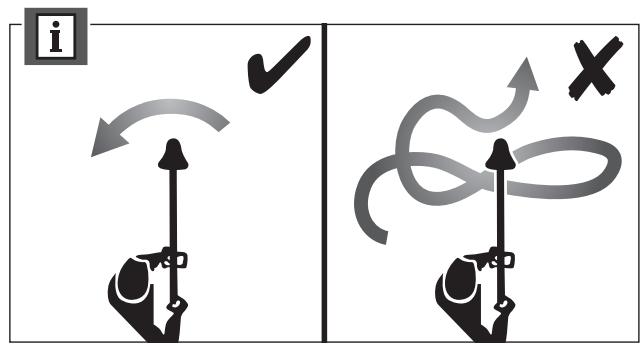

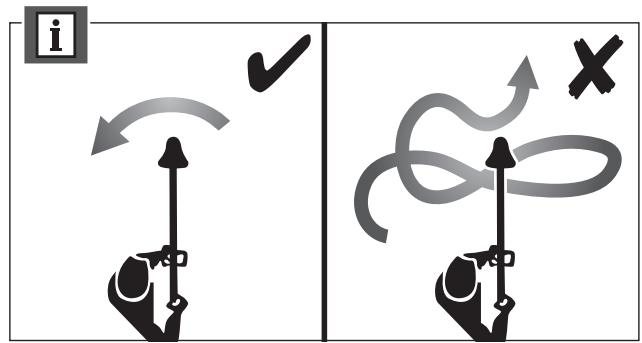

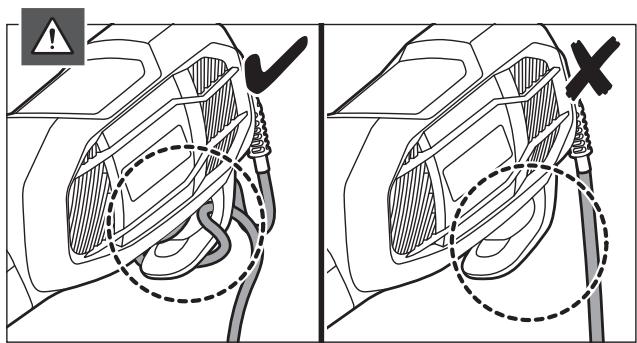

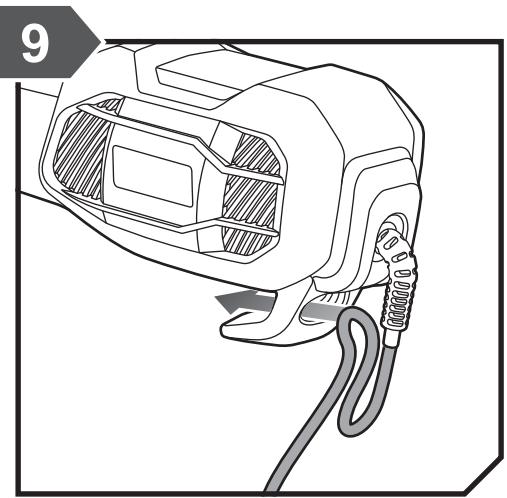

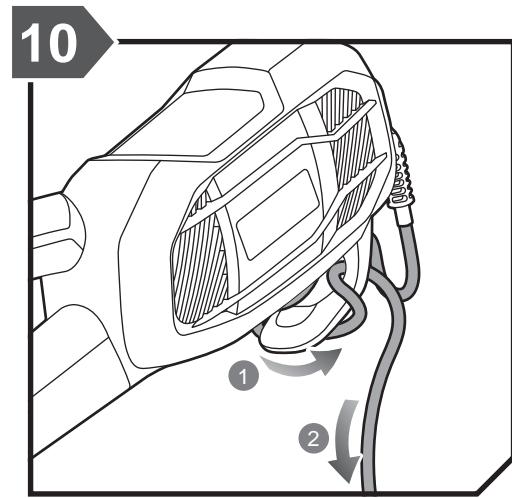

or H05 VV-F". Check it before every use for damage. Always uncoil it during use because coiled cables can overheat. Damaged extension cables should not be repaired; they should be replaced with an equivalent type. = Do not use the product if the electric cables are damaged or worn. = lf the power cord or extension cable becomes damaged during use, disconnect from the power supply immediately. Do not touch the electric cables until the power supply has been disconnected. = Make sure the power cord is positioned so that it cannot be damaged by the cutting means and will not be stepped on, tripped over or otherwise subjected to damage or stress. = Never pick up or carry the product by the power cord. = Never pull by the power cord to disconnect from the power supply. = Keep the power cord away from heat, oil and sharp edges. = Make sure the voltage is correct for the product. À nameplate on the product indicates the products voltage. Never connect the product to an AC voltage that differs from this voltage. = Make sure the switch is in Off position before disconnecting from power supply. PREPARATION = Wear full eye and hearing protection while operating the product. If working in an area where there is a risk of falling objects, head protection must be worn. = Hearing protection may restrict the operators ability to hear warning sounds. Pay particular attention to potential hazards around and inside the working area. = Wear heavy long trousers, boots, and gloves. Do not wear loose fitting clothing, short trousers, jewellery of any kind, or use with bare feet. = Secure long hair so it is above shoulder level to prevent entanglement in moving parts. 2 |English = Before use and after any impact, check that there are no damaged parts. A defective switch or any part that is damaged or worn should be properly repaired or replaced by an authorised service facility. = Make sure the cutting attachment is properly installed and securely fastened. = Never operate the product unless all guards, deflectors and handles are properly and securely attached. = Consider the environment in which you are working. Keep the working area free from wires, sticks, stones and debris, which if struck by the cutter, can become thrown objects.

GENERAL SAFETY WARNINGS

À WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

= Keep work area clean and well lit. Cluttered or dark areas invite accidents. = Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. = Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY = Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. = Avoid body contact with earthed or grounded surfaces, such as pipes,

radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. = Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. = Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. = When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. = If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. PERSONAL SAFETY = Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. À moment of inattention while operating power tools may result in serious personal injury. = Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. = Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. = Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part ofthe power tool may result in personal injury. = Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. = Dress properly. Do not wear loose EI clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. ms If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

POWER TOOL USE AND CARE

= Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. = Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. = Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. = Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. = Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. = Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. = Use the power tool, accessories and tool bits etc, in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended English | 3

could result in a hazardous situation. SERVICE = Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. À WARNING Never use cutting means or attachments which are not specified by Ryobi in this manual. This includes the use of metal multi-piece pivoting chains and flailblades. These items are known to break up during use and present a high risk of serious injury to the operator or bystanders. À WARNING Inspection after dropping or other impacts: Thoroughly inspect the product and identify any problems or damage to it. Any par that is damaged should be properly repaired or replaced by an authorised service centre.

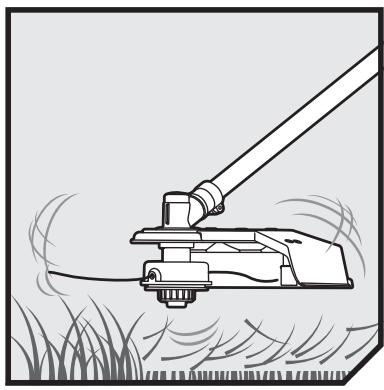

LAWN TRIMMER SAFETY WARNINGS

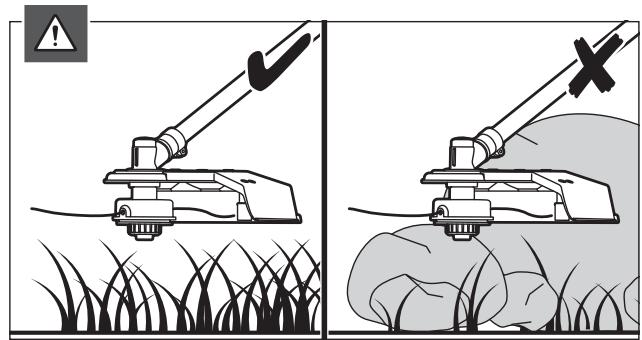

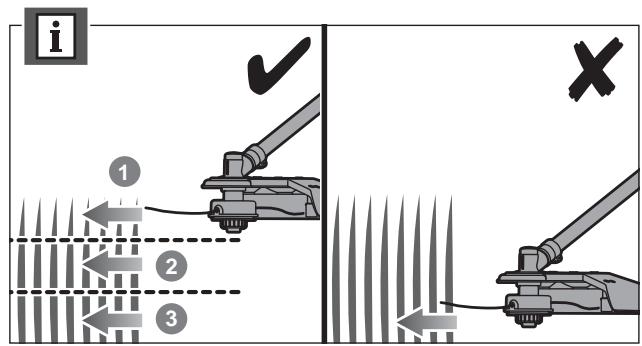

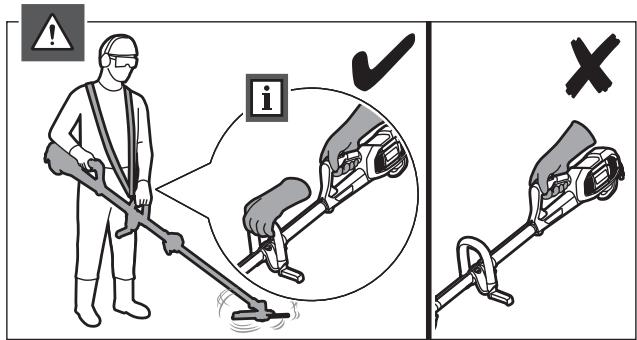

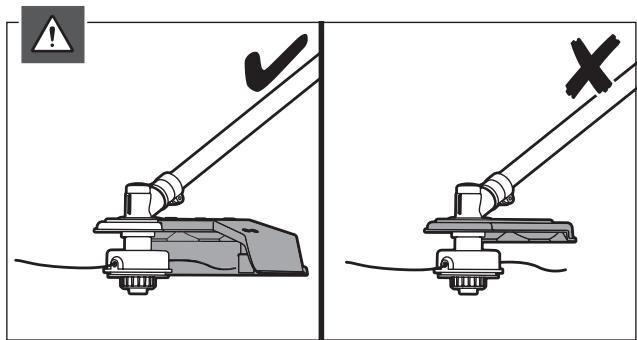

= Some regions have regulations that restrict the use of the product. Check with your local authority for advice. Never allow children or people unfamiliar With the instructions to use the product. Use the product in daylight or good artificial light. = Avoid using on wet grass. = Do not walk backwards when using the product. Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance. Always be sure of your footing on slopes. Walk, never run. Keep bystanders, children and pets 15 m away from the area of operation, stop the product if anyone enters the area. Keep the cutting attachment below waist level. Never operate the product with damaged guards or without guards in place.

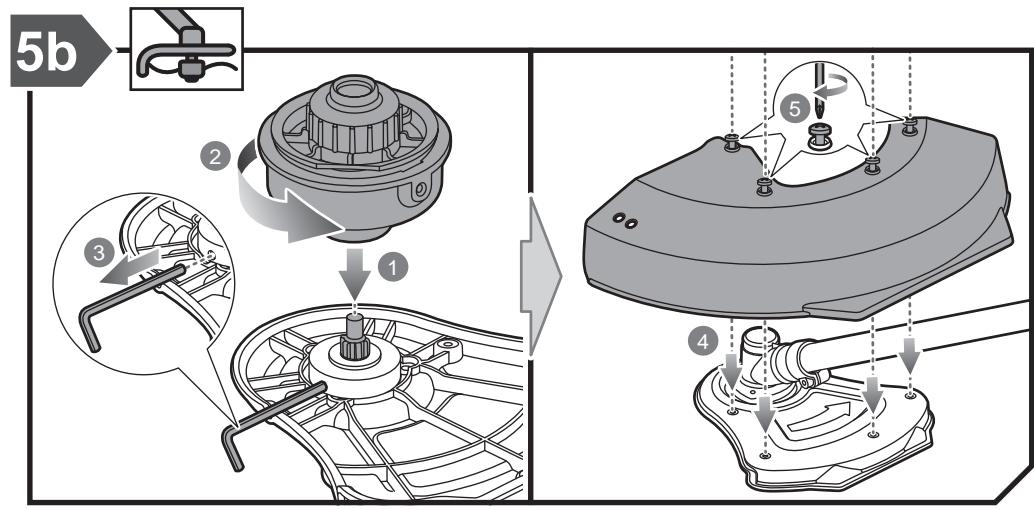

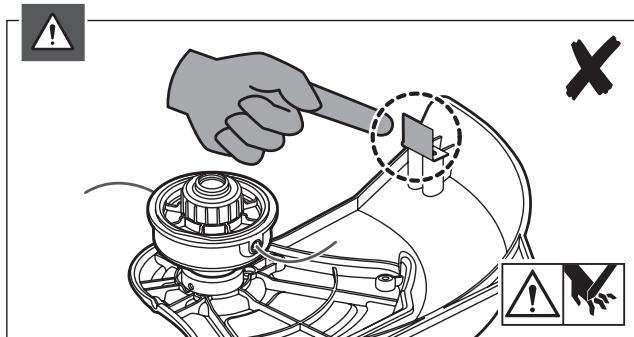

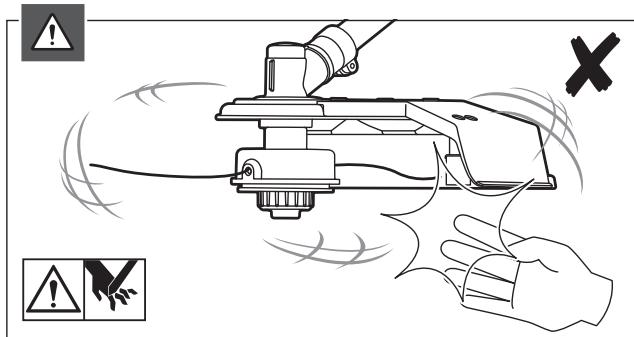

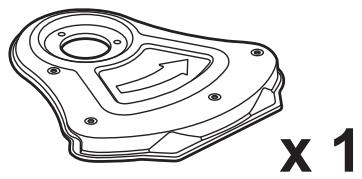

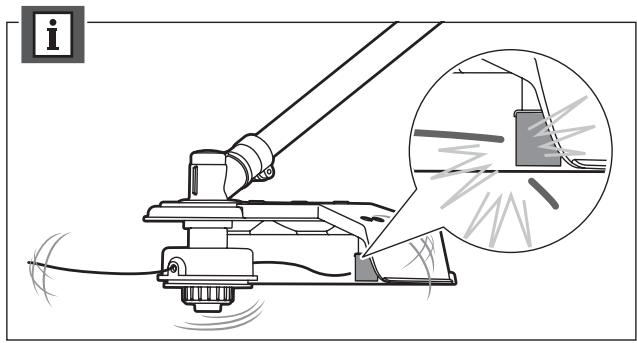

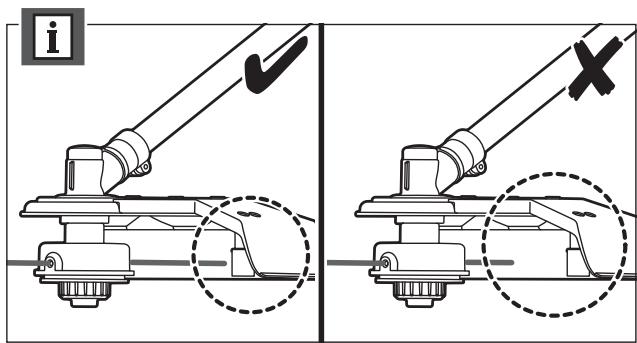

Never fit a metal replacement line. Keep hands and feet away from the cutting means at all times, especially when switching on the motor. Beware, the cutting elements continue to rotate after the motor is switched off. Beware of objects thrown by the cutting means. Clear debris like small stones, gravel and other foreign objects from the work area before starting operation. Wires or string may become entangled with the cutting means. Switch off and disconnect from the power supply before: ° servicing + _leaving the product unattended e cleaning your product or clearing a blockage e changing accessories + _checking for any damage after hitting an object + checking for any damage if the product starts to vibrate abnormally e_ performing maintenance e_removing blade e_installing blade The small blade fitted to the lawn guard is designed to trim the new extended line to the correct length for safe and optimum performance. lt is very sharp; do not touch it, particularly when cleaning the product. Always ensure that ventilation openings are kept clear of debris. Make sure the cutting head attachment is properly installed and securely fastened. Make sure all guards, deflectors and handles are properly and securely attached. Do not modify the product in any way. This may increase the risk of injury to yourself or others. Use only the manufacturer's replacement cutting line. Do not use any other cutting attachment. Immediately switch off and disconnect from the mains in the event of accident or breakdown. Don't operate the product again until it has been fully checked by an

authorised service centre.

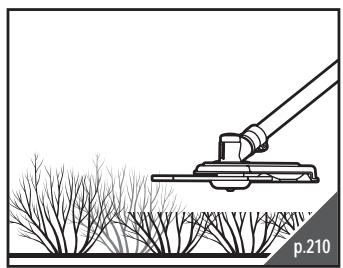

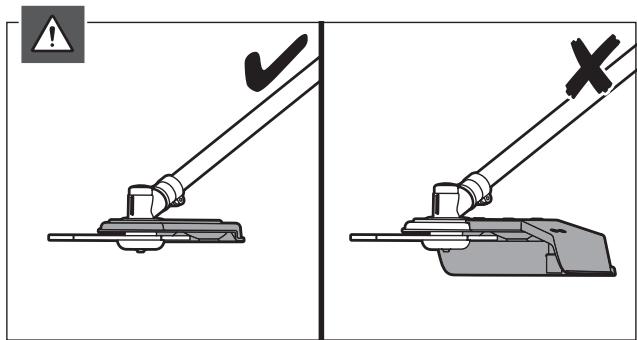

BRUSHCUTTER SAFETY WARNINGS

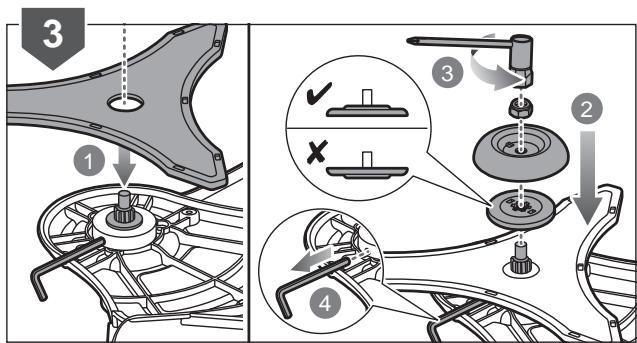

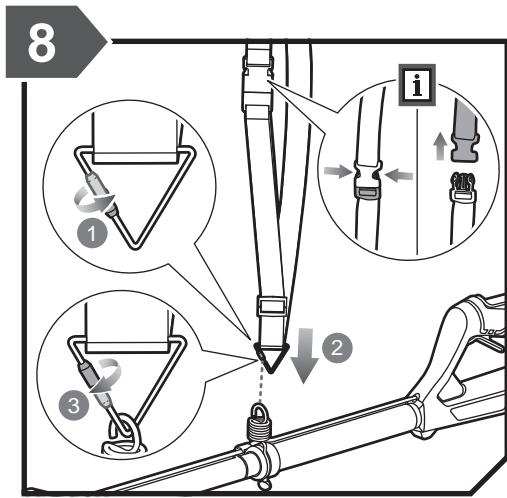

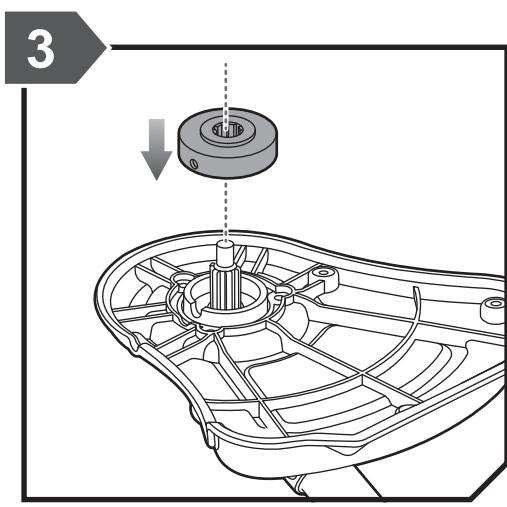

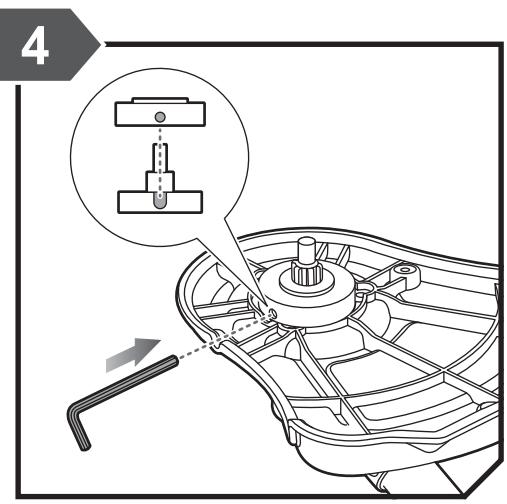

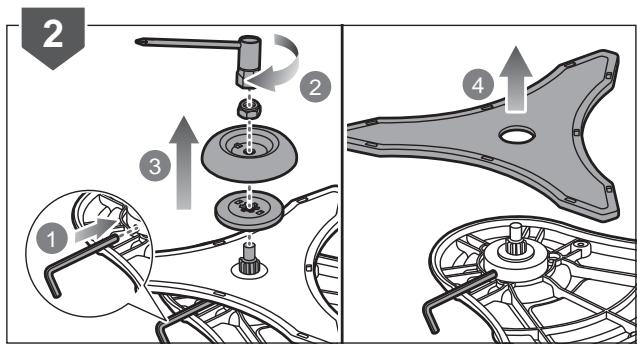

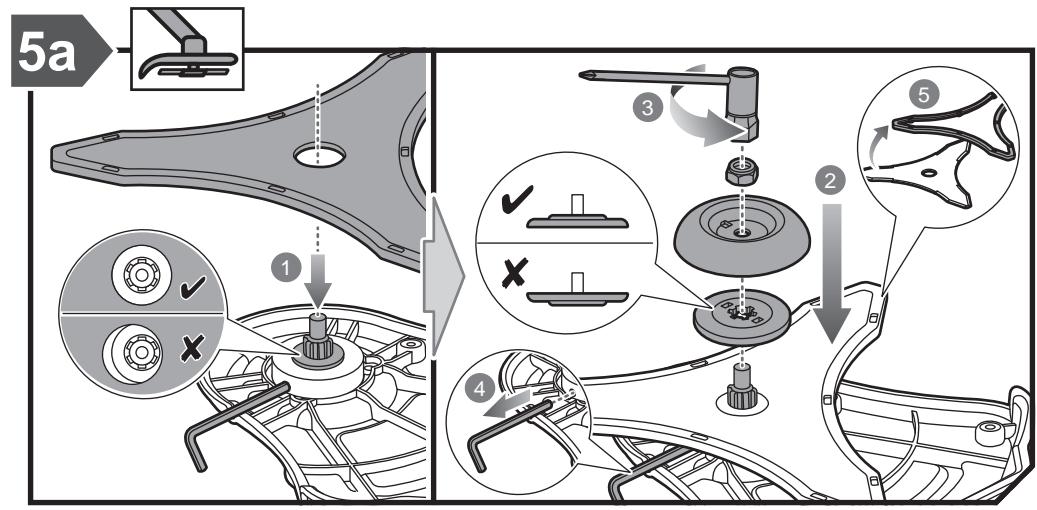

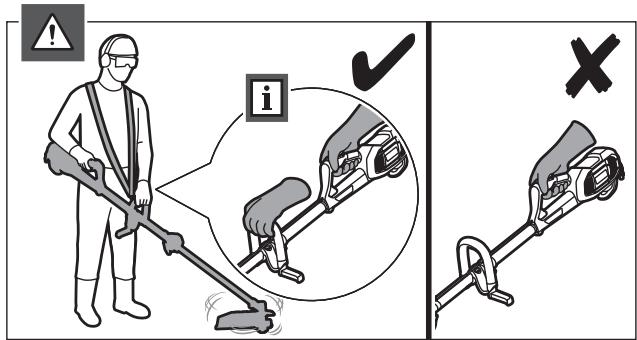

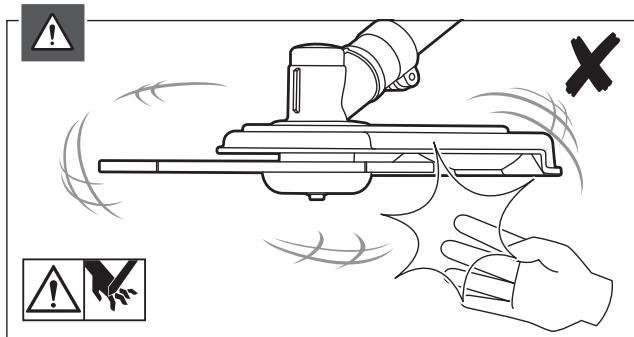

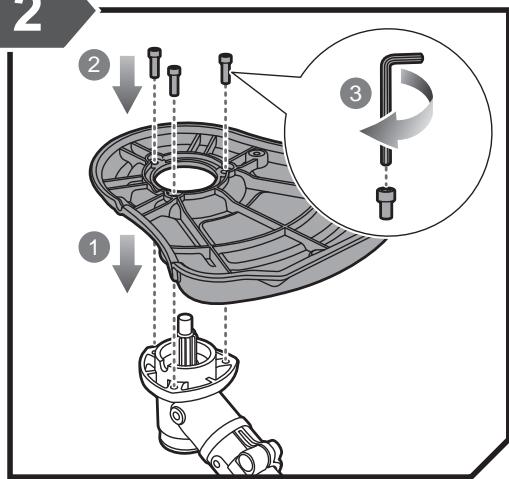

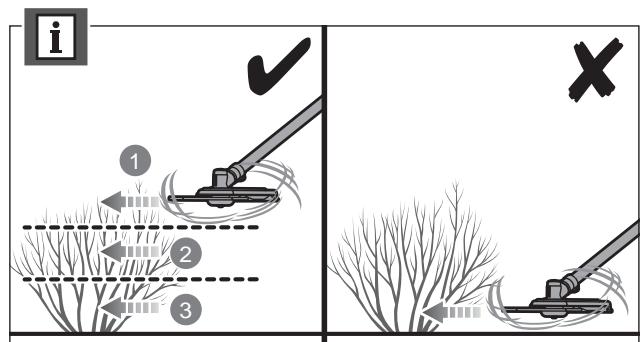

= In addition to the above rules, these additional instructions are appropriate when using the product in brushcutter mode. = Use heavy-duty gloves while installing or removing blades, they have sharp edges. = Do not attempt to touch or stop the blade when it is rotating. = À moving blade can cause severe injury. Maintain proper control of the machine with both hands until the blade has completely stopped rotating. = Replace any blade that has been damaged. Always make sure blade is installed correctly and securely fastened before each use. = Use only the manufacturer's replacement Tri-Arc blade. Do not use any other cutting attachment. = Never cut any material over 13 mm diameter. = Your brushcutter is fitted with a harness. Carefully adjust the harness to fit comfortably and help to support the weight of the machine at your right side. m identify the Quick Release mechanism and practice using it before you start using the product. Its correct use may prevent serious injury in case of an emergency. Never wear additional clothing over the harness or otherwise that restrict access to the quick release mechanism. = Cover the blade with the blade protector before storing the unit, or during transportation. Always remove the blade protector before using the unit. If not removed, the blade protector could become a thrown object as the blade begins to turn. = Exercise extreme caution when using the blade with this product. Blade thrust is the reaction that may occur when the spinning blade contacts anything it cannot cut. This contact may cause the blade to stop for an instant, and suddenly “thrust” the unit away from the object that was hit. This reaction EE can be violent enough to cause the operator to lose control of the unit. Blade thrust may occur without warning if the blade snags, stalls, or binds. This is more likely to occur in areas where it is difficult to see the material being cut. For cutting ease and safety, approach the weeds being cut from the right to the left. In the event that an unexpected object or woody stock is encountered, this practice could minimize the blade thrust reaction. Both hands must be used at all times to control this product.

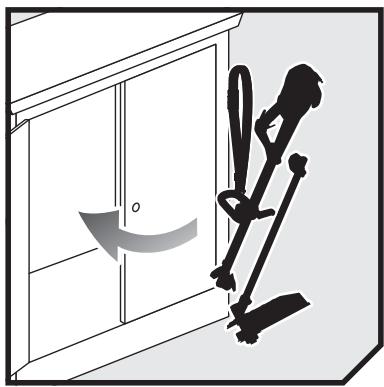

TRANSPORTATION AND STORAGE

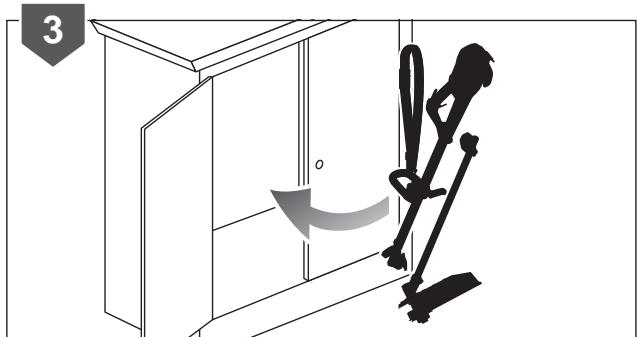

= Stop the product and allow it to cool before storing or transporting. = Clean all foreign materials from the product. If a cutting blade is fitted, cover it with the blade protector. If a cutting blade is fitted, cover it with the blade protector. For storage, always disconnect from power supply and wind the cable. Store it in a cool, dry and well-ventilated place that is inaccessible to children. Keep away from corrosive agents, such as garden chemicals and de-icing salts. Do not store outdoors. For transportation, secure the product against movement or falling to prevent injury to persons or damage to the product. MAINTENANCE À WARNING Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, poor performance, and may void your warranty. À WARNING Servicing requires extreme care and knowledge and should be performed only be a qualified service technician. For service, we suggest you bring the product to your nearest authorised service centre for repair. When servicing, use only identical replacement parts. English| 5

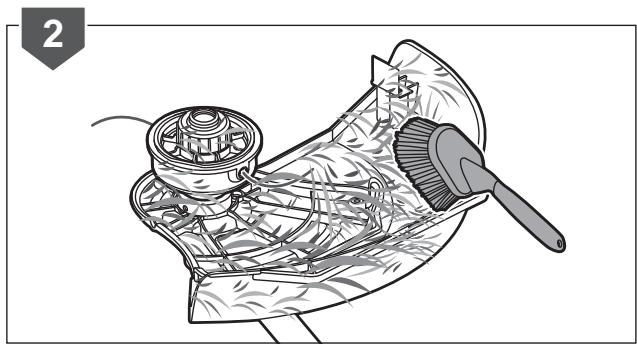

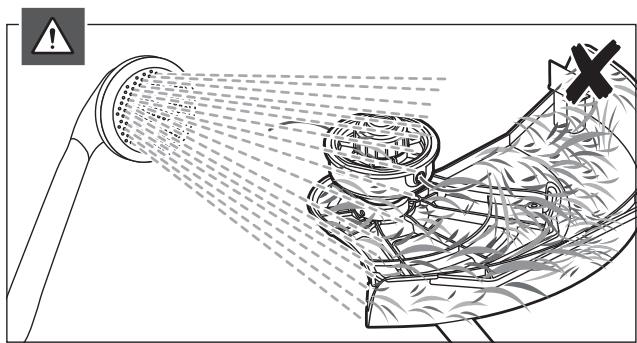

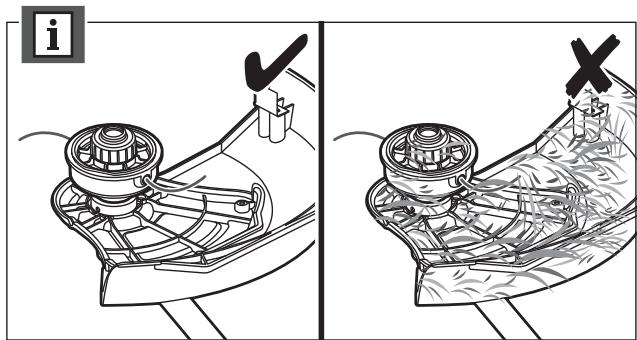

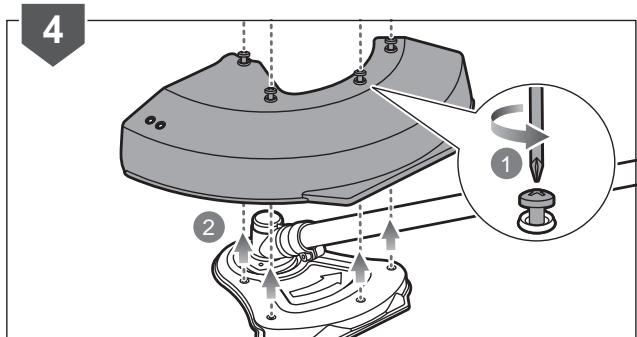

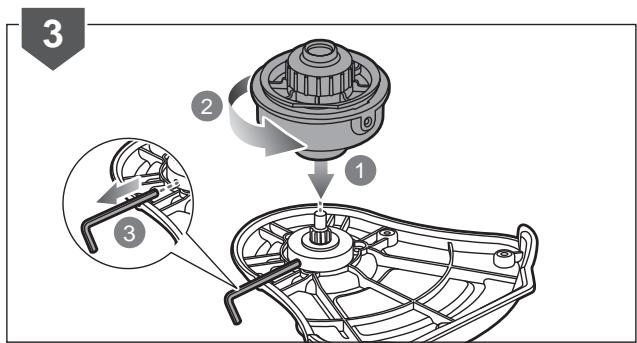

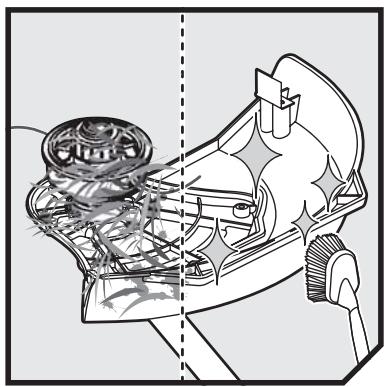

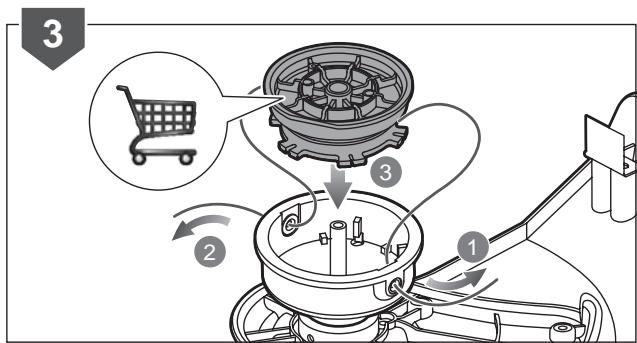

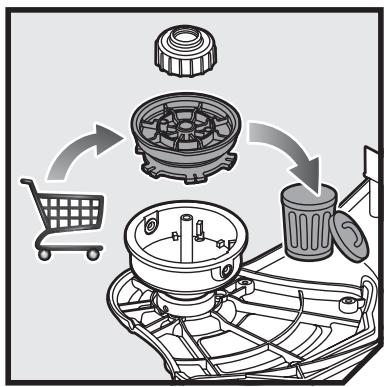

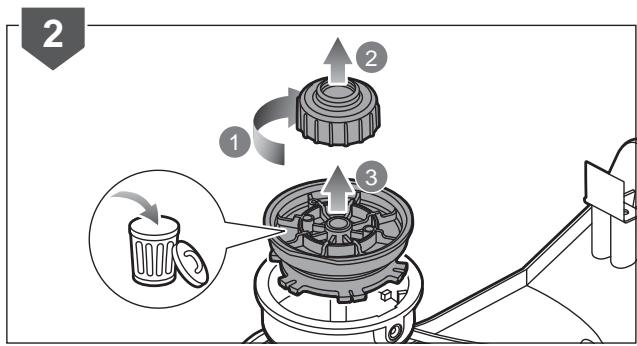

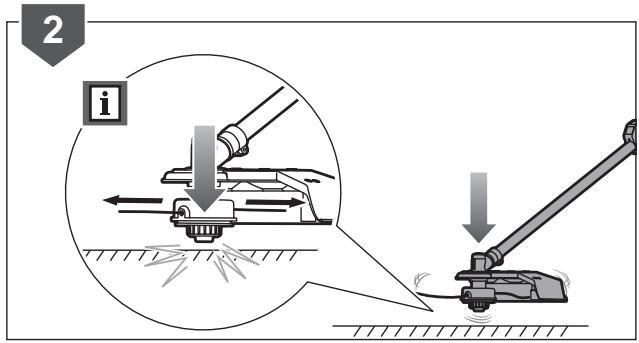

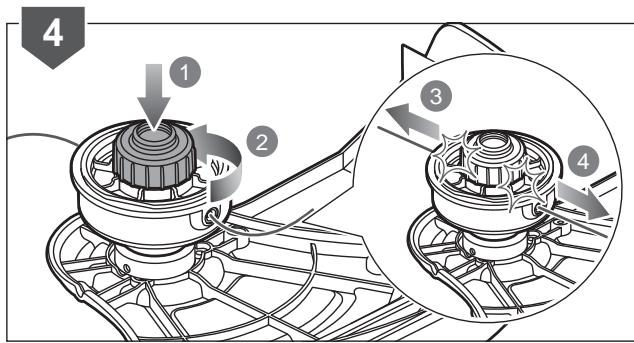

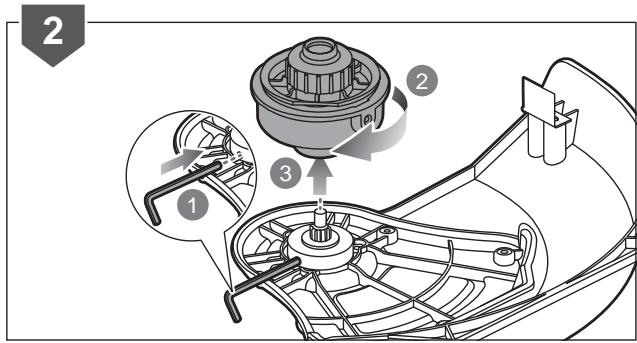

= Switch off and disconnect from the mains before conducting any maintenance or cleaning work. m You may make adjustments and repairs described here. For other repairs, contact the authorised service agent. = For the replacement line, use only nylon filament line of the diameter described in the specification table of this manual. = After extending the new cutter line, always return the product to its normal operating position before starting. = After each use, clean the product with a soft dry cloth. Any part that is damaged should be properly repaired or replaced by an authorised service centre. = Checkall nuts, bolts, and screws at frequent intervals for proper tightness to ensure the product is in a safe working condition. RESIDUAL RISKS Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise in use and the operator should pay special attention to avoid the following: — Injury caused by vibration. Hold the product by designated handles and restrict working time and exposure. — Injury caused by exposure to noise Wear hearing protection and limit exposure. — Injury caused by flying debris Wear eye protection at all times. Contact with cutting means. Ensure that the blade protectors are fitted when the machine is not in use. Keep hands and feet away from the blades at all times. Kickback can occur when using the brushcutter. Ensure proper control by using both hands on the designated handles. Read and follow the directions elsewhere in this manual to help reduce the risk of kickback. Risk of falling objects. During brush cutting, wear head protection if there is any risk of falling objects. RISK REDUCTION It has been reported that vibrations from handheld products may contribute to a condition called Raynaud's Syndrome in 6 |English certain individuals. Symptoms may include tingling, numbness, and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking, and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration: = Keep your body warm in cold weather. When operating the product, wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome. = After each period of operation, exercise to increase blood circulation. = Take frequent work breaks. amount of exposure per day. If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms. Limit the À WARNING Injuries may be caused or aggravated by prolonged use of a tool. When using anÿ oo! for prolonged periods, ensure you take regular breaks.

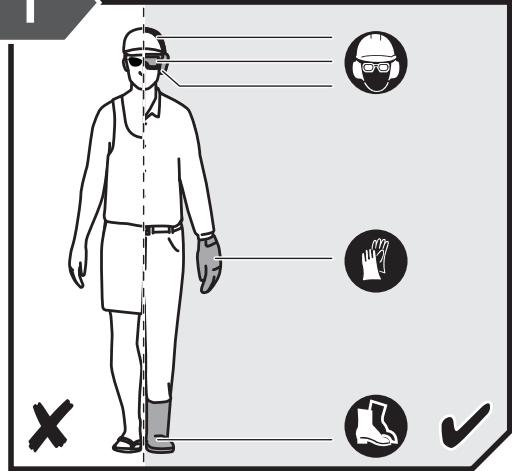

Safety alert Read and understand all instructions before operating the product, follow all warnings and safety instructions. Wear eye, ear and head protection. Wear non-slip safety footwear when using the product. Wear non-slip, heavy duty gloves. Do not expose to rain or damp conditions. Remove plug from the mains immediately before maintenance or if cable is damaged, cut or entangled. Beware of thrown or flying objects. Keep all bystanders a safe distance away from the product. Beware of thrown or flyin objects. Keep all bystanders, cepecialy children and pets, at least 15m away from the operating area Keep hands away from cut-off blade. Class Il tool, double insulation Ukrainian mark of conformity EurAsian Conformity Mark Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. Conforms to all regulatory standards in the country in the EU where the product is purchased.

This product is not intended for use with a toothed saw type blade. Beware of blade thrust. Tri-Arc blade is appropriate for this product and is suited for cutting pulpy weeds and vines. Rotational direction and maximum speed of the shaft for FE the cutting attachment. [3 Lu Brushcutter 1008) Guaranteed sound power level À is 100 dB. EL. Lawn trimmer %z]| Guaranteed sound power level M foris 96 dB. The following signal words and meanings are intended to explain the levels of risk associated with this product. À DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. 4 WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. 4 CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION Without safety alert symbol Indicates a situation that may result in property damage. English | 7

SYMBOLS IN THIS MAN!

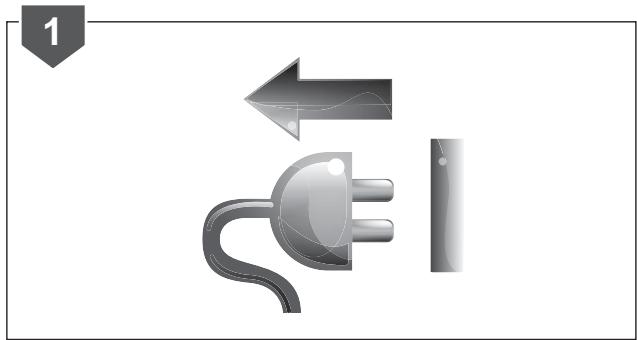

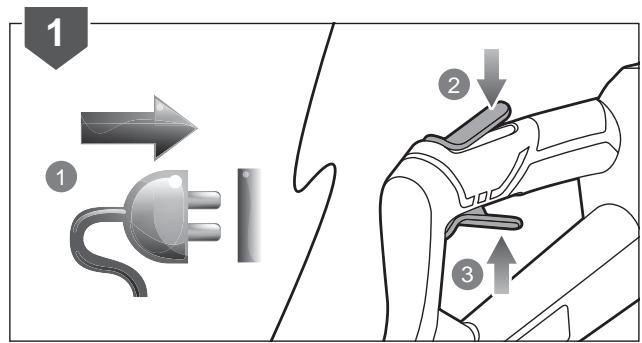

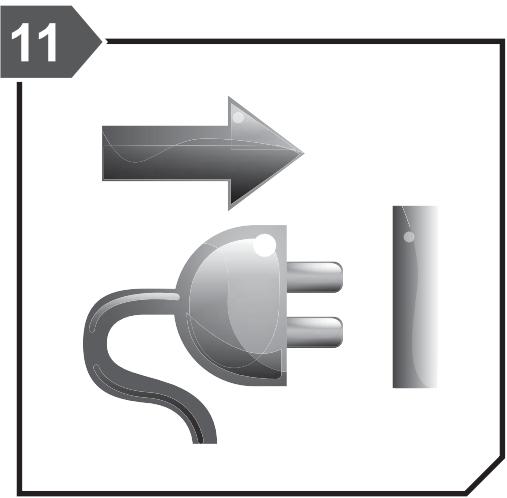

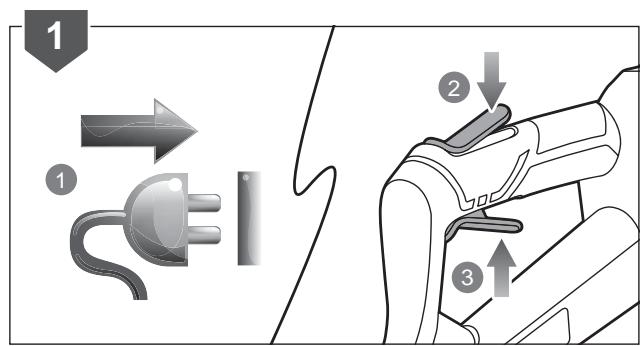

Œl Connect to power outlet.

Œl Disconnect from power outlet. Parts or accessories sold separately H Note 8 |English
