USER MANUAL ExpandIt RXBC01 RYOBI

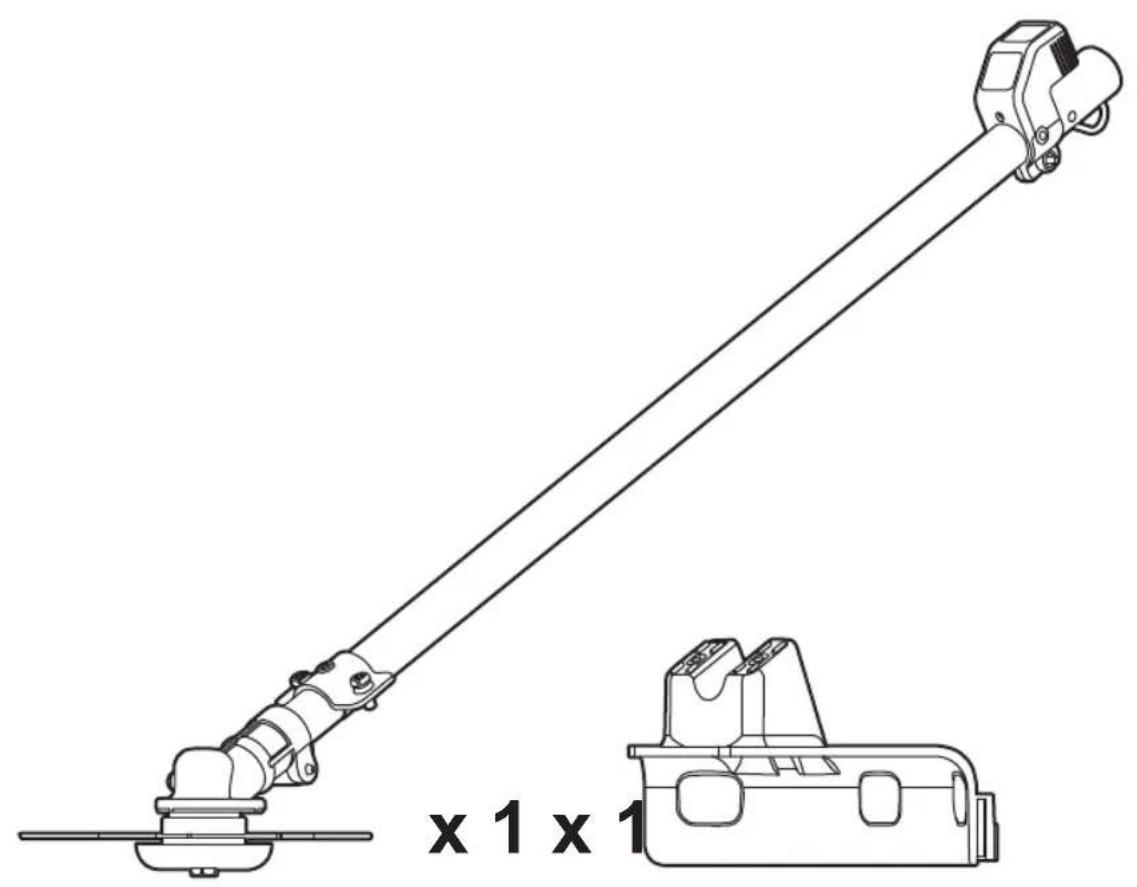

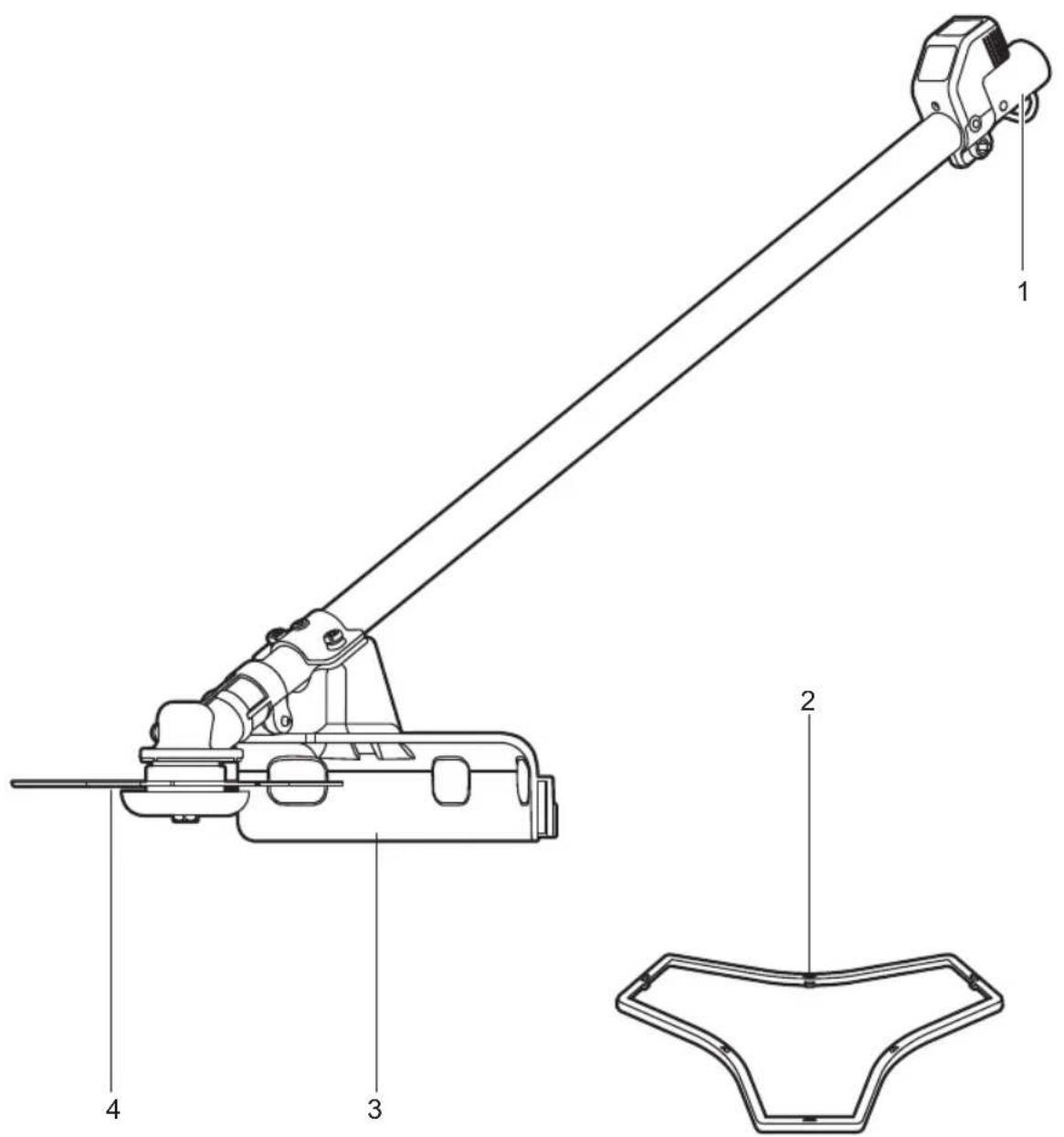

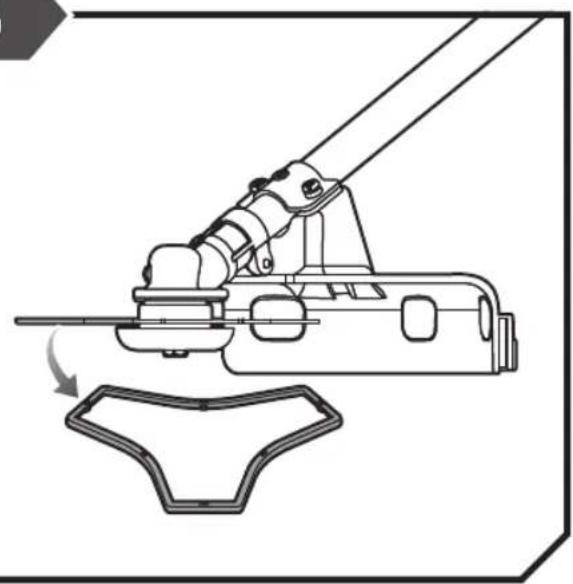

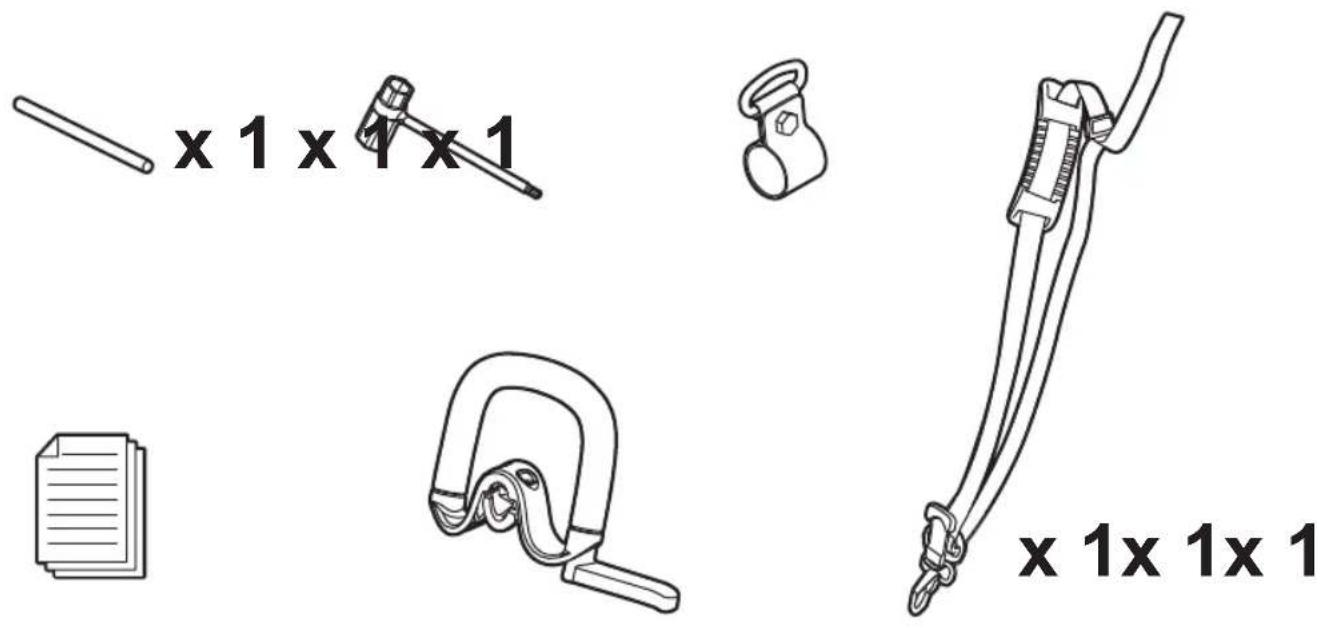

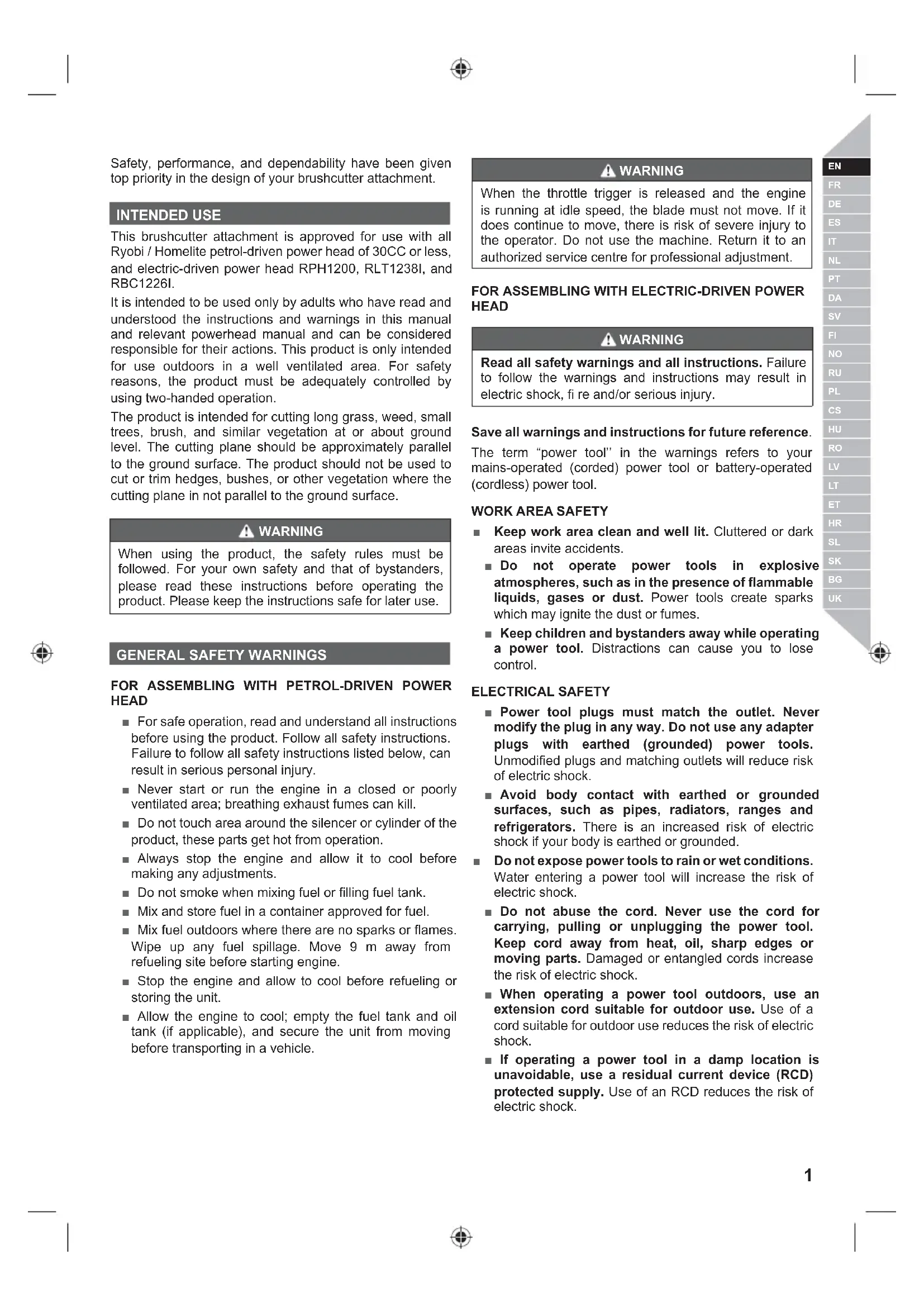

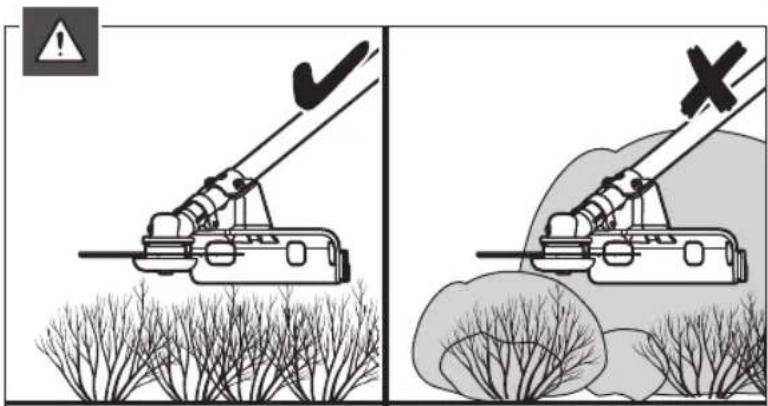

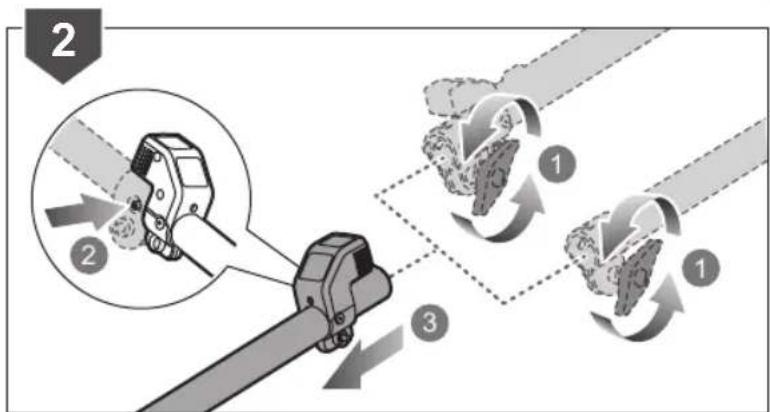

Safety, performance, and dependability have been given top priority in the design of your brushcutter attachment. INTENDED USE This brushcutter attachment is approved for use with all Ryobi / Homelite petrol-driven power head of 30CC or less, and electric-driven power head RPH1200, RLT1238I, and RBC1226I. It is intended to be used only by adults who have read and understood the instructions and warnings in this manual and relevant powerhead manual and can be considered responsible for their actions. This product is only intended for use outdoors in a well ventilated area. For safety reasons, the product must be adequately controlled by using two-handed operation. The product is intended for cutting long grass, weed, small trees, brush, and similar vegetation at or about ground level. The cutting plane should be approximately parallel to the ground surface. The product should not be used to cut or trim hedges, bushes, or other vegetation where the cutting plane in not parallel to the ground surface. WARNING When using the product, the safety rules must be followed. For your own safety and that of bystanders, please read these instructions before operating the product. Please keep the instructions safe for later use.

HEAD ■ For safe operation, read and understand all instructions before using the product. Follow all safety instructions. Failure to follow all safety instructions listed below, can result in serious personal injury. ■ Never start or run the engine in a closed or poorly ventilated area; breathing exhaust fumes can kill. ■ Do not touch area around the silencer or cylinder of the product, these parts get hot from operation. ■ Always stop the engine and allow it to cool before making any adjustments. ■ Do not smoke when mixing fuel or filling fuel tank. ■ Mix and store fuel in a container approved for fuel. ■ Mix fuel outdoors where there are no sparks or flames. Wipe up any fuel spillage. Move 9 m away from refueling site before starting engine. ■ Stop the engine and allow to cool before refueling or storing the unit. ■ Allow the engine to cool; empty the fuel tank and oil tank (if applicable), and secure the unit from moving before transporting in a vehicle. WARNING When the throttle trigger is released and the engine is running at idle speed, the blade must not move. If it does continue to move, there is risk of severe injury to the operator. Do not use the machine. Return it to an authorized service centre for professional adjustment.

FOR ASSEMBLING WITH ELECTRIC-DRIVEN POWER

HEAD WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool’’ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

■ Keep work area clean and well lit. Cluttered or dark areas invite accidents. ■ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. ■ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY ■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. ■ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. ■ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. ■ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. ■ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. ■ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.2 | English PERSONAL SAFETY ■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. ■ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. ■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. ■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. ■ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. ■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. ■ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

POWER TOOL USE AND CARE

■ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. ■ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. ■ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. ■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. ■ Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. ■ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. ■ Use the power tool, accessories and tool bits etc, in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. SERVICE ■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. WARNING Never use cutting means or attachments which are not specifi ed by Ryobi in this manual. This includes the use of metal multi-piece pivoting chains and fl ail-blades. These items are known to break up during use and present a high risk of serious injury to the operator or bystanders.

ADDITIONAL SAFETY WARNINGS

■ Some regions have regulations that restrict the use of the product. Check with your local authority for advice. ■ Never allow children or people unfamiliar with the instructions to use the machine. ■ To avoid using the product in bad weather especially there is a risk of lightning. ■ Do not operate in poor lighting. The operator needs clear unrestricted vision to identify potential hazards. ■ Keep bystanders, children and pets 15m away from the product while in use. Stop the product if anyone enters the area. ■ Avoid using on wet grass. ■ Do not walk backwards when using the product. ■ Keep firm footing and balance at all time. Do not overreach. Overreaching can result in loss of balance or exposure to hot surfaces. Always be sue of your footing on slopes. Walk, never run. ■ Beware of objects thrown by the cutting means. Clear debris like small stones, gravel and other foreign objects from the work area before starting operation. Wires or string may become entangled with the cutting means. ■ Wear full eye and hearing protection while operating this product. If working in an area where there is a risk of falling objects, head protection must be worn. ■ Wear heavy long trousers, non-slip protective footwear and gloves. Do not wear loose fitting clothing, short trousers, jewellery of any kind, or use with bare feet. ■ Secure long hair so it is above shoulder level to prevent entanglement in any moving parts. ■ Use of hearing protection reduces the ability to hear warnings (shouts or alarms). The operator must pay extra attention to what is going on in the working area. ■ Operating similar tools nearby increases both the risk3 English |

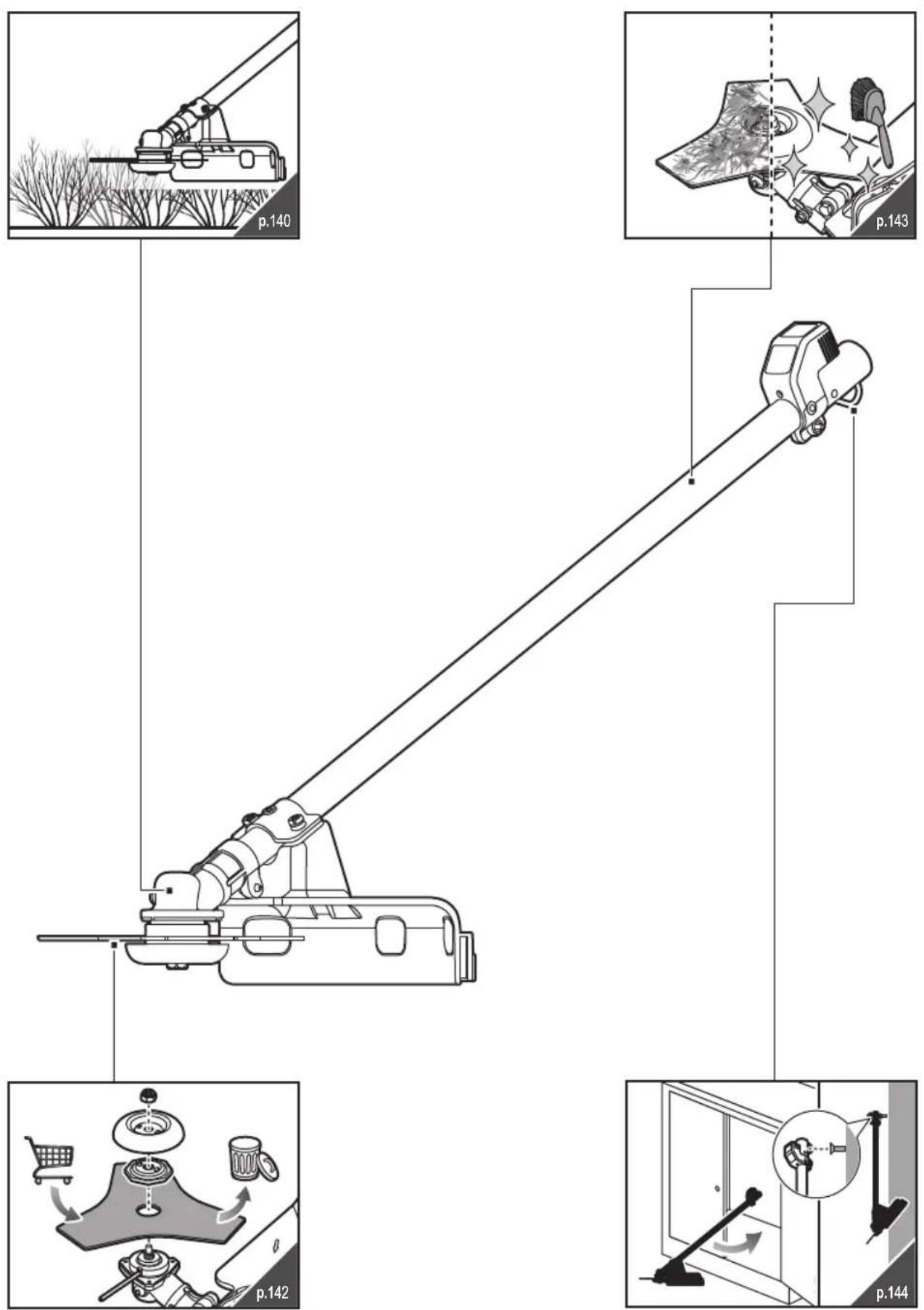

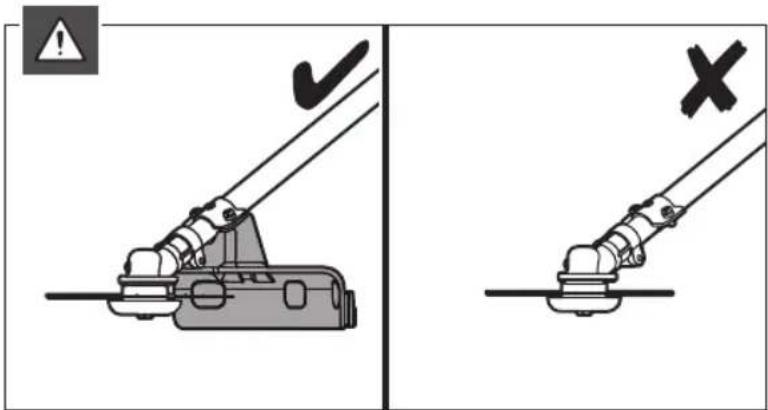

of hearing injury and the potential for other persons to enter your working area. ■ Do not operate the product when you are tired, ill, or under the influence of alcohol, drugs, or medication. ■ Keep all parts of your body away from any moving part. ■ Keep the cutting head attachment below waist level. ■ Never operate the product with damaged guards or without guards in place, Ensure the correct guards are fitted particularly. ■ Keep hands and feet away from the cutting means at all times and especially when the product is running. WARNING If the product is dropped, suffers heavy impact or begins to vibrate abnormally, immediately stop the machine and inspect for damage or identify the cause of the vibration. Any damage should be properly repaired or replaced by an authorised service centre.

FOR ASSEMBLING WITH ELECTRIC-DRIVEN POWER

HEAD ONLY ■ Electrical power should be supplied via a residual current device (RCD) with a tripping current of not more than 30 Ma ■ If you need to use an extension cable ensure it is suitable for outdoor use and has a current capacity sufficient to supply your tool. Check it before every use for damage. Always uncoil it during use because coiled cables can overheat. ■ If the power cable becomes damaged, it must be replaced before using.

BRUSHCUTTER SAFETY WARNINGS

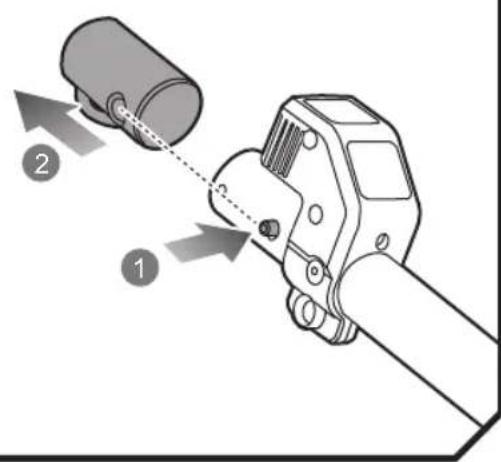

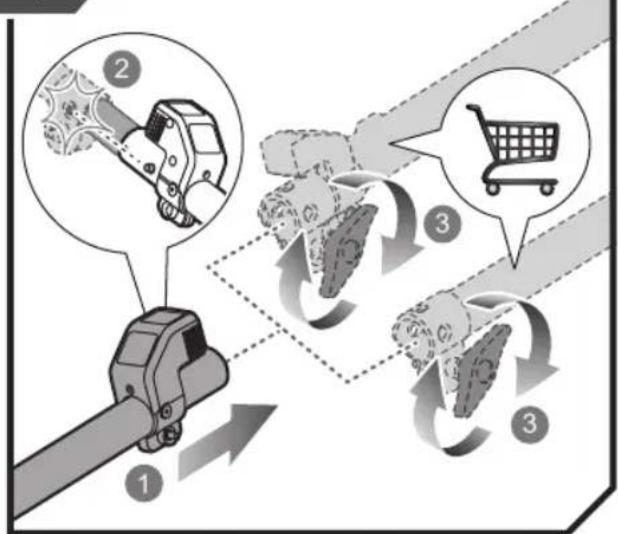

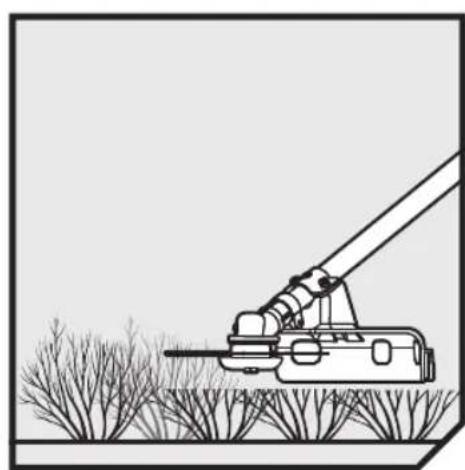

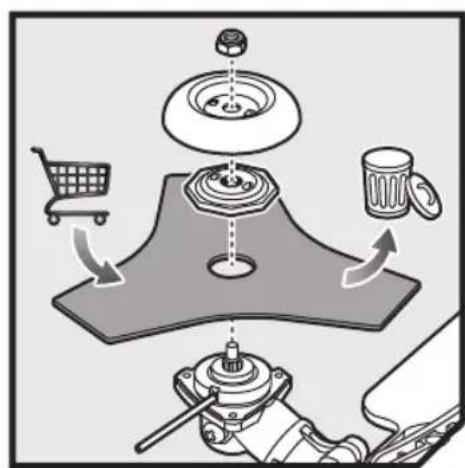

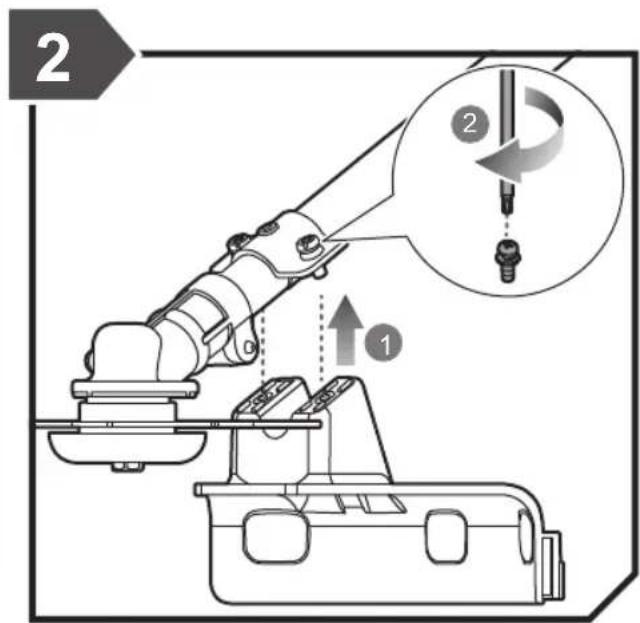

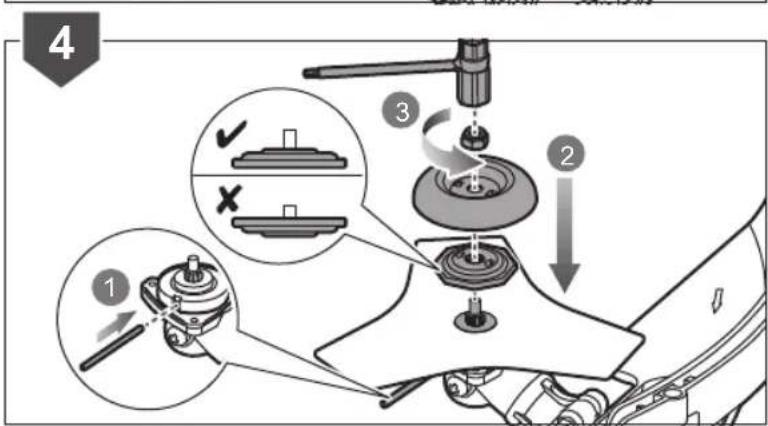

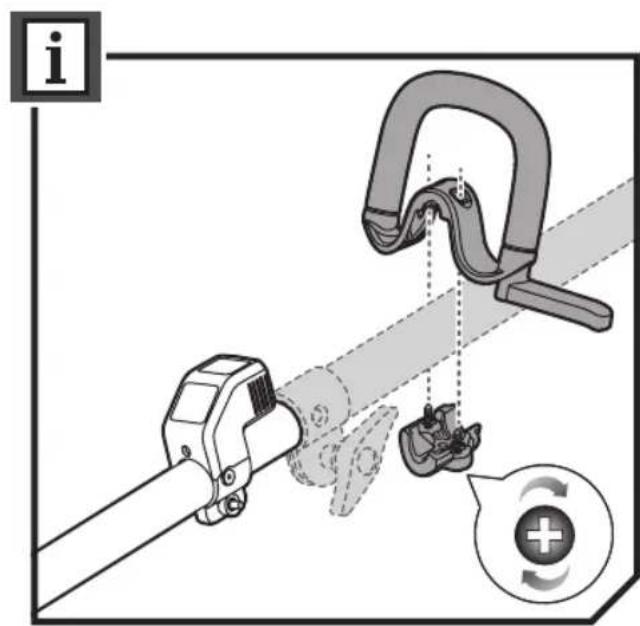

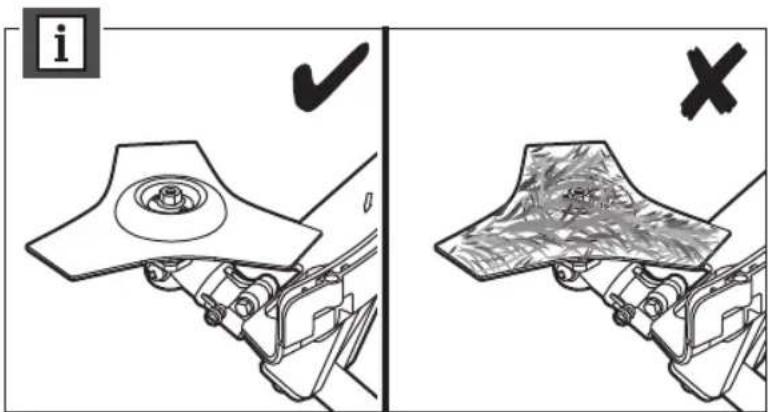

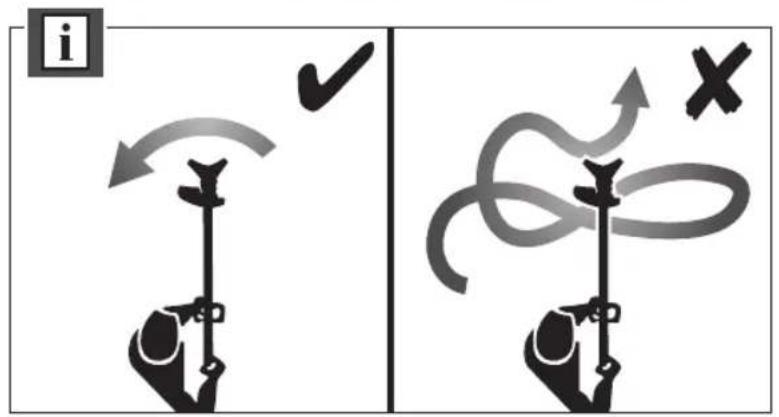

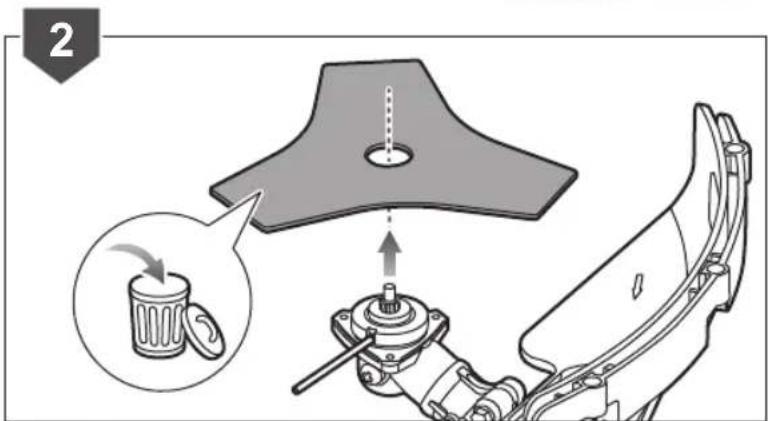

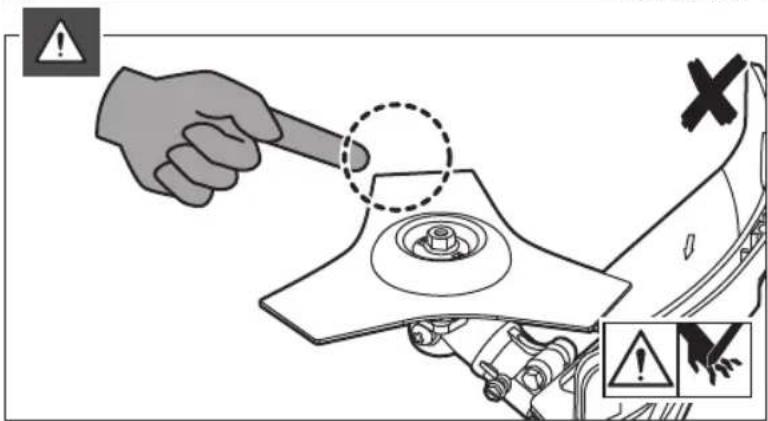

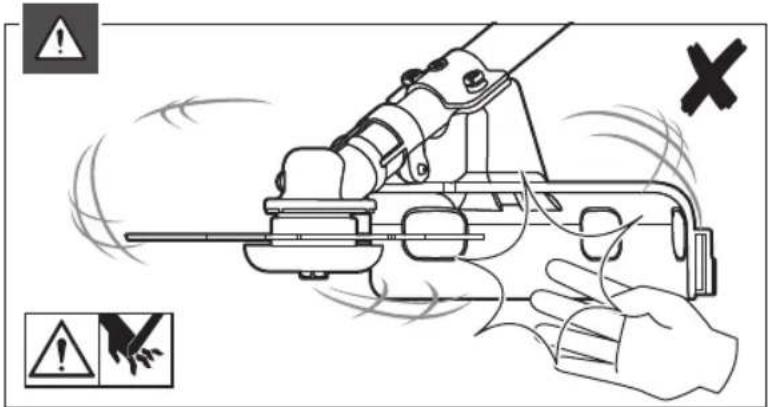

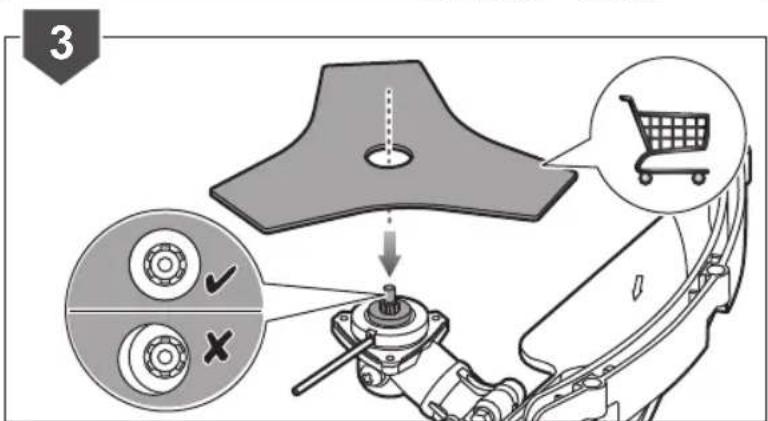

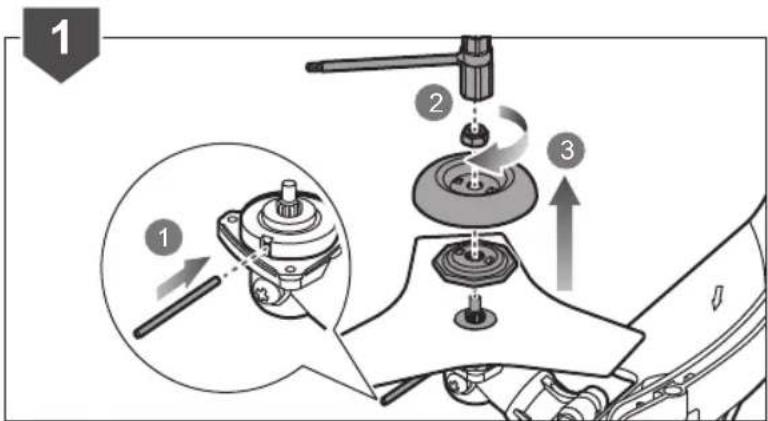

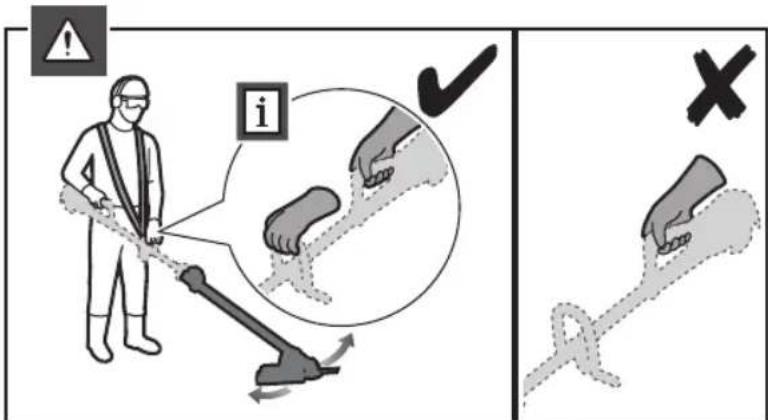

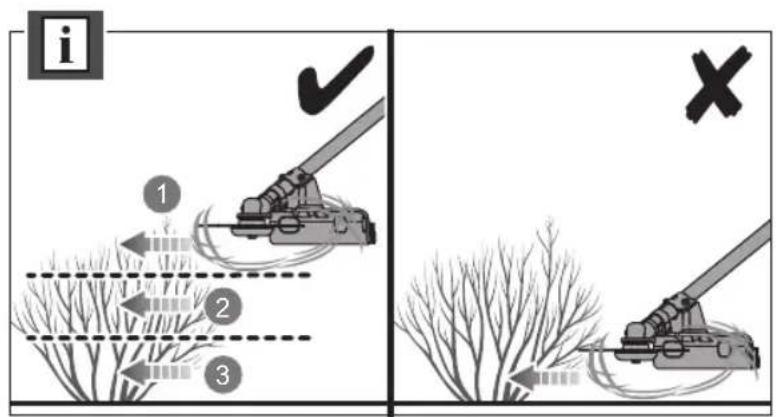

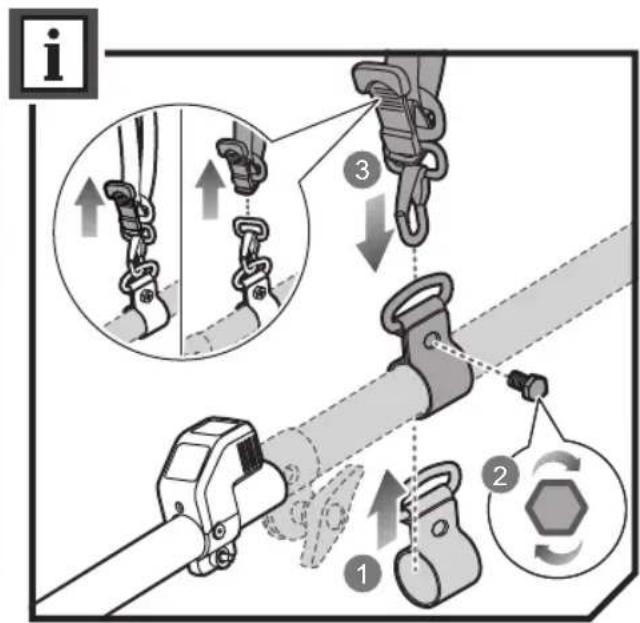

■ Beware, the cutting means continue to rotate after the motor is switched off. ■ Use heavy gloves while installing or removing blades, they have sharp edges. ■ Do not attempt to touch or stop the blade when it is rotating. ■ A moving blade can cause severe injury. Maintain proper control of the machine with both hands until the blade has completely stopped rotating. ■ Replace any blade that has been damaged. Always make sure blade is installed correctly and securely fastened before each use. ■ Use only the manufacturer’s replacement TRI-ARC blade. Do not use any other cutting attachment. ■ Never cut any material over 13mm diameter ■ Your Brush cutter is fitted with a harness. Carefully adjust the harness to fit comfortably and help to support the weight of the machine at your right side. ■ Identify the Quick Release mechanism and practice using it BEFORE you start using the machine. Its correct use may prevent serious injury in the case of an emergency. Never wear additional clothing over the harness or otherwise restrict access to the quick release mechanism. ■ Switch off, and disconnect from power supply (if applicable), and make sure all moving parts have come to stop before: ● servicing ● leaving the product unattended ● cleaning your product ● clearing blockages ● checking for any damage after hitting an object ● checking for any damage if the product starts to vibrate abnormally ● performing maintenance ● remove or install blade ■ Always ensure that ventilation openings are kept clear of debris. ■ Before use and after any impact, check that there are no damaged parts. Examine the cutting means for signs of cracking or other damage. A defective switch or any part that is damaged should be properly repaired or replaced by an authorized service facility. ■ Do not modify the machine in any way, this may increase the risk of injury to yourself or others. ■ Cover the blade with the blade protector before storing the unit, or during transportation. Always remove the blade protector before using the unit. If not removed, the blade protector could become a thrown object as the blade begins to turn. ■ Exercise extreme caution when using the blade with this unit. Blade thrust is the reaction that may occur when the spinning blade contacts anything it cannot cut. This contact may cause the blade to stop for an instant, and suddenly “thrust” the unit away from the object that was hit. This reaction can be violent enough to cause the operator to lose control of the unit. Blade thrust may occur without warning if the blade snags, stalls, or binds. This is more likely to occur in areas there it is difficult to see the material being cut. ■ For cutting ease and safety, approach the weeds being cut from the right to the left. In the event an unexpected object or woody stock is encountered, this practice could minimize the blade thrust reaction. Both hands must be used at all times to control this product

HEAD ■ Stop the engine, and allow it to cool before storing or transporting. ■ Clean all foreign material from the product. ■ Cover the blade with the blade protector ■ Drain all fuel from tank into a container approved for petrol. Remember to properly replace and tighten the fuel cap. ■ If applicable, drain all lubricant from tank into a container approved for lubricant. Remember to properly replace the lubricant cap. ■ Run the engine until it stops, this will remove all fuel that could become stale and leave varnish and gum in the fuel system. ■ Store the product in a cool dry and well-ventilated4 | English place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de- icing salts. ■ Do not store outdoors. ■ When transporting the product in a vehicle, secure it against movement or falling to prevent injury to persons or damage to the product. ■ Never carry or transport the product while the engine is running. ■ Abide by all government and local regulations for the safety storage and handling of petrol. SHORT TERM (LESS THAN ONE MONTH) ■ Stop the engine, and allow it to cool before storing. ■ Clean all foreign material from the product. ■ Cover the blade with the blade protector. ■ Store the product in a cool dry and well-ventilated place that is inaccessible to children. ■ Keep away from corrosive agents such as garden chemicals and de-icing salts. ■ Do not store outdoors.

FOR ASSEMBLING WITH ELECTRIC-DRIVEN POWER

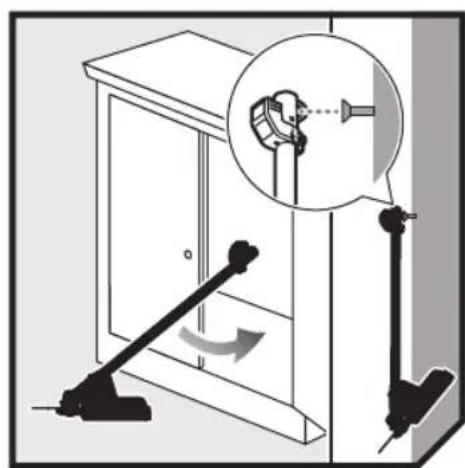

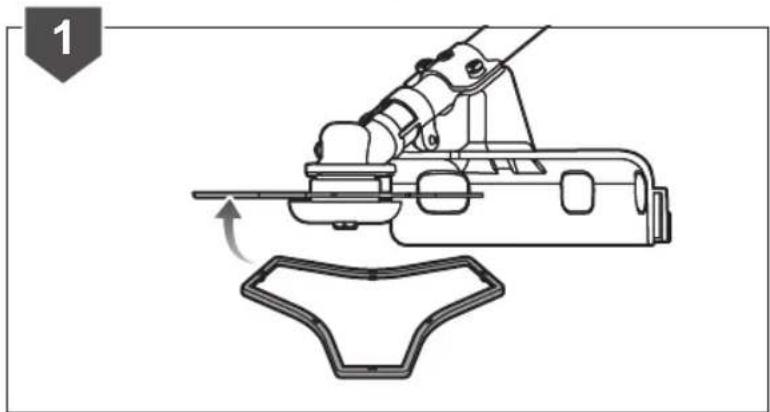

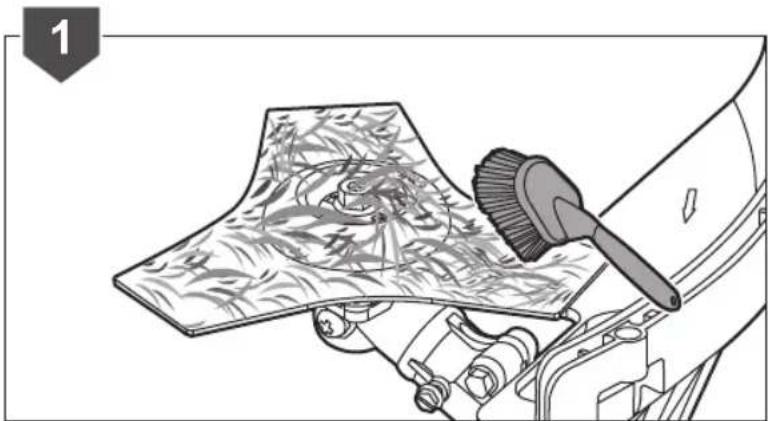

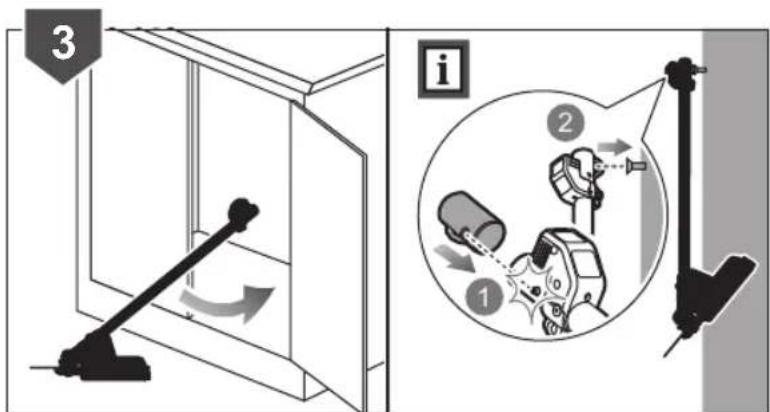

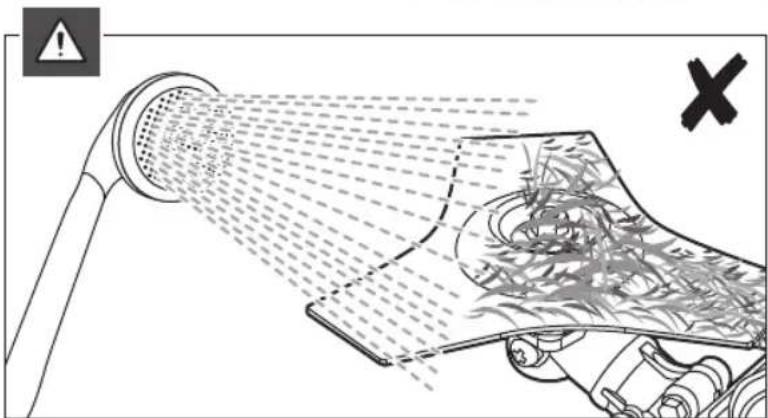

HEAD ■ Stop the machine, disconnect from the power supply and wind the cable. Allow machine to cool before storing or transporting ■ Clean all foreign material from the product. Store it in a cool dry and well-ventilated place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts. Do not store outdoors. ■ Cover the blade with the blade protector ■ For transportation, secure the machine against movement or falling to prevent injury to persons or damage to the machine. MAINTENANCE WARNING Use only original manufacturer’s replacement parts, accessories and attachments. Failure to do so can cause possible injury, poor performance and may void your warranty. WARNING Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest authorised service centre for repair. When servicing, use only identical replacement parts. ■ Switch off, disconnect from the power supply (if applicable), and make sure all moving parts have come to stop before conducting any maintenance or cleaning work. ■ You may make adjustments and repairs described here. For other repairs, contact the authorized service agent. ■ After each use, clean the product with a soft dry cloth. ■ Check all nuts, bolts and screws at frequent intervals for proper tightness to ensure the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorised service centre. RESIDUAL RISKS Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise in use and the operator should pay special attention to avoid the following: ■ Contact with cutting means. Ensure that the blade protectors are fitted when the product is not in use. Keep hands and feet away from the blades at all times. ■ Injury caused by vibration. Always use the right tool for the job, use designated handles and restrict working time and exposure. ■ Hearing injury caused by exposure to noise. Wear hearing protection and limit exposure. ■ Eye injury due to flying debris. Wear eye protection at all times. ■ Kickback can occur when using the brushcutter. Ensure proper control by using both hands on the designated handles. Read and follow the directions in this manual to help reduce the risk of kickback. ■ Risk of falling objects. Wear head protection if there is any risk of falling objects. RISK REDUCTION It has been reported that vibrations from hand-held tools may contribute to a condition called Raynaud’s Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fi ngers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of the these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration: ■ Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud’s Syndrome. ■ After each period of operation, exercise to increase blood circulation. ■ Take frequent work breaks. Limit the amount of exposure per day. If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms. WARNING Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.5English |

SYMBOLS ON THE PRODUCT

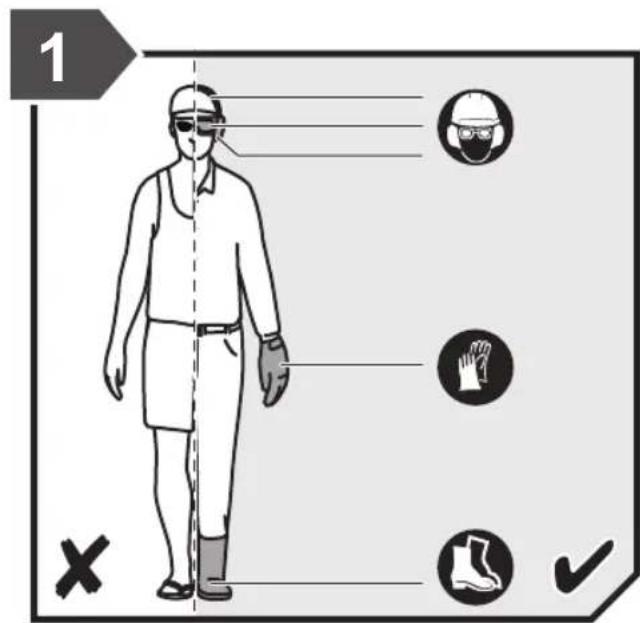

Safety alert Read and understand all instructions before operating the product, follow all warnings and safety instructions. Wear eye, ear and head protection. Wear non-slip safety footwear when using the product. Wear non-slip, heavy-duty gloves. Beware of thrown or fl ying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area. This product is not intended for use with a toothed saw type blade. Tri-Arc blade Conforms to all regulatory standards in the country in the EU where the product is purchased. EurAsian Conformity Mark Ukrainian mark of conformity Keep hands away from cut-off blade. Beware of blade thrust Do not expose to rain or damp condition. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with Local Authority or retailer for recycling advice. Guaranteed sound power level is 114 dB. Rotational direction and maximum speed of the shaft for the cutting attachment. The following signal words and meanings are intended to explain the levels of risk associated with this product. DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION Without safety alert symbol Indicates a situation that may result in property damage.6 | Français La plus grande priorité a été donnée à la sécurité, aux performances et à la fi abilité de votre accessoire débroussailleuse lors de sa conception.

SYMBOLES APPLIQUÉS SUR LE PRODUIT

MACHEN SIE SICH MIT IHREM PRODUKT

SYMBOLE AUF DEM PRODUKT

1. The guarantee period is 24 months for consumers and commences on the

date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no guarantee provided in case of professional or commercial use.

2. There is, in some cases (i.e. promotion, range of tools), a possibility to

extend the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of the tool is clearly displayed in stores and/or on packaging. The end user needs to register his/her newly-acquired tools online within 8 days from the date of purchase. The end user may register for the extended warranty in his country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of the data which are required to enter online and they have to accept the terms and conditions. The registration conrmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty. Your statutory rights remain unaffected.

3. The guarantee covers all defects of the product during the warranty period

due to defaults in workmanship or material at the purchase date. The guarantee is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or being incorrectly connected. This guarantee does not apply to – any damage to the product that is the result of improper maintenance – any product that has been altered or modified – any product where original identification (trade mark, serial number) markings have been defaced, altered or removed – any damage caused by non-observance of the instruction manual – any non CE product – any product which has been attempted to be repaired by an non- qualified professional or without prior authorization by Techtronic Industries – any product connected to improper power supply (amps, voltage, frequency) – any product used with inappropriate fuel mixture (fuel, oil, percentage of oil) – any damage caused by external influences (chemical, physical, shocks) or foreign substances – normal wear and tear of spare parts – inappropriate use, overloading of the tool – use of non-approved accessories or parts – carburettor after 6 months, carburettor adjustments after 6 months – components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

4. For servicing, the product must be sent or presented to a RYOBI authorized

service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender’s address and accompanied by a short description of the fault.

5. A repair/replacement under this guarantee is free of charge. It does not

constitute an extension or a new start of the guarantee period. Exchanged parts or tools become our property. In some countries delivery charges or postage will have to be paid by the sender.

6. This guarantee is valid in the European Community, Switzerland, Iceland,

Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorized RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

To nd an authorised service centre near you, visit http://uk.ryobitools.eu/ header/service-and-support/service-agents.

EC DECLARATION OF CONFORMITY

Techtronic Industries GmbH Max-Eyth-Straße 10, 71364 Winnenden, Germany Herewith we declare that the product Brushcutter Attachment Brand: Ryobi Model number: RXBC01 Serial number range: 44471001000001-44471001999999 is in conformity with the following European Directives and harmonised standards For assembling with petrol-driven power head 2006/42/EC, 2004/108/EC (until April 19, 2016), 2014/30/EU (after April 20, 2016), 2000/14/EC, 2005/88/EC, 97/68/EC as last amended 2012/46/EU, EN ISO 11806-

1:2011, EN ISO 14982:2009, EN ISO 3744:2010

For assembling with electric-driven power head 2006/42/EC, 2004/108/EC (until April 19, 2016), 2014/30/EU (after April 20, 2016), 2000/14/EC, 2005/88/EC, 2011/65/EU, EN 60745-1:2009+A11:2010, EN ISO 11806-1:2011, EN ISO 3744:2010, EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 50581:2012 Measured sound power level: 111.2 dB(A) Guaranteed sound power level: 114 dB(A) Conformity assessment method to Annex V Directive 2000/14/EC amended by 2005/88/EC. The Brushcutter attachment (RXBC01) is intended to assemble with all Ryobi / Homelite petrol-driven power head of 30cc or less and electric-driven power head RPH1200/RLT1238I/ RBC1226I. This partly completed machinery must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the provisions of the Machinery Directive 2006/42/EC, where appropriate. Andrew John Eyre (BEng, CEng, MIET) Vice President, Regulatory & Safety Winnenden, Feb. 05, 2016 Authorised to compile the technical file: Alexander Krug, Managing Director Techtronic Industries GmbH Max-Eyth-Straße 10, 71364 Winnenden, GermanyDA
