USER MANUAL AdvancedRotak 36890 BOSCH

Warning: Keep a safe distance

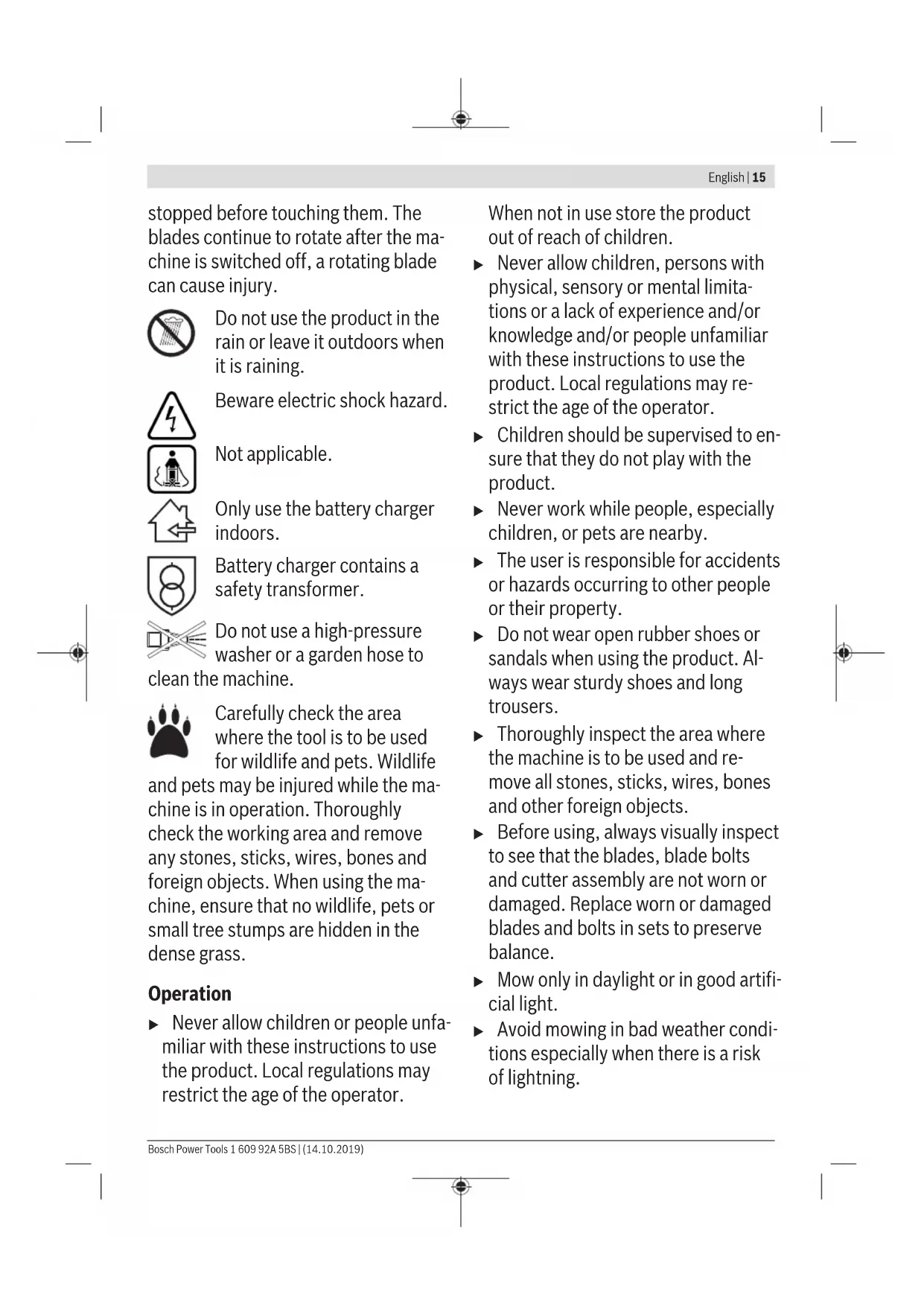

to the product when operat- ing. Caution: Do not touch rotat- ing blades. Sharp blade(s). Beware of severing toes or fingers. Switch off and remove isol- ator switch before adjusting, cleaning and before leaving the product unattended for any period. Not applicable. Wait until all machine com- ponents have completely 1 609 92A 5BS | (14.10.2019) Bosch Power ToolsEnglish | 15 stopped before touching them. The blades continue to rotate after the ma- chine is switched off, a rotating blade can cause injury. Do not use the product in the rain or leave it outdoors when it is raining. Beware electric shock hazard. Not applicable. Only use the battery charger indoors. Battery charger contains a safety transformer. Do not use a high-pressure washer or a garden hose to clean the machine. Carefully check the area where the tool is to be used for wildlife and pets. Wildlife and pets may be injured while the ma- chine is in operation. Thoroughly check the working area and remove any stones, sticks, wires, bones and foreign objects. When using the ma- chine, ensure that no wildlife, pets or small tree stumps are hidden in the dense grass. Operation u Never allow children or people unfa- miliar with these instructions to use the product. Local regulations may restrict the age of the operator. When not in use store the product out of reach of children. u Never allow children, persons with physical, sensory or mental limita- tions or a lack of experience and/or knowledge and/or people unfamiliar with these instructions to use the product. Local regulations may re- strict the age of the operator. u Children should be supervised to en- sure that they do not play with the product. u Never work while people, especially children, or pets are nearby. u The user is responsible for accidents or hazards occurring to other people or their property. u Do not wear open rubber shoes or sandals when using the product. Al- ways wear sturdy shoes and long trousers. u Thoroughly inspect the area where the machine is to be used and re- move all stones, sticks, wires, bones and other foreign objects. u Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance. u Mow only in daylight or in good artifi- cial light. u Avoid mowing in bad weather condi- tions especially when there is a risk of lightning. Bosch Power Tools 1 609 92A 5BS | (14.10.2019)16 | English u Avoid operating the machine in wet grass, where feasible. u Walk, never run. u Never operate the machine with de- fective guards or shields, or without safety devices, for example deflect- ors and/or grass catchers in place. u We would advise you to wear ear protection for your own conveni- ence. u Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine. u Working on banks can be dangerous: − Do not mow on excessively steep slopes. − Always be sure of your footing on slopes or wet grass. − Mow across the face of slopes never up and down. − Exercise extreme caution when changing direction on slopes. u Use extreme caution when stepping back or pulling the machine towards you. u Never mow by pulling the mower to- wards you. u Wait until the blades stop if the ma- chine has to be tilted for transporta- tion when crossing surfaces other than grass and when transporting the machine to and from the area to be mowed. u Do not tilt the machine when starting or switching on the motor. u Switch on the motor according to the instructions with feet well away from rotating parts. u Do not put hands or feet near or un- der rotating parts. u Always stand clear of the discharge zone when operating the machine. u Never pick up or carry the machine while the motor is running. u When storing, make sure that all 4 wheels of the garden tool stand on the ground/floor. u Only lift the garden tool with the car- rying handle. Use the carrying handle with care. u Do not modify the machine. Unau- thorized modifications can impair the safety of your machine, lead to increased noise and vibrations, and poor performance. Leaf Collect The leaf collect blade has been de- signed to allow you to pick up autumn leaves from your lawn. In order for this functionality to work within optimal parameters, please note the following: – Only collect leaves with the ma- chine set at maximum cutting height. – Collect leaves from your lawn only. – Before collecting leaves inspect the area where the machine is to be used and keep people, pets, glass structures and cars away from use. 1 609 92A 5BS | (14.10.2019) Bosch Power ToolsEnglish | 17 Remove the isolator switch: – Whenever you leave the machine. – Before clearing a blockage. – Before checking, cleaning or work- ing on the machine. – After striking a foreign object. In- spect the machine for damage and change the blade as necessary. – If the machine starts to vibrate ab- normally (check immediately). Maintenance u Always wear gardening gloves when handling or working near the sharp blades. u Keep all nuts, bolts and screws tight to ensure safe working with the product. u Check the grass bag frequently for wear or deterioration. u Check the grass catcher frequently for wear or deterioration. u Inspect the product and replace worn or damaged parts for safety. u Ensure replacement cutting means of the right type are used. u Ensure replacement parts fitted are Bosch-approved. u Before storing, make sure that the product is clean and free of residue. If necessary, clean with a soft dry brush. Safety Instructions and Recommendations for Optimal Handling of the Battery u Ensure the garden tool is switched off and the isolator switch is in the off position before the inserting bat- tery. Inserting the battery pack into machines that have the switch on can cause accidents. u Use only Bosch battery packs intended specifically for the machine. Use of any other battery packs may create a risk of injury and fire. u Do not open the battery. There is a risk of short-circuit- ing. Protect the battery against heat (e.g., against continuous intense sunlight), fire, water, and moisture. There is a risk of explo- sion. u Keep the battery not being used away from paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. u In case of damage and improper use of the battery pack, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system. u Only use the battery with products from the manufac- turer. This is the only way in which you can protect the battery against dangerous overload. u The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. u Do not short-circuit the battery. There is a risk of explo- sion. u Protect the battery against moisture and water. u Store the machine and battery only within a temperature range between –20°C and 50°C . As an example, do not leave the battery in the car in summer. u Occasionally clean the venting slots of the battery using a soft, clean and dry brush. Safety Warnings for Battery Chargers Read all safety warnings and all instruc- tions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury. Save all safety warnings and instructions for future ref- erence. Use the battery charger only when you fully understand and can perform all functions without limitation, or have received appropriate instructions. u Never allow children, persons with physical, sensory or mental limita- tions or a lack of experience and/or knowledge and/or people unfamiliar with these instructions to use the Bosch Power Tools 1 609 92A 5BS | (14.10.2019)18 | English battery charger. Local regulations may restrict the age of the operator. u Supervise children at all times. This will ensure that children do not play with the battery charger. u Charge only Bosch lithium-ion bat- teries with a capacity above 2.0 Ah (10 battery cells or more). The bat- tery voltage must match the battery charging voltage of the charger. Do not charge non-rechargeable batter- ies. Otherwise there is a danger of fire and explosion. Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock. u Keep the charger clean. Dirt poses a risk of electric shock. u Always check the charger, cable and plug before use. Stop using the charger if you discover any damage. Do not open the charger yourself, and have it repaired only by a qualified specialist using only original re- placement parts. Damaged chargers, cables and plugs increase the risk of electric shock. u Do not operate the charger on an easily ignited sur- face (e.g. paper, textiles, etc.) or in a flammable envir- onment. There is a risk of fire due to the charger heating up during operation. u Do not cover the ventilation slots of the battery char- ger. Otherwise, the battery charger can overheat and no longer operate properly. u For increased electrical safety, we recommend using a re- sidual current device with a max. tripping current of 30 mA. Before using, always check your residual current device. Symbols The following symbols are important for reading and under- standing the original instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner. Symbol Meaning Movement direction Reaction direction Wear protective gloves Weight Switching on Switching off Permitted action Prohibited action CLICK! Audible noise Accessories/Spare Parts Intended Use The garden product is intended for domestic lawn mowing. The garden product is not intended for hedge cutting, trim- ming, shredding, etc. The garden product is intended for lawn mowing at ground level. Technical Data Lawnmower AdvancedRotak 36-650 AdvancedRotak 36-660 AdvancedRotak 36-690 Advanced Rotak 36-750 Article number 3 600 HB9 604 3 600 HB9 672 3 600 HB9 605 3 600 HB9 673 3 600 HB9 607 3 600 HB9 702 3 600 HB9 771 Rated voltage V 36 36 36 36 Bowl diameter cm 42 42 42 46 Height of cut mm 25 − 80 25 − 80 25 − 80 25 − 80 Capacity, grass bag l 50 50 50 50 1 609 92A 5BS | (14.10.2019) Bosch Power ToolsEnglish | 19 Lawnmower AdvancedRotak 36-650 AdvancedRotak 36-660 AdvancedRotak 36-690 Advanced Rotak 36-750 Weight according to EPTA‑Proced- ure 01:2014 kg 17.5 16.5 17.5 17.5 Serial number see type plate on garden tool Permitted ambient temperature – during char- ging °C 0 … +45 0 … +45 0 … +45 0 … +45 – during opera- tion °C +5 … +50 +5 … +50 +5 … +50 +5 … +50 – during storage °C -20 … +50 -20 … +50 -20 … +50 -20 … +50 Battery Li-Ion Li-Ion Li-Ion Li-Ion Rated voltage V 36 36 36 36 Article number/Capacity – 2 607 336 913/ 1 607 A35 02V Ah − 2 x 2.0 − − – 2 607 336 915/

– Uncertainty K dB = 2.5 = 2.5 = 2.5 = 2.5 Vibration total values ah (triax vector sum) and uncertainty K determined according to EN60335-2-77 – Vibration emis- sion value a

– Uncertainty K dB = 2.5 = 2.5 = 2.5 = 2.5 Vibration total values ah (triax vector sum) and uncertainty K determined according to EN60335-2-77 – Vibration emis- sion value a

< 2.5 < 2.5 < 2.5 < 2.5 – Uncertainty K m/s

=1.5 =1.5 =1.5 =1.5 Mounting and Operation Action Figure Page Delivery scope

A 366 Unfolding the handle Adjusting the working height B 367 Grassbox fitting/removing C 368 Setting the height of cut D 369 Inserting the battery E 369 Operation - Inserting the isolator switch - Switching on - Mowing - Switching off - Removing the isolator switch F 370 Removing the battery G 371 Working advice “mowing” H 371 Level indicator, grassbox empty/full I 372 Fold down handle J 373 Blade maintenance/Blade replacement K 374 Selecting accessories L 374

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Starting Operation For Your Safety u Warning! Switch off, remove the isolator switch and the battery before adjusting or cleaning. The same ap- plies when the cable to the switch in the handle is damaged, cut or entangled. u The blade continues to rotate for a few seconds after the machine is switched off. u Caution: Do not touch the rotating blade. Charging the Battery The battery is equipped with temperature monitoring that al- lows charging only in the temperature range between 0 °C and 35 °C. In this manner, a high battery service life is achieved. Note: The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery. The “Electronic Cell Protection (ECP)” protects the lithium- ion battery against deep discharging. When the battery is discharged, the machine is switched off by means of a pro- tective circuit: The garden product no longer operates. Do not continue to press the On/Off switch after an auto- matic shut-off of the machine. The battery can be dam- aged. Observe the notes for disposal of the battery. Bosch Power Tools 1 609 92A 5BS | (14.10.2019)22 | English Inserting/Removing the Battery Note: Using unsuitable batteries can lead to malfunctions or damage the machine. Insert the charged battery. Ensure the battery is inserted correctly. To remove the battery from the machine, press the battery unlocking button and pull the battery out. Charging Procedure The charging procedure starts as soon as the mains plug of the charger is plugged into a socket outlet and the battery is inserted onto the charger . Due to the intelligent charging method, the charging condi- tion of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage. This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage. Meaning of the indication elements on the charger (AL 3620 CV/AL 3640 CV/AL 36V-20) Rapid-charging Procedure The rapid-charging procedure is indicated by flashing of the green battery charge indicator. Indication element of the battery: During the charging procedure, the three green LEDs light up one after the other and briefly go out. The battery is fully charged when the three green LEDs light up continuously. The three LEDs go out again approx. 5minutes after the battery has been fully charged. Note: The rapid-charging procedure is only possible when the battery temperature is within the allowable charging temperature range, see section “Technical Data”. Battery charged Continuous lighting of the green LED indic- ator indicates that the battery is fully charged. Additionally, a signal tone sounds for approx. 2seconds, which acoustically indicates that the battery is fully charged. Afterwards, the battery can be removed for immediate use. When the battery is not inserted, continuous lighting of the LED indicator indicates that the mains plug is inserted in the socket outlet and that the battery charger is ready for opera- tion. Battery Temperature below 0°C or above 45°C Continuous lighting of the red LED indicator indicates that the temperature of the battery is not within the allowable charging temperature range, see section “Technical Data”. As soon as the allowable charging temperature range is reached, the battery charger automatically switches to rapid charging. When the battery is not within the allowable temperature range, the red battery LED lights up when inserting the bat- tery into the battery charger. No Charging Procedure Possible If a different malfunction of the charging pro- cedure is present, this will be indicated through flashing of the red LED indicator. The charging procedure cannot be started and the battery cannot be charged (see section Troubleshooting). Charging Advice With continuous or several repetitive charging cycles without interruption, the charger can warm up. This is not meaning- ful and does not indicate a technical defect of the battery charger. A significantly reduced working period after charging indic- ates that the battery is used and must be replaced. Observe the notes for disposal. Battery Cooling (Active Air Cooling) The fan control integrated into the charger monitors the tem- perature of the inserted battery. When the battery temperat- ure is above 30 °C, a fan cools down the battery to the op- timal charging temperature. The fan generates a ventilation sound when switched on. If the fan is not running, the battery temperature is within the optimum charge-temperature range or the fan is defective. In this case, the charging time of the battery might be exten- ded. Working Advice Battery charge-control indicator The battery is equipped with a charge-control indicator, which indicates its charge condition. The charge-control in- dicator consists of 3 green LEDs. Press the charge-control indicator button to actuate the charge-control indicator. After approx. 5 seconds, the charge-control indicator goes out automatically. The charge condition can also be checked when the battery is removed. LED Indication Battery Capacity Continuous lighting of 3 green LEDs ≥ 2/3 Continuous lighting of 2 green LEDs ≥ 1/3 Continuous lighting of 1 green LED ≤ 1/3 Flashing of 1 green LED Reserve When no LED lights up after pressing the button, then the battery is defective and must be replaced. For safety reasons, the charge condition of the battery can only be checked when the garden product is at a standstill. During the charging procedure, the three green LEDs light up one after the other and briefly go out. The battery is fully charged when the three green LEDs light up continuously. The three green LEDs go out again approx. 5minutes after the battery has been fully charged. 1 609 92A 5BS | (14.10.2019) Bosch Power ToolsEnglish | 23 Temperature Monitoring Indicator of the battery The red LED of the temperature monitoring indicator signals that the battery or the electronics of the garden product (with battery inserted) are not within the optimum temperat- ure range. When this occurs, the garden product will not op- erate or not at full capacity. Temperature Monitoring of the Battery The red LED flashes when pressing the button or the On/Off switch (with battery inserted): The battery is outside of the permitted operating temperature range. The battery switches off at a temperature above 70 °C until the allowable operating-temperature range is reached again. Temperature Monitoring of the Garden Product's Electronics The red LED lights up continuously when pressing the On/ Off switch: The temperature of the garden product's elec- tronics is below 5 °C or above 75°C. At a temperature above 90°C, the electronics of the garden product switch off until the temperature is within the allow- able operating-temperature range again. Cutting Capacity (Battery Operating Duration) The cutting capacity (battery operating duration) depends on lawn properties, such as grass density, moisture content, grass length and height of cut. Switching the machine on and off frequently during cutting will also reduce the cutting capacity (battery operating dura- tion). To improve the cutting capacity (battery operating dura- tion), it is recommended to cut more frequently, increase the cutting height and walk at an appropriate pace. The example below shows the connection between cutting height and cutting capacity with regard to three batteries. Cutting Conditions 6cm 4cm Very thin, dry grass Cutting capacity Battery with 2.0Ah up to 250 m

Battery with 4.0Ah up to 500 m

Battery with 6.0Ah up to 750 m

To increase the run time an additional battery can be pur- chased from an authorised customer service agent for Bosch garden products. Troubleshooting Problem Possible Cause Corrective Action Motor refuses to start Internal wiring of garden tool defective Contact Bosch customer service agent Battery discharged Recharge battery Battery too hot/cold Allow to cool/warm Grass too long Max. allowed grass height 30cm on highest height-of-cut setting Motor protector has activated Allow motor to cool and increase height of cut Isolator switch not inserted correctly/fully Fit correctly Garden tool functions intermittently Internal wiring of garden tool defective Contact Bosch customer service agent Motor protector has activated Allow motor to cool and increase height of cut Machine leaves ragged finish and/or Motor labours Height of cut too low Increase height of cut Cutting blade blunt Replace cutting blade (see figure K) Possible clogging Switch garden tool off and disengage isolator switch Check underneath the garden product and clear out as necessary (always wear protective gloves) Blade fitted upside down Refit blade correctly Blade not rotating while garden product switched on Cutting blade obstructed Switch garden tool off and disengage isolator switch Clear obstruction (always wear protective gloves) Bosch Power Tools 1 609 92A 5BS | (14.10.2019)24 | English Problem Possible Cause Corrective Action Blade nut/bolt loose Tighten blade nut/bolt (27Nm) Excessive vibrations/ noise Blade nut/bolt loose Tighten blade nut/bolt (27Nm) Cutting blade damaged Replace cutting blade (see figure K) Battery and charger Problem Possible Cause Corrective Action Red battery charge in- dicator on charger flashes No charging procedure possible Battery not (properly) inserted Properly insert battery in charger Battery contacts contaminated Clean the battery contacts (e. g. by inserting and removing the battery several times) or replace the battery Battery defective Replace the battery Battery charge indic- ator on charger does not light up Mains plug of battery charger not plugged in (properly) Insert mains plug (fully) into the socket outlet Socket outlet, mains cable or battery charger de- fective Check the mains voltage; have the battery char- ger checked by an authorised after-sales service agent for Bosch power tools Maintenance and Service Battery Maintenance u Warning! Switch off, remove the isolator switch, bat- tery and grass bag before adjusting or cleaning. u Always wear gardening gloves when handling or work- ing near the sharp blades. Use the following procedures to enable optimum usage of the battery: – Protect the battery against moisture and water. – Store the machine and battery only within a temperature range between –20°C and 50°C . As an example, do not leave the battery in the car in summer. – It is recommended that the battery is not stored within the product but stored separately. – Do not leave the battery in the product in direct sunlight. – The ideal storage condition for the battery is 5°C. – Occasionally clean the venting slots of the battery using a soft, clean and dry brush. A significantly reduced working period after charging indic- ates that the battery is used and must be replaced. After-sales Service and Application Service www.bosch-garden.com In all correspondence and spare parts orders, please always include the 10‑digit article number given on the nameplate of the product. Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: (0344) 7360109 E-Mail: boschservicecentre@bosch.com Ireland Origo Ltd. Unit 23 Magna Drive Magna Business Park City West Dublin 24 Tel. Service: (01) 4666700 Fax: (01) 4666888 Australia, New Zealand and Pacific Islands Robert Bosch Australia Pty. Ltd. Power Tools Locked Bag 66 Clayton South VIC 3169 Customer Contact Center Inside Australia: Phone: (01300) 307044 Fax: (01300) 307045 Inside New Zealand: Phone: (0800) 543353 Fax: (0800) 428570 Outside AU and NZ: Phone: +61 3 95415555 www.bosch-pt.com.au www.bosch-pt.co.nz Republic of South Africa Customer service Hotline: (011) 6519600 Gauteng – BSC Service Centre 35 Roper Street, New Centre Johannesburg 1 609 92A 5BS | (14.10.2019) Bosch Power ToolsFrançais | 25 Tel.: (011) 4939375 Fax: (011) 4930126 E-Mail: bsctools@icon.co.za KZN – BSC Service Centre Unit E, Almar Centre 143 Crompton Street Pinetown Tel.: (031) 7012120 Fax: (031) 7012446 E-Mail: bsc.dur@za.bosch.com Western Cape – BSC Service Centre Democracy Way, Prosperity Park Milnerton Tel.: (021) 5512577 Fax: (021) 5513223 E-Mail: bsc@zsd.co.za Bosch Headquarters Midrand, Gauteng Tel.: (011) 6519600 Fax: (011) 6519880 E-Mail: rbsa-hq.pts@za.bosch.com Armenia, Azerbaijan, Georgia Robert Bosch Ltd. David Agmashenebeli ave. 61 0102 Tbilisi, Georgia Tel. +995322510073 www.bosch.com Kyrgyzstan, Mongolia, Tajikistan, Turkmenistan, Uzbekistan TOO “Robert Bosch” Power Tools, After Sales Service Muratbaev Ave., 180 050012, Almaty, Kazakhstan Service Email: service.pt.ka@bosch.com Official Website: www.bosch.com, www.bosch-pt.com Transport The contained lithium-ion batteries are subject to the Dan- gerous Goods Legislation requirements. The batteries are suitable for road-transport by the user without further re- strictions. When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required. Dispatch battery packs only when the housing is undam- aged. Tape or mask off open contacts and pack up the bat- tery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more de- tailed national regulations. Disposal The garden product, batteries, accessories and packaging should be sorted for environ- mental-friendly recycling. Do not dispose of garden products and batter- ies/rechargeable batteries into household waste! Only for EC countries: According to the European law 2012/19/EU, electrical and electronic equipments that are no longer usable, and accord- ing to the European law 2006/66/EC, defective or used bat- tery packs/batteries, must be collected separately and dis- posed of in an environmentally correct manner. Battery packs/batteries: Li-Ion: Please observe the instructions under Transport. Français Consignes de sécurité Attention! Lire avec attention toutes les instructions qui suivent. Se familiariser avec les éléments de commande et l’utilisation appro- priée de l’outil de jardin. Conserver les instructions d’utilisation à un en- droit sûr pour pouvoir les consulter ultérieurement. Explication des symboles se trouvant sur l’outil de jardin Indications générales sur d’éventuels dangers. Lire soigneusement ces ins- tructions d’utilisation. Prendre les précautions né- cessaires pour que les per- sonnes se trouvant à proximi- té ne risquent pas d’être blessées par des projections provenant de l’outil. Bosch Power Tools 1 609 92A 5BS | (14.10.2019)26 | Français

Akumulator 6,0Ah do 750 m

Ah 4,0 − 4,0 4,0 1 609 92A 5BS | (14.10.2019) Bosch Power ToolsБългарски | 259 Градинска тре-

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regu- lations listed below and are in conformity with the following stan- dards. Lawnmower Article number
