GRA 48 Professional - Lawn mower BOSCH - Free user manual and instructions

Brand	Bosch
Model	GRA 48 Professional
Product type	Corded electric lawn mower
Cutting width	48 cm
Adjustable cutting height	Yes, from 25 to 75 mm via central wheel
Motor power	1800 W
Power supply	230 V / 50 Hz
Blade type	48 cm steel blade, sharpening possible
Grass collector volume	60 liters
Mulching function	Yes, via plug
Wheels	4 wheels, diameter 200 mm
Weight	25 kg
Dimensions (W x D x H)	80 x 55 x 45 cm
Sound level (LWA)	96 dB(A)
Vibrations (hand-arm)	4.5 m/s²
Protection class	Class II
Chassis maintenance	Clean after each use, avoid pressure water
Blade maintenance	Sharpening or replacement depending on wear
Storage	Sheltered, in vertical position with empty collector
Safety devices	Motor protection circuit breaker, two-hand handle
Available spare parts	Blade, collector, wheels, power cable
Repairability index	7/10
Manual available in PDF	Yes, 113 pages multilingual

Frequently Asked Questions - GRA 48 Professional BOSCH

How to adjust the cutting height on the Bosch GRA 48 Professional lawn mower?

The cutting height is adjusted using the central wheel on the chassis. Turn it to select the desired height between 25 and 75 mm. Make sure the mower is stopped before any adjustment.

What type of oil to use for the mower motor?

The Bosch GRA 48 Professional is an electric mower, so it does not require engine oil. The motor is maintenance-free. Simply make sure to clean the cooling fins.

How to switch to mulching mode?

For mulching, remove the grass collector and insert the provided plug into the rear discharge. This allows the grass to be finely chopped and returned to the lawn as natural fertilizer.

What to do if the mower does not start?

First check that the power cable is properly connected and that the motor protection circuit breaker has not tripped. If the circuit breaker is triggered, wait 5 minutes then reset it. If the problem persists, check the safety handle (two hands).

How to clean the mower after use?

Use a brush or damp cloth to remove grass and dirt from the chassis and blade. Avoid pressure water that could damage the motor. Also clean the grass collector with clean water.

How often should the blade be sharpened?

It is recommended to sharpen the blade at least once a season or every 25 hours of use. A dull blade tears the grass instead of cutting it, which promotes diseases.

Where to find the replacement blade reference?

The blade reference for the GRA 48 Professional is generally F016800170 or similar. Check the manual or Bosch website to confirm. You can buy it from authorized dealers.

The grass collector fills up quickly, what to do?

If the collector fills quickly, check that the cutting height is not too low. Mow the grass higher and more often. Also ensure that the discharge chute is not obstructed.

How to store the mower in winter?

Empty and clean the collector, clean the mower and blade. Store it in a dry place, preferably frost-free. If possible, hang it or place it on a shelf to avoid wheel deformation.

The mower makes an abnormal noise, what to do?

Stop the mower immediately and unplug it. Check if the blade is loose or damaged. A metallic noise may indicate a bearing problem. If necessary, contact Bosch after-sales service.

USER MANUAL GRA 48 Professional BOSCH

OBJ DOKU-36097-002 Ir's Page 1 Monday, February 9, 2015 7:50 AM

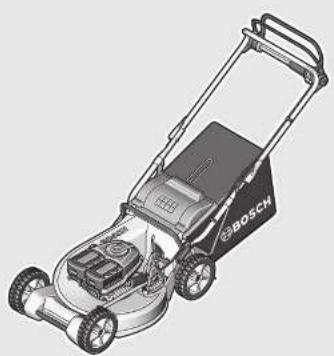

Illustration of a BOSCH lawn mower with visible blades and wheels (no text or symbols)

Robert Bosch GmbH

Power Tools Division

70764 Leinfelden-Echterdingen

GERMANY

www.bosch-professional.com

F 016 L70 940 (2015.02) O/114 WEU

GRA Professional

53|48

BOSCH

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

i.v. k=mc

Robert Bosch GmbH, Power Tools Division

Leinfelden-Echterdingen, GERMANY

09.02.2015

8 | Deutsch

Montage und Betrieb

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury.

Please keep the instructions safe for later use!

Use the machine only when you fully understand and can perform all functions without limitation, or have received appropriate instructions.

Explanation of symbols on the machine

General hazard safety alert.

Read instruction manual.

Pay attention that bystanders are not injured through foreign objects thrown from the machine.

Warning: Keep a safe distance from the machine when operating.

Caution: Do not touch rotating blades. Sharp blade(s). Beware of severing toes or fingers.

Switch off and remove isolator key before adjusting, cleaning and before leaving the product unattended for any period.

Wait until all machine components have completely stopped before touching them. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury.

Operation

▶ Never allow children or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator. When not in use store the machine out of reach of children.
This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. Children should be supervised to ensure that they do not play with the machine.
▶ Never mow while people, especially children, or pets are nearby.
▶The operator or user is responsible for accidents or hazards occurring to other people or their property.

12 | English

▶ Do not operate the machine when barefoot or wearing open sandals, always wear substantial footwear and long trousers.
▶ Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones and other foreign objects.
▶ Do not operate in areas where live cables may be present.
▶ Before using, always visually inspect to see that the blade, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blade and bolts in sets to preserve balance.
▶Work only in daylight or in good artificial light.
- Avoid operating the machine in bad weather conditions especially when there is a risk of lightning.
▶ Please take care for your safety while operating the machine in wet grass.
▶ Never operate the appliance with defective guards or shields, or without safety devices, for example deflectors and/or grass catchers in place.
▶ Before using the machine and after impact, check for signs of wear or damage and repair if necessary.
▶ Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine.
▶ Working on banks can be dangerous.
- Do not mow on excessively steep slopes.
- Always be sure of your footing on slopes or wet grass.

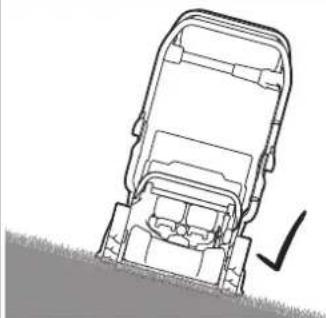

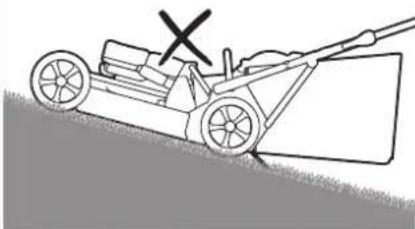

• Mow across the face of slopes - never up and down.
• Exercise extreme caution when changing direction on slopes.
  ▶ Use extreme caution when stepping back or pulling the machine towards you.
  ▶ Never mow by pulling the mower towards you.
  ▶ Stop the blade if the machine has to be tilted, except if the machine has to be tilted for starting in long grass. In this case, do not tilt it more than absolutely necessary and tilt only the part which is away from the operator. Always ensure that both hands are in the operating position before returning the machine to the ground.
  ▶ Switch on the motor according to the instructions with feet well away from rotating blade.

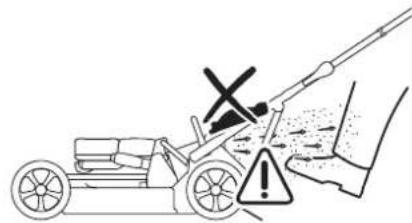

  ▶ Always stand clear of the discharge zone when operating the machine.
  ▶ Never pick up or carry the machine while the motor is running.
  ▶ Do not modify this product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration.
  ▶ Only use Bosch Professional Garden Tool recommended and approved accessories.

Remove the Isolator key and the Batteries:

• Whenever you leave the machine.
• before clearing a blockage,
  – before checking, cleaning or working on the machine,

English | 13

– after striking a foreign object. Inspect the machine for damage and make repairs as necessary,
- If the machine is to be stored unused for a long period.
- if the machine starts to vibrate abnormally (check immediately).
- Folding the handle
- Before transporting machine

Maintenance

For Your Safety

▶ Warning! Switch off, remove the isolator key and the batteries before adjusting or cleaning.
▶ Caution – do not touch the rotating blade. The blades continue to rotate for a few seconds after the machine is switched off.
▶ Always wear protective gloves when handling or working near the sharp blades.
▶ To ensure long and reliable service, carry out the following maintenance regularly:
- Keep all nuts, bolts and screws tight to be sure that the machine is in safe working condition.
▶ Check the grass catcher after each use for wear or deterioration.
▶ Examine the machine and replace worn or damaged parts for safety.
▶ Ensure replacement parts fitted are Bosch approved.

Blade Sharpening

• Blade cutting edges can be resharpened.
  ▶ Remove material from the top surface only.

▶ Remove material from both ends of the blade evenly to maintain balance.
▶ Check the blade balance with a screwdriver through the central hole.

Cleaning

▶ Before transport or storage ensure machine is clean and free from debris, if necessary clean with a soft, dry brush.
▶ To clean the grass catcher, use water from a hose. Do not use high pressure water.
▶ To clear the inside of the cutting bowl of grass, use a high pressure stream of water. For hard debris, scrape to remove.
- Keeping the underside of the bowl clean will improve performance.

Recommendations for Optimal Handling of the Battery and Charger

▶Warning! Do not attempt to charge non rechargeable batteries with the charger.
▶For your safety! Ensure the isolator key and operator controls are in the off or park position before inserting battery pack. Inserting the battery packs into machines that have the switch on can be dangerous.
▶ Insert the battery until the locking mechanism clicks. To remove the battery, operate locking lever.
▶ For care use and maintenance please use charger and battery manuals which are supplied with the products or available at www.bosch-garden.com.

14 | English

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner.

Symbol Meaning

Reaction direction

Movement direction

Wear protective gloves

Weight

Switching On

Switching Off

Permitted action

Symbol Meaning

	Prohibited action
	Accessories/Spare Parts
	Blade rotating
	Blade not rotating
	Land drive
	Transport
	Storage
[AADS]	fast
[KXBO]	slow

Intended Use

The garden product is intended for Professional use.

Technical Data

Cordless Lawnmower GRA 53		Professional	GRA 48Professional
Article number		3 600 J11 000 3 600 J11 001
Blade width	cm 53 48
Height of cut	mm 20-70 20-70
Grass catcher, capacity	l	7	5
Weight (without batteries)according to EPTA-Procedure 01/2003	kg 48 47.5
Serial number	see type plate on the garden product see type plate on the garden product
Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary.

Only Li-ion batteries GBA 36V 6.0Ah Hw-D (Art. No. 2 607 336 065) and battery charger AL 36100 CV Professional (Art. No. 1 600 A00 1...) can be used with this machine.

Please do not use non-rechargeable batteries with this appliance, only those specified by the manufacturer.

Noise/Vibration Information

Sound emission values determined according to EN 60335-2-77.		3 600 J11 000	3 600 J11 001
Typically the A-weighted noise levels of the product are:
Sound pressure level	dB(A)	81	80
Sound power level	dB(A)	91	90
Uncertainty K	dB	=1.5	=1
Wear hearing protection!
Vibration total values ah(triax vector sum) and uncertainty K deter-mined according to EN 60335-2-77:
Vibration emission value ah	m/s2	1,2	0.6
Uncertainty K	m/s2	=1.5	=1.5

F016 L70 940 | (9.2.15) Bosch Power Tools

Declaration of Conformity C€

3 600 J11 000 3 600 J11 001

We declare under our sole responsibility that the product described under "Technical data" is in conformity with all relevant provisions of the directives 2011/65/EU, 2004/108/EC, 2006/42/EC, 2000/14/EC including their amendments and complies with the following standards: EN 60335-1, EN 60335-2-77. 2000/14/EC: Guaranteed sound power level: Conformity assessment procedure according to Annex VI.

dB(A) 92 91

Equipment category: 32

Notified body:

DEKRA Certification B.V.

Meander 1051

6825 MJ Arnhem

Netherlands

Nr. 0344

Technical file (2006/42/EC, 2000/14/EC) at:

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

09.02.2015

Mounting and Operation

The numbering of the figures refer to the illustrations of the machine on the graphics page.

Action Figure Page

Delivery Scope	1 106

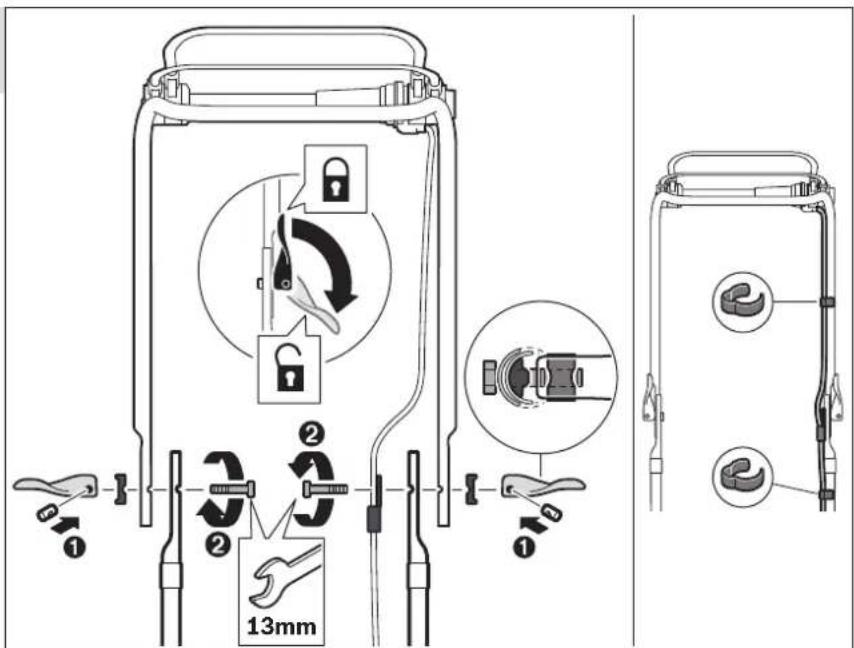

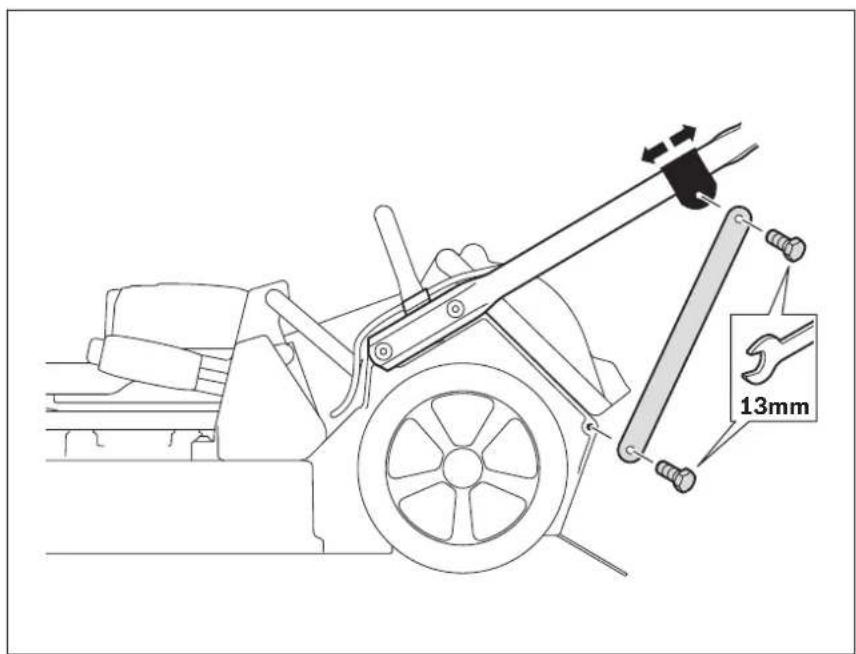

Handle Assembly	2 106-107
Handle Assembly
Cable clips Assembly	3 107

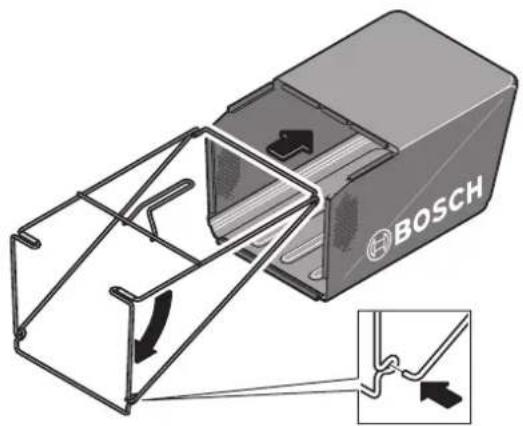

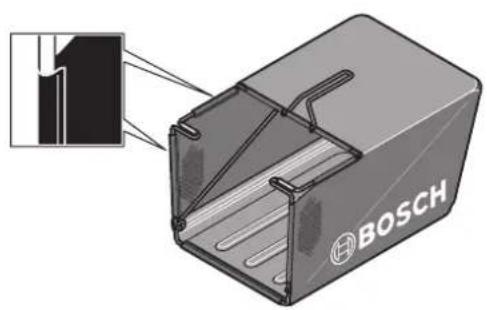

Assemble the grass catcher

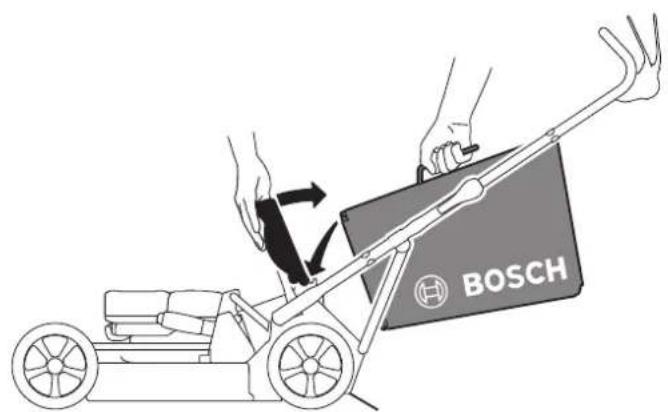

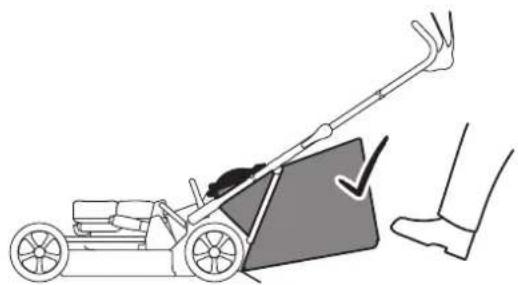

Insert the grass catcher	4 108

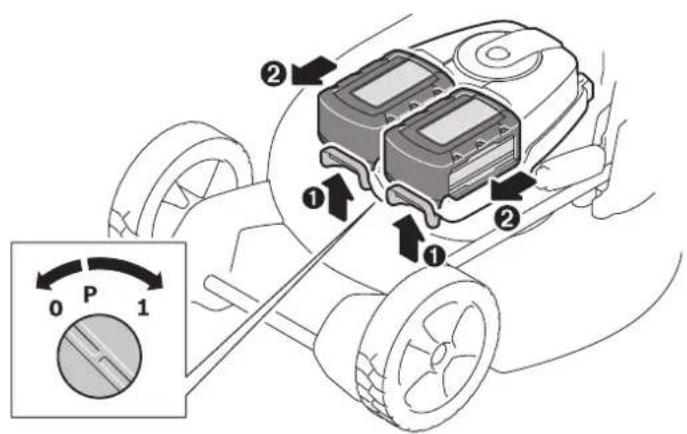

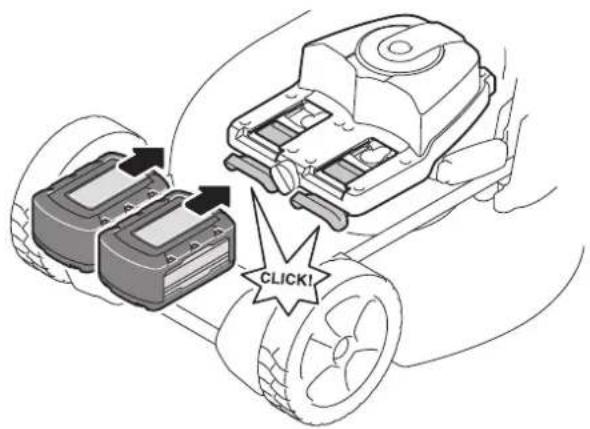

Inserting batteries	5 109

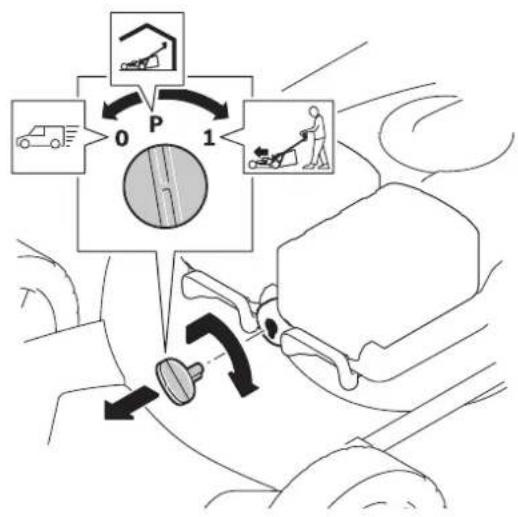

Insert Isolator Key and fit in the Storage Position	6 109

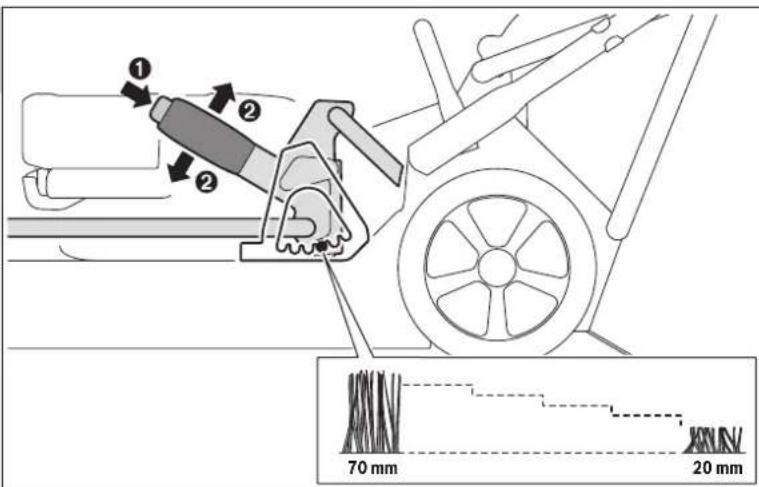

Adjusting the Cutting Height	7 110

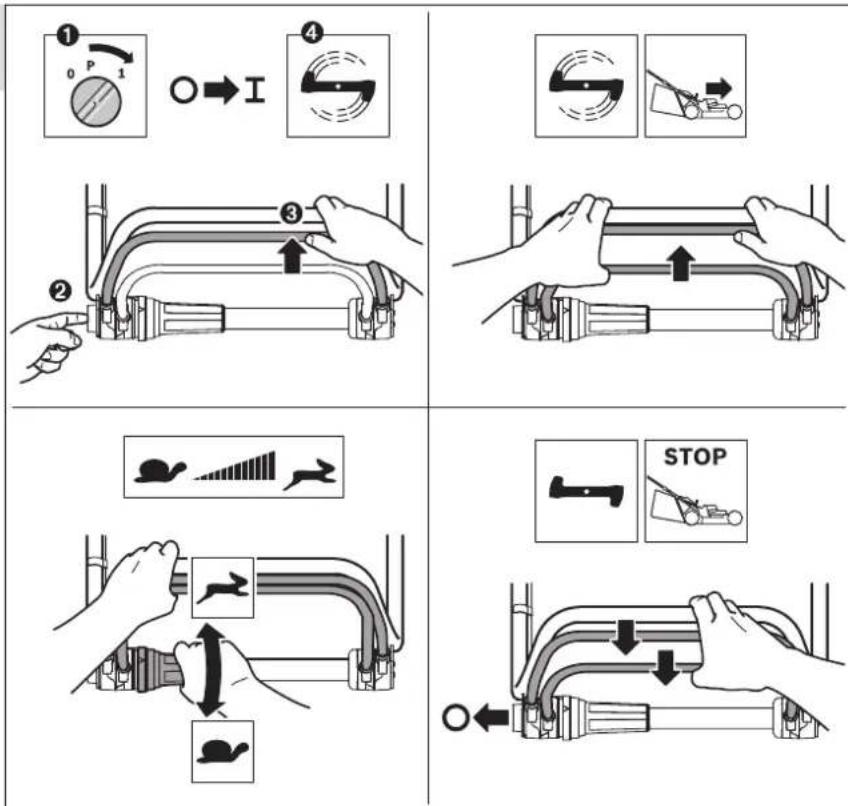

Operation	8 110

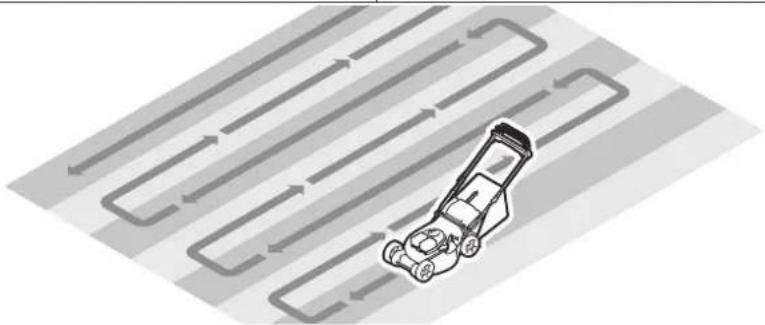

Working Advice	9 111
Removing the Batteries	10 112

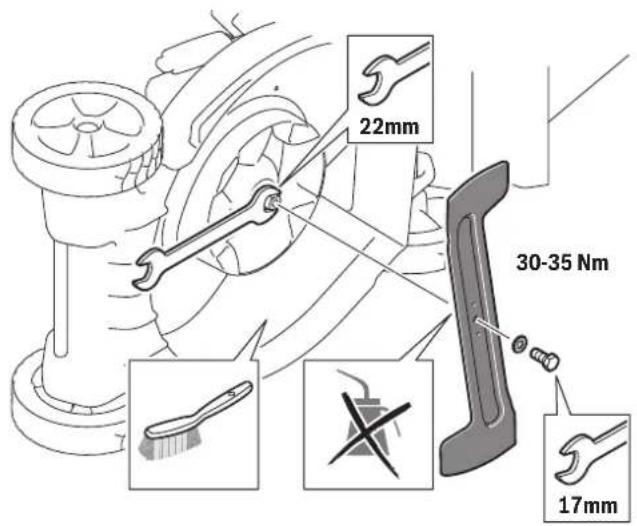

Blade Maintenance	11 112

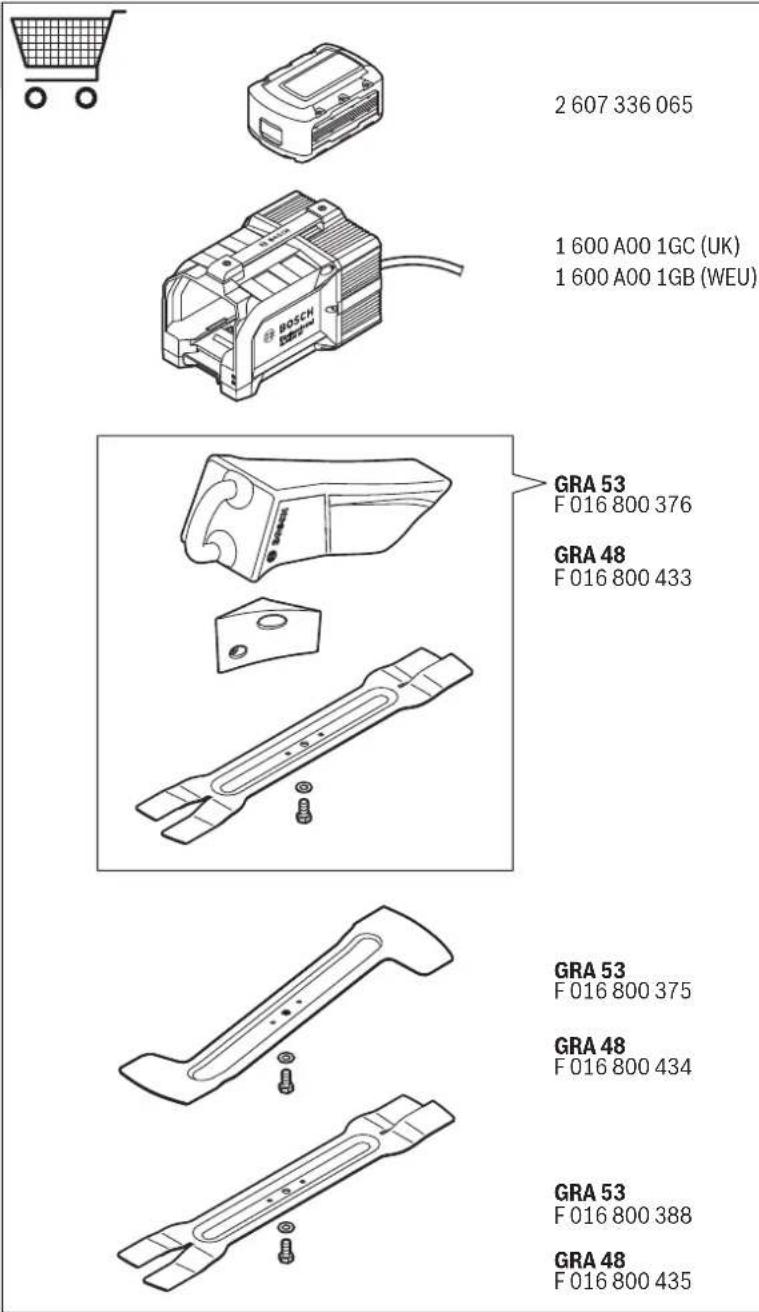

Selecting Accessories	12 113

Battery Usage

The machine can use 1 battery in either battery slot and still have full functionality.

However it is preferable to use 2 batteries to achieve maximum performance.

Ideally both batteries should have a similar level of charge.

If batteries have differing charge levels (e.g. Battery I = 50 %, Battery II = 70 %) the machine will generally empty both batteries at the same rate.

Working Advice

Mulching

The product can be used to mulch, using an optional mulching kit. (See figure 12 of illustrations for details)

Area of Cut (Battery Duration)

The area of cut (battery duration) depends on lawn conditions, grass density, moisture content, grass length and height of cut.

Switching the machine on and off frequently during cutting will also reduce the area of cut (battery duration).

To improve the area of cut (battery duration) it is recommended to cut more frequently, raise the cutting height and use land drive at normal walking pace.

The example below shows impact of conditions against run time, when using the machine with two batteries.

Cutting Conditions

Very light, dry grass Light, dry grass

GRA 53

Area of cut

up to 1500 m²

up to 1050 m ^2

GRA 48

Area of cut

up to 1400 m²

up to 1000 m ^2

16 | English

Product Transportation

▶ Ensure that isolator key is removed or in park position before transporting machine or folding handle. (The isolator key isolates both land-drive and blade-drive motor).

▶ Use the front and rear carrying handles for securing the machine during transportation.
▶ Use suitable loading aids (loading ramps or lifters) to load the product on and off the transport vehicle. The mower must always be carried by two persons.

Troubleshooting

Problem Possible Cause Corrective Action

Machine fails to operate	Battery discharged Battery Charging
	Batteries too hot/cold Allow to cool/warm
Machine functions intermittently	Internal wiring of machine damaged Contact Service Agent
	Motor protector has activated Allow motor/electronics to cool for 5 minutes and increase height of cut
	External cabling damaged Contact Service Agent
Machine leaves ragged finish and/or Motor labours	Height of cut too low Increase height of cut and/or set land drive to a slower speed
	Cutting blade blunt Replace/re-sharpen blade
	Cutting blade obstructed Check underneath the machine and clear out as necessary (always wear protective gloves)
	Blade fitted upside down Re-fit blade correctly (see figure 11)
Motor starts and stops immediately	Batteries not fully charged Check battery display - charge batteries if necessary
	Isolator key not fully located	Check that the isolator switch is in the "1" position
	Batteries not fully inserted	Fully insert batteries
	Batteries too hot/cold Allow batteries to warm up/cool down - check battery display
Poor cutting and collection performance	Height of cut too low Increase height of cut and/or set land drive to a slower speed
	Grass too high	Increase height of cut and/or set land drive to a slower speed
	Grass wet or damp	Wait until grass is dry or set land drive to a slower speed
	Grass is dense	Increase height of cut and/or set land drive to a slower speed or cut grass more frequently
	Low battery capacity	Ensure that batteries are fully charged before use
	Cutting bowl encrusted with mud	Clean inside of cutting bowl
	Cutting blade blunt Replace/re-sharpen blade
	Grass catcher encrusted with mud	Clean inside of grass catcher
	No collection	Make sure that the mulching plug is removed
	No collection	Switch off product, remove isolator key and batteries. Check underneath the product and clear obstruction as necessary (always wear protective gloves).
	Poor collection	Check for correct blade
Cutting blade fails to operate	Cutting blade obstructed Cutting blade blunt
	Blade bolt loose Tighten blade bolt
	Low battery charge	Recharge battery
	Isolator key off	Turn key to position 1
	Poor battery contact Remove battery and re-insert
	Grass too high	Increase height of cut and/or set land drive to a slower speed. Tilting the product backwards slightly to reduce starting load can also help. Be aware that this may result in thrown debris
	Batteries too hot/cold Allow batteries to warm up/cool down - check battery display
	Motor protector has activated	Allow motor/electronics to cool for 5 minutes and increase height of cut

F016 L70 940 | (9.2.15) Bosch Power Tools

English | 17

Problem	Possible Cause	Corrective Action
Excessive vibra-tions/noise	Blade nut/bolt loose Tighten blade bolt to 30 Nm ensuring that washer is present (always wear protective gloves)
	Cutting blade damaged Replace the blade
Land drive fails to operate	Grass too high Increase height of cut or provide manual assistance
	Ground conditions too soft Provide manual assistance
	Low battery capacity Check the charge remaining in the batteries – shown on the battery display
	Isolator key off Check that the isolator switch is in the "1" position
	Poor battery contact Ensure that batteries are fully inserted
	Batteries too hot/cold Allow batteries to warm up/cool down – check battery display
	Motor protector has activated	Allow motor/electronics to cool for 5 minutes and increase height of cut

If you are unable to resolve the problem using the Troubleshooting guide then please contact your dealer in the first instance.

After use/Storage

Correct storage is essential for maintaining the life of the product. If possible, avoid storage areas with high humidity which could cause rust or corrosion.

End of season storage: Remove batteries and store both machine and batteries in a dry safe place away from direct sunlight.

Do not place objects on top of the machine.

When storing for extended periods, thoroughly clean the product beforehand.

After-sales Service and Application Service

www.bosch-professional.com

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange

the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

18 | Français

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.

Disposal

Do not dispose of garden products, battery chargers and batteries/rechargeable batteries into household waste!

Only for EC countries:

According to the European law 2012/19/EU, electrical and electronic equipments that are no longer usable, and according to the European law 2006/66/EC, defective or used battery packs/batteries, must be separated

from the tool and collected separately. Dispose of in an environmentally correct manner according to local regulations. Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 95HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Battery packs/batteries:

Li-Ion:

Please observe the instructions in section "Transport".

Français

Subject to change without notice.

Français | 19

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

Leinfelden-Echterdingen, GERMANY

09.02.2015

Robert Bosch (France) S.A.S.

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

Leinfelden-Echterdingen, GERMANY

09.02.2015

Montaje y operación

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Jaw Bo i.V. H.W.

Robert Bosch GmbH, Power Tools Division

Leinfelden-Echterdingen, GERMANY

09.02.2015

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering

Robert Bosch GmbH, Power Tools Division

Leinfelden-Echterdingen, GERMANY

09.02.2015

Montaggio ed uso

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

Leinfelden-Echterdingen, GERMANY

09.02.2015

Nederlands | 57

Montage en gebruik

Teknisk dossier (2006/42/EF, 2000/14/EF) ved:

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

Leinfelden-Echterdingen, GERMANY

09.02.2015

64 | Dansk

Montering og drift

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Transport

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

Leinfelden-Echterdingen, GERMANY

09.02.2015

Montering och drift

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Transport

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

Leinfelden-Echterdingen, GERMANY

09.02.2015

Montering og drift

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

Leinfelden-Echterdingen, GERMANY

09.02.2015

Asennus ja käyttö

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

Leinfelden-Echterdingen, GERMANY

09.02.2015

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

Leinfelden-Echterdingen, GERMANY

09.02.2015

Montaj ve işletim

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Bosch Uzman Ekibi [phone]

Işıklar LTD.ŞTİ.

Kizilay Cad. No: 16/C Seyhan

Adana

Tel.: [phone]

Tel.: [phone]

3

Bosch Power Tools F 016 L70 940 | (9.2.15)

108

4

5

6

110

7

8

9

Line drawing of a person using a lawn mower to lift a block, with no text or symbols present

Line drawing of a person pushing a small cart with a hand on the side (no text or symbols)

Technical line drawing of a vehicle chassis with a checkmark indicating a detail (no text or symbols present)

Line drawing of a lawn mower with a cross mark indicating the blade (no text or symbols)

Illustration of a lawn mower with directional arrows indicating motion (no text or symbols)

112

10

11

12

2 607 336 065
1 600 A00 1GC (UK)
1 600 A00 1GB (WEU)
GRA 53
F016800376
GRA 48
F016800433
GRA 53
F016800375
GRA 48
F016800434
GRA 53
F016800388
GRA 48
F 016 800 435
