Product Type	Electric Lawn Mower
Brand	Bosch
Model	Rotak 34 R
Cutting Width	34 cm (13.5 in)
Grass Box Capacity	40 L
Cutting Height Adjustment	Central lever, 20-70 mm (6 positions)
Motor Power	1200 W
Power Supply	230 V AC, 50 Hz (corded)
Weight	Approx. 12 kg
Dimensions (L x W x H)	78 x 38 x 35 cm
Noise Level	85 dB(A) (LwA)
Vibration Level	<2.5 m/s² (hand-arm)
Mulching Function	Yes (mulch plug included)
Grass Collection	Yes, with grass box
Handle	Ergonomic soft-grip, foldable
Blade Type	Rotary steel blade
Safety Features	Double insulation, blade brake, safety switch
Maintenance	Sharpen blade regularly, clean underside after use
Spare Parts Availability	Blade, grass box, wheels, mulch plug via Bosch service
Reparability	Serviceable at Bosch authorized centers; spare parts online

Frequently Asked Questions - Rotak 34 R BOSCH

How do I assemble the Bosch Rotak 34 R lawn mower?

Assembly typically involves attaching the handlebar with provided screws, mounting the grass box, and installing the mulch plug if needed. Refer to the user manual for step-by-step instructions with illustrations.

What is the cutting width of this mower?

The cutting width is 34 cm (13.5 inches), ideal for small to medium lawns.

How can I adjust the cutting height?

Use the central height adjustment lever located on the main body to select one of 6 positions, ranging from 20 mm to 70 mm.

Can I use the Rotak 34 R for mulching?

Yes, the mower comes with a mulch plug that allows you to finely chop grass clippings and leave them on the lawn as natural fertilizer.

How do I maintain the blade?

Regularly check the blade for dullness or damage. Sharpen it with a file or grinder, or replace it if necessary. Always disconnect the power before maintenance.

What type of power cord do I need?

Use a heavy-duty extension cord rated for outdoor use, with a minimum wire gauge of 1.5 mm² and a maximum length of 30 m to avoid voltage drop.

Is the Rotak 34 R suitable for small gardens?

Yes, with its 34 cm cutting width and lightweight design (12 kg), it is excellent for small to medium gardens up to 400 m².

How do I clean the grass box?

Empty the grass box after each use. Clean it with a hose or cloth and let it dry completely before storing to prevent rust and mildew.

What safety precautions should I take when using this mower?

Always wear sturdy shoes and eye protection. Never mow wet grass, keep children and pets away, and disconnect the power before any adjustment or cleaning.

Where can I find spare parts for my Bosch Rotak 34 R?

Spare parts such as blades, grass box, and wheels are available through Bosch service centers or authorized online retailers. Use the model number for correct fit.

USER MANUAL Rotak 34 R BOSCH

OHJ DOKU-36613-0011. fin Page 1 Tuesday, September 24, 2013 3:07 PM

Line drawing of a lawn mower with handle and wheels (no text or symbols)

Robert Bosch GmbH

Power Tools Division

70745 Leinfelden-Echlerdingen

Germany

www.bosch-garden.com

F016 L81 043 (2013.09) 0/12 XXX

Rotak

34R|37R|340R|370R

BOSCH

en Original instructions

2 | English

English

Safety Notes

Warning! Read these instructions carefully, be familiar with the controls and the proper use of the machine. Please keep the instructions safe for later use!

Explanation of symbols

General hazard safety alert.

Read instruction manual.

Pay attention that bystanders are not injured through foreign objects thrown from the machine.

Warning: Keep a safe distance from the machine when operating.

Caution: Do not touch rotating blades. Sharp blade(s). Beware of severing toes or fingers.

Not applicable.

Switch off and remove plug from mains before adjusting, cleaning or if the cable is entangled and before leaving the garden product unattended for any period. Keep the supply flexible cord away from the cutting blades.

Wait until all machine components have completely stopped before touching them. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury.

Do not use the machine in the rain or leave it outdoors when it is raining.

Beware electric shock hazard.

Keep supply flexible cord away from cutting means.

Operation

▶ Always wear gardening gloves when handling or working near the sharp blades.
▶ Never allow children or people unfamiliar with these instructions to use the machine. Local regulations may re-

strict the age of the operator. When not in use store the machine out of reach of children.

This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. Children should be supervised to ensure that they do not play with the machine.
▶ Never mow while people, especially children or pets, are nearby.
The operator or user is responsible for accidents or damage that occur to people or property.
▶ Do not operate the machine when barefoot or wearing open sandals, always wear substantial footwear and long trousers.
Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones and other foreign objects.
▶ Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts to preserve balance.
▶ Mow only in daylight or in good artificial light.
▶ Avoid operating the machine in wet grass, where feasible.
Walk, never run.
▶ Never operate the appliance with defective guards or shields, or without safety devices, for example deflectors and/or grass catchers in place.
▶ Working on banks can be dangerous.
- Do not mow excessively steep slopes.
- Always be sure of your footing on slopes or wet grass.
- Mow across the face of slopes - never up and down.
- Exercise extreme caution when changing direction on slopes.
▶ Use extreme caution when stepping back or pulling the machine towards you.
▶ Never mow by pulling the mower towards you.
▶ Stop the blades if the machine has to be tilted for transportation when crossing surfaces other than grass and when transporting the machine to and from the area to be mowed.
Do not tilt the machine when starting or switching on the motor, except if the machine has to be tilted for starting in long grass. In this case, do not tilt it more than absolutely necessary and tilt only the part which is away from the operator. Always ensure that both hands are in the operating position before returning the machine to the ground.
▶ Switch on the motor according to the instructions with feet well away from rotating parts.
▶ Do not put hands or feet near or under rotating parts.
▶ Always stand clear of the discharge zone when operating the machine.
▶ Never pick up or carry the machine while the motor is running.

English | 3

▶ Keep supply cables and extension cables away from the blade. The blade can cause damage to the cables and lead to contact with live parts. Beware electric shock hazard.
▶ Do not modify this product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration.
- Avoid mowing in bad weather conditions especially when there is a risk of lightning.

Remove the plug from the socket:

• whenever you leave the machine,
  – before clearing a blockage,
  – before checking, cleaning or working on the machine,
  – after striking a foreign object. Inspect the machine for damage and make repairs as necessary,
• if the machine starts to vibrate abnormally (check immediately).

Power supply

▶ The voltage indicated on the rating plate must correspond to the voltage of the power source.
We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residual current.
▶ Only use or replace power supply cables for this unit which correspond to the types indicated by the manufacturer.
▶ Never touch the mains plug with wet hands.
▶ Do not run over, crush or pull the power supply cable or extension lead, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges.
The extension lead must have a cross section in accordance with the operating instructions and be protected against splashed water. The connection must not be in water.

Electrical Safety

▶ Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.
▶ The blades continue to rotate for a few seconds after the machine is switched off.

▶ Caution – do not touch the rotating blade.

Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V, 240 V as applicable). Only use approved extension cables. Contact your Bosch Service Centre for details.

Extension cords/leads should only be used if they comply with H05VV-F, H05RN-F types or IEC type design (60227 IEC 53, 60245 IEC 57).

If you want to use an extension cable when operating your product, only the following cable dimensions should be used:

• 1 . 0 mm max. length 40 m
• 1 . 5 ^2 max. length 60 m
• 2 . 5 ^2 max. length 100 m

Note: If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations.

If in doubt contact a qualified electrician or the nearest Bosch Service Centre.

▶ WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use.

It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it.

If the supply cord is damaged, please contact your nearest Bosch Service Centre.

For products not sold in GB:

WARNING: For your safety, it is required that the plug attached to the machine is connected with the extension cord. The coupling of the extension cord must be protected against splash water, be made of rubber or coated with rubber. The extension cord must be used with a cable strain relief.

The connection lead must be inspected for signs of visible damage and ageing at regular intervals and may only be used if in perfect condition.

Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).

If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Maintenance

▶ Always wear gardening gloves when handling or working near the sharp blades.
- Keep all nuts, bolts and screws tight to be sure that the machine is in safe working condition.
▶ Check the grass catcher frequently for wear or deterioration.
▶ Examine the machine and replace worn or damaged parts for safety.
▶ Ensure replacement parts fitted are Bosch approved.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner.

Symbol Meaning

Movement direction

4|English
Symbol Meaning

Wear protective gloves
Weight
Switching On
Switching Off

Symbol Meaning

Permitted action

Prohibited action

Accessories/Spare Parts

Intended Use

The garden product is intended for domestic lawn mowing.

Technical Data

Lawnmower Rotak 34 R		Rotak 340 R	Rotak 37 R
			Rotak 370 R
Article number	3 600 HA6 1.. 3 600 HA6 2..
Rated power input	W 1300 1400
Blade width	cm 34 37
Height of cut	mm 20 - 70 20 - 70
Grassbox, capacity	I	4	0
Weight according to EPTA-Procedure 01/2003	kg 11.3 12.3
Protection class		☐ /II /II	☐

Serial number see type plate on the garden product
The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.
Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary.
Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions.
Malfunctions are not to be expected for system impedances below 0.36 ohm.

Noise/Vibration Information

Measured sound values determined according to 2000/14/EC (1.60 m height, 1 m distance away).

Typically the A-weighted noise levels of the product are: Sound pressure level 82.5 dB(A); sound power level 95 dB(A). Uncertainty K = 1 dB.

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60335:

a_h<2.5m/s^2,K=1.5m/s^2.

Declaration of Conformity C€

We declare under our sole responsibility that the product described under "Technical data" is in conformity with the following standards or standardization documents: EN 60335 according to the provisions of the directives 2011/65/EU, 2004/108/EC, 2006/42/EC, 2000/14/EC. 2000/14/EC: Guaranteed sound power level 96 dB(A). Conformity assessment procedure according to Annex VI.

Equipment category: 32

Notified body:

SRL, Sudbury, England, Nr. 1088

Technical file (2006/42/EC, 2000/14/EC) at:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

25.06.2013

Mounting and Operation

Action	Figure

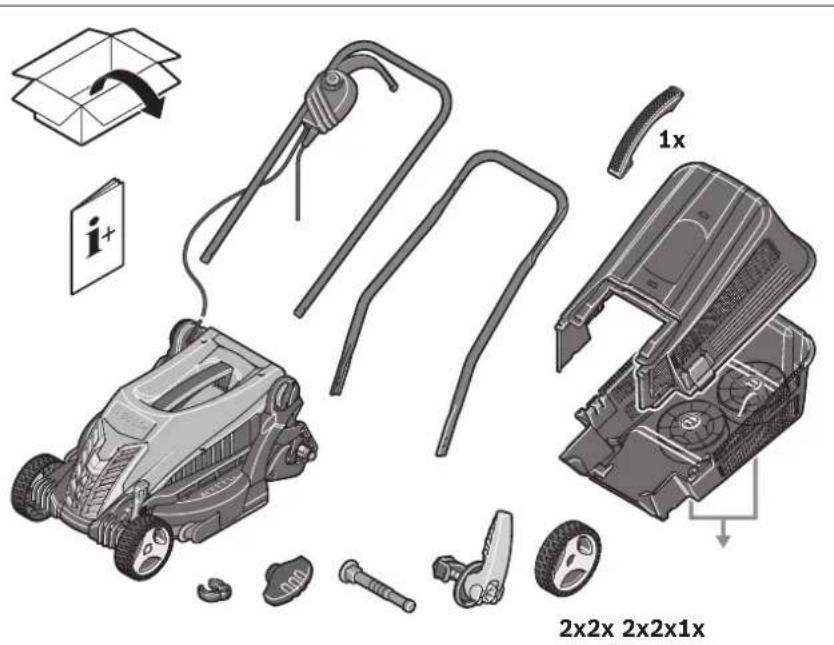

Delivery Scope	1

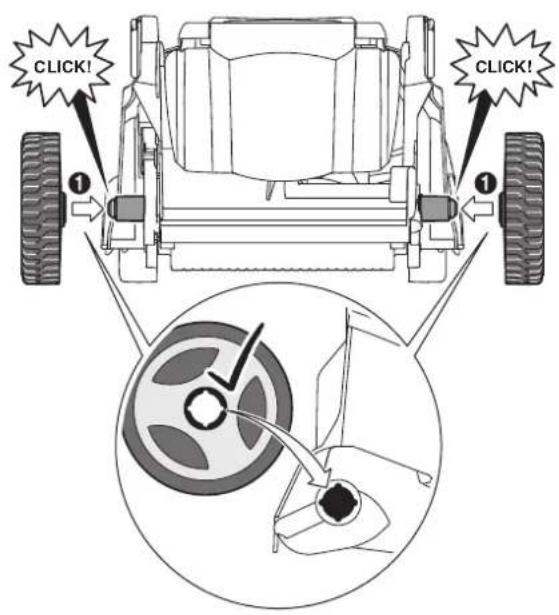

Wheel Assembly	2
Handle Assembly	3
Snap together the Grassbox	4
Grassbox fitting/removing	4
Adjusting the Cutting Height	5
Starting	6
Stopping	6
Working Advice	6 - 7
Blade Maintenance	8
Selecting Accessories	9

F 016 L81 043 | (20.9.13) Bosch Power Tools

English | 5

Troubleshooting

Problem Possible Cause Corrective Action

Motor refuses to start Power turned off Turn power on
	Mains socket faulty Use another socket
	Extension cable damaged Inspect cable, replace if damaged
	Fuse faulty/blown Replace fuse
	Grass too long Increase height of cut and tilt garden product to reduce starting load
	Motor protector has activated Allow motor to cool and increase height of cut
Machine functions intermittently	Extension cable damaged Inspect cable, replace if damaged
	Internal wiring of garden product damaged Contact Service Agent
	Motor protector has activated Allow motor to cool and increase height of cut
Garden product leaves ragged finish and/or Motor labours	Height of cut too low Increase height of cut
	Cutting blade blunt Replace the blade
	Possible clogging Check underneath the garden product and clear out as necessary (always wear gardening gloves)
	Blade fitted upside down	Refit blade correctly
Blade not rotating while garden product switched on	Cutting blade obstructed	Switch off garden productClear obstruction (always wear gardening gloves)
	Blade nut/bolt loose	Tighten blade nut/bolt (17 Nm)
Excessive vibrations/noise	Blade nut/bolt loose	Tighten blade nut/bolt (17 Nm)
	Cutting blade damaged	Replace the blade

After-sales Service and Application Service

www.bosch-garden.com

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Bosch Power Tools F 016 L81 043 | (20.9.13)

6|English

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Disposal

Do not dispose of garden products into household waste!

Only for EC countries:

According to the European directive

2012/19/EU for Waste Electrical and Electronic

Equipment and its implementation into national

law, electrical and electronic equipment that are

no longer usable must be collected separately

and disposed of in an environmentally correct manner.

Subject to change without notice.

F 016 L81 043 | (20.9.13) Bosch Power Tools

1

2

8|

3

4

5

6

10

Illustration of a hand holding a tool with an arrow, alongside a small inset showing a stylus symbol (no text or labels)

7

Illustration of a lawn mower with visible blades and handle, no text or symbols present

8

9

Two technical illustrations of a mechanical component with cutouts and mounting holes, shown from different angles (no text or symbols present)

F 016 800 271 (Rotak 34 R)
(Rotak 340 R)
F 016 800 343 (Rotak 37 R)
(Rotak 370 R)
