PD60PS - Saw Powerworks - Free user manual and instructions

Product Type	Pole Pruner (battery-powered chainsaw)
Brand	Powerworks
Model	PD60PS
Service Voltage	60 V
Chain Speed	5500 ±10 % rpm
Guide Bar Length	254 mm
Chain Stop	Less than 3 s
Chain Oil Tank Capacity	80 ml
Weight (with guide and chain, without battery)	Max 4.4 kg
Sound Pressure Level LpA	79 dB(A)
Sound Power Level LwA	95.9 dB(A)
Guaranteed Sound Power Level LwA(G)	100 dB(A)
Total Vibrations (ah)	< 2.5 m/s²
Chain Type	Oregon 25AP058X
Guide Type	Oregon 100SDAA041 (254 mm)
Applications	Limb and branch trimming (up to 15 cm diameter)
Power Supply	60 V lithium-ion battery (not included)
Package Contents	Pole with cutting head, extension pole, pole with handle, wrench, scabbard, user manual
Warranty (domestic use)	2 years
Warranty (professional use)	30 days

Frequently Asked Questions - PD60PS Powerworks

How to assemble the pole pruner?

Before assembly, remove the battery. Insert the extension pole into the handle pole and then into the cutting head pole. The push button should lock automatically. Tighten the lock nut using the provided wrench. Do not modify the tool.

How to add chain oil?

Open the oil tank cap and pour special guide and chain oil. The tank capacity is 80 ml. Check the level every 30 minutes and top up if necessary. After use, empty the tank to prevent leaks.

How to start and stop the tool?

To start, install the battery, press and hold the trigger lock, then press the trigger. Release the lock and keep pressing the trigger. To stop, release the trigger. The chain stops in less than 3 seconds.

How to tension the chain?

Loosen the chain cover nuts. Turn the chain adjustment screw clockwise to increase tension, or counterclockwise to reduce it. The chain is correctly tensioned if it does not sag under the guide bar and can rotate freely without binding.

How to replace the guide bar and chain?

Unscrew the sprocket cover nut and remove the cover. Place the guide bar on the stud and the chain around the sprocket. The cutters must face forward. Replace the cover and tighten by hand. Adjust the tension, then tighten the fixing nut.

How to sharpen the chain?

Use a 4 mm round file with a file holder. Keep the file parallel to the top plate of the cutter. File each cutter with firm strokes towards the front corner. File all left cutters first, then right cutters. Remove residue with a wire brush.

What to do if the chain does not rotate?

Check if the chain is too tight or if the guide bar/chain is damaged. Adjust the tension or replace faulty parts. Refer to the sections on tension adjustment and guide bar and chain replacement.

What to do if the chain heats up and smokes?

Check the chain tension: it should not be too tight. Ensure the guide bar oil tank is not empty. Add oil if necessary. If the problem persists, inspect the guide bar and chain.

How to store the tool?

Clean the tool and remove the battery. Empty the oil tank. Place the guide bar guard on the guide bar. Store in a dry, well-ventilated place out of reach of children. Avoid corrosive products.

What is the warranty?

Powerworks offers a 2-year warranty for domestic use (DIY) and 30 days for professional use. It covers material and workmanship defects. Proof of purchase is required. Consumables (chain, guide bar, battery) are not covered.

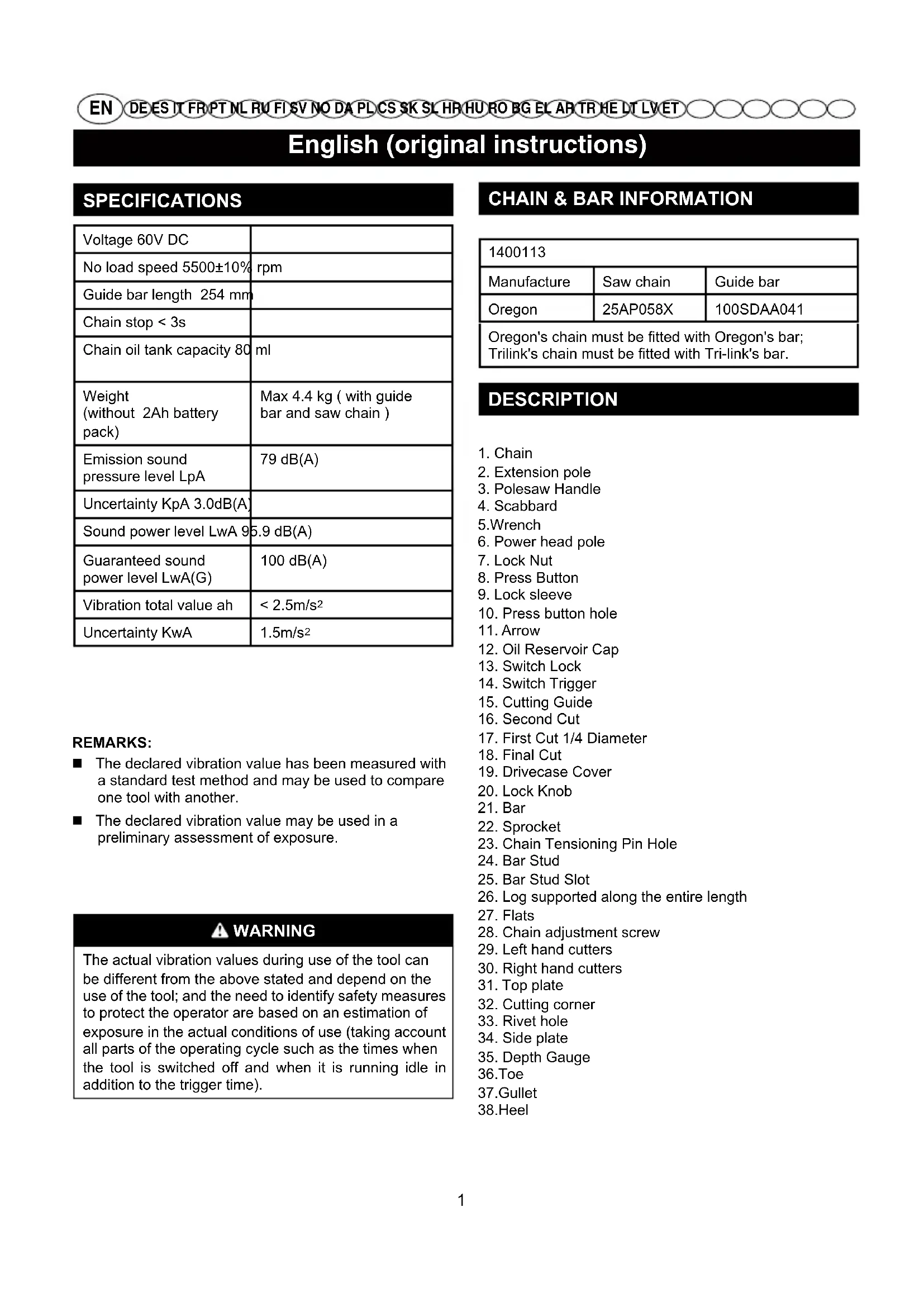

USER MANUAL PD60PS Powerworks

English (original instructions)

SPECIFICATIONS

Voltage 60V DC
No load speed 5500±10%	rpm
Guide bar length 254 mm
Chain stop < 3s
Chain oil tank capacity 80	ml
Weight (without 2Ah battery pack)	Max 4.4 kg ( with guide bar and saw chain )
Emission sound pressure level LpA	79 dB(A)
Uncertainty KpA 3.0dB(A)
Sound power level LwA 9	5.9 dB(A)
Guaranteed sound power level LwA(G)	100 dB(A)
Vibration total value ah	< 2.5m/s2
Uncertainty KwA	1.5m/s2

REMARKS:

■ The declared vibration value has been measured with a standard test method and may be used to compare one tool with another.
■ The declared vibration value may be used in a preliminary assessment of exposure.

WARNING

The actual vibration values during use of the tool can be different from the above stated and depend on the use of the tool; and the need to identify safety measures to protect the operator are based on an estimation of exposure in the actual conditions of use (taking account all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

CHAIN & BAR INFORMATION

1400113
Manufacture	Saw chain	Guide bar
Oregon	25AP058X	100SDAA041
Oregon's chain must be fitted with Oregon's bar; Trilink's chain must be fitted with Tri-link's bar.

DESCRIPTION

1. Chain
2. Extension pole
3. Polesaw Handle
4. Scabbard
   5.Wrench
5. Power head pole
6. Lock Nut
7. Press Button
8. Lock sleeve
9. Press button hole
10. Arrow
11. Oil Reservoir Cap
12. Switch Lock
13. Switch Trigger
14. Cutting Guide
15. Second Cut
16. First Cut 1/4 Diameter
17. Final Cut
18. Drivecase Cover
19. Lock Knob
20. Bar
21. Sprocket
22. Chain Tensioning Pin Hole
23. Bar Stud
24. Bar Stud Slot
25. Log supported along the entire length
26. Flats
27. Chain adjustment screw
28. Left hand cutters
29. Right hand cutters
30. Top plate
31. Cutting corner
32. Rivet hole
33. Side plate
34. Depth Gauge
    36.Toe
    37.Gullet
    38.Heel

English (original instructions)

ASSEMBLY

UNPACKING

This product requires assembly.

■ Carefully remove the product and any accessories from the box. Make sure that all items listed in the package contents section are included.
■ Inspect the product carefully to make sure no breakage or damage occurred during shipping.
■ Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
■ If any parts are damaged or missing, please contact your authorised Powerworks service cneter for assistance.

PACKING LIST See Figure 1

■ Power head pole
■ Extension pole
■ Handle pole
Wrench
Scabbard
■ Operator's manual

WARNING

Before assembly, remove the battery from the tool. Do not insert the battery until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

CONNECTING THE POLES See figure 2

Before using the pole saw, assembly is required. When removed from the box, there are the three poles.

■ Insert the extension pole into the handle pole and slide together. The tubes are oval-shaped and will only install one way.
■ Push the extension pole into the lock sleeve in the handle pole and the press button will lock into the press button hole. Then use a wrench to secure the lock nut.
■ Repeat this process to attach the extension pole to the power head pole.

WARNING

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

OPERATION

APPLICATIONS

You may use this product for the purposes listed below:

■ Limbing
Pruning

ADDING BAR AND CHAIN LUBRICANT See figure 3

Use Lubricant. It is designed for chains and chain oilers, and is formulated to perform over a wide temperature range with no dilution required.

NOTE: Pole saw comes from the factory with no bar and chain oil added. Level should also be checked after every 30 minutes of use and refilled as needed.

■ Remove oil cap.
■ Carefully pour the bar and chain oil into the tank.
■ Wipe off excess oil.
■ Check and fill the oil tank when there is no oil in the oil tank.
■ Repeat as needed.

NOTE: It is normal for oil to seep from the saw when not in use. To prevent seepage, empty the oil tank after each use then run for one minute. When storing the unit for a long period of time (three months or longer) be sure the chain is lightly lubricated; this will prevent rust on the chain and bar sprocket.

REMOVING THE BATTERY PACK See figure 4

■ Press the latch button on the battery pack down and hold.
■ Grasp the pole saw firmly, and pull the battery pack out of the handle.

NOTE: The battery pack fits into the handle snugly in order to prevent accidental dislodging. It may require a strong pull to remove it.

INSTALLING THE BATTERY PACK See figure 4

■ Align the tongue of the battery pack with the cavity.
■ Grasp the pole saw firmly.
■ Push the battery pack into the handle until the latch locks into place.
- Do not use force when inserting the battery pack. It should slide into position and "click".

English (original instructions)

Do not use any attachments or accessories not recommended by The manufacture of this product. The use of attachments or accessories not recommended can result in serious personal injury.

STARTING AND STOPPING See Figure 5

TO START THE MOTOR:

■ Fit the battery pack into the pole saw.
■ Press and hold the switch lock. This makes the switch trigger operational.
■ Press and hold the switch trigger, release the switch lock and continue to squeeze the switch trigger for continued operation.

TO STOP THE MOTOR:

■ Release the switch trigger.

PREPARATION FOR CUTTING

■ Wear non-slip gloves for maximum grip and protection.
■ Maintain a proper grip on the unit whenever the motor is running. Use your right hand to firmly grip the rear handle while your left hand has a firm grip on the pole shaft.
■ Hold unit firmly with both hands. Always keep your left hand on the pole shaft and your right hand on the rear handle, so your body is to the left of the chain line. Never use a left-handed (cross handed) grip, or any stance that places your body or arm across the chain line.
■ Never stand directly under the limb you are cutting.
■ Be certain the collars are fully tightened before operating equipment; check them periodically for tightness during use to avoid serious injury.

BASIC CUTTING PROCEDURE

See Figures 6-7

Follow the steps below to prevent damage to tree or shrub bark. Do not use a back-and-forth sawing motion.

■ Make a shallow first cut (1/4 of limb diameter) on the underside of the limb close to the main limb or trunk.
■ Make a second cut from the top side of the limb outboard from the first cut. Continue the cut through the limb until the limb separates from the tree. Be prepared to balance the weight of the tool when the limb falls.
■ Make a final cut close to trunk.

NOTE: For second and final cuts (from top of limb or branch), hold front cutting guide against the limb being cut. This will help steady the limb and make it easier to cut. Allow chain to cut for you; exert only slight downward pressure. If you force the cut, damage to the bar, chain, or motor can result.

■ Release the trigger as soon as the cut is completed. Failure to follow proper cutting procedures will result in the bar and chain binding and becoming pinched or trapped in the limb. If this should happen:
■ Stop the motor and remove the battery pack.
If the limb can be reached from the ground, lift the limb while holding the saw. This should release the "pinch" and free the saw.
■ If the saw is still trapped, call a professional for assistance

LIMBING AND PRUNING See Figure 8-9

This unit is designed for trimming small branches and limbs up to 15 cm in diameter. For best results, observe the following precautions

■ Plan the cut carefully. Be aware of the direction in which the branch will fall.
■ Branches may fall in unexpected directions. Do not stand directly under the branch being cut.
■ The most typical cutting application is to position the unit at an angle of 60^ or less, depending on the specific situation. As the angle of the pole saw shaft to ground increases, the difficulty of making the first cut (from the underside of limb) increase.
■ Remove long branches in several stages.
- Cut lower branches first to allow the top branches more room to fall.
■ Work slowly, keeping both hands on the saw with a firm grip. Maintain secure footing and balance.
- Keep the tree between you and the chain while limbing. Cut from side of tree opposite branch you are cutting.
■ Do not cut from a ladder; this is extremely dangerous. Leave this operation for professionals.
■ Do not make the flush cut next to the main limb or trunk until you have cut off the limb further out to reduce the weight. Following proper cutting procedure will prevent stripping the bark from the main member.
■ Do not use the pole saw for felling or bucking
■ To prevent electrocution, do not operate within 15m of overhead electrical lines.
- Keep bystanders at least 15m away.

MAINTENANCE

REPLACING THE BAR AND CHAIN See Figure 10-12

■ Remove the lock knob and drivecase cover.
■ The bar contains a bar stud slot that fits over the bar stud. The bar also contains a chain tension pin hole which fits over the chain tensioning pin.

English (original instructions)

■ Place the bar onto the bar stud so that the chain tensioning pin fits into the chain tensioning pin hole.
■ Fit the chain over the sprocket and into the bar groove. The cutters on the top of the bar should face toward the bar tip, in the direction of the chain rotation.
■ Replace the drivecase cover and install the lock knob. Tighten the lock knob finger tight only. The bar must be free to move for tension adjustment.
■ Remove all slack from chain by turning the chain tensioning screw clockwise, assuring that the chain seats into the bar groove during tensioning.
■ Lift the tip of the bar up to check for sag. Release the tip of the bar, and turn the chain tensioning screw 1/2 turn clockwise. Repeat this process until sag does not exist.
■ Hold the lip of the bar up and tighten the lock knob securely.
■ Chain is correctly tensioned when there is no slack on the underside of the bar, the chain is snug, but it can be turned by hand without binding.

ADJUSTING THE CHAIN TENSION

See Figure 13-16

■ Loosen the chain cover lock nuts with the supplied wrench. The chain cover lock nuts do not have to be completely removed in order to adjust the chain tension.
■ Rotate the chain adjustment screw clockwise to increase the chain tension and rotate counterclockwise to decrease the chain tension.
■ Once the chain is at the desired tension, tighten the chain cover lock nuts.

WARNING

Do not over-tension the chain as this will lead to excessive wear and will reduce the life of the bar and chain.

WARNING

When the saw chain is new, check the tension frequently during the first two hours of use as a new saw chain stretches slightly.

CHAIN MAINTENANCE See Figure 17

For smooth and fast cutting, the chain needs to be maintained properly. The following conditions indicate that the chain requires sharpening:

■ Wood chips are small and powdery.
■ Chain must be forced through the wood during cutting.

■ Chain cuts to one side.
During maintenance of the chain, consider the following:
■ Improper filling angle of the side plate can increase the risk of severe kickback.
■ Depth gauge (or raker clearance) setting determines the height the cutter enters the wood and the size of the wood chip that is removed. Too much clearance increases the potential for kickback. Too little clearance decreases the size of the wood chip thus decreasing the chain's cutting ability.
If the cutter teeth hit hard objects such as nails or stones, or are abraded by mud or sand on the wood, have an authorized service center sharpen the chain.

NOTE: if there're any cracks on chain pitch or guide bar, stop to use the tool at once and replace the damaged parts. Refer to Replacing The Bar And Chain.

HOW TO SHARPEN THE CUTTERS

See Figure 18-21

Be careful to file all cutters to the specified angles and to the same length, as fast cutting can be obtained only when all cutters are uniform.

■ Tighten the chain tension enough that the chain does not wobble. Do all of your filling at the mid-point of the bar. Wear gloves for protection.
■ Use a 5/32 in. diameter round file and holder.
- Keep the file level with the top plate of the tooth. Do not let the file dip or rock.
■ Using light but firm pressure, stroke towards the front corner of the tooth. Lift file away from the steel on each return stroke.
- Put a few firm strokes on every tooth. File all left hand cutters in one direction. Then move to the other side and file the right hand cutters in the opposite direction. Occasionally remove filings from the file with a wire brush.

WARNING

Dull or improperly sharpened chain can cause excessive motor speed during cutting which may result in severe motor damage.

WARNING

Improper chain sharpening increases the potential of kickback. Failure to replace or repair damaged chain can cause serious injury.

STORAGE

STORING THE PRODUCT

■ Clean all foreign material from the product. Store idle unit indoors in a dry, well-ventilated area that is inaccessible to children. Keep away from corrosive

English (original instructions)

agents such as garden chemicals and de-icing salts.

■ Always place the scabbard on the saw bar when transporting or storing the pole saw. The scabbard is a snug fit and must be attached very carefully due to the sharp teeth on the saw chain. This is best done by grasping the scabbard at one end, in the center portion of the scabbard, and carefully sliding it over the chain as shown. Use caution to avoid the sharp teeth of the chain.

NOTE: The saw chain is very sharp. Always wear protective gloves when handling the chain.

TRANSPORTATION

For transportation, secure the machine against movement or falling to prevent injury to persons or damage to the machine.

DISPOSAL

Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your Powerworks product needs replacement, or if it is no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Batteries

At the end of their useful life, discard batteries with due care for our environment. The battery contains material which is hazardous to you and the environment. It must be removed and disposed of separately at a facility that accepts lithium-ion batteries.

TROUBLESHOOTING

PROBLEM POSSIBLE	CAUSE	REMEDY
Bar and chain running hot and Smoking	Check chain tension for over tightened condition,Bar tube reservoir empty.	Tension chain.Refer to Chain Tension earlier in this manual.Check bar tube reservoir.
Motor runs, but chain is not rotating.	Chain tension too light.Check guide bar and chain assembly.Check guide bar and chain for damage.	Retention chain.Refer to Chain Tension earlier in this manual.Refer to Replacing the Bar and Chain earlier in this manual. Inspect guide bar and chain.

CARACTÉRISTIQUES DU PRODUIT

Consulte as Imagens 6 e 7

Consulte as Imagens 8 e 9

SUBSTITUIR A BARRA E A SERRA Consulte as Imagens 10-12

Consulte as Imagens 13-16

Consulte as Imagens 18 e 21

TUOTTEEN TEKNISET TIEDOT

KUINKA TEROTTAA KOURUHAMPAAT

VEDLIKEHOLD PÅ KJEDE

Se figur 17.

KORREKT AVHENDING AV DETTE PRODUKTET

OPBEVARING AF PRODUKTET

■ The declared vibration value has been measured with a standard test method and may be used to compare one tool with another.
■ The declared vibration value may be used in a preliminary assessment of exposure.

BRĪDINĀJUMS

Powerworks Warranty Policy for DIY machines

PERIOD OF WARRANTY

All new Powerworks machinery is supplied with a 2 year parts and labour warranty from original date of purchase. A 30 day warranty is available for machines used professionally as Powerworks are designed primarily to be used by DIY consumers. This warranty is non-transferable.

LIMITATIONS

This warranty applies only to defective parts/components and does not cover repairs due to:

1. Normal wear and tear.
2. Routine tune up or adjustment.
3. Damage caused by improper handling/abuse/misuse or neglect.
4. Overheating due to lack of maintenance.
5. Damage due to fittings/fasteners becoming loose/detached through lack
   of maintenance.

6. Damage caused by cleaning with water.

7. Machines serviced or repaired by non-authorised Powerworks service centres.

8. Machines incorrectly assembled or adjusted.

9. Damage caused by improper use of the machine.

10. Damage caused by improper winterisation (pressure washers)

11. Items considered as consumable parts are not normally covered by the warranty, including but not limited to:

- Batteries

• Electric cables
- Blade and blade assemblies
- Belts
- Filters
• Chucks and tool holders

1. Certain products may contain components such as engines, transmissions from an alternative manufacturer, these items will be subject to the appropriate manufacturer's warranty policy except where Greenworks Tools Europe GmbH agrees to underwrite any claims outside the said manufacturer's warranty period.
2. Second hand goods are not covered under this warranty policy.
3. The fitting of spares, replacements or extra components which are not supplied or approved by Greenworks Tools Europe GmbH.

Warranty

To claim a warranty on any product under this policy a proof of original purchase is required. Credit card statement do not qualify as sufficient proof of purchase. In the first instance of a warranty event occurring the consumer should return the product to the original place of purchase with their proof of purchase. The machine will be sent to our central service facility and an inspection made. If the machine be found to be at fault it will be repaired and sent back to the address of the consumer free of charge. Machines that retail for less than €100 euros including sales taxes will generally be replaced.

If the central service facility finds that machine is not found to be at fault then the consumer will be advised they will need to pay for the cost of the repair.

This warranty policy is subject to change from time to time to accommodate the needs of new products.

EN EC DECLARATION OF CONFORMITY

Manufacturer: Changzhou Globe Co., Ltd.

Address: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Name and address of the person authorised to compile the technical file:

Name: Gary Gao Naixin (Director of Outdoor Power Equipment)

Adress: Greenworks Tools Europe GmbH,

Wankelstrasse 40. 50996 Cologne Germany

Herewith we declare that the product

Category POLESAW

Model 1400113

Serial Number ...... See product rating label

Year of Construction ...... See product rating label

■ is in conformity with the relevant provisions of the Machinery Directive (2006/42/EC)

■ is in conformity with the provisions of the following other EC-Directives EMC Directive (2014/30/EU),

Noise Emission Directive (2000/14/EC amended by 2005/88/EC)

And furthermore, we declare that

■ The following (parts/clauses of) European harmonised standards have been used EN 55014-1, EN 55014-2, EN 60745-1, EN ISO 11680-1, EN ISO 3744

Measured sound power level 95.9 dB(A)

Guaranteed sound power level 100 dB(A)

Conformity assessment method to Annex V / Directive 2000/14/EC

The EC type-examination certificate issued by Intertek

Place, date: Changzhou, 4/20/2016 Signature: Gary Gao Naixin (BEng, CEng, MIET)

Vice President of Engineering

DE

Adresse: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Indirizzo: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

FR DÉCLARATION DE CONFORMITÉ EC

Fabricant : Changzhou Globe Co., Ltd.

Adresse : No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Endereço: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Local, data: Changzhou, 4/20/2016

Assinatura: Gary Gao Naixin (BEng, CEng, MIET)

Adres: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Naam: Gary Gao Naixin (Director of Outdoor Power Equipment)

Adres: Greenworks Tools Europe GmbH,

Wankelstrasse 40. 50996 Cologne Germany

Osoite: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Adress: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Adress: Greenworks Tools Europe GmbH,

Wankelstrasse 40. 50996 Cologne Germany

Adresse: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Sted, dato: Changzhou, 4/20/2016

Signatur: Gary Gao Naixin (BEng, CEng, MIET)

Adresse: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Adres: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Adresa: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Adresa: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Naslov: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Adresa: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Ime i prezime, i adresa osobe ovlaštene da sastavi tehničku datoteku:

Ime i prezime: Gary Gao Naixin (Direktor za Opremu za korištenj e na otvorenom)

Adresa: Greenworks Tools Europe GmbH,

Wankelstrasse 40. 50996 Cologne Germany

Cím: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Adresa: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Locul, data: Changzhou, 4/20/2016

Semnătura:GaryGaoNaixin(BEng, CEng, MIET)

Adres: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Yer, tarih: Changzhou, 4/20/2016

Imza: Gary Gao Naixin (BEng, CEng, MIET)

תְרָה: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Adresas: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Adrese: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Aadress: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Aadress: Greenworks Tools Europe GmbH,

Wankelstrasse 40. 50996 Cologne Germany

Kinnitame, et see toode

Nimetus VARSSAAG

Mudel 1400113

Seerianumber ...... vaadake toote tehasesilti
