Brand	Ferm
Model	CDM1124
Category	Screwdriver
Type	Cordless screwdriver
Battery voltage	3.6 V
Battery capacity	1.3 Ah
Battery type	Li-ion
Charging time	3 to 5 hours
Charger	Input 100-240 V~ 50-60 Hz, output 6 V DC 400 mA
No-load speed	200 rpm
Chuck capacity	1/4 inch hex (6.35 mm)
Sound pressure level	58.67 dB(A)
Sound power level	69.67 dB(A)
Vibration (screwdriving)	0.361 m/s²
Weight (estimated)	Approximately 0.4 kg
Dimensions (estimated)	Approximately 20 x 5 x 5 cm
Main functions	Screwing and unscrewing, spindle lock, LED charge indicator, work light, overload protection
Safety	Double insulation (Class II), automatic shut-off in case of overload
Maintenance and cleaning	Clean with a slightly damp soft cloth. Do not use solvents.
Spare parts and repairability	Screwdriver bits and charger available. Repair by a qualified professional.
Warranty	Warranty certificate provided separately
General information	Brand Ferm, model CDM1124, cordless screwdriver for screwing and unscrewing screws.

Frequently Asked Questions - CDM1124 Ferm

How to charge the Ferm CDM1124 screwdriver?

Plug the small connector of the charger into the charging port of the screwdriver, then plug the charger into a mains socket. The LED indicator turns red during charging and red+green once charging is complete. The charging time is 3 to 5 hours.

How to change the direction of rotation?

Use the direction selector switch located above the trigger. Set it to ◀ for screwing or → for unscrewing. The center position locks the trigger.

How to insert a screwdriver bit?

The bit holder accepts 1/4 inch hex shank bits. Simply insert the bit into the bit holder; it is held by a magnet. To remove it, pull it out.

What does the LED indicator on the screwdriver mean?

The charge indicator is located near the charging port. Red: battery charging. Red+Green: charging complete, battery full.

How to use the spindle lock?

The screwdriver is equipped with an automatic spindle lock. When the on/off switch is not pressed, the bit holder is locked, allowing the screwdriver to be used as a manual screwdriver, even if the battery is empty.

What is the overload protection?

The screwdriver has electronic overload protection. In case of overload, it stops automatically. Wait at least 5 seconds for the protection to reset before using the tool again.

Is the screwdriver suitable for heavy-duty use?

This cordless screwdriver is designed for occasional screwdriving tasks. For heavy-duty use, we recommend a more powerful drill driver.

How to clean the screwdriver?

Before cleaning, switch off and disconnect the battery. Clean the housing with a soft cloth, slightly damp if necessary. Do not use harsh chemicals like petrol or alcohol.

What accessories are supplied with the screwdriver?

The screwdriver is supplied with a mains charger and a screwdriver bit. Additional bits are available separately.

Can I use the screwdriver in the rain?

No, the Ferm CDM1124 screwdriver is not designed for use in rain. It is intended for indoor use only. The symbol 'do not use in rain' is present on the device.

USER MANUAL CDM1124 Ferm

Blue and gray FERM electric drill put tool with a red handle (no visible text or symbols on the tool body)

CDM1124

EN Original instructions 04
DE Übersetzung der Originalbetriebsanleitung 08
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 12
FR Traduction de la notice originale 16
ES Traducción del manual original 20
PT Tradução do manual original 24
IT Traduzione delle istruzioni originali 28
SV Översättning av bruksanvisning i original 32
FI Alkuperäisten ohjeiden käännös 36
NO Oversatt fra orginal veiledning 40
DA Oversættelse af den originale brugsanvisning 44

HU Eredeti használati utasítás fordítása 48
CS Překlad původního návodu k používání 52
SK Prevod izvirnih navodil 56
PL Tłumaczenie instrukcji oryginalnej 60
LT Originalios instrukcijos vertimas 64
LV Instrukciju tulkojums no originālvalodas 68
RO Traducere a instructiunilor originale 72
RU Перевод исходных инструкций 76
EL Μετάφραση του πρωτοτύπου των οδηγιών χρήσης 81
AR تَيْلِصُ أَلَا تَامِيْلِعُتُلَا قَمْجِرَت 86
TR Orijinal talimatların çevirisi 89

FERM 1 3 4 7 5 6 2

8a 8 10

Fig. A

FERM 10 4 FERM Fig. B

Close-up of a hand using a tool to mark a curved arrow on a wooden surface, labeled 'Fig. C' (no text or symbols on the diagram itself)

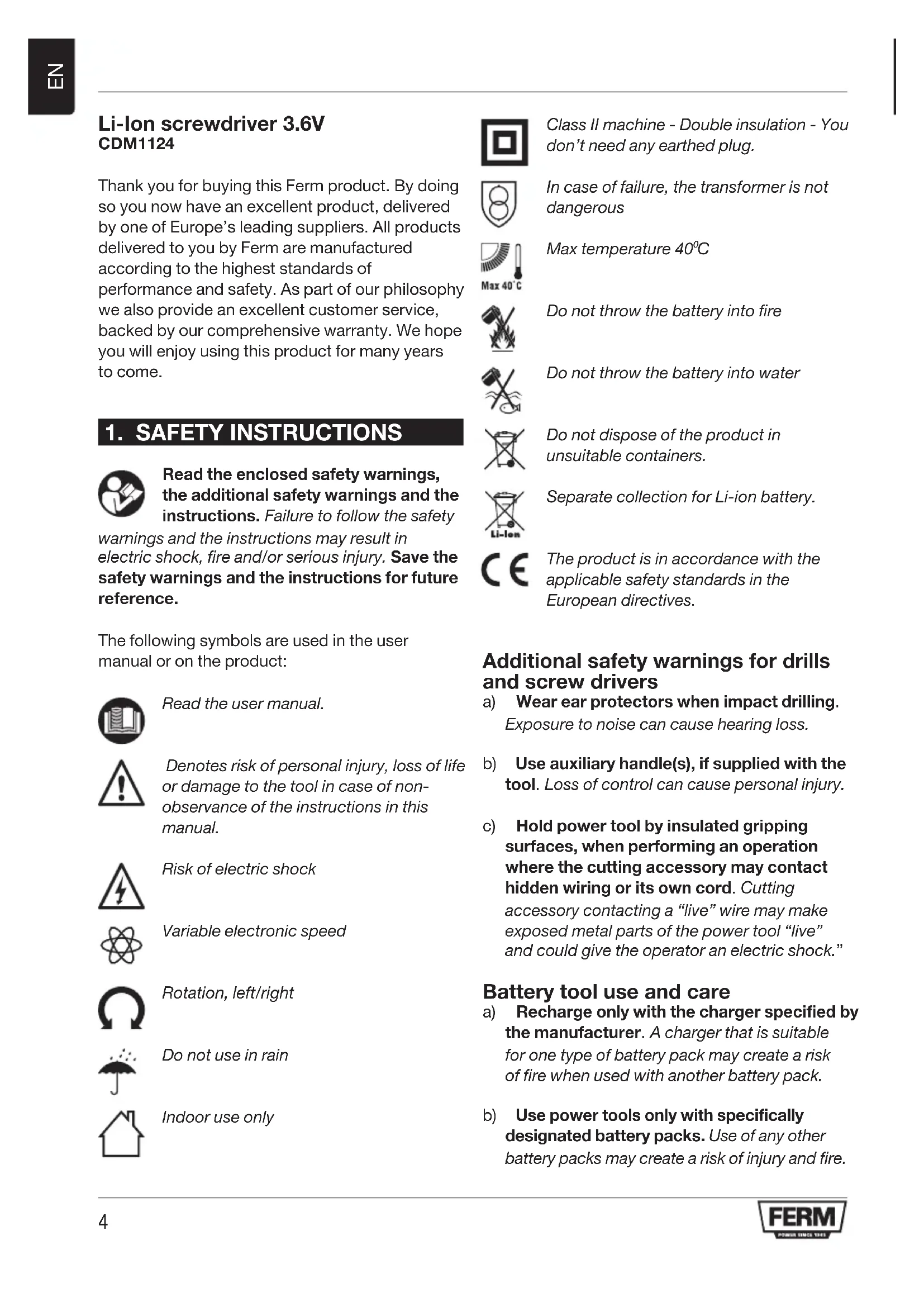

Li-Ion screwdriver 3.6V CDM1124

Thank you for buying this Ferm product. By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Risk of electric shock

Variable electronic speed

Rotation, left/right

Do not use in rain

Indoor use only

Class II machine - Double insulation - You don't need any earthed plug.

In case of failure, the transformer is not dangerous

Max temperature 40^ C

Do not throw the battery into fire

Do not throw the battery into water

Do not dispose of the product in unsuitable containers.

Separate collection for Li-ion battery.

The product is in accordance with the applicable safety standards in the European directives.

Additional safety warnings for drills and screw drivers

a) Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
b) Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
c) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock."

Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

For the charger Intended use

Charge only 3.6V max.1.3Ah Li-ion type rechargeable battery packs. Other types of batteries may burst causing personal injury and damage.

a) The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
b) Children being supervised not to play with the appliance
c) Do not recharging non-rechargeable batteries!
d) During charging, batteries must be placed in the well ventilated area!

Residual risks

Even when the power tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the power tool's construction and design:

a) Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained.
b) Injuries and damage to property to due to broken accessories that are suddenly dashed.

Warning! This power tool produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this power tool.

2. MACHINE INFORMATION

Intended use

This screw driver is intended for driving in and loosening screws

Technical specifications

Model No CDM1124
Charger CDA1089
Input of charger 100-240V~ 50-60Hz 9W
Output of charger 6V DC, 400mA
Battery charging time 3-5 hours
Chuck capacity 1/4" hex
No load speed	200 /min
Sound pressure level L_PA	58.67 dB(A) K= 3 dB(A)
Sound power level L_WA	69.67 dB(A), K=3dB(A)
Hand-arm vibration a_h (screw driving without impact)	0.361 m/s2K=1.5 m/s2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardized test given in EN60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• Using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• The times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

Description

The numbers in the text refer to the diagrams on pages 2-3

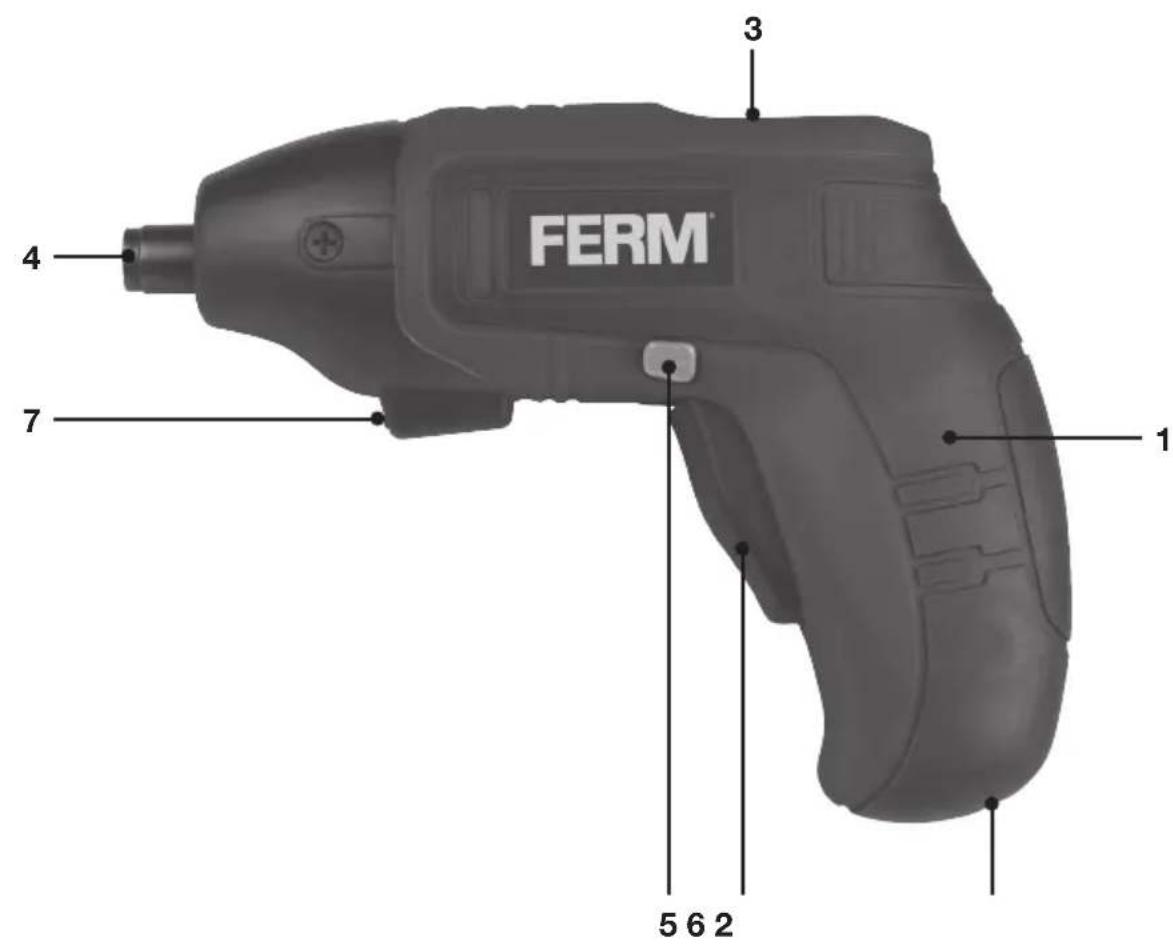

Fig. A

1. Machine
2. Charging socket
3. Bit holder
4. Direction switch
5. On / off switch
6. Work light

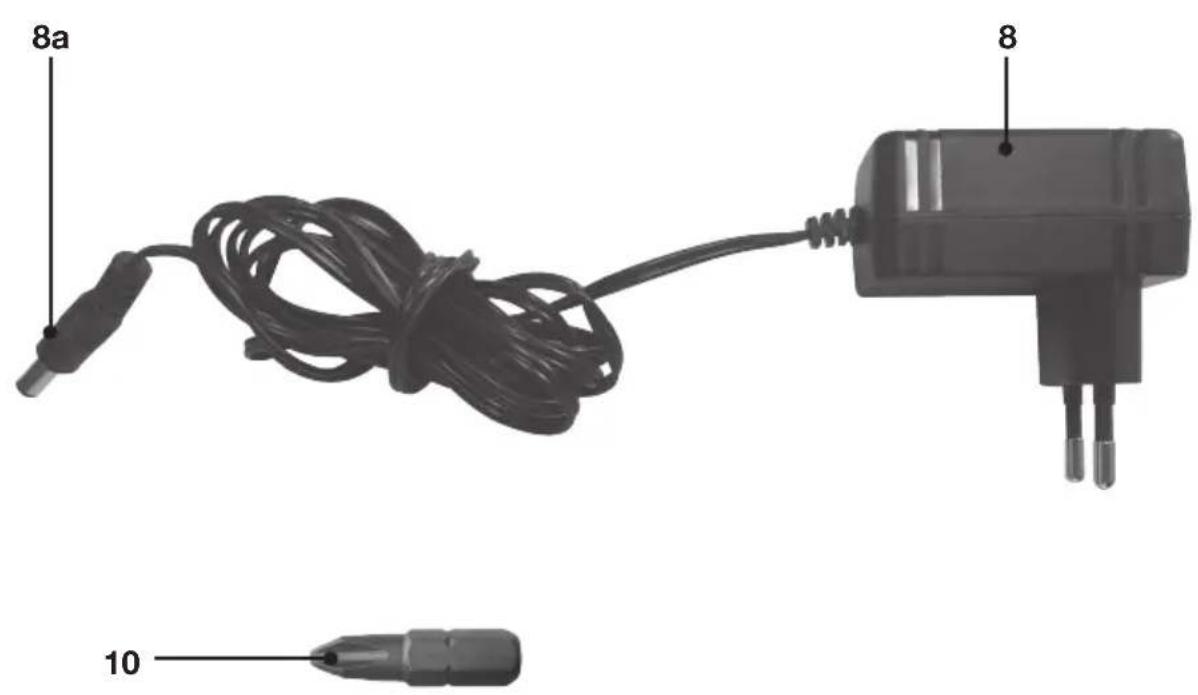

7. Charger adaptor

8. Screw driver bit

9. Charging indication light

3. OPERATING

The machine must be charged before first use.

Charging the machine

• Plug the small cable plug (8A) into the machine's charging socket (2).
• Plug the charger into an electrical outlet and wait for a while. The LED indicator on the machine (3) will lighten up and show the charging status.

Charging indication light (3)

Fig.A

The machine has a charging indication light (3) which indicates the status of the charging process:

LED color Status
Red Battery	charging in progress
Red+Green	Battery charging finished, battery fully charged

- Fully charging the battery may take up to 3 - 5 hours.

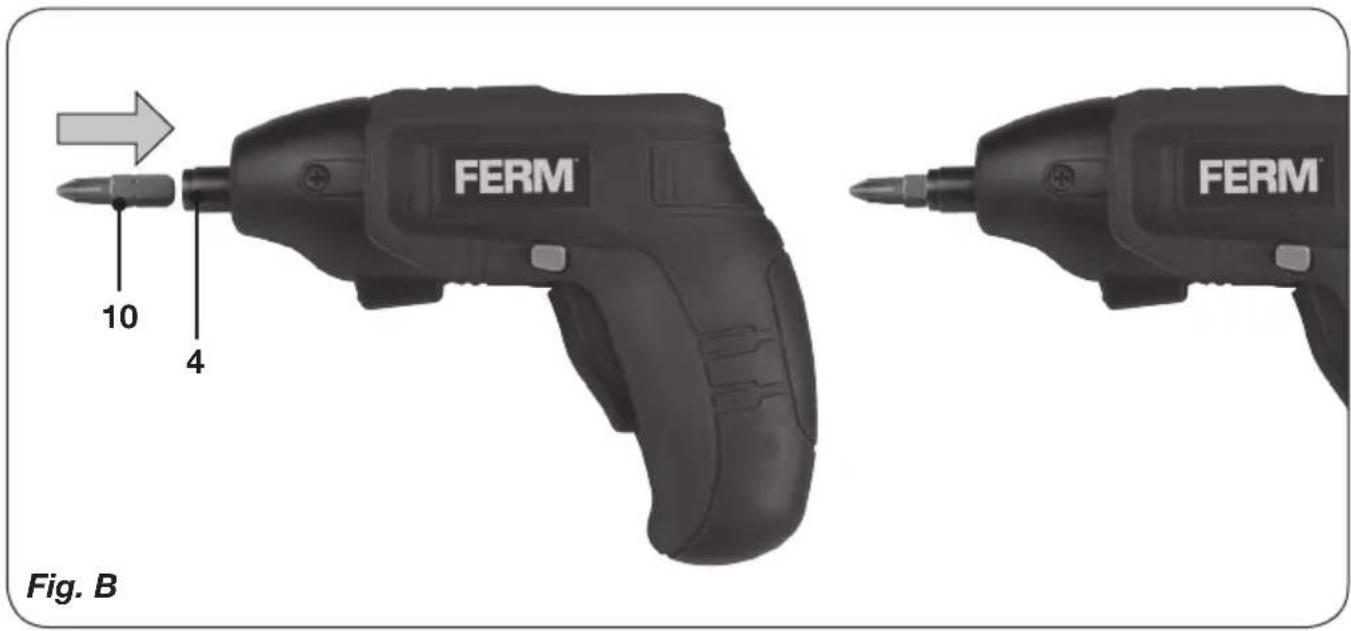

Fitting and removing drills or screwdriver bits Fig. B

The machine bit holder (4) is suitable for drills and screwdriver bits with a standard 14 inch. hexagonal shaft. To fit a screwdriver bit:

• Insert the screw driver bit (10) into the machine's bit holder (4), it will be hold by a magnet.
• The screw driver bit can be removed by pulling it out of the bit holder again.

Adjusting the direction of rotation

Fig. A

• Set the direction switch (5) to position ‘←’ in order to drive screws or to use it for drilling.
• Set the direction switch (5) to position ‘→’ in order to remove screws.

Switching the machine on and off

Fig. A

• Pressing the on/off switch (6) will activate the machine.
• Releasing the on/off switch (6) will stop the machine.
• Move the direction switch (5) to the middle position to lock the movement of the on/off switch. It cannot be activated in this position.

The machine is equipped with electronic overload protection function. When the machine gets overloaded it will shut down automatically. When this happens, please wait for at least 5 seconds to let the overload protection reset itself.

Spindle lock function

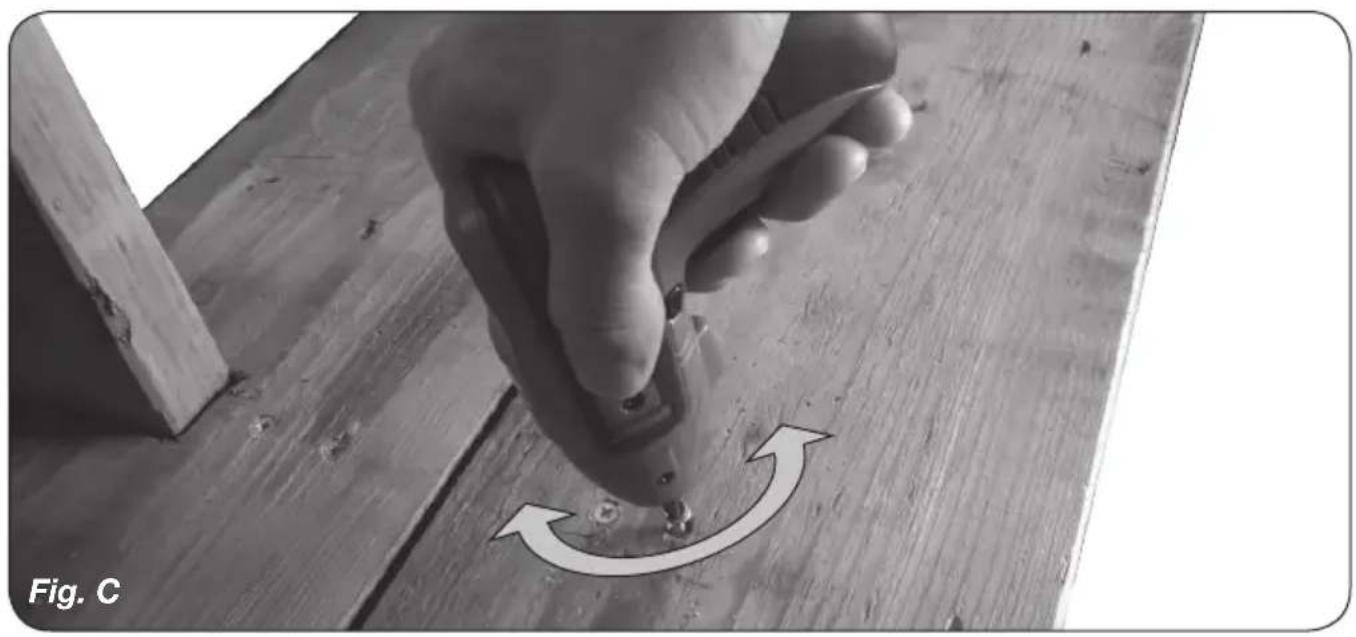

Fig. C

The machine is fitted with an automatic spindle lock feature. When the on/off switch (6) is not pressed, the bit holder (4) rotation is locked. Now it is possible to use the screwdriver (even when the battery is empty) as a manual tool.

4. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

WARRANTY

The warranty conditions can be found on the separately enclosed warranty card.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

Position Description No

Charger adapter 3.6V CDA1089

1 Motor with gear box assembled 101204

DECLARATION OF CONFORMITY CDM1124 - LI-ION SCREW DRIVER

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 9 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
