GOS 10 8 VLI - Thermal measuring instrument BOSCH - Free user manual and instructions

Product type	Digital inspection camera
Brand	Bosch
Model	GOS 10 8 VLI
Dimensions (L x W x H)	166 x 66 x 45 mm
Weight	0.68 kg (according to EPTA-Procedure 01/2003)
Power supply	Lithium-ion battery 10.8 V
Battery life	Approx. 15 h
Operating temperature	-20 °C to +65 °C
Storage temperature (without battery)	-30 °C to +80 °C
Camera head diameter	17 / 9.5 mm
Camera flexible probe	Variable length, extension possible up to 10 m (image quality reduced beyond), min. bending radius 120 mm
Display	Diagonal 68.6 mm, resolution 320 x 240
External video port	NTSC (cable included)
Main functions	Visual inspection of dark or hard-to-reach spaces, adjustable LED lighting, accessories (magnet, hook, mirror) to move small objects
Waterproofness of the probe	Up to 10 m depth (probe and camera head waterproof if correctly assembled)
Safety instructions	Do not point the light beam at eyes, do not use in explosive atmosphere, do not open the battery, wear PPE if necessary
Maintenance and cleaning	Clean with a soft, damp cloth, do not immerse the hand-held unit, clean the lens regularly
Spare parts and repairability	Use only genuine Bosch parts, repair by authorized service center, do not open the device yourself
General information	Manual available in multiple languages, Bosch customer service accessible by phone and email

Frequently Asked Questions - GOS 10 8 VLI BOSCH

How to charge the battery of the Bosch GOS 10 8 VLI?

Use only chargers recommended by Bosch. The lithium-ion battery can be recharged at any time without reducing its lifespan. The charging temperature range is 0 °C to 45 °C.

Is the camera probe waterproof?

Yes, the probe, camera head, and extension are waterproof up to 10 m depth, provided the connections are properly tightened. The hand-held unit and battery are not waterproof.

What accessories are supplied with the inspection camera?

The camera is supplied with a magnet, hook, and mirror that can be mounted on the camera head to move small objects. A video cable for external output is also included.

How to adjust the brightness of the lighting?

Use the + and - buttons on the hand-held unit to increase or decrease the brightness of the LED lamp on the camera head. Do not look directly at the lamp.

What to do if the image is blurry?

Adjust the distance between the camera head and the object. The depth of field range is from 38 mm to infinity. Also clean the lens with a soft cloth.

How to mount the camera probe?

Insert the probe into the connection adapter aligning the lug with the notch, then screw the collar clockwise. To remove, unscrew counterclockwise.

Can I use the camera in wastewater pipes?

Yes, but wear personal protective equipment (gloves, goggles, mask) in the presence of harmful substances. After use, clean the camera and all accessories thoroughly.

What does the battery capacity display mean?

The display shows three levels: >1/2 (more than half), <1/2 (less than half), and Reserve (low). Recharge as soon as possible when reserve is reached.

The camera turns off automatically, is this normal?

Yes, to save battery, the camera turns off automatically after about 20 minutes of inactivity. You can turn it back on by pressing the On/Off button.

Where can I get my Bosch GOS 10 8 VLI camera repaired?

Have repairs done by an authorized Bosch service center. Do not attempt to open the device yourself. You can find contact details in the manual or at www.bosch-pt.com.

USER MANUAL GOS 10 8 VLI BOSCH

OIII DOKL-23521-002.I'm Page 1 Monday, February 28, 2011 9:10 AM

Illustration of a handheld electronic device with a screen and antenna (no visible text or symbols)

Robert Bosch GmbH

Power Tools Division

70745 Leinfeiden-Echterdingen

Germany

www.bosch-pt.com

1 609 929 X35 (2011.02) T / 175 UNI

GOS 10,8 V-LI Professional

BOSCH

Technical illustration of a coiled mechanical cable with directional arrows indicating force or motion (no text or symbols)

6

2 610 014 567 (∅ 17 mm, 1,22 m)

2 610 014 568 (∅ 9,5 mm, 0,91 m)

Illustration of a coiled cable with two connectors (no text or symbols)

12

2 610 014 570 (0,91 m)

Illustration of three different wrenches with angular measurement indicators (no text or symbols)

2 610 014 564 (∅ 17 mm)

2 610 014 565 (∅ 9,5 mm)

BOSCH 5 4 3 2 1 6 7 9 8 10 11 12 GOS 10,8 V-LI Professional

5

A 1 14 13 6

B 15 16 17 7

C 18 19

6 | Deutsch

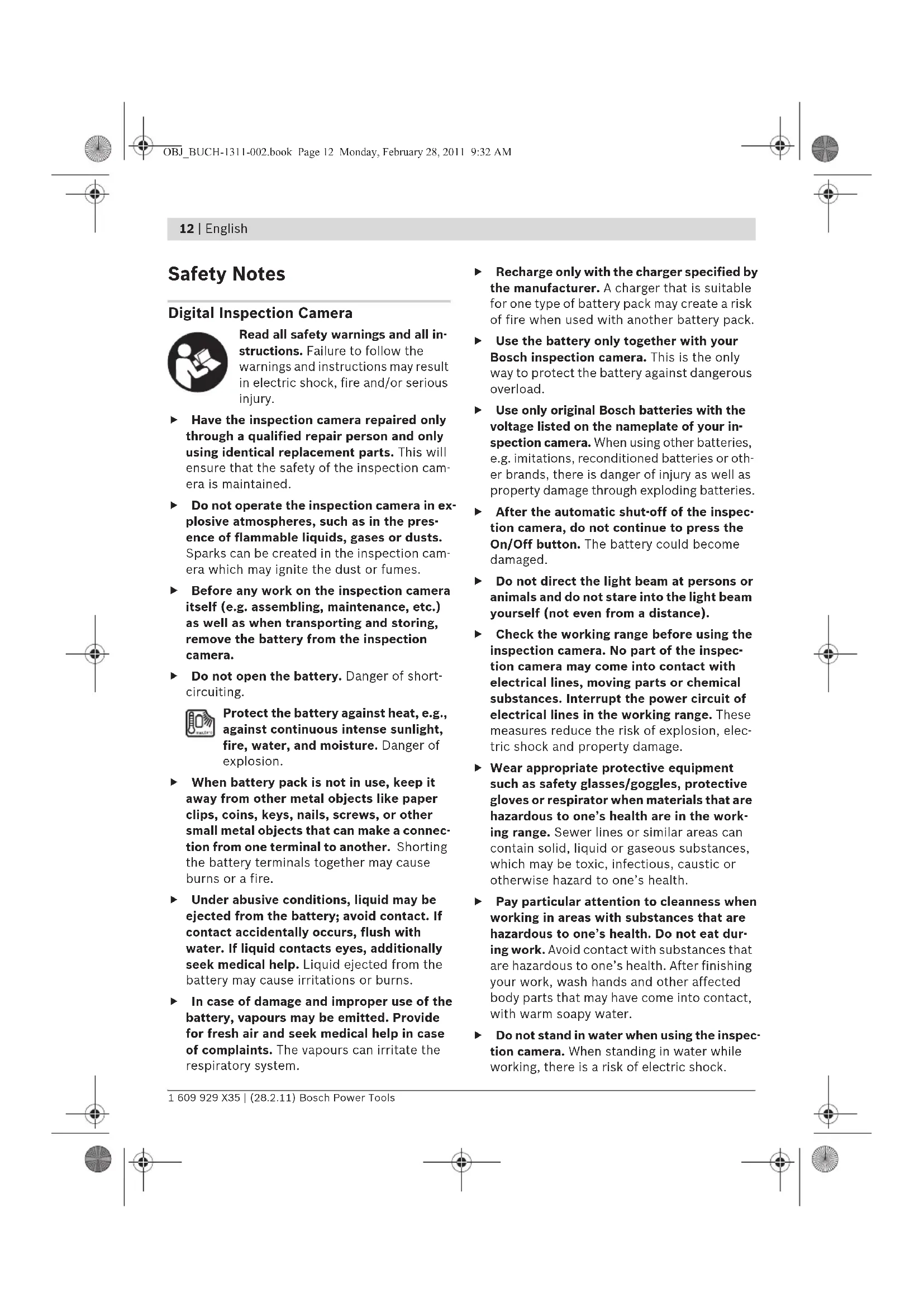

Sicherheitshinweise

Digital Inspection Camera

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

▶ Have the inspection camera repaired only through a qualified repair person and only using identical replacement parts. This will ensure that the safety of the inspection camera is maintained.
▶ Do not operate the inspection camera in explosive atmospheres, such as in the presence of flammable liquids, gases or dusts. Sparks can be created in the inspection camera which may ignite the dust or fumes.
Before any work on the inspection camera itself (e.g. assembling, maintenance, etc.) as well as when transporting and storing, remove the battery from the inspection camera.
▶ Do not open the battery. Danger of short-circuiting.

Protect the battery against heat, e.g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.
In case of damage and improper use of the battery, vapours may be emitted. Provide for fresh air and seek medical help in case of complaints. The vapours can irritate the respiratory system.

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use the battery only together with your Bosch inspection camera. This is the only way to protect the battery against dangerous overload.
▶ Use only original Bosch batteries with the voltage listed on the nameplate of your inspection camera. When using other batteries, e.g. imitations, reconditioned batteries or other brands, there is danger of injury as well as property damage through exploding batteries.
▶ After the automatic shut-off of the inspection camera, do not continue to press the On/Off button. The battery could become damaged.
▶ Do not direct the light beam at persons or animals and do not stare into the light beam yourself (not even from a distance).
▶ Check the working range before using the inspection camera. No part of the inspection camera may come into contact with electrical lines, moving parts or chemical substances. Interrupt the power circuit of electrical lines in the working range. These measures reduce the risk of explosion, electric shock and property damage.
- Wear appropriate protective equipment such as safety glasses/goggles, protective gloves or respirator when materials that are hazardous to one's health are in the working range. Sewer lines or similar areas can contain solid, liquid or gaseous substances, which may be toxic, infectious, caustic or otherwise hazard to one's health.
Pay particular attention to cleanness when working in areas with substances that are hazardous to one's health. Do not eat during work. Avoid contact with substances that are hazardous to one's health. After finishing your work, wash hands and other affected body parts that may have come into contact, with warm soapy water.
Do not stand in water when using the inspection camera. When standing in water while working, there is a risk of electric shock.

English | 13

Magnet

Keep the magnet 15 away from cardiac pacemakers. The magnet generates a field that can impair the function of cardiac pacemakers.

▶ Keep the magnet 15 away from magnetic data medium and magnetically-sensitive equipment. The effect of the magnetic can lead to irreversible data loss.

Product Description and Specifications

While reading the operating instructions, unfold the fold-out page with the illustration of the inspection camera and leave it open.

Intended Use

The digital inspection camera is suitable for inspecting hard to reach locations or dark areas. After mounting the provided accessories to the camera head, it is also suitable for moving and removing small and light objects (e.g., small screws).

The digital inspection camera may not be used for medicinal purposes. It is also not suitable for repairing pipe clogs or pulling in cables.

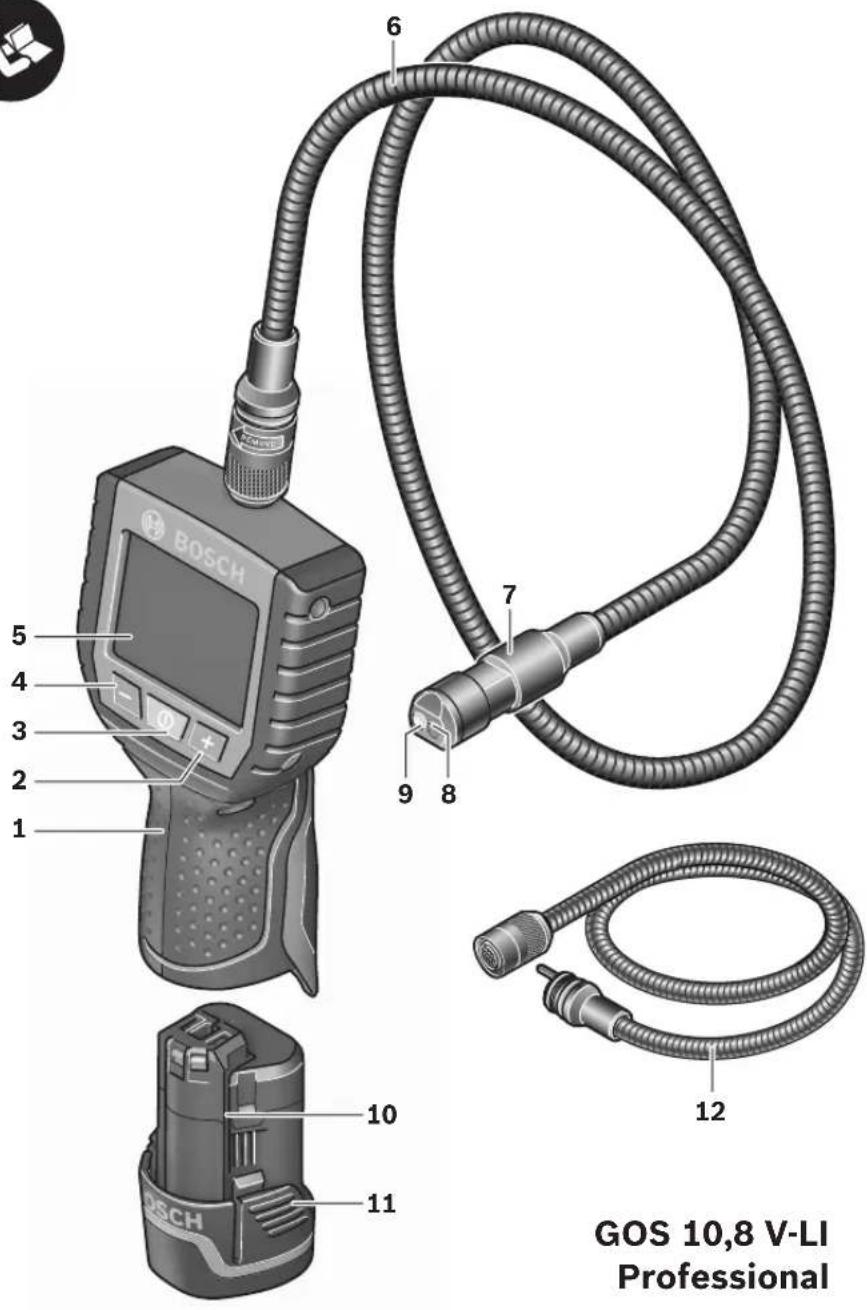

Product Features

The numbering of the product features refers to the illustration of the inspection camera on the graphics page.

1 Hand unit
2 Increase-brightness button "+"
3 On/Off button
4 Reduce-brightness button “-”
5 Display
6 Camera cable
7 Camera head
8 Camera lens
9 Illumination light in camera head
10 Battery*
11 Battery unlocking button

12 Camera cable, extension*
13 Socket sleeve of camera connection
14 Camera connection
15 Magnet
16 Hook
17 Mirror
18 Video output socket
19 Video cable

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Digital Inspection Camera	GOS 10,8 V-LI Professional
Article number	3 601 B41 000
Rated voltage	V= 10.8
Operating temperature	°C -20...+65
Storage temperature(hand unit without battery)	°C -30...+80
Relative humidity	% 5 1)
Smallest bending radius of camera cable	mm 120
Diameter of camera head	mm 17/9.5
Depth-of-field range of camera lens	mm 38-∞
Display size	mm 68.6
Display resolution	320 x 240
Format of video output	NTSC
Operating life time, approx.	h 15
Weight according to EPTA-Procedure 01/2003	kg 0.68
Dimensions (length x width x height)	mm 166 x 66 x 45
1) Free of moisture condensationPlease observe the article number on the type plate of your inspection camera. The trade names of individual inspection cameras can vary.

14 | English

Assembly

Before any work on the inspection camera itself (e.g. assembling, maintenance, etc.) as well as when transporting and storing, remove the battery from the inspection camera.

Battery Charging

▶ Use only the battery chargers listed on the graphics page. Only these battery chargers are matched to the lithium-ion battery used in your inspection camera.

Note: The battery is supplied partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

The battery is equipped with a NTC temperature control which allows charging only within a temperature range of between 0 °C and 45 °C. A long battery service life is achieved in this manner.

Battery Charge-control Indication

When the inspection camera is switched on, the charge condition of the battery is indicated on the display 5:

Indication Capacity
	>1/2
	<1/2
	Reserve

Removing the Battery

To remove the battery 10, press the battery unlocking buttons 11 and pull the battery toward the rear out of the inspection camera. Do not exert any force when doing this.

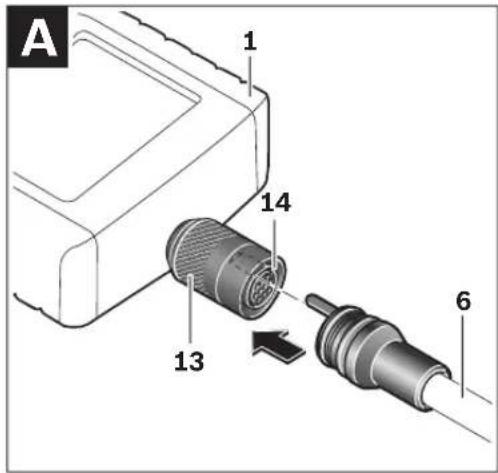

Mounting the Camera Cable (see figure A)

For operation of the inspection camera, the camera cable 6 must be mounted to the hand unit 1.

Insert the camera cable 6 into the camera connection 14 in such a manner that the pin of the camera cable engages into the opening of the camera connection as shown in the figure. Slide the socket sleeve 13 on the camera connection over the camera cable and hand-tighten in clockwise direction.

To remove the camera cable 6, unscrew socket sleeve 13 in anticlockwise direction and pull the camera cable off.

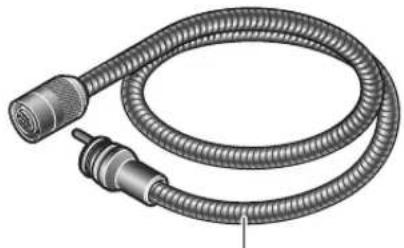

Mounting the Camera Cable Extension (Accessory)

To mount a camera cable extension 12, the mounted camera cable 6 must be removed.

Then, mount the extension 12 onto camera connection 14 as described under "Mounting the Camera Cable" and tighten.

If required, further extensions can be mounted in the same manner. However, the image quality decreases when exceeding a total length approx. 10 m (incl. camera cable).

Screw the camera cable 6 onto the last extension 12 as described under "Mounting the Camera Cable".

▶ Check if the camera cable and the extension are firmly connected. The camera cable and the extension are only water-tight when firmly connected. Untight connections increase the risk of an electric shock or damage to the inspection camera.

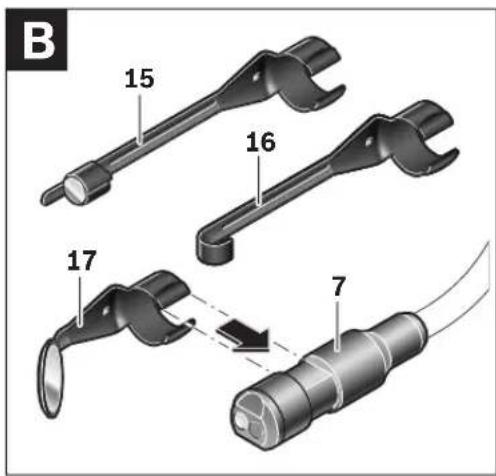

Mounting the Mirror, Magnet or Hook (see figure B)

The mirror 17, the magnet 15 and the hook 16 can be mounted to the camera head 7 as auxiliary aids.

Slide one of the three auxiliary aids to the stop onto the recess on the camera head 7 as shown in the figure.

Note: The magnet 15 and the hook 16 are only suitable for moving and removing loose, small and light objects. Applying too much tension can damage the inspection camera or the auxiliary aid.

Connecting the External Image Reproduction (see figure C)

The image signal of the inspection camera can be transferred to an external monitor, which can represent a standard NTSC video signal.

Insert the black plug of the supplied video cable 19 into the video output socket 18 of the inspection camera. Connect the video cable to an appropriate monitor.

Read and observe the and operating instructions of the external monitor.

Operation

▶ Protect the hand unit 1 and the battery 10 against moisture and direct sunlight. Camera cable, camera head and extension are water-tight to a depth of approx. 10 m. However, the hand unit and the battery are not protected against water; in case of contact with water, the risk of electric shock or damage is given.
▶ Do not subject the inspection camera to extreme temperatures or variations in temperature. As an example, do not leave it in vehicles for longer periods. In case of large variations in temperature, allow the inspection camera to adjust to the ambient temperature before putting it into operation.
▶ Do not use the inspection camera when the lens on the camera head 7 is misty or fogged-up. Do not switch the inspection camera on until after the moisture has evaporated. Otherwise, the inspection camera can become damaged.

Initial Operation

Inserting the Battery

▶ Use only original Bosch lithium-ion batteries with the voltage listed on the nameplate of your inspection camera. Using other batteries can lead to injuries and pose a fire hazard.

Note: Using batteries not suitable for your inspection camera can lead to malfunctions or damage the inspection camera.

Insert the charged battery 10 into the handle until it can be felt to engage and faces flush against the handle.

Switching On and Off

To switch on the inspection camera, press the On/Off button 3. The display 5 shows the image of the camera head 7.

To switch off the inspection camera, press the On/Off button 3 again.

When no button on the inspection camera is pressed for approx. 20 minutes, it automatically switches off to save the batteries.

Regulating the Illumination Light in the Camera Head

To brighten the camera image on display 5, the illumination light 9 in the camera head can be switched on and its brightness can be regulated.

To switch on the camera's illumination light 9 and increase its brightness, press button "+" 2 until the desired brightness is reached.

▶ Do not stare into the illumination light 9 and do not direct it at other persons. The brightness of the light can blind the eyes.

To reduce the brightness and switch off the camera light 9, press button “-” 4 until the desired brightness is reached or the light is switched off.

Working Advice

Check the area that you want to inspect and pay particular attention to obstructions or hazard areas.

Bend the camera cable 6 in such a manner that the camera head can be easily inserted into the area subject to the inspection. Carefully guide the camera cable in.

Pure geometric crosshair symbols without any text or labels

16 | English

Adjust the brightness of the illumination light 9 so that the image can be seen well. For heavily reflecting objects, as an example, less light will provide a better image.

When objects to be inspected are represented unsharp, reduce or increase the distance between camera head 7 and object.

If required, bend the camera cable 6 in such a manner that the camera image is shown upright on display 5.

Recommendations for Optimal Handling of the Battery

Protect the battery against moisture and water. Store the battery only within a temperature range between 0 °C and 50 °C. As an example, do not leave the battery in the car in summer.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

Observe the notes for disposal.

Maintenance and Service

Maintenance and Cleaning

Do not immerse the hand unit 1 into water or other fluids.

Keep the inspection camera clean at all times. Clean the inspection camera and all auxiliary aids particularly thorough after having worked in areas with substances that are hazardous to one's health.

Wipe off debris using a moist and soft cloth. Do not use any cleaning agents or solvents.

Especially clean the lens 8 of the camera regularly and pay attention for any lint.

If the inspection camera should fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer services agent for Bosch power tools. Do not open the inspection camera yourself.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the inspection camera.
