USER MANUAL SkyScales RS741SE Redmond

* refer to "PRODUCT WARRANTY"

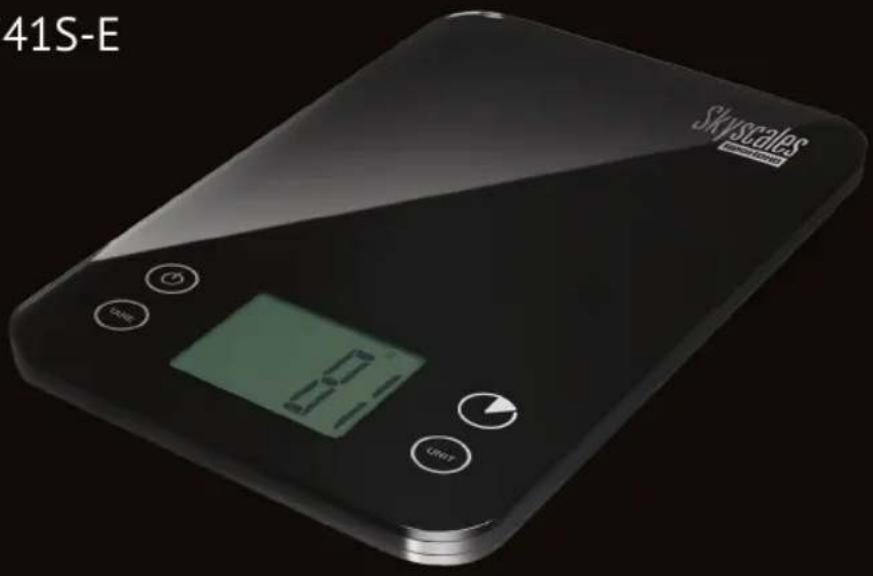

41S-E Skyscales

GBR 4
FRA 9
DEU 14
FIN 19
LTU 24
LVA 29
EST 34
SVK 39
CZE 44
POL 49
BGR 54
HUN 59
GRE 64

DNK 69
ESP 73
ITA 78
HOR 83
PRT 88
ROU 93
SRB 98
SVN 103
SWE 108
HRV 113
RUS 118
UKR 123
KAZ 128

A1 1 8 7 2 3 TAREUNIT TARE oz g 10 9 6 5 4 11 12

REDMOND

Carefully read all instructions before operating the appliance and save them for future reference. By carefully following these instructions you can considerably prolong the service life of your appliance.

The safety measures and instructions contained in this manual do not cover all possible situations that may arise during the operation of the appliance. When operating the device the user should be guided by common sense, be cautious and attentive.

IMPORTANT SAFEGUARDS

• The manufacturer is not responsible for any failures arising from the use of this product in a manner inconsistent with the technical or safety standards.
• This appliance is a multifunctional appliance and is intended to be used for nonindustrial use in household and similar spheres of application. Industrial application or any other misuse will be regarded as violation of proper service conditions. Should this happen, manufacturer shall not be responsible for possible consequences.

• Use only the type of batteries recommended by the manufacturer. Refer to the technical specifications or to the rating plate.

• Use of the appliance for anything other than its intended purpose outlined in this user manual is a violation of operating instructions.

• Do not place the unit on cushioned surface.
• Do not use the appliance outdoors or in wet areas, to prevent the appliance malfunction.
• Follow the cleaning procedures as outlined in this user manual.

STOP

DO NOT immerse the appliance in water or other liquid! Failure to do so may cause the appliance to malfunction!

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user

maintenance shall not be made by children without supervision.

• Keep packaging (film, foam plastic and other) out of reach of children as they may choke on them.
• No modifications or adjustments to the product are allowed. All service and repair works should be carried out by an authorized service centre. Failure to do so may result in device and property damage or injury.

STOP

CAUTION! Do not use the appliance in case of any malfunctions.

Technical specifications

Model...SkyScales RS-741S-E

Powered by 3 × AAA

Rated power 4.5 V

Weight range....2-5000 g

Graduation 1 g

Number of high precision sensors....4

Type of control......sensor

LCD display ....with illumination

Variable measurement units....g/oz

Overload indication.....yes

Built-in timer....with audible indication

Data communication protocol......Bluetooth v4.0

Supported operating systems....iOS,Android

Auto Off feature in 5 minutes

Overall dimensions 251 × 151 × 18.5 mm

Net weight (without battery) 520 g

Functions available when using Ready For Sky application

Stepwise weighing .... yes

Product selection .... yes

Energy value estimation....yes

Nutritional value estimation .... yes

Package Includes

Kitchen Scales....1 pc.

Battery AAA....3 pcs.

User manual 1 pc.

Service booklet....1 pc.

Manufacturer reserves the right to make any modifications to design, packaging, or technical specifications of the product without prior notice. The specification allows an error of ± 10% .

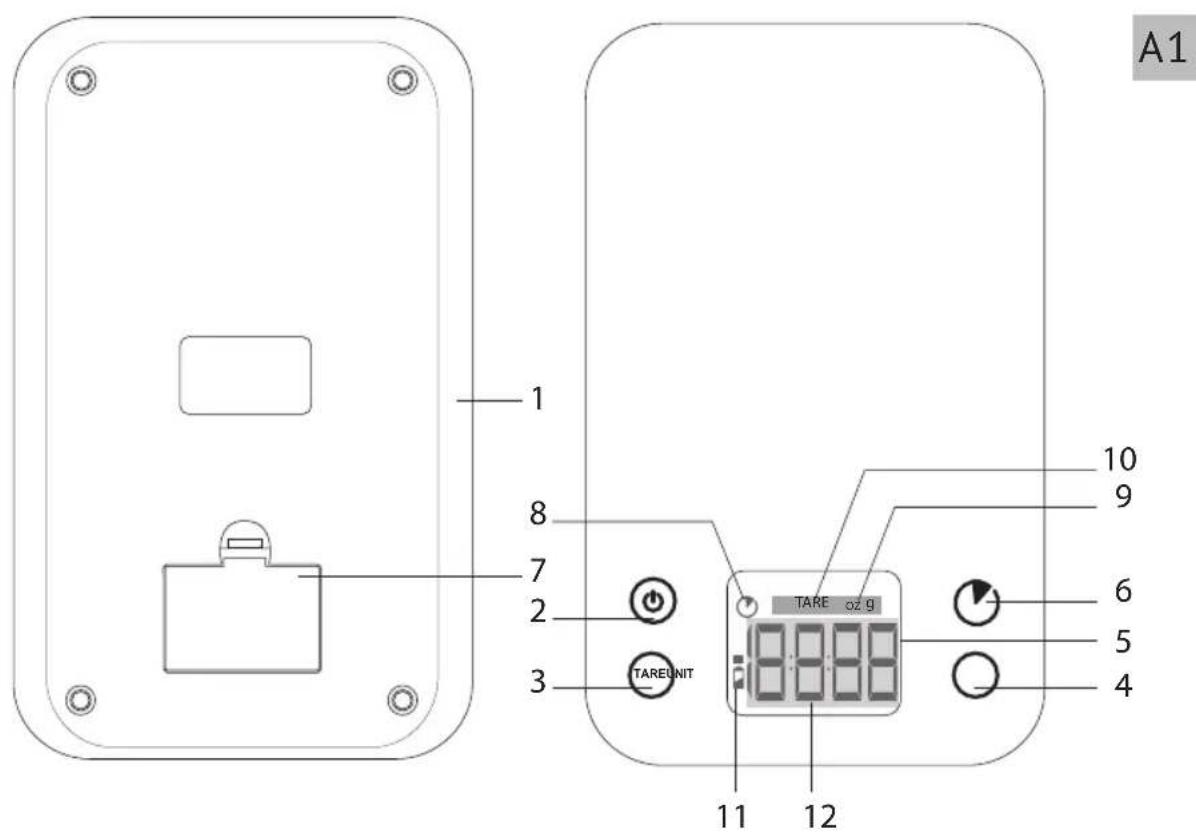

Scale Parts (scheme A1, p. 3)

1. Platform
2. ⏻ button – to enable/disable scales, switch between weighing and timer modes
3. TARE button - setting values to zero (tare weight)

REDMOND

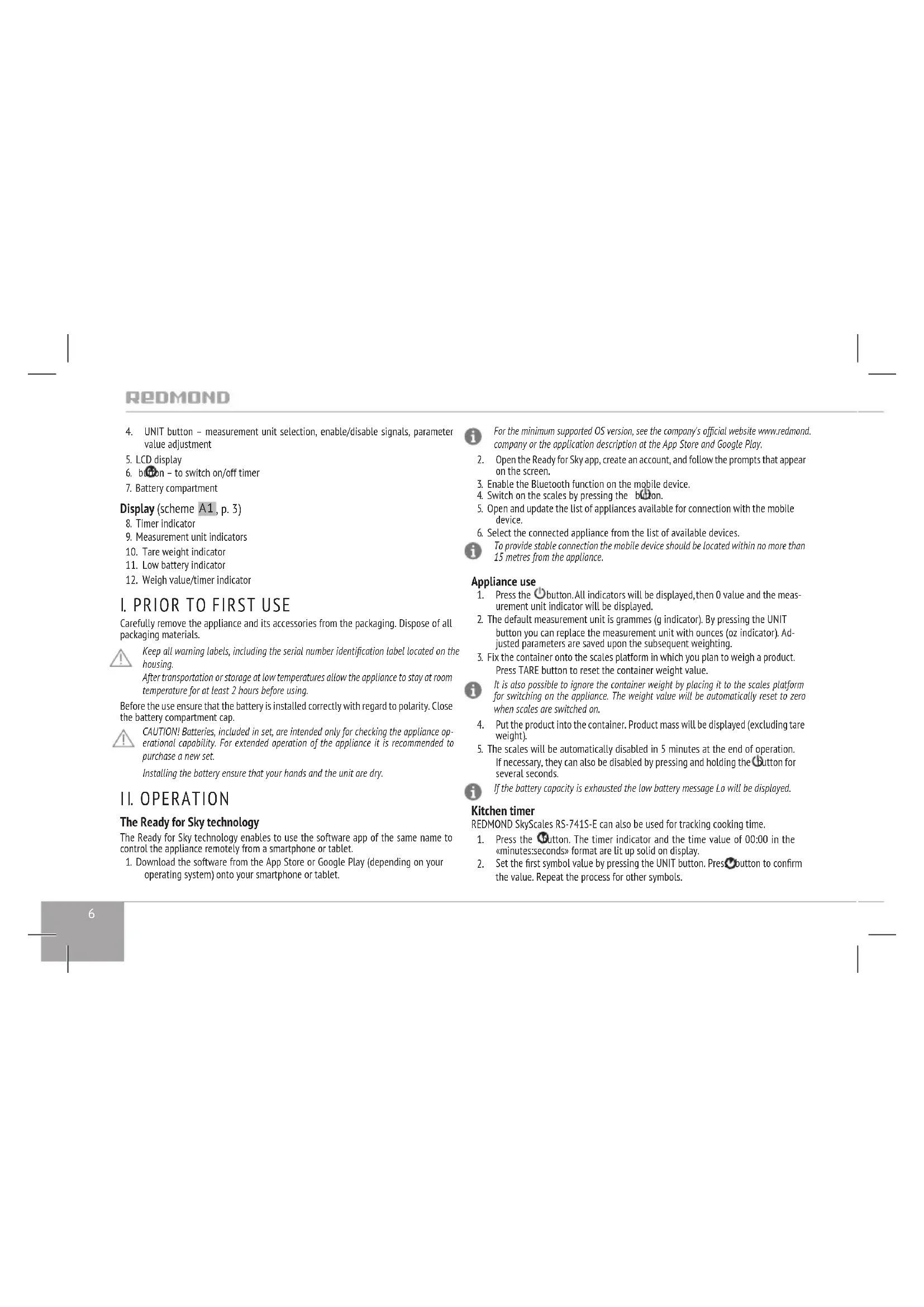

1. UNIT button - measurement unit selection, enable/disable signals, parameter value adjustment

2. LCD display

3. button - to switch on/off timer
4. Battery compartment

Display (scheme A1, p. 3)

1. Timer indicator
2. Measurement unit indicators
3. Tare weight indicator
4. Low battery indicator
5. Weigh value/timer indicator

I. PRIOR TO FIRST USE

Carefully remove the appliance and its accessories from the packaging. Dispose of all packaging materials.

Keep all warning labels, including the serial number identification label located on the housing.

After transportation or storage at low temperatures allow the appliance to stay at room temperature for at least 2 hours before using.

Before the use ensure that the battery is installed correctly with regard to polarity. Close the battery compartment cap.

CAUTION! Batteries, included in set, are intended only for checking the appliance operational capability. For extended operation of the appliance it is recommended to purchase a new set.

Installing the battery ensure that your hands and the unit are dry.

II. OPERATION

The Ready for Sky technology

The Ready for Sky technology enables to use the software app of the same name to control the appliance remotely from a smartphone or tablet.

1. Download the software from the App Store or Google Play (depending on your operating system) onto your smartphone or tablet.

For the minimum supported OS version, see the company's official website www.redmond.company or the application description at the App Store and Google Play.

1. Open the Ready for Sky app, create an account, and follow the prompts that appear on the screen.
2. Enable the Bluetooth function on the mobile device.
3. Switch on the scales by pressing the button.
4. Open and update the list of appliances available for connection with the mobile device.
5. Select the connected appliance from the list of available devices.

To provide stable connection the mobile device should be located within no more than 15 metres from the appliance.

Appliance use

1. Press the ⏻ button. All indicators will be displayed, then 0 value and the measurement unit indicator will be displayed.
2. The default measurement unit is grammes (g indicator). By pressing the UNIT button you can replace the measurement unit with ounces (oz indicator). Adjusted parameters are saved upon the subsequent weighting.
3. Fix the container onto the scales platform in which you plan to weigh a product. Press TARE button to reset the container weight value.

It is also possible to ignore the container weight by placing it to the scales platform for switching on the appliance. The weight value will be automatically reset to zero when scales are switched on.

1. Put the product into the container. Product mass will be displayed (excluding tare weight).
2. The scales will be automatically disabled in 5 minutes at the end of operation. If necessary, they can also be disabled by pressing and holding the button for several seconds.

If the battery capacity is exhausted the low battery message Lo will be displayed.

Kitchen timer

REDMOND SkyScales RS-741S-E can also be used for tracking cooking time.

1. Press the Button. The timer indicator and the time value of 00:00 in the «minutes:seconds» format are lit up solid on display.
2. Set the first symbol value by pressing the UNIT button. Preset button to confirm the value. Repeat the process for other symbols.

The maximum value of the timer setting - 199:59.

1. After setting the value until the last symbol and pressing the button the program will start to count down in 1 second increments. When 00:00 value is reached an audible signal will be heard.
2. To return to the weighing mode press the button. To return to the timer mode press the button.
3. To disable an audible signal at the end of timer operation press the button.

Disabling audible signals

To disable audible signals during appliance operation press and hold down the UNIT button for several seconds. A double audible signal will be heard, after that audible indication will be disabled. To enable audible signals repress and hold the UNIT button.

When disabling audible signals the notification about the end of the countdown will be enabled.

III. CLEANING AND MAINTENANCE

Do not use abrasive or solvent-based cleaners, metal sponges, etc. Clean the platform with a soft damp cloth and wipe dry.

DO NOT immerse the unit in water or wash under running water. The scale is not dishwasher safe.

It is advised to remove the battery, if the scale is not being in use for a long time. Store the assembled appliance in a dry, ventilated place away from heating appliances and direct sunlight.

During transportation and storage, do not expose the device to mechanical stress, that may lead to damage of the device and/or violation of the package integrity.

Keep the device package away from water and other liquids.

IV. BEFORE CONTACTING SERVICE CENTER

Problem Possible cause Solution
The scale does not work	The scale is not turned on	Switch on the appliance by pressing the button
	The battery is worn out	Replace the battery following the procedure outlined in "Before Operating" section

Problem Possible cause Solution
Display shows the error code: Lo	The battery is worn out	Replace the battery following the procedure outlined in "Before Operating" section
Weight readings are inaccurate	You selected wrong unit of measurement	Select the desired unit of measurement
	You did not follow the recommended weighing procedure	Always place the scale on a flat and horizontal surface
The unit automatically turns off	Auto Off feature activated	The scale automatically turns itself off after use in 5 minutes
The attempt of synchronization or transferring the data from the appliance to the mobile device failed	Bluetooth function on the mobile device is disabled	Enable Bluetooth function on the mobile device
	Ready for Sky app on the mobile device is deactivate	Run the Ready for Sky app on the mobile device
	The Kitchen Scales and mobile device are far away from each other or there are strays for the radio signal	Ensure the distance between devices does not exceed 15 metres and there are no strays for transmission of radio signal

In case you didn't manage to eliminate the defects, please, refer to the authorized service centre.

NOTE! In case any failure occur in the operation of the Ready for Sky app, it is not obligatory to apply to the service centre. Apply to REDMOND technical support service and obtain the consultation of our specialists on error elimination and/or failure in Ready for Sky operation. Your comments and suggestions concerning application operation will be taken into account upon successive update. Contact data of user support service of REDMOND appliances can be found in your country on the website www.redmond.company. You may also obtain the help, filling the contact form provided on the website.

REDMOND

V. PRODUCT WARRANTY

* The standard warranty is 1 year. You will get the second year of warranty after the registration in the Ready for Sky app. Information about the conditions for your country is available on the website https://r4s.redmond.company

1+1 warranty is available for a limited countries list.

Environmentally friendly disposal (WEEE)

The packaging, user manual and the device itself shall be taken to the applicable collection point for the recycling of electrical and electronic equipment. Do not throw away the electronic waste to help protect the environment.

be collected separately. Municipal disposal of recyclable wastes is free of charge. The owners of old appliances are required to bring it to a waste facility centre. With this little extra effort, you can help to ensure that valuable raw materials are recycled and pollutants are treated as appropriate.

This appliance is labelled in accordance with European Directive 2012/19/EU – concerning used electrical and electronic appliances (waste electrical and electronic equipment WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Bluetooth is the registered trademark of Bluetooth SIG, Inc.

App Store is the service mark of Apple Inc., registered in the USA and other countries.

Google Play is the registered trademark of Google Inc.

Malli ____SkyScales RS-741S-E

Patterit 3 × AAA

Nimellisjännite 4,5 V ---

Mittaukset 2-5000 g

Mittausväli 1 g

Model....SkyScales RS-741S-E

Baterie 3 × AAA

Service booklet....1 db.

I. AZ ELSŐ ALKALMAZÁS ELŐTT

Ready For Sky technology

Scale Parts (scheme A1, P. 3)

Scale Parts (scheme A1, P. 3)

Model SkyScales RS-741S-E

Cu puterea 3 × AAA

V. GARANTIA PRODUSULUI

Model...SkyScales RS-741S-E

Radi na....3 × AAA

Nazivna snaga od 4,5 V ---

Manufacturer: "Power Point Inc Limited" N°1202 Hai Yun Ge (B1) Lin Hai Shan Zhuang Xiameilin Futian Shenzhen. China. 518049. Under license of REDMOND®
