USER MANUAL RMCM4515E Redmond

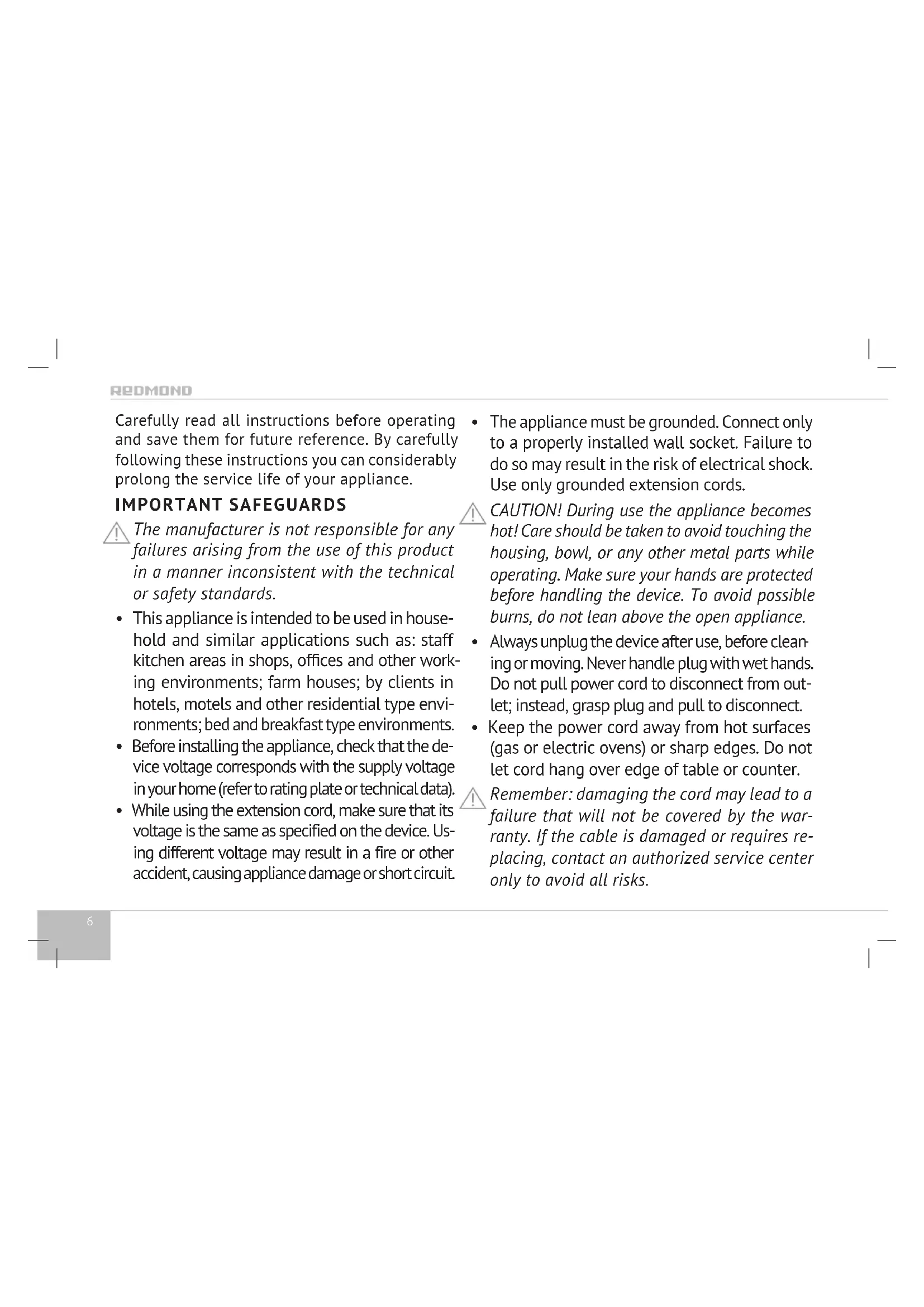

A26 Carefully read all instructions before operating and save them for future reference. By carefully following these instructions you can considerably prolong the service life of your appliance. IMPORTANT SAFEGUARDS The manufacturer is not responsible for any failures arising from the use of this product in a manner inconsistent with the technical or safety standards.

This appliance is intended to be used in house- hold and similar applications such as: staff kitchen areas in shops, ofces and other work- ing environments; farm houses; by clients in hotels, motels and other residential type envi- ronments; bed and breakfast type environments.

• Before installing the appliance, check that the de- vice voltage corresponds with the supply voltage in your home (refer to rating plate or technical data).

• While using the extension cord, make sure that its voltage is the same as specified on the device. Us- ing different voltage may result in a fire or other accident, causing appliance damage or short circuit.

The appliance must be grounded. Connect only to a properly installed wall socket. Failure to do so may result in the risk of electrical shock. Use only grounded extension cords. CAUTION! During use the appliance becomes hot! Care should be taken to avoid touching the housing, bowl, or any other metal parts while operating. Make sure your hands are protected before handling the device. To avoid possible burns, do not lean above the open appliance.

Always unplug the device after use, before clean

ing or moving. Never handle plug with wet hands. Do not pull power cord to disconnect from out- let; instead, grasp plug and pull to disconnect.

• Keep the power cord away from hot surfaces (gas or electric ovens) or sharp edges. Do not let cord hang over edge of table or counter. Remember: damaging the cord may lead to a failure that will not be covered by the war- ranty. If the cable is damaged or requires re- placing, contact an authorized service center only to avoid all risks.7 GBR RMC-M4515E

Never place the device on soft surfaces to keep ventilation slots clear of any obstruction.

Do not operate the appliance outdoors, to prevent water or any foreign object or insect from getting into the device. Doing so may result in seri- ous damage of the appliance.

• Always unplug the device and let it cool down before clean- ing. Follow cleaning and gen- eral maintenance guidelines (p.

8) when cleaning the unit.

DO NOT immerse the device in water or wash it under running water!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super- vision or instruction concern- ing use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appli- ance. Keep the appliance and its cord out of reach of chil- dren aged less than 8 years. Cleaning and user mainte- nance shall not be made by children without supervision.

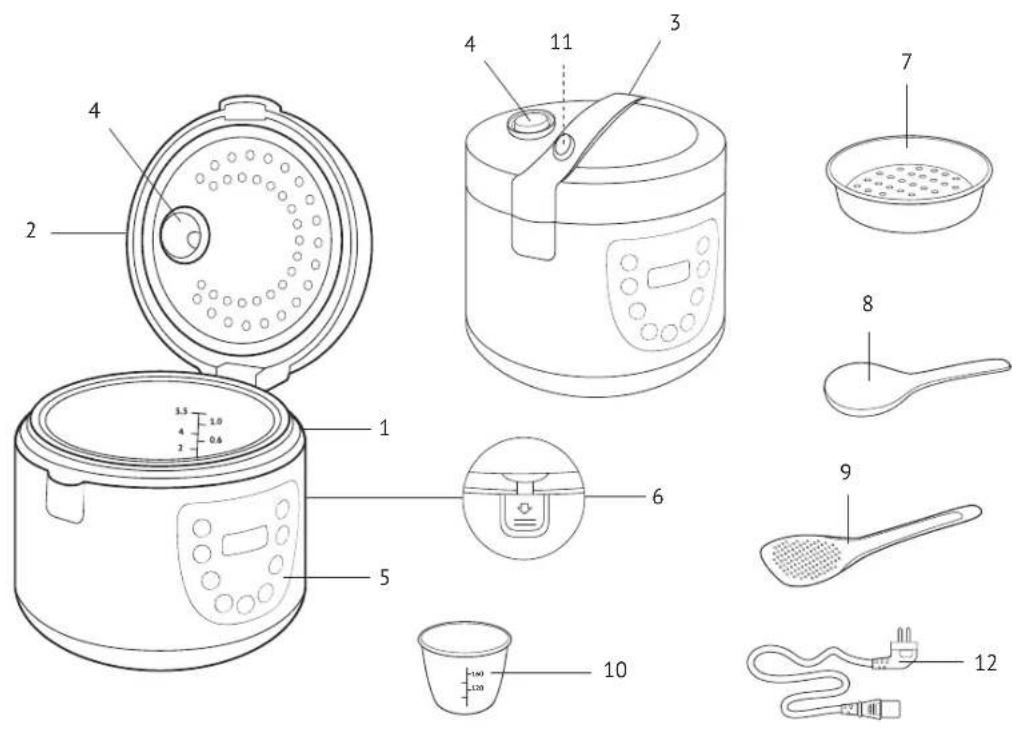

4. Removable steam valve

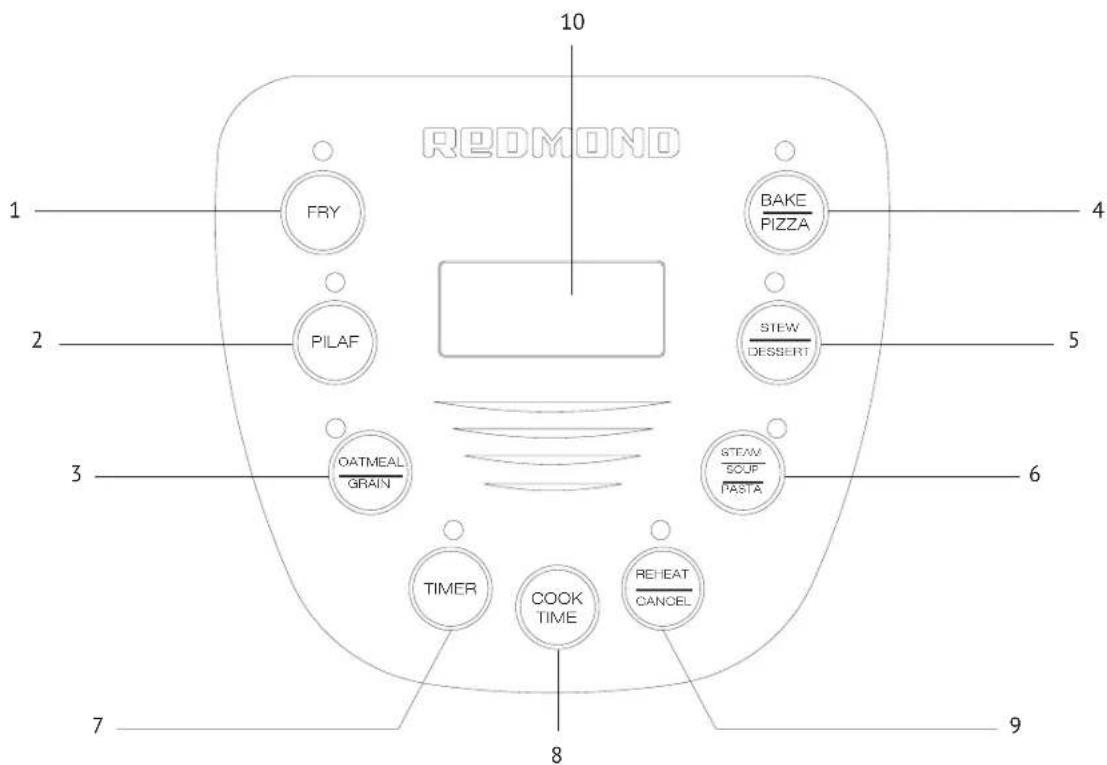

1. Use the button to select “FRY” program.

8. “COOK TIME” button is used to set the cooking time.

"REHEAT/CANCEL" button disables/reactivates Reheat function, inter- rupts the program, and cancels all settings.

Carefully unpack the device, remove all packaging materials and stickers except the one with the unit’s serial number. The absence of the serial number will deprive you of your warranty benets. Wipe all interior and exterior surfaces of the unit with a soft, damp cloth. Wash the bowl in warm8 Cooking results may vary depending on the manufacturer and the place of origin of the products used. “BAKE/PIZZA” program This program is recommended for baking cakes, pizza, pies, puddings, and various kinds of bread. Manual time settings range from 10 minutes to 8 hours with 5 minute intervals.

• The readiness of a biscuit may be checked with a toothpick. Insert a toothpick in and if it comes out dry, your biscuit is ready.

• Deactivate the Keep Warm function when baking bread. “STEW/DESSERT” program This program is recommended for stewing vegetables, meat, poultry, and seafood and for making desserts, jams, and fruit purees. Manual time settings range from 10 minutes to 12 hours with 5 minute intervals. “STEAM/SOUP/PASTA” program This program is recommended for steaming vegetables, sh, meat, and side dishes, for cooking soups, broths, and pasta. Manual time settings range from 5 minutes to 8 hours with 5 minute intervals. To steam:

1. Pour 500–600 ml of water in a bowl. Place the steaming container in.

Measure ingredients following the recipe provided, and put them into the container.

Follow steps 2–8 of “Standard operating procedure for automatic programs”. Countdown of the program begins when the water comes to a full boil, providing enough steam. If you choose to adjust the time of the program set by default, follow recommendations given in the table of recommended steaming time for various products.

Additional accessories can be purchased separately. Information on the assortment, pricing, and compatible accessories is available through our authorized dealer in your country. RAM-CL1 — bowl extraction tongs Use tongs for convenient extraction of the bowl out of the device. The tongs may be used with multicookers from other manufacturers.

V. CLEANING AND GENERAL MAINTE-

NANCE GUIDELINES Before you start cleaning the device, make sure that it is unplugged and has cooled down. Use soft cloth and mild soap to clean. We recommend cleaning the appliance after each use. Prior to rst use or in order to remove the odor, boil half a lemon for 15 minutes using “STEAM/SOUP/PASTA” program. Do not use a sponge with a hard or abrasive surface; solvent and abrasive cleaning methods (gasoline, acetone) are not allowed. Do not immerse the device in water or wash it under running water. soapy water. Rinse and dry thoroughly. Odor on rst use of the appliance is normal. In such case, clean the device (p. 8). Caution! Do not use the appliance in case of any malfunctions.

Before Use Place the device on a at, stable and hard surface away from any objects or cabinets that could be damaged by steam, humidity, or high temperatures. Before operating, make sure that the outer and inner parts of the multi- cooker have no dents, cracks or any other visible damages. There should not be any obstructions between the heating element and the bowl. Setting the Cooking Time Multicooker REDMOND RMC-M4515E allows manually adjusting the cooking time, set by default for each program. Setting interval and range of cooking time settings depend on the program of cooking chosen. To adjust the time:

Press “FRY”, “PILAF”, “OATMEAL/GRAIN”, “BAKE/PIZZA”, “STEW/DESSERT”, or “STEAM/SOUP/PASTA” button to select the desired cooking program. Default time for each program is displayed.

Use “COOK TIME” button to adjust the cooking time. Press and release to advance one digit at a time or hold the button down to scroll through the digits until the desired time is selected. Once you reach the maximum setting the count starts from the beginning.

3. To cancel the settings and reset press "REHEAT/CANCEL" button.

IMPORTANT! Manually changing the cooking time, consider setting time range and setting interval of a chosen program, given in the table of default settings (p. 10). Time Delay Function Time Delay function allows the program to be delayed for a period from 5 minutes to 24 hours with 5 minute intervals.

1. Press "TIMER" button. Button indicator lights up and the time indica-

tor starts blinking.

2. Use “COOK TIME” button to set the time of a delay. Press and release

to advance one digit at a time or hold the button down to scroll through the digits. Once you reach the maximum setting the count starts from the beginning.

3. Press "REHEAT/CANCEL" button to cancel the settings and reset.

IMPORTANT! It is not recommended to use Time Delay function if various dairy and perishable products are being used (eggs, fresh milk, meat, cheese, etc.). You may use Time Delay function when reheating the meal. Time Delay function is not available in “FRY” program. Keep Warm Function Keep Warm function is being activated automatically at the end of the cooking program. It allows maintaining the temperature of 75–80°C for a period of time up to 24 hours. Keep Warm countdown is displayed. Press "REHEAT/CANCEL" button to disable the function (button indicator goes off). Reheat Function Multicooker REDMOND RMC-M4515E may be used to reheat the cold meal. To reheat:

1. Fill the bowl with ingredients and place it inside the device. Make

sure that the bowl and the heating element t tightly.

2. Close the lid until it clicks into place and plug in the unit.

Press "REHEAT/CANCEL" button. Button indicator lights up and reheating process begins. Reheat function count up is displayed. The meal will be warmed up to 75–80°C and the temperature will be maintained for 24 hours.

To cancel the function press "REHEAT/CANCEL" (button indicator goes off). IMPORTANT! The function may operate for a period of 24 hours, however, we recommend using it moderately, because a prolonged thermal exposure may affect avor characteristics or dry out the meal. Standard Operating Procedure for Automatic Programs

1. Measure the ingredients according to the recipe and put them in the

bowl. Make sure that all the ingredients including liquid are below the scale mark indicating maximum capacity.

2. Place the bowl inside the device. The bowl and the heating element

must t tightly. Close the lid until it clicks into place. Plug in the unit.

Select the desired cooking program by pressing the corresponding program button.

4. Use “COOK TIME” button to set the time according to the recipe.

Set Time Delay function if needed. Time Delay function is not available in “FRY” program. CAUTION! If no button was pressed for 5 seconds the program will be automatically activated with your current settings. Press "REHEAT/CANCEL" to cancel the settings and reset.

6. 5 seconds after you have nished adjusting the settings the program

starts automatically. Remaining time is displayed. “STEAM/SOUP/PASTA” program countdown begins only when the water comes to a full boil.

7. When cooking time expires the device makes an audible sound and

the program indicator goes off. The device automatically enters the Keep Warm mode, "REHEAT/CANCEL" button indicator lights up. Keep Warm count up is displayed.

8. To interrupt or to cancel the program or to disable the Keep Warm

function press "REHEAT/CANCEL". “FRY” program This program is recommended for frying meat, poultry, vegetables, and seafood. Manual time settings range from 5 minutes to 1 hour and 30 minutes with 1 minute intervals. Time Delay function is not available in this program. Follow recommendations given in the recipe book and stir ingredients oc- casionally to avoid burning. Frying with an open lid is allowed. “PILAF” program This program is recommended for cooking various types of rice pilafs and risotto. Manual time settings range from 10 minutes to 2 hours with 5 minute intervals. “OATMEAL/GRAIN” program This program is recommended for cooking rice and other grains, hot cereals, and various side dishes. Manual time settings range from 5 minutes to 4 hours with 5 minute intervals. To avoid boiling away, when cooking various oat porridges using pasteurized low fat milk, we recommend that you do the following:

• rinse grain thoroughly before cooking;

• grease the sides of the bowl with butter;

follow the proportions suggested in the recipe book; increase or reduce amount of ingredients proportionally;

• using whole milk dilute it by half with water.9 GBR RMC-M4515E Clean the housing as needed. We recommend cleaning inner aluminum lid after each use. Clean the bowl after each use. The bowl is dishwasher safe. By the end of cleaning, wipe the bowl dry. The steam valve is located on the lid of the device. The valve needs to be cleaned after each use.

1. Gently remove the steam valve by turning its cover counterclockwise and lifting by the ledge. If you nd it

difcult to remove the valve, you may carefully press it from the inner side of the lid.

Remove the inner part of the steam valve by turning it counterclockwise, disassemble and rinse under running water. Use mild soap if needed.

3. Let the valve dry, carry out the assembly in return sequence and install the steam valve back into place.

Condensation collector located on the housing needs to be cleaned after each use.

1. Gently press the lower part of the collector until open and gently pull it up to remove.

2. Pour the condensate out and wash the collector.

3. Put the condensation collector back into place.

Condensation may sometimes accumulate in the special cavity around the bowl. Remove it with cloth or tissue.

Possible Causes for the Problems Arising and Ways of Solving Them This chapter familiarizes you with the practical tips and solutions to some common problems you may experience when using the multicooker.

THE DISH IS UNDERCOOKED

Possible Causes Solving the Problem The lid of the device was either open or was not closed properly.

• Try to avoid opening the lid while cooking.

• Close the lid until it clicks into place. Make sure that the rubber sealing ring located on the inner side of the lid is not deformed or damaged in any way. Cooking temperature was not observed because the bowl and the heating element did not t tightly.

• There should not be any foreign objects between the lid and the housing of the device, remove if any.

Always make sure that the heating element is clean and ts tightly with the bowl before cooking.

• Wrong ingredients or settings were chosen.

• General proportions were not observed, the size of the ingre- dients was too large.

• Wrong time settings.

• Chosen recipe is not appropriate for the device.

We recommend using recipes adapted for the device. Choose proven recipes only.

Set the time and cooking program, choose ingredients, proportions, and their size according to the recipe. Steaming: the amount of water in the bowl is too little to provide enough steam. Use the amount of water recommended. If in doubt, check the water level while steaming. Frying: Too much oil was added.

• Frying ingredients add an amount of oil enough just to cover the bottom of the bowl.

• Follow recommendations given in the recipe while deep frying. Too much moisture inside the bowl. Do not close the lid of the device while frying unless specied in the recipe. Using frozen ingredients defrost and drain before frying. Cooking: the broth boiled away during preparation of foods with high acidity. Certain products need to be processed before cooking: washed, browned, etc. Follow recommendations given in the recipe. Baking (dough did not bake through): Proofed dough has reached the inner lid and covered the steam valve. Use a smaller amount of dough. Too much dough in the bowl.

• Take the baked product out of the unit, turn it over and place back. Bake until ready.

• Next time use smaller amount of dough.

THE DISH IS OVERCOOKED

Possible Causes Solving the Problem Wrong ingredients, size of ingredient cuts or time settings.

We recommend using the recipes adapted for your model. Try choosing proven recipes only.

• Set the time and cooking program, choose ingredients, proportions, and the size of ingredient cuts according to the recipe. The dish remained in the unit with the “Keep Warm” on for too long after it’s been cooked. We recommend using the Keep Warm function moderately. If your device features the function of disabling the Keep Warm in advance, use it to avoid the problem.

LIQUID BOILS AWAY DURING COOKING

Possible Causes Solving the Problem Milk boils away. Depending on the quality of milk used, it may boil away. To avoid this, we recommend using only ultra-pasteurized milk with the fat content of 2.5% or less. Dilute milk with water if needed.

Ingredients were not properly processed (washed poorly, etc.).

• Wrong general proportions or ingredients.

• We recommend using the recipes adapted for the device. Try choosing proven recipes only. Set the time and cooking mode, choose ingredients, proportions, and the size of cuts according to the recipe.

• Whole grains, meat, sh, and seafood need to be rinsed thoroughly before cooking.

Possible Causes Solving the Problem

The bowl was not properly washed after last use.

• Non-stick coating is damaged. Make sure that the bowl is clean and has no coating defects before cooking. General amount of ingredients is smaller than recommended. Use proven recipes, adapted for the device. Cooking time was too long. Reduce the cooking time or follow recommendations given in the recipe adapted for your model. Frying: oil was not added; the ingredients have not been stirred or turned over. Frying products add amount of oil enough just to cover the bottom of the bowl. Stir ingre- dients thoroughly while frying or turn over as required. Stewing: not enough liquid. Add more liquid. Avoid opening the lid while stewing. Cooking: not enough liquid (proportions were not observed). Follow recommended ratio of liquids to solids while cooking. Baking: the bowl was not greased before baking. Grease the bottom and sides of the bowl with butter or oil before baking (do not pour oil inside).

INGREDIENTS LOOSE THEIR SHAPE WHEN COOKED

Possible Causes Solving the Problem Ingredients have been over stirred. Frying foods, do not stir the ingredients more often than every 5–7 minutes. Cooking time was too long. Reduce cooking time or follow recommendations given in the recipe adapted for the device.

BAKED GOODS ARE OVERLY MOIST

Possible Causes Solving the Problem Improper ingredients causing excess moisture have been used (juicy fruits or vegetables, frozen berries, sour cream, etc.). Use ingredients according to the recipe. Try to avoid using ingredients causing excess moisture or use them in smaller amounts. Baked product has been left in the unit with the lid closed for too long. We recommend taking baked product out of the unit right after the baking cycle nishes or leaving it on the Keep Warm for a short period of time only.

BAKED GOODS DO NOT RISE

Possible Causes Solving the Problem Eggs and sugar were poorly whipped. Use proven recipes adapted for the device. Choosing, measuring, and processing ingredients follow recommendations given in the recipe. The dough stayed for too long before being baked. The our wasn’t sifted or the dough was poorly kneaded. Wrong ingredients. Wrong recipe. Certain REDMOND multicookers feature an overheat protection in “STEW” and “SOUP” programs. In case there is no liquid in the bowl, the device automatically interrupts the program and switches to Keep Warm.10 Table of Recommended Steaming Time for Various Products # Product Weight, g / pcs Water, ml Cooking Time, min 1 Pork/beef llet (cut into 1.5 cm cubes) 500 500 30/35 2 Mutton llet (cut into 1.5 cm cubes) 500 500 45 3 Chicken llet (cut into 1.5 cm cubes) 500 500 25 4 Meatballs/сгедуеы 480 (8 pcs) / 360 (3 pcs) 500 25/30 5 Fish llet 500 500 20 6 Shrimps (cooked, peeled, frozen) 500 500 5 7 Potatoes (cut into 1.5 cm cubes) 500 500 20 8 Carrots (cut into 1.5 cm cubes) 500 500 30 9 Beet (cut into 1.5 cm cubes) 500 500 40 10 Vegetables (frozen) 500 500 8 11 Eggs 3 pcs 500 12 Remember, that these are general recommendations only. In reality, cooking time may vary from the recommended one, depending on the quality of the products used and on your personal preferences. Table of Default Settings Program Recommendations for use Default cooking time Time range / setting interval Time Delay Keep warm FRY Frying meat, sh, vegetables, poultry, etc. 15 min 5 min — 1.5 hours / 1 min --- + PILAF Cooking meat, sh, chicken, and vegetable pilaf. 1 hour 10 min — 2 hours / 5 min + + OATMEAL/GRAIN Cooking various hot cereals and side dishes 25 min 5 min — 4 hours / 5 min + + BAKE/PIZZA Baking puddings, pies, and pizza 1 hour 10 min — 8 hours / 5 min + + STEW/DESSERT Stewing meat, sh, vegetables, making desserts, jams, and fruit purees. 1 hour 10 min — 12 hours / 5 min + +

Steaming meat, sh, and vegetables, cooking broths, soups, pasta, and sausages 40 min 5 min — 8 hours / 5 min + +

VII. BEFORE ADDRESSING A SERVICE CENTER

Error code Error description Error handling Е1, Е3 System error (system board or temperature sensor malfunction); the lid was not closed properly. Close the lid tightly. If this does not eliminate the error, address an autho- rized service center. Е2, E4 System error (temperature sensor malfunction), automatic protection against overheating acti- vated. Do not operate the device without the bowl installed! Disconnect the device and let it cool down within 10–15 minutes. Add water/broth and continue. If this does not eliminate the error, address an authorized service center. Problem Possible Cause Solving the problem The unit does not switch on. Voltage supply failure. Check the voltage supply. The meal is taking too long to cook. Voltage supply interruption. Check the voltage supply. The bowl is installed with a distortion. Install the bowl properly. There is a foreign object between the bowl and the heating element. Remove the foreign object. The heating element is dirty. Unplug the device and let it cool down. Clean the heating element.

VIII. PRODUCT WARRANTY

We warrant this product to be free from defects for a period of 2 years from the date of purchase. If the appliance fails to operate properly within the warranty period and is found to be defective in material or workmanship, we will repair or replace it free of charge. This warranty comes into force only in case an original warranty service coupon with a serial article number and an accurate impress of the company of the seller proves the purchase date. This limited warranty does not cover damage caused by the failure to use this product for its normal purpose or in ac- cordance with the instructions on the proper use and maintenance of the product or any kind of repair works. Do not try to disassemble the device and keep all package contents. This warranty does not cover normal wear of the device and its parts (lters, bulbs, ceramic and Teon coating, gaskets etc.). Service life and the applicable product warranty period start on the date of purchase or the date of manufacture (if the purchase date cannot be established). You can determine manufacture date by serial number, located on the identication label on the housing of the device. The serial number consists of 13 digits. 6th and 7th digits of the serial number identify the month, 8th digit the year of manufacture. Service life of the product, established by the manufacturer is 5 years from the date of purchase, provided that the unit is used and maintained in accordance with the user manual and applicable technical standards. The packaging, user manual, and the device itself may not be treated as household waste. Instead, it shall be taken to the applicable collection point for the recycling of electrical and electronic equipment.11 RMC-M4515E FRA Avant la première utilisation de cet article lisez atten- tivement son manuel d’utilisation et le conserver pour référence ultérieure. L’utilisation correcte de l’appareil peut prolonger considérablement sa durée de vie.

VED KOGNING KOGES PRODUKTEN OVER

BAKET HAR INTE STIGIT UPP

KEETMISEL KEEB TOODE VÄLJA

OATMEAL/GRAIN (KASZA NA

. . This appliance is labelled in accordance with European Directive 2012/19/EU – concerning used electrical and electronic appliances (waste electrical and electronic equipment WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Environmentally friendly disposal (WEEE) © REDMOND. ALL RIGHTS RESERVED. 2014. Reproduction, transfer, distribution, translation or other reworking of this document or any part thereof without prior written permission of the legal owner is prohibited.Produced by Redmond Industrial Group LLC One Commerce Plaza, 99 Washington Ave, Ste. 805A, Albany, New York, 12210, United States www.redmond.company www.multicooker.com Made in China RMC-M4515E-UM-5
