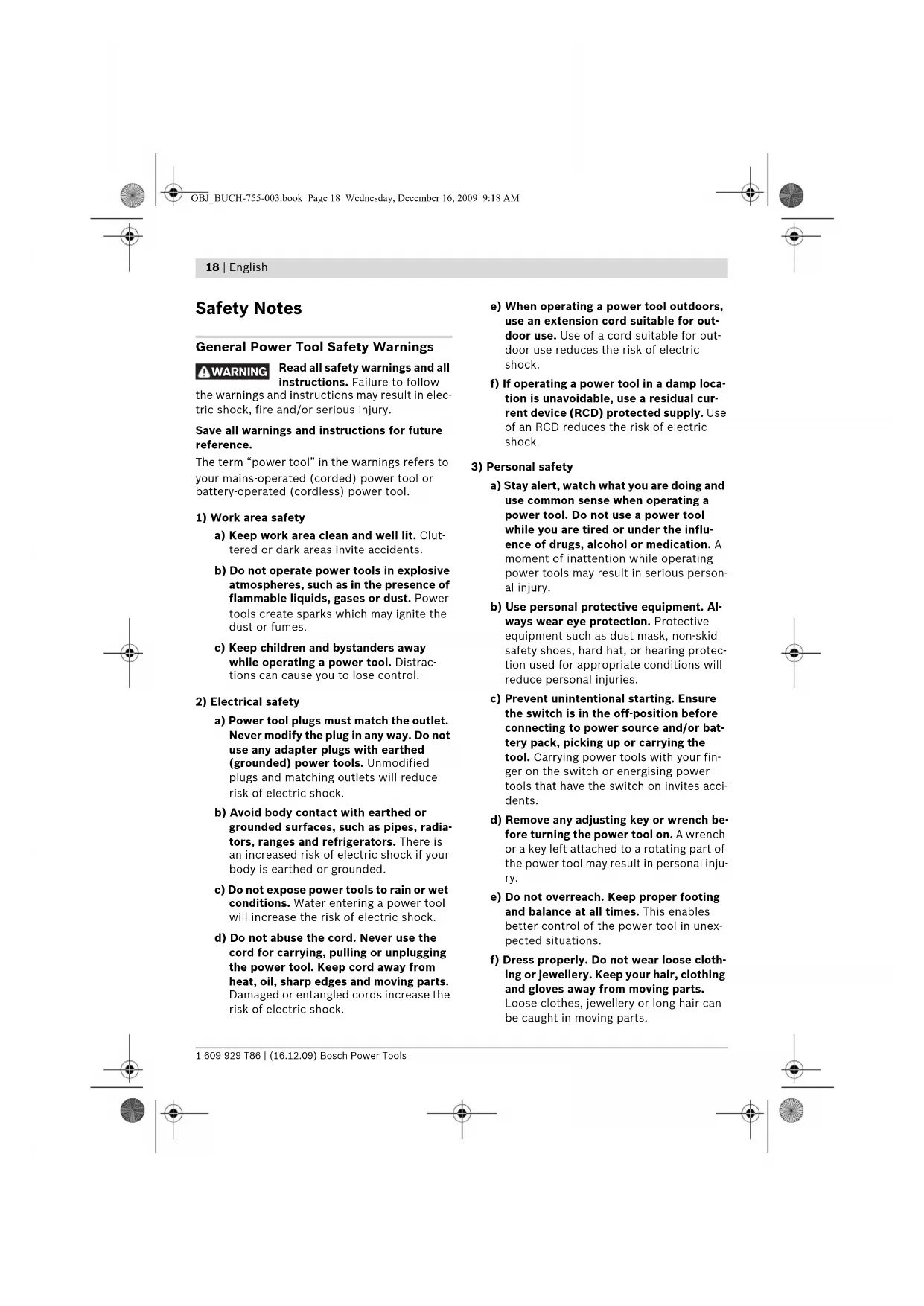

General Power Tool Safety Warnings

Read all safety warnings and all

instructions. Failure to follow

the warnings and instructions may result in elec-

tric shock, fire and/or serious injury.

Save all warnings and instructions for future

The term “power tool” in the warnings refers to

your mains-operated (corded) power tool or

battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Clut-

tered or dark areas invite accidents.

b) Do not operate power tools in explosive

atmospheres, such as in the presence of

flammable liquids, gases or dust. Power

tools create sparks which may ignite the

c) Keep children and bystanders away

while operating a power tool. Distrac-

tions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way. Do not

use any adapter plugs with earthed

(grounded) power tools. Unmodified

plugs and matching outlets will reduce

risk of electric shock.

b) Avoid body contact with earthed or

grounded surfaces, such as pipes, radia-

tors, ranges and refrigerators. There is

an increased risk of electric shock if your

body is earthed or grounded.

c) Do not expose power tools to rain or wet

conditions. Water entering a power tool

will increase the risk of electric shock.

d) Do not abuse the cord. Never use the

cord for carrying, pulling or unplugging

the power tool. Keep cord away from

heat, oil, sharp edges and moving parts.

Damaged or entangled cords increase the

risk of electric shock.

e) When operating a power tool outdoors,

use an extension cord suitable for out-

door use. Use of a cord suitable for out-

door use reduces the risk of electric

f) If operating a power tool in a damp loca-

tion is unavoidable, use a residual cur-

rent device (RCD) protected supply. Use

of an RCD reduces the risk of electric

a) Stay alert, watch what you are doing and

use common sense when operating a

power tool. Do not use a power tool

while you are tired or under the influ-

ence of drugs, alcohol or medication. A

moment of inattention while operating

power tools may result in serious person-

b) Use personal protective equipment. Al-

ways wear eye protection. Protective

equipment such as dust mask, non-skid

safety shoes, hard hat, or hearing protec-

tion used for appropriate conditions will

reduce personal injuries.

c) Prevent unintentional starting. Ensure

the switch is in the off-position before

connecting to power source and/or bat-

tery pack, picking up or carrying the

tool. Carrying power tools with your fin-

ger on the switch or energising power

tools that have the switch on invites acci-

d) Remove any adjusting key or wrench be-

fore turning the power tool on. A wrench

or a key left attached to a rotating part of

the power tool may result in personal inju-

e) Do not overreach. Keep proper footing

and balance at all times. This enables

better control of the power tool in unex-

f) Dress properly. Do not wear loose cloth-

ing or jewellery. Keep your hair, clothing

and gloves away from moving parts.

Loose clothes, jewellery or long hair can

be caught in moving parts.

WARNING OBJ_BUCH-755-003.book Page 18 Wednesday, December 16, 2009 9:18 AMEnglish | 19

Bosch Power Tools 1 609 929 T86 | (16.12.09)

g) If devices are provided for the connec-

tion of dust extraction and collection fa-

cilities, ensure these are connected and

properly used. Use of dust collection can

reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the cor-

rect power tool for your application. The

correct power tool will do the job better

and safer at the rate for which it was de-

b) Do not use the power tool if the switch

does not turn it on and off. Any power

tool that cannot be controlled with the

switch is dangerous and must be re-

c) Disconnect the plug from the power

source and/or the battery pack from the

power tool before making any adjust-

ments, changing accessories, or storing

power tools. Such preventive safety

measures reduce the risk of starting the

power tool accidentally.

d) Store idle power tools out of the reach of

children and do not allow persons unfa-

miliar with the power tool or these in-

structions to operate the power tool.

Power tools are dangerous in the hands of

e) Maintain power tools. Check for mis-

alignment or binding of moving parts,

breakage of parts and any other condi-

tion that may affect the power tool’s op-

eration. If damaged, have the power tool

repaired before use. Many accidents are

caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Prop-

erly maintained cutting tools with sharp

cutting edges are less likely to bind and

are easier to control.

g) Use the power tool, accessories and tool

bits etc. in accordance with these in-

structions, taking into account the work-

ing conditions and the work to be per-

formed. Use of the power tool for

operations different from those intended

could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified

by the manufacturer. A charger that is

suitable for one type of battery pack may

create a risk of fire when used with anoth-

b) Use power tools only with specifically

designated battery packs. Use of any oth-

er battery packs may create a risk of injury

c) When battery pack is not in use, keep it

away from other metal objects, like pa-

per clips, coins, keys, nails, screws or

other small metal objects, that can make

a connection from one terminal to anoth-

er. Shorting the battery terminals togeth-

er may cause burns or a fire.

d) Under abusive conditions, liquid may be

ejected from the battery; avoid contact.

If contact accidentally occurs, flush with

water. If liquid contacts eyes, additional-

ly seek medical help. Liquid ejected from

the battery may cause irritation or burns.

a) Have your power tool serviced by a qual-

ified repair person using only identical

replacement parts. This will ensure that

the safety of the power tool is maintained.

Safety Warnings for Circular Saws

f DANGER: Keep hands away from cutting ar-

ea and the blade. Keep your second hand on

auxiliary handle, or motor housing. If both

hands are holding the saw, they cannot be

f Do not reach underneath the workpiece.

The guard cannot protect you from the blade

below the workpiece.

f Adjust the cutting depth to the thickness of

the workpiece. Less than a full tooth of the

blade teeth should be visible below the work-

f Never hold the workpiece being cut in your

hands or across your leg. Secure the work-

piece to a stable platform. It is important to

support the work properly to minimize body

exposure, blade binding, or loss of control.

OBJ_BUCH-755-003.book Page 19 Wednesday, December 16, 2009 9:18 AM20 | English

1 609 929 T86 | (16.12.09) Bosch Power Tools

f Hold power tool by the insulated gripping

surfaces, when performing an operation

where the cutting tool may run into hidden

wiring. Contact with a “live” wire will make

exposed metal parts of the tool “live” and

f When ripping always use a rip fence or

straight edge guide. This improves the accu-

racy of cut and reduces the chance of blade

f Always use blades with correct size and

shape (diamond versus round) of arbour

holes. Blades that do not match the mount-

ing hardware of the saw will run eccentrical-

ly, causing loss of control.

f Never use damaged or incorrect blade

washers or bolt. The blade washers and bolt

were specially designed for your saw, for op-

timum performance and safety of operation.

f Causes and operator prevention of kick-

– Kickback is a sudden reaction to a

pinched, bound or misaligned saw blade,

causing an uncontrolled saw to lift up and

out of the workpiece toward the operator.

– When the blade is pinched or bound tightly

by the kerf closing down, the blade stalls and

the motor reaction drives the unit rapidly

back toward the operator.

– If the blade becomes twisted or misaligned

in the cut, the teeth at the back edge of the

blade can dig into the top surface of the

wood causing the blade to climb out of the

kerf and jump back toward the operator.

Kickback is the result of saw misuse and/or

incorrect operating procedures or conditions

and can be avoided by taking proper precau-

tions as given below.

f Maintain a firm grip with both hands on the

saw and position your arms to resist kick-

back forces. Position your body to either

side of the blade, but not in line with the

blade. Kickback could cause the saw to jump

backwards, but kickback forces can be con-

trolled by the operator, if proper precautions

f When blade is binding, or when interrupting

a cut for any reason, release the trigger and

hold the saw motionless in the material un-

til the blade comes to a complete stop. Nev-

er attempt to remove the saw from the

work or pull the saw backward while the

blade is in motion or kickback may occur.

Investigate and take corrective actions to

eliminate the cause of blade binding.

f When restarting a saw in the workpiece,

centre the saw blade in the kerf and check

that saw teeth are not engaged into the ma-

terial. If saw blade is binding, it may walk up

or kickback from the workpiece as the saw is

f Support large panels to minimise the risk of

blade pinching and kickback. Large panels

tend to sag under their own weight. Sup-

ports must be placed under the panel on

both sides, near the line of cut and near the

f Do not use dull or damaged blades. Un-

sharpened or improperly set blades produce

narrow kerf causing excessive friction, blade

binding and kickback.

f Blade depth and bevel adjusting locking le-

vers must be tight and secure before mak-

ing cut. If blade adjustment shifts while cut-

ting, it may cause binding and kickback.

f Use extra caution when making a “plunge

cut” into existing walls or other blind areas.

The protruding blade may cut objects that

f Check lower guard for proper closing be-

fore each use. Do not operate the saw if

lower guard does not move freely and close

instantly. Never clamp or tie the lower

guard into the open position. If saw is acci-

dentally dropped, lower guard may be bent.

Raise the lower guard with the retracting

handle and make sure it moves freely and

does not touch the blade or any other part, in

all angles and depths of cut.

OBJ_BUCH-755-003.book Page 20 Wednesday, December 16, 2009 9:18 AMEnglish | 21

Bosch Power Tools 1 609 929 T86 | (16.12.09)

f Check the operation of the lower guard

spring. If the guard and the spring are not

operating properly, they must be serviced

before use. Lower guard may operate slug-

gishly due to damaged parts, gummy depos-

its, or a build-up of debris.

f Lower guard should be retracted manually

only for special cuts such as “plunge cuts”

and “compound cuts”. Raise lower guard by

retracting handle and as soon as blade en-

ters the material, the lower guard must be

released. For all other sawing, the lower

guard should operate automatically.

f Always observe that the lower guard is cov-

ering the blade before placing saw down on

bench or floor. An unprotected, coasting

blade will cause the saw to walk backwards,

cutting whatever is in its path. Be aware of

the time it takes for the blade to stop after

f Do not reach into the saw dust ejector with

your hands. They could be injured by rotat-

f Do not work overhead with the saw. In this

manner you do not have sufficient control

over the power tool.

f Use appropriate detectors to determine if

utility lines are hidden in the work area or

call the local utility company for assistance.

Contact with electric lines can lead to fire

and electric shock. Damaging a gas line can

lead to explosion. Penetrating a water line

causes property damage or may cause an

f Do not operate the power tool stationary. It

is not designed for operation with a saw ta-

f Do not use high speed steel (HSS) saw

blades. Such saw blades can easily break.

f Do not saw ferrous metals. Red hot chips

can ignite the dust extraction.

f When working with the machine, always

hold it firmly with both hands and provide

for a secure stance. The power tool is guided

more secure with both hands.

f Secure the workpiece. A workpiece clamped

with clamping devices or in a vice is held

more secure than by hand.

f Always wait until the machine has come to

a complete stop before placing it down. The

tool insert can jam and lead to loss of control

over the power tool.

f Do not open the battery. Danger of short-

Protect the battery against heat, e. g.,

against continuous intense sunlight,

fire, water, and moisture. Danger of

f In case of damage and improper use of the

battery, vapours may be emitted. Provide

for fresh air and seek medical help in case

of complaints. The vapours can irritate the

f Use the battery only in conjunction with

your Bosch power tool. This measure alone

protects the battery against dangerous over-

f Use only original Bosch batteries with the

voltage listed on the nameplate of your

power tool. When using other batteries, e. g.

imitations, reconditioned batteries or other

brands, there is danger of injury as well as

property damage through exploding batter-

Functional Description

Read all safety warnings and all

instructions. Failure to follow the

warnings and instructions may re-

sult in electric shock, fire and/or

While reading the operating instructions, unfold

the graphics page for the machine and leave it

OBJ_BUCH-755-003.book Page 21 Wednesday, December 16, 2009 9:18 AM22 | English

1 609 929 T86 | (16.12.09) Bosch Power Tools

The machine is intended for lengthways and

crossways cutting of wood with straight cutting

lines as well as mitre cuts in wood while resting

firmly on the workpiece. With suitable saw

blades, thin-walled non-ferrous metals, e. g.,

profiles, can also be sawed.

Working ferrous metals is not permitted.

The numbering of the product features refers to

the illustration of the machine on the graphics

1 Lock-off button for On/Off switch

5 Lever for retracting blade guard

7 Retracting blade guard

11 Wing bolt for bevel-angle preselection

13 Scale for mitre angle

15 Auxiliary handle (insulated gripping surface)

17 Handle (insulated gripping surface)

22 Clamping bolt with washer

23 Marks on the blade guard

24 Battery unlocking button

25 Fastening screw for extraction adapter

26 Extraction adapter

30 Set of screw clamps*

31 Button for charge-control indicator*

32 Battery charge-control indicator*

34 Connection piece*

*Accessories shown or described are not part of the

standard delivery scope of the product. A complete

overview of accessories can be found in our acces-

Noise/Vibration Information

Measured sound values determined according

Typically the A-weighted noise levels of the

product are: Sound pressure level 95 dB(A);

Sound power level 106 dB(A). Uncertainty

mined according to EN 60745:

The vibration emission level given in this infor-

mation sheet has been measured in accordance

with a standardised test given in EN 60745 and

may be used to compare one tool with another.

It may be used for a preliminary assessment of

The declared vibration emission level repre-

sents the main applications of the tool. However

if the tool is used for different applications, with

different accessories or poorly maintained, the

vibration emission may differ. This may signifi-

cantly increase the exposure level over the total

An estimation of the level of exposure to vibra-

tion should also take into account the times

when the tool is switched off or when it is run-

ning but not actually doing the job. This may sig-

nificantly reduce the exposure level over the to-

Identify additional safety measures to protect

the operator from the effects of vibration such

as: maintain the tool and the accessories, keep

the hands warm, organisation of work patterns.

OBJ_BUCH-755-003.book Page 22 Wednesday, December 16, 2009 9:18 AMEnglish | 23 Bosch Power Tools 1 609 929 T86 | (16.12.09) Technical Data

Declaration of Conformity

We declare under our sole responsibility that

the product described under “Technical Data” is

in conformity with the following standards or

standardization documents: EN 60745 accord-

ing to the provisions of the directives

2004/108/EC, 2006/42/EC.

f Use only the battery chargers listed on the

accessories page. Only these battery charg-

ers are matched to the lithium ion battery of

Note: The battery is supplied partially charged.

To ensure full capacity of the battery, complete-

ly charge the battery in the battery charger be-

fore using your power tool for the first time.

The lithium ion battery can be charged at any

time without reducing its service life. Interrupt-

ing the charging procedure does not damage the

The lithium ion battery is protected against

deep discharging by the “Electronic Cell Protec-

tion (ECP)”. When the battery is empty, the ma-

chine is switched off by means of a protective

circuit: The inserted tool no longer rotates.

Do not continue to press the

On/Off switch after the ma-

chine has been automatically switched off. The

battery can be damaged.

The battery is equipped with a NTC temperature

control which allows charging only within a tem-

perature range of between 0 °C and 45 °C. A

long battery service life is achieved in this man-

Observe the notes for disposal.

Blade thickness, max.

kg 4.1 Please observe the article number on the type plate of your machine. The trade names of the individual ma-chines may vary. Dr. Egbert Schneider

Senior Vice President

WARNING OBJ_BUCH-755-003.book Page 23 Wednesday, December 16, 2009 9:18 AM24 | English

1 609 929 T86 | (16.12.09) Bosch Power Tools

Removing the Battery

The battery 3 is equipped with two locking lev-

els that should prevent the battery from falling

out when pushing the battery unlocking button

24 unintentionally. As long as the battery is in-

serted in the power tool, it is held in position by

To remove the battery 3, press the battery un-

locking button 24 and pull the battery out of the

power tool toward the rear. Do not exert any

Battery Charge-control Indication (only for

3.0 Ah battery) (see figure F)

The three green LEDs of the battery charge-con-

trol indicator 32 indicate the charge condition of

the battery 3. For safety reasons, it is only pos-

sible to check the status of the charge condition

when the machine is at a standstill.

Press button 31 to indicate the charge condi-

tion. This is also possible when the battery 3 is

When no LED lights up after pushing button 31,

then the battery is defective and must be re-

Mounting/Replacing the Saw Blade

f Before any work on the power tool, remove

f When mounting the saw blade, wear protec-

tive gloves. Danger of injury when touching

f Only use saw blades that correspond with

the characteristic data given in the operat-

f Do not under any circumstances use grind-

ing discs as the cutting tool.

Selecting a Saw Blade

An overview of recommended saw blades can

be found at the end of this manual.

Removal of the Saw Blade (see figure A)

For changing the cutting tool, it is best to place

the machine on the face side of the motor hous-

– Press the spindle lock button 14 and keep it

f The spindle lock button 14 may be actuated

only when the saw spindle is at a standstill.

Otherwise, the power tool can be damaged.

– With the Allen key 16, unscrew the clamping

bolt 22 turning in rotation direction n.

– Tilt back the retracting blade guard 7 and

– Remove the clamping flange 21 and the saw

blade 20 from the saw spindle 18.

Mounting the Saw Blade (see figure A)

For changing the cutting tool, it is best to place

the machine on the face side of the motor hous-

– Clean the saw blade 20 and all clamping

parts to be assembled.

– Tilt back the retracting blade guard 7 and

– Place the saw blade 20 onto the mounting

flange 19. The cutting direction of the teeth

(direction of arrow on the saw blade) and the

direction-of-rotation arrow on the retracting

blade guard 7 must correspond.

– Mount the clamping flange 21 and screw in

the clamping bolt 22 turning in rotation di-

– Press the spindle lock button 14 and keep it

– Tighten the clamping bolt 16 with the Allen

key 22 by turning in rotation direction o. The

tightening torque is 6–9 Nm, which corre-

sponds to hand tight plus ¼ turn or

3 graduation marks of the marks 23 on the

Continuous lighting 3 x green

Continuous lighting 2 x green

Continuous lighting 1 x green

Flashing light 1 x green

OBJ_BUCH-755-003.book Page 24 Wednesday, December 16, 2009 9:18 AMEnglish | 25

Bosch Power Tools 1 609 929 T86 | (16.12.09)

Dust/Chip Extraction

f Before any work on the power tool, remove

f Dusts from materials such as lead-containing

coatings, some wood types, minerals and

metal can be harmful to one’s health. Touch-

ing or breathing-in the dusts can cause aller-

gic reactions and/or lead to respiratory infec-

tions of the user or bystanders.

Certain dusts, such as oak or beech dust, are

considered as carcinogenic, especially in

connection with wood-treatment additives

(chromate, wood preservative). Materials

containing asbestos may only be worked by

– To achieve a high degree of dust extrac-

GAS 25/GAS 50/GAS 50 M for wood or

GAS 50 MS for wood and/or mineral dust

in conjunction with this power tool.

– Provide for good ventilation of the work-

– It is recommended to wear a P2 filter-

Observe the relevant regulations in your

country for the materials to be worked.

Mounting the Extraction Adapter

Fasten the extraction adapter 26 to the base

plate 6 with the fastening screw 25.

A vacuum hose with a diameter of 35 mm can be

connected to the extraction adapter 26.

f The extraction adapter may not be mounted

when no external dust extraction is con-

nected. Otherwise the extraction channel

f Do not connect a dust bag to the extraction

adapter. Otherwise the extraction system

To ensure optimum extraction, the extraction

adapter 26 must be cleaned regularly.

External Dust Extraction

Connect the vacuum hose 27 to a vacuum clean-

er (accessory). An overview for connecting to

various vacuum cleaners can be found at the

The vacuum cleaner must be suitable for the ma-

terial being worked.

When vacuuming dry dust that is especially det-

rimental to health or carcinogenic, use a special

f Before any work on the power tool, remove

Adjusting the Cutting Depth (see figure C)

f Adjust the cutting depth to the thickness of

the workpiece. Less than a full tooth of the

blade teeth should be visible below the work-

Loosen the clamping lever 29. For a smaller cut-

ting depth, pull the saw away from the base

plate 6; for a larger cutting depth, push the saw

toward the base plate 6. Adjust the desired cut-

ting depth at the cutting-depth scale. Tighten

the clamping lever 29 again.

The tightening tension of the clamping lever 29

can be readjusted. For this, unscrew the clamp-

ing lever 29, and screw it back again turned off-

set by at least 30° in anticlockwise direction.

Adjusting the Cutting Angle

It is best to place the machine on the face side

of the blade guard 4.

Loosen wing bolt 11. Tilt the saw sidewards. Ad-

just the desired setting at the scale 13. Tighten

Note: For bevel cuts, the cutting depth is small-

er than the setting indicated on the cutting-

OBJ_BUCH-755-003.book Page 25 Wednesday, December 16, 2009 9:18 AM26 | English 1 609 929 T86 | (16.12.09) Bosch Power Tools Cutting Marks

The 0° cutting mark (9) indicates the position of

the saw blade for right-angled cuts. The 45° cut-

ting mark (10) indicates the position of the saw

For precise cuts, position the circular saw

against the workpiece as shown in the figure. It

is best to carry out a trial cut.

Inserting the Battery

f Use only original Bosch lithium ion batter-

ies with the voltage listed on the nameplate

of your power tool. Using other batteries can

lead to injuries and pose a fire hazard.

Insert the charged battery 3 from the front into

the base of the power tool. Push the battery

completely into the base until the red stripe can

no longer be seen and the battery is securely

Switching On and Off

To start the machine, first push the lock-off but-

ton for the On/Off switch 1 and then press the

On/Off switch 2 and keep it pressed.

To switch off the machine, release the On/Off

Note: For safety reasons, the On/Off switch 2

cannot be locked; it must remain pressed during

the entire operation.

An integrated run-on brake reduces the run-on

period of the saw blade after switching off the

Protection Against Deep Discharging

The lithium ion battery is protected against

deep discharging by the “Electronic Cell Protec-

tion (ECP)”. When the battery is empty, the ma-

chine is switched off by means of a protective

circuit: The inserted tool no longer rotates.

Protect saw blades against impact and shock.

Guide the machine evenly and with light feed in

the cutting direction. Excessive feed significant-

ly reduces the service life of the saw blade and

can cause damage to the power tool.

Sawing performance and cutting quality depend

essentially on the condition and the tooth form

of the saw blade. Therefore, use only sharp saw

blades that are suited for the material to be

The correct selection of the saw blade depends

on the type and quality of the wood and whether

lengthway or crossway cuts are required.

When cutting spruce lengthways, long spiral

Beech and oak dusts are especially detrimental

to health. Therefore, work only with dust extrac-

Sawing with Parallel Guide (see figure D)

The parallel guide 8 enables exact cuts along a

workpiece edge and cutting strips of the same

Sawing with Auxiliary Guide (see figure E)

For sawing large workpieces or straight edges, a

board or strip can clamped to the workpiece as

an auxiliary guide; the base plate of the circular

saw can be guided alongside the auxiliary guide.

Sawing with Guide Rail (see figure G)

The guide rail 33 is used to carry out straight

OBJ_BUCH-755-003.book Page 26 Wednesday, December 16, 2009 9:18 AMEnglish | 27

Bosch Power Tools 1 609 929 T86 | (16.12.09)

The adhesive coating prevents the guide rail

from slipping and protects the surface of the

workpiece. The coating of the guide rail allows

the circular saw to glide easily.

Place the circular saw directly onto the guide

rail 33. Fasten the guide rail 33 with suitable

clamping devices, e. g., screw clamps, on the

workpiece in such a manner that the narrow leg

of the guide rail 33 faces toward the saw blade.

The guide rail 33 must not extend beyond the

face side of the workpiece where the cut is to

Switch the machine on and guide it in the cut-

ting direction applying moderate and steady

Two guide rails can be connected to one with

use of the connection piece 34. Clamping is car-

ried out with the four screws located in the con-

Recommendations for Optimal Handling of the

Protect the battery against moisture and water.

Store the battery only within a temperature

range between 0 °C and 45 °C. As an example,

do not leave the battery in the car in summer.

Occasionally clean the venting slots of the bat-

tery using a soft, clean and dry brush.

A significantly reduced working period after

charging indicates that the battery is used and

Observe the notes for disposal.

Maintenance and Service

Maintenance and Cleaning

f Before any work on the machine itself (e. g.

maintenance, tool change, etc.) as well as

during transport and storage, remove the

battery from the power tool. There is danger

of injury when unintentionally actuating the

f For safe and proper working, always keep

the machine and ventilation slots clean.

The retracting blade guard must always be able

to move freely and retract automatically. There-

fore, always keep the area around the retracting

blade guard clean. Remove dust and chips by

blowing out with compressed air or with a

Saw blades that are not coated can be protect-

ed against corrosion with a thin coat of acid-free

oil. Before use, the oil must be removed again,

otherwise the wood will become soiled.

Resin and glue residue on the saw blade produc-

es poor cuts. Therefore, clean the saw blade im-

mediately after use.

If the machine should fail despite the care taken

in manufacturing and testing procedures, repair

should be carried out by an after-sales service

centre for Bosch power tools.

In all correspondence and spare parts order,

please always include the 10-digit article

number given on the type plate of the machine.

After-sales Service and Customer

Our after-sales service responds to your ques-

tions concerning maintenance and repair of your

product as well as spare parts. Exploded views

and information on spare parts can also be

Our customer service representatives can an-

swer your questions concerning possible appli-

cations and adjustment of products and acces-

Robert Bosch Ltd. (B.S.C.)

OBJ_BUCH-755-003.book Page 27 Wednesday, December 16, 2009 9:18 AM28 | English

Fax: +353 (01) 4 66 68 88

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Customer Contact Center

Republic of South Africa

Hotline: +27 (011) 6 51 96 00

35 Roper Street, New Centre

E-Mail: bsctools@icon.co.za

KZN – BSC Service Centre

Unit E, Almar Centre

E-Mail: bsc.dur@za.bosch.com

Western Cape – BSC Service Centre

Democracy Way, Prosperity Park

The machine, accessories and packaging should

be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of power tools in-

According the European Guideline

2002/96/EC for Waste Electrical

and Electronic Equipment and its

implementation into national

right, power tools that are no longer usable

must be collected separately and disposed of in

an environmentally correct manner.

Battery packs/batteries:

Do not dispose of battery

packs/batteries into house-

hold waste, fire or water. Bat-

tery packs/batteries should

be collected, recycled or dis-

posed of in an environmental-

Only for EC countries:

Defective or dead out battery packs/batteries

must be recycled according the guideline

Batteries no longer suitable for use can be

directly returned at:

Robert Bosch Ltd. (B.S.C.)

Subject to change without notice.

AVERTISSEMENT OBJ_BUCH-755-003.book Page 29 Wednesday, December 16, 2009 9:18 AM30 | Français

OBJ_BUCH-755-003.book Page 30 Wednesday, December 16, 2009 9:18 AMFrançais | 31

OBJ_BUCH-755-003.book Page 31 Wednesday, December 16, 2009 9:18 AM32 | Français

OBJ_BUCH-755-003.book Page 32 Wednesday, December 16, 2009 9:18 AMFrançais | 33

OBJ_BUCH-755-003.book Page 33 Wednesday, December 16, 2009 9:18 AM34 | Français

OBJ_BUCH-755-003.book Page 34 Wednesday, December 16, 2009 9:18 AMFrançais | 35

Senior Vice President

OBJ_BUCH-755-003.book Page 35 Wednesday, December 16, 2009 9:18 AM36 | Français

ATTENTION OBJ_BUCH-755-003.book Page 36 Wednesday, December 16, 2009 9:18 AMFrançais | 37

OBJ_BUCH-755-003.book Page 38 Wednesday, December 16, 2009 9:18 AMFrançais | 39

OBJ_BUCH-755-003.book Page 39 Wednesday, December 16, 2009 9:18 AM40 | Français

OBJ_BUCH-755-003.book Page 40 Wednesday, December 16, 2009 9:18 AMFrançais | 41

ADVERTENCIA OBJ_BUCH-755-003.book Page 42 Wednesday, December 16, 2009 9:18 AMEspañol | 43

OBJ_BUCH-755-003.book Page 43 Wednesday, December 16, 2009 9:18 AM44 | Español

OBJ_BUCH-755-003.book Page 44 Wednesday, December 16, 2009 9:18 AMEspañol | 45

OBJ_BUCH-755-003.book Page 45 Wednesday, December 16, 2009 9:18 AM46 | Español

OBJ_BUCH-755-003.book Page 46 Wednesday, December 16, 2009 9:18 AMEspañol | 47

2004/108/CE, 2006/42/CE.

Senior Vice President

OBJ_BUCH-755-003.book Page 49 Wednesday, December 16, 2009 9:18 AM50 | Español

OBJ_BUCH-755-003.book Page 51 Wednesday, December 16, 2009 9:18 AM52 | Español

OBJ_BUCH-755-003.book Page 52 Wednesday, December 16, 2009 9:18 AMEspañol | 53

MR P R O D U C T O C E R T I F I C A D O C E R T I F I E D P R O D U C T OBJ_BUCH-755-003.book Page 53 Wednesday, December 16, 2009 9:18 AM54 | Português 1 609 929 T86 | (16.12.09) Bosch Power Tools pt

ATENÇÃO OBJ_BUCH-755-003.book Page 54 Wednesday, December 16, 2009 9:18 AMPortuguês | 55

OBJ_BUCH-755-003.book Page 55 Wednesday, December 16, 2009 9:18 AM56 | Português

OBJ_BUCH-755-003.book Page 56 Wednesday, December 16, 2009 9:18 AMPortuguês | 57

OBJ_BUCH-755-003.book Page 57 Wednesday, December 16, 2009 9:18 AM58 | Português

OBJ_BUCH-755-003.book Page 58 Wednesday, December 16, 2009 9:18 AMPortuguês | 59

Senior Vice President

ATENÇÃO OBJ_BUCH-755-003.book Page 60 Wednesday, December 16, 2009 9:18 AMPortuguês | 61

OBJ_BUCH-755-003.book Page 61 Wednesday, December 16, 2009 9:18 AM62 | Português

OBJ_BUCH-755-003.book Page 63 Wednesday, December 16, 2009 9:18 AM64 | Português

OBJ_BUCH-755-003.book Page 64 Wednesday, December 16, 2009 9:18 AMPortuguês | 65

OBJ_BUCH-755-003.book Page 65 Wednesday, December 16, 2009 9:18 AM66 | Italiano 1 609 929 T86 | (16.12.09) Bosch Power Tools it

AVVERTENZA OBJ_BUCH-755-003.book Page 66 Wednesday, December 16, 2009 9:18 AMItaliano | 67

OBJ_BUCH-755-003.book Page 67 Wednesday, December 16, 2009 9:18 AM68 | Italiano

OBJ_BUCH-755-003.book Page 68 Wednesday, December 16, 2009 9:18 AMItaliano | 69

OBJ_BUCH-755-003.book Page 69 Wednesday, December 16, 2009 9:18 AM70 | Italiano

OBJ_BUCH-755-003.book Page 70 Wednesday, December 16, 2009 9:18 AMItaliano | 71

OBJ_BUCH-755-003.book Page 71 Wednesday, December 16, 2009 9:18 AM72 | Italiano

Senior Vice President

ATTENZIONE OBJ_BUCH-755-003.book Page 73 Wednesday, December 16, 2009 9:18 AM74 | Italiano

OBJ_BUCH-755-003.book Page 75 Wednesday, December 16, 2009 9:18 AM76 | Italiano

OBJ_BUCH-755-003.book Page 76 Wednesday, December 16, 2009 9:18 AMItaliano | 77

OBJ_BUCH-755-003.book Page 77 Wednesday, December 16, 2009 9:18 AM78 | Italiano

WAARSCHUWING OBJ_BUCH-755-003.book Page 79 Wednesday, December 16, 2009 9:18 AM80 | Nederlands

OBJ_BUCH-755-003.book Page 80 Wednesday, December 16, 2009 9:18 AMNederlands | 81

OBJ_BUCH-755-003.book Page 81 Wednesday, December 16, 2009 9:18 AM82 | Nederlands

OBJ_BUCH-755-003.book Page 82 Wednesday, December 16, 2009 9:18 AMNederlands | 83

OBJ_BUCH-755-003.book Page 83 Wednesday, December 16, 2009 9:18 AM84 | Nederlands

Senior Vice President

OBJ_BUCH-755-003.book Page 86 Wednesday, December 16, 2009 9:18 AMNederlands | 87

OBJ_BUCH-755-003.book Page 88 Wednesday, December 16, 2009 9:18 AMNederlands | 89

OBJ_BUCH-755-003.book Page 89 Wednesday, December 16, 2009 9:18 AM90 | Nederlands

ADVARSEL OBJ_BUCH-755-003.book Page 91 Wednesday, December 16, 2009 9:18 AM92 | Dansk

OBJ_BUCH-755-003.book Page 92 Wednesday, December 16, 2009 9:18 AMDansk | 93

OBJ_BUCH-755-003.book Page 93 Wednesday, December 16, 2009 9:18 AM94 | Dansk

Senior Vice President

OBJ_BUCH-755-003.book Page 96 Wednesday, December 16, 2009 9:18 AMDansk | 97

OBJ_BUCH-755-003.book Page 98 Wednesday, December 16, 2009 9:18 AMDansk | 99

Bosch Service Center

VARNING OBJ_BUCH-755-003.book Page 101 Wednesday, December 16, 2009 9:18 AM102 | Svenska

OBJ_BUCH-755-003.book Page 102 Wednesday, December 16, 2009 9:18 AMSvenska | 103

OBJ_BUCH-755-003.book Page 103 Wednesday, December 16, 2009 9:18 AM104 | Svenska

Senior Vice President

OBS OBJ_BUCH-755-003.book Page 106 Wednesday, December 16, 2009 9:18 AMSvenska | 107

OBJ_BUCH-755-003.book Page 108 Wednesday, December 16, 2009 9:18 AMSvenska | 109

Bosch Service Center

OBJ_BUCH-755-003.book Page 110 Wednesday, December 16, 2009 9:18 AMNorsk | 111 Bosch Power Tools 1 609 929 T86 | (16.12.09) no

ADVARSEL OBJ_BUCH-755-003.book Page 111 Wednesday, December 16, 2009 9:18 AM112 | Norsk

OBJ_BUCH-755-003.book Page 112 Wednesday, December 16, 2009 9:18 AMNorsk | 113

OBJ_BUCH-755-003.book Page 113 Wednesday, December 16, 2009 9:18 AM114 | Norsk

Senior Vice President

OBS OBJ_BUCH-755-003.book Page 116 Wednesday, December 16, 2009 9:18 AMNorsk | 117

OBJ_BUCH-755-003.book Page 118 Wednesday, December 16, 2009 9:18 AMNorsk | 119

VAROITUS OBJ_BUCH-755-003.book Page 121 Wednesday, December 16, 2009 9:18 AM122 | Suomi

OBJ_BUCH-755-003.book Page 122 Wednesday, December 16, 2009 9:18 AMSuomi | 123

OBJ_BUCH-755-003.book Page 123 Wednesday, December 16, 2009 9:18 AM124 | Suomi

Senior Vice President

HUOM OBJ_BUCH-755-003.book Page 126 Wednesday, December 16, 2009 9:18 AMSuomi | 127

OBJ_BUCH-755-003.book Page 128 Wednesday, December 16, 2009 9:18 AMSuomi | 129

OBJ_BUCH-755-003.book Page 130 Wednesday, December 16, 2009 9:18 AMEλληνικά | 131

OBJ_BUCH-755-003.book Page 131 Wednesday, December 16, 2009 9:18 AM132 | Eλληνικά

OBJ_BUCH-755-003.book Page 132 Wednesday, December 16, 2009 9:18 AMEλληνικά | 133

OBJ_BUCH-755-003.book Page 133 Wednesday, December 16, 2009 9:18 AM134 | Eλληνικά

OBJ_BUCH-755-003.book Page 134 Wednesday, December 16, 2009 9:18 AMEλληνικά | 135

OBJ_BUCH-755-003.book Page 135 Wednesday, December 16, 2009 9:18 AM136 | Eλληνικά

OBJ_BUCH-755-003.book Page 136 Wednesday, December 16, 2009 9:18 AMEλληνικά | 137

OBJ_BUCH-755-003.book Page 137 Wednesday, December 16, 2009 9:18 AM138 | Eλληνικά

Senior Vice President

OBJ_BUCH-755-003.book Page 138 Wednesday, December 16, 2009 9:18 AMEλληνικά | 139

OBJ_BUCH-755-003.book Page 140 Wednesday, December 16, 2009 9:18 AMEλληνικά | 141

OBJ_BUCH-755-003.book Page 141 Wednesday, December 16, 2009 9:18 AM142 | Eλληνικά

OBJ_BUCH-755-003.book Page 142 Wednesday, December 16, 2009 9:18 AMEλληνικά | 143

UYARI OBJ_BUCH-755-003.book Page 144 Wednesday, December 16, 2009 9:18 AMTürkçe | 145

OBJ_BUCH-755-003.book Page 145 Wednesday, December 16, 2009 9:18 AM146 | Türkçe

OBJ_BUCH-755-003.book Page 146 Wednesday, December 16, 2009 9:18 AMTürkçe | 147

OBJ_BUCH-755-003.book Page 147 Wednesday, December 16, 2009 9:18 AM148 | Türkçe

OBJ_BUCH-755-003.book Page 148 Wednesday, December 16, 2009 9:18 AMTürkçe | 149

Senior Vice President

OBJ_BUCH-755-003.book Page 150 Wednesday, December 16, 2009 9:18 AMTürkçe | 151

OBJ_BUCH-755-003.book Page 152 Wednesday, December 16, 2009 9:18 AMTürkçe | 153

OBJ_BUCH-755-003.book Page 153 Wednesday, December 16, 2009 9:18 AM154 | Türkçe

OBJ_BUCH-755-003.book Page 154 Wednesday, December 16, 2009 9:18 AMPolski | 155

OBJ_BUCH-755-003.book Page 155 Wednesday, December 16, 2009 9:18 AM156 | Polski

OBJ_BUCH-755-003.book Page 156 Wednesday, December 16, 2009 9:18 AMPolski | 157

OBJ_BUCH-755-003.book Page 157 Wednesday, December 16, 2009 9:18 AM158 | Polski

OBJ_BUCH-755-003.book Page 158 Wednesday, December 16, 2009 9:18 AMPolski | 159

OBJ_BUCH-755-003.book Page 160 Wednesday, December 16, 2009 9:18 AMPolski | 161

2004/108/WE, 2006/42/WE.

Senior Vice President

OBJ_BUCH-755-003.book Page 162 Wednesday, December 16, 2009 9:18 AMPolski | 163

OBJ_BUCH-755-003.book Page 164 Wednesday, December 16, 2009 9:18 AMPolski | 165

OBJ_BUCH-755-003.book Page 165 Wednesday, December 16, 2009 9:18 AM166 | Polski

Robert Bosch Sp. z o.o.

OBJ_BUCH-755-003.book Page 166 Wednesday, December 16, 2009 9:18 AMPolski | 167

OBJ_BUCH-755-003.book Page 167 Wednesday, December 16, 2009 9:18 AM168 | Česky 1 609 929 T86 | (16.12.09) Bosch Power Tools cs

OBJ_BUCH-755-003.book Page 168 Wednesday, December 16, 2009 9:18 AMČesky | 169

OBJ_BUCH-755-003.book Page 169 Wednesday, December 16, 2009 9:18 AM170 | Česky

OBJ_BUCH-755-003.book Page 170 Wednesday, December 16, 2009 9:18 AMČesky | 171

Senior Vice President

POZOR OBJ_BUCH-755-003.book Page 173 Wednesday, December 16, 2009 9:18 AM174 | Česky

OBJ_BUCH-755-003.book Page 175 Wednesday, December 16, 2009 9:18 AM176 | Česky

OBJ_BUCH-755-003.book Page 177 Wednesday, December 16, 2009 9:18 AM178 | Slovensky 1 609 929 T86 | (16.12.09) Bosch Power Tools sk

ky a chladničky. Keby by bolo Vaše telo

POZOR OBJ_BUCH-755-003.book Page 178 Wednesday, December 16, 2009 9:18 AMSlovensky | 179

OBJ_BUCH-755-003.book Page 179 Wednesday, December 16, 2009 9:18 AM180 | Slovensky

OBJ_BUCH-755-003.book Page 180 Wednesday, December 16, 2009 9:18 AMSlovensky | 181

OBJ_BUCH-755-003.book Page 181 Wednesday, December 16, 2009 9:18 AM182 | Slovensky

OBJ_BUCH-755-003.book Page 182 Wednesday, December 16, 2009 9:18 AMSlovensky | 183

OBJ_BUCH-755-003.book Page 183 Wednesday, December 16, 2009 9:18 AM184 | Slovensky

Senior Vice President

OBJ_BUCH-755-003.book Page 184 Wednesday, December 16, 2009 9:18 AMSlovensky | 185

POZOR OBJ_BUCH-755-003.book Page 185 Wednesday, December 16, 2009 9:18 AM186 | Slovensky

OBJ_BUCH-755-003.book Page 187 Wednesday, December 16, 2009 9:18 AM188 | Slovensky

OBJ_BUCH-755-003.book Page 188 Wednesday, December 16, 2009 9:18 AMSlovensky | 189

OBJ_BUCH-755-003.book Page 189 Wednesday, December 16, 2009 9:18 AM190 | Magyar 1 609 929 T86 | (16.12.09) Bosch Power Tools hu

FIGYELMEZTETÉS OBJ_BUCH-755-003.book Page 190 Wednesday, December 16, 2009 9:18 AMMagyar | 191

OBJ_BUCH-755-003.book Page 191 Wednesday, December 16, 2009 9:18 AM192 | Magyar

OBJ_BUCH-755-003.book Page 192 Wednesday, December 16, 2009 9:18 AMMagyar | 193

OBJ_BUCH-755-003.book Page 193 Wednesday, December 16, 2009 9:18 AM194 | Magyar

OBJ_BUCH-755-003.book Page 195 Wednesday, December 16, 2009 9:18 AM196 | Magyar

Senior Vice President

OBJ_BUCH-755-003.book Page 197 Wednesday, December 16, 2009 9:18 AM198 | Magyar

OBJ_BUCH-755-003.book Page 199 Wednesday, December 16, 2009 9:18 AM200 | Magyar

OBJ_BUCH-755-003.book Page 201 Wednesday, December 16, 2009 9:18 AM202 | Русский

OBJ_BUCH-755-003.book Page 202 Wednesday, December 16, 2009 9:18 AMРусский | 203

OBJ_BUCH-755-003.book Page 203 Wednesday, December 16, 2009 9:18 AM204 | Русский

OBJ_BUCH-755-003.book Page 204 Wednesday, December 16, 2009 9:18 AMРусский | 205

OBJ_BUCH-755-003.book Page 205 Wednesday, December 16, 2009 9:18 AM206 | Русский

OBJ_BUCH-755-003.book Page 207 Wednesday, December 16, 2009 9:18 AM208 | Русский

OBJ_BUCH-755-003.book Page 208 Wednesday, December 16, 2009 9:18 AMРусский | 209

Senior Vice President

OBJ_BUCH-755-003.book Page 209 Wednesday, December 16, 2009 9:18 AM210 | Русский

OBJ_BUCH-755-003.book Page 211 Wednesday, December 16, 2009 9:18 AM212 | Русский

OBJ_BUCH-755-003.book Page 212 Wednesday, December 16, 2009 9:18 AMРусский | 213

OBJ_BUCH-755-003.book Page 215 Wednesday, December 16, 2009 9:18 AM216 | Українська

OBJ_BUCH-755-003.book Page 216 Wednesday, December 16, 2009 9:18 AMУкраїнська | 217

OBJ_BUCH-755-003.book Page 217 Wednesday, December 16, 2009 9:18 AM218 | Українська

OBJ_BUCH-755-003.book Page 219 Wednesday, December 16, 2009 9:18 AM220 | Українська

Senior Vice President

OBJ_BUCH-755-003.book Page 225 Wednesday, December 16, 2009 9:18 AM226 | Українська

AVERTISMENT OBJ_BUCH-755-003.book Page 227 Wednesday, December 16, 2009 9:18 AM228 | Română

OBJ_BUCH-755-003.book Page 228 Wednesday, December 16, 2009 9:18 AMRomână | 229

OBJ_BUCH-755-003.book Page 229 Wednesday, December 16, 2009 9:18 AM230 | Română

OBJ_BUCH-755-003.book Page 230 Wednesday, December 16, 2009 9:18 AMRomână | 231

OBJ_BUCH-755-003.book Page 231 Wednesday, December 16, 2009 9:18 AM232 | Română

OBJ_BUCH-755-003.book Page 232 Wednesday, December 16, 2009 9:18 AMRomână | 233

Directivelor 2004/108/CE, 2006/42/CE.

Senior Vice President

OBJ_BUCH-755-003.book Page 233 Wednesday, December 16, 2009 9:18 AM234 | Română

OBJ_BUCH-755-003.book Page 234 Wednesday, December 16, 2009 9:18 AMRomână | 235

OBJ_BUCH-755-003.book Page 236 Wednesday, December 16, 2009 9:18 AMRomână | 237

OBJ_BUCH-755-003.book Page 237 Wednesday, December 16, 2009 9:18 AM238 | Română

Robert Bosch SRL Bosch Service Center

Conform Directivei Europene

Conform Directivei 2006/66/CE acumulato-

OBJ_BUCH-755-003.book Page 238 Wednesday, December 16, 2009 9:18 AMБългарски | 239

OBJ_BUCH-755-003.book Page 239 Wednesday, December 16, 2009 9:18 AM240 | Български

OBJ_BUCH-755-003.book Page 240 Wednesday, December 16, 2009 9:18 AMБългарски | 241

OBJ_BUCH-755-003.book Page 241 Wednesday, December 16, 2009 9:18 AM242 | Български

OBJ_BUCH-755-003.book Page 242 Wednesday, December 16, 2009 9:18 AMБългарски | 243

OBJ_BUCH-755-003.book Page 243 Wednesday, December 16, 2009 9:18 AM244 | Български

OBJ_BUCH-755-003.book Page 244 Wednesday, December 16, 2009 9:18 AMБългарски | 245

OBJ_BUCH-755-003.book Page 245 Wednesday, December 16, 2009 9:18 AM246 | Български

Senior Vice President

OBJ_BUCH-755-003.book Page 246 Wednesday, December 16, 2009 9:18 AMБългарски | 247

OBJ_BUCH-755-003.book Page 247 Wednesday, December 16, 2009 9:18 AM248 | Български

OBJ_BUCH-755-003.book Page 249 Wednesday, December 16, 2009 9:18 AM250 | Български

OBJ_BUCH-755-003.book Page 250 Wednesday, December 16, 2009 9:18 AMБългарски | 251

OBJ_BUCH-755-003.book Page 251 Wednesday, December 16, 2009 9:18 AM252 | Български

OBJ_BUCH-755-003.book Page 252 Wednesday, December 16, 2009 9:18 AMSrpski | 253 Bosch Power Tools 1 609 929 T86 | (16.12.09) sr

UPOZORENJE OBJ_BUCH-755-003.book Page 253 Wednesday, December 16, 2009 9:18 AM254 | Srpski

OBJ_BUCH-755-003.book Page 254 Wednesday, December 16, 2009 9:18 AMSrpski | 255

OBJ_BUCH-755-003.book Page 255 Wednesday, December 16, 2009 9:18 AM256 | Srpski

2004/108/EG, 2006/42/EG.

Senior Vice President

PAŽNJA OBJ_BUCH-755-003.book Page 258 Wednesday, December 16, 2009 9:18 AMSrpski | 259

OBJ_BUCH-755-003.book Page 260 Wednesday, December 16, 2009 9:18 AMSrpski | 261

OPOZORILO OBJ_BUCH-755-003.book Page 263 Wednesday, December 16, 2009 9:18 AM264 | Slovensko

OBJ_BUCH-755-003.book Page 264 Wednesday, December 16, 2009 9:18 AMSlovensko | 265

OBJ_BUCH-755-003.book Page 265 Wednesday, December 16, 2009 9:18 AM266 | Slovensko

OBJ_BUCH-755-003.book Page 267 Wednesday, December 16, 2009 9:18 AM268 | Slovensko

OBJ_BUCH-755-003.book Page 268 Wednesday, December 16, 2009 9:18 AMSlovensko | 269

Senior Vice President

OBJ_BUCH-755-003.book Page 269 Wednesday, December 16, 2009 9:18 AM270 | Slovensko

OBJ_BUCH-755-003.book Page 271 Wednesday, December 16, 2009 9:18 AM272 | Slovensko

OBJ_BUCH-755-003.book Page 272 Wednesday, December 16, 2009 9:18 AMSlovensko | 273

OBJ_BUCH-755-003.book Page 273 Wednesday, December 16, 2009 9:18 AM274 | Hrvatski 1 609 929 T86 | (16.12.09) Bosch Power Tools hr

UPOZORENJE OBJ_BUCH-755-003.book Page 274 Wednesday, December 16, 2009 9:18 AMHrvatski | 275

OBJ_BUCH-755-003.book Page 275 Wednesday, December 16, 2009 9:18 AM276 | Hrvatski

OBJ_BUCH-755-003.book Page 276 Wednesday, December 16, 2009 9:18 AMHrvatski | 277

OBJ_BUCH-755-003.book Page 278 Wednesday, December 16, 2009 9:18 AMHrvatski | 279

2004/108/EG, 2006/42/EG.

Senior Vice President

OBJ_BUCH-755-003.book Page 280 Wednesday, December 16, 2009 9:18 AMHrvatski | 281

OBJ_BUCH-755-003.book Page 282 Wednesday, December 16, 2009 9:18 AMHrvatski | 283

TÄHELEPANU OBJ_BUCH-755-003.book Page 285 Wednesday, December 16, 2009 9:18 AM286 | Eesti

OBJ_BUCH-755-003.book Page 286 Wednesday, December 16, 2009 9:18 AMEesti | 287

OBJ_BUCH-755-003.book Page 287 Wednesday, December 16, 2009 9:18 AM288 | Eesti

Senior Vice President

TÄHELEPANU OBJ_BUCH-755-003.book Page 290 Wednesday, December 16, 2009 9:18 AMEesti | 291

OBJ_BUCH-755-003.book Page 291 Wednesday, December 16, 2009 9:18 AM292 | Eesti

OBJ_BUCH-755-003.book Page 293 Wednesday, December 16, 2009 9:18 AM294 | Eesti

OBJ_BUCH-755-003.book Page 294 Wednesday, December 16, 2009 9:18 AMEesti | 295

BRĪDINĀJUMS OBJ_BUCH-755-003.book Page 296 Wednesday, December 16, 2009 9:18 AMLatviešu | 297

OBJ_BUCH-755-003.book Page 297 Wednesday, December 16, 2009 9:18 AM298 | Latviešu

OBJ_BUCH-755-003.book Page 298 Wednesday, December 16, 2009 9:18 AMLatviešu | 299

OBJ_BUCH-755-003.book Page 299 Wednesday, December 16, 2009 9:18 AM300 | Latviešu

OBJ_BUCH-755-003.book Page 300 Wednesday, December 16, 2009 9:18 AMLatviešu | 301

OBJ_BUCH-755-003.book Page 301 Wednesday, December 16, 2009 9:18 AM302 | Latviešu

Senior Vice President

OBJ_BUCH-755-003.book Page 302 Wednesday, December 16, 2009 9:18 AMLatviešu | 303

UZMANĪBU OBJ_BUCH-755-003.book Page 303 Wednesday, December 16, 2009 9:18 AM304 | Latviešu

OBJ_BUCH-755-003.book Page 305 Wednesday, December 16, 2009 9:18 AM306 | Latviešu

OBJ_BUCH-755-003.book Page 307 Wednesday, December 16, 2009 9:18 AM308 | Lietuviškai

OBJ_BUCH-755-003.book Page 308 Wednesday, December 16, 2009 9:18 AMLietuviškai | 309

OBJ_BUCH-755-003.book Page 309 Wednesday, December 16, 2009 9:18 AM310 | Lietuviškai

OBJ_BUCH-755-003.book Page 310 Wednesday, December 16, 2009 9:18 AMLietuviškai | 311

OBJ_BUCH-755-003.book Page 311 Wednesday, December 16, 2009 9:18 AM312 | Lietuviškai

OBJ_BUCH-755-003.book Page 312 Wednesday, December 16, 2009 9:18 AMLietuviškai | 313

Senior Vice President

OBJ_BUCH-755-003.book Page 314 Wednesday, December 16, 2009 9:18 AMLietuviškai | 315

OBJ_BUCH-755-003.book Page 316 Wednesday, December 16, 2009 9:18 AMLietuviškai | 317

OBJ_BUCH-755-003.book Page 317 Wednesday, December 16, 2009 9:18 AM318 | Lietuviškai

OBJ_BUCH-755-003.book Page 318 Wednesday, December 16, 2009 9:18 AM| 319

OBJ_BUCH-755-003.book Page 319 Wednesday, December 16, 2009 9:18 AM1 609 929 T86 | (16.12.09) Bosch Power Tools

OBJ_BUCH-755-003.book Page 320 Wednesday, December 16, 2009 9:18 AM
