USER MANUAL 1415 AD SKIL

EU Declaration of conformity

Rotation tool Article number

We declare under our sole responsibility that the stated products comply with all

applicable provisions of the directives and regulations listed below and are in

conformity with the following standards.

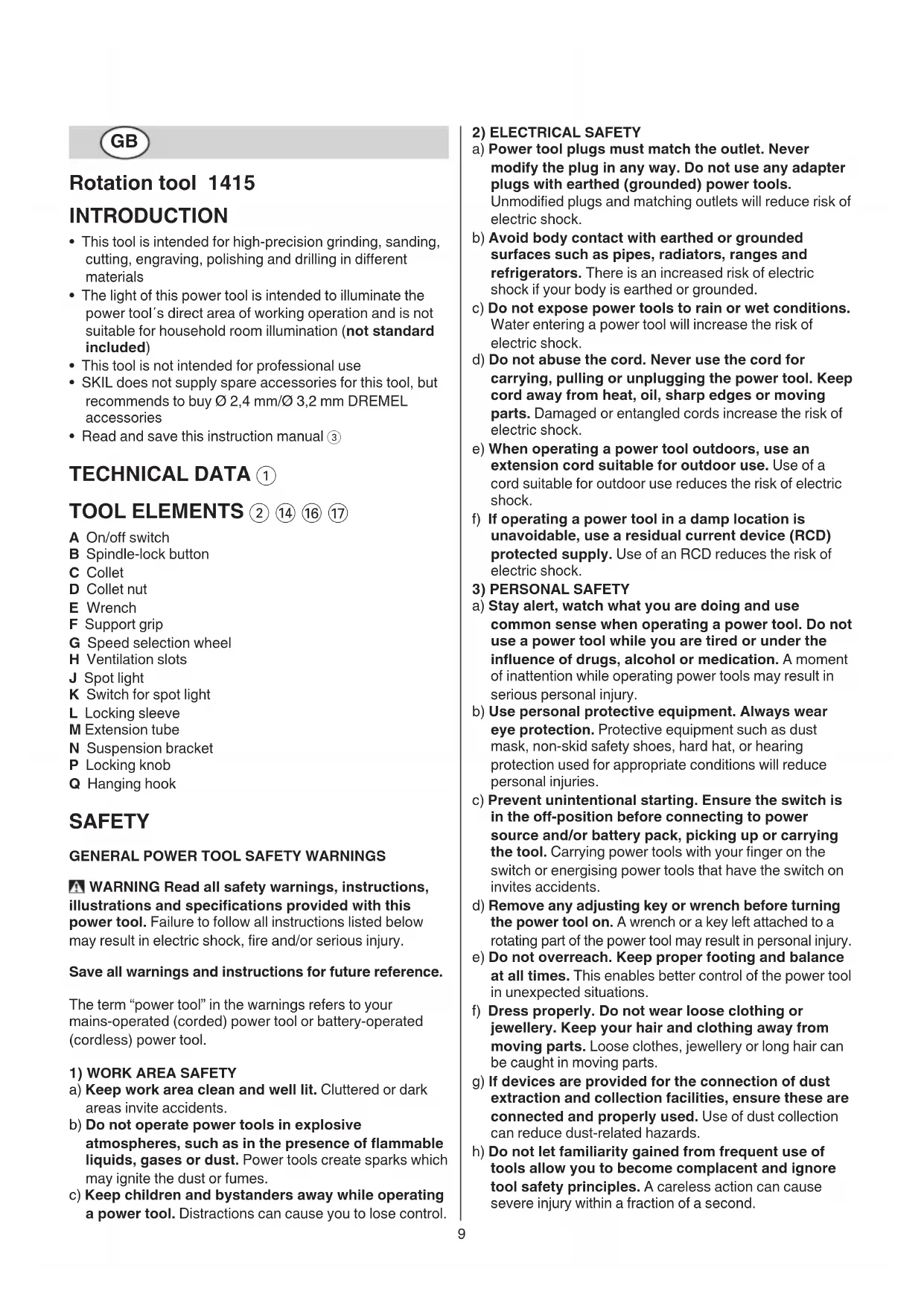

• This tool is intended for high-precision grinding, sanding,

cutting, engraving, polishing and drilling in dierent

• The light of this power tool is intended to illuminate the

power tool΄s direct area of working operation and is not

suitable for household room illumination (not standard

• This tool is not intended for professional use

• SKIL does not supply spare accessories for this tool, but

recommends to buy Ø 2,4 mm/Ø 3,2 mm DREMEL

• Read and save this instruction manual 3

G Speed selection wheel

K Switch for spot light

N Suspension bracket

SAFETY GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions,

illustrations and specifications provided with this

power tool. Failure to follow all instructions listed below

may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your

mains-operated (corded) power tool or battery-operated

(cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark

areas invite accidents.

b) Do not operate power tools in explosive

atmospheres, such as in the presence of flammable

liquids, gases or dust. Power tools create sparks which

may ignite the dust or fumes.

c) Keep children and bystanders away while operating

a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any adapter

plugs with earthed (grounded) power tools.

Unmodied plugs and matching outlets will reduce risk of

b) Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of

d) Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool. Keep

cord away from heat, oil, sharp edges or moving

parts. Damaged or entangled cords increase the risk of

e) When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use of a

cord suitable for outdoor use reduces the risk of electric

f) If operating a power tool in a damp location is

unavoidable, use a residual current device (RCD)

protected supply. Use of an RCD reduces the risk of

a) Stay alert, watch what you are doing and use

common sense when operating a power tool. Do not

use a power tool while you are tired or under the

influence of drugs, alcohol or medication. A moment

of inattention while operating power tools may result in

serious personal injury.

b) Use personal protective equipment. Always wear

eye protection. Protective equipment such as dust

mask, non-skid safety shoes, hard hat, or hearing

protection used for appropriate conditions will reduce

c) Prevent unintentional starting. Ensure the switch is

in the off-position before connecting to power

source and/or battery pack, picking up or carrying

the tool. Carrying power tools with your nger on the

switch or energising power tools that have the switch on

d) Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to a

rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance

at all times. This enables better control of the power tool

in unexpected situations.

f) Dress properly. Do not wear loose clothing or

jewellery. Keep your hair and clothing away from

moving parts. Loose clothes, jewellery or long hair can

be caught in moving parts.

g) If devices are provided for the connection of dust

extraction and collection facilities, ensure these are

connected and properly used. Use of dust collection

can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of

tools allow you to become complacent and ignore

tool safety principles. A careless action can cause

severe injury within a fraction of a second.10

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power

tool for your application. The correct power tool will do

the job better and safer at the rate for which it was

b) Do not use the power tool if the switch does not turn

it on and off. Any power tool that cannot be controlled

with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or

remove the battery pack, if detachable, from the

power tool before making any adjustments,

changing accessories, or storing power tools. Such

preventive safety measures reduce the risk of starting the

power tool accidentally.

d) Store idle power tools out of the reach of children

and do not allow persons unfamiliar with the power

tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained

e) Maintain power tools and accessories. Check for

misalignment or binding of moving parts, breakage

of parts and any other condition that may affect the

power tool’s operation. If damaged, have the power

tool repaired before use. Many accidents are caused

by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges are less

likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in

accordance with these instructions, taking into

account the working conditions and the work to be

performed. Use of the power tool for operations dierent

from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and

free from oil and grease. Slippery handles and

grasping surfaces do not allow for safe handling and

control of the tool in unexpected situations.

a) Have your power tool serviced by a qualified repair

person using only identical replacement parts. This

will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR ROTATION TOOLS

1) SAFETY WARNINGS COMMON FOR GRINDING,

SANDING, WIRE BRUSHING, POLISHING, CARVING OR ABRASIVE CUTTING-OFF OPERATIONS

a) This power tool is intended to function as a grinder,

sander, wire brush, polisher, carving or cut-off tool.

Read all safety warnings, instructions, illustrations

and specifications provided with this power tool.

Failure to follow all instructions listed below may result in

electric shock, re and/or serious injury.

b) Do not use accessories which are not specifically

designed and recommended by the tool

manufacturer. Just because the accessory can be

attached to your power tool, it does not assure safe

c) The rated speed of the accessory must be at least

equal to the maximum speed marked on the power

tool. Accessories running faster than their rated speed

d) The outside diameter and the thickness of your

accessory must be within the capacity rating of your

power tool. Incorrectly sized accessories cannot be

adequately controlled.

e) The arbour size of wheels, sanding drum or any

other accessory must properly fit the spindle or

collet of the power tool. Accessories that do not match

the mounting hardware of the power tool will run out of

balance, vibrate excessively and may cause loss of

f) Mandrel mounted wheels, sanding drums, cutters or

other accessories must be fully inserted into the

collet or chuck. If the mandrel is insuciently held and/

or the overhang of the wheel is too long, the mounted

wheel may become loose and be ejected at high velocity.

g) Do not use a damaged accessory. Before each use

inspect the accessory such as abrasive wheels for

chips and cracks, sanding drum for cracks, tear or

excess wear, wire brushes for loose or cracked

wires. If the power tool or accessory is dropped,

inspect for damage or install an undamaged

accessory. After inspecting and installing an

accessory, position yourself and bystanders away

from the plane of the rotating accessory and run the

power tool at maximum no load speed for one

minute. Damaged accessories will normally break apart

during this test time.

h) Wear personal protective equipment 4. Depending

on application, use face shield, safety goggles or

safety glasses. As appropriate, wear dust mask,

hearing protectors, gloves and shop apron capable

of stopping small abrasive or workpiece fragments.

The eye protection must be capable of stopping ying

debris generated by various operations. The dust mask or

respirator must be capable of ltrating particles

generated by your operation. Prolonged exposure to high

intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from work

area. Anyone entering the work area must wear

personal protective equipment. Fragments of the

workpiece or of a broken accessory may y away and

cause injury beyond the immediate area of operation.

j) Hold power tool by insulated gripping surfaces only,

when performing an operation where the cutting

accessory may contact hidden wiring or its own

cord. A cutting accessory contacting a “live” wire may

make exposed metal parts of the power tool “live” and

could give the operator an electric shock.

k) Always hold the tool firmly in your hands during the

start-up. The reaction torque of the motor, as it

accelerates to full speed, can cause the tool to twist.

l) Use clamps to support workpiece whenever

practical. Never hold a small workpiece in one hand

and the tool in the other hand while in use. Clamping

a small workpiece allows you to use both hands to control

the tool. Round material such as dowel rods, pipes or

tubing have a tendency to roll while being cut, and may

cause the bit to bind or jump toward you.

m) Position the cord clear of the spinning accessory. If

you lose control, the cord may be cut or snagged and

your hand or arm may be pulled into the spinning

n) Never lay the power tool down until the accessory

has come to a complete stop. The spinning accessory

may grab the surface and pull the power tool out of your

o) After changing the bits or making any adjustments,

make sure the collet nut, chuck or any other

adjustment devices are securely tightened. Loose

adjustment devices can unexpectedly shift, causing loss

of control, loose rotating components will be violently

p) Do not run the power tool while carrying it at your

side. Accidental contact with the spinning accessory

could snag your clothing, pulling the accessory into your

q) Regularly clean the power tool’s air vents. The

motor’s fan will draw the dust inside the housing and

excessive accumulation of powdered metal may cause

r) Do not operate the power tool near flammable

materials. Sparks could ignite these materials.

s) Do not use accessories that require liquid coolants.

Using water or other liquid coolants may result in

electrocution or shock.

2) KICKBACK AND RELATED WARNINGS

• Kickback is a sudden reaction to a pinched or snagged

rotating wheel, sanding band, brush or any other

accessory. Pinching or snagging causes rapid stalling of

the rotating accessory which in turn causes the

uncontrolled power tool to be forced in the direction

opposite of the accessory’s rotation at the point of the

• For example, if an abrasive wheel is snagged or pinched

by the workpiece, the edge of the wheel that is entering

into the pinch point can dig into the surface of the

material causing the wheel to climb out or kick out. The

wheel may either jump toward or away from the operator,

depending on the direction of the wheel’s movement at

the point of pinching. Abrasive wheels may also break

under these conditions.

• Kickback is the result of power tool misuse and/or

incorrect operating procedures or conditions and can be

avoided by taking proper precautions as given below.

a) Maintain a firm grip on the power tool and position

your body and arm to allow you to resist kickback

forces.The operator can control kickback forces, if

proper precautions are taken.

b) Use special care when working corners, sharp

edges etc. Avoid bouncing and snagging the

accessory. Corners, sharp edges or bouncing have a

tendency to snag the rotating accessory and cause loss

of control or kickback.

c) Do not attach a toothed saw blade. Such blades

create frequent kickback and loss of control.

d) Always feed the bit into the material in the same

direction as the cutting edge is exiting from the

material (which is the same direction as the chips

are thrown). Feeding the tool in the wrong direction

causes the cutting edge of the bit to climb out of the work

and pull the tool in the direction of this feed.

e) When using rotary files, cut-off wheels, high-speed

cutters or tungsten carbide cutters, always have the

work securely clamped. These wheels will grab if they

become slightly canted in the groove, and can kickback.

When a cut-o wheel grabs, the wheel itself usually

breaks. When the rotary le, high-speed cutter or

tungsten carbide cutter grab, it may jump from the groove

and you could lose control of the tool.

3) SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTING-OFF OPERATIONS

a) Use only wheel types that are recommended for

your power tool and only for recommended

applications. For example: Do not grind with the side of

a cut-o wheel. Abrasive cut-o wheels are intended for

peripheral grinding; side forces applied to these wheels

may cause them to shatter.

b) For threaded abrasive cones and plugs use only

undamaged wheel mandrels with an unrelieved

shoulder flange that are of correct size and length.

Proper mandrels will reduce the possibility of breakage.

c) Do not “jam” the cut-off wheel or apply excessive

pressure. Do not attempt to make an excessive

depth of cut. Overstressing the wheel increases the

loading and susceptibility to twisting or binding of the

wheel in the cut and the possibility of kickback or wheel

d) Do not position your hand in line with and behind

the rotating wheel. When the wheel, at the point of

operation, is moving away from your hand, the possible

kickback may propel the spinning wheel and the power

tool directly at you.

e) When the wheel is pinched, snagged or when

interrupting a cut for any reason, switch off the

power tool and hold the power tool motionless until

the wheel comes to a complete stop. Never attempt

to remove the cut-off wheel from the cut while the

wheel is in motion, otherwise kickback may occur.

Investigate and take corrective action to eliminate the

cause of wheel binding.

f) Do not restart the cutting operation in the

workpiece. Let the wheel reach full speed and

carefully re-enter the cut. The wheel may bind, walk up

or kickback if the power tool is restarted in the workpiece.

g) Support panels or any oversized workpiece to

minimize the risk of wheel pinching and kickback.

Large workpieces tend to sag under their own weight.

Supports must be placed under the workpiece near the

line of cut and near the edge of the workpiece on both

h) Use extra caution when making a “pocket cut” into

existing walls or other blind areas. The protruding

wheel may cut gas or water pipes, electrical wiring or

objects that can cause kickback.

4) SAFETY WARNINGS SPECIFIC FOR WIRE BRUSHING OPERATIONS

a) Be aware that wire bristles are thrown by the brush

even during ordinary operation. Do not overstress

the wires by applying excessive load to the brush.

The wire bristles can easily penetrate light clothing and/

b) Allow brushes to run at operating speed for at least

one minute before using them. During this time no

one is to stand in front or in line with the brush.

Loose bristles or wires will be discharged during the

c) Direct the discharge of the spinning wire brush

away from you. Small particles and tiny wire fragments

may be discharged at high velocity during the use of

these brushes and may become imbedded in your skin.

• This tool should not be used by people under the age of

• Only use this tool for applications without the use of water

• Always disconnect plug from power source before

making any adjustment or changing any accessory

• SKIL can assure awless functioning of the tool only

when original accessories are used

• Use only accessories recommended by SKIL

• For mounting/using non-SKIL accessories observe the

instructions of the manufacturer concerned

• Use only accessories with an allowable speed matching

at least the highest no-load speed of the tool

• Do not use damaged, deformed or vibrating accessories

• Handle and store grinding/cutting discs carefully to avoid

chipping and cracking

• Protect accessories from impact, shock and grease

• Never use grinding discs over 32 mm (1 1/4”) Ø

• Never use drill bits over 3.2 mm (1/8”) Ø

• Never use a cutting disc for side grinding

• Never use reducors or adaptors to t large-hole grinding/

• Always check that the supply voltage is the same as the

voltage indicated on the nameplate of the tool (tools with

a rating of 230V or 240V can also be connected to a

• Do not work materials containing asbestos (asbestos

is considered carcinogenic)

• Secure the workpiece (a workpiece clamped with

clamping devices or in a vice is held more securely than

• Use completely unrolled and safe extension cords with a

capacity of 16 Amps (U.K. 13 Amps)

• Wear protective glasses and hearing protection 4,

protective gloves and sturdy shoes; when necessary, also

• Dust from material such as paint containing lead, some

wood species, minerals and metal may be harmful

(contact with or inhalation of the dust may cause allergic

reactions and/or respiratory diseases to the operator or

bystanders); wear a dust mask and work with a dust

extraction device when connectable

• Certain kinds of dust are classied as carcinogenic (such

as oak and beech dust) especially in conjunction with

additives for wood conditioning; wear a dust mask and

work with a dust extraction device when

• Follow the dust-related national requirements for the

materials you want to work with

• Ensure that the collet size corresponds with the shaft size

• Be sure tool is switched o when plugging in

• Use auxiliary handle(s), if supplied with the tool

(loss of control can cause personal injury)

• Hold the power tool by insulated gripping surfaces,

when performing an operation where the cutting

accessory may contact hidden wiring or its own

cord (cutting accessory contacting a “live” wire may

make exposed metal parts of the power tool “live” and

could give the operator an electric shock)

• Always keep the cord away from moving parts of the tool;

direct the cord to the rear, away from the tool

• Never use the tool when cord is damaged; have it

replaced by a qualied person

• Never use spindle lock while tool is running (damage

due to improper handling will be excluded from the

• Keep hands away from rotating accessories

• When grinding metal, sparks are generated; keep other

persons and combustible material from work area

• Keep the ventilation slots uncovered while working

• In case of electrical or mechanical malfunction,

immediately switch o the tool and disconnect the plug

• The accessory continues to rotate for a short time after

the tool has been switched o

• Before you put down the tool, switch o the motor and

ensure that all moving parts have come to a complete

• After switching o the tool, never stop the rotation of the

accessory by a force applied against it

• Store tool in locations where temperature will not exceed

50°C EXPLANATION OF SYMBOLS ON TOOL

3 Read the instruction manual before use

4 Wear protective glasses and hearing protection

5 Double insulation (no earth wire required)

6 Do not dispose of the tool together with household waste

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire

in the cord of this tool to the earth terminal of the plug

• If for any reason the old plug is cut o the cord of this tool,

it must be disposed of safely and not left unattended

• Changing accessories 7

! switch off the tool and disconnect the plug

! ensure that collet size corresponds with shaft

- push spindle-lock button B and hold it while you turn

collet nut D by hand until the spindle lock prevents

further rotation and loosen collet nut D with wrench E

- insert an accessory in collet C as far as possible to

minimize run-out and unbalance

- push spindle-lock button B and hold it while you

tighten collet nut D with wrench E

! avoid excessive tightening of collet nut D

! never tighten collet nut, if there is no accessory

in collet; collet may be damaged

• Changing collets 8

! switch off the tool and disconnect the plug

- push spindle-lock button B and hold it while you

- insert new collet13

! never tighten collet nut, if there is no accessory

in collet; collet may be damaged

• Before using the tool

- ensure that accessory is correctly mounted and rmly

- check if accessory runs freely by turning it by hand

- test-run tool for at least 60 seconds at highest no-load

speed in a safe position

- stop immediately in case of considerable vibration or

other defects and check tool to determine the cause

- switch on/o the tool by pushing knob A in “I”/”O”

! before the accessory reaches the workpiece, the

tool should run at full speed

! before switching off the tool, you should lift it

For optimal results on dierent materials

- select speed with wheel G (also while tool is running)

- use table ! as reference for determining the right

- before starting a job, nd the optimal speed by testing

out on spare material

! after longer periods of working at low speed, allow

the tool to cool down by running it for

approximately 3 minutes at high speed with no load

• Holding and guiding the tool @

- pencil grip for precision work (engraving)

- one-hand grip for less precise work (grinding)

- support grip for additional control/comfort

- do not apply too much pressure on the tool; let the

speed do the work for you

- can be adjusted as illustrated

- can be mounted in 4 dierent positions

• Spot light (not standard included) $

Switch on/o spotlight J by turning knob K counter-

• Flexible shaft (not standard included) %

- mount exible shaft as illustrated

- use exible shaft for hard-to-reach places

Changing accessories when using exible shaft ^

- pull sleeve L down (= lock spindle) and hold it while

you turn collet nut D by hand until the spindle lock

prevents further rotation and loosen collet nut D with

- insert an accessory in collet C

- pull sleeve L down (= lock spindle) and hold it while

you tighten collet nut D with wrench E

• Mounting stand (not standard included) &

- mount stand on a workbench or table-top with a

maximum thickness of 60 mm

- adjust height of stand by turning tubes M counter-

clockwise, pulling them to desired height, and turning

- adjust height of suspension bracket N by loosening

knob P, adjusting suspension bracket to desired

height, and tightening knob P

- attach tool to suspension bracket with hook Q

• Assembly of specic accessories *

MAINTENANCE / SERVICE

• This tool is not intended for professional use

• Always keep tool and cord clean (especially ventilation

! disconnect the plug before cleaning

• If the tool should fail despite the care taken in manufacturing

and testing procedures, repair should be carried out by an

after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of

purchase to your dealer or the nearest SKIL service

station (addresses as well as the service diagram of

the tool are listed on www.skil.com)

• Do not dispose of electric tools, accessories and

packaging together with household waste material

(only for EU countries)

- in observance of European Directive 2012/19/EC on

waste of electric and electronic equipment and its

implementation in accordance with national law,

electric tools that have reached the end of their life

must be collected separately and returned to an

environmentally compatible recycling facility

- symbol 6 will remind you of this when the need for

• Measured in accordance with EN 60745 the sound

pressure level of this tool is 71 dB(A) (standard deviation:

3 dB) and the vibration 2.9 m/s² (triax vector sum;

uncertainty K = 1.5 m/s²)

• The vibration emission level has been measured in

accordance with a standardised test given in EN 60745; it

may be used to compare one tool with another and as a

preliminary assessment of exposure to vibration when

using the tool for the applications mentioned

- using the tool for dierent applications, or with dierent

or poorly maintained accessories, may signicantly

increase the exposure level

- the times when the tool is switched o or when it is

running but not actually doing the job, may signicantly

reduce the exposure level

! protect yourself against the effects of vibration

by maintaining the tool and its accessories,

keeping your hands warm, and organizing your
