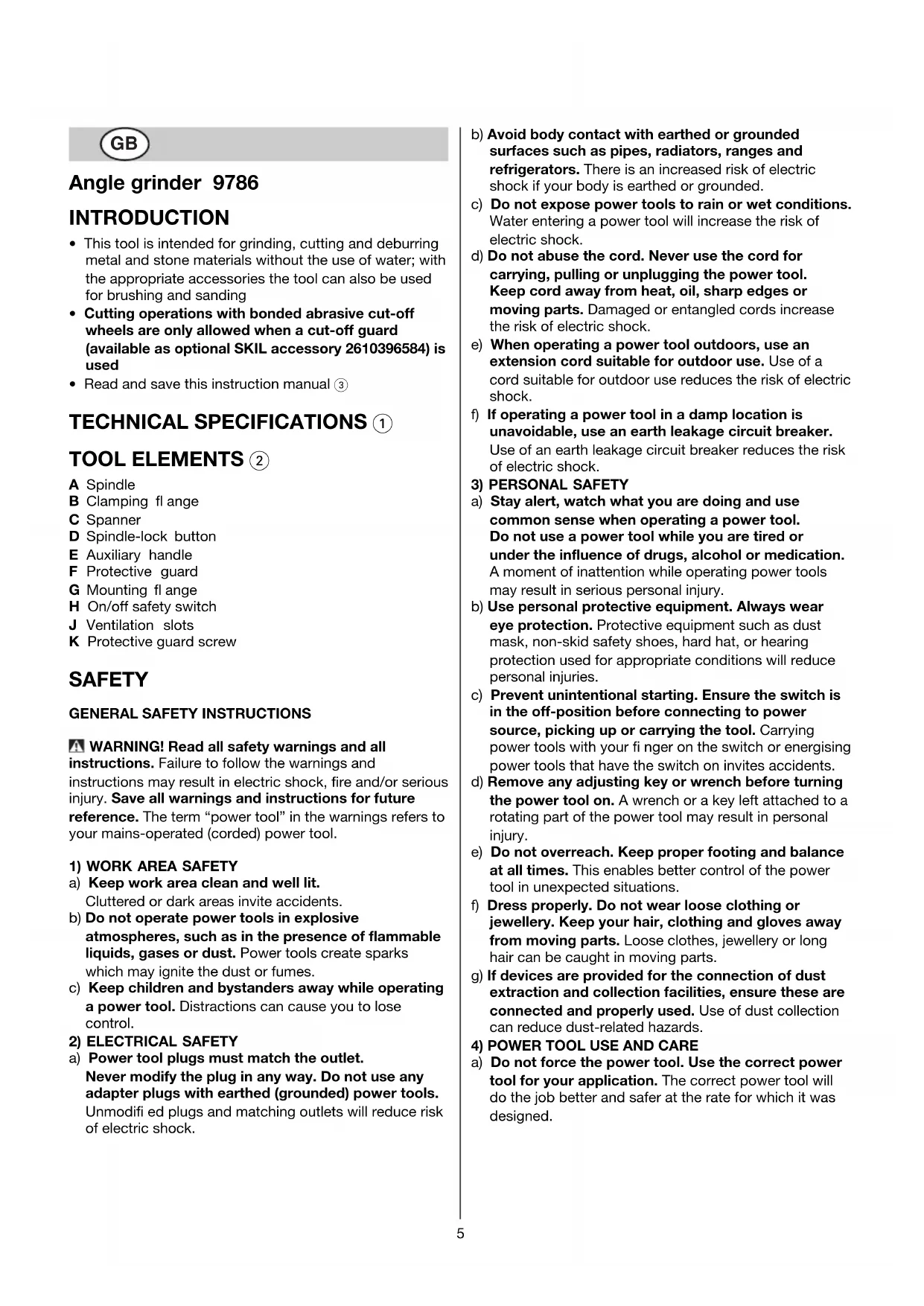

USER MANUAL 9786 MA SKIL

• This tool is intended for grinding, cutting and deburring

metal and stone materials without the use of water; with

the appropriate accessories the tool can also be used

for brushing and sanding

• Cutting operations with bonded abrasive cut-off

wheels are only allowed when a cut-off guard

(available as optional SKIL accessory 2610396584) is

• Read and save this instruction manual 3

H On/off safety switch

K Protective guard screw

SAFETY GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and

instructions may result in electric shock, fire and/or serious

injury. Save all warnings and instructions for future

reference. The term “power tool” in the warnings refers to

your mains-operated (corded) power tool.

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive

atmospheres, such as in the presence of flammable

liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

c) Keep children and bystanders away while operating

a power tool. Distractions can cause you to lose

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet.

Never modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power tools.

Unmodifi ed plugs and matching outlets will reduce risk

b) Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of

d) Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or

moving parts. Damaged or entangled cords increase

the risk of electric shock.

e) When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use of a

cord suitable for outdoor use reduces the risk of electric

f) If operating a power tool in a damp location is

unavoidable, use an earth leakage circuit breaker.

Use of an earth leakage circuit breaker reduces the risk

a) Stay alert, watch what you are doing and use

common sense when operating a power tool.

Do not use a power tool while you are tired or

under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools

may result in serious personal injury.

b) Use personal protective equipment. Always wear

eye protection. Protective equipment such as dust

mask, non-skid safety shoes, hard hat, or hearing

protection used for appropriate conditions will reduce

c) Prevent unintentional starting. Ensure the switch is

in the off-position before connecting to power

source, picking up or carrying the tool. Carrying

power tools with your fi nger on the switch or energising

power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to a

rotating part of the power tool may result in personal

e) Do not overreach. Keep proper footing and balance

at all times. This enables better control of the power

tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or

jewellery. Keep your hair, clothing and gloves away

from moving parts. Loose clothes, jewellery or long

hair can be caught in moving parts.

g) If devices are provided for the connection of dust

extraction and collection facilities, ensure these are

connected and properly used. Use of dust collection

can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power

tool for your application. The correct power tool will

do the job better and safer at the rate for which it was

b) Do not use the power tool if the switch does not turn

it on and off. Any power tool that cannot be controlled

with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source before

making any adjustments, changing accessories, or

storing power tools. Such preventive safety measures

reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children

and do not allow persons unfamiliar with the power

tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained

e) Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and any

other condition that may affect the power tool’s

operation. If damaged, have the power tool repaired

before use. Many accidents are caused by poorly

maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting

edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc.,

in accordance with these instructions, taking into

account the working conditions and the work to be

performed. Use of the power tool for operations

different from those intended could result in a

hazardous situation.

a) Have your power tool serviced by a qualified repair

person using only identical replacement parts.

This will ensure that the safety of the power tool is

SAFETY INSTRUCTIONS FOR ANGLE GRINDERS

1) SAFETY INSTRUCTIONS FOR ALL OPERATIONS

a) This power tool is intended to function as a grinder,

sander, wire brush, polisher or cut-off tool. Read all

safety warnings, instructions, illustrations and

specifications provided with this power tool.

Failure to follow all instructions listed below may result

in electric shock, fi re and/or serious injury.

b) Do not use accessories which are not specifically

designed and recommended by the tool

manufacturer. Just because the accessory can be

attached to your power tool, it does not assure safe

c) The rated speed of the accessory must be at least

equal to the maximum speed marked on the power

tool. Accessories running faster than their rated speed

d) The outside diameter and the thickness of your

accessory must be within the capacity rating of your

power tool. Incorrectly sized accessories cannot be

adequately guarded or controlled.

e) The arbour size of wheels, flanges, backing pads or

any other accessory must properly fit the spindle of

the power tool. Accessories with arbour holes that do

not match the mounting hardware of the power tool will

run out of balance, vibrate excessively and may cause

f) Do not use a damaged accessory. Before each use

inspect the accessory such as abrasive wheels for

chips and cracks, backing pads for cracks, tear or

excess wear, wire brushes for loose or cracked

wires. If the power tool or accessory is dropped,

inspect for damage or install an undamaged

accessory. After inspecting and installing an

accessory, position yourself and bystanders away

from the plane of the rotating accessory and run the

power tool at maximum no load speed for one

minute. Damaged accessories will normally break apart

during this test time.

g) Wear personal protective equipment 4. Depending

on application, use face shield, safety goggles or

safety glasses. As appropriate, wear dust mask,

hearing protectors, gloves and shop apron capable

of stopping small abrasive or workpiece fragments.

The eye protection must be capable of stopping fl ying

debris generated by various operations. The dust mask

or respirator must be capable of fi ltrating particles

generated by your operation. Prolonged exposure to

high intensity noise may cause hearing loss.

h) Keep bystanders a safe distance away from work

area. Anyone entering the work area must wear

personal protective equipment. Fragments of the

workpiece or of a broken accessory may fl y away and

cause injury beyond the immediate area of operation.

i) Hold the power tool only by the insulated gripping

surfaces when performing an operation where the

cutting tool may contact hidden wiring or its own

power cord. Contact with a “live” wire will also make

exposed metal parts of the power tool “live” and shock

j) Position the cord clear of the spinning accessory.

If you lose control, the cord may be cut or snagged

and your hand or arm may be pulled into the spinning

k) Never lay the power tool down until the accessory

has come to a complete stop. The spinning accessory

may grab the surface and pull the power tool out of

l) Do not run the power tool while carrying it at your

side. Accidental contact with the spinning accessory

could snag your clothing, pulling the accessory into

m) Regularly clean the power tool’s air vents.

The motor’s fan will draw the dust inside the housing

and excessive accumulation of powdered metal may

cause electrical hazards.

n) Do not operate the power tool near flammable

materials. Sparks could ignite these materials.7

o) Do not use accessories that require liquid coolants.

Using water or other liquid coolants may result in

electrocution or shock.

2) KICKBACK AND RELATED WARNINGS

• Kickback is a sudden reaction to a pinched or snagged

rotating wheel, backing pad, brush or any other

accessory. Pinching or snagging causes rapid stalling of

the rotating accessory which in turn causes the

uncontrolled power tool to be forced in the direction

opposite of the accessory’s rotation at the point of the

• For example, if an abrasive wheel is snagged or pinched

by the workpiece, the edge of the wheel that is entering

into the pinch point can dig into the surface of the

material causing the wheel to climb out or kick out.

The wheel may either jump toward or away from the

operator, depending on the direction of the wheel’s

movement at the point of pinching. Abrasive wheels

may also break under these conditions.

• Kickback is the result of power tool misuse and/or

incorrect operating procedures or conditions and can

be avoided by taking proper precautions as given

a) Maintain a firm grip on the power tool and position

your body and arm to allow you to resist kickback

forces. Always use auxiliary handle, if provided, for

maximum control over kickback or torque reaction

during start-up. The operator can control torque

reactions or kickback forces, if proper precautions are

b) Never place your hand near the rotating accessory.

The accessory may kickback over your hand.

c) Do not position your body in the area where power

tool will move if kickback occurs. Kickback will propel

the tool in the direction opposite to the wheel’s

movement at the point of snagging.

d) Use special care when working corners, sharp

edges etc. Avoid bouncing and snagging the

accessory. Corners, sharp edges or bouncing have a

tendency to snag the rotating accessory and cause loss

of control or kickback.

e) Do not attach a saw chain woodcarving blade or

toothed saw blade. Such blades create frequent

kickback and loss of control.

3) SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTING OFF OPERATIONS

a) Always use the guard designed for the type of wheel

you are using. The guard must be securely attached

to the power tool and positioned for maximum

safety, so the least amount of wheel is exposed

towards the operator. The guard helps to protect the

operator from broken wheel fragments and accidental

contact with the wheel.

b) Use only wheel types that are recommended for

your power tool and the specific guard designed for

the selected wheel. Wheels for which the power tool

was not designed cannot be adequately guarded and

c) Wheels must be used only for recommended

applications. For example: Do not grind with the side

of a cut-off wheel. Abrasive cut-off wheels are intended

for peripheral grinding; side forces applied to these

wheels may cause them to shatter.

d) Always use undamaged wheel flanges that are of

correct size and shape for your selected wheel.

Proper wheel fl anges support the wheel thus reducing

the possibility of wheel breakage. Flanges for cut-off

wheels may be different from grinding wheel fl anges.

e) Do not use worn down wheels from larger power

tools. A wheel intended for a larger power tool is not

suitable for the higher speed of a smaller tool and may

4) ADDITIONAL SAFETY WARNINGS SPECIFIC FOR ABRASIVE CUTTING OFF OPERATIONS

a) Do not “jam” the cut-off wheel or apply excessive

pressure. Do not attempt to make an excessive

depth of cut. Overstressing the wheel increases the

loading and susceptibility to twisting or binding of the

wheel in the cut and the possibility of kickback or wheel

b) Do not position your body in line with and behind the

rotating wheel. When the wheel, at the point of

operation, is moving away from your body, the possible

kickback may propel the spinning wheel and the power

tool directly at you.

c) When the wheel is binding or when interrupting a cut

for any reason, switch off the power tool and hold

the power tool motionless until the wheel comes to

a complete stop. Never attempt to remove the cut-

off wheel from the cut while the wheel is in motion,

otherwise kickback may occur. Investigate and take

corrective action to eliminate the cause of wheel

d) Do not restart the cutting operation in the

workpiece. Let the wheel reach full speed and

carefully re-enter the cut. The wheel may bind, walk

up or kickback if the power tool is restarted in the

e) Support panels or any oversized workpiece to

minimize the risk of wheel pinching and kickback.

Large workpieces tend to sag under their own weight.

Supports must be placed under the workpiece near the

line of cut and near the edge of the workpiece on both

f) Use extra caution when making a “pocket cut” into

existing walls or other blind areas. The protruding

wheel may cut gas or water pipes, electrical wiring or

objects that can cause kickback.8

5) SAFETY WARNINGS SPECIFIC FOR SANDING OPERATIONS

a) When sanding, do not use excessively oversized

sanding disc paper. Follow the manufacturers’

recommendations when selecting sanding paper.

Larger sanding paper extending beyond the sanding

pad presents a laceration hazard and may cause

snagging, tearing of the disc, or kickback.

6) SAFETY WARNINGS SPECIFIC FOR POLISHING

a) Do not allow any loose portion of the polishing

bonnet or its attachment strings to spin freely.

Tuck away or trim any loose attachment strings.

Loose and spinning attachment strings can entangle

your fi ngers or snag on the workpiece.

7) SAFETY WARNINGS SPECIFIC FOR WIRE BRUSHING OPERATIONS

a) Be aware that wire bristles are thrown by the brush

even during ordinary operation. Do not overstress

the wires by applying excessive load to the brush.

The wire bristles can easily penetrate light clothing and/

b) If the use of a guard is recommended for wire

brushing, do not allow any interference of the wire

wheel or brush with the guard. Wire wheel or brush

may expand in diameter due to work load and

• Only use this tool for dry grinding/cutting

• Only use the fl anges which are supplied with this tool

• This tool should not be used by people under the age of

• Always disconnect plug from power source before

making any adjustment or changing any accessory

• SKIL can assure fl awless functioning of the tool only

when the correct accessories are used which can be

obtained from your SKIL dealer

• For mounting/using non-SKIL accessories observe the

instructions of the manufacturer concerned

• Never use reducors or adaptors to fi t large-hole

grinding/cutting discs

• Never use accessories with a “blind” threaded hole

smaller than M14 x 21 mm

• Connect the tool via a fault current (FI) circuit breaker

with a triggering current of 30 mA maximum

• Before using the tool for the fi rst time, it is

recommended to receive practical information

• Use suitable detectors to find hidden utility lines or

call the local utility company for assistance (contact

with electric lines can lead to fi re or electrical shock;

damaging a gas line can result in an explosion;

penetrating a water pipe will cause property damage or

an electrical shock)

• Do not work materials containing asbestos (asbestos

is considered carcinogenic)

• Dust from material such as paint containing lead, some

wood species, minerals and metal may be harmful

(contact with or inhalation of the dust may cause

allergic reactions and/or respiratory diseases to the

operator or bystanders); wear a dust mask and work

with a dust extraction device when connectable

• Certain kinds of dust are classifi ed as carcinogenic

(such as oak and beech dust) especially in conjunction

with additives for wood conditioning; wear a dust

mask and work with a dust extraction device when

• Follow the dust-related national requirements for the

materials you want to work with

• Be careful when cutting grooves, especially in

supporting walls (slots in supporting walls are subject to

country-specifi c regulations; these regulations are to be

observed under all circumstances)

• Clamp the workpiece in case it does not remain

stationary from its own weight

• Do not clamp the tool in a vice

• Use completely unrolled and safe extension cords with

a capacity of 16 Amps (U.K. 13 Amps)

• Inrush currents cause short-time voltage drops; under

unfavourable power supply conditions, other equipment

may be affected (if the system impedance of the power

supply is lower than 0,104 + j0,065 Ohm, disturbances

are unlikely to occur); if you need further clarifi cation,

you may contact your local power supply authority

• If the cord is damaged or cut through while working, do

not touch the cord, but immediately disconnect the

plug; never use the tool with a damaged cord

• In case of electrical or mechanical malfunction,

immediately switch off the tool and disconnect the plug

• In case of current interruption or when the plug is

accidentally pulled out, release switch H 2 in order to

prevent uncontrolled restarting

• After switching off the tool, never stop the rotation of

the accessory by a lateral force applied against it

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire

in the cord of this tool to the earth terminal of the plug

• If for any reason the old plug is cut off the cord of this

tool, it must be disposed of safely and not left

• Mounting of accessories 2

! disconnect the plug

- clean spindle A and all parts to be mounted

- tighten clamping fl ange B with spanner C while

pushing spindle-lock button D

! push spindle-lock button D only when spindle A is

- for removing accessories handle vice-versa9

! grinding/cutting discs become very hot during

use; do not touch them until they have cooled

! always mount backing pad when using sanding

! never use a grinding/cutting disc without the label

(“blotter”) which is glued onto it

• Mounting of auxiliary handle E 5

! disconnect the plug

• Removing/mounting/adjusting of protective guard F 6

! disconnect the plug

- open protective guard F by loosening screw K

- place protective guard F on the spindle collar of the

tool head and turn it to the required position

(depending on the work to be carried out)

! ensure that the closed side of the protective

guard always points to the operator

- fasten protective guard F by tightening screw K

• Before using the tool

- ensure that accessory is correctly mounted and fi rmly

- check if accessory runs freely by turning it by hand

- test-run tool for at least 30 seconds at highest no-

load speed in a safe position

- stop immediately in case of considerable vibration or

other defects and check tool to determine the cause

• On/off safety switch H 7

! be aware of the sudden impact when the tool is

! before the accessory reaches the workpiece, the

tool should run at full speed

- switch off tool 7b

! before switching off the tool, you should lift it

! the accessory continues to rotate for a short time

after the tool has been switched off

• Electronic soft-start

Ensures reaching the maximum speed smoothly without

a sudden impact when tool is switched on

- move the tool back and forth with moderate pressure

! never use a cutting disc for side grinding

- do not tilt the tool while cutting

- always move the tool in same direction as arrow on

tool head, in order to prevent the tool from being

pushed out of the cut in an uncontrolled manner

- do not apply pressure on the tool; let the speed of

the cutting disc do the work

- the working speed of the cutting disc depends on the

- do not brake cutting discs with side pressure

• Holding and guiding the tool

! while working, always hold the tool at the grey-

coloured grip area(s) 0

- always hold the tool fi rmly with both hands, so you

will have full control of the tool at all times

- provide for a secure stance

- pay attention to the direction of rotation; always hold

the tool so, that sparks and grinding/cutting dust fl y

- keep ventilation slots J 2 uncovered

The vibration emission level stated at the back of this

instruction manual (indicated by an asterisk) has been

measured in accordance with a standardised test given

in EN 60745; it may be used to compare one tool with

another and as a preliminary assessment of exposure to

vibration when using the tool for the applications

- using the tool for different applications, or with

different or poorly maintainted accessories, may

signifi cantly increase the exposure level

- the times when the tool is switched off or when it is

running but not actually doing the job, may

signifi cantly reduce the exposure level

! protect yourself against the effects of vibration by

maintaining the tool and its accessories, keeping

your hands warm, and organizing your work

MAINTENANCE / SERVICE

• Always keep tool and cord clean (especially the

! do not attempt to clean ventilation slots by

inserting pointed objects through openings

! disconnect the plug before cleaning

• If the tool should fail despite the care taken in

manufacturing and testing procedures, repair should be

carried out by an after-sales service centre for SKIL

- send the tool undismantled together with proof of

purchase to your dealer or the nearest SKIL service

station (addresses as well as the service diagram of

the tool are listed on www.skileurope.com)

• Do not dispose of electric tools, accessories and

packaging together with household waste material

(only for EU countries)

- in observance of European Directive 2002/96/EC on

waste of electric and electronic equipment and its

implementation in accordance with national law,

electric tools that have reached the end of their life

must be collected separately and returned to an

environmentally compatible recycling facility

- symbol ! will remind you of this when the need for

VEDLIKEHOLD / SERVICE

in corrispondenza della(e) area(e) grigia(e) 0

atitarnavusį prietaisą159

CE DECLARATION OF CONFORMITY We declare under our sole responsibility that this product is in conformity with the following

standards or standardized documents: EN 60 745, EN 55 014, in accordance with the provisions of the directives 2006/95/EC,

2004/108/EC, 98/37/EC (until Dec. 28, 2009), 2006/42/EC (from Dec. 29, 2009 on).

NOISE/VIBRATION Measured in accordance with EN 60 745 the sound pressure level of this tool is 96 dB(A) and the sound power

level 107 dB(A) (standard deviation: 3 dB), and the vibration ✱ m/s

2006/42/EG (from 29.12.2009).

While surface grinding While polishing While sanding Uncertainty (K)

! Other applications (such as cutting-off or wire brushing) may have different vibration

H I P E FIN N DK S NL D F GB
