USER MANUAL RCPR-17E Royal Catering

Abstract white line drawing of a stylized mythical creature on a dark blue background (no text or symbols)

DE	Produktname	Popcornmaschine
EN	Product name	Popcorn machine
PL	Nazwa produktu	Maszyna do popcornu
CZ	Název výrobku	Stroj na popcorn
FR	Nom du produit	Machine à pop-corn
IT	Nome del prodotto	Macchina per popcorn
ES	Nombre del producto	Máquina de palomitas
HU	Termék neve	Pattogatott kukorica gép
DA	Produktnavn	Popcornmaskine
FI	Tuotteen nimi	Popcorn-kone
NL	Productnaam	Popcornmachine
NO	Produktnavn	Popcornmaskin
SE	Produktnamn	Popcornmaskin
PT	Nome do produto	Máquina de pipocas
SK	Názov produktu	Stroj na výrobu popcornu
BG	Име на продукта	Машина за пуканки
EL	Όνομα προϊόντος	Μηχανή ποπ κορν
HR	Naziv proizvoda	Aparat za kokice
LT	Produkto pavadinimas	Popkornų aparatas
RO	Numele produsului	Maşină de popcorn
SL	Ime izdelka	Stroj za popcorn
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtėlo προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCPS-16E RCPS-16.2RCPR-16E RCPR-16.3RCPW-16E RCPS-BB1RCPC-16E RCPS-BG1RCPW-16.1 RCPS-WG1RCPR-16.1 RCPR-17ERCPW-16.2RCPW-16.3
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

Modelle RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3

POPCORN by ROYAL catering TIME 1 2 3 BEAT POWER & LIGHT

Modell RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Modell RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HUST 2 POWER 3

Modell RCPS-WG1

OLD FASHIONED POPCORN TURN 1 HUNT 2 PICKDOWN 3

Modelle RCPW-16.1 | RCPR-16.1

HOT & FRESH ① ② ③

POPCORN by NOTAL catering ① ② ③ ④ ⑤

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

1. Technical data

Parameter description	Parameter value
Product name	POPCORN MACHINE
Model	RCPS-16ERCPR-16ERCPW-16ERCPW-16.1RCPR-16.1RCPW-16.2	RCPW-16.3RCPS-16.2RCPR-16.3RCPS-BB1RCPS-BG1RCPS-WG1RCPR-17E	RCPC16E
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	1500		1820
Temperature [°C]	220-270		210-250
Amount of oil (ml/once)*	50
Amount of sugar (g/once)*	50
Amount of corn (g/once)*	150

*The above-mentioned proportions are approximate and can be adapted according to the customer's choice and needs.

2. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up-to-date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

2.1. Legend

Icon Description
CE	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.(general warning sign)
	ATTENTION! Electric shock warning!
	ATTENTION! Hot surface, risk of burns!

PLEASE NOTE! DRAWINGS IN THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY AND IN SOME DETAILS MAY DIFFER FROM THE ACTUAL PRODUCT.

3. Usage safety

ATTENTION! READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR SERIOUS INJURY OR EVEN DEATH.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Popcorn machine

3.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.

d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If working with the device outdoors, make sure to use an extension cord suitable for outdoor use. Using an extension cord suitable for outdoor use reduces the risk of electric shock.
f) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
g) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
h) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
i) Do not use in very humid environments or in the direct vicinity of water tanks.
j) Prevent the device from getting wet. Risk of electric shock!

3.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
d) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
e) In case of fire, use a powder or carbon dioxide (CO _2 ) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Children or unauthorised persons are forbidden to enter a work station. A distraction may result in loss of control over the device.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

REMEMBER! WHEN USING THE DEVICE, PROTECT CHILDREN AND OTHER BYSTANDERS.

3.3. Personal safety

i) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
j) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
k) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
I) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
m) Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair may get caught in moving parts.
n) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

3.4. Safe device use

o) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
p) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
q) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
r) Keep the device out of the reach of children.
s) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
t) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
u) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.

v) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.
w) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.
x) Do not move, adjust or rotate the device in the course of work.
v) Do not leave this appliance unattended while it is in use.
z) Clean the device regularly to prevent stubborn grime from accumulating.
aa) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
bb) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
cc) Keep the device away from sources of fire and heat.
dd) Do not overload the device.

ATTENTION! DESPITE THE SAFE DESIGN OF THE DEVICE AND ITS PROTECTIVE FEATURES, AND DESPITE THE USE OF ADDITIONAL ELEMENTS PROTECTING THE OPERATOR, THERE IS STILL A SLIGHT RISK OF ACCIDENT OR INJURY WHEN USING THE DEVICE. STAY ALERT AND USE COMMON SENSE WHEN USING THE DEVICE.

4. Use guidelines

The popcorn machine efficiently roasts corn and maintains its temperature.

The user is liable for any damage resulting from unintended use of the device.

4.1. Device description

FRONT PANEL

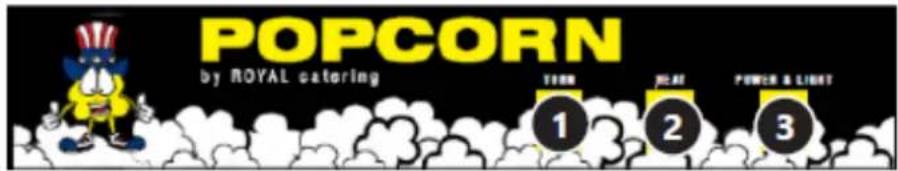

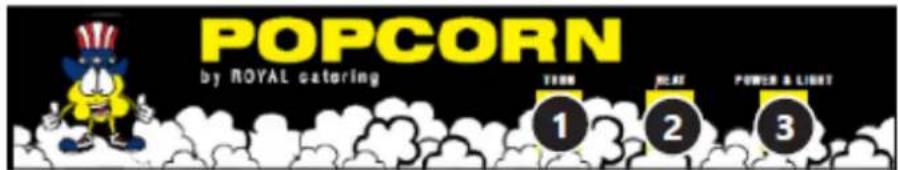

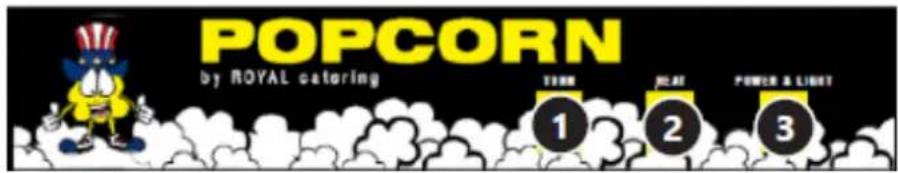

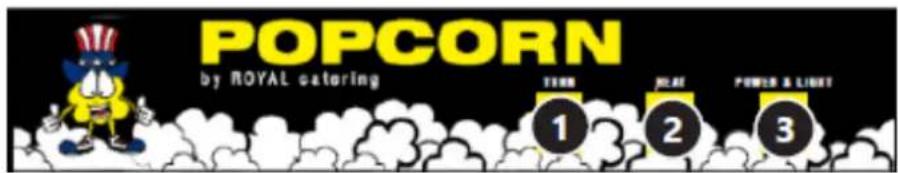

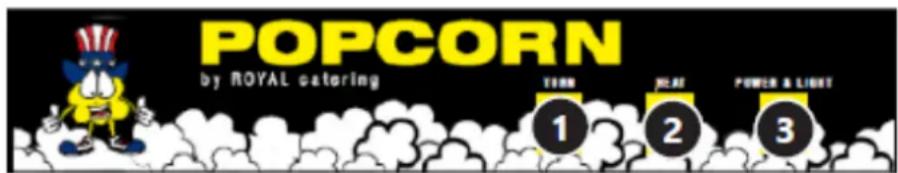

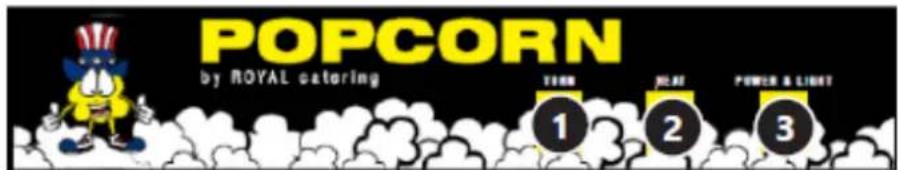

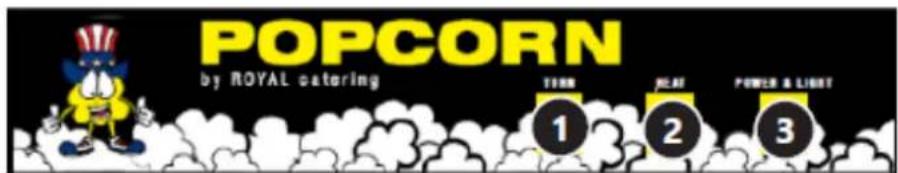

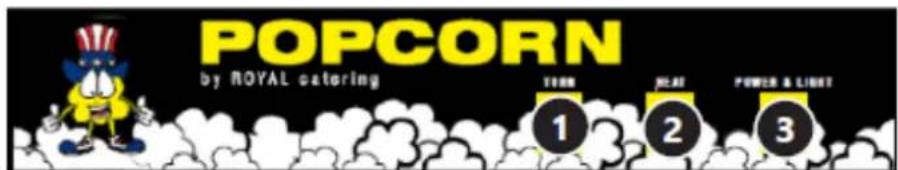

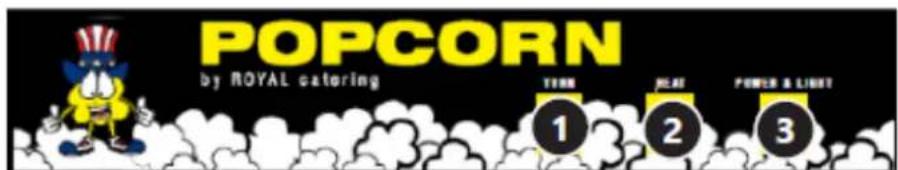

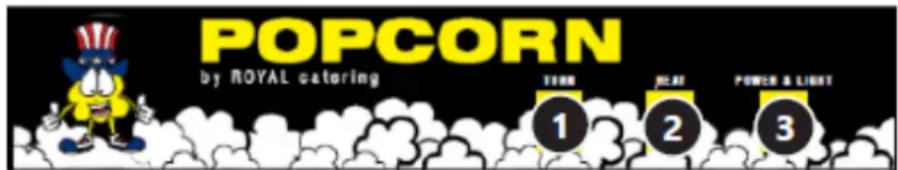

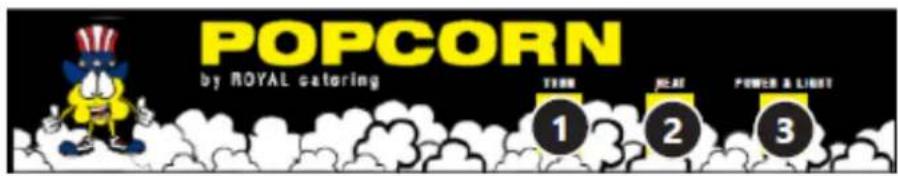

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3 models

POPCORN by ROYAL catering 1 2 3

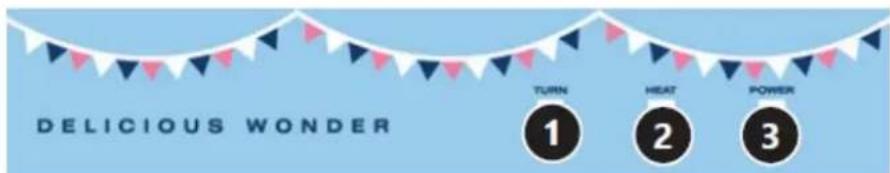

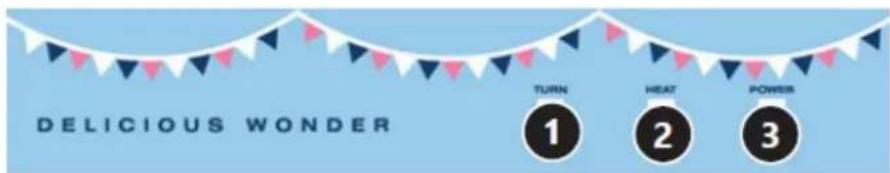

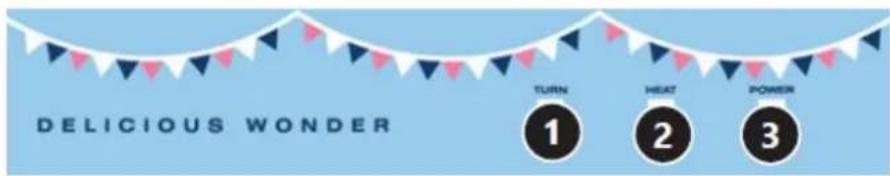

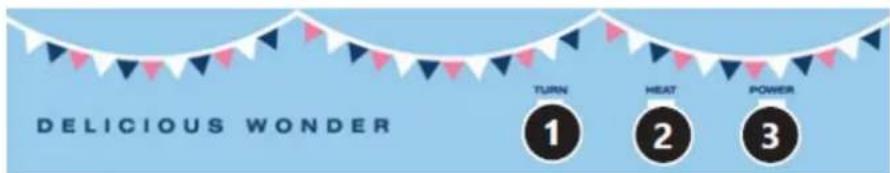

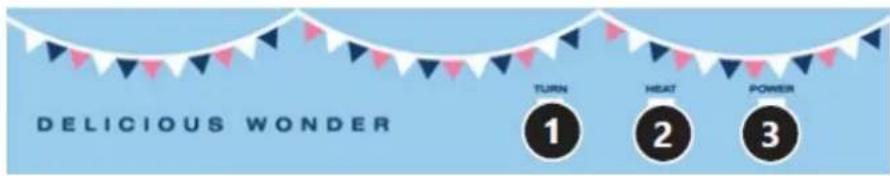

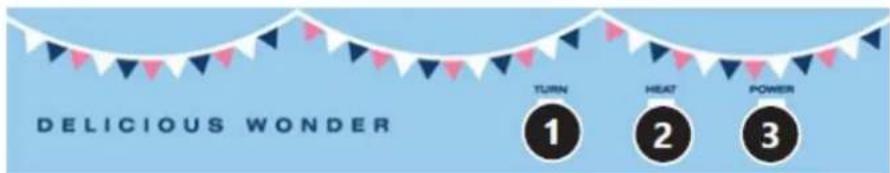

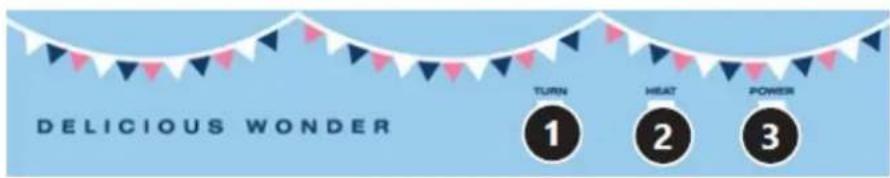

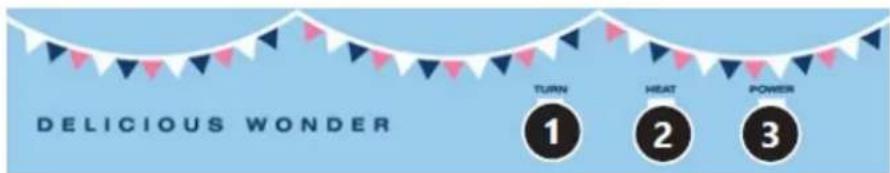

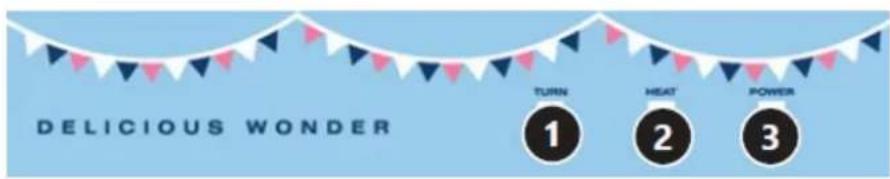

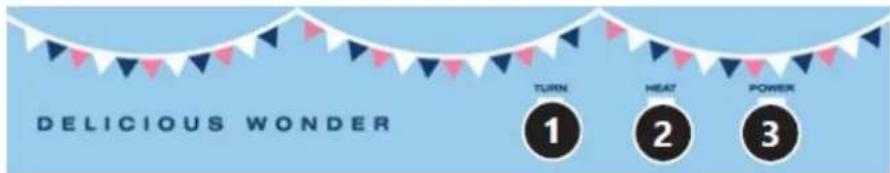

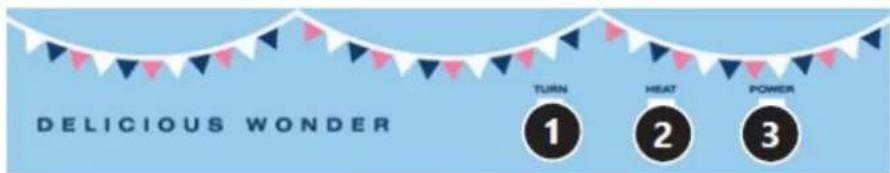

Model RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

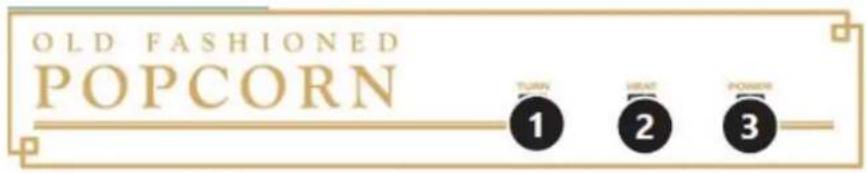

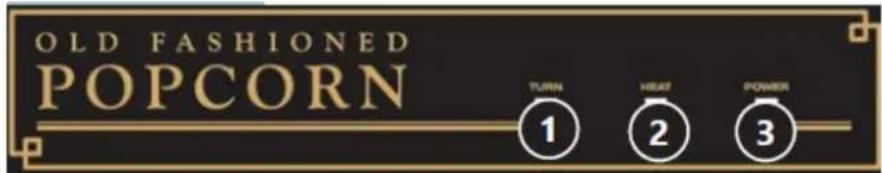

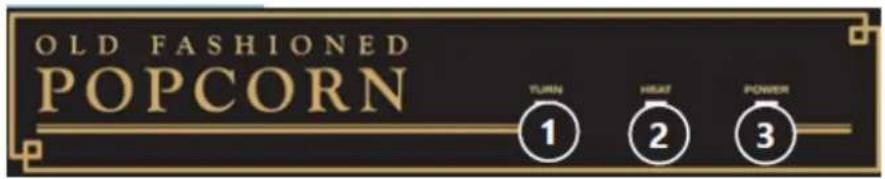

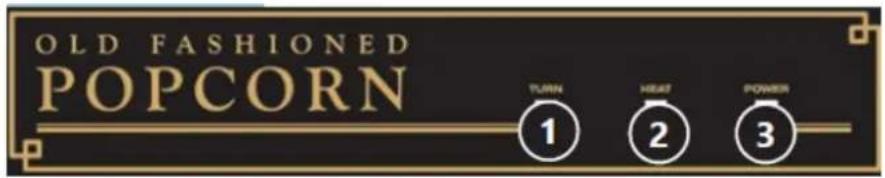

Model RCPS-BG1

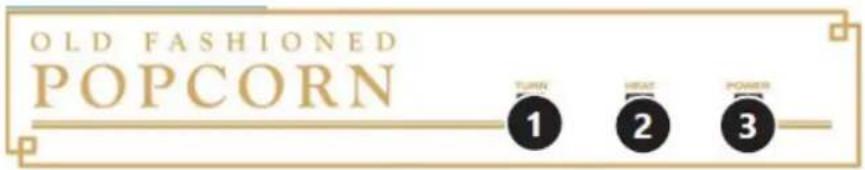

OLD FASHIONED POPCORN TURN 1 HUNT 2 POWER 3

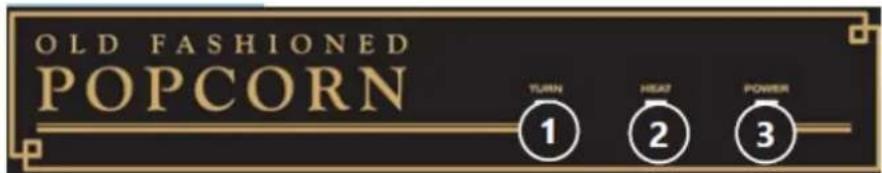

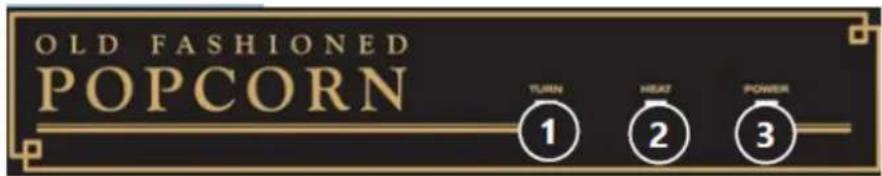

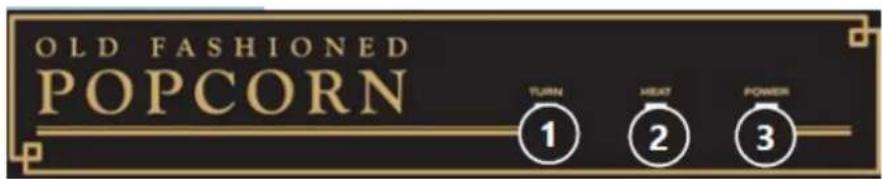

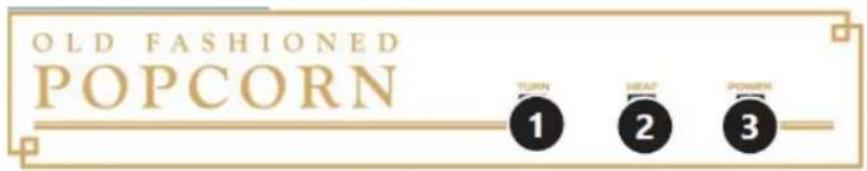

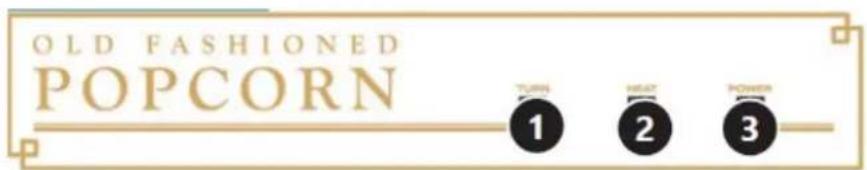

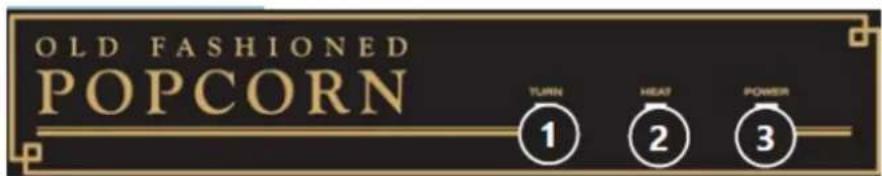

Model RCPS-WG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWERS 3

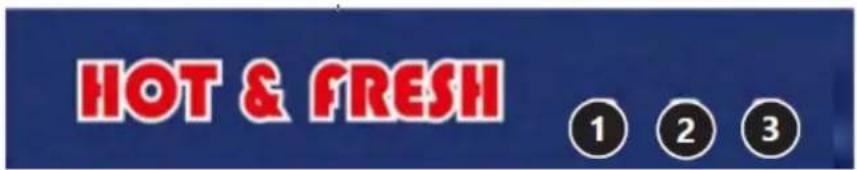

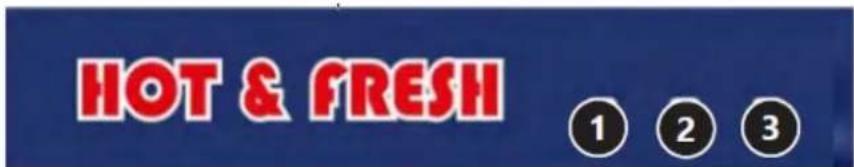

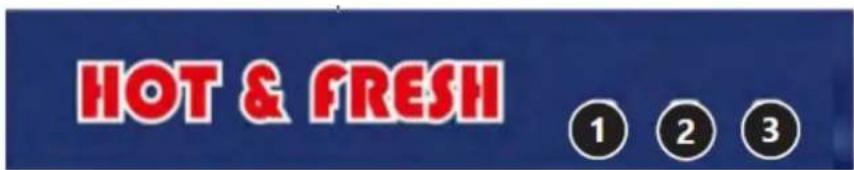

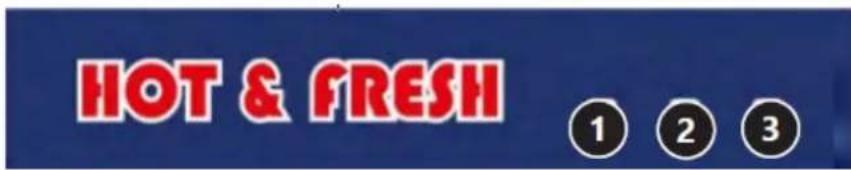

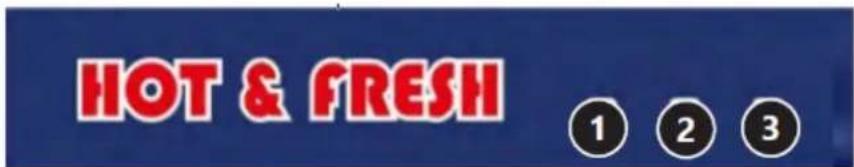

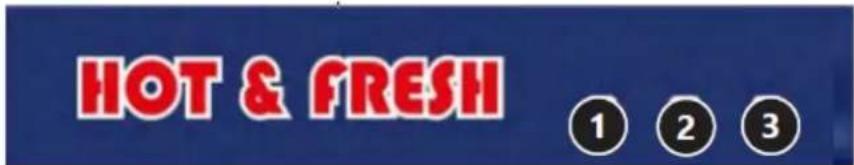

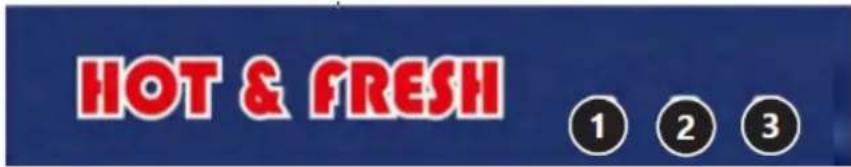

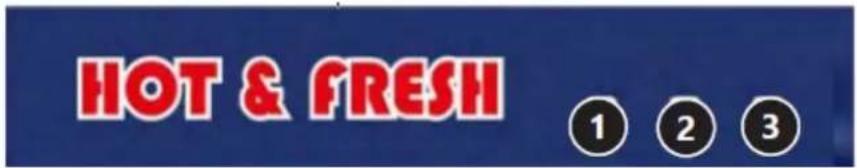

RCPW-16.1 | RCPR-16.1 models

HOT & FRESH ① ② ③

1. TURN – turning on the stir function

2. HEAT – turning on the bowl heating

3. POWER & LIGHT – turning on the interior light and heating

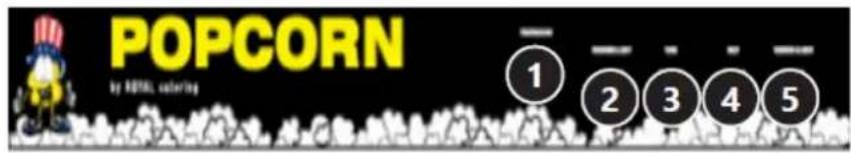

Model RCPC 16E

POPCORN by BOWL catering 1 2 3 4 5

1. TEMPERATURE – temperature regulator and display. Temperature regulator: The temperature can be set between 210^ C and 250^ C (the best temperature for making popcorn is from 210^ C to 230^ C). Temperature display: Shows the actual bowl temperature.
2. WARMING & LIGHT – turning on the showcase light and heating
3. TURN – turning on the stir function
4. HEAT – turning on the bowl heating
5. POWER & LIGHT – turning on the interior light and heating

4.2. Preparing for use

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects.

The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

4.3. Device use

ATTENTION: Before usage please remove the adhesive tape from the mixing arm which is located inside of the bowl.

ATTENTION! After reading the manual, before first use, please turn on the machine for 30 minutes making sure that the room is ventilated. The appearance of a small amount of smoke and the smell of paint is a normal occurrence of a new product in the process of heat up. Open the machine and ventilate, also clean using the cleaning agent dedicated for contact with food products. Machine is ready for use.

OPERATION

1. In order to switch on the heating range and the light turn on the switch (Power & Light).
2. Turn on the switch (HEAT) and pre-heat the bowl for 5-6 minutes (for the model RCPC 16E: set the desired temperature by using the temperature regulator – recommended temperature for popcorn preparation is between 210 °C and 230 °C – and turn on the HEAT switch). Put 50 ml oil (coconut oil would be best), 150 g corn and 50 g sugar into the pan.
3. Please note that during the production of popcorn, the door needs to be closed so that the hot popcorn cannot escape and cause burns.
4. By turning on the stir function (TURN-switch) you can stir the popcorn until all corn is popped. Now, tip the popcorn out of the bowl. To do that you have to operate the lever attached to the bowl.
5. You can repeat this procedure as often as you want to. It only takes approximately 2 minutes until the corn pops steadily.
6. Do not let any oil drop on the hot plate as it can result in a fire. WARNING: Do not let any water drip on the plate during the popcorn popping procedure.
7. The device is equipped with a thermostat. If the temperature exceeds the maximum the machine switches off automatically to ensure the required safety.

ATTENTION: The pot has to be emptied and the heating turned off as soon as the frequency (approx. 2-3 seconds) of popping slows down. Only like this, burning of sugar and popcorn as well as damage to the coating can be prevented. It is not always possible for all corn to pop. Remove residues after every production cycle. We cannot assume liability for damages to the pot's coating due to improper use.

4.4. Cleaning and maintenance

4.4.1. General instructions

ee) Always unplug the device before cleaning or putting it away.
ff) Use only non-corrosive cleaners to clean the surface.
gg) Use only mild, food-safe detergents to wash the device.
hh) After cleaning the device, all parts should be dried completely before using it again.
ii) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
jj) Do not spray the device with a water jet or submerge it in water.
kk) The device must be regularly inspected to check its technical efficiency and spot any damage.
II) Use a soft, damp cloth for cleaning.

mm) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.

4.4.2. Disposing of used devices

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

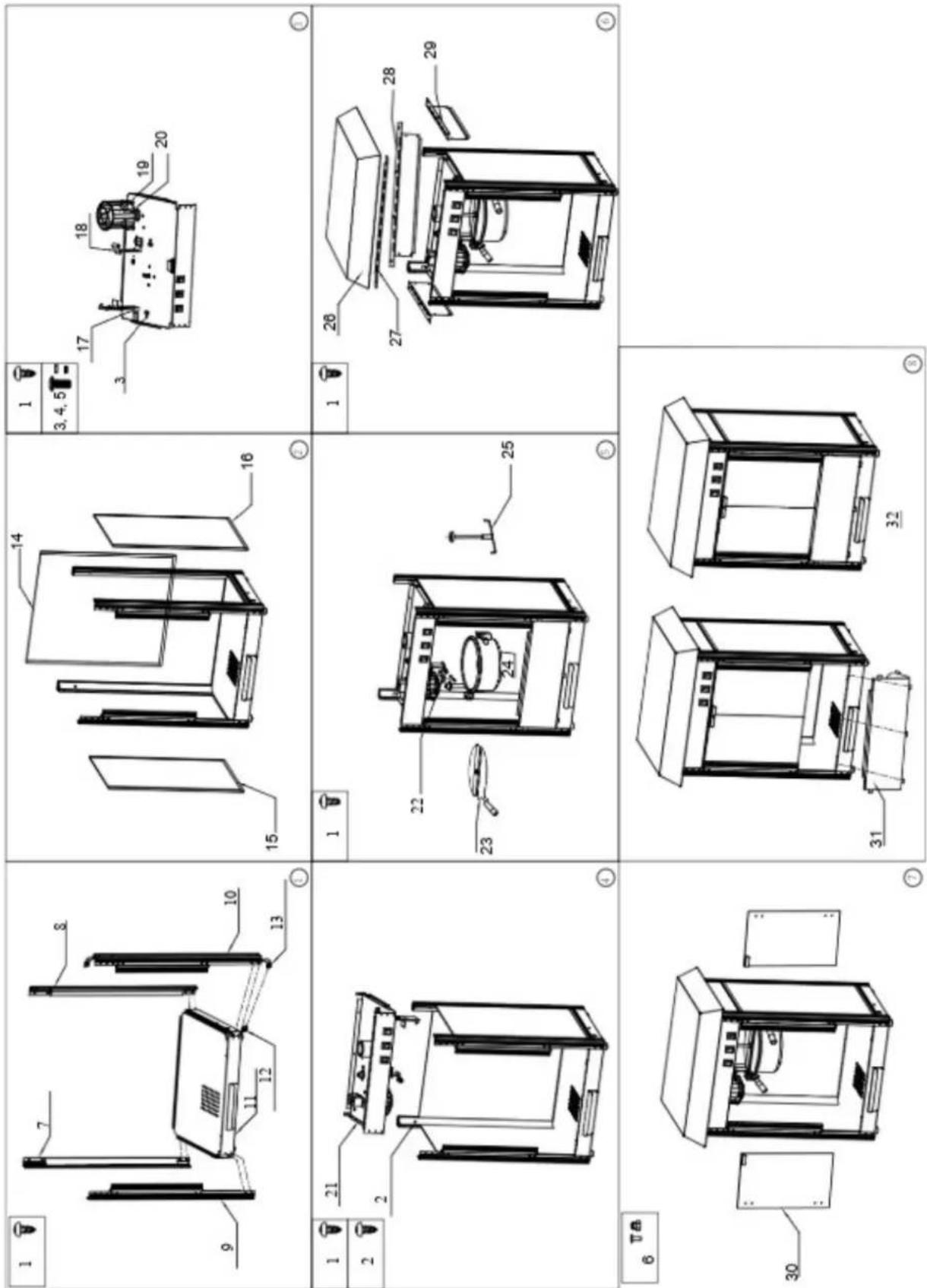

4.5. Assembling the device

Installation instructions for RCPR-17E:

1) Insert the front and rear pillars into the base. Before installing the left front pillar, connect the male and female ends of the quick connector of the base, and then use M4 self tapping screws to connect it to the base component;
2) Insert the left glass into the corresponding slots on the front left and rear left pillars, insert the right glass into the corresponding slots on the front right and rear right pillars, and insert the rear glass into the corresponding slots on the rear left and rear right pillars, without any order of sequence;
3) Screw the light bulb into the lamp holder, use M4 self tapping screws to tighten the lampshade to the upper component, and use M6X18 screws to tighten the left and right aluminum pot hooks;
4) Place the upper panel component in the slot at the top of the column, and then connect it to the rear column with M6 self tapping screws, and connect it to the front column with M4 self tapping screws;

5) Place the circular magnet below the motor output position of the upper component, then install the mixing shaft. First, insert the pot cover into the mixing shaft and use the magnet to attract it. Then install the material removal rod and mixing shaft decoration. Hang the aluminum pot and insert the circular pin, which is firmly fixed with an open pin. Finally, insert the aluminum pot power cord into the aviation plug, and then install the aviation plug with M4 self tapping screws;
6) Connect the male and female ends of the upper board quick connector, first use self tapping screws to install the left and right hanging plates and the rear hanging plate on the column, then install the front hanging plate on the top cover, and finally install the top cover on the machine;
7) Install the small glass door onto the front pillar using M4X10 screws and M4 cover nuts;
8) Place the door hanging board above the base, as shown in the overall effect above.

Parts list

Part number	Description	Part number	Description
1	M4 self-tapping screw	17	Right hook
2	M6 self-tapping screw	18	Left hook
3	M6 * 18 screws	19	Light bulb
4	Spring washers	20	Lampshade
5	Flat washers	21	Upper board components
6	Screw and cover nut	22	Aviation horsemen
7	Rear right pillar	23	Lid
8	Rear left pillar	24	Aluminum pot
9	Front right pillar	25	Mixing shaft
10	Front left pillar	26	Top cap
11	Base component Quick	27	Front hanging board
12	Connect head female end	28	Rear hanging board
13	Quick connect head male end	29	Left, right hanging board
14	Rear glass	30	Small glass door
15	Right glass	31	Hanging board under the door
16	Left glass	32	Image effect

Modele RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3

POPCORN by ROYAL catering TOK NEAT POWER & LIGHT 1 2 3

Model RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Model RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Model RCPS-WG1

OLD FASHIONED POPCORN TURN 1 WEAT 2 POWER 3

RCPW-16.1 | Modele RCPR-16.1

HOT & FRESH ① ② ③

POPCORN by HTML coloring 1 2 3 4 5

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3 modely

POPCORN by ROYAL catering TIME 1 2 3 BEAT POWER & LIGHT

Model RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Model RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Model RCPS-WG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

RCPW-16.1 | Modely RCPR-16.1

HOT & FRESH ① ② ③

POPCORN by NORTAL catering 1 2 3 4 5

POPCORN by ROYAL catering TOK NEAT POWER & LIGHT 1 2 3

Modèle RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Modèle RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Modèle RCPS-WG1

OLD FASHIONED POPCORN TURN 1 WEAT 2 POWER 3

HOT & FRESH ① ② ③

POPCORN by NRTL coloring ① ② ③ ④ ⑤

Modelli RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3

POPCORN by ROYAL catering TOK NEAT POWER & LIGHT 1 2 3

Modello RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Modello RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Modello RCPS-WG1

OLD FASHIONED POPCORN TURN 1 WEAT 2 POWER 3

RCPW-16.1 | Modelli RCPR-16.1

HOT & FRESH ① ② ③

POPCORN by NRTL coloring ① ② ③ ④ ⑤

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3 modelos

POPCORN by ROYAL catering TOK NEAT POWER & LIGHT 1 2 3

Modelo RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Modelo RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Modelo RCPS-WG1

OLD FASHIONED POPCORN TURN 1 WEAT 2 POWER 3

RCPW-16.1 | Modelos RCPR-16.1

HOT & FRESH ① ② ③

POPCORN by HTML coloring 1 2 3 4 5

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3 modellek

POPCORN by ROYAL Catering 1 2 3

Modell RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

RCPS-BG1 modell

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

RCPS-WG1 modell

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

RCPW-16.1 | RCPR-16.1 modellek

HOT & FRESH ① ② ③

POPCORN by #RTAL coloring 1 2 3 4 5

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3 modeller

POPCORN by ROYAL catering TIME 1 2 3 BEAT POWER & LIGHT

Model RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Model RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Model RCPS-WG1

OLD FASHIONED POPCORN TURN 1 MEAT 2 POWER 3

RCPW-16.1 | RCPR-16.1 modeller

HOT & FRESH ① ② ③

POPCORN by RDTNL catering 1 2 3 4 5

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3 -mallit

POPCORN by ROYAL catering 1 2 3

Malli RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Malli RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Malli RCPS-WG1

OLD FASHIONED POPCORN TURN 1 MEAT 2 POWER 3

RCPW-16.1 | RCPR-16.1 -mallit

HOT & FRESH ① ② ③

POPCORN by NORTAL catering 1 2 3 4 5

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3 modellen

POPCORN by ROYAL Catering TIME 1 2 3 BEAT POWER & LIGHT

Model RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 3 POWER

Model RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Model RCPS-WG1

OLD FASHIONED POPCORN 1 2 3

RCPW-16.1 | RCPR-16.1 modellen

HOT & FRESH ① ② ③

POPCORN by RDTAL catering 1 2 3 4 5

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3-modeller

POPCORN by ROYAL catering 1 2 3

Modell RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Modell RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Modell RCPS-WG1

OLD FASHIONED POPCORN TURN 1 MEAT 2 POWER 3

RCPW-16.1 | RCPR-16.1-modeller

HOT & FRESH ① ② ③

POPCORN by RDTL catering 1 2 3 4 5

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3-modeller

POPCORN by ROYAL catering TURN BEAT POWER & LIGHT 1 2 3

Modell RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Modell RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Modell RCPS-WG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POKES 3

RCPW-16.1 | RCPR-16.1-modeller

HOT & FRESH ① ② ③

POPCORN by TOTAL catering 1 2 3 4 5

RCPS-16E | RCPR-16E | Modelos RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3

POPCORN by ROYAL catering TIME REAL POWER & LIGHT 1 2 3

Modelo RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Modelo RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Modelo RCPS-WG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POKES 3

Modelos RCPW-16.1 | RCPR-16.1

HOT & FRESH ① ② ③

POPCORN by RDTAL catering 1 2 3 4 5

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | Modely RCPW-16.3 | RCPS-16.2 | RCPR-16.3

POPCORN by ROYAL catering TIME 1 2 3 NEAT POWER & LIGHT

Model RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Model RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Model RCPS-WG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Modely RCPW-16.1 | RCPR-16.1

HOT & FRESH ① ② ③

POPCORN by #RTAL coloring 1 2 3 4 5

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3 модели

POPCORN by ROYAL catering TIME 1 2 3 MOVE & LIGHT

Модел RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 3 POWER

Модел RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAD 2 POWER 3

Модел RCPS-WG1

OLD FASHIONED POPCORN 1 2 3

RCPW-16.1 | Модели RCPR-16.1

HOT & FRESH ① ② ③

POPCORN by RDTAL catering 1 2 3 4 5

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | Movτέλα RCPR-16.3

POPCORN by ROYAL Catering TIME 1 2 3 BEAT POWER & LIGHT

Μοντέλα RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Μοντέλο RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HUST 2 POWER 3

Μοντέλο RCPS-WG1

OLD FASHIONED POPCORN TURN 1 HUNT 2 PICKDOWN 3

RCPW-16.1 | Movτέλα RCPR-16.1

HOT & FRESH ① ② ③

POPCORN by TOTAL catering ① ② ③ ④ ⑤

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3 modeli

POPCORN by ROYAL Catering TIME 1 2 3 HILL POWER & LIGHT

Model RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 3 POWER

Model RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Model RCPS-WG1

OLD FASHIONED POPCORN 1 2 3

RCPW-16.1 | RCPR-16.1 modeli

HOT & FRESH ① ② ③

POPCORN by HTML coloring 1 2 3 4 5

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3 modeliai

POPCORN by ROYAL catering 1 2 3

Modelis RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 3 POWER

Modelis RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Modelis RCPS-WG1

OLD FASHIONED POPCORN 1 2 3

RCPW-16.1 | RCPR-16.1 modeliai

HOT & FRESH ① ② ③

POPCORN by ROTAL coloring 1 2 3 4 5

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3

POPCORN by ROYAL catering TIME REAL POWER & LIGHT 1 2 3

Model RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Model RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Model RCPS-WG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POKES 3

RCPW-16.1 | Modelele RCPR-16.1

HOT & FRESH ① ② ③

POPCORN by TOTAL catering 1 2 3 4 5

RCPS-16E | RCPR-16E | RCPW-16E | RCPW-16.2 | RCPW-16.3 | RCPS-16.2 | RCPR-16.3 modeli

POPCORN by ROYAL catering 1 2 3

Model RCPS-BB1

DELICIOUS WONDER TURN 1 HEAT 2 POWER 3

Model RCPS-BG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

Model RCPS-WG1

OLD FASHIONED POPCORN TURN 1 HEAT 2 POWER 3

RCPW-16.1 | Modeli RCPR-16.1

HOT & FRESH ① ② ③

POPCORN by NORTAL catering 1 2 3 4 5

1. TEMPERATURE – regulator in prikazovalnik temperature. Regulator temperature: Temperaturo je mogoče nastaviti med 210 °C in 250 °C (najboljša temperatura za pripravo kokic je od 210 °C do 230 °C). Prikazovalnik temperature: Prikazuje dejansko temperaturo posode.
2. WARMING & LIGHT – vklop luči vitrine in gretja
3. TURN – vklop funkcije mešanja
4. HEAT – vklop gretja posode
5. POWER & LIGHT – vklop notranje luči in gretja

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
