USER MANUAL RCPS-32BE Royal Catering

Abstract line drawing of stylized mythical creatures or mythical creatures (no text or symbols)

PRODUKTNAME POPCORN MASCHINEPRODUCT NAME POPCORN MACHINENAZWA PRODUKTU MASZYNA DO POPCORNUNÁZEV VÝROBKU PŘÍSTROJ NA VÝROBU POPCORNUNOM DU PRODUIT MACHINE À POP -CORNNOME DEL PRODOTTO MACCHINA POPCORNNOMBRE DEL PRODUCTO MÁQUINA PALOMITERA
MODELLPRODUCT MODELMODEL PRODUKTUMODEL VÝROBKUMODÈLEMODELLOMODELO	RCPS-16BERCPS-32BE
IMPORTEURIMPORTERIMPORTERDOVOZCEIMPORTATEURIMPORTATOREIMPORTADOR	EXPONDO POLSKA SP. Z O.O. SP. K.
ADRESSE VON IMPORTEURIMPORTER ADDRESSADRES IMPORTERAADRESA DOVOZCEADRESSE DE L'IMPORTATEURINDIRIZZO DELL'IMPORTATOREDIRECCIÓN DEL IMPORTADOR	UL. NOWY KISIELIN-INNOWACYJNA 7, 66002 ZIELONA GÓRA | POLAND, EU

Technische Daten

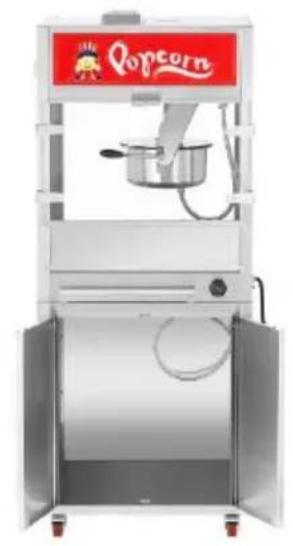

Popcorn A B C D E F G H I

Exterior view of a modern commercial coffee maker with open doors and a red 'Popcorn' sign (no additional text or symbols)

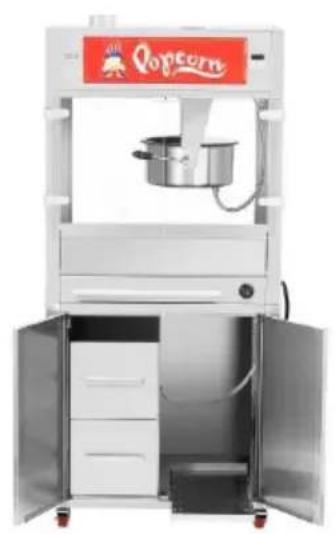

RCPS-32BE

A B C D E F G H I

Exterior view of a modern commercial coffee maker with open doors and a side table (no visible text or symbols)

Close-up of a hand holding a flexible cable or cable with a metallic component, seated in a vehicle (no visible text or symbols)

Close-up of hands using a tool to adjust or install a metallic component (no visible text or symbols)

Close-up of a metal feeding machine with a bowl and pile of golden granules (no text or symbols visible)

1. General Description

The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

PLEASE CAREFULLY READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATION,

To ensure long and reliable operation of the unit, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE		The product complies with applicable safety standards.
		Please read the instructions before use.
		Recyclable product.
		CAUTION! or WARNING! or REMINDER! describing a situation.(general warning sign).
		CAUTION! Warning of electric shock!
		Caution! Hot surface can cause burns!
		For indoor use only.

CAUTION! The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

The original instruction manual is in the German language version. Other language versions are translations from German.

2. Safety of use

CAUTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or severe personal injury or death.

The term "unit" or "product" in the warnings and in the description of the instructions refers to the POPCORN MACHINE

2.1. Electrical safety

a) The plug of this appliance must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the appliance exposed to direct rain, wet pavement, and operation in a humid environment. If water enters the appliance, there is an increased risk of damage to the appliance and electric shock.
c) Do not touch the appliance with wet or damp hands.
d) Do not use the cord in an unintended manner. Never use it to carry the appliance or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cords increase the risk of electric shock.
e) Do not use the appliance if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
f) To avoid electric shock, do not immerse the cable, plug, or device itself in water or other liquid. Do not use the device on wet surfaces.
g) CAUTION - THREAT TO LIFE! When cleaning or using the appliance, never immerse it in water or other liquids.
h) Do not use the appliance in rooms with very high humidity / in the immediate vicinity of water tanks!
i) Do not allow the machine to get wet. Risk of electric shock!

2.2. Safety in the workplace

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the unit.
b) Do not use the appliance in an explosive area, for example in the presence of flammable liquids, gases or dust. The appliance produces sparks that can ignite dust or fumes.
c) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.
d) Only the manufacturer's service department may repair the product. Do not carry out repairs yourself!
e) Only the manufacturer's service department can repair the unit. Do not carry out repairs yourself!
f) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.

g) No children or unauthorized persons are allowed in the work area.
h) Use the appliance in a well-ventilated area.
i) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.
j) Keep the packaging and small assembly parts out of the reach of children.
k) When using this machine together with other machines, also follow the other instructions for use.

2.3. Personal safety

a) Do not operate this product if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the product.
b) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
c) The device may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
d) Use caution and common sense when operating this unit. A moment's inattention during operation may result in serious personal injury.
e) Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught in moving parts.
f) The unit is not a toy. Children should be watched to ensure that they do not play with the unit.

2.4. Safe use of the unit

a) Disconnect the unit from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up.
b) Keep unused equipment out of the reach of children and out of the reach of anyone unfamiliar with the unit or this instruction manual. These units is dangerous in the hands of inexperienced users.
c) Keep the unit in good working condition. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the unit). If damaged, have the unit repaired before use.
d) Keep the unit out of the reach of children.

e) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
f) To ensure the designed operational integrity of the unit, do not remove factory-installed covers or loosen screws.
g) When transporting or moving the appliance from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the appliance is used.
h) Avoid situations in which the machine stops under heavy loads during operation. This can cause overheating of the drive elements and consequent damage to the equipment.
i) Do not touch any moving parts or accessories unless the appliance is unplugged.
j) Do not move, shift, or rotate the machine while in operation.
k) Do not leave the appliance switched on unattended.
I) Clean the unit regularly to prevent permanent dirt build-up.
m) Before each use, make sure that the nozzle is properly mounted in the machine and that the hose is properly attached and undamaged.
n) The unit is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
o) Do not tamper with the unit to alter its performance or design.
p) Keep the unit away from sources of fire and heat.
q) Do not overload the unit.
r) Do not block the ventilation openings of the appliance!

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. You are advised to use caution and common sense when using this product.

3. Rules of use

The product is designed to prepare (roast) popcorn from dried corn kernels. The user is responsible for any damage resulting from misuse.

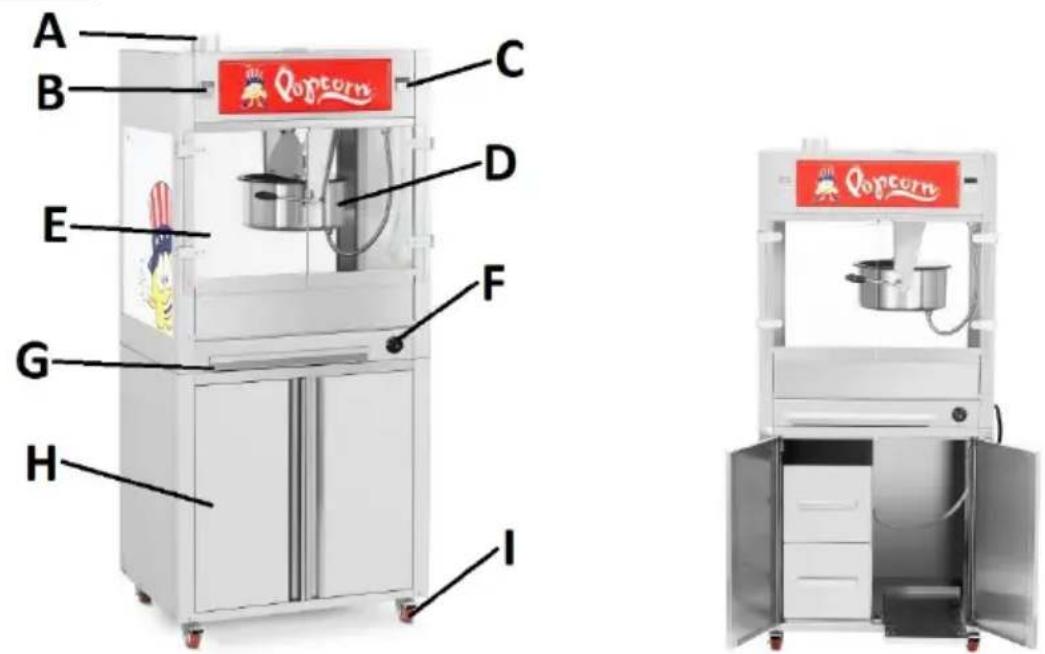

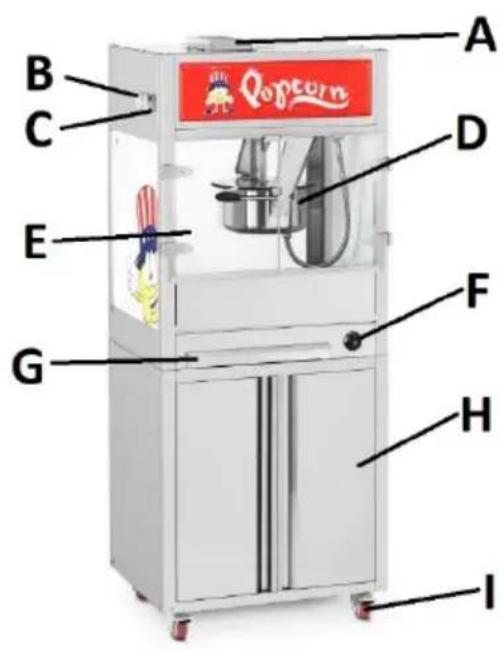

3.1. Description

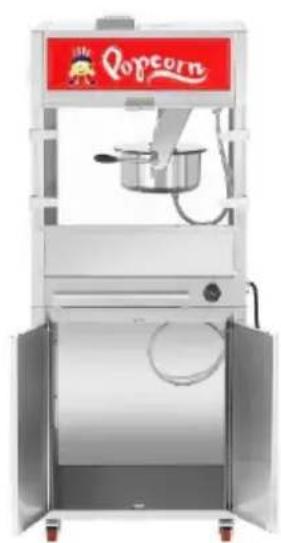

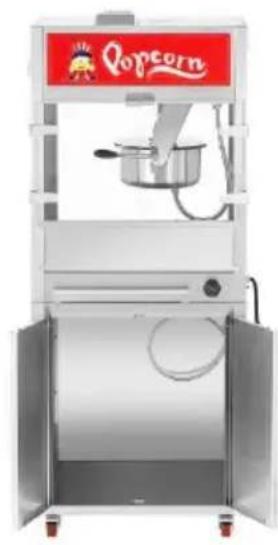

RCPS-16BE

Popcorn A B C D E F G H I

Exterior view of a modern commercial coffee maker with open doors and a red 'Popcorn' sign (no additional text or symbols)

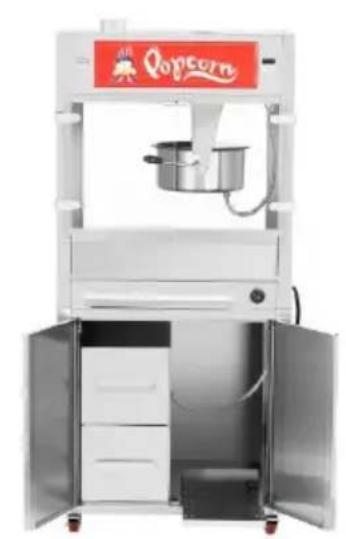

RCPS-32BE

A B C D E F G H I

Exterior view of a modern office building (no signage)

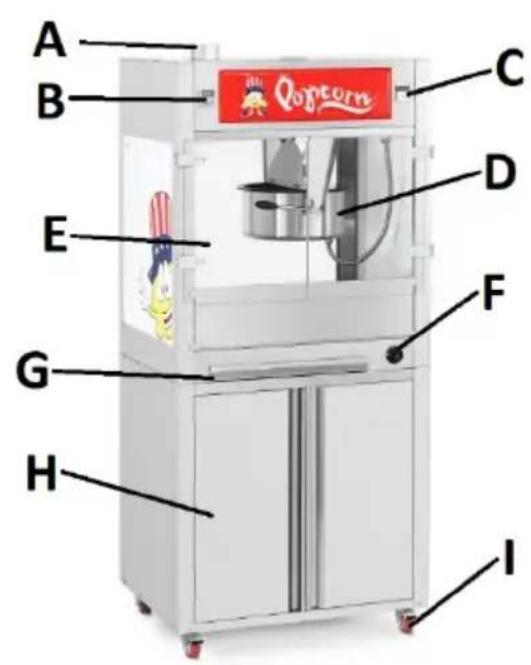

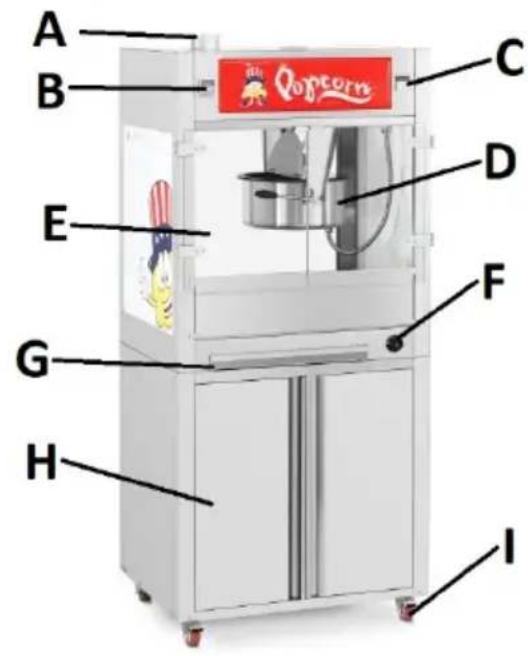

A. Ventilation pipe
B. Timer (fat doser)
C. Thermometer
D. Popcorn pot
E. Glass door
F. Control dial for setting the temperature in the display cabinet
G. Drawer for scraps
H. Cabinet for the fat container (in RCPS-32BE additionally with drawers)

I. Fat pump (inside the cabinet - not visible in the picture)

J. Wheel (x4)

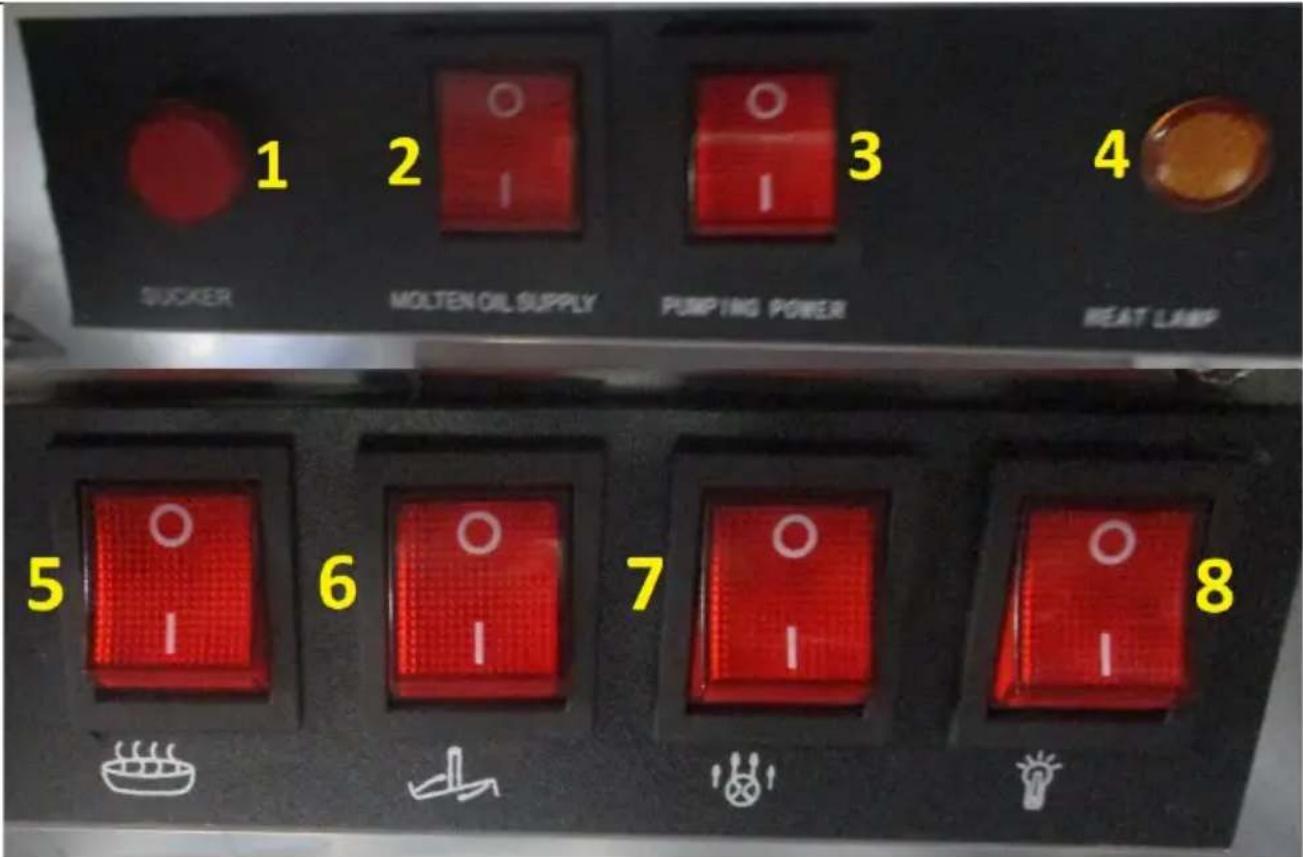

Control panel:

1 SUCKER 2 MOLTEN OIL SUPPLY 3 PUMPING POWER 4 HEAT LAMP 5 6 7 8

1. Hot fat feeder pump
2. Fat feeder power switch
3. Power switch for pump unit
4. Heating indicator light
5. Heating pot switch
6. Agitator switch
7. Ventilation switch
8. Popcorn compartment illumination switch

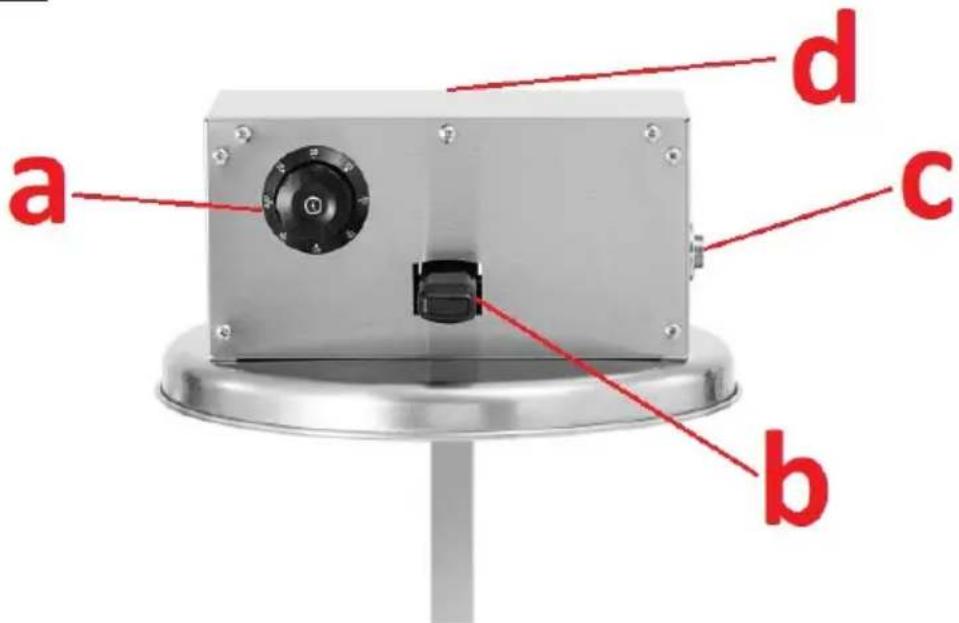

Pump unit:

a b c d

a) Melting temperature setting dial
b) Handle
c) Power connection socket
d) Connection to supply hose (not visible in the picture)

3.2. Preparation for use

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ C and ambient humidity should not exceed 85%. Place the appliance in a way that ensures good air circulation.

Maintain a minimum clearance of 10 cm from any wall of the unit. Keep the appliance away from any hot surfaces. Always operate the device on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons of impaired mental, sensory and intellectual functions. Place the appliance in such a way that the mains plug can be reached at any time. Ensure that the power supply to the appliance corresponds to that specified on the identification plate!

Before the first use, disassemble the pot and wash its interior (Teflon layer) as well as the plate on which the popcorn will be placed. Clean all the popcorn accessories as well.

ASSEMBLY OF THE UNIT

Using the screws provided, fix the transparent door wings and their handles. Set the unit in its final location and connect it to the appropriate electrical system (see the parameters table and/or rating plate) and external ventilation.

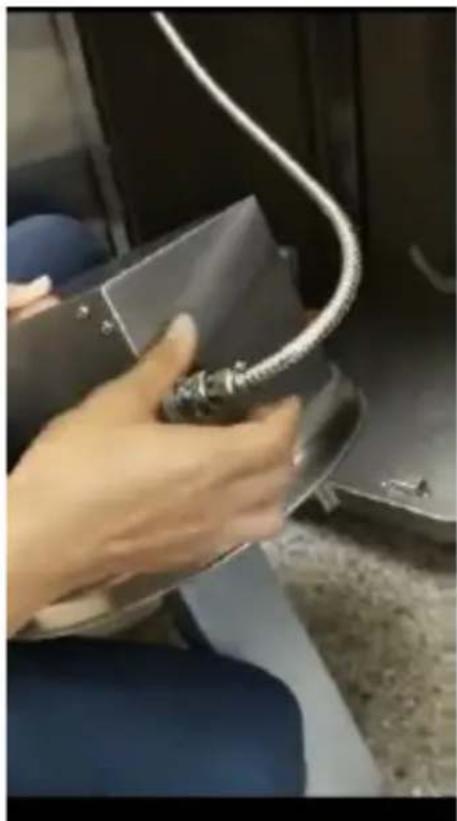

NOTE: Only a qualified electrician should connect the RCPS-32BE to the electrical connection.

The yellow-green wire is designated to connect the protective conductor.

The three phases (black, brown, blue) can freely be connected to L1, L2 and L3. After connecting to the power supply, briefly switch on the display cabinet's backlight by pressing the switch (8) on the control panel inside the display cabinet. If the light bulb illuminates after the switch is pressed, the unit is connected correctly to the power supply.

Switch off the display cabinet backlight. Then place a container with oil in the lower part of the unit - the cabinet - and install the pumping unit on it and connect it to the corresponding plug.

Tighten the plug in the socket to secure the connection.

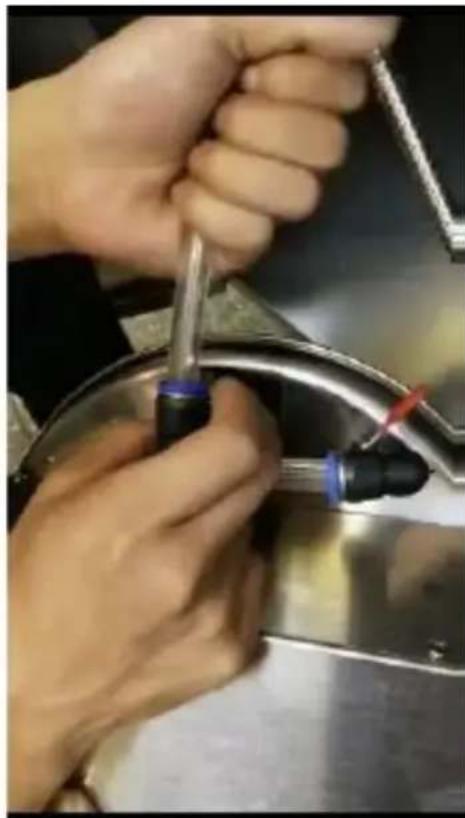

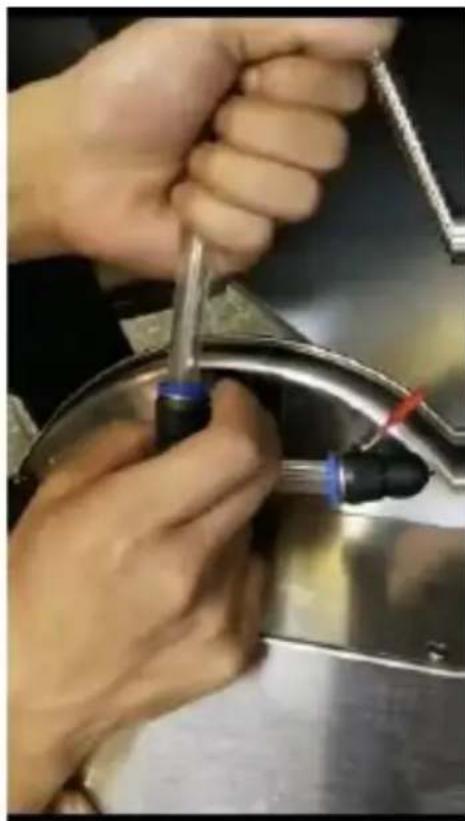

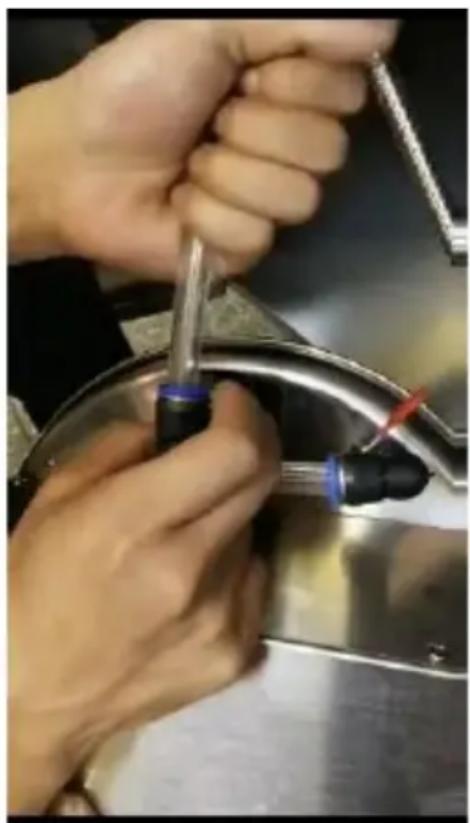

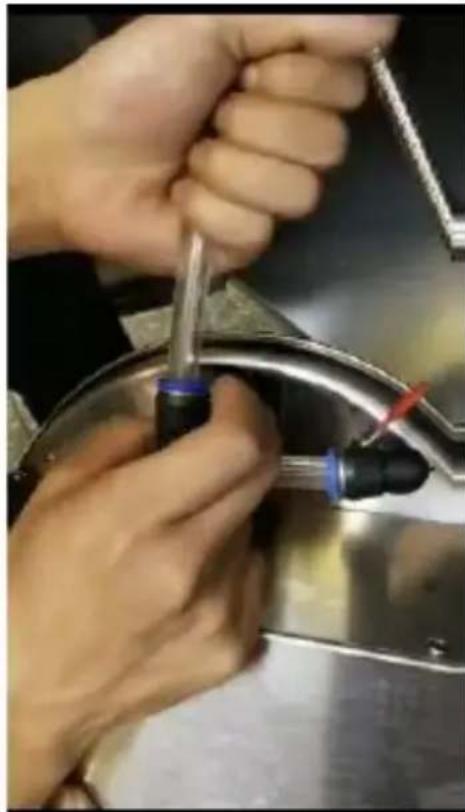

Then connect the liquid fat hose to the back of the pump unit, i.e. insert it into the

CAUTION! After reading the manual, before first use, please turn on the machine for 30 minutes making sure that the room is ventilated. The appearance of a small amount of smoke and the smell of paint is a normal occurrence of a new product in the process of heat up. Open the machine and ventilate, also clean using the cleaning agent dedicated for contact with food products. Machine is ready for use.

Close-up of a hand holding a flexible hose and plastic bag, with no visible text or symbols

Close-up of hands using a tool to adjust or install a metal component (no visible text or symbols)

3.3. Working with the unit

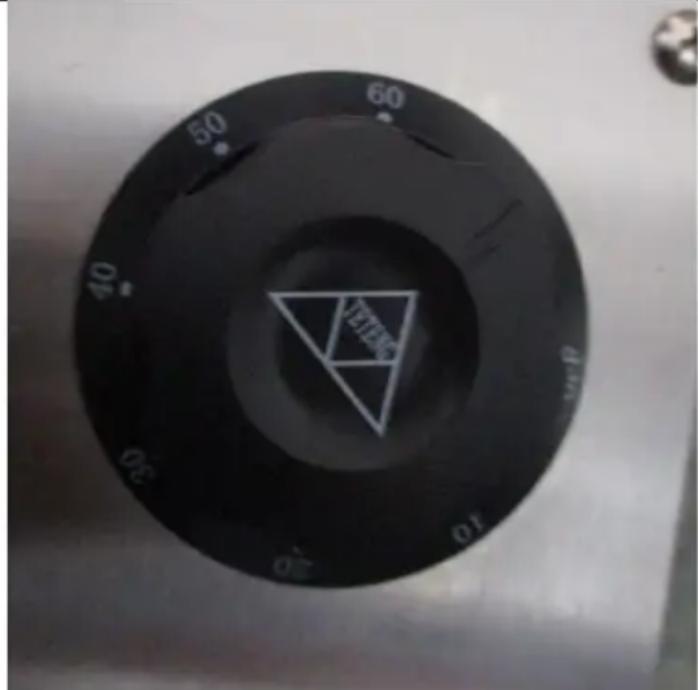

- After installing the fat container, set the fat melting time with the dial (see image below) on its casing - adjust it to the operating conditions of the unit.

As a rule of thumb, setting it to the 50 minute position is sufficient to melt the coconut oil to be used with the popcorn.

50 60 40 30 20 10 0 T1012M

• Press the power switch to the fat pumping unit on the control panel on the display cabinet (control panel - 3).
• When the fat is melted, press the following switches on the control panel: pot heating, ventilation, and (optionally) site illumination of the display cabinet (control panel - 5, 7, 8).

Leave the pot with the lid open.

- After the appliance has preheated, turn on the fat pumping switch (control panel - 3).

If the temperature on the temperature display on the unit casing (C) reaches the factory setting of 230^ C (this can be changed according to your needs), press the fat pumping button (control panel - 1).

The factory-set dose on the Timer (B) is 12 seconds, i.e. approx. 200-250 grams of oil (can be modified according to personal liking or popcorn color).

Adding oil to the pot will slightly lower its temperature, therefore, after reheating to the set temperature, add approx. 400-450 ml (RCPS-16BE) or 500-600 (RCPS-32BE) of corn kernels, press the stirrer switch (control panel - 6) and quickly close the lid of the pot for approx. 2 minutes and as soon as the popcorn starts to "pop" be sure to turn off the stirrer (control

panel - 2), which will relieve this mechanism. During preparation you can add salt or special sugar (approx. 200-225 ml for the RCPS-16BE or 250-300 ml RCPS-32BE) to the pot along with the corn kernels - depending on your liking.

The recommended oiling time for the RCPS-16BE is 7 seconds, and 9 seconds for the RCPS-32BE.

- To prepare another batch of popcorn while the fat is melting, repeat the above step.

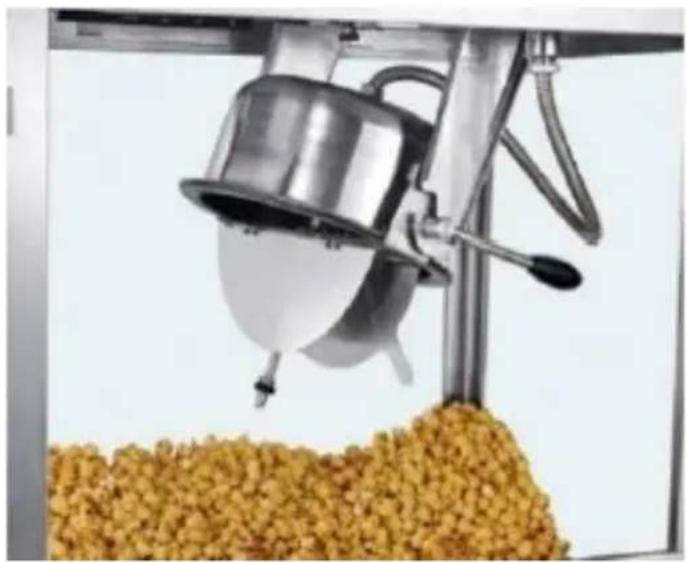

IMPORTANT: Whenever popcorn is not being prepared, turn the pot upside down - this will prevent the oil from penetrating the surface of the pot or burning.

Close-up of a metal feeding machine with a bowl and pile of golden granules (no text or symbols visible)

The prepared popcorn is ejected from the pot into the bottom of the display cabinet, which has special openings so that the unpopped corn kernels can be separated from the finished popcorn, i.e. collected in the drawer underneath (G).

The popcorn in the display cabinet is maintained at the temperature set on the dial (F).

When the drawer is full of scraps, empty it and install it back in the unit.

3.4. Cleaning and maintenance

a) Cleaning and maintenance

Pull the mains plug and let the appliance cool down completely before cleaning, adjusting or replacing accessories and when the appliance is not in use.

- Wait until the rotating parts stop.

b) Only mild detergents designed for cleaning food contact surfaces may be used to clean the appliance.

c) After each cleaning, all the parts should be dried well before the unit is used again.

d) Store the unit in a dry and cool place protected from moisture and direct sunlight.

e) Do not spray the unit with a stream of water or immerse it in water.

f) Make sure that no water enters through the ventilation openings in the housing.

g) Clean the ventilation openings with a brush and compressed air.

h) Use a soft cloth for cleaning.

i) Use a soft, damp cloth for cleaning.

j) Do not use sharp and/or metal objects (e.g. a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the unit is made.

DISPOSAL OF USED APPLIANCES.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions or packaging. The materials used in this appliance are recyclable according to their marking. You will be making an important contribution to protecting our environment by reusing, recycling or otherwise disposing of used appliances.

Your local administration will provide you with information about the appropriate disposal point for used appliances.
