RCPS-ND01 - Popcorn machine Royal Catering - Free user manual and instructions

USER MANUAL RCPS-ND01 Royal Catering

Abstract white line drawing of a stylized creature or mythical creature on a dark blue background (no text or symbols)

DE	Produktname:	POPCORNMASCHINE
EN	Product name:	POPCORN MACHINE
PL	Nazwa produktu:	MASZYNA DO POPCORNU
CZ	Název výrobku	PŘÍSTROJ NA VÝROBU POPCORNU
FR	Nom du produit:	MACHINE À POP-CORN
IT	Nome del prodotto:	MACCHINA POPCORN
ES	Nombre del producto:	MÁQUINA PALOMITERA
HU	Termék neve	POPCORN GÉP
DA	Produktnavn	POPCORNMASKINE
DE	Modell:	RCPS-ND01
EN	Product model:
PL	Model produktu:
CZ	Model výrobku
FR	Modèle:
IT	Modello:
ES	Modelo:
HU	Modell
DA	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse

Technical diagram of a device with numbered components, likely an industrial or laboratory apparatus, annotated with red annotations.

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	POPCORN MACHINE
Model	RCPS-ND01
Supply voltage [V~] / Frequency [Hz]	230/50
Rated power [W].	1200
Amount of oil [ml/ one serving] *	50
Amount of sugar [ml/ one serving] *	50
Amount of kernels [g/ one serving] *	150
Temperature [°C]	220-250
Dimensions (Width x Depth x Height) [mm]	495x495x700
Weight [kg]	30,00

*The above proportions are approximate and can be adjusted according to your own discretion and needs.

1. General Description

The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE PROCEEDING.

To ensure long and reliable operation of the unit, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE		The product complies with applicable safety standards.
		Please read the instructions before use.
		Recyclable product.
		CAUTION! or WARNING! or REMINDER! describing a situation (general warning sign).
		CAUTION! Warning of electric shock!
		Caution! Hot surface can cause burns!

CAUTION! The illustrations in this instruction manual are for only and may differ from the actual product in some details.

2. Safety of use

CAUTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or severe personal injury or death.

The term "unit" or "product" in the warnings and in the description of the instructions refers to the POPCORN MACHINE.

2.1. Electrical safety

a) The plug of this unit must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the unit exposed to direct rain, wet pavement, and operation in a humid environment. If water enters the unit, there is an increased risk of damage to the unit and electric shock.
c) Do not touch the unit with wet or damp hands.
d) Do not use the cord in an unintended manner. Never use it to carry the unit or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cords increase the risk of electric shock.
e) If you cannot avoid using the unit in a wet environment, use a residual current unit (RCD). Using an RCD reduces the risk of electric shock.
f) Do not use the unit if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
g) To avoid electric shock, do not immerse the cable, plug, or unit itself in water or other liquid. Do not use the unit on wet surfaces.
h) Do not allow the machine to get wet. Risk of electric shock!

2.2. Safety in the workplace

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the unit.
b) Do not use the unit in an explosive area, for example in the presence of flammable liquids, gases or dust.
c) If you have any doubts as to whether the unit is working properly or if it is damaged, contact the manufacturer's service department.
d) Only the manufacturer's service department can repair the unit. Do not carry out repairs yourself!
e) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
f) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.
g) Keep the packaging and small assembly parts out of the reach of children.
h) Keep the unit away from children and animals.

Please note! Keep children and other bystanders safe while operating

the unit.

2.3. Personal safety

a) Do not operate this unit if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the unit.

b) The unit is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the unit.

c) The unit may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.

d) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.

e) The unit is not a toy. Children should be watched to ensure that they do not play with the unit.

2.4. Safe use of the unit

a) Do not use the unit if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.

b) Disconnect the unit from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up.

c) Keep unused equipment out of the reach of children and out of the reach of anyone unfamiliar with the unit or this instruction manual. These units is dangerous in the hands of inexperienced users.

d) Keep the unit in good working condition. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the unit). If damaged, have the unit repaired before use.

e) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.

f) To ensure the designed operational integrity of the unit, do not remove factory-installed covers or loosen screws.

g) When transporting or moving the unit from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the unit is used.

h) Do not move, shift, or rotate the unit while in operation.

i) Do not leave the unit switched on unattended.
j) Clean the unit regularly to prevent permanent dirt build-up.
k) The unit is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
I) Do not start up an empty unit.
m) Do not tamper with the unit to alter its performance or design.
n) Keep the unit away from sources of fire and heat.
o) Do not overload the unit.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. You are advised to use caution and common sense when using this product.

3. Rules of use

The popcorn machine efficiently roasts corn and maintains its temperature. The user is responsible for any damage resulting from misuse.

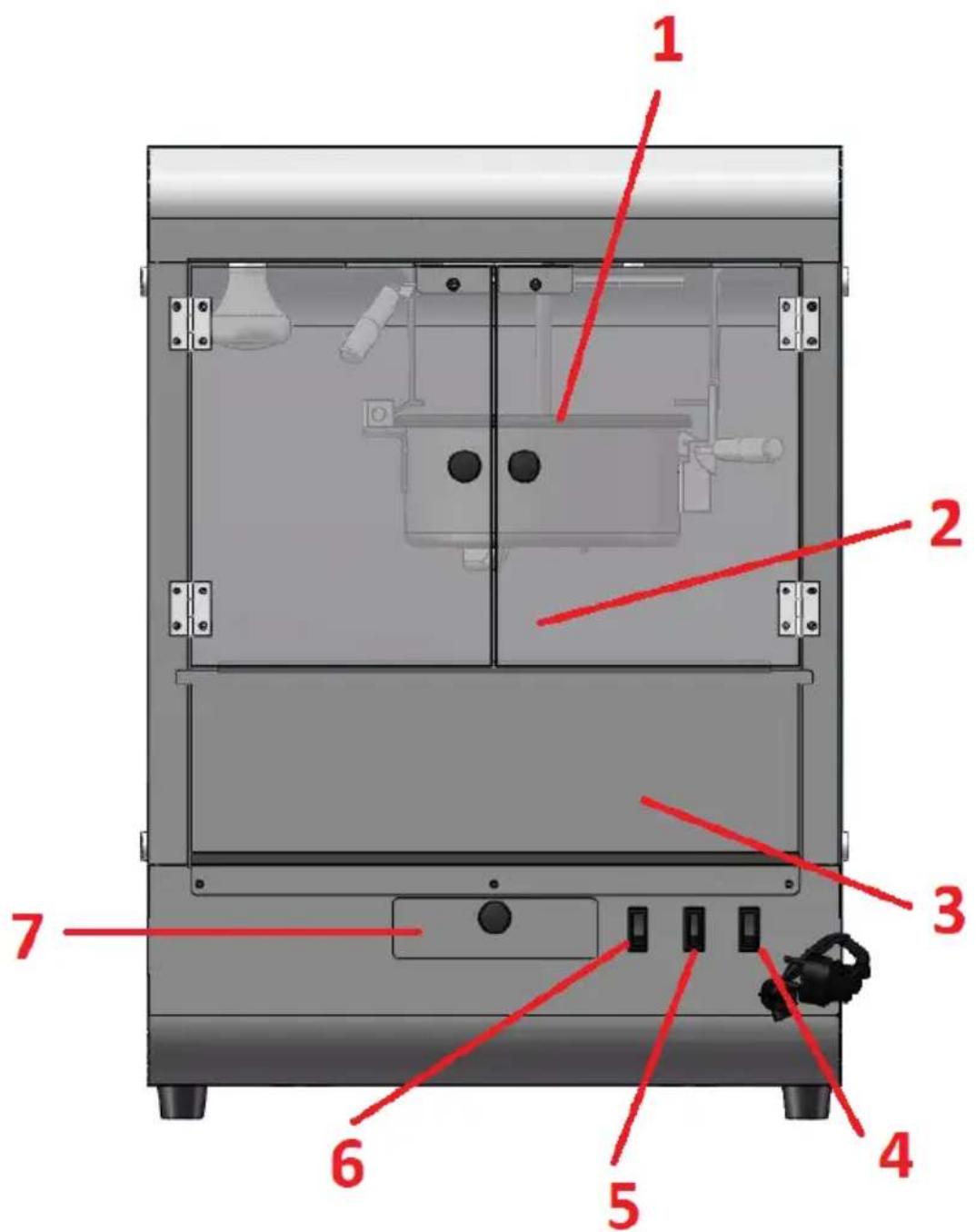

3.1. Description of the unit

Technical diagram of a device with numbered components, likely an industrial or laboratory setup, showing internal components and labeled parts.

1. Pot for ingredients + lid
2. Glass door
3. Lower cover
4. Switch to activate/deactivate stirrer and heat pot
5. Switch activating/deactivating heating of ready popcorn
6. Switch to activate/deactivate light
7. Crumb tray

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ C and ambient humidity should not exceed 85%. Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10 cm from any wall of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons of impaired mental, sensory and intellectual functions. Place the unit in such a way that the mains plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

3.3. Working with the unit

CAUTION! Before first use, remove the safety tape from the stirrer inside the pot!

CAUTION! After reading the instructions, before the first use, turn on the unit for 30 minutes, making sure that the room is ventilated. The appearance of a small amount of smoke and the smell of paint is a normal phenomenon of heating a new product. Open and ventilate the machine, and clean it with a food grade cleaner. The machine is now ready for use.

1. Connect the unit to the power supply.
2. Turn on the light using the switch [6].
3. Open the glass door. Remove the lid of the pot.
4. Place the ingredients in the pot. Sample recipe: 50 ml of oil, 150 g of kernels and 50 g of sugar.
5. Replace the pot lid, close the glass door.
6. Turn on the heating of the pot with the switch [4].
7. After about 4 minutes, the popcorn will be ready. When making popcorn, be careful to keep the door closed so that hot popcorn, which can cause burns, does not escape.
8. Turn off the pot heating with the switch [4].
9. CAUTION! The pot must be emptied and the heating turned off if the frequency (about 2 - 3 seconds) of the kernels popping decreases. This is the only way to avoid burning the kernels and sugar, as well as damage to the coating. Not all of the kernels will always pop. After each time you prepare popcorn, please remove all leftovers.
10. Turn on the popcorn heating with the switch [5].
11. To prepare more popcorn, repeat steps 3-8.

12. To remove the popcorn, open the glass door and then the lower cover.

13. Put in the popcorn with a special spoon.

14. When finished, empty the crumb try.
15. To close the machine, first close the lower cover, and then close the glass door.

CAUTION! Do not allow oil to drip on the hot plate, otherwise there is a risk of fire.

CAUTION! Do not pour water over the plate when making popcorn.

3.4. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.
b) Use only non-corrosive cleaning agents for cleaning the surfaces.
c) Only mild detergents designed for cleaning food contact surfaces may be used to clean the unit.
d) After each cleaning, all the parts should be dried well before the unit is used again.
e) Store the unit in a dry and cool place protected from moisture and direct sunlight.
f) Do not spray the unit with a stream of water or immerse it in water.
g) Perform regular inspections of the unit checking technical fitness and any damages.
h) Use a soft, damp cloth for cleaning.
i) Do not use sharp and/or metal objects (e.g. a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the unit is made.
j) Do not clean the unit with acidic substances, medical products, diluent, fuel, oil or other chemicals as this may cause damage to the unit.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions or packaging. The materials used in this unit are recyclable according to their marking. You will be making an important contribution to protecting our environment by reusing, recycling or otherwise disposing of used units.

Your local administration will provide you with information about the appropriate disposal point for used units.

Technical diagram of a device with numbered components, likely an industrial or laboratory setup, showing internal components and labeled parts.

Technical diagram of a device with numbered components, likely an industrial or laboratory setup, showing internal components and red annotations.

Technical diagram of a device with numbered components, likely an industrial or laboratory setup, showing internal components and labeled parts.

Technical diagram of a device with numbered components, likely an industrial or laboratory apparatus, annotated with red annotations.

Technical diagram of a device with numbered components, likely an industrial or laboratory setup, showing internal components and labeled parts.

Technical diagram of a device with numbered components, likely an industrial or laboratory apparatus, annotated with red annotations.

Technical diagram of a device with numbered components, likely an industrial or laboratory setup, showing internal components and labeled parts.

APPARATETS PLACERING

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
