HD5B - Hair Dryers AENO - Free user manual and instructions

USER MANUAL HD5B AENO

(Models: AHD0005W, AHD0005W-UK, AHD0005G, AHD0005G-UK, AHD0005B, AHD0005B-UK)

v1.0.4 | 12.12.2024

ENG....9

ARA....15

BOS....20

BUL....26

CES 33

DEU....39

ELL 46

EST....52

FRA....58

HRV 65

HUN....71

HYE....77

ITA....83

KAT 89

KAZ....96

LAV 103

LIT....109

NLD....115

POL....122

POR....128

RON....135

RUS....141

SLK....148

SLV....154

SPA....160

SRP 167

UKR....173

UZB 180

A

1 2 3 4 5 AI 25 DN

AENO 6 7 8

4 aeno.com/documents

9 65 °C AI 25° 35 °C 55 °C 40 °C 45 °C 50 °C 10 11 EN 12

B

C

Simple line drawing of a mechanical component with a numbered label (16) pointing to a feature, no text or symbols present.

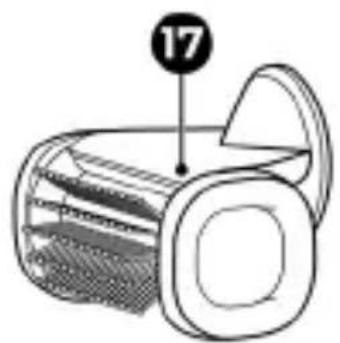

Illustration of a cylindrical device with a handle and a numbered label (17), no readable text or symbols present.

6 aeno.com/documents

D

Illustration of a handheld device with a handle and screw base, no text or symbols present

Illustration of a hand using a handheld device to adjust or install a component, with no visible text or symbols.

Illustration of a handwashing tool with a faucet and a circular head (no text or symbols)

aeno.com/documents 7

E

Diagram showing two mechanical assembly steps: one with a cylindrical component inserted into a tube, the other with a rotating cylindrical component (no text or symbols)

8 aeno.com/documents

ENG The AENOTM Hair Dryer is designed for drying and styling hair.

Models

Plug Type	Color
	White, Light Gray	Gray	Dark Gray, Black
C	AHD0005W	AHD0005G	AHD0005B
C	AHD0005W-UK	AHD0005G -UK	AHD0005B-UK

Technical Specifications

Power supply (input): 220–240 V / 6.2 A (AC), 50–60 Hz, 1,500.0 W (max.). Motor speed: up to 110,000 rpm. Number of airflow temperatures: 7. Number of temperature modes: 3. Number of speeds: 2. Functional features: Al, ionization, accelerometer. Control: manual, voice (using voice commands). Noise level (at a distance of 1 m): ≤ 67 dB. Overheating protection. Power cord length: 2 m. Material: polyamide, polycarbonate, ABS plastic. Dimensions (L×W×H): 278.5×105.5×72 mm. Weight (without accessories): 630 g. Operating conditions: temp. 0...+40 °C, RH 5–80 % (non-condensing). Storage conditions: temp. -20...+60 °C, RH 5–80 % (non-condensing).

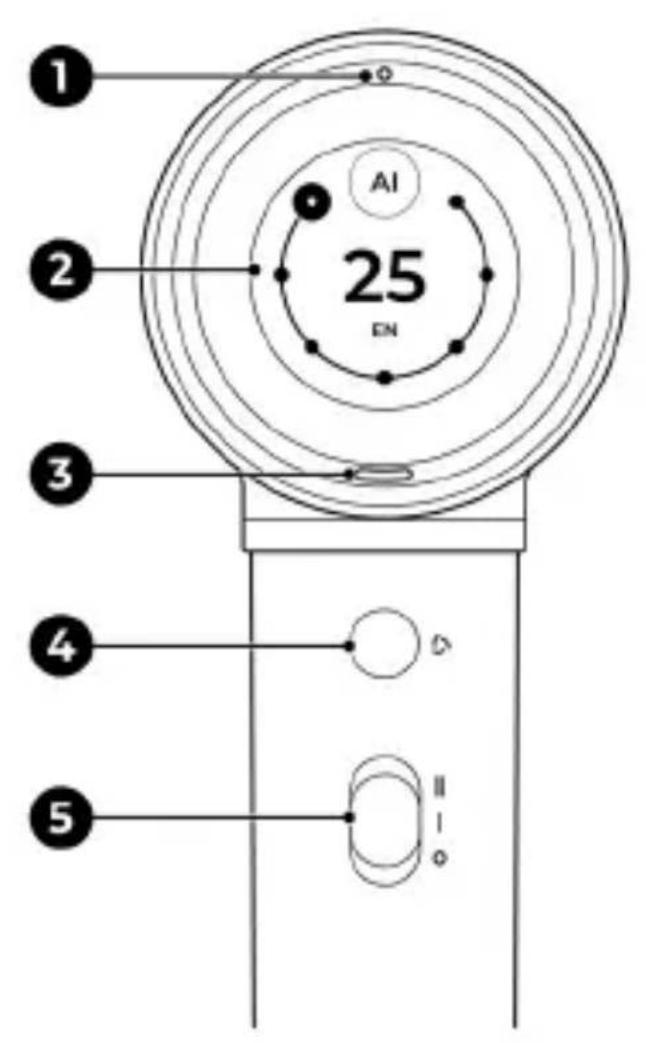

Device Elements and Accessories (see Fig. A, B, C)

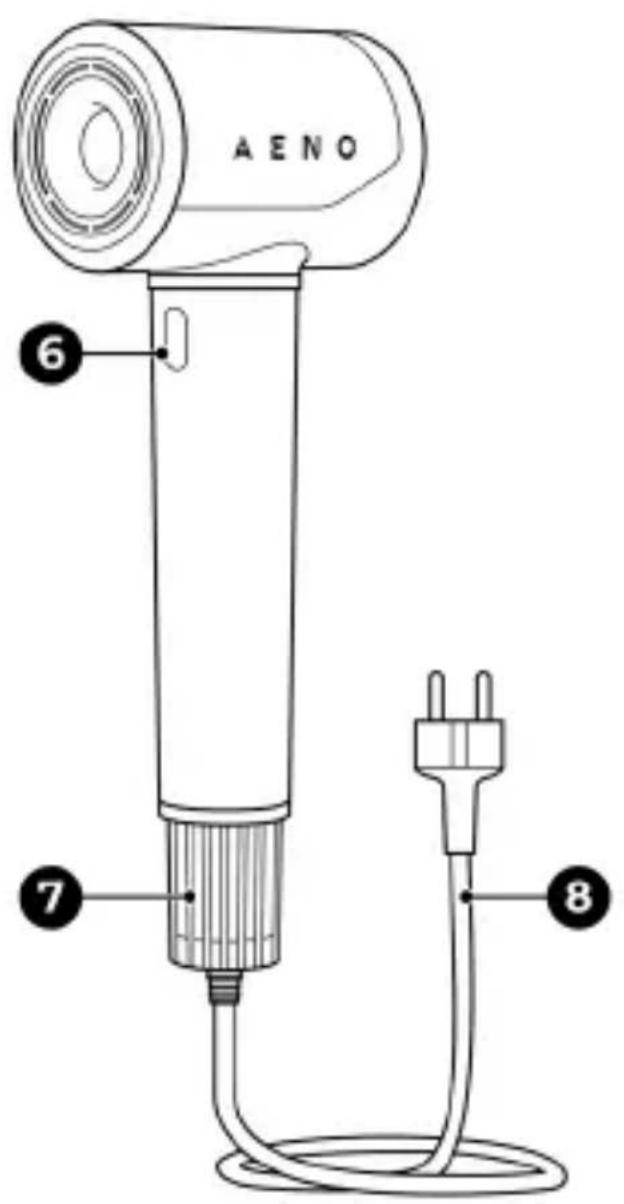

1 – microphone, 2 – display, 3 – speaker, 4 – push button, 5 – switch, 6 – infrared sensor, 7 – air inlet grille, 8 – power cord, 9 – AI indicator button, 10 – airflow temperature value, 11 – voice control language code, 12 – temperature control, 13 – styling nozzle, 14 – quick dry nozzle, 15 – diffuser attachment, 16 – Coanda effect attachment, 17 – brush attachment, 18 – travel bag.

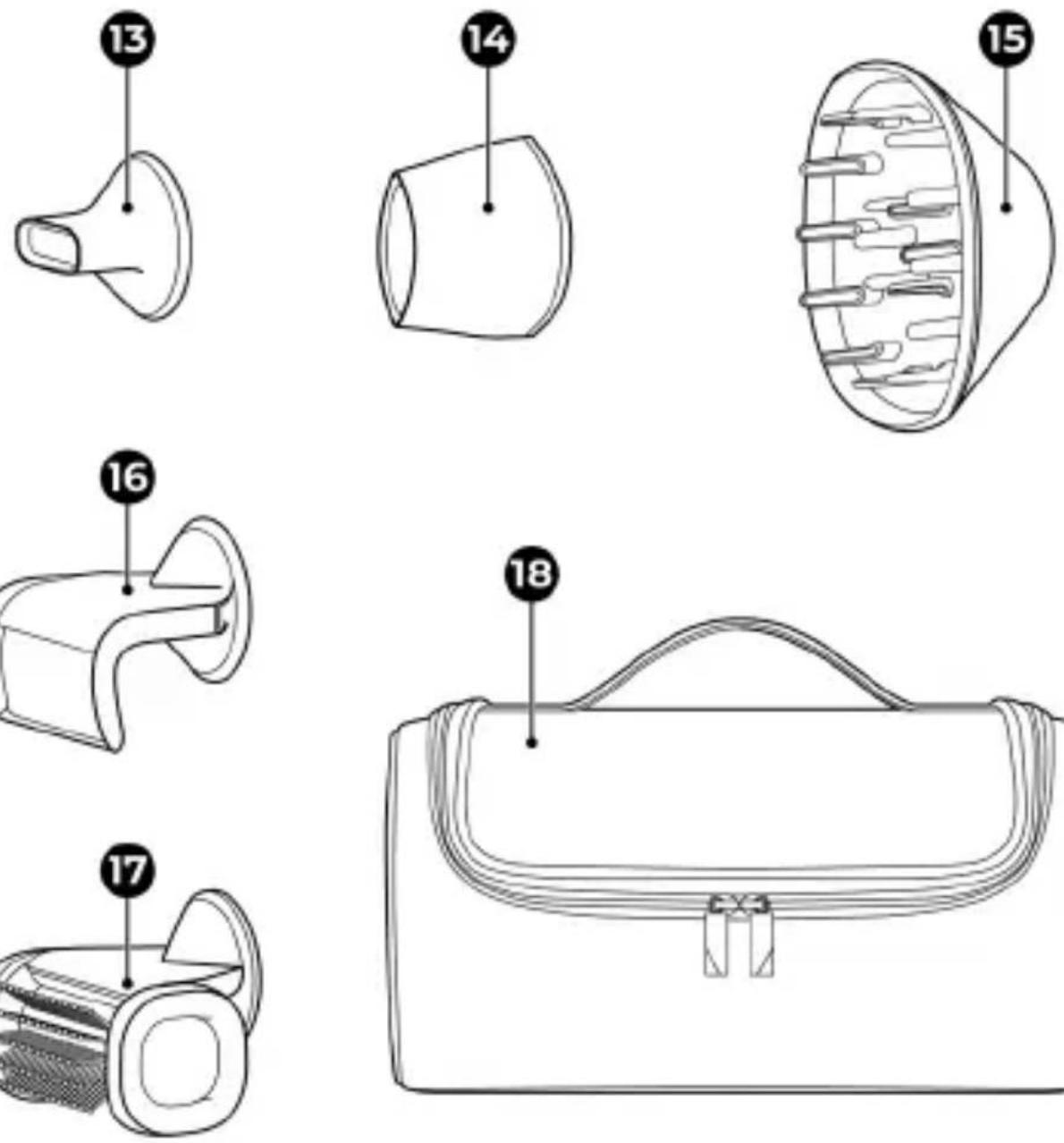

Package Contents (see Fig. A, C)

Hair Dryer, styling nozzle, quick dry nozzle, diffuser attachment, Coanda effect attachment, brush attachment, travel bag, Quick Start Guide.

If you experience any issues or difficulties while using your AENO™ device, please email support at [e-mail] or chat with us at

aeno.com/service-and-warranty. The specialists will help you solve the problem, and you will not have to waste time and effort visiting the store.

Limitations and Warnings

Read this document thoroughly before using the device. Save these instructions for future reference.

ATTENTION! Risk of electric shock!

ATTENTION! Do not use this device near water in bathrooms, showers, swimming pools, etc.

This device is not intended for use by children under the age of 14 or by persons with a physical, mental or intellectual disability unless they have sufficient experience and knowledge of how to use the device and are supervised by a person responsible for their safety. Do not allow children to play with the device and its accessories. The device is intended for domestic use only. Do not use the device outdoors. Use the device only for its intended purpose. Do not drop or throw the device. Do not use a device that is damaged or has previously fallen into water. Do not allow the device to come into contact with water or other liquids. Make sure that the rated voltage and frequency indicated in the technical specifications correspond to the parameters of the electrical network. Do not leave the device unattended while it is plugged in. Unplug the device after use. Unplug the device by grasping the plug, not the power cord. Handle the device with dry hands only. Do not cover the air inlet grille while using the device. Make sure that the power cord is not twisted, bent, pressed against anything, or in contact with hot objects and heat sources. Do not use chemical and aggressive detergents, abrasive pastes, products containing acids and solvents or steel scrubbers for cleaning. Use original accessories only. For a detailed description of the device, its modes and features, see the complete User Manual available at aeno.com/documents.

Intended Purpose of Nozzles and Attachments

Styling nozzle		Quick dry nozzle
	Designed to straighten hair and create complex hairstyles		Designed to dry hair quickly and evenly

10 aeno.com/documents

Diffuser attachment		Coanda effect attachment
	Designed for styling curly and wavy hair		Designed to straighten unruly hair
Brush attachment
	Designed to make hair smoother

Note. It is recommended to pre-dry the hair before using the Coanda effect attachment and the brush attachment.

Note. Installed nozzles/attachments can rotate 360°.

Device Control

	Move to the I position Select low speed
	Move to the II position Select high speed
	Move to the O position Turn the device off
	Press once Switch temperature modes
	Press and hold for 2 seconds Switch to waiting for a voice command input
	Tap once Enable/disable AI
	Tap one of the dots Select the airflow temperature

Voice Control

ATTENTION! The device recognizes commands in English only.

• Press and hold the push button (4) for 2 seconds. The device will pause and the display will show the icon.
• Say the necessary command (see “Voice Commands List”). If the device successfully recognizes the command, it will respond and follow the command aeno.com/documents 11

Voice Commands List

- Cold on.

- Soft on.

- Hot on.

- Al on.

- AI off.

Additional Features

AI feature. Designed to dry the hair gently by automatically adjusting airflow speed and temperature depending on the distance from the infrared sensor (6) to the hair. Also, if this distance is less than 8 cm, the device will make a warning sound.

ATTENTION! For this feature to work properly, do not cover the infrared sensor with your hand while using the device.

Note. If AI is enabled when using the device in cold mode, the device will only make a warning sound. Airflow speed and temperature will not change.

Ionization. This feature removes static electricity from hair and makes it shiny. The feature is activated automatically when the device is turned on.

Accelerometer (gravity sensor). This feature allows the device to determine its position in space. If you place the device on a horizontal surface while it's working, it will pause after 2 seconds. To resume operation, take the device in your hand. The feature is activated automatically when the device is turned on.

Preparing the Device for Use

1. Carefully open the packaging and remove the device and accessories.

2. Remove any packaging materials. Remove the protective film from the display (2).

3. Clean the casing of the device, nozzles, and attachments (see "Cleaning and Maintenance").

Using the Device

1. Select the required nozzle or attachment and attach it to the device until it clicks into place. The device can also be used without any nozzles or attachments.

12 aeno.com/documents

ATTENTION! Do not install or remove nozzles/attachments while the device is turned on. To install a nozzle/an attachment, turn off the hair dryer beforehand. To remove a nozzle/an attachment, turn off the hair dryer and wait for both the device and the nozzle/attachment to cool down completely.

1. Insert the plug of the power cord into the socket.

2. Select the airflow speed and temperature manually or use the AI feature to adjust them automatically (see "Additional Features"):

- Manual mode:

• Move the switch (5) to the I or II position to turn on the device on low or high speed, respectively.

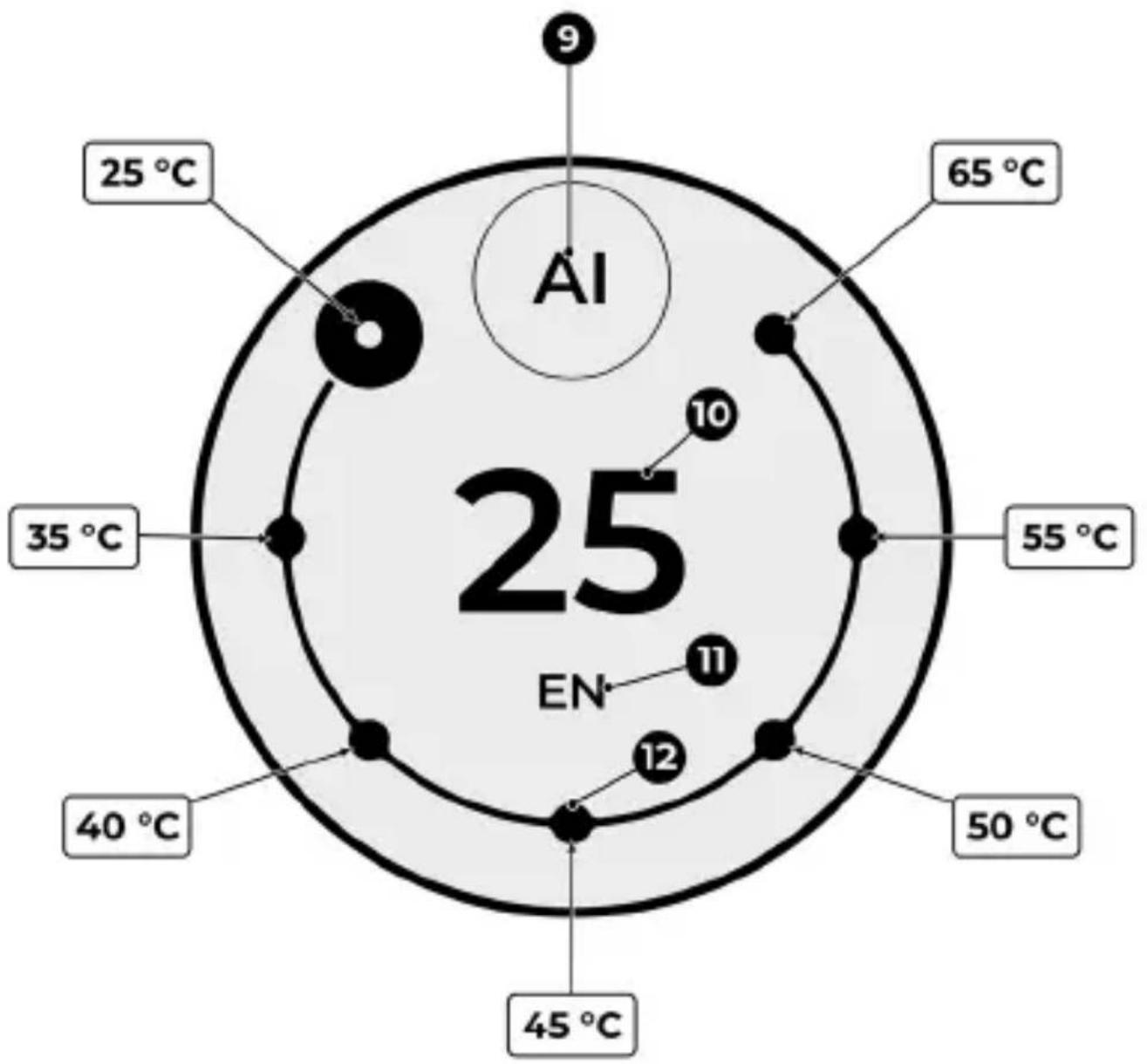

• Set the desired temperature value using the temperature control (12) on the display (see Fig. B).

Note. You can also use the push button or a voice command to select the temperature mode.

• Automatic mode:

• Move the switch to the I position to turn the hair dryer on.
• Enable AI. To do this, tap the indicator button (9) on the display or use the voice command (see "Voice Control").

• Select a temperature mode (cold, soft, hot) using the button or voice command.

• Dry the hair. Style it, if necessary.

• Move the switch to the ⬆ position.
• Unplug the device.

Cleaning and Maintenance

ATTENTION! Clean the device only after unplugging it and letting it cool down completely.

Cleaning the casing, nozzles, and attachments. Wipe the casing of the device, nozzles, and attachments with a soft cloth dampened in clean water, then wipe dr

Cleaning the air inlet grille and filter. The grille (7) and filter trap dust and hair that may enter the device during use and storage. To maintain stable operation of the device, the grille and filter should be cleaned 1–2 times a month as follows: aeno.com/documents 13

• Pull the air inlet grille down.

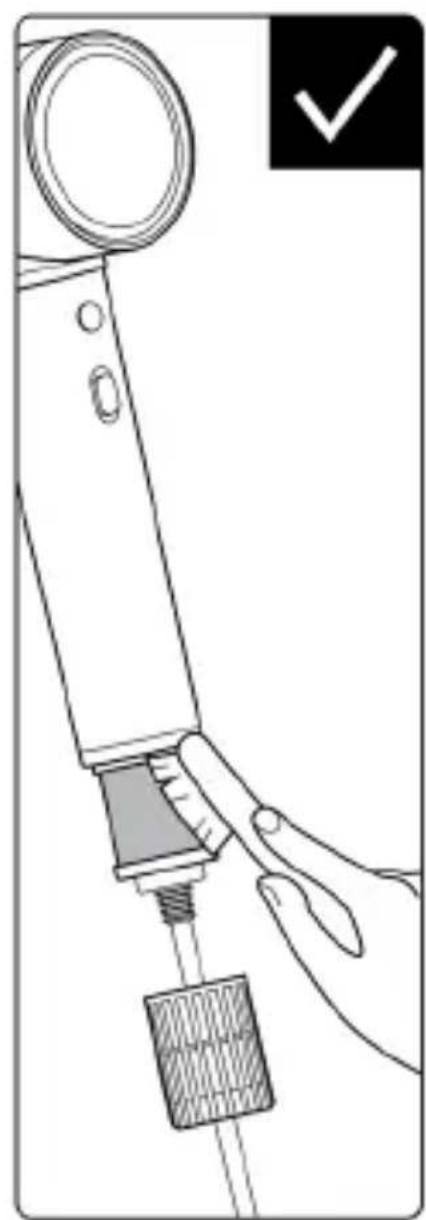

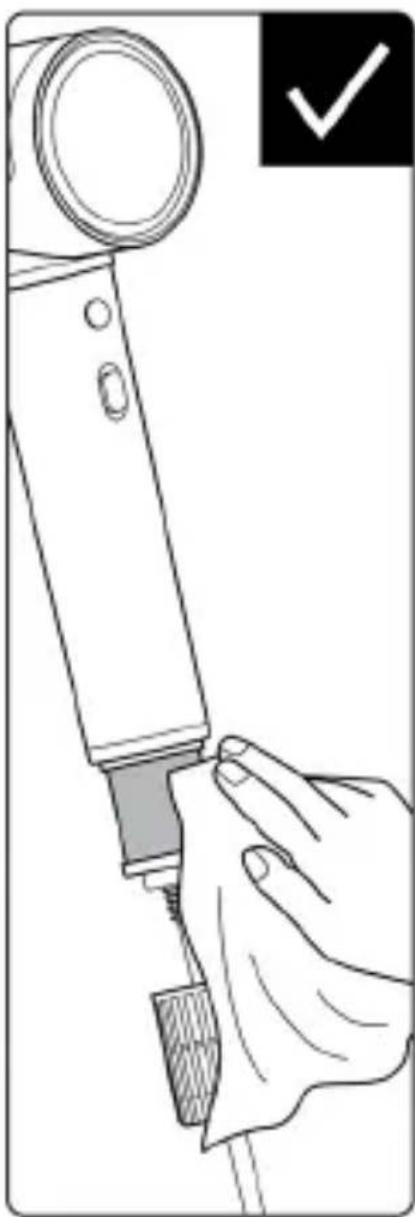

• Clean the grille and filter with a soft, dry cloth or a soft brush (see Fig. D).

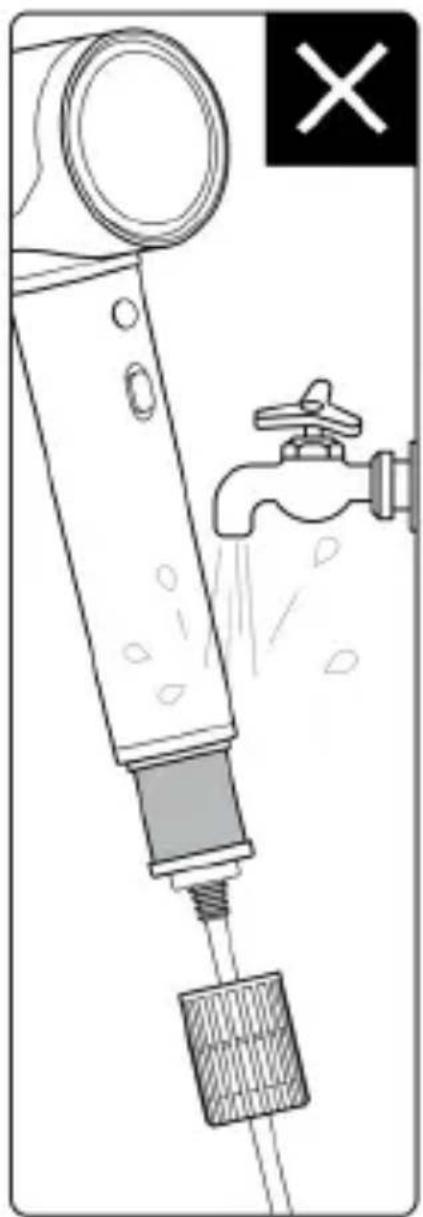

  ATTENTION! Do not wash the grille and filter with water.

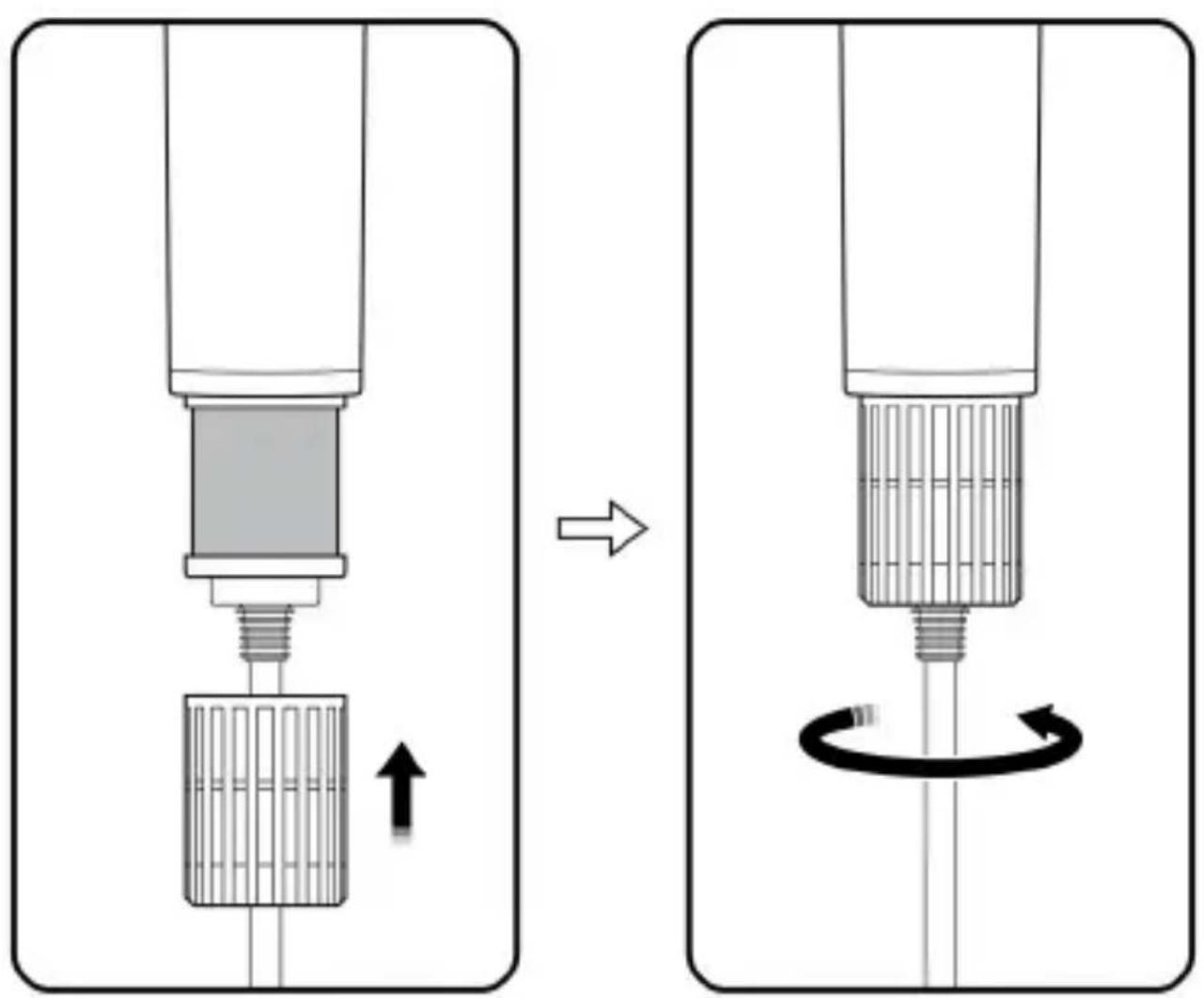

• Place the grille back (see Fig. E). You will hear a click when it is properly installed.

Troubleshooting

The device does not turn on. Possible causes: the socket and/or power cord is defective. Solution: check the socket by plugging another device into it, if necessary, plug the device into a working socket; check the integrity of the power cord.

The device does not recognize voice commands. Possible cause: a command unfamiliar to the device is used. Solution: use only those commands that the device can recognize (see "Voice Commands List").

Weak airflow. Possible causes: wrong speed mode is selected; there are foreign objects in the nozzle/attachment. Solution: select the desired speed mode using the switch; unplug the device, allow it to cool down completely, then remove and clean the nozzle/attachment.

ATTENTION! If none of the suggested solutions helped you eliminate the problem, contact the supplier or an authorized service center. Do not disassemble the device or attempt to repair it yourself.

Error Codes

E1, E2. Cause: mains voltage is too low/high. Solution: make sure that the rated voltage indicated in the technical specifications corresponds to the parameters of the electrical network.
E3. Cause: the device is overheating. Solution: unplug the device and allow it to cool down completely. Then clean the grille and filter (see “Cleaning the air inlet grille and filter”). Do not cover the air inlet grille while using the device.
E4, E5, E6, E7. Cause: the motor or PCBA is defective. Solution: contact the supplier or an authorized service center.

14 aeno.com/documents

" Soft on . "م Botshgil Alaoqng aladaf"

"Hot on " I'qcm bytshgil lao u sgo laa sao hcn

Uwnph distinguwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnnn

1. 2qn12nptü puugtp ühwətɪpəwɪlnpnɪŋ l u huʌtɪp uwnpü ni puənwənhʒʌtənn:
2. <tnwqntp yhwətprəwulnpuufu yjnlətyn: <tnwqntp ywwzunwuhhəwunwupn lynwuhg (2):
3. Uwpntp uwnph wwnjwün l u qhuwnhnputpn (unt'u «Uwpnnluf l huàwúp»):

80 aeno.com/documents

Uwnph 2whwqnpdnlup

1. Lüunptp wühpwdtzun qihwnhhp l ühwgntp wja uwnphà, uhhúlu wja lqnnuu: Uwnpp lqwntqh t oqnwwqnndtì fawl wnwág qihwnhph:

ФСУРНФЗНГ: Уротиліє і тнунплі distingu htinugutі quhuunhputn, tpp uwnpn uhwgulud t: qhuunhprntnuptinig uwnw duhuwutu utpnp t wúgwunti qupuwhwnwnphn: qhuunhprhtnugutinig uwnw utpnp t wúgwunti qupuwhwnwnphn l u uwwutl, uhsülu uwnpn l a qhuunhprn jhnulhu uwnstü:

g w z o ωs z g w z y o

zombm30, dmhymdommdol zsdmygbdsdoy yymsqmydom fsozombom ju qmzydgb0. djobsbgm ju oblygmyj3os dmdszsmdo zsdmlsygbdmosq.

yŋmɔŋgɔs! yŋbɔn qɔs bɔs bɔdɔu ̓nɔʒo!

gynfsqngd5! sm gsdmygbmom dmhymdommds hymol dsbmmdmsco sbsbsbddo, lsadszggddo, sybgddo qos s.d.

ENG ASBISC reserves the right to modify the device and to make changes and additions to this document without prior notice to users.

The warranty period and service life is 2 years from the date of retail sale of the device.

Manufacturer: ASBISC Enterprises PLC, Iapetou, 1, Agios Athanasios, 4101, Limassol, Cyprus. Made in China. All trademarks and brands mentioned herein are the property of their respective owners. The date of manufacture is indicated on the package.

Up-to-date information and a detailed description of the device, as well as connection instructions, certificates, information on companies that accept quality claims and warranties is available at aeno.com/documents. This device complies with applicable safety requirements.

RoHS Directive. The device complies with the requirements of the Directive 2011/65/EU on the Restriction of Hazardous Substances (RoHS), including the requirements of the RoHS Directive 2015/863/EU.

ENC Recycling information. This symbol indicates that you must follow the Waste Electrical and Electronic Equipment (WEEE) and Waste Battery and Battery Regulations when disposing of the device, its batteries and accumulators, and its electrical and electronic accessories. According to the rules, this equipment must be disposed of separately at the end of its service life. Do not dispose of the device, its batteries and accumulators, or its electrical and electronic accessories together with unsorted municipal waste, as this will harm the environment. To dispose of this equipment, it must be returned to the point of sale or turned in to a local recycling facility. You should contact your local household waste disposal service for details.
